| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A/B |
| Ballasting Requirements | Ballast required (Type A) or Ballast Bypass (Type B) |
| Dimmable Text | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | Linear |
| Status | Active |
| Style | Utility |
| Total Harmonic Distortion | 20% |

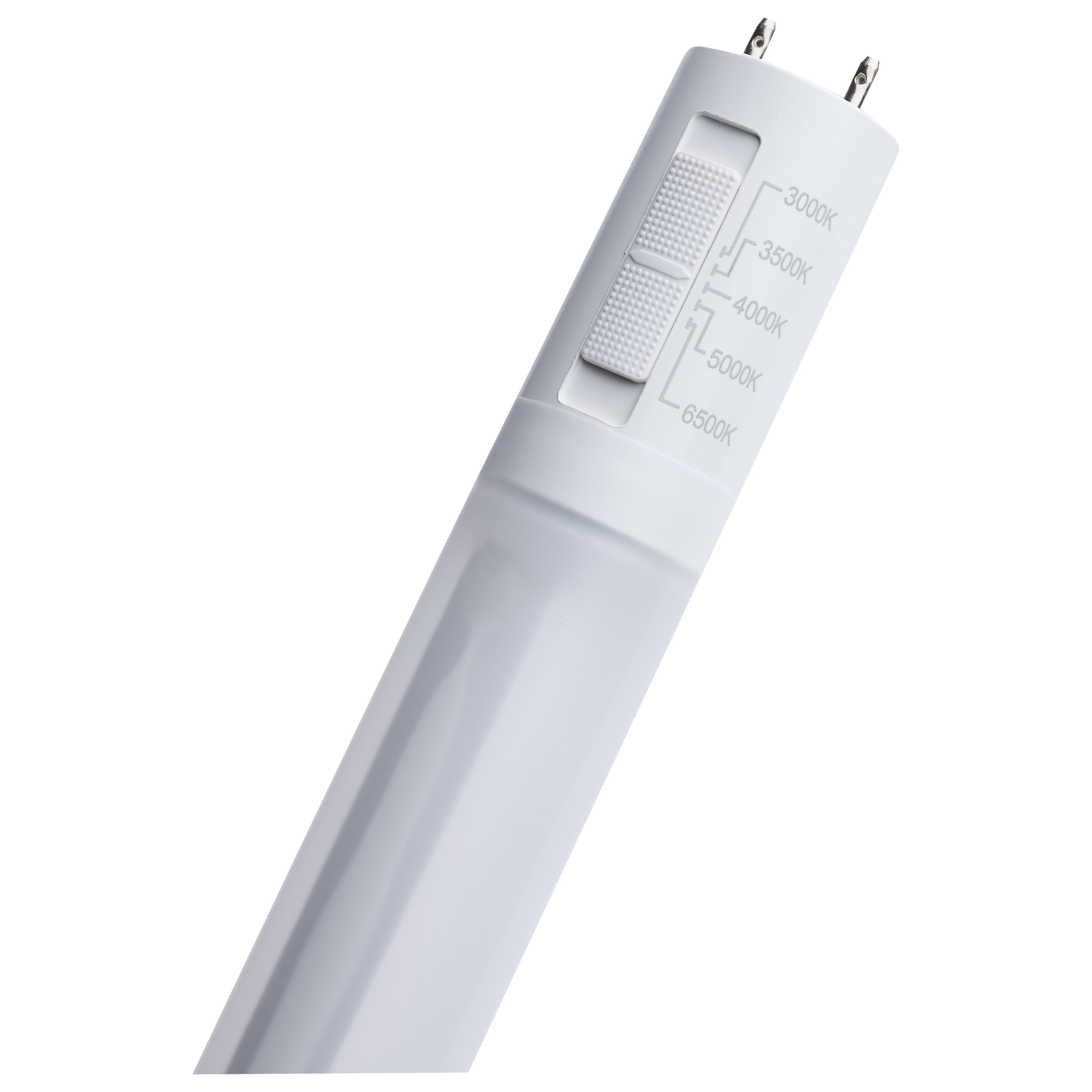

| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.092-0.040A |
| Has Camera | No |
| IOT Enabled | No |
| Nominal Length | 36.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 21W/25W |
| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 170 |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Dimming Type | Check Ballast MFG for Dimmer Compatibility, Only in Type A mode |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

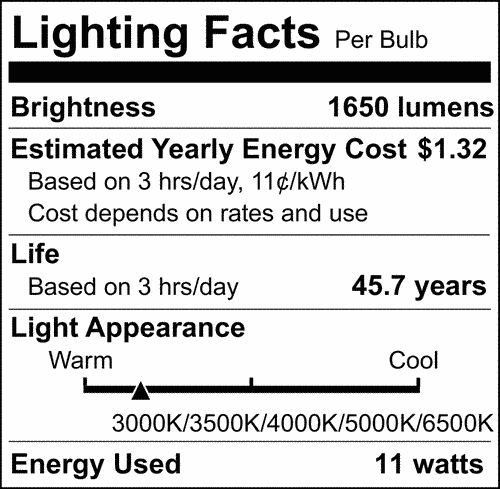

| Lumens | 1650L |
| Volts | 120V-277V |
| Watts | 11W |
| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |
| MOL | 36.61 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| DLC ID | S-DTLYVZ |
|---|---|
| FCC Compliant | Yes |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923217616 |
|---|---|
| Case Cube | 0.7151 |
| Case Height | 5.75 |
| Case Length | 36.61 |
| Case Quantity | 25 |
| Case UPC | 10045923217613 |
| Case Weight | 10.6 |
| Case Width | 5.87 |
| EA Cube | 0.0212 |
| EA Height | 1.0 |
| EA Length | 36.61 |
| EA Quantity | 1 |
| EA Weight | 0.41 |
| EA Width | 1.0 |
| Inner Cube | 0.0 |
| Pack Type | Sleeve |
| Web Length | 36.61 |
| Web Width | 1.0 |
