12T8/LED/48-5CCT/DM/BP-DR - S21762
12T8/LED/48-5CCT/DM/BP-DR - S21762
12T8/LED/48-5CCT/DM/BP-DR - S21762
S21762

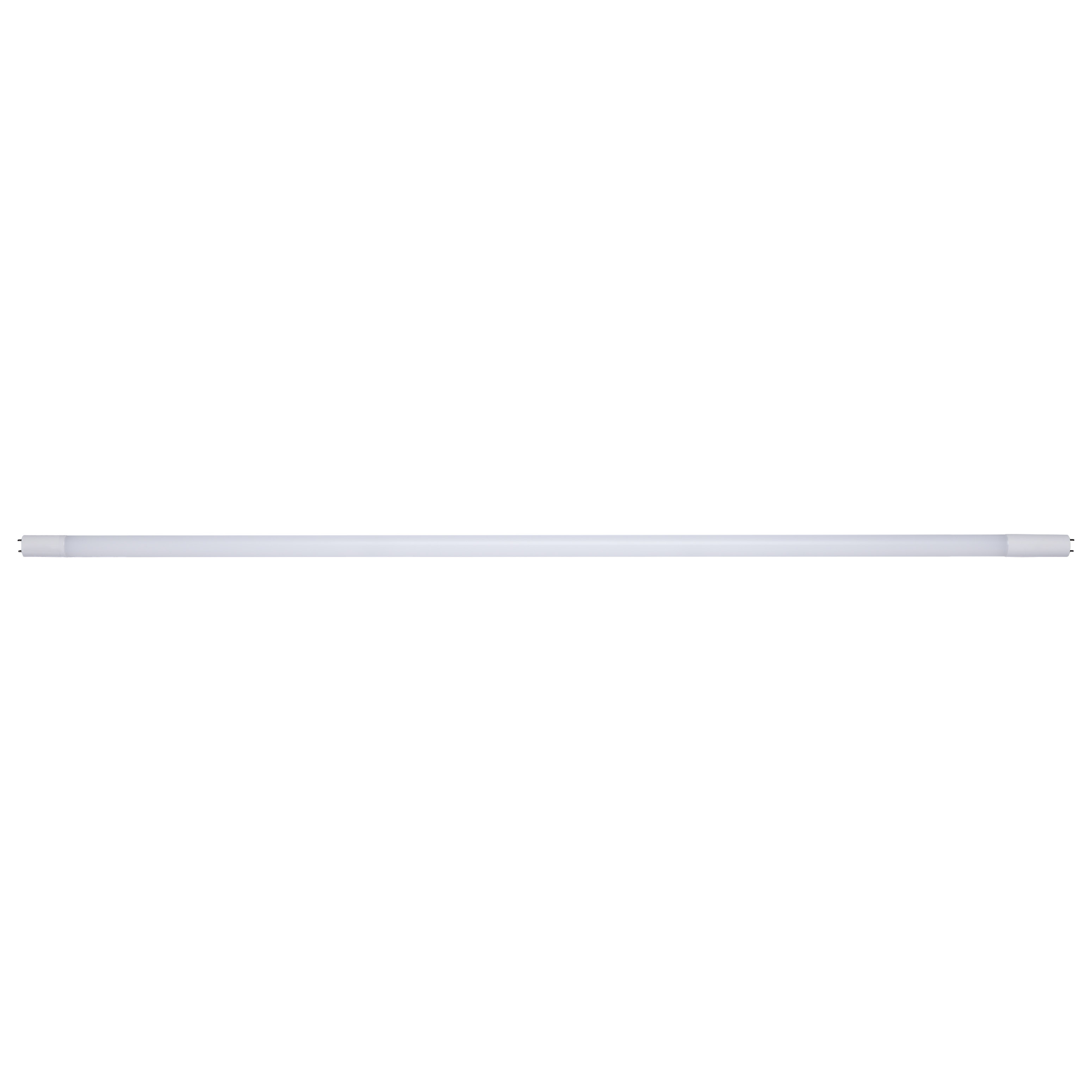

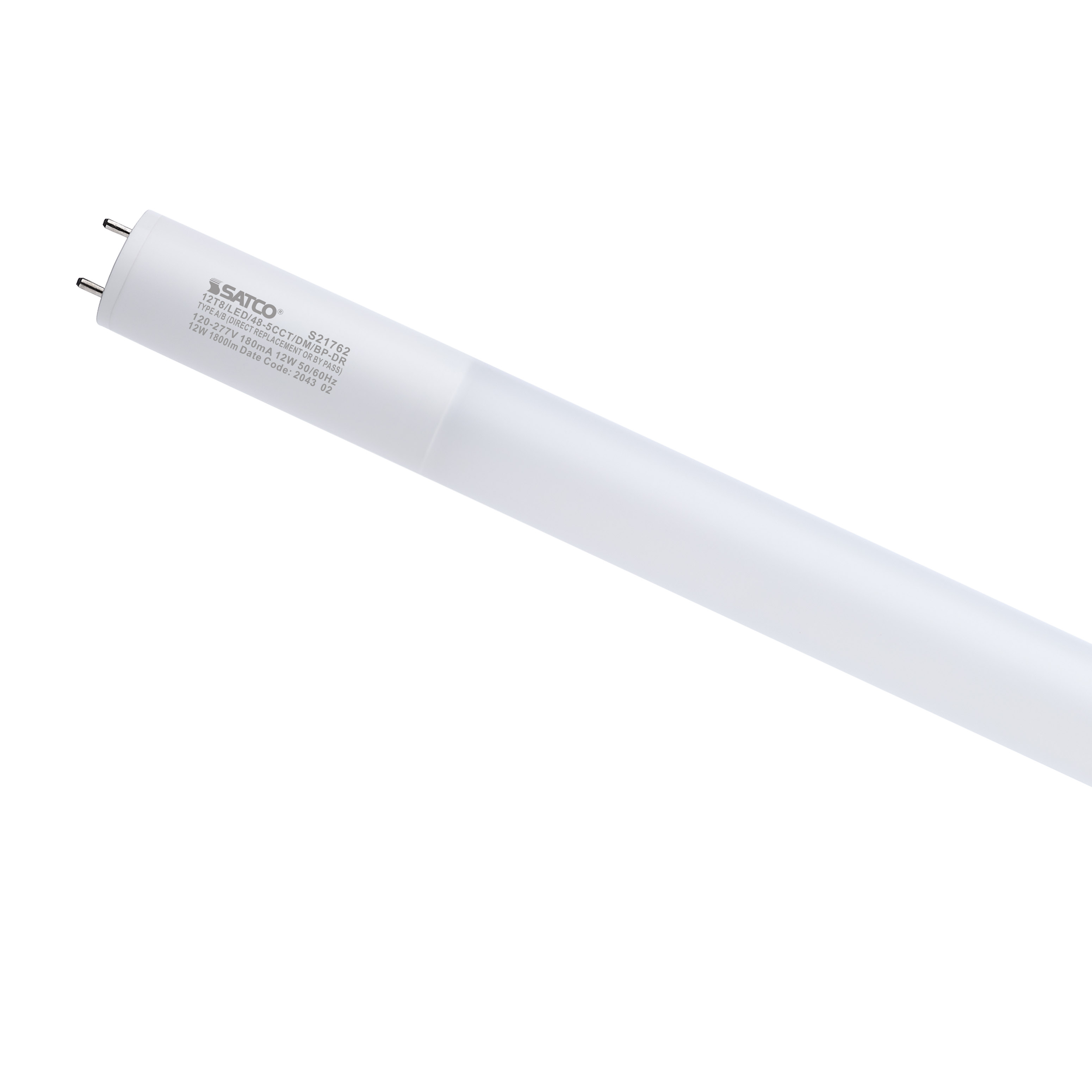

12T8/LED/48-5CCT/DM/BP-DR

  • 12 Watt T8 LED
  • 48-Inch

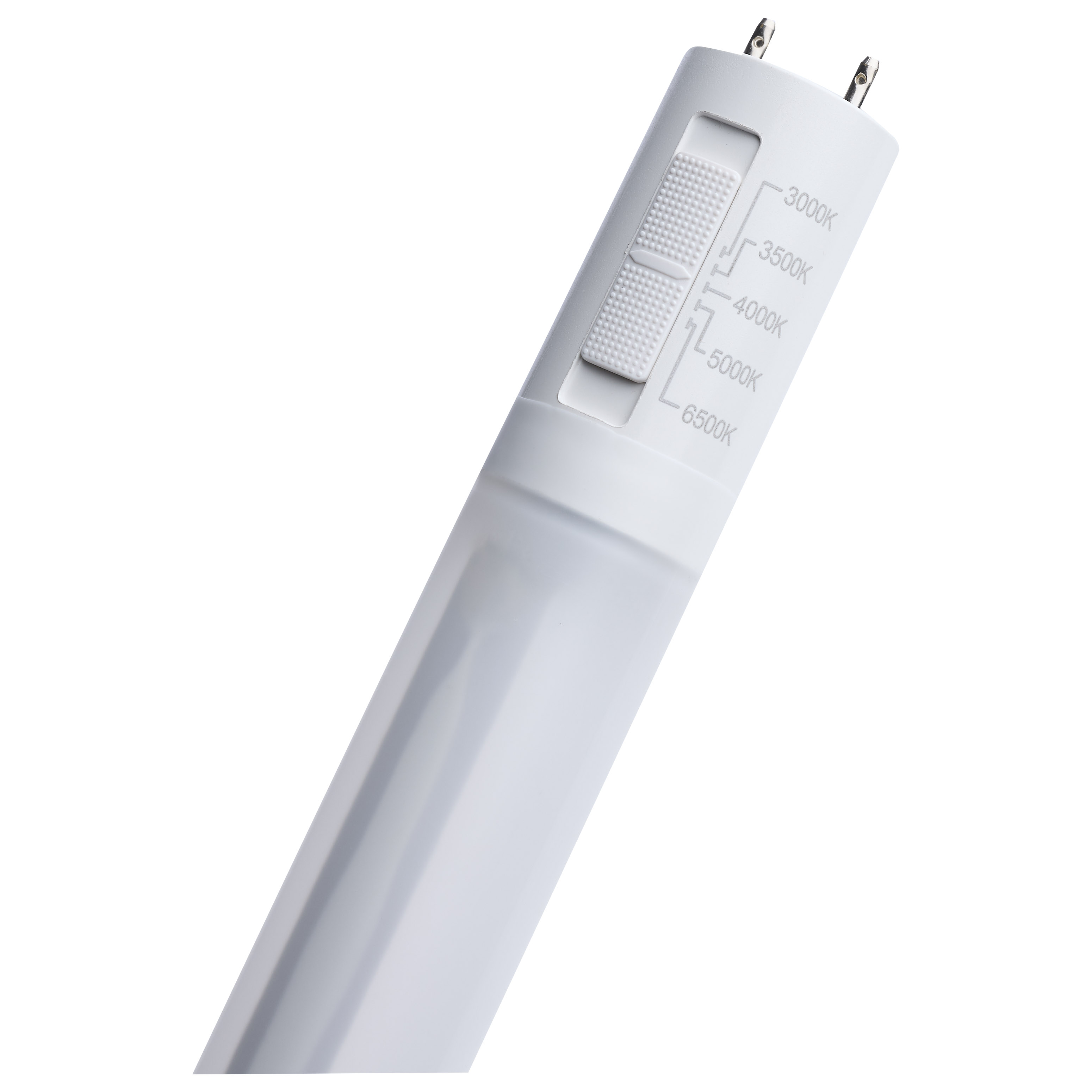

  • 30K/35K/40K/50K/65K CCT Selectable
  • G13 Base
  • Ballast Type A/B
  • Frost Finish
  • 120-277 Ranged Voltage
  • Glass with PET Coating
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S21762 SpecificationsS21762 Ballast Compatibility Chart.pdfS21762 Instructions.pdf
Description
Description
12 Watt T8 LED; 48-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost Finish; 120-277 Ranged Voltage; Glass with PET Coating
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A/B
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Dimmable TextOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Total Harmonic Distortion20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.100-0.043A
Has CameraNo
IOT EnabledNo
Nominal Length48.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv25W/28W/30W/32W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)170
Color TempSoft White to Daylight
CRI80+
Dimming TypeCheck Ballast MFG for Dimmer Compatibility, Only in Type A mode
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

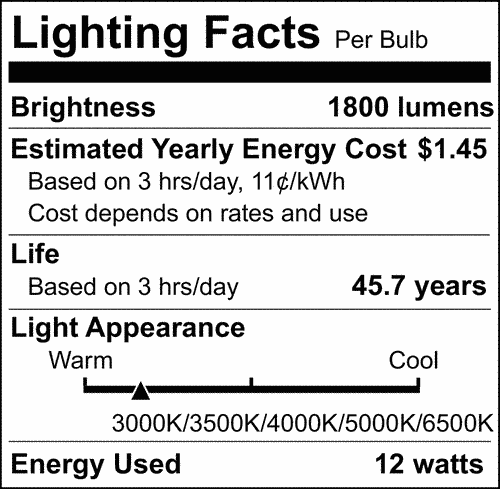

Lumens1800L
Volts120V-277V
Watts12W
Physical
Lamp BaseMedium Bi Pin
FinishFrost
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL48.67
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-75NDW8
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923217623
Case Cube0.9505
Case Height5.75
Case Length48.66
Case Quantity25
Case UPC10045923217620
Case Weight13.44
Case Width5.87
EA Cube0.0282
EA Height1.0
EA Length48.67
EA Quantity1
EA Weight0.49
EA Width1.0
Inner Cube0.0
Pack TypeSleeve
Web Length48.67
Web Width1.0
