| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A |
| Ballasting Requirements | Ballast required, check compatibility |
| Dimmable Text | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | Linear |
| Status | Active |
| Style | Utility |
| Total Harmonic Distortion | <20% |

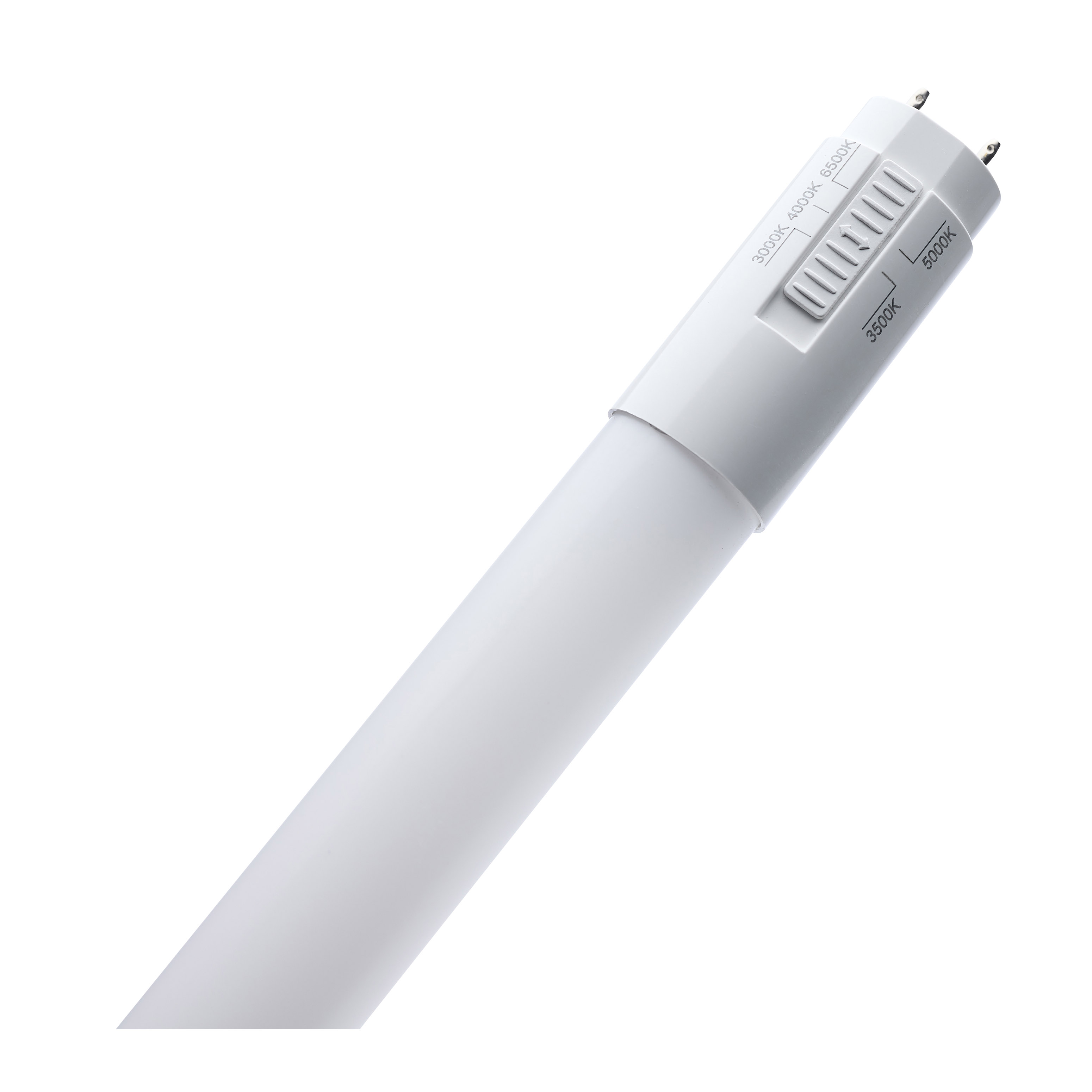

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.083-0.036A |
| Has Camera | False |
| IOT Enabled | False |
| Nominal Length | 48.0 |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 32W/30W/28W/25W |
| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 220 |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Dimming Type | Phase cut |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 1700L/1750L/1850L/1850L/1800L |
| Volts | Ballast Dependent |
| Watts | 10W |
| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |
| MOL | 47.78 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-6222FT |
| FCC Compliant | True |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923219177 |
|---|---|
| Case Cube | 1.2582 |
| Case Height | 6.69 |
| Case Length | 50.0 |
| Case Quantity | 25 |
| Case UPC | 10045923219174 |
| Case Weight | 16.76 |
| Case Width | 6.5 |
| EA Cube | 0.0387 |
| EA Height | 1.18 |
| EA Length | 48.0 |
| EA Quantity | 1 |
| EA Weight | 0.53 |
| EA Width | 1.18 |
| Inner Cube | 0.0 |
| Pack Type | Sleeve |
| Web Length | 47.78 |
| Web Width | 1.0 |
