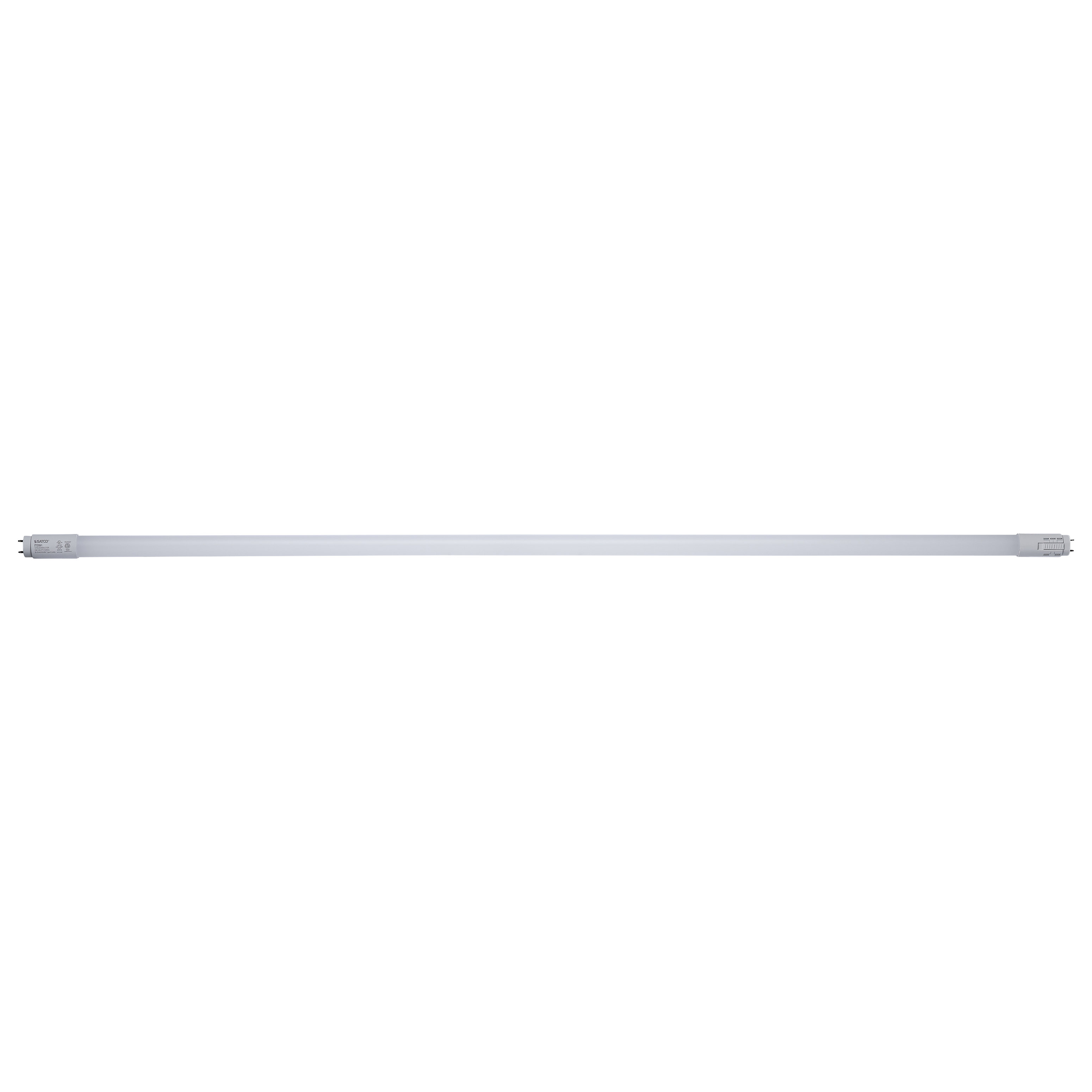

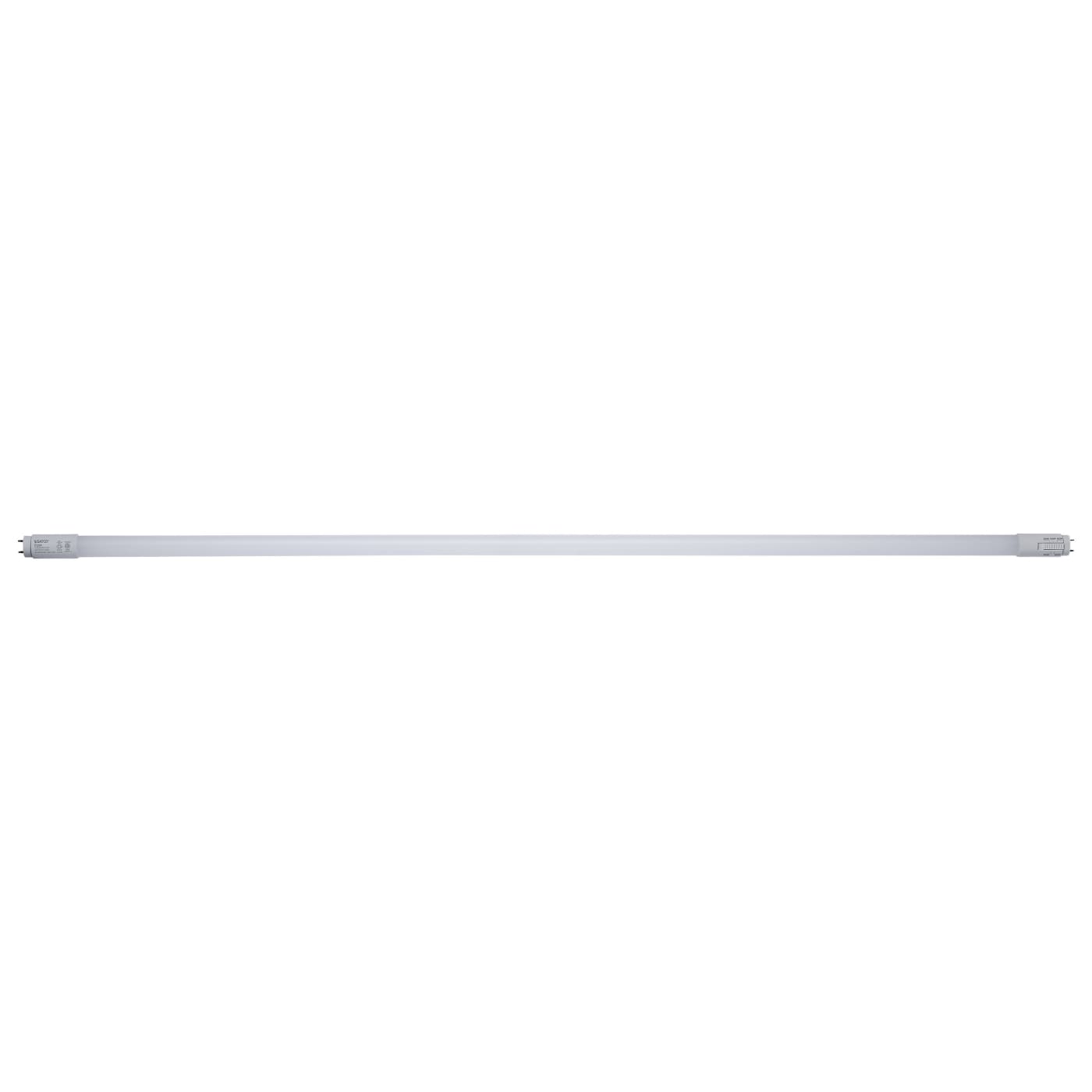

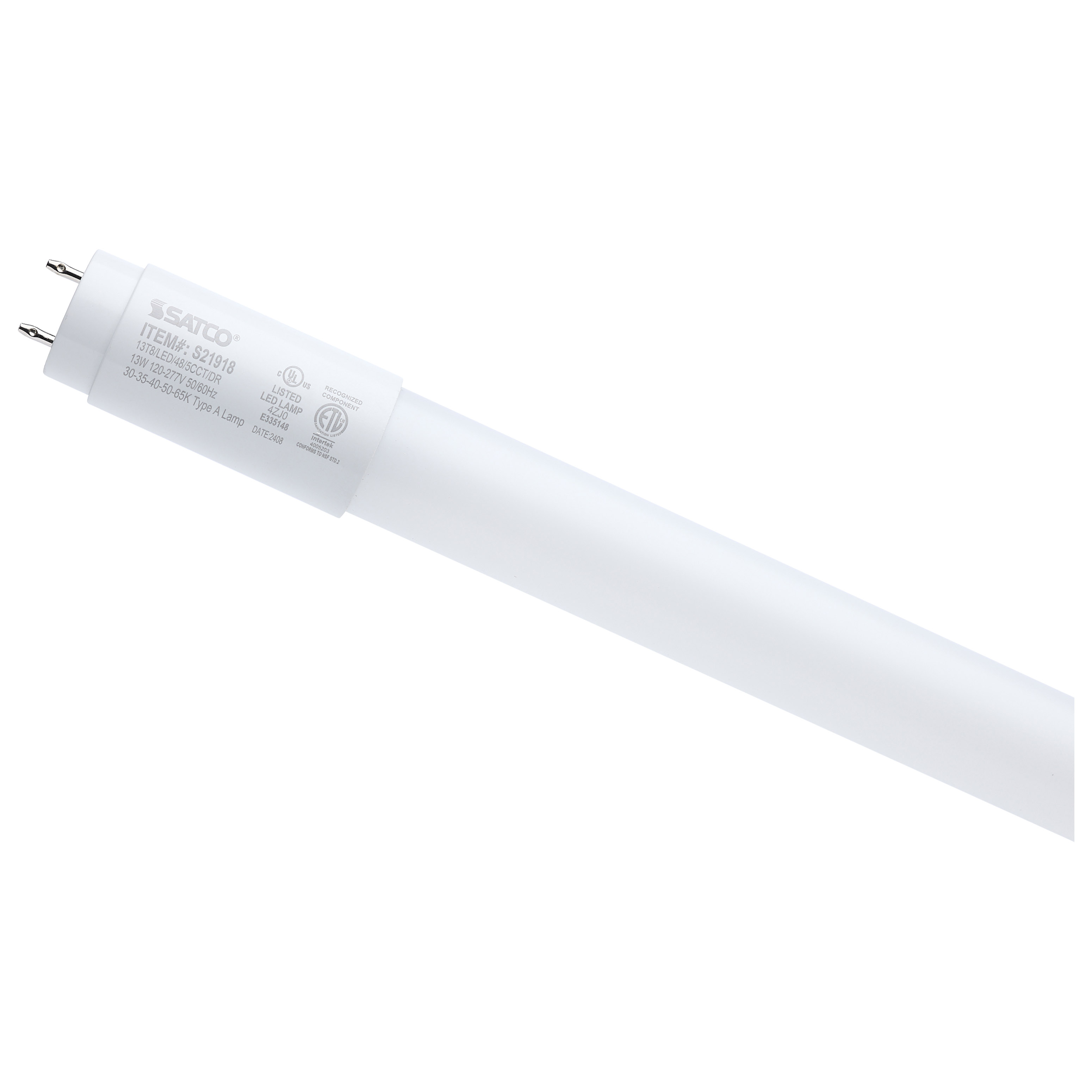

13T8/LED/48/5CCT/DR - S21918
13T8/LED/48/5CCT/DR - S21918
13T8/LED/48/5CCT/DR - S21918
S21918

13T8/LED/48/5CCT/DR

  • 13 Watt
  • 4 Foot T8 LED
  • G13 Base

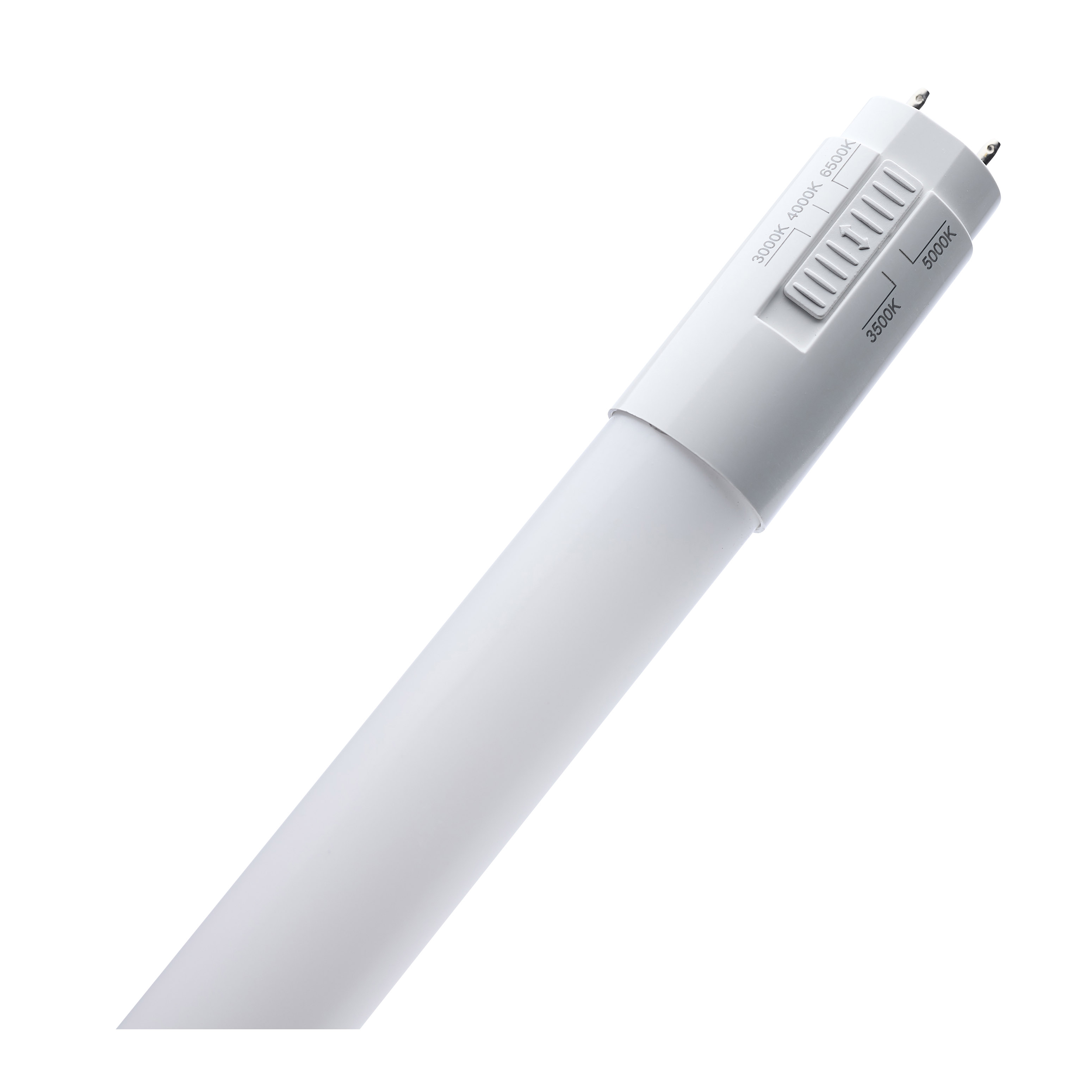

  • 30K/35K/40K/50K/65K CCT Selectable
  • Type A
  • Frost
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S21918 SpecificationsS21918 Ballast Compatibility Chart.pdfS21918 Ballast Compatibility Chart 2.pdf
Description
Description
13 Watt; 4 Foot T8 LED; G13 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A; Frost
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A
Ballasting RequirementsBallast required, check compatibility
Dimmable TextCheck Ballast MFG for Dimmer Compatibility
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.108-0.047A
Has CameraNo
IOT EnabledNo
Nominal Length48.0
Power Factor>0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W/30W/28W/25W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)220
Color TempSoft White to Daylight
CRI80+
Dimming TypeCheck Ballast MFG for Dimmer Compatibility
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens2100L/2150L/2250L/2250L/2200L
VoltsBallast Dependent
Watts13W
Physical
Lamp BaseMedium Bi Pin
FinishFrost
Housing ColorWhite
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL47.78
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-54T8SL
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923219184
Case Cube1.2582
Case Height6.69
Case Length50.0
Case Quantity25
Case UPC10045923219181
Case Weight16.76
Case Width6.5
EA Cube0.0387
EA Height1.18
EA Length48.0
EA Quantity1
EA Weight0.53
EA Width1.18
Pack TypeSleeve
Web Length47.78
Web Width1.0
