| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Material | Glass / Polycarbonate (PC) |
| Fixture Type | Miniature |
| Status | Active |
| Surge Protection | Built-in surge protection - 1KV |
| Total Harmonic Distortion | <25% |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.100-0.030A |
| Nominal Length | 36.0 |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 21W/25W |

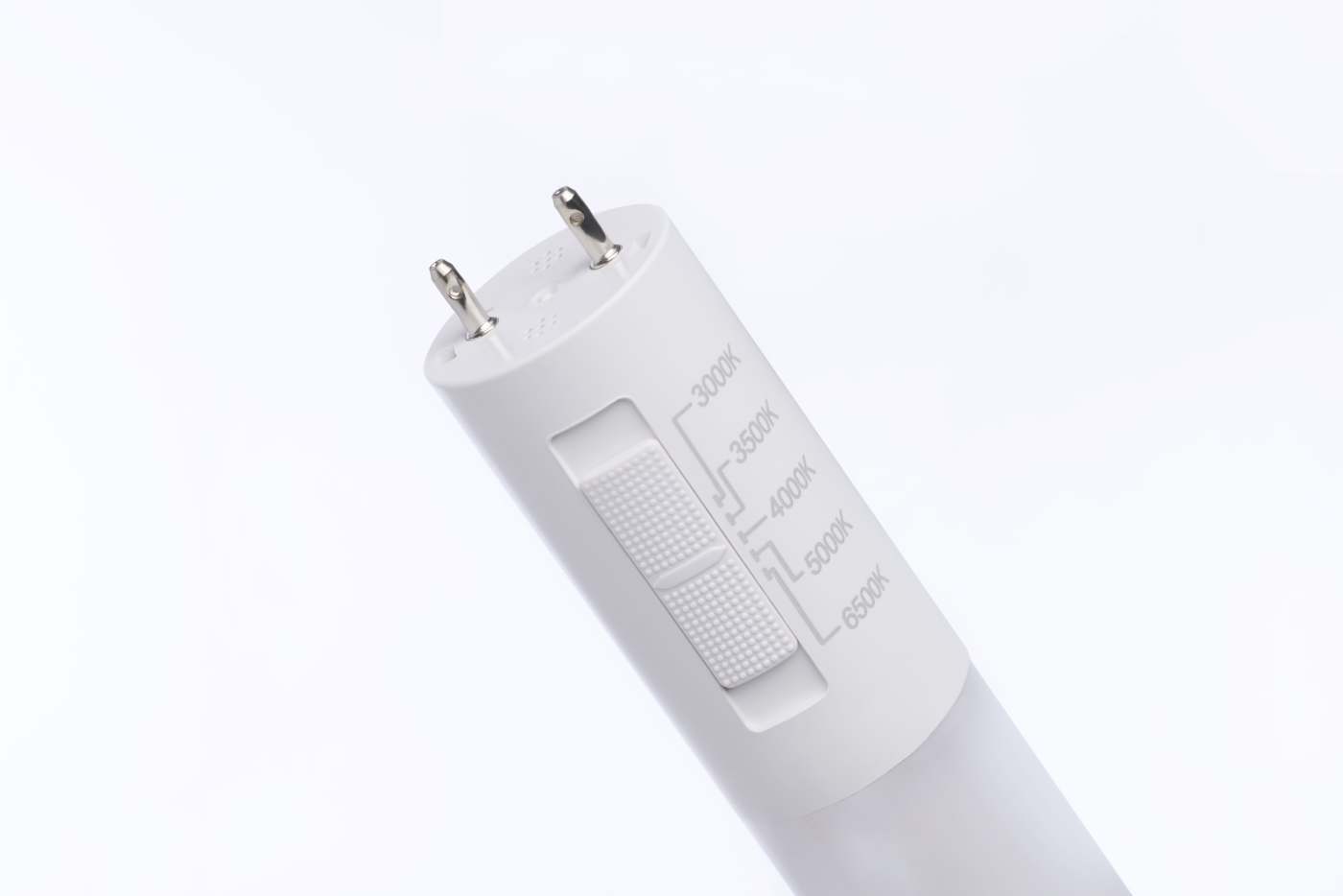

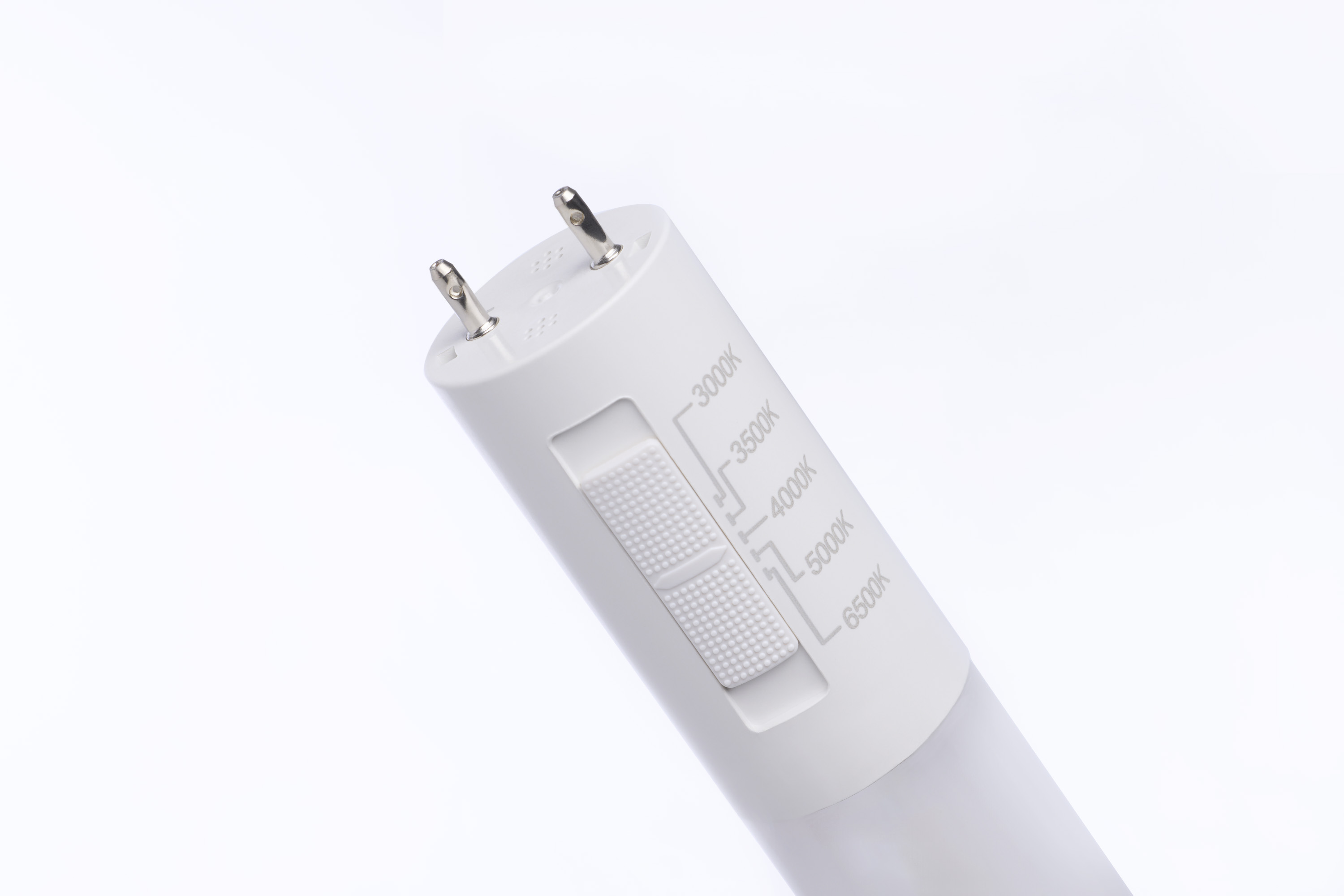

| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 210 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Lumens | 1600L |
| Volts | 120V-347V |
| Watts | 12W |

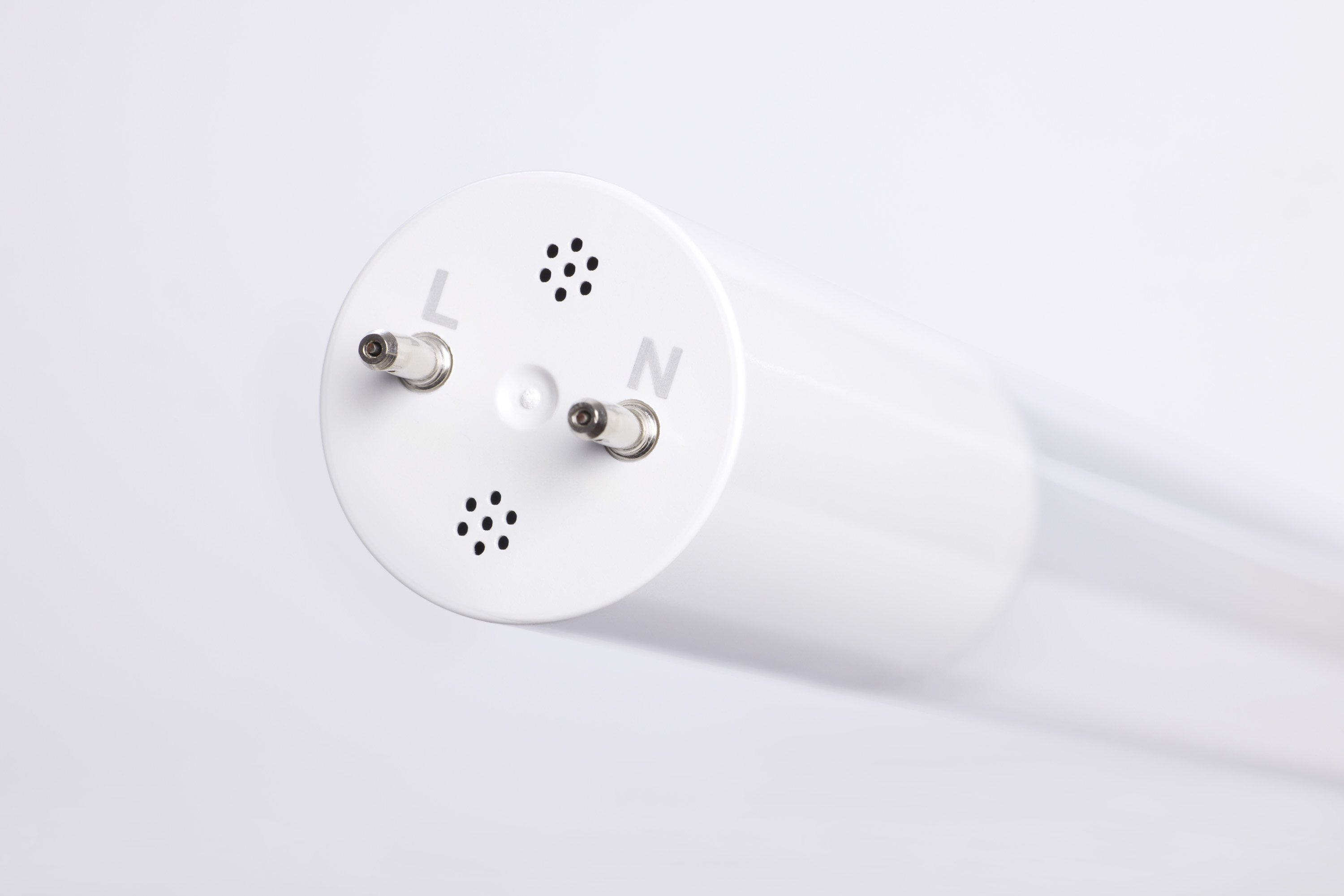

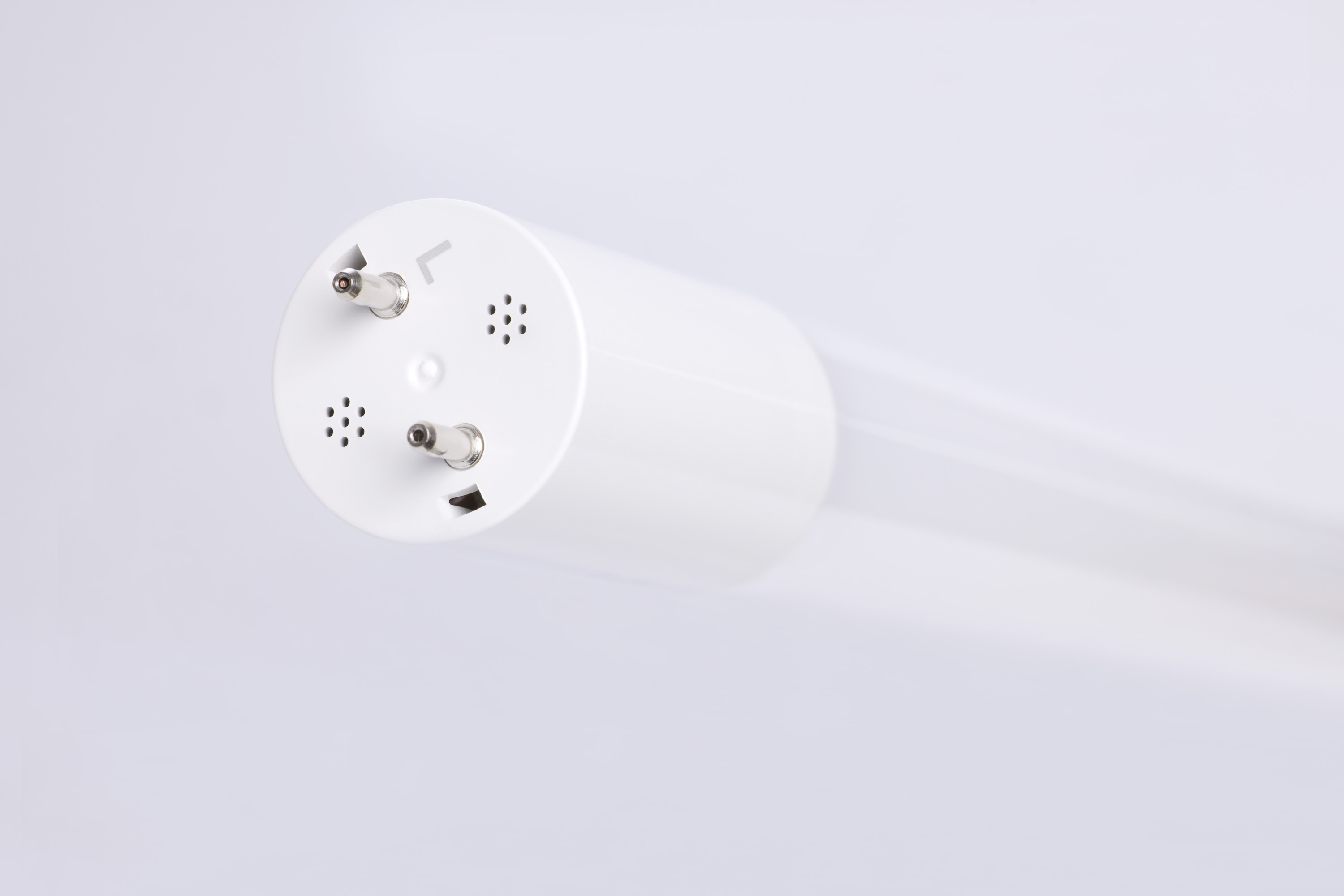

| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | Frost |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |

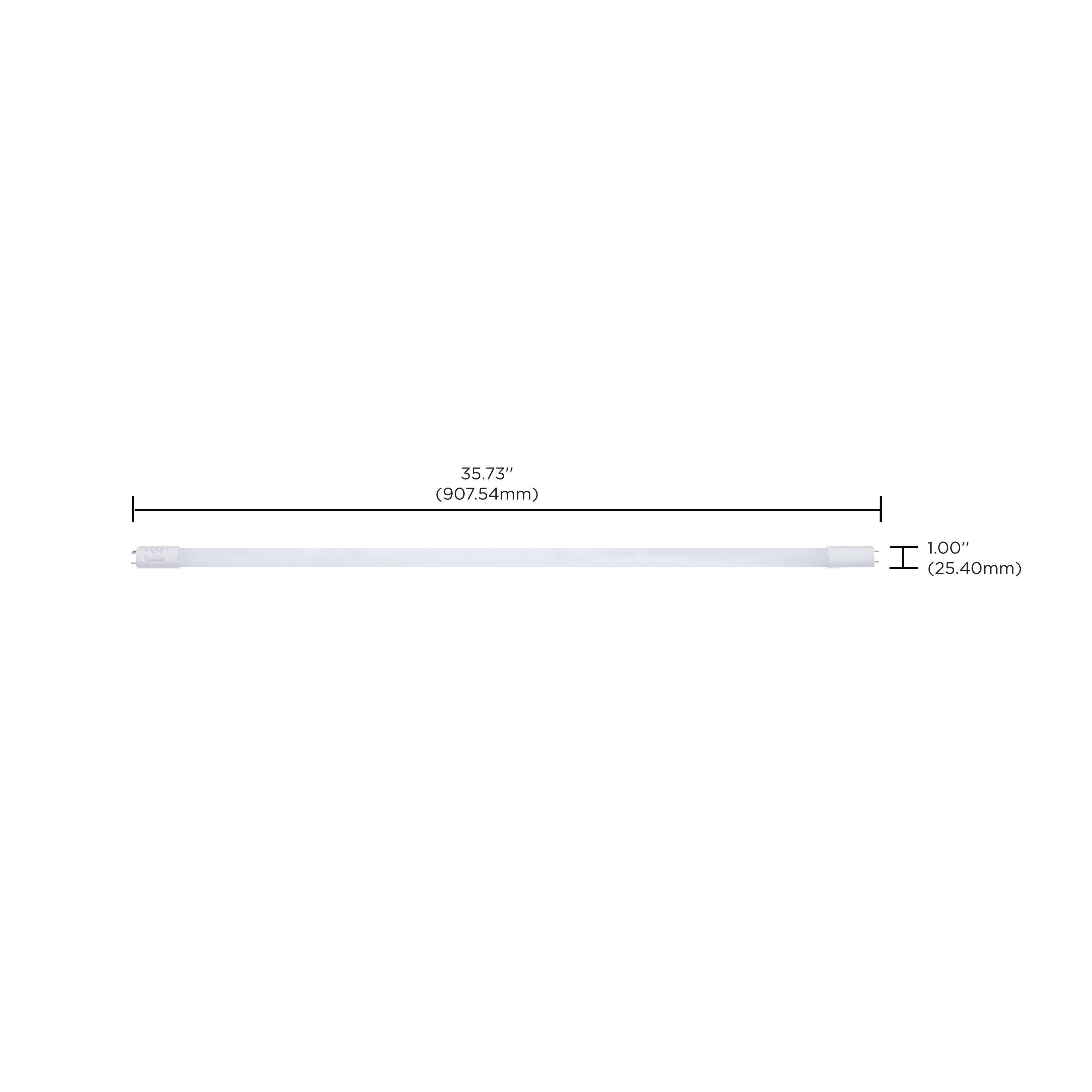

| MOL | 35.73 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | No |
| Flicker Free | No |
|---|
| Air Tight | No |
|---|---|
| CA Prop 65 | Lead |
| Dark Sky Rated | No |
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Listed |
| California Ban | Lawful for sale |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| UPC | 045923414428 |
|---|---|
| Case Cube | 0.7151 |
| Case Height | 5.87 |
| Case Length | 36.61 |
| Case Quantity | 25 |
| Case UPC | 10045923414425 |
| Case Weight | 10.71 |
| Case Width | 5.75 |
| EA Cube | 0.0251 |
| EA Height | 1.1 |
| EA Length | 35.78 |
| EA Quantity | 1 |
| EA Weight | 0.41 |
| EA Width | 1.1 |
| Pack Type | Sleeve |
| Web Length | 35.73 |
| Web Width | 1.0 |
