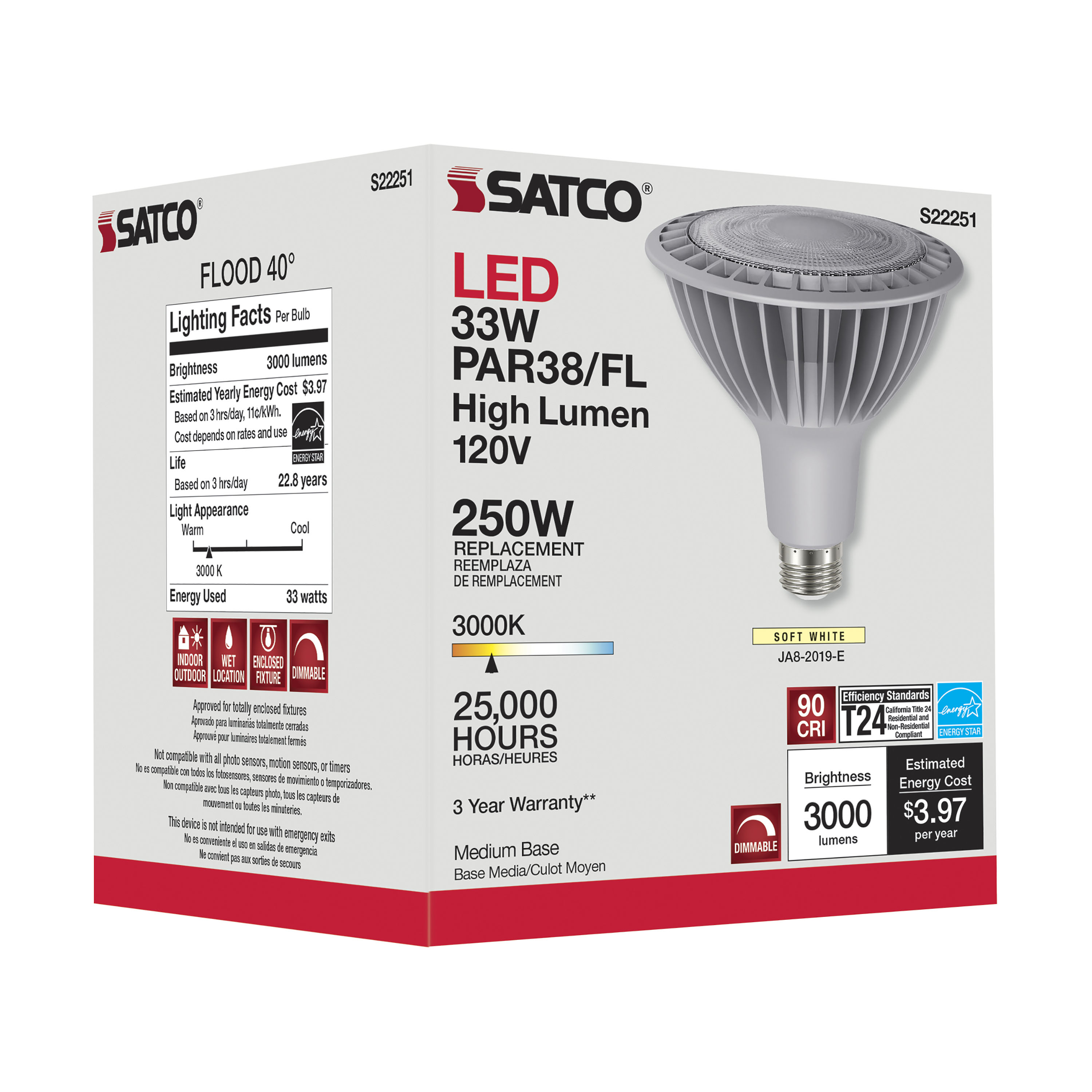

S22251

33PAR38/LED/930/HL/120V/FL/D

Discontinued - Suggested Replacement: S32250

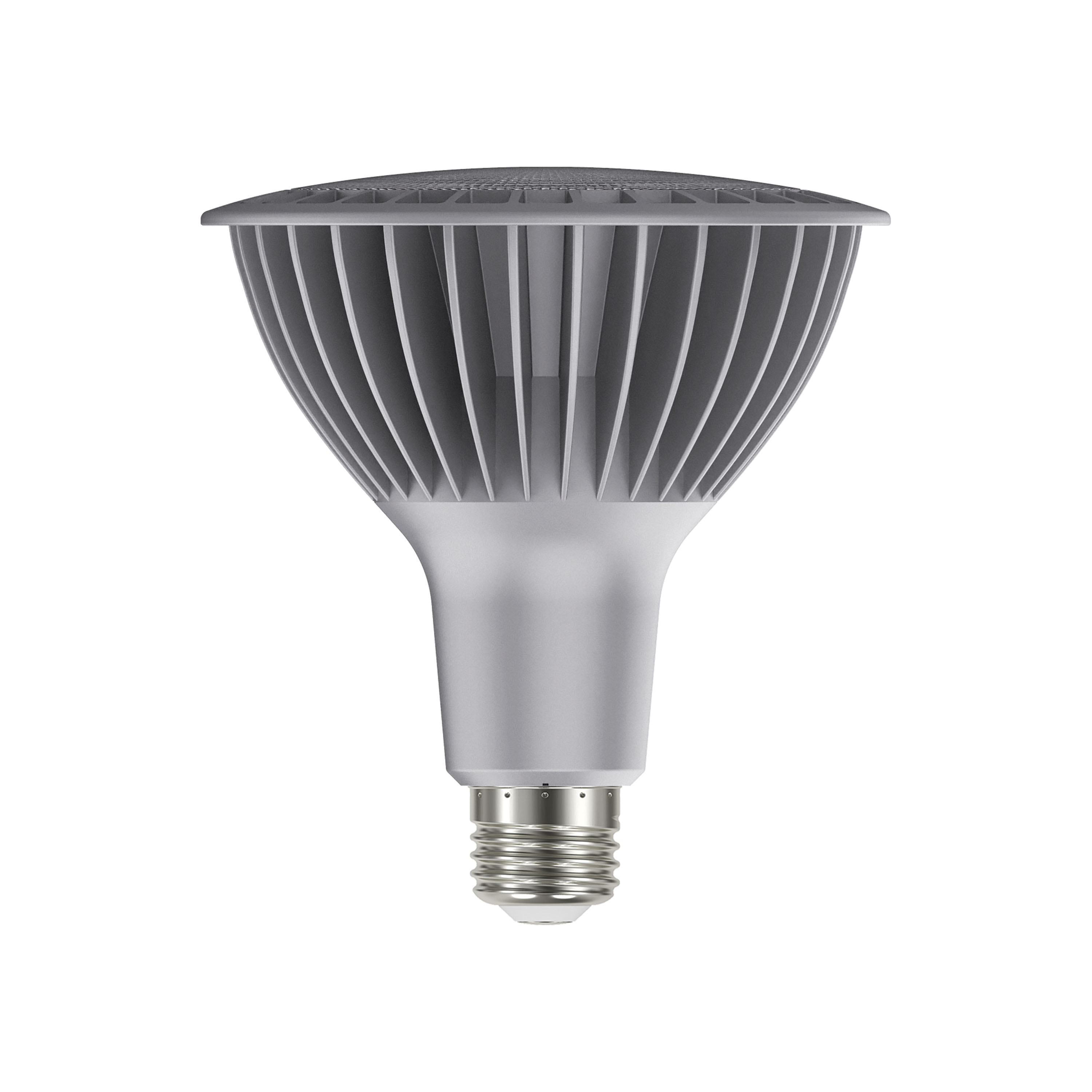

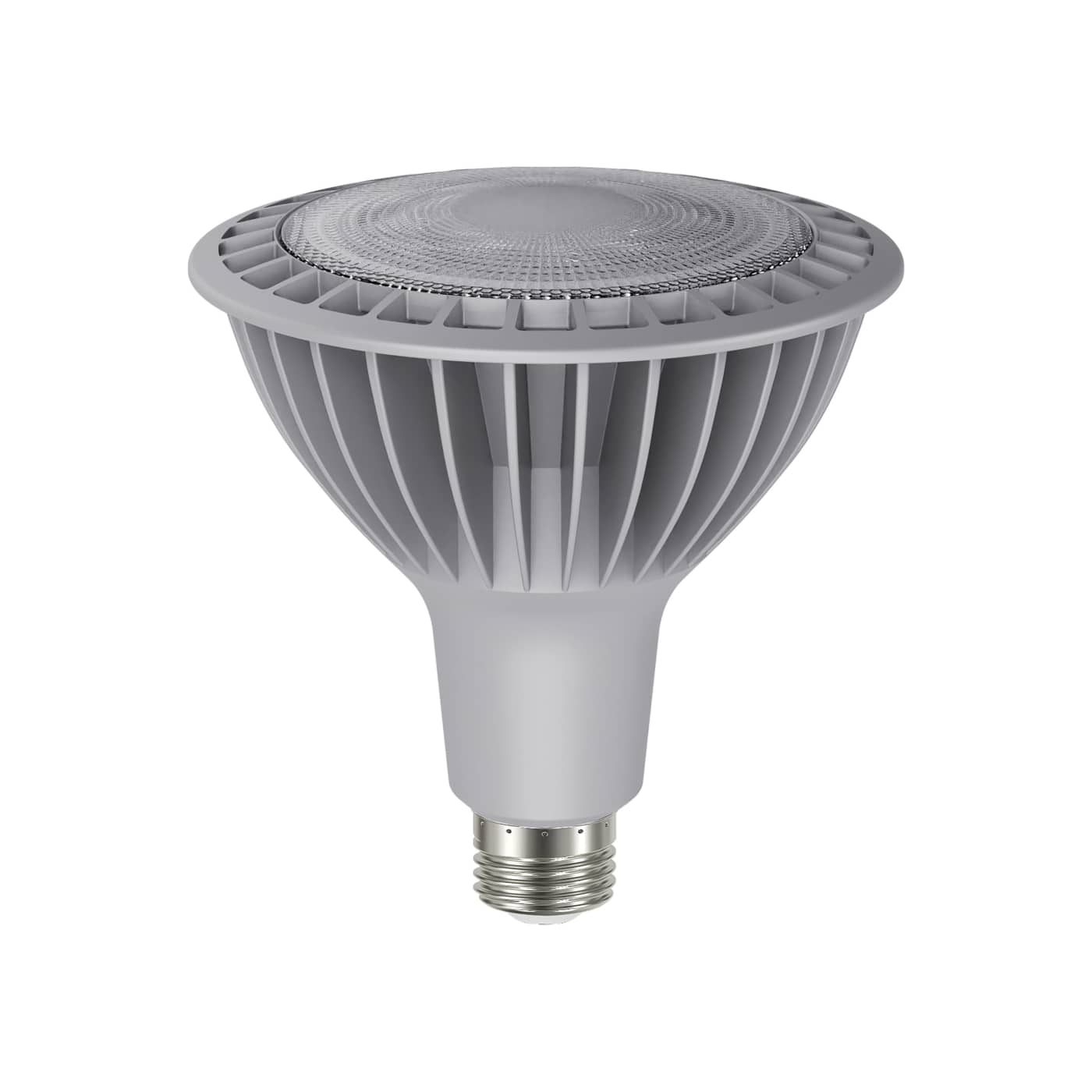

  • 33 Watt PAR38 High Lumen LED
  • 3000K
  • Medium base
  • 120 Volt
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S22251 SpecificationsNEW! HIGH LUMEN LED PAR LAMPSS22251 Photometrics.ies
Tools
Lighting Layout Analysis For S22251
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
33 Watt PAR38 High Lumen LED; 3000K; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypePAR
Spot TypeFL - Flood
StatusDiscontinued
StyleUtility
Most Current GenerationS32250
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilySilver
Amps0.275A
Has CameraFalse
IOT EnabledFalse
Lens FinishSilver
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000

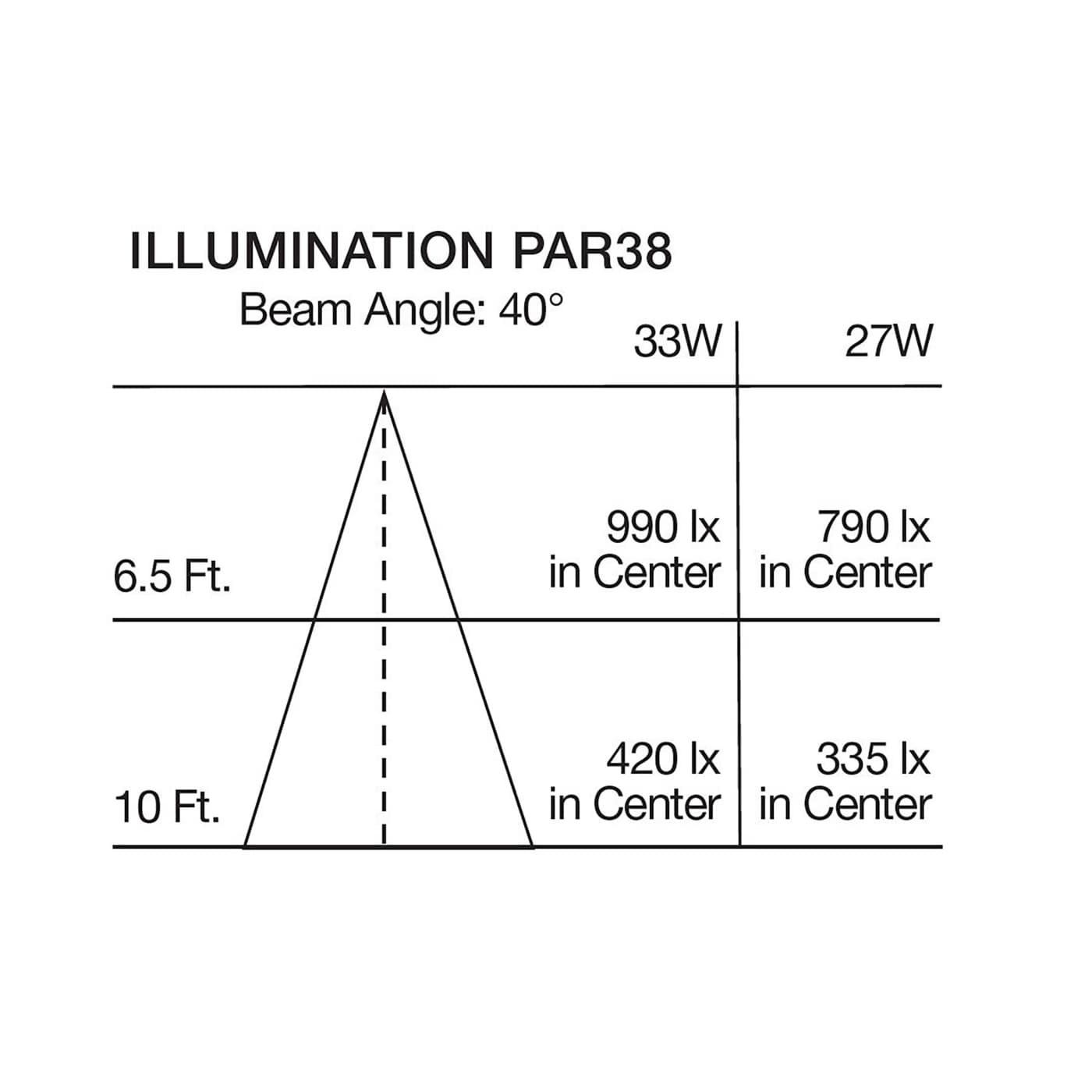

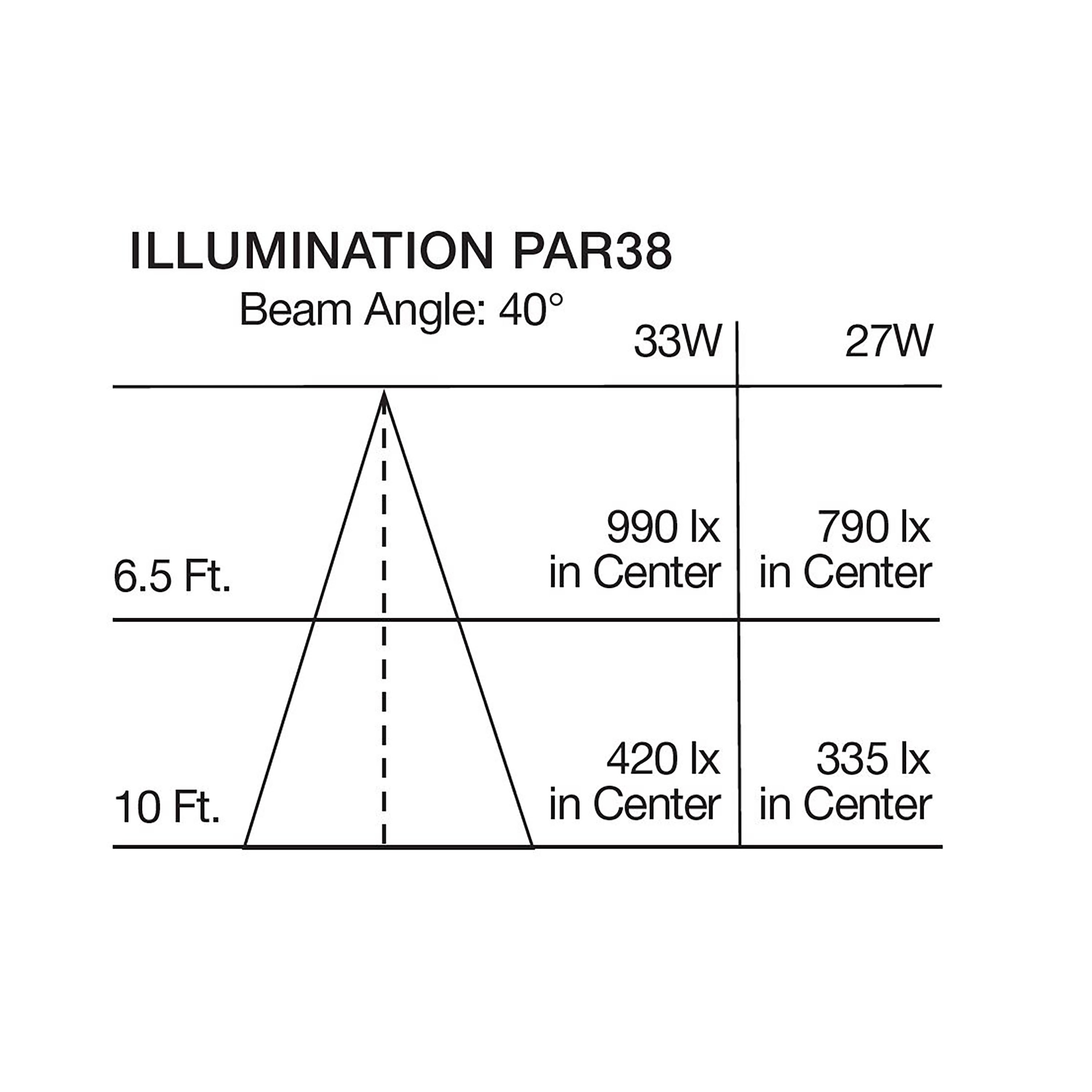

Beam Angle (degree)40
Color TempSoft White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens3000L
Volts120v
Watts33W
Physical
Lamp BaseMedium
FinishSILVER
Housing ColorGray
ANSI BaseE26
Lamp TypePAR38

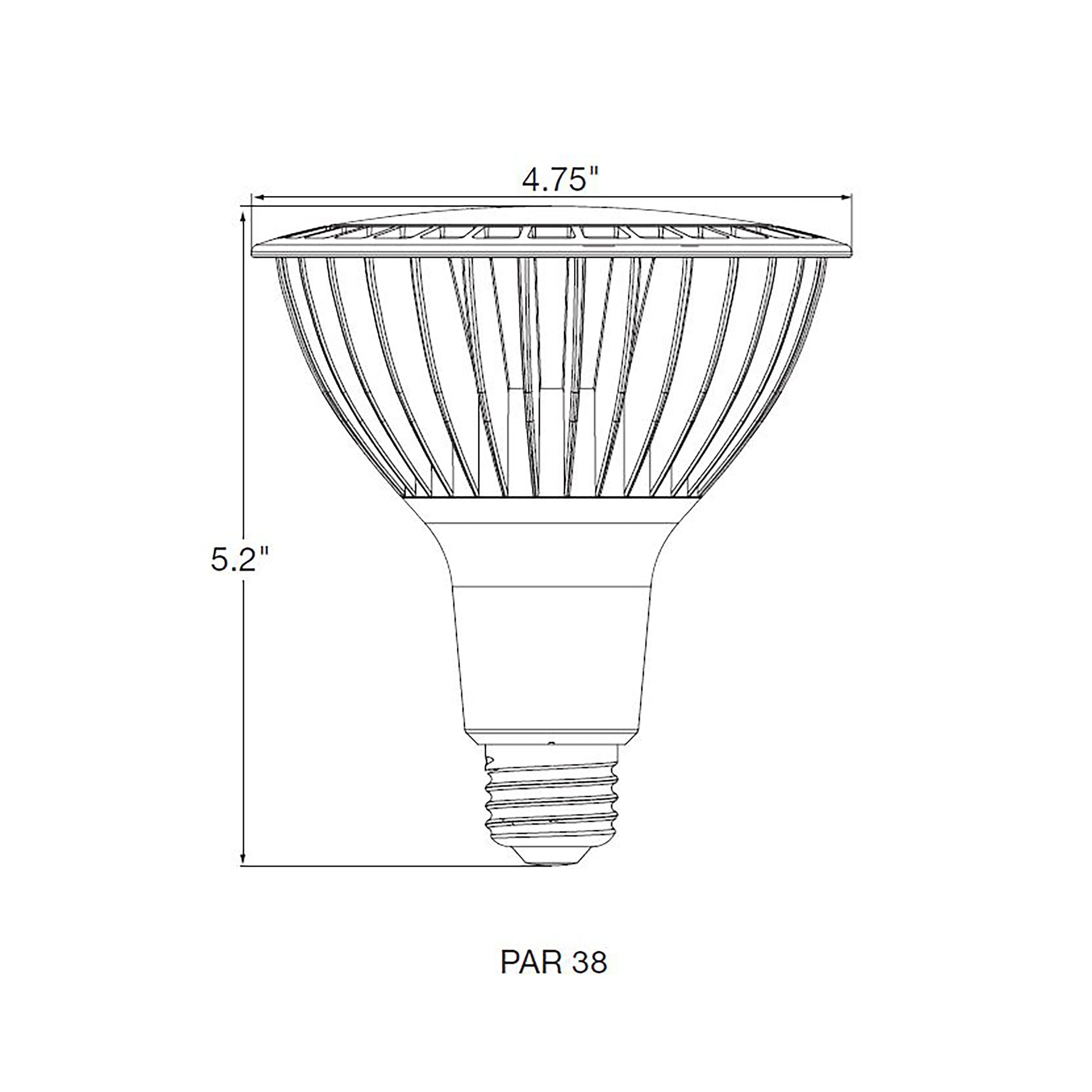

MOD Lamps4.75
MOL5.12
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Exempt - >2600 Lumens
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923222511
Case Cube1.3226
Case Height6.89
Case Length21.06
Case Quantity12
Case UPC10045923222518
Case Weight15.17
Case Width15.75
EA Cube0.0787
EA Height5.71
EA Length4.88
EA Quantity1
EA Weight1.08
EA Width4.88
Inner Cube0.5475
Inner Height6.1
Inner Length15.16
Inner Quantity6
Inner UPC20045923222515
Inner Weight6.89
Inner Width10.23
Pack TypeBox
Web Length5.12
Web Width4.75
