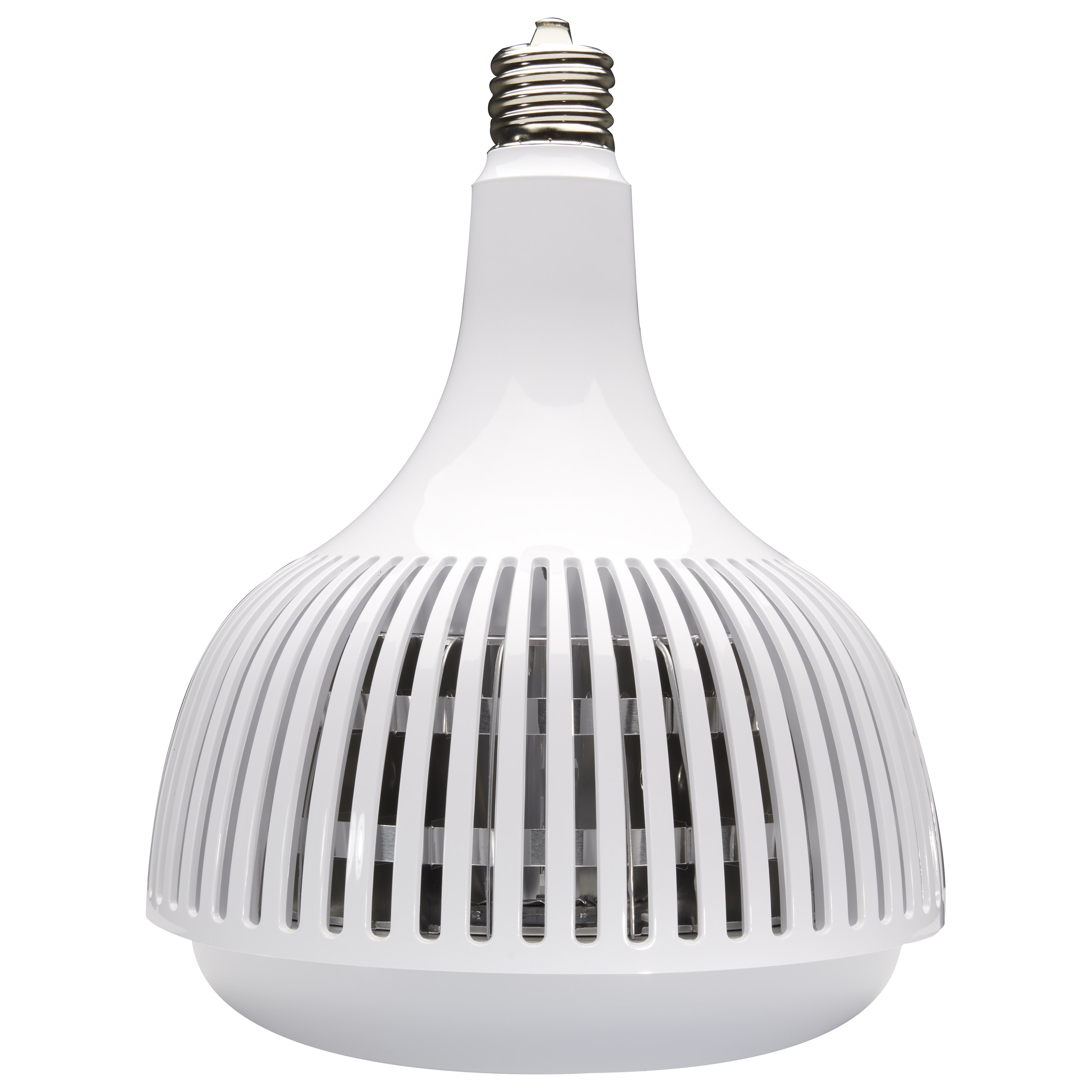

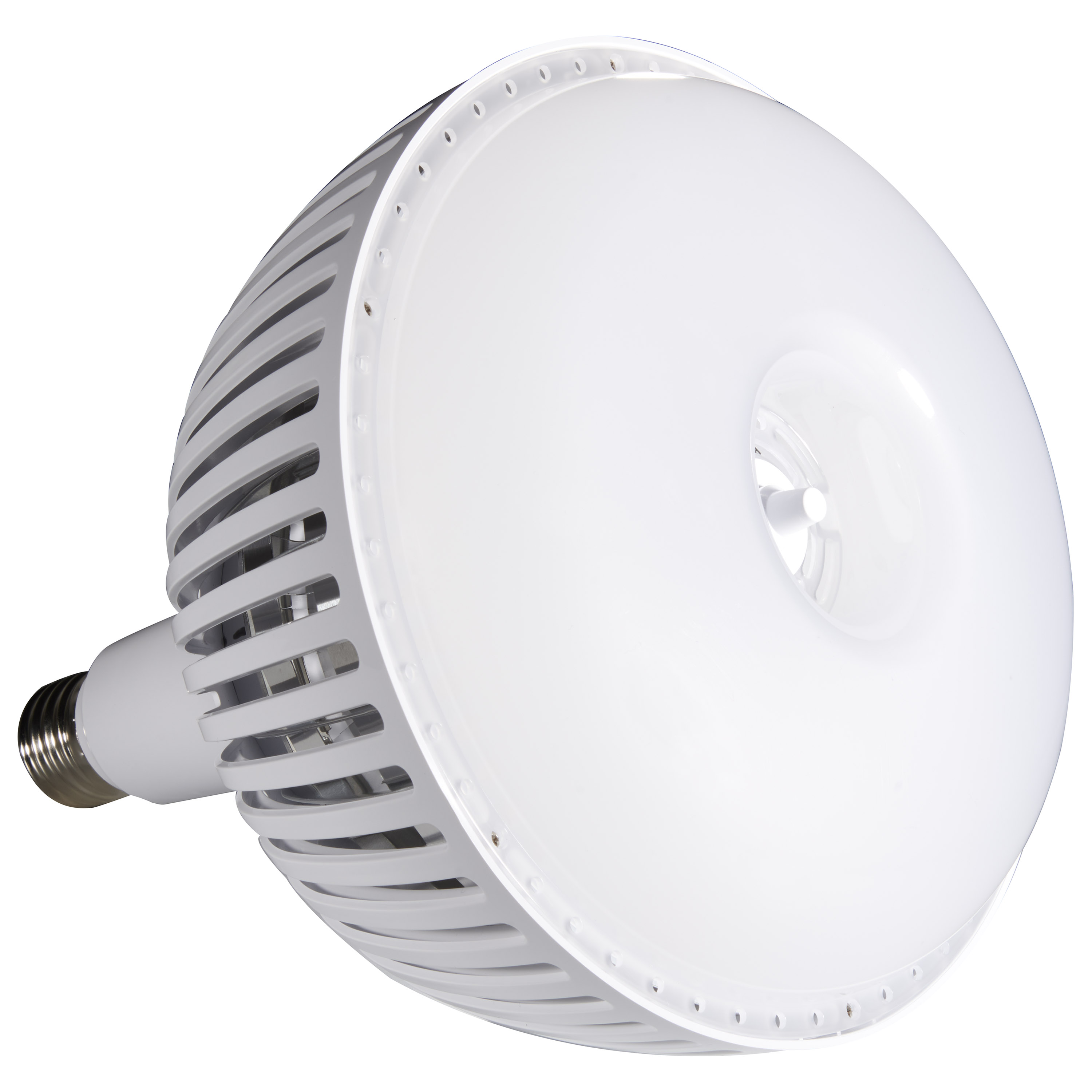

S23115

130W/LED/HID-HB/5K/120-277V

Discontinued - Suggested Replacement: S33115
  • 130 Watt - LED HID Replacement
  • 5000K
  • Mogul extended base
  • Type B Ballast Bypass
  • 120-277 Volt
  • Dimmable
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^35k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3

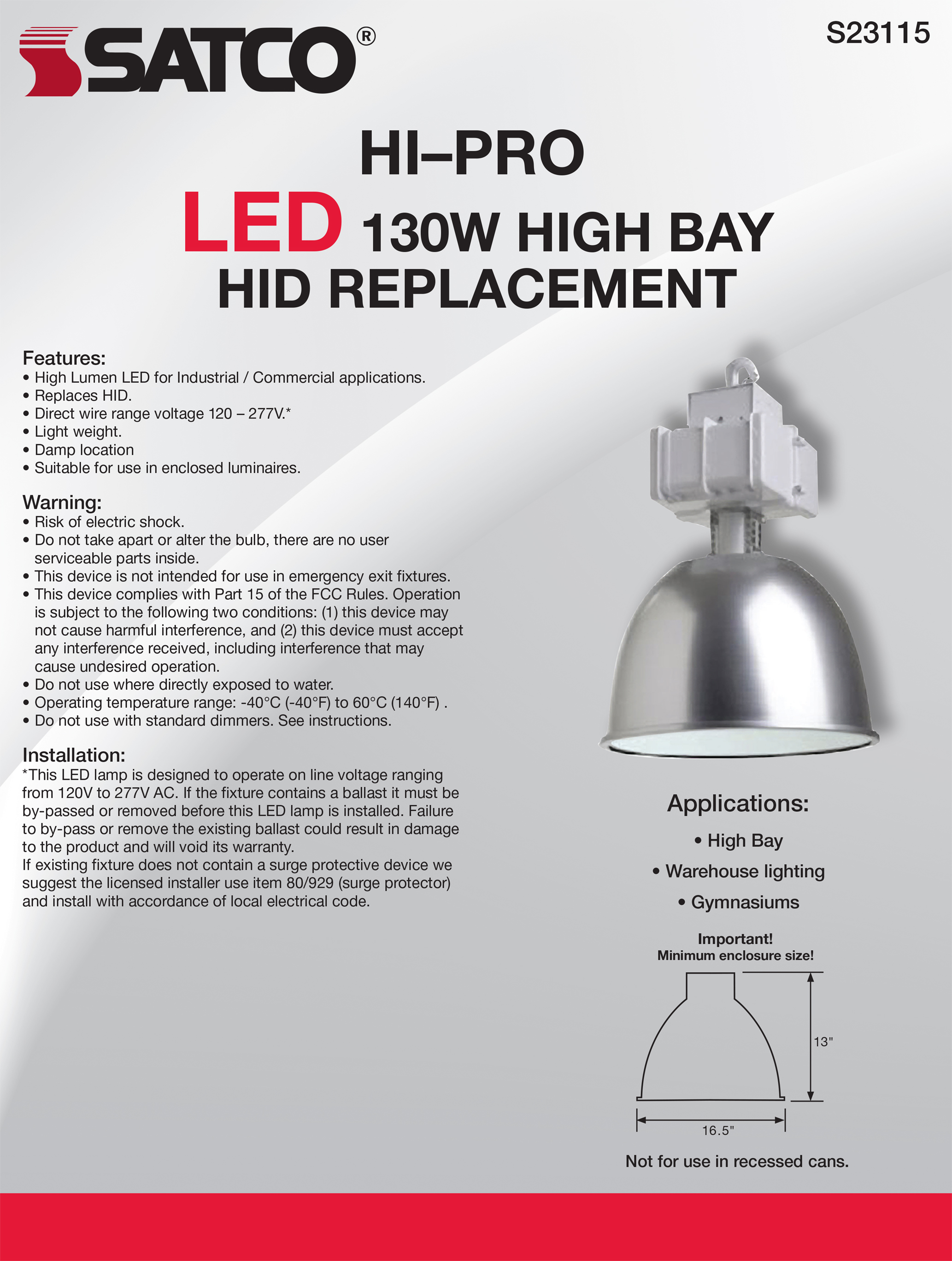

S23115 SpecificationsS23115 Instructions.pdfSA2536 Hi-Pro HighBay PI Sheet 3 19.pdf
Description
Description
130 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;120-277 Volt; Dimmable
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Candle Power5000.0
Lamp FilamentLED
MaterialAluminum
Fixture TypeHi-Bay
Product NotesFixture has built-in dimming control feature
StatusDiscontinued
StyleContemporary
Surge ProtectionBuilt-in surge protection - 6KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps1.083-0.469A
Has CameraNo
IOT EnabledNo
Lens MaterialPlastic
LensedYes
Minimum Compartment SizeLength: 16.5 in. Width: 16.5 in. Height: 13 in.
Operating PositionUniversal
Power Factor0.99/0.95
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated35000

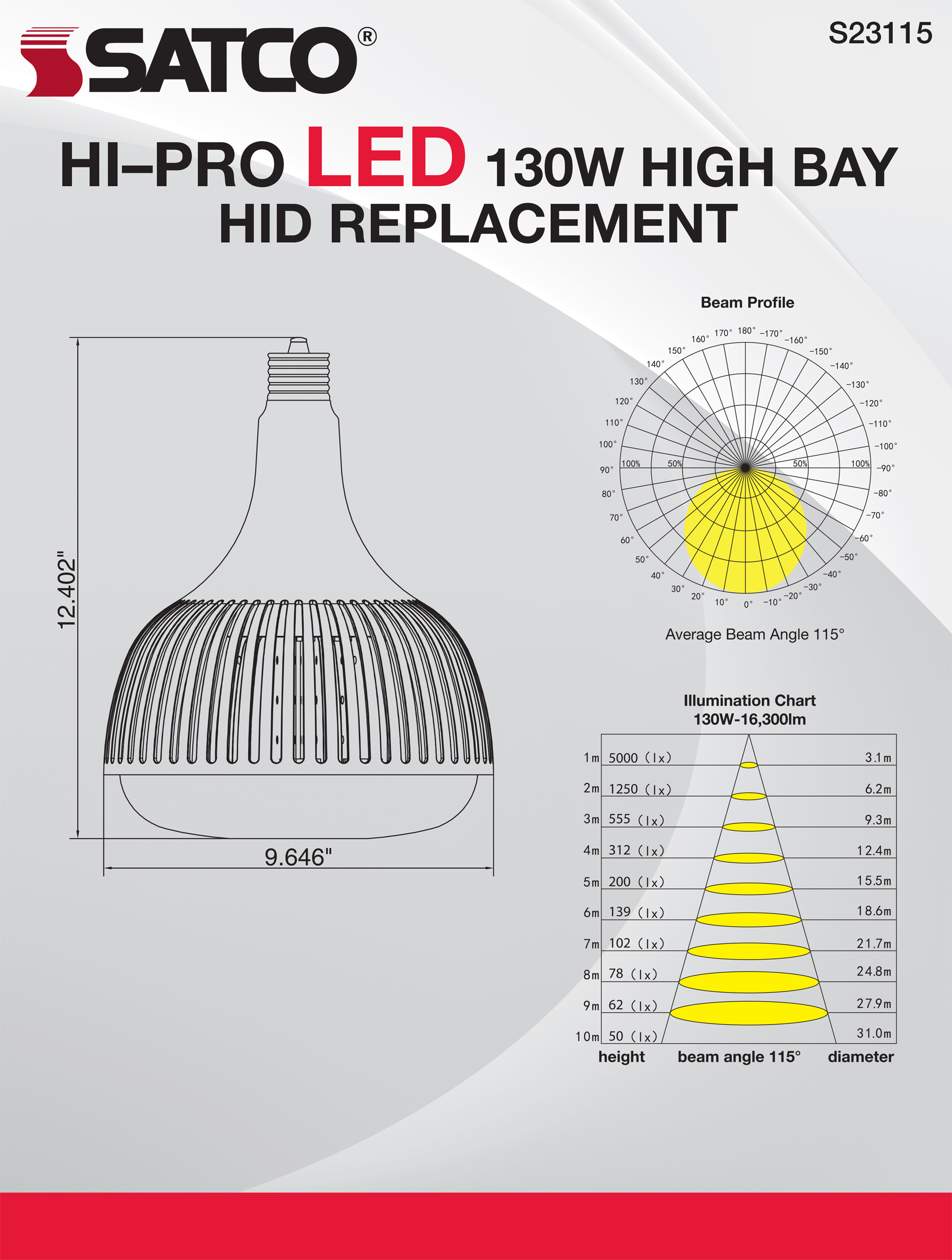

Beam Angle (degree)115
Color TempNatural Light
CRI80+
Dimming TypeOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls., Step Dimming
Operating Frequency50-60Hz
Operating Temp-40F to +140F (-40C to +60C)
HID Equivalent400W

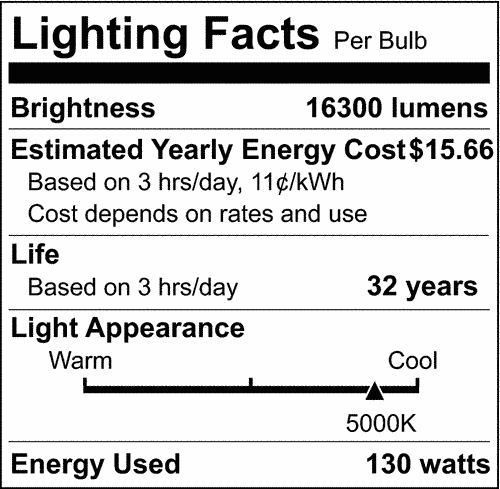

Lumens16300L
Volts120V-277V
Watts130W
Physical
Lamp BaseMogul Extended
FinishTranslucent White
Housing ColorWhite
ANSI BaseEX39
Lamp TypeHB77

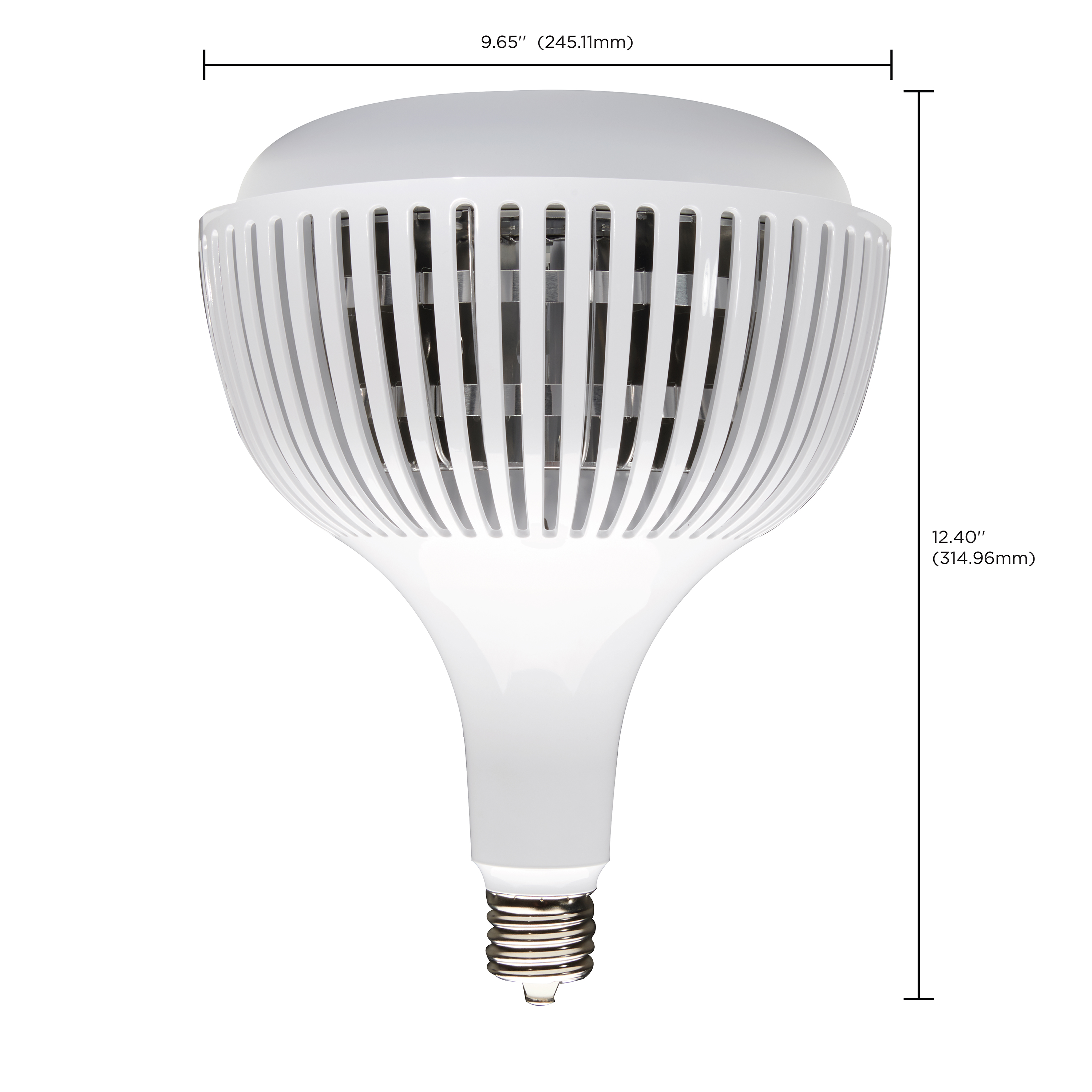

MOD Lamps9.65
MOL12.4
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923231155
Case Cube3.2815
Case Height13.98
Case Length20.2
Case Quantity4
Case UPC10045923231152
Case Weight16.98
Case Width20.08
EA Cube0.6855
EA Height12.72
EA Length9.65
EA Quantity1
EA Weight3.71
EA Width9.65
Pack TypeBox
Web Length12.4
Web Width9.65
