| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |

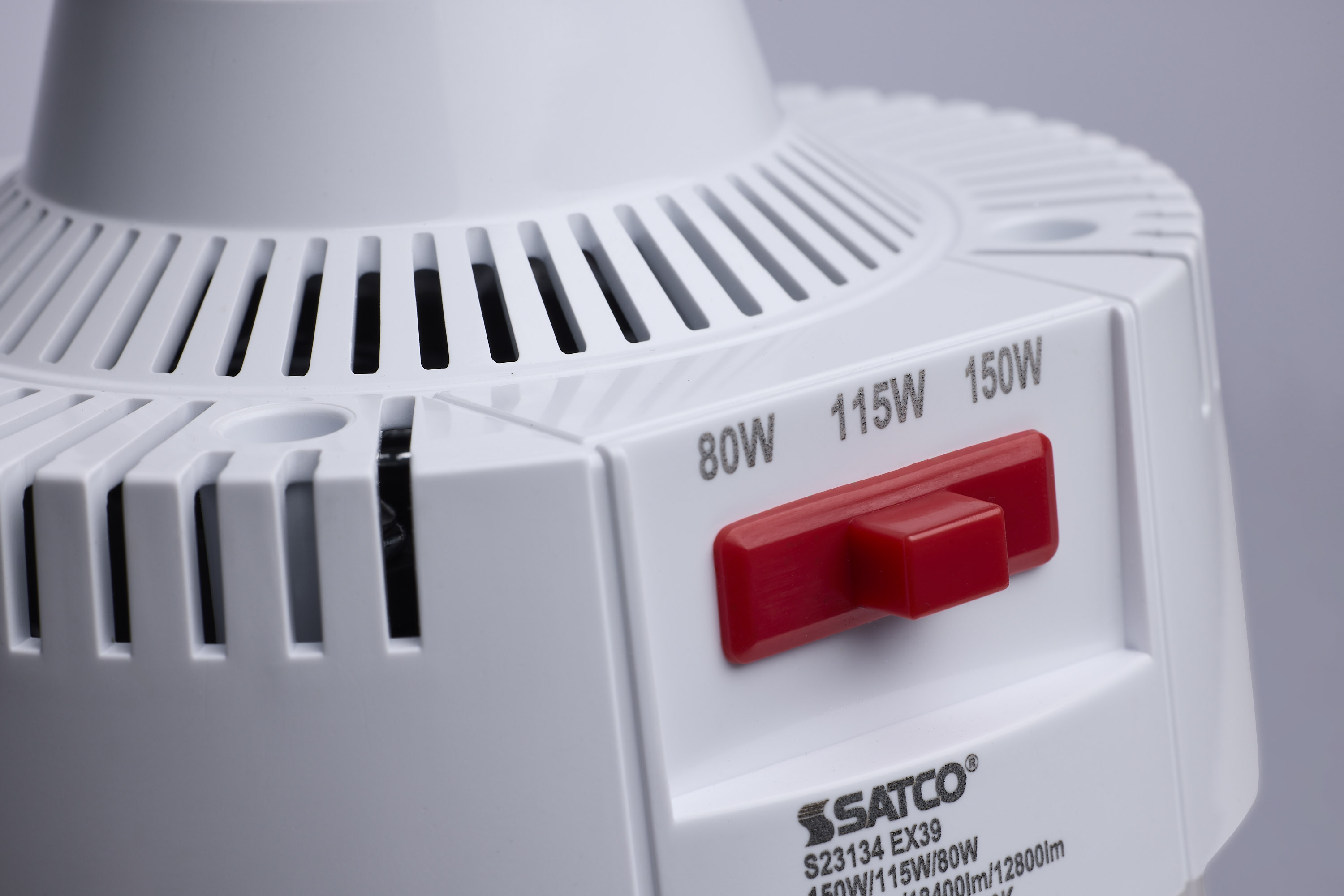

| Dimmable Text | Only dimmable through wattage selection switch on lamp |
| Lamp Filament | LED |
| Material | Aluminum / Polycarbonate (PC) |
| Fixture Type | LED HID |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | <20% |

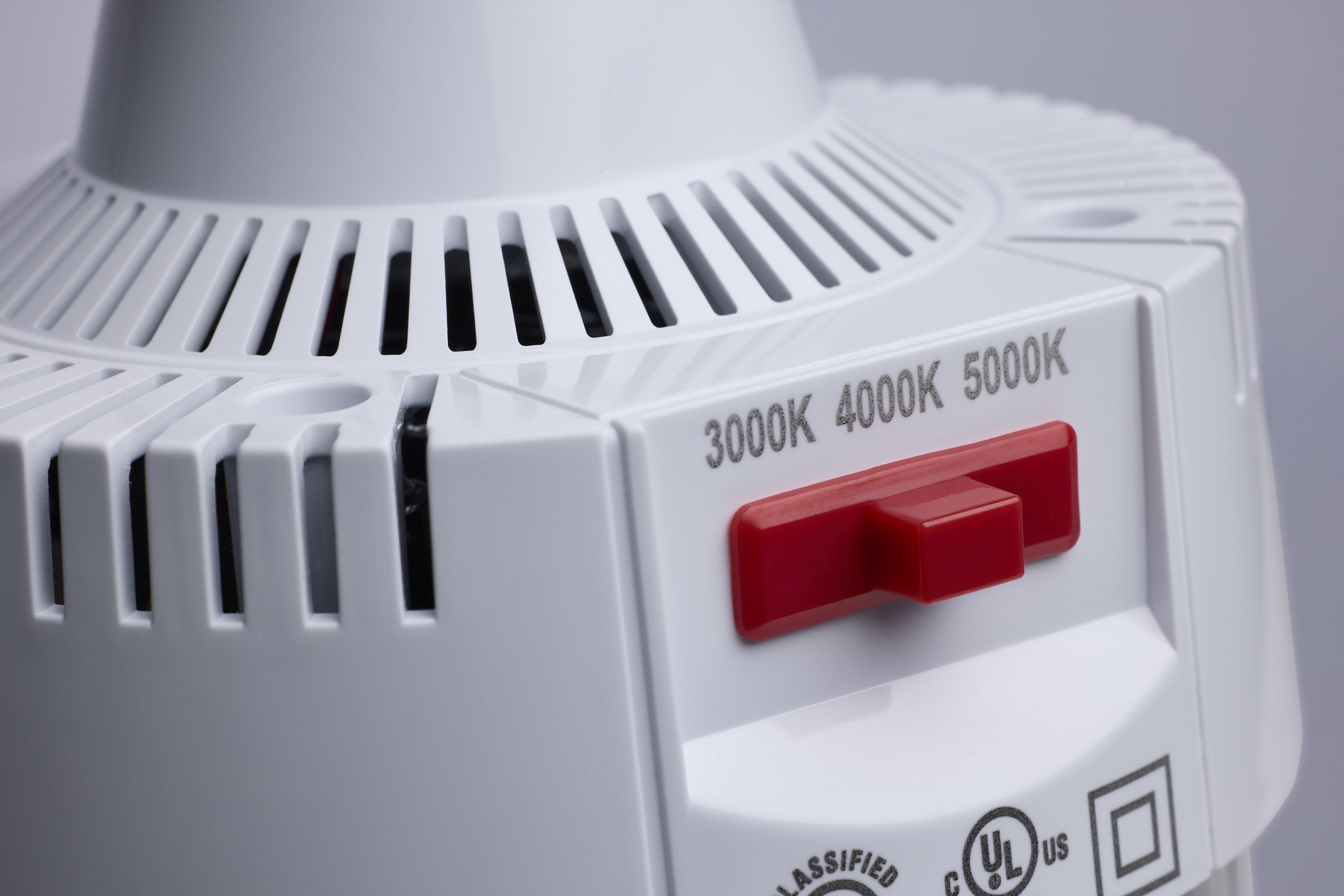

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | White |
| Additional Info | Decibels: 47.5dB(A) |
| Amps | 1.250-0.540/0.958-0.415/0.667-0.289A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length: 18.50 in. Width:12.60 in. Height: 12.60 in. |
| Operating Position | Universal |
| Power Factor | 0.99 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor and Outdoor |
| Product Technology | LED |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 280 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimming Type | Step Dimming |
| Operating Frequency | 60Hz |
| Operating Temp | -40C (-40F) to +50C (+122F) |
| HID Equivalent | 450W |

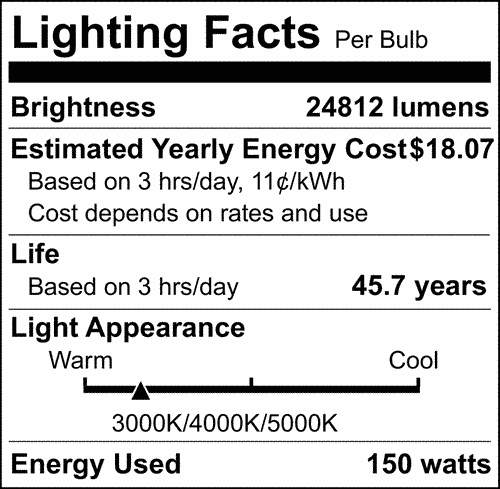

| Lumens | 24812L/19816L/14270L |
| Volts | 120V-277V |
| Watts | 150W/115W/80W |

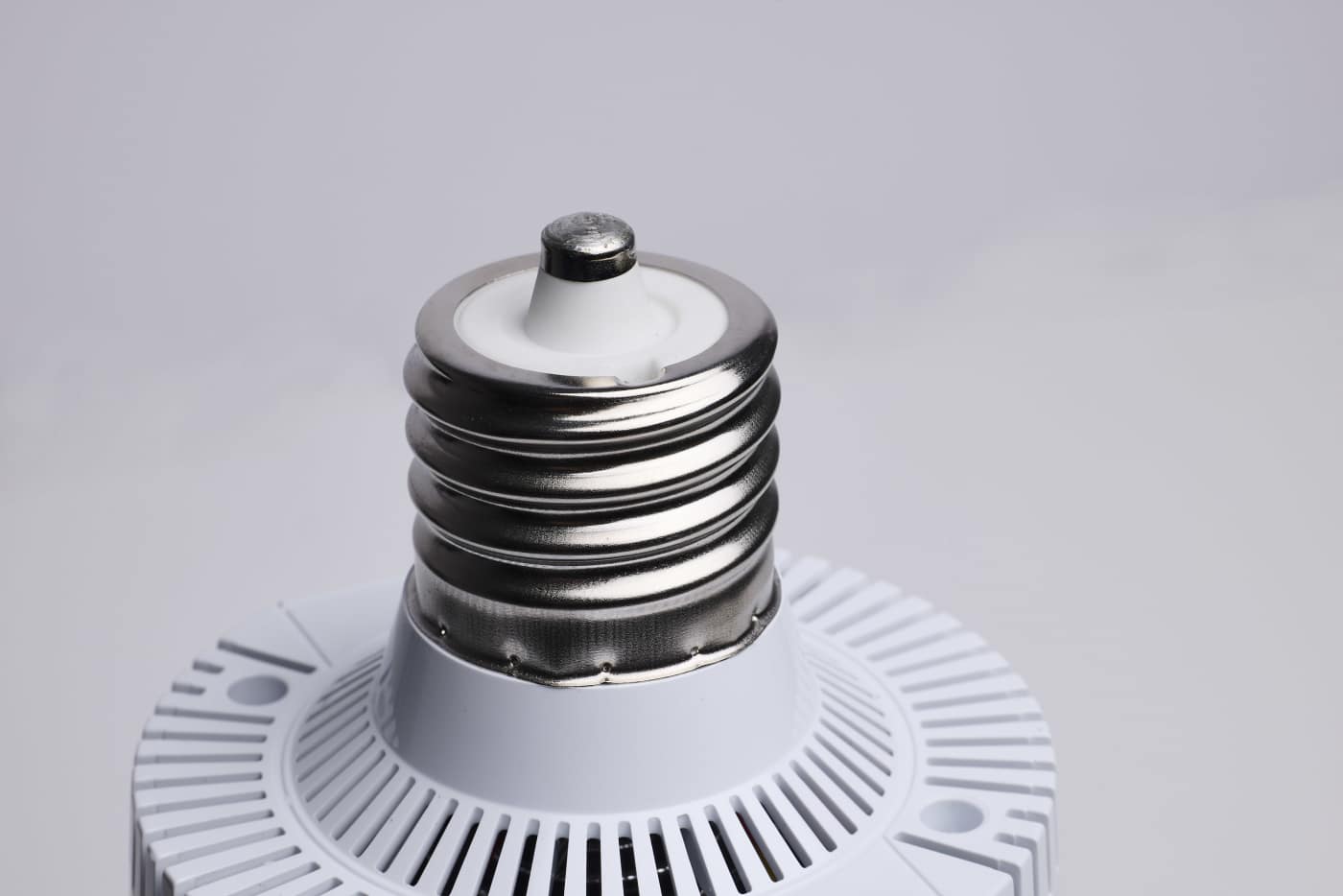

| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | EX39 |

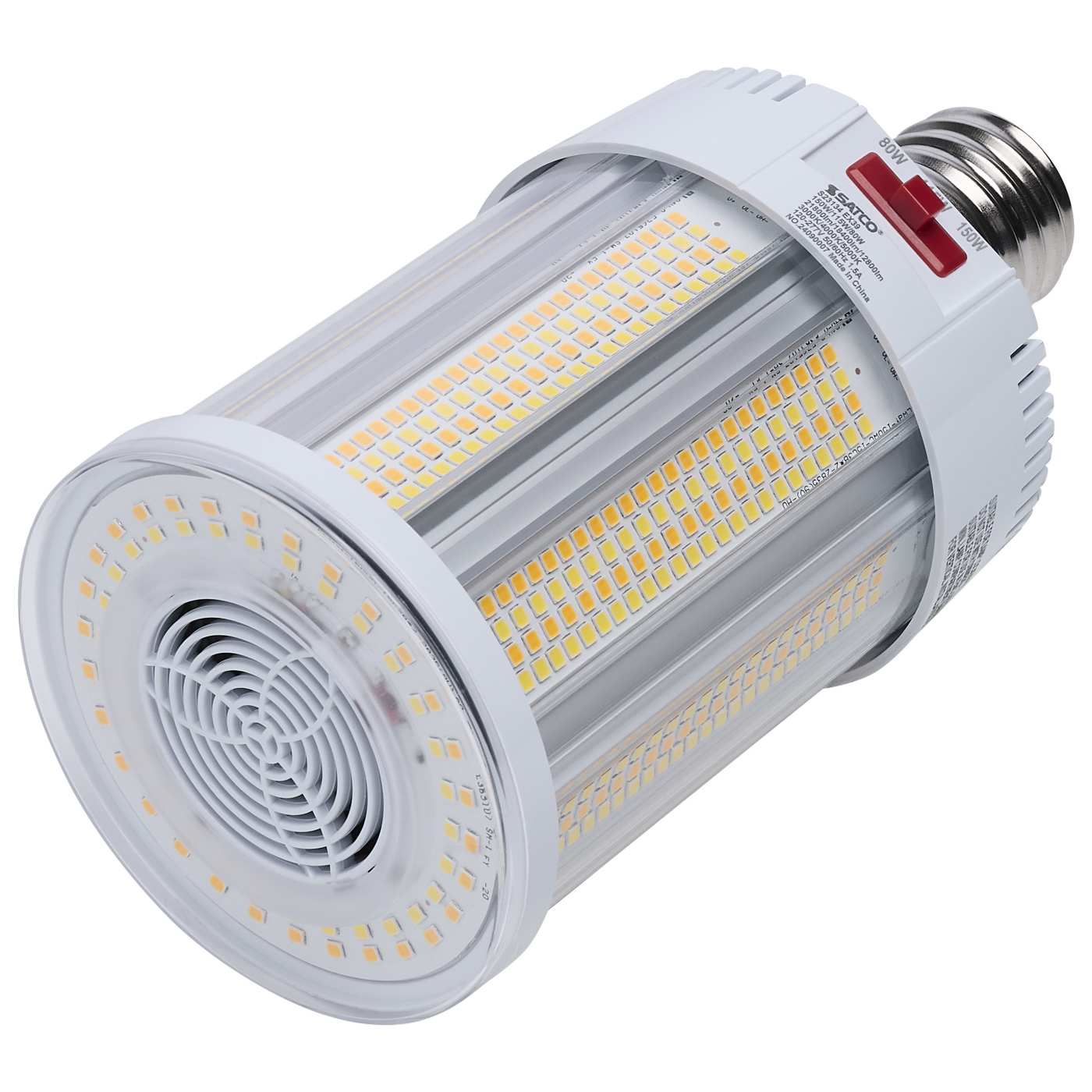

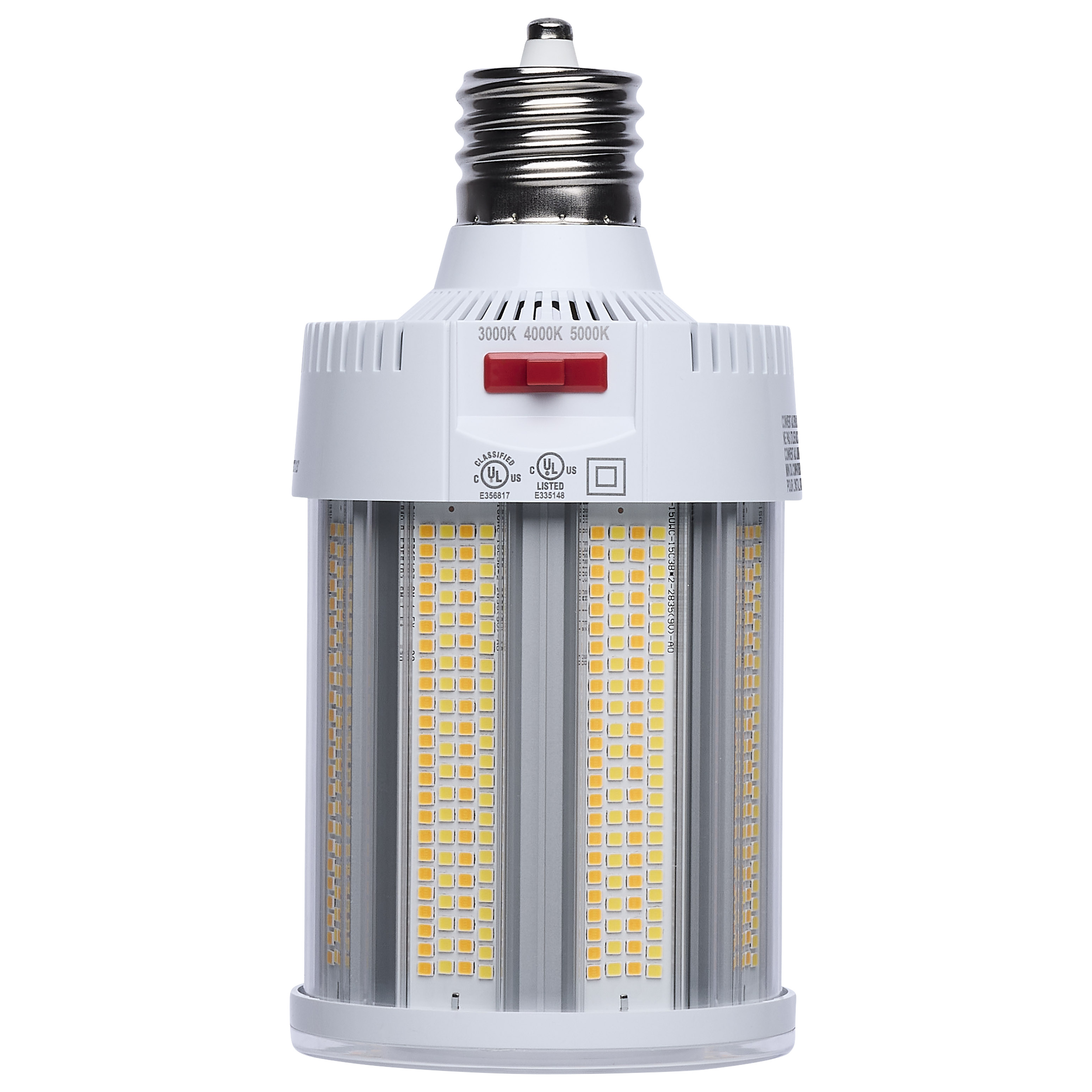

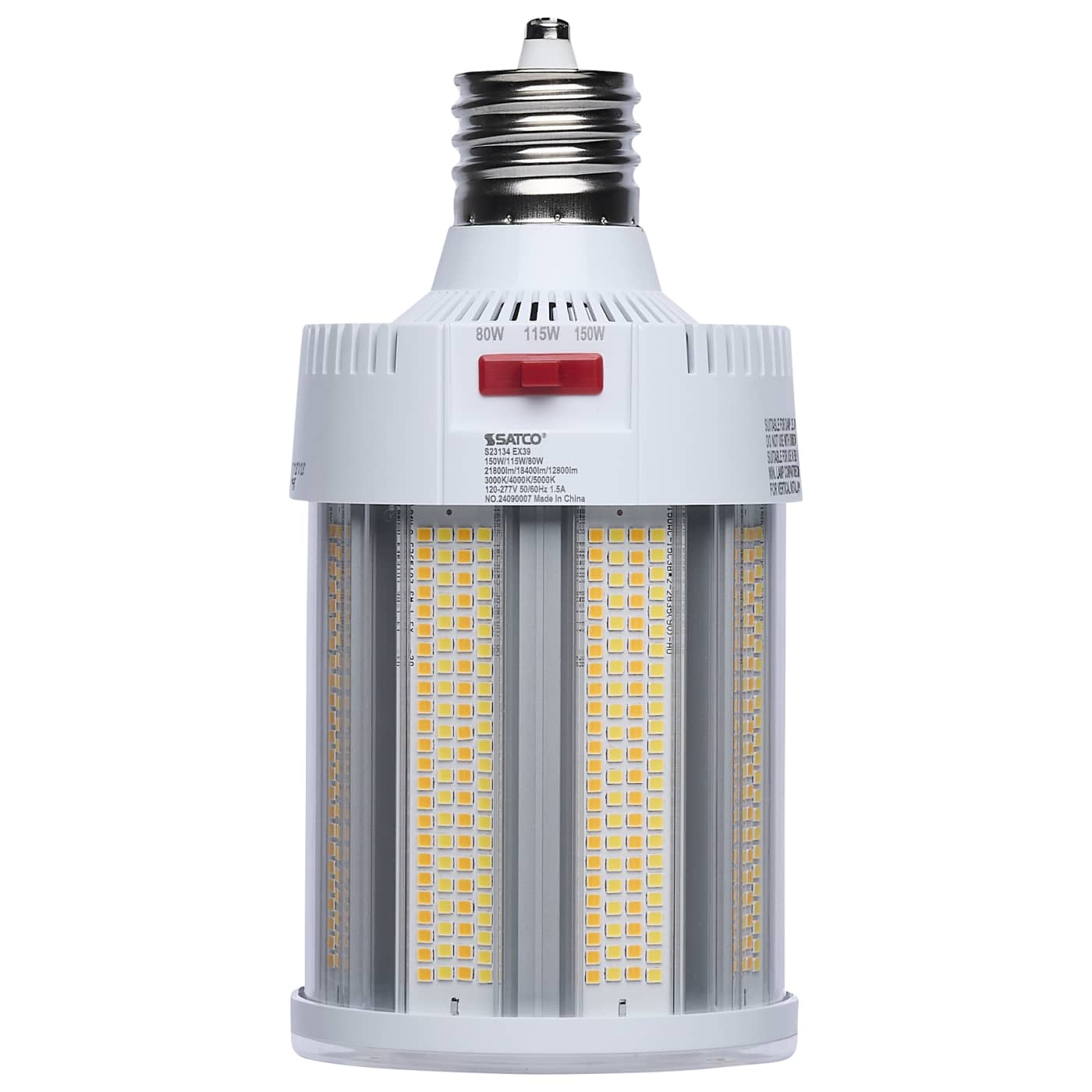

| Lamp Type | Corncob |

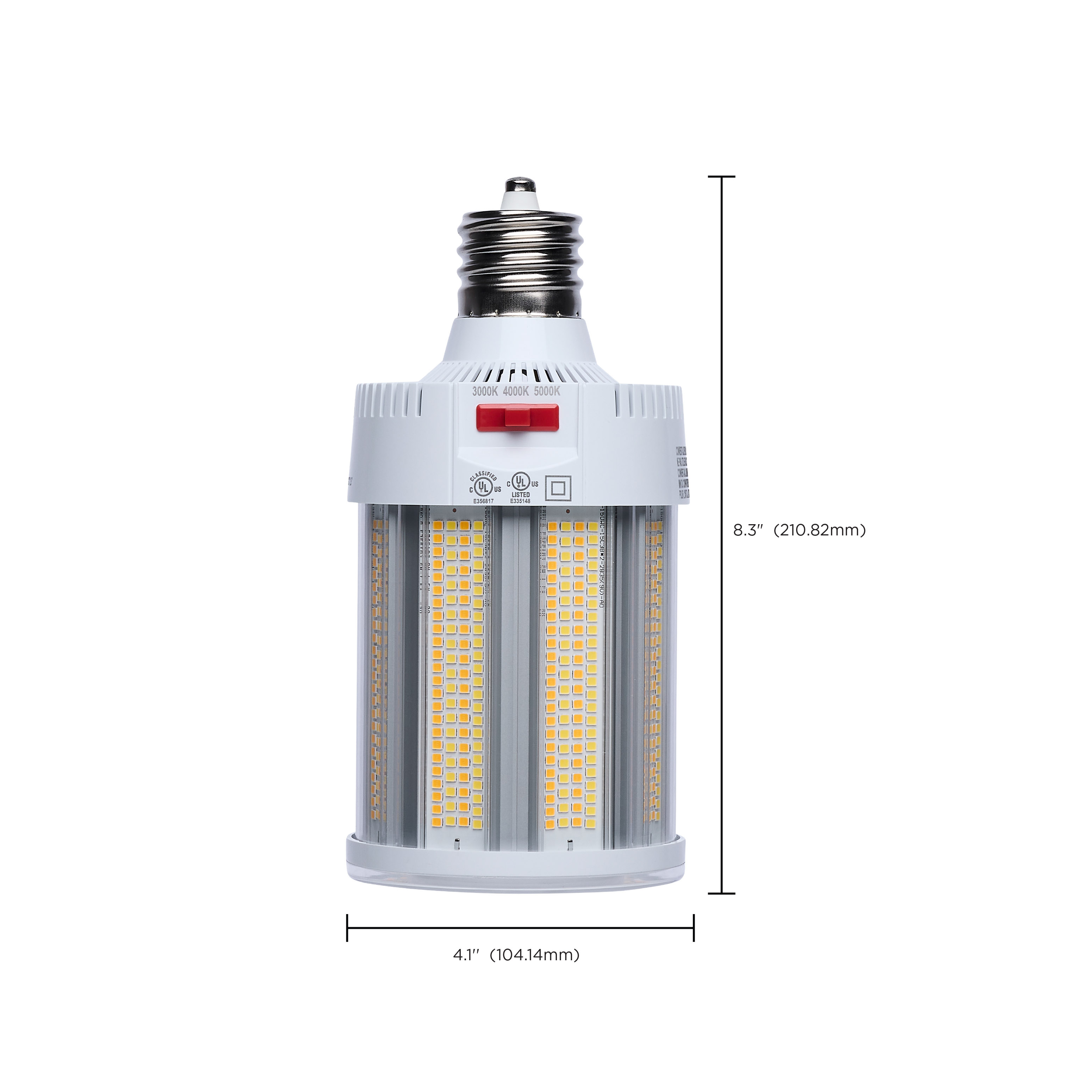

| MOD Lamps | 4.1 |
| MOL | 8.3 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-5PHZP8 |
| FCC Compliant | True |
| IP Rating | IP54 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923231346 |
|---|---|
| Case Cube | 1.5352 |
| Case Height | 10.63 |
| Case Length | 18.11 |
| Case Quantity | 12 |
| Case UPC | 10045923231343 |
| Case Weight | 28.6 |
| Case Width | 13.78 |
| EA Cube | 0.1089 |
| EA Height | 10.04 |
| EA Length | 4.33 |
| EA Quantity | 1 |
| EA Weight | 1.94 |
| EA Width | 4.33 |
| Inner Cube | 0.0 |
| Pack Type | Box |
| Web Length | 8.3 |
| Web Width | 4.1 |
