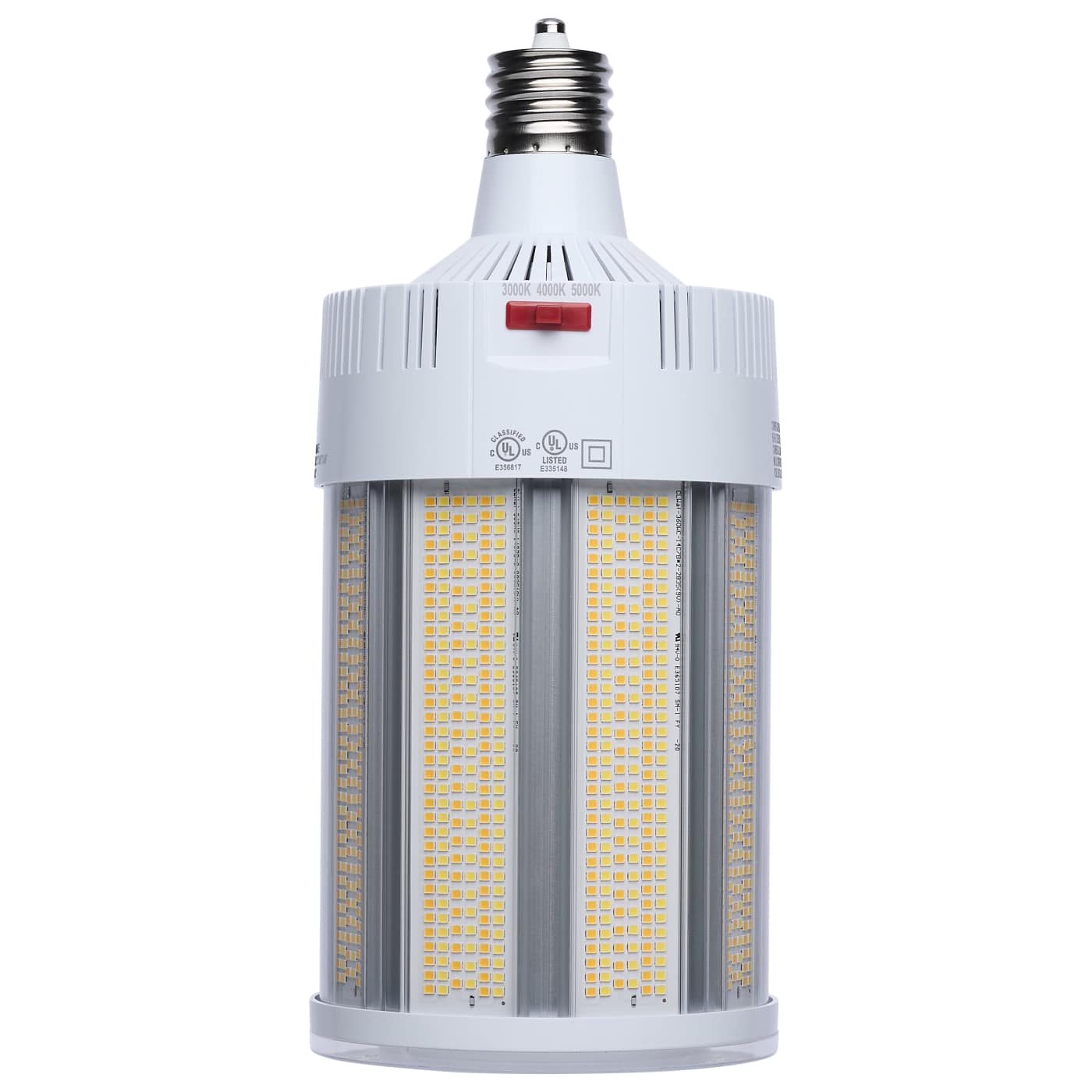

S23138

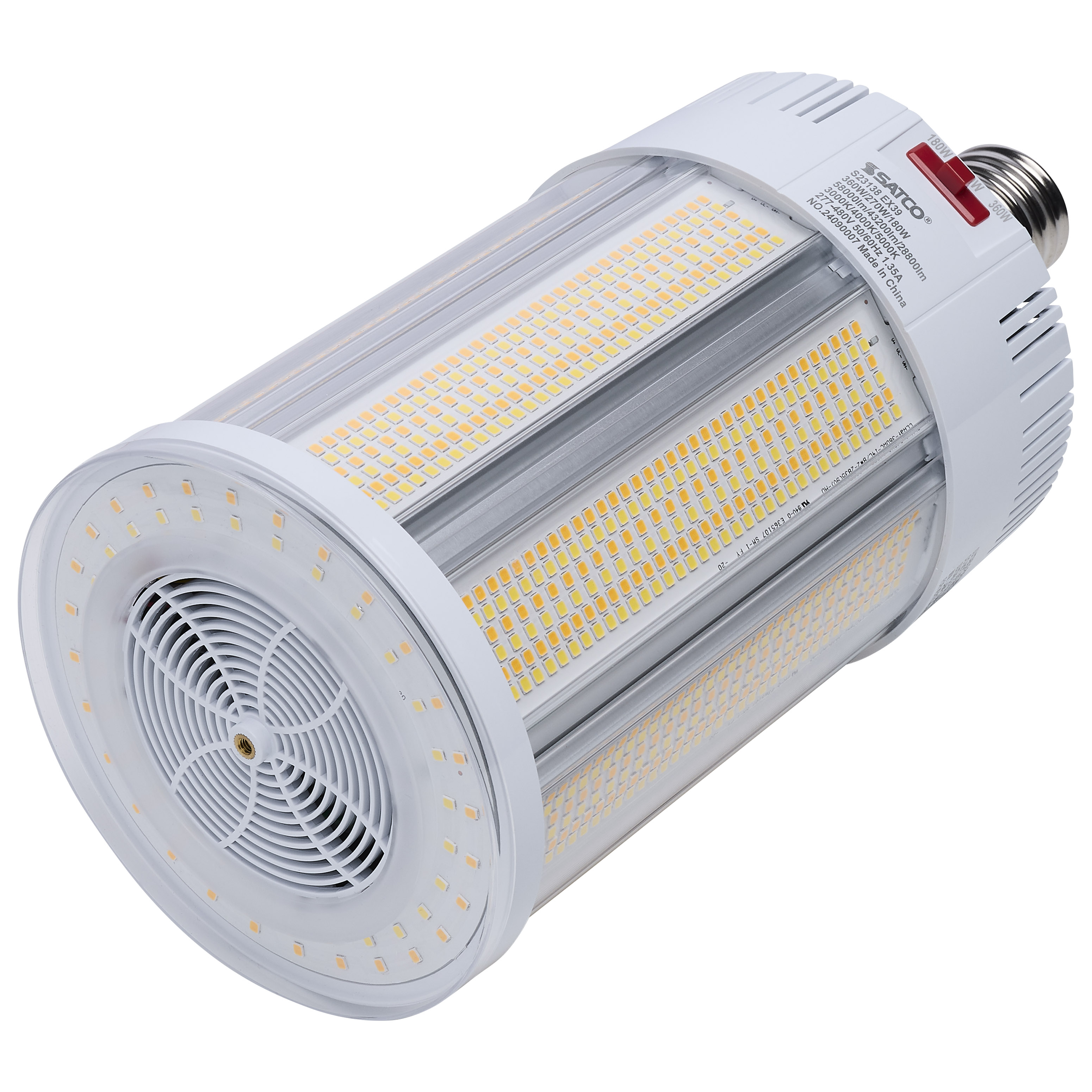

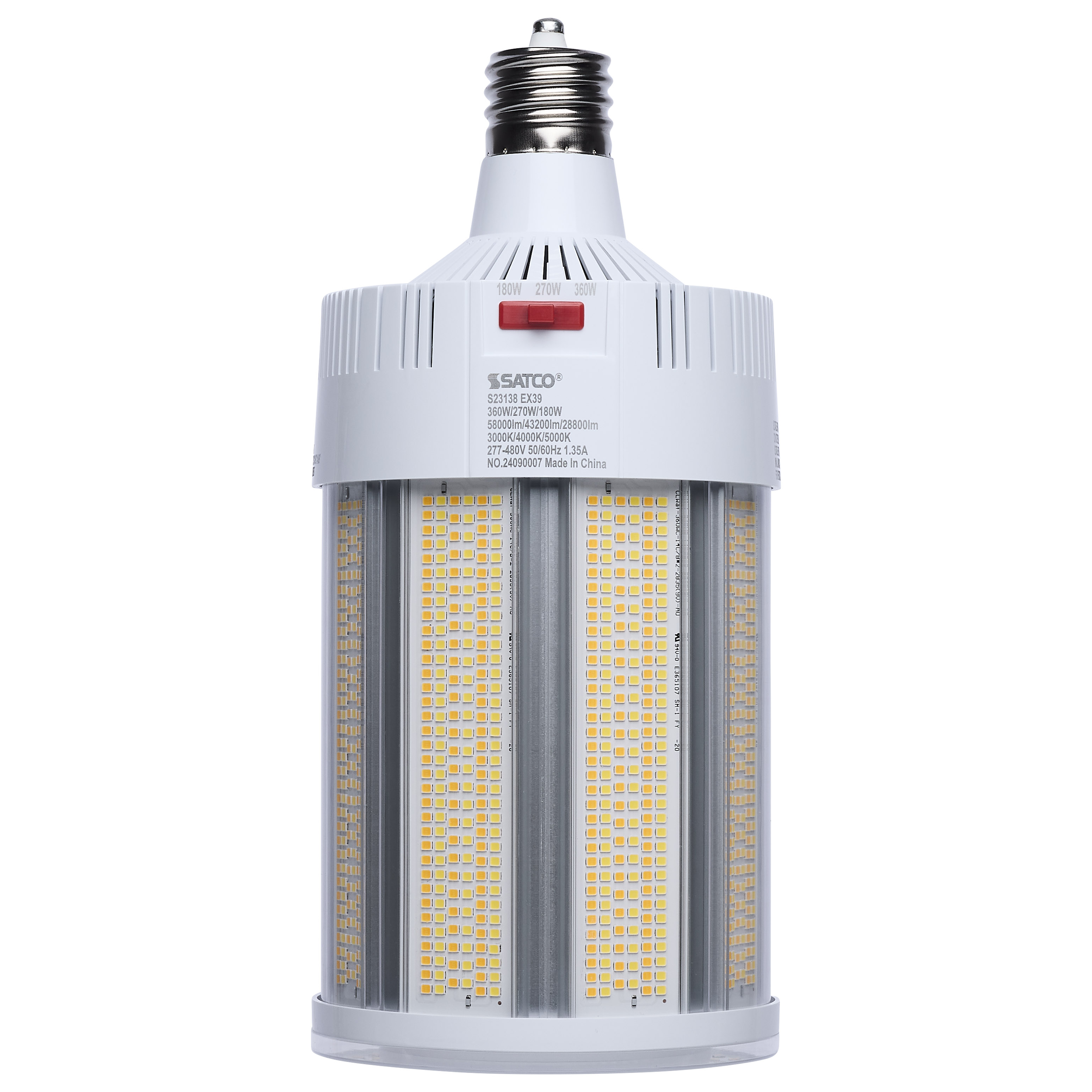

360W/LED/CCT/277-480V/EX39

  • 360/270/180 Watt
  • 30K/40K/50K CCT
  • Field Selectable LED
  • Corncob
  • Mogul Extended Base
  • 277-480 Ranged Voltage
  • 750 Watt HID Replacement
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
warranty^5_years^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

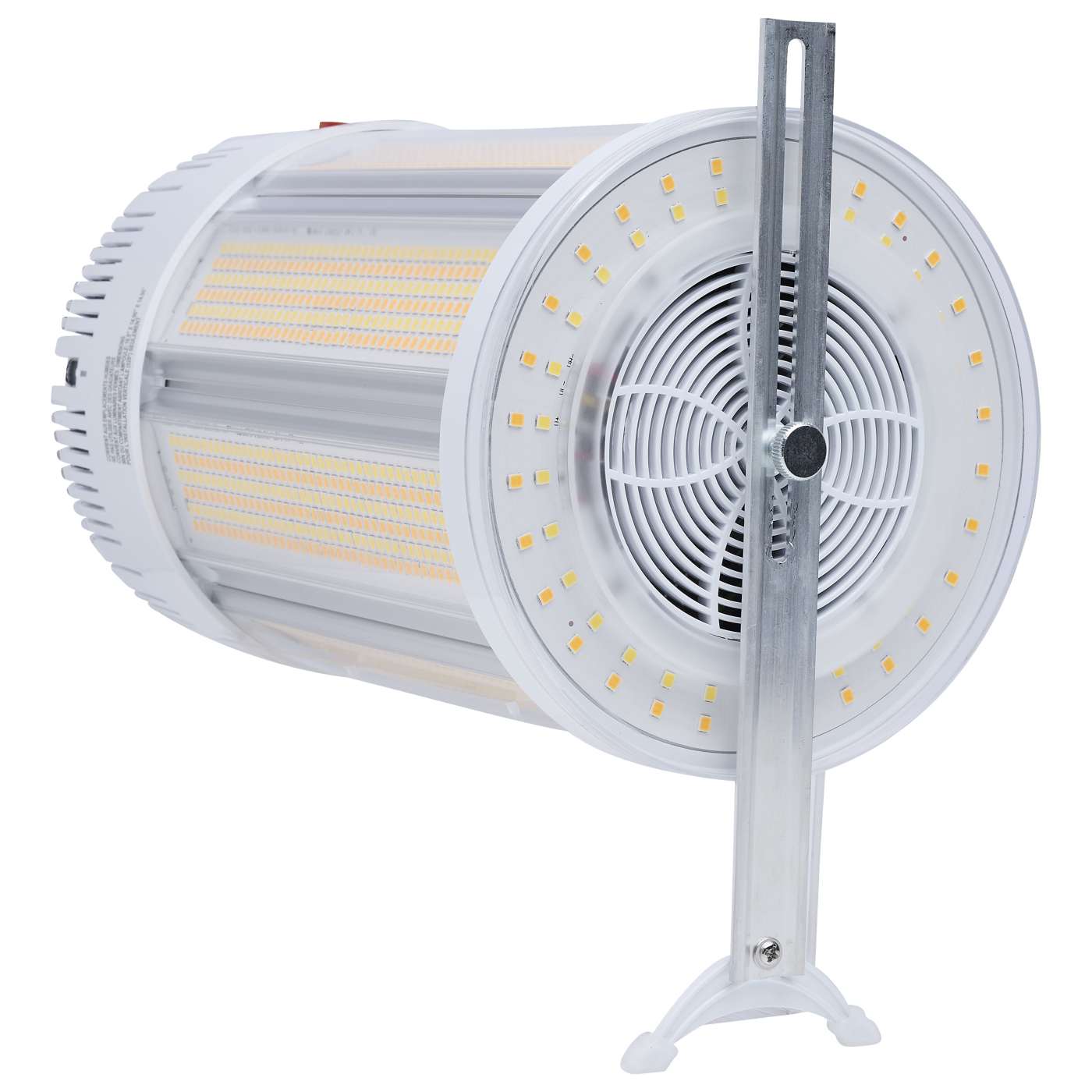

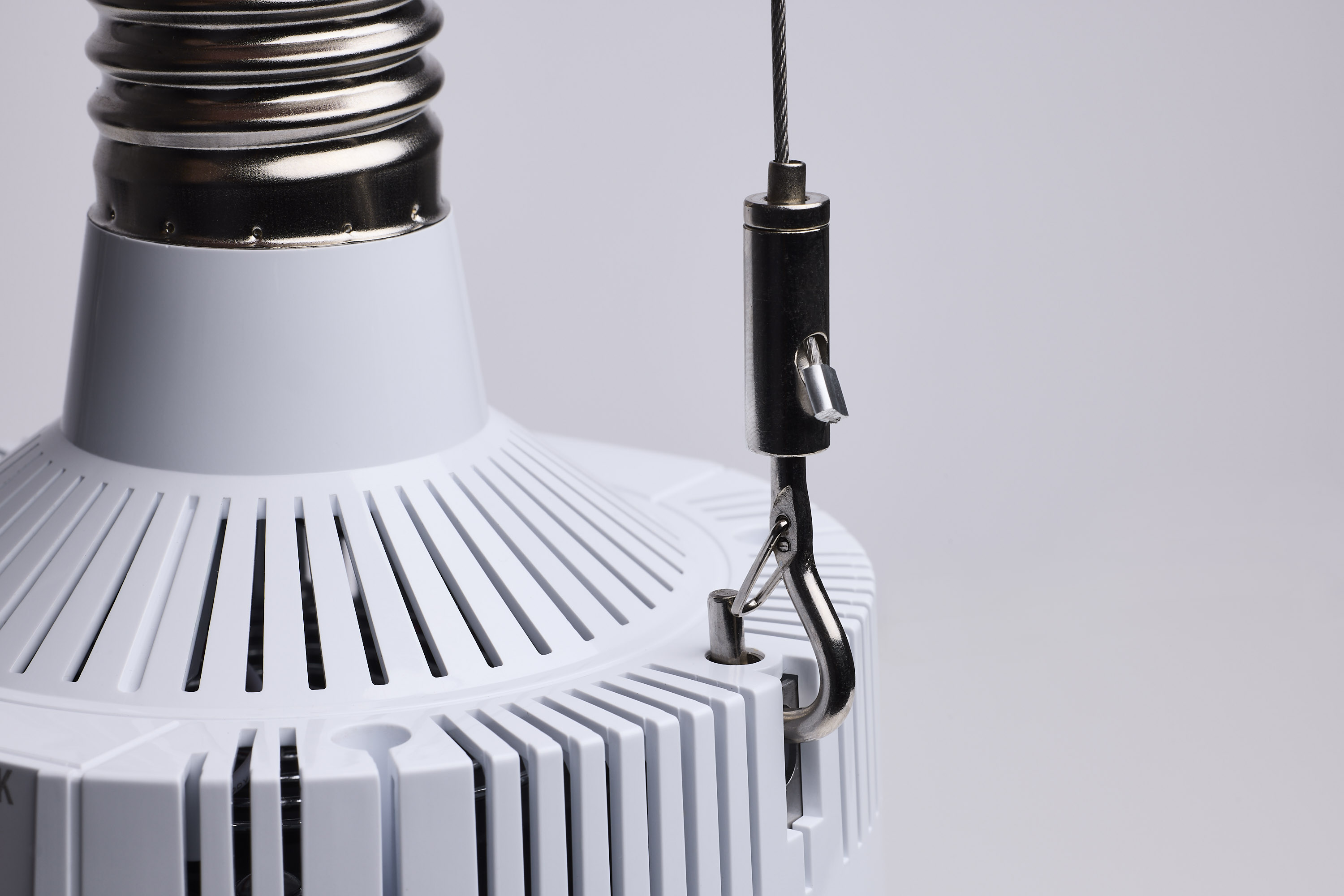

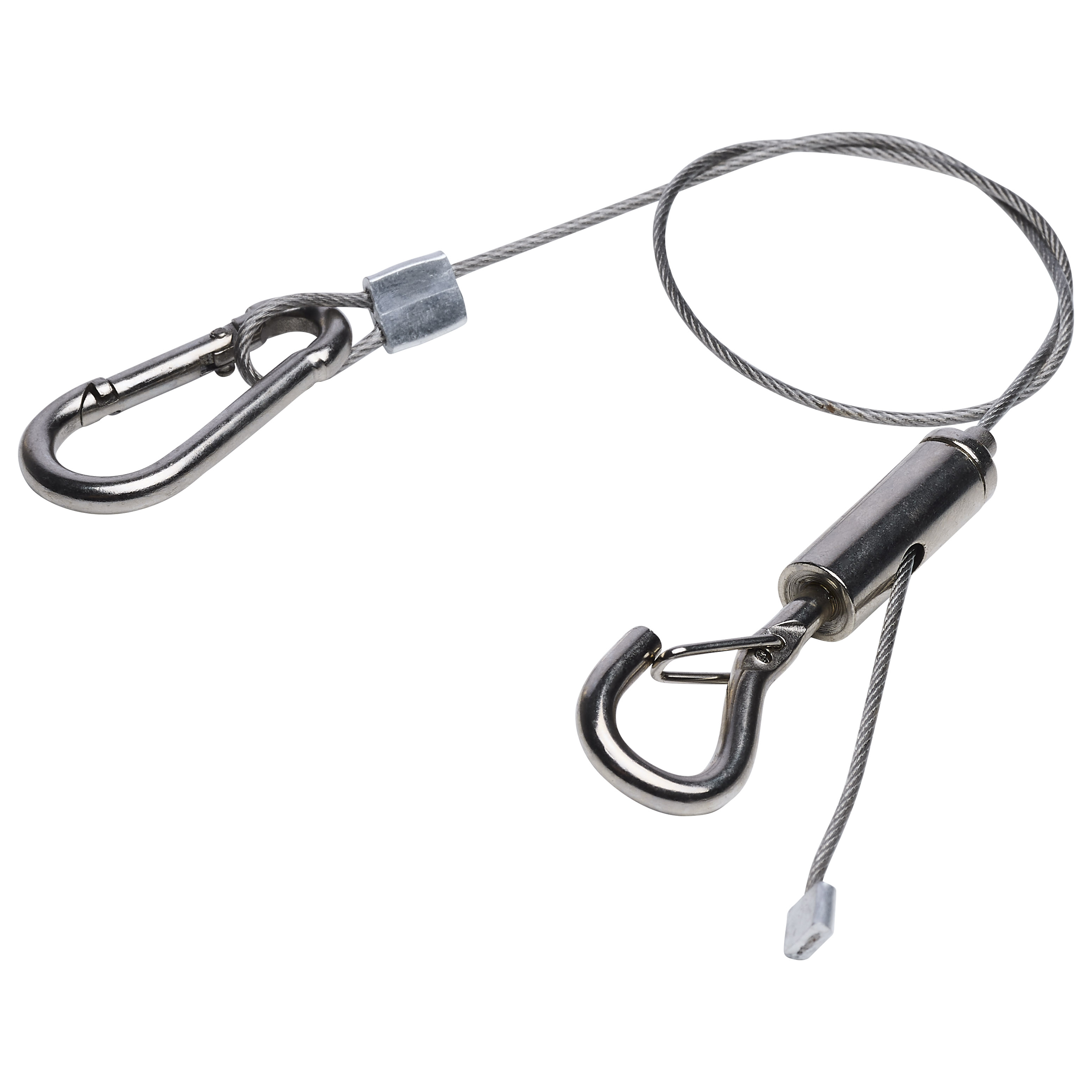

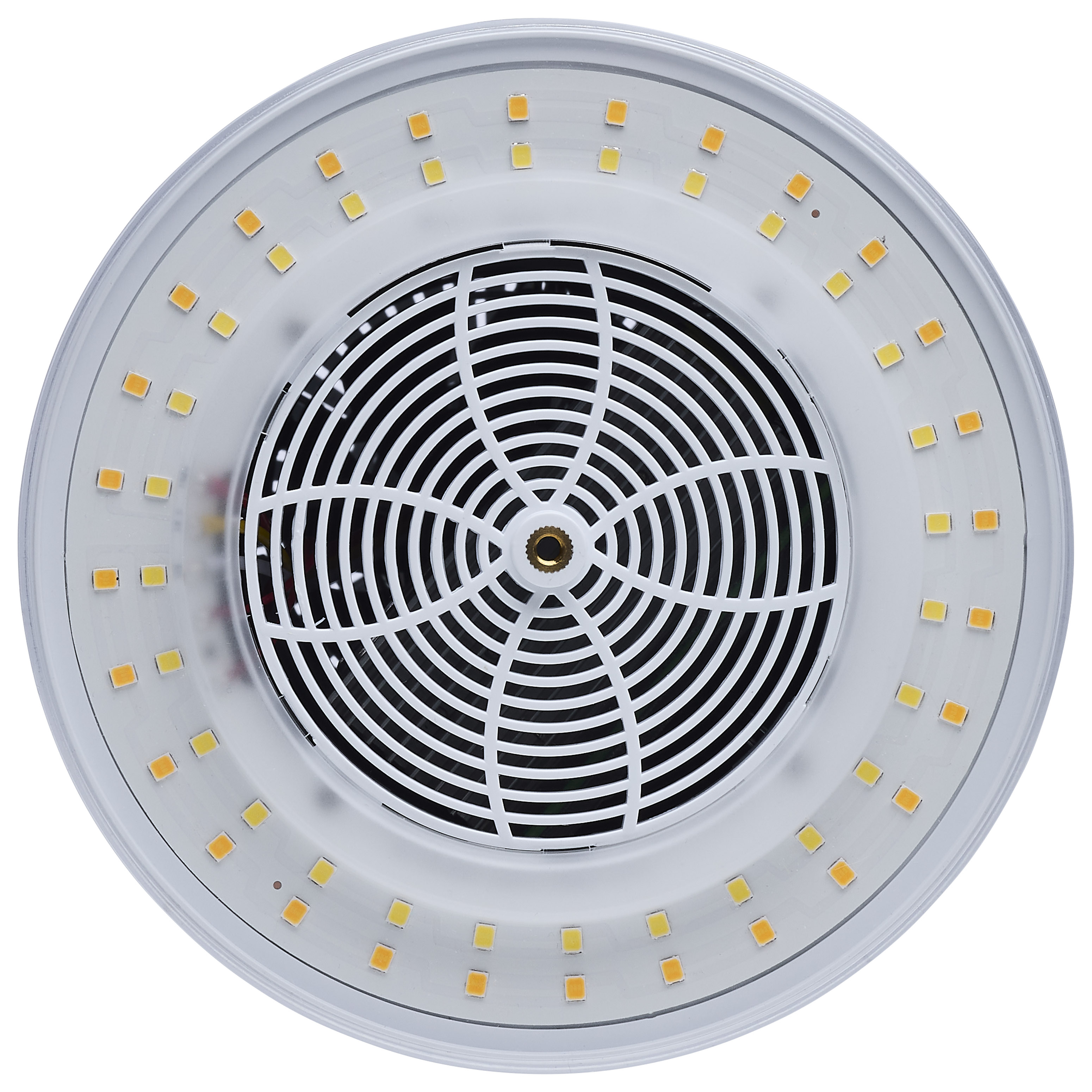

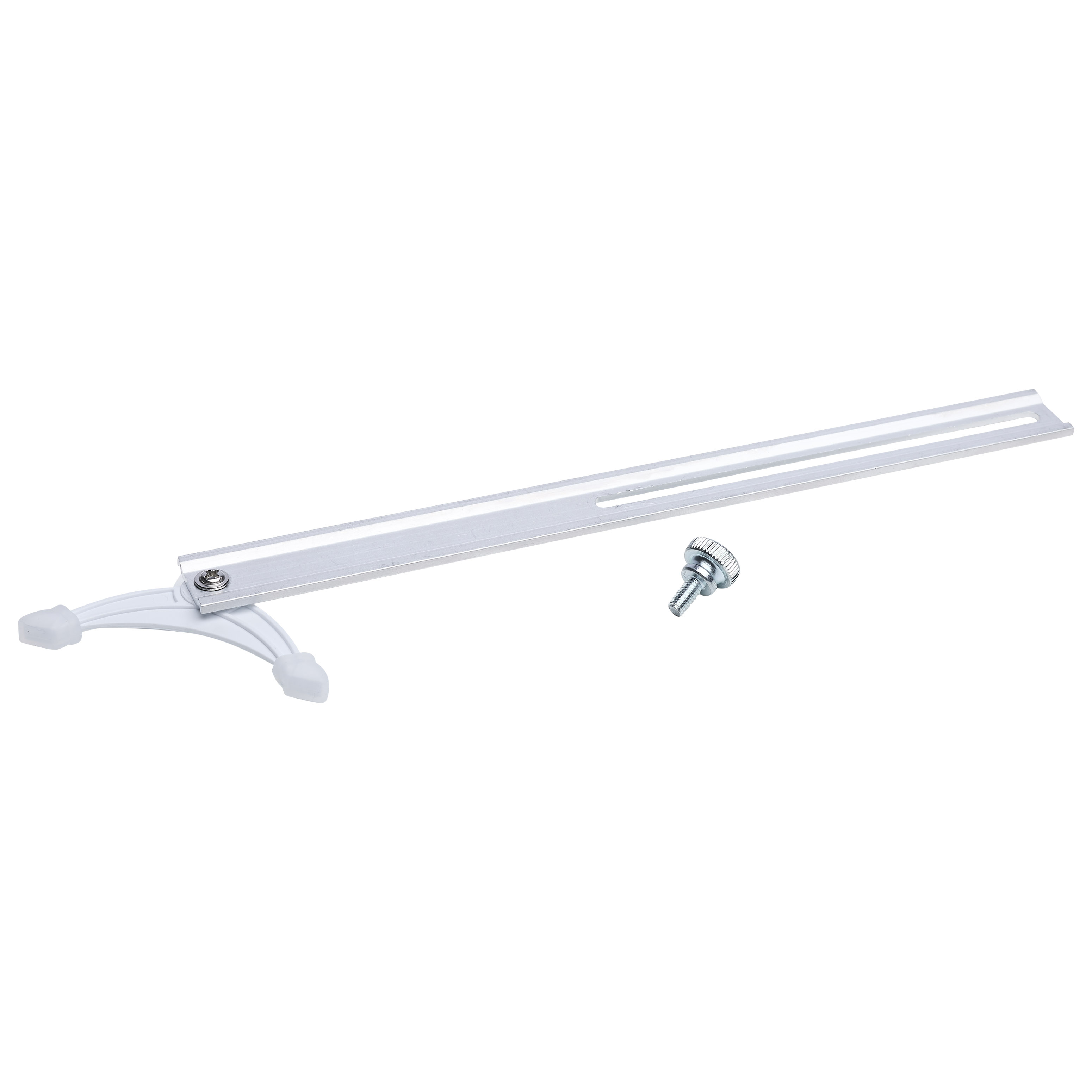

SATCO NUVO's S23138 Hi-Lumen Hi-Pro lamp delivers over 59,000 lumens, replacing metal halide lamps up to 750W with energy-efficient LED performance. Field-selectable wattage and CCT provide versatility, while the extended mogul EX39 base and enclosed fixture rating suit industrial and commercial spaces like warehouses and gymnasiums. A support bracket and safety cable add extra security during installation. The Type B ballast bypass design allows direct operation on 277-480V systems. A universal operating position, active cooling fan, and 4kV surge protection enhance reliability. With a 50,000-hour lifespan and a 5-year warranty, this lamp ensures long-lasting, high-lumen output.

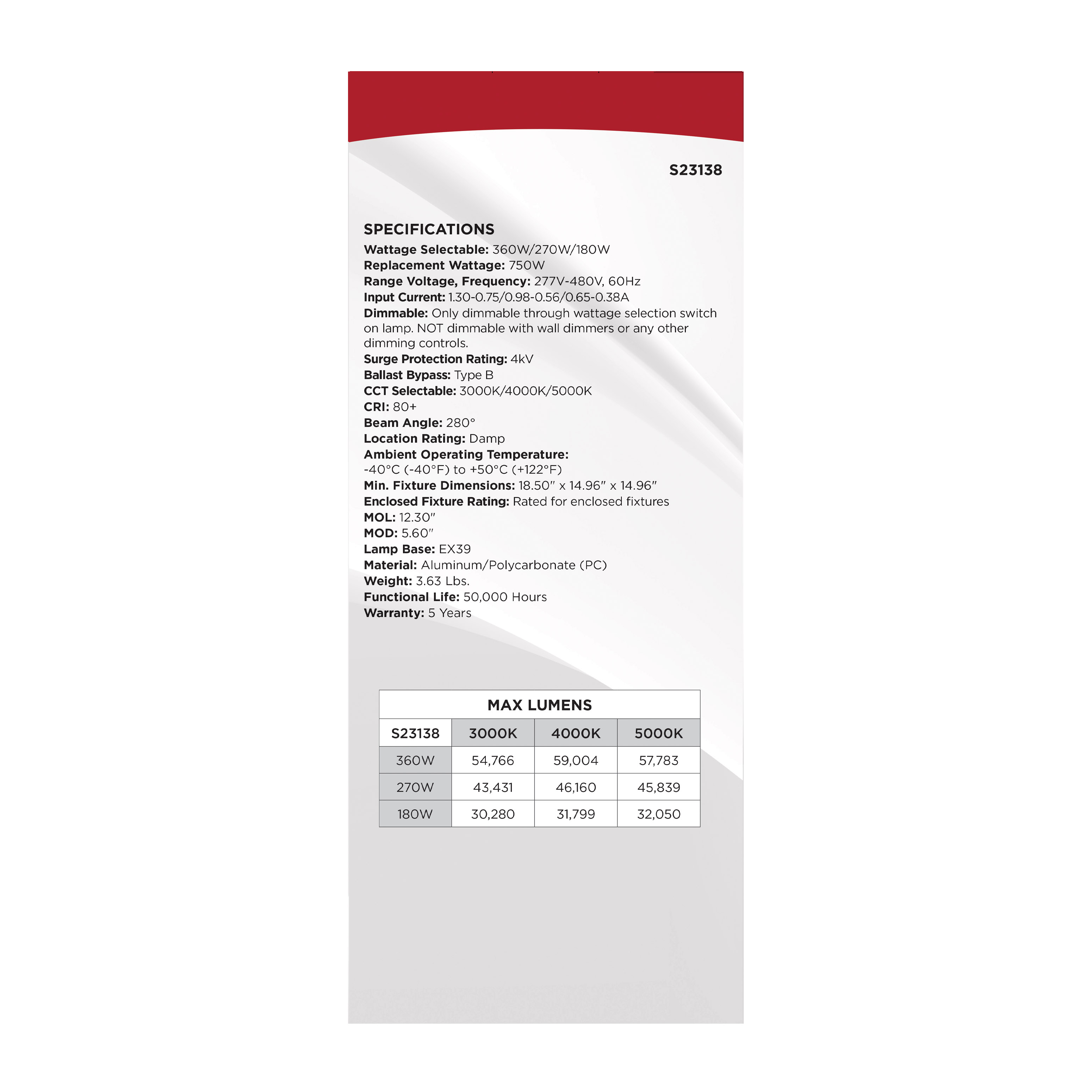

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED HID
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%

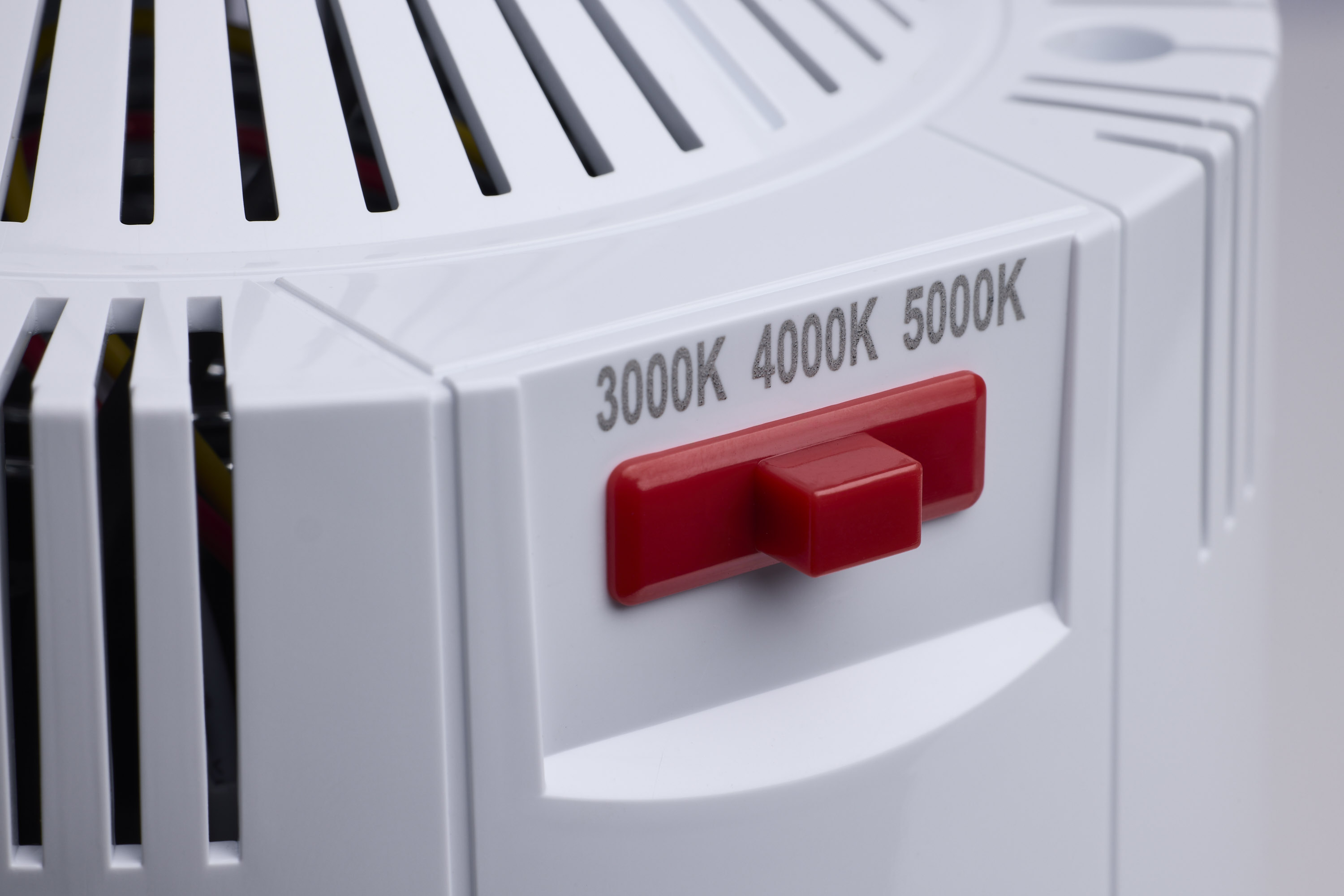

CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Additional InfoDecibels: 47.5dB(A)
Amps1.300-0.750/0.975-0.563/0.650-0.375A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength: 18.50 in. Width:14.96 in. Height: 14.96 in.
Operating PositionUniversal
Power Factor0.97
SDS ClassLED_Lamp
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)280
Color TempSoft White to Natural Light
CRI80+
Dimming TypeOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls., Step Dimming
Operating Frequency60Hz
Operating Temp-40F to +122F (-40C to +50C)
HID Equivalent750W

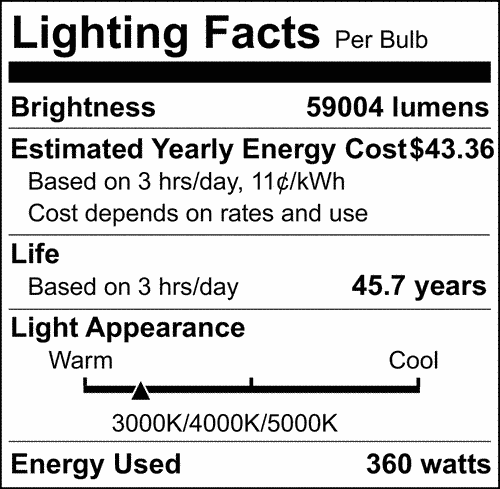

Lumens59004L/46160L/31799L
Volts277V-480V
Watts360W/270W/180W
Max Lumens59004L
Physical

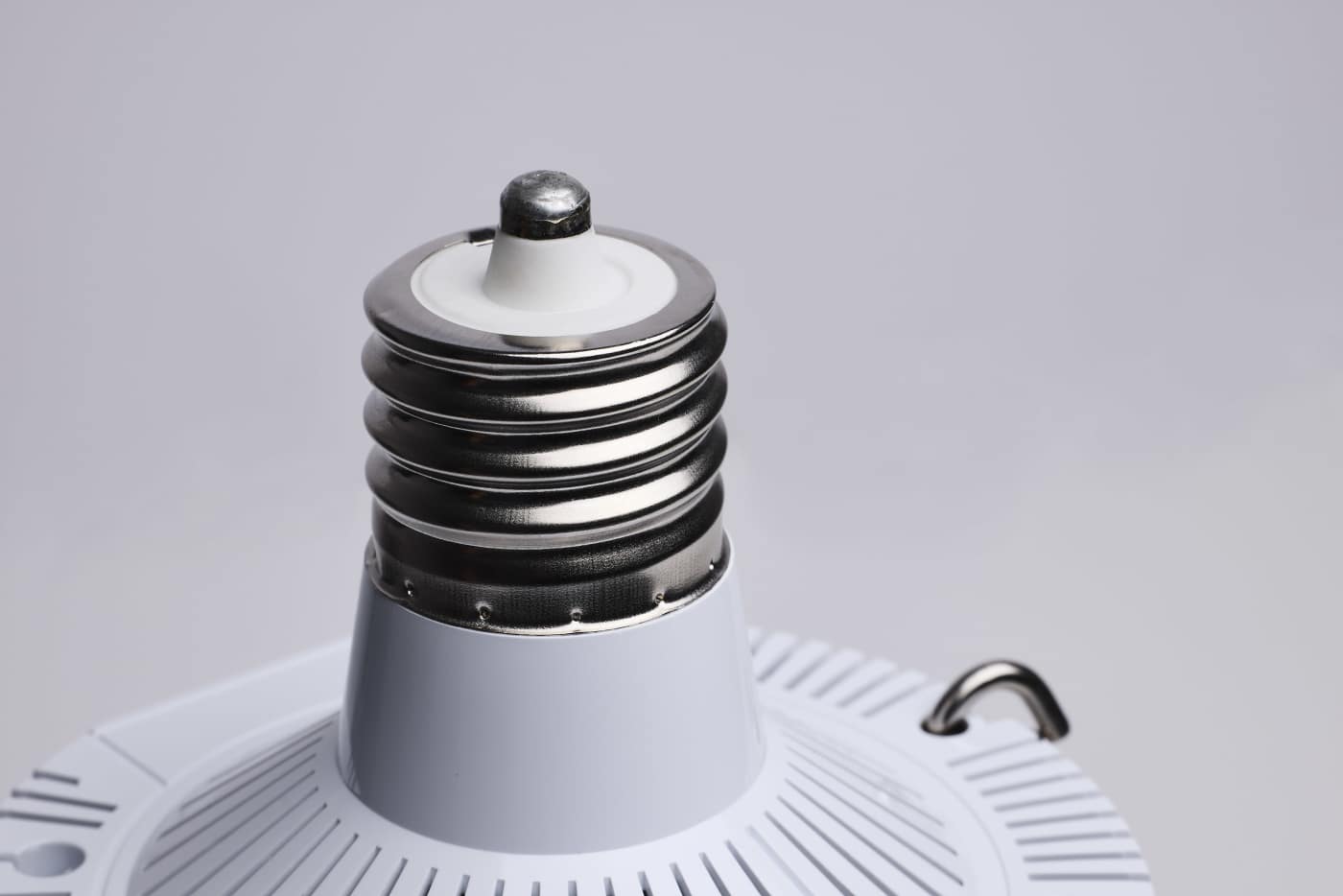

Lamp BaseMogul Extended
FinishWHITE
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob

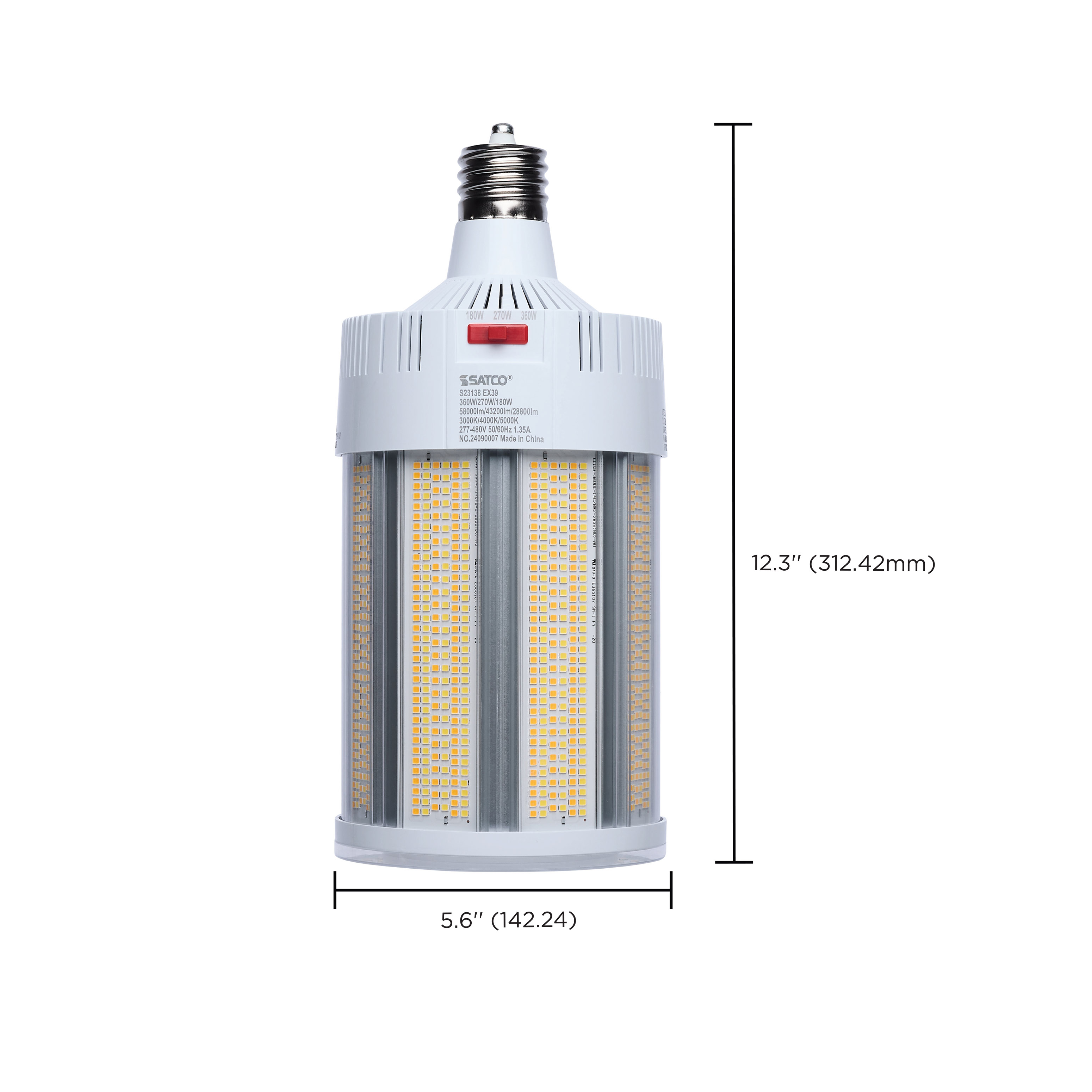

MOD Lamps5.6
MOL12.3
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Compliance
DLC IDS-81XCSL; S-Z75H89
FCC CompliantYes
IP RatingIP54
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923231384
Case Cube1.9911
Case Height14.76
Case Length18.5
Case Quantity6
Case UPC10045923231381
Case Weight30.36
Case Width12.6
EA Cube0.2864
EA Height14.17
EA Length5.91
EA Quantity1
EA Weight4.2
EA Width5.91
Pack TypeBox
Web Length12.3
Web Width5.6
