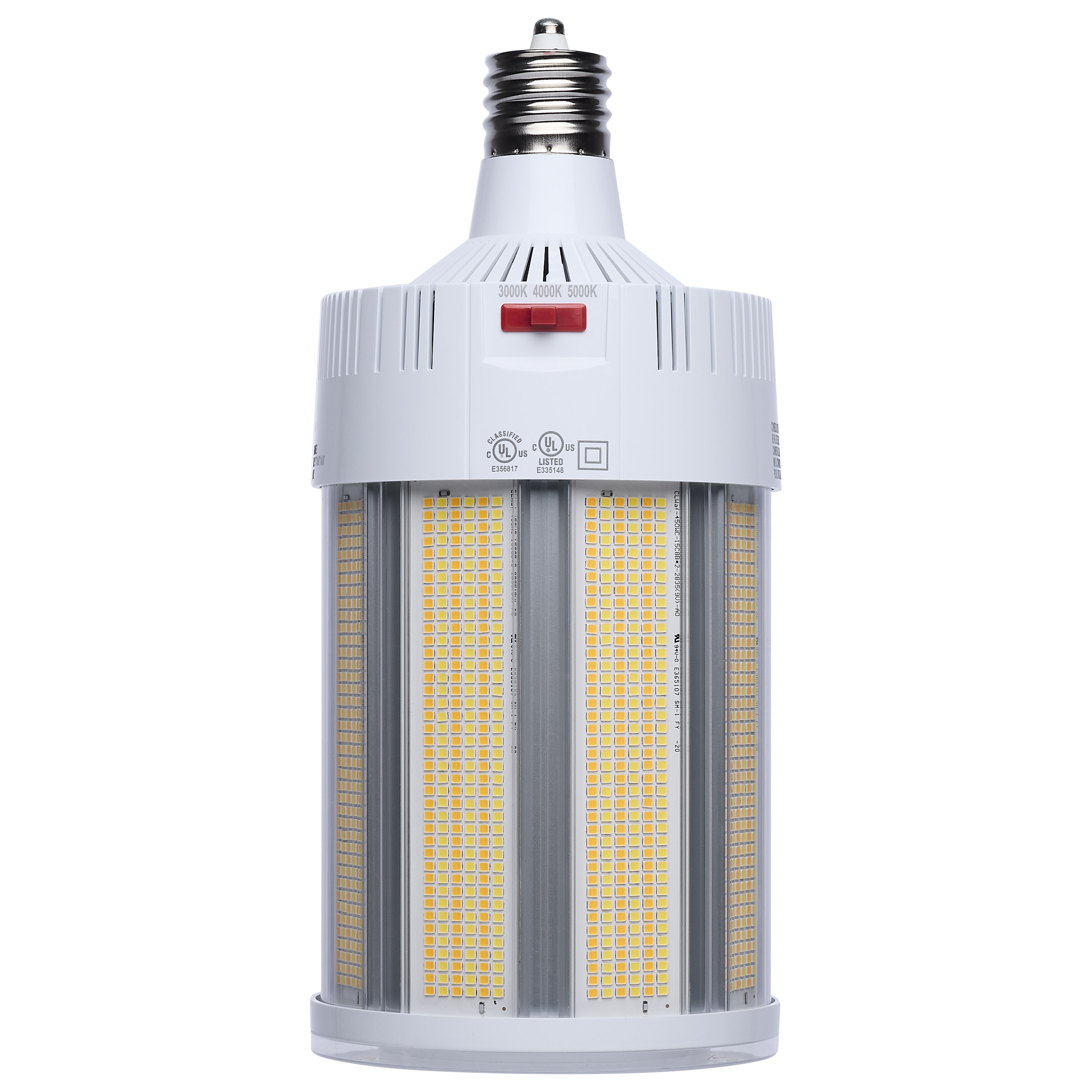

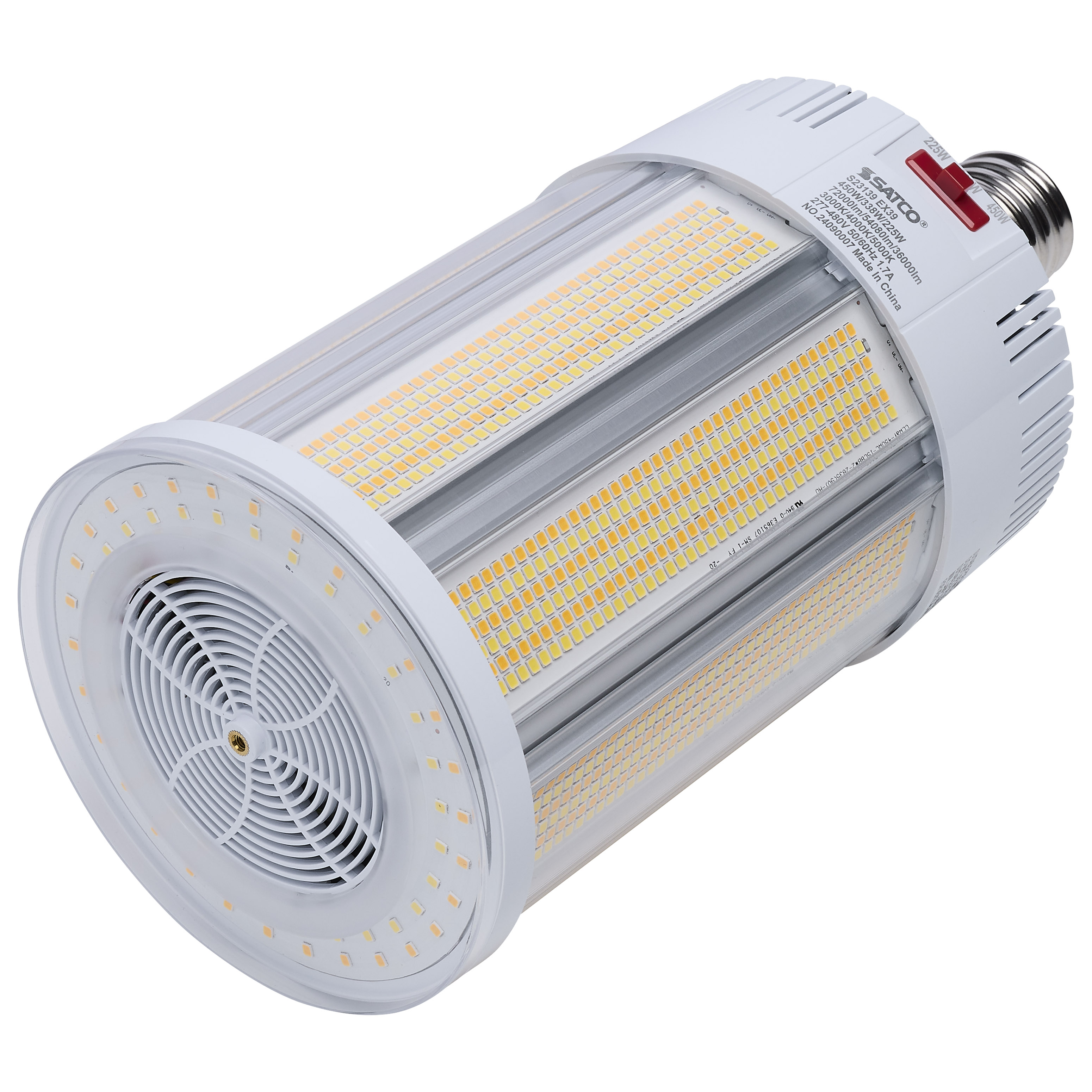

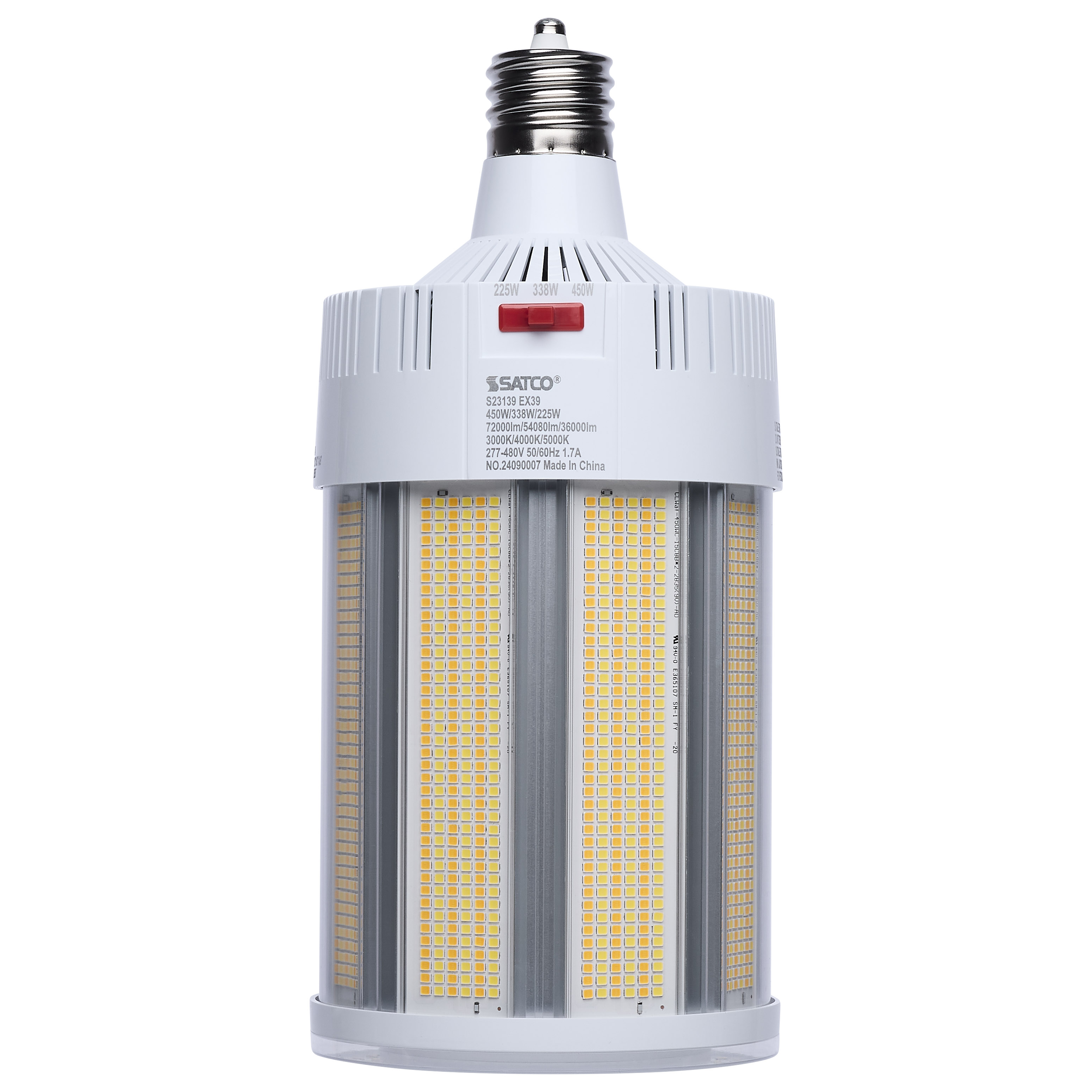

S23139

450W/LED/CCT/277-480V/EX39

  • 450/338/225 Watt
  • 30K/40K/50K CCT
  • Field Selectable LED
  • Corncob
  • Mogul Extended Base
  • 277-480 Ranged Voltage
  • 1000 Watt HID Replacement
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S23139 SpecificationsS23139 Photometrics 225W 30K 277V.iesS23139 Photometrics 225W 40K 277V.ies
Tools
Lighting Layout Analysis For S23139
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
450/338/225 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 277-480 Ranged Voltage; 1000 Watt HID Replacement

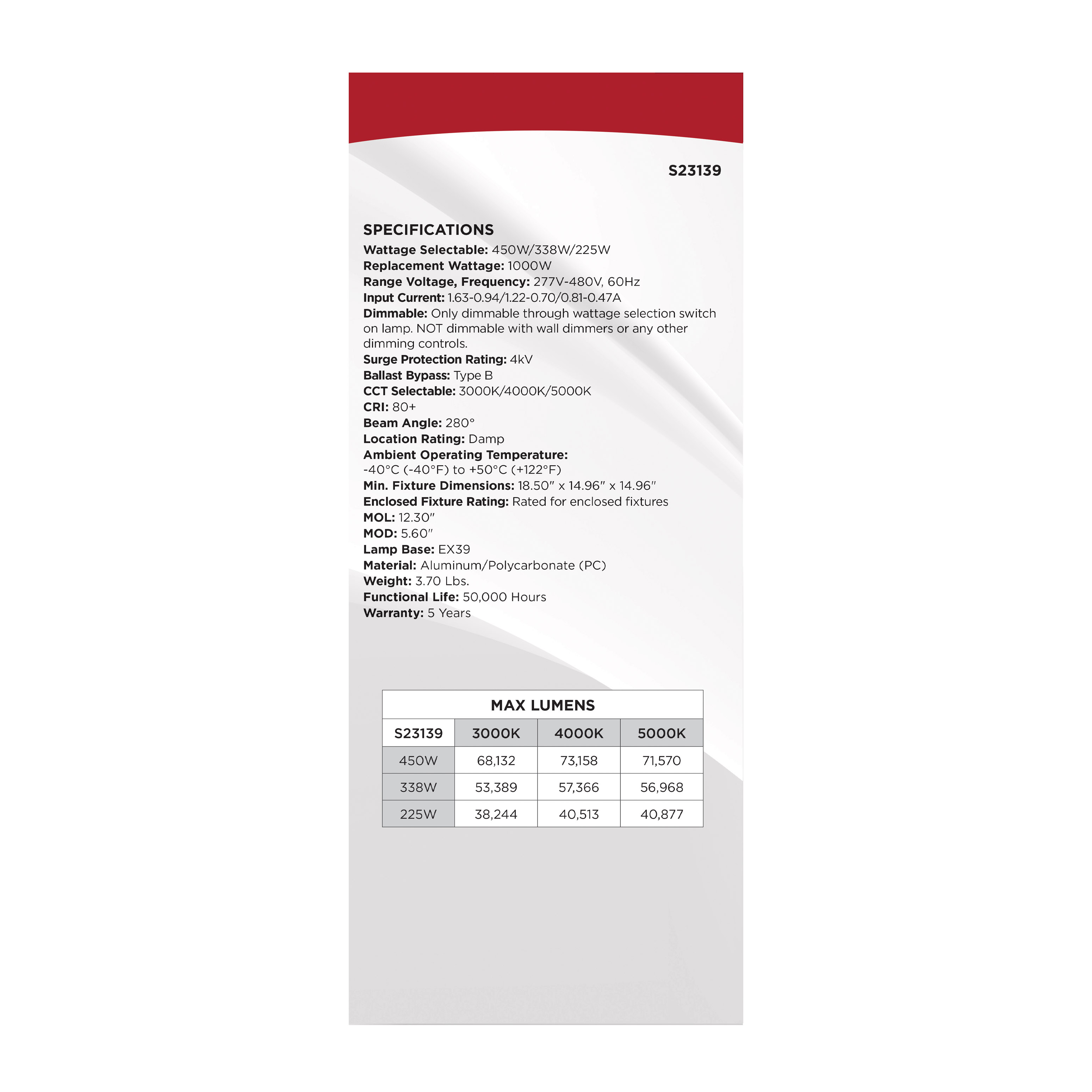

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Dimmable TextStep Dimming; Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED HID
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%

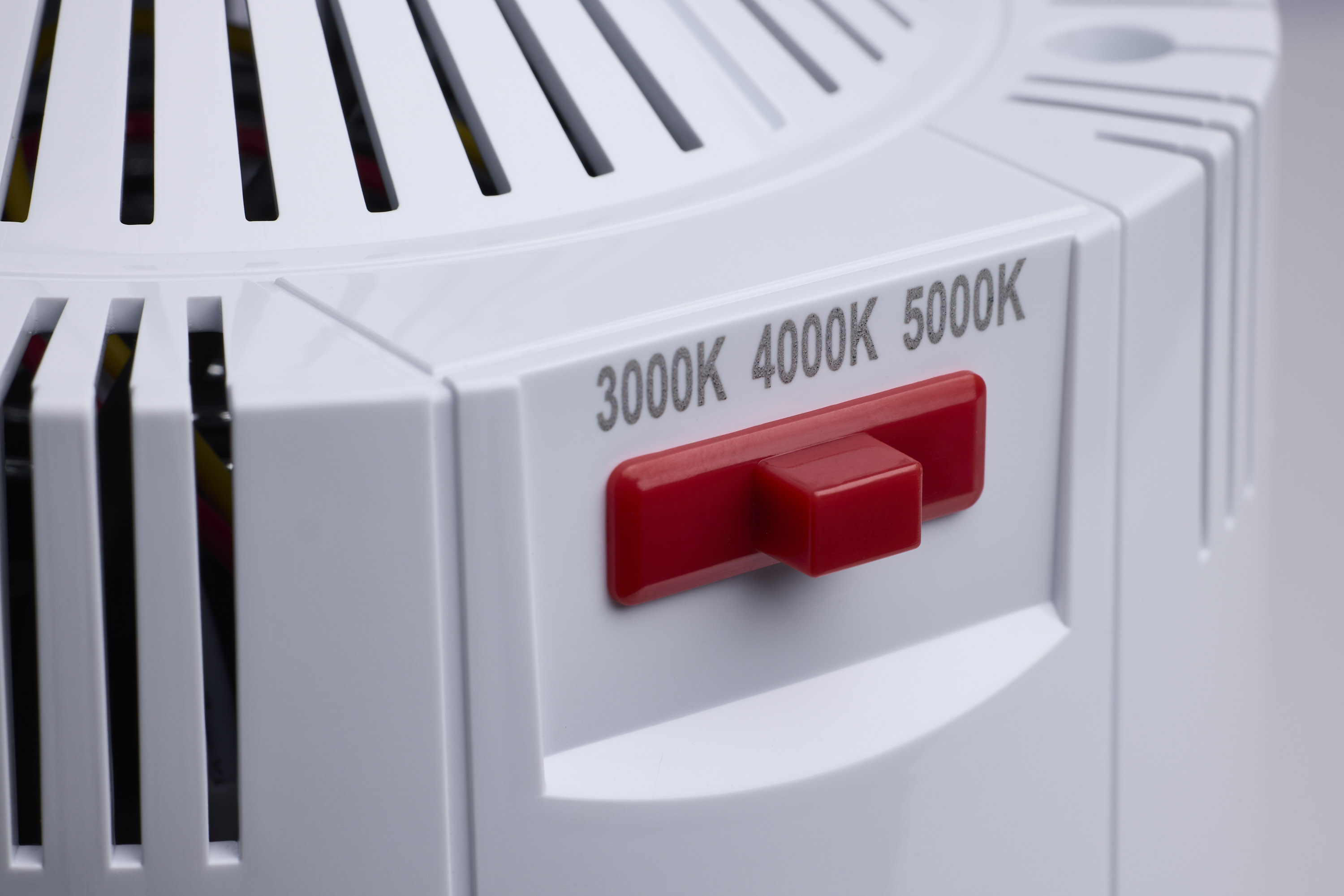

CCT SelectableYes

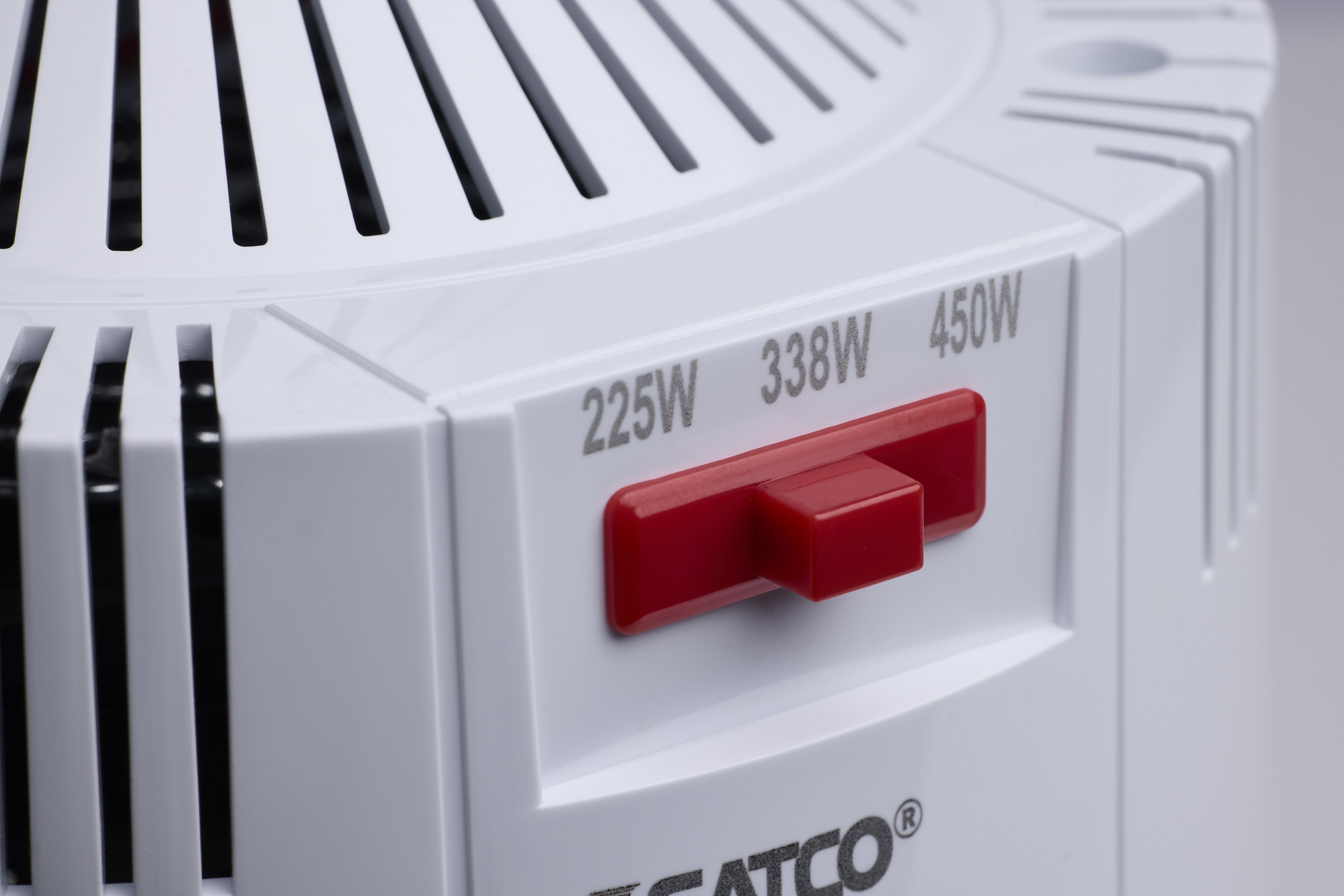

Wattage SelectableYes
Finish FamilyWhite
Additional InfoDecibels: 47.5dB(A)
Amps1.625-0.938/1.220-0.704/0.812-0.469A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength: 18.50 in. Width:14.96 in. Height: 14.96 in.
Operating PositionUniversal
Power Factor0.97
SDS ClassLED_Lamp
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)280
Color TempSoft White to Natural Light
CRI80+
Dimming TypeOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls., Step Dimming
Operating Frequency60Hz
Operating Temp-40C (-40F) to +50C (+122F)
HID Equivalent1000W

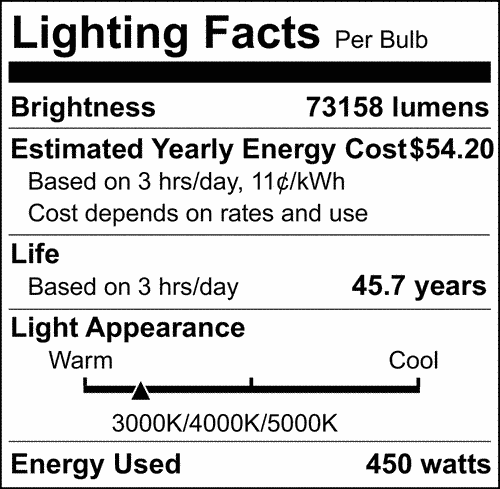

Lumens73158L/57366L/40513L
Volts277V-480V
Watts450W/338W/225W
Physical

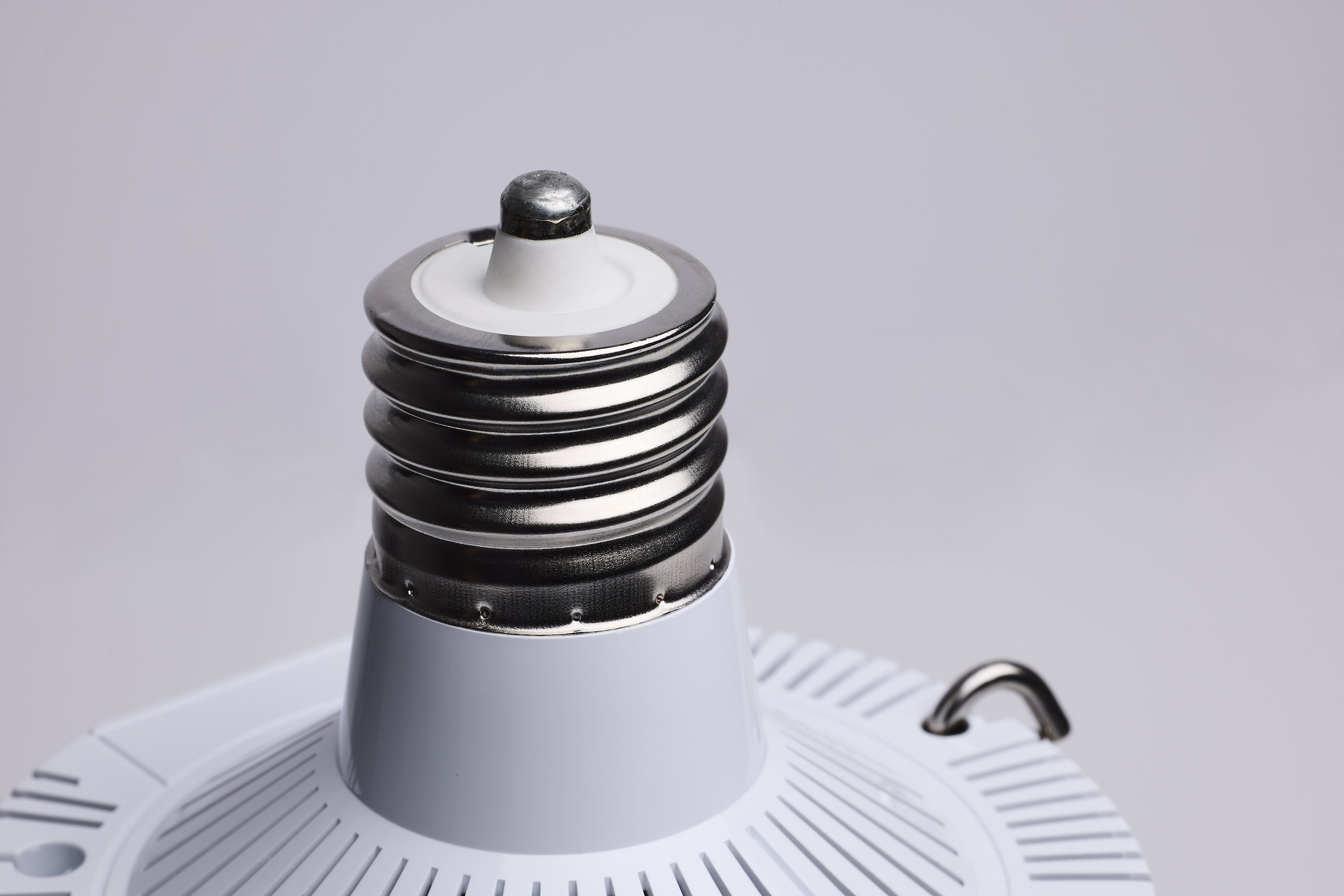

Lamp BaseMogul Extended
FinishWHITE
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob

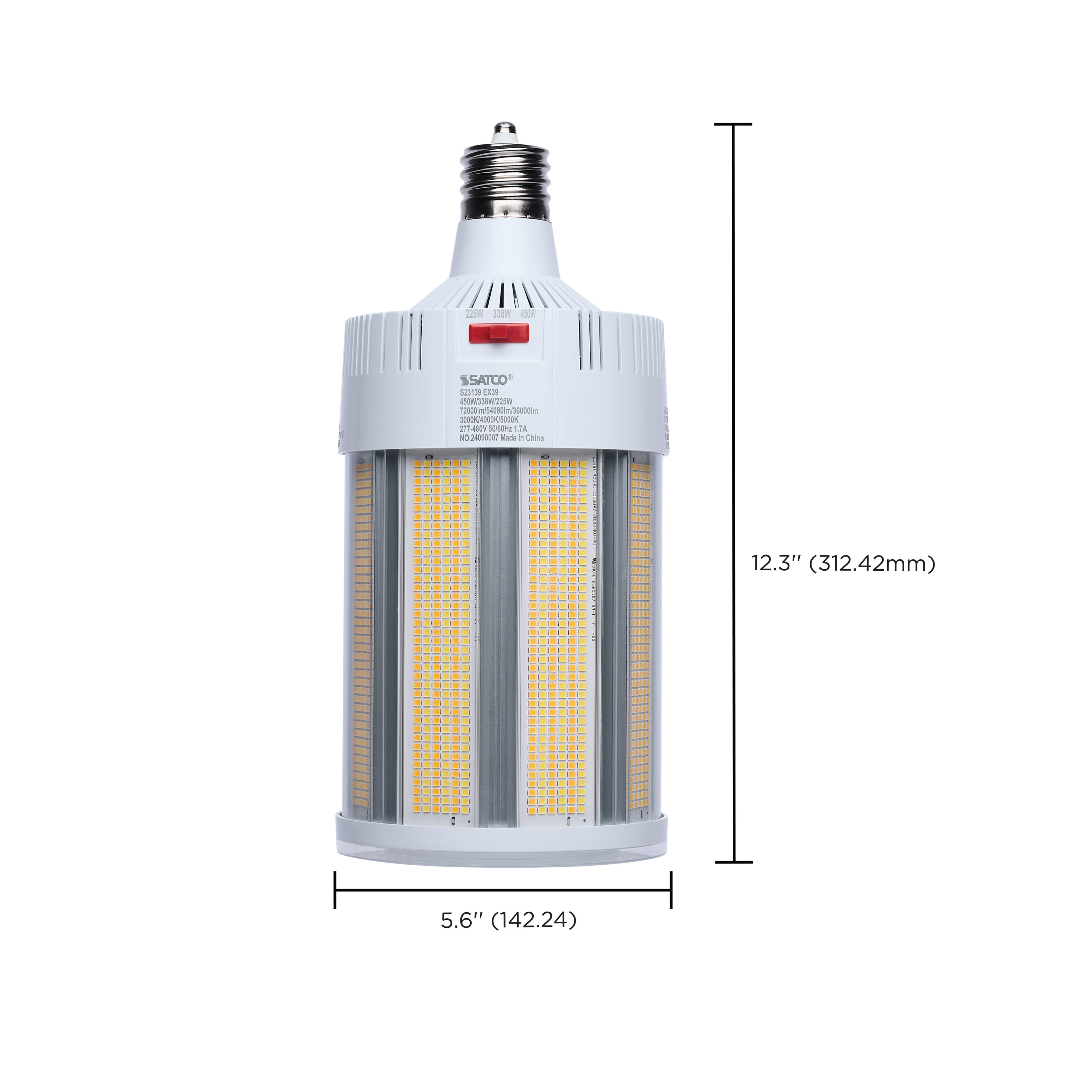

MOD Lamps5.6
MOL12.3
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-9SLZY0
FCC CompliantYes
IP RatingIP54
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923231391
Case Cube1.9911
Case Height14.76
Case Length18.5
Case Quantity6
Case UPC10045923231398
Case Weight31.9
Case Width12.6
EA Cube0.2864
EA Height14.17
EA Length5.91
EA Quantity1
EA Weight4.4
EA Width5.91
Inner Cube0.0
Pack TypeBox
Web Length12.3
Web Width5.6
