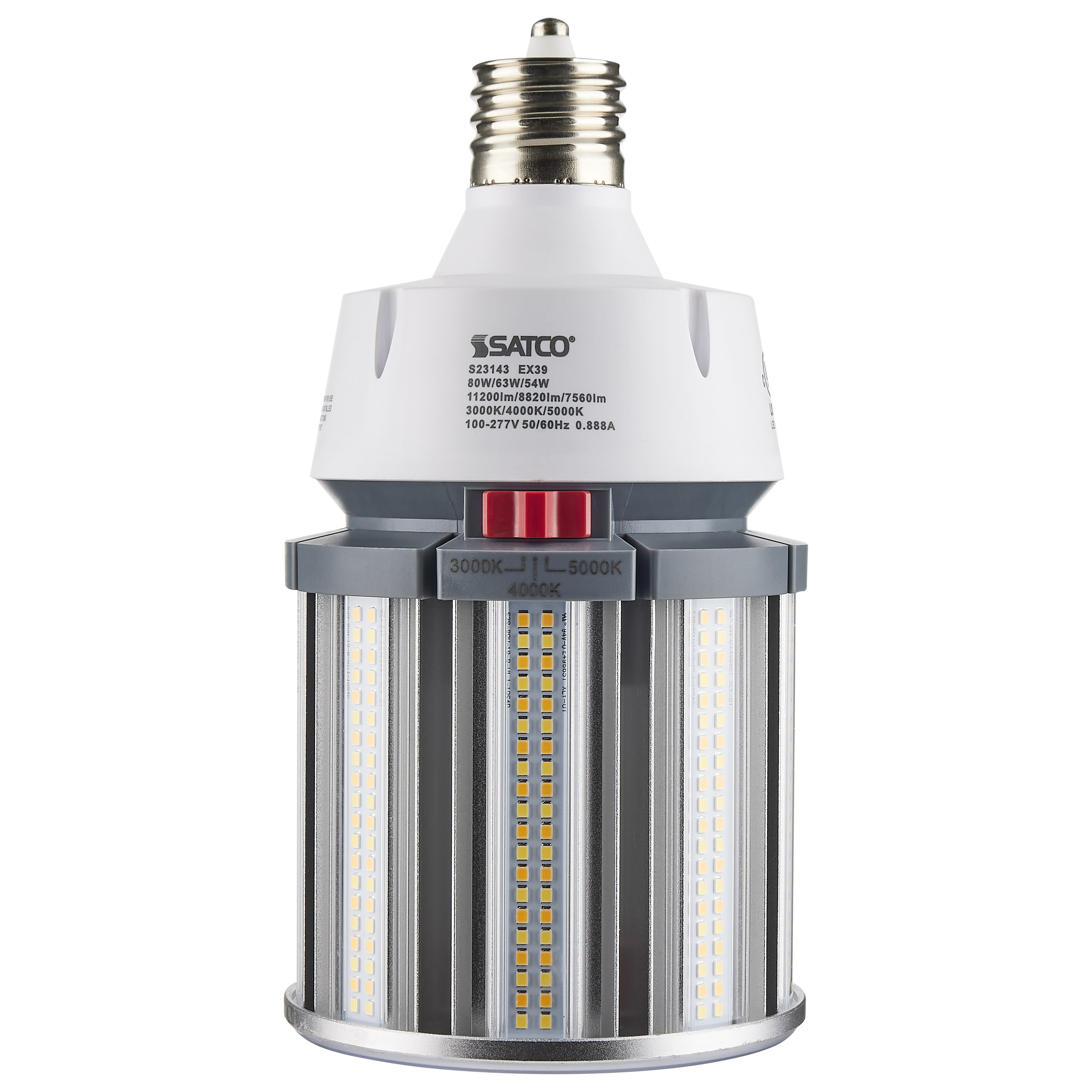

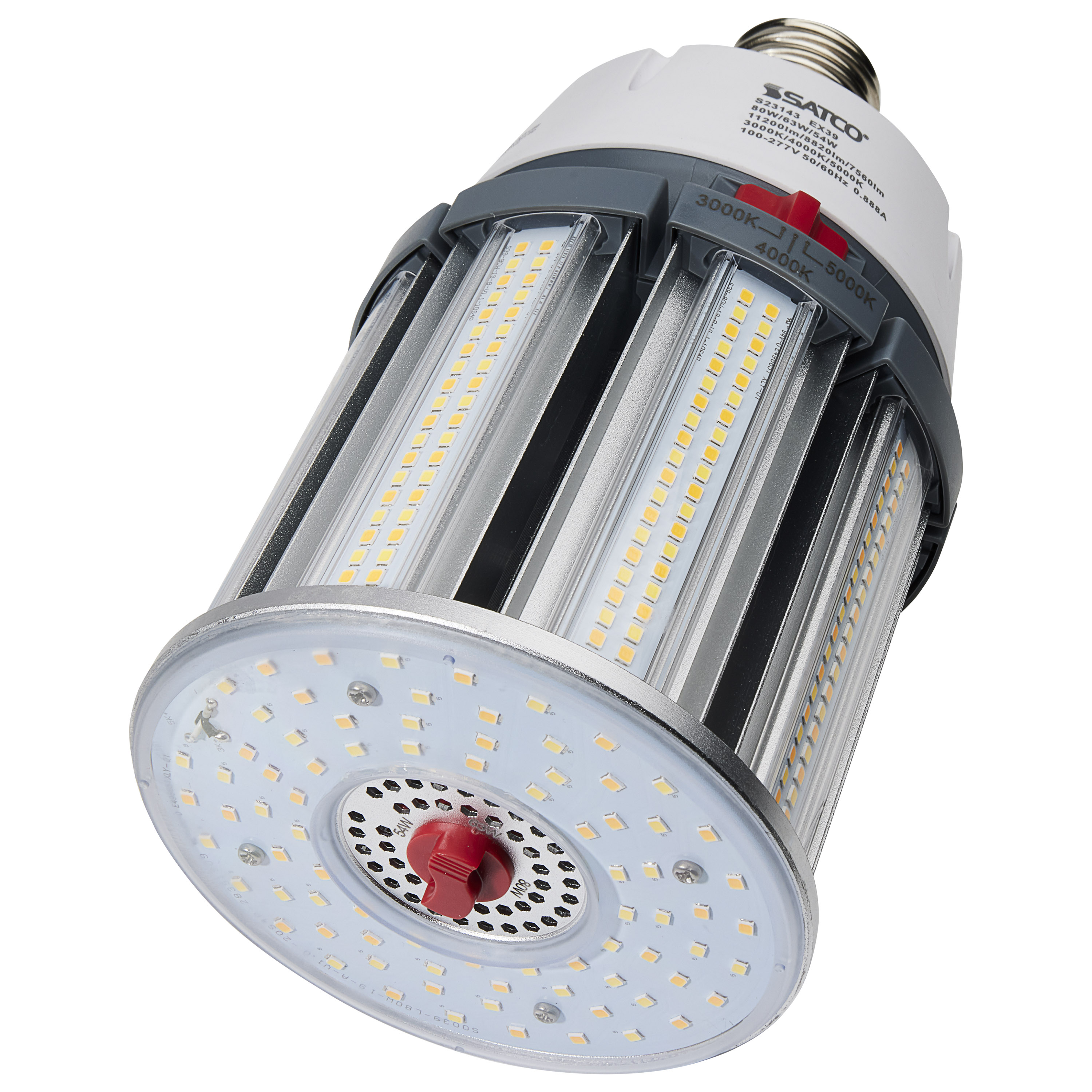

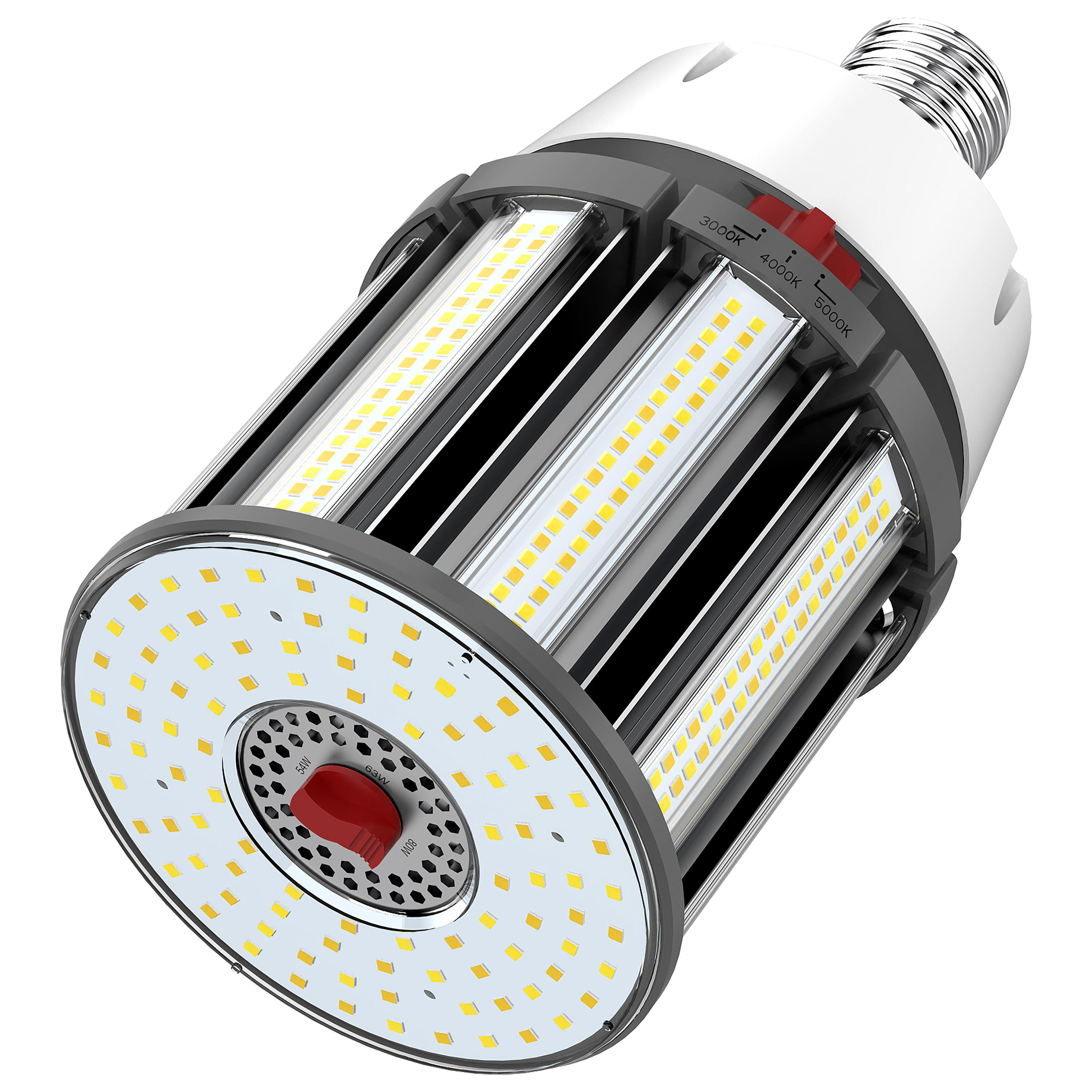

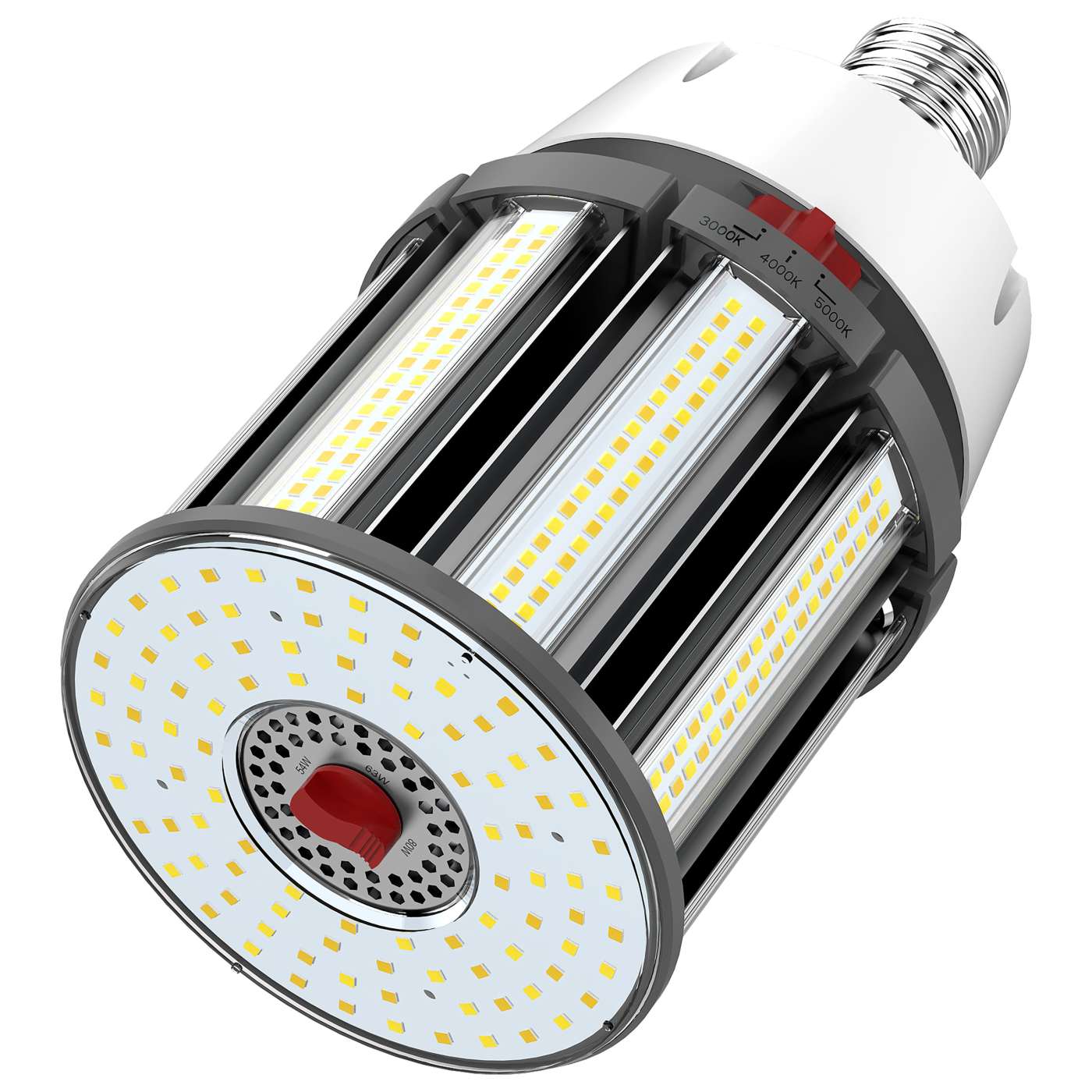

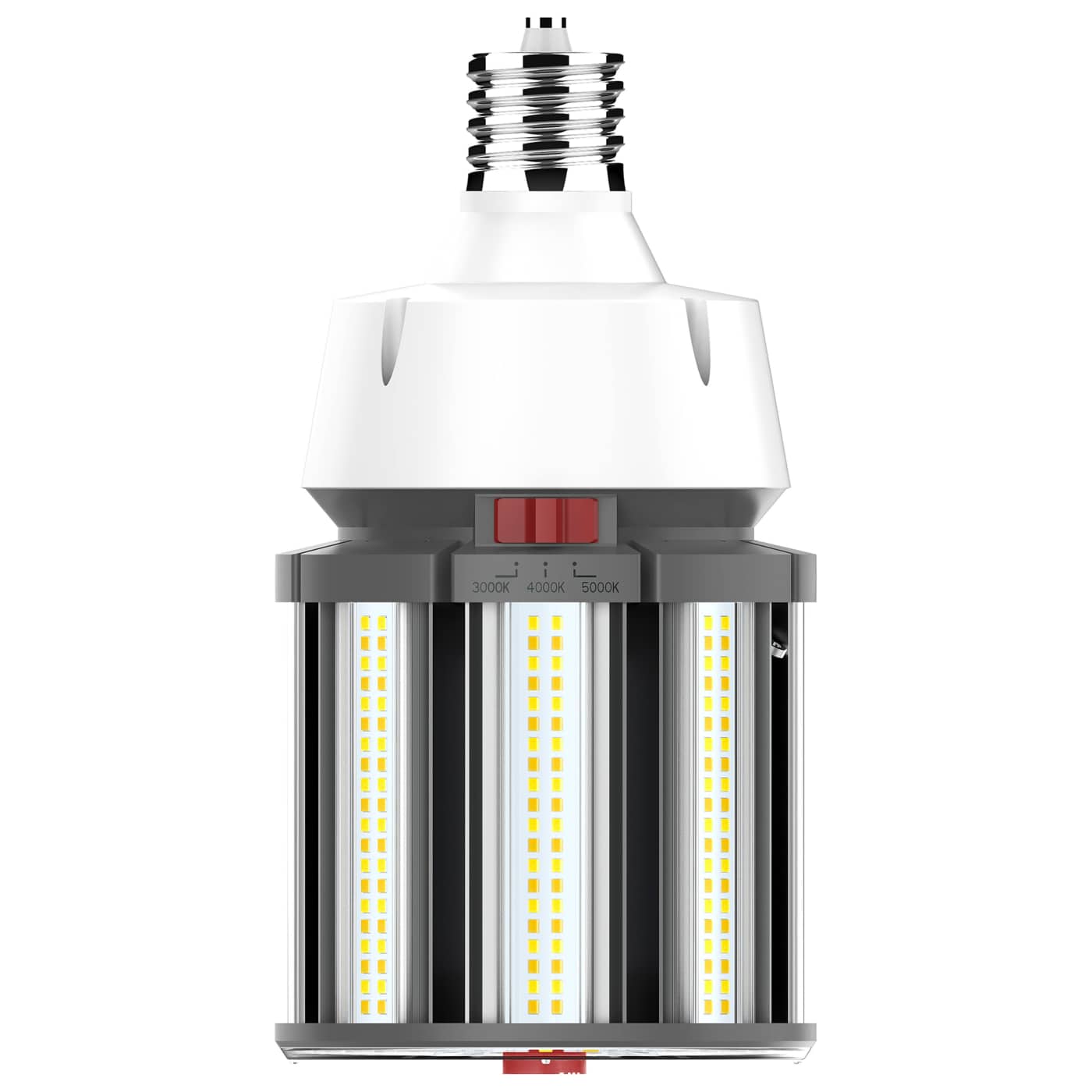

S23143 80W/LED/CCT/100-277V/EX39

S23143

80W/LED/CCT/100-277V/EX39

80/63/54 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology


The newest generation of SATCO|NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more versatility and custom-tailed light to many more venues. Designed to deliver clean, efficient LED lighting at 360 degrees from higher fixtures. This lamp is perfect for gymnasiums, factory floors, health clubs, warehouses and any venue where high ceilings require high-lumen, safe, superior light output.
  • CCT Selectable-3000K, 4000K, 5000K

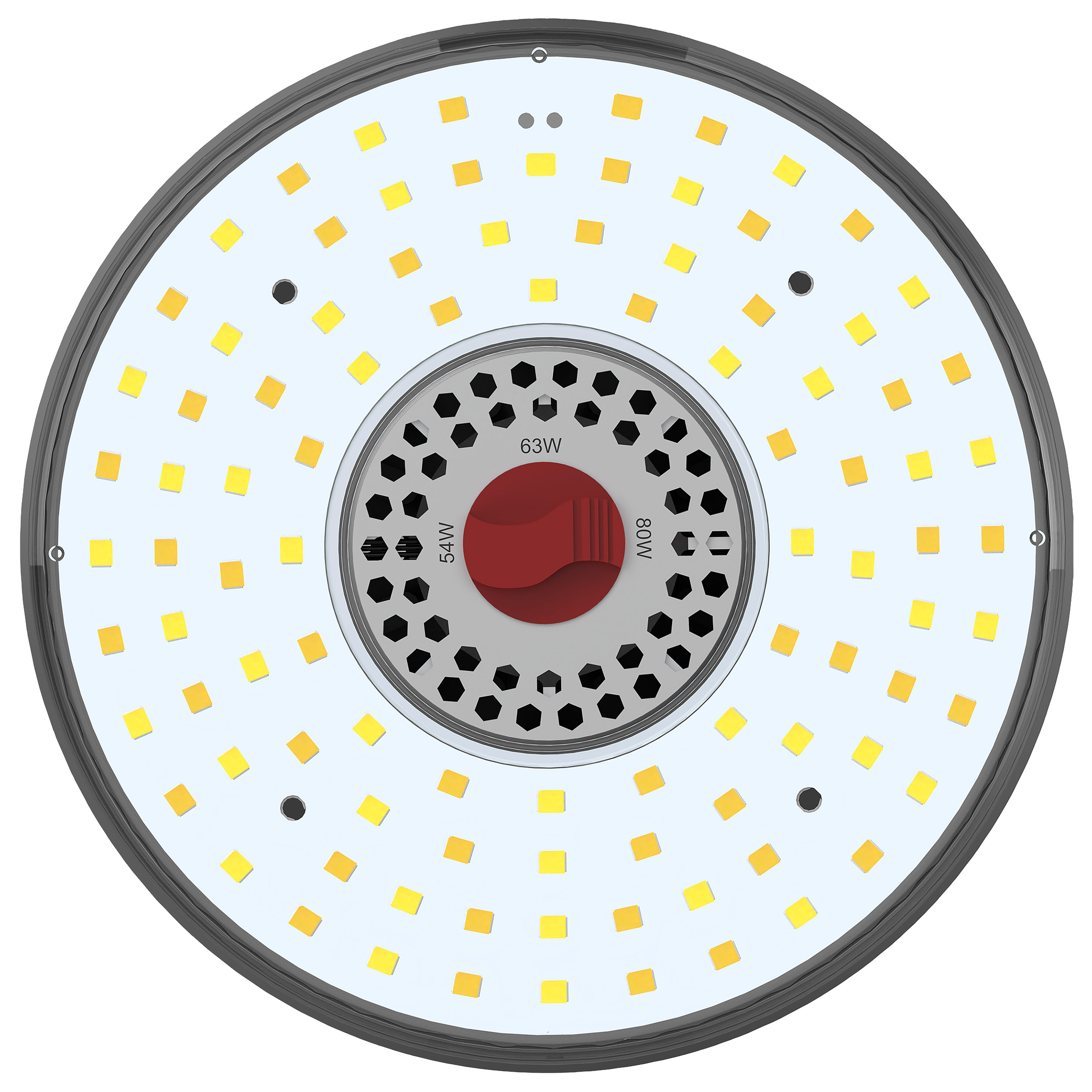

  • Wattage Selectable
  • Enclosed Fixture Rated
  • Advanced Thermal Management
  • Damp Location Rated
  • 4KV Built in Surge Protection
  • Rated for 50,000 hours of use
Lights

S23143

80W/LED/CCT/100-277V/EX39

80/63/54 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

The newest generation of SATCO|NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more versatility and custom-tailed light to many more venues. Designed to deliver clean, efficient LED lighting at 360 degrees from higher fixtures. This lamp is perfect for gymnasiums, factory floors, health clubs, warehouses and any venue where high ceilings require high-lumen, safe, superior light output.
  • CCT Selectable-3000K, 4000K, 5000K
  • Wattage Selectable
  • Enclosed Fixture Rated
  • Advanced Thermal Management
  • Damp Location Rated
  • 4KV Built in Surge Protection
  • Rated for 50,000 hours of use

Specifications

General
StatusActive
Watts80W/63W/54W
Incandescent Equivalent150W-250W
HID Equivalent320W/250W/200W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens11200L/8820L/7560L
Beam Spread300
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 9.85 in. Width: 9.85 in. Height: 10.95 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts80W/63W/54W
Incandescent Equivalent150W-250W
HID Equivalent320W/250W/200W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50-60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens11200L/8820L/7560L
Beam Spread300
Power Factor>0.9
Hours Rated50000
Operating PositionBase Up or Down
Surge ProtectionBuilt-in surge protection - 4KV
THD12.30%
Operating Temperature-40C (-40F) to +60C (+140F)
Physical
MOL9.96
MOD5.11
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
Lens MaterialPlastic
Housing ColorDark Gray
Weight (lb.)2.68
Additional Information
Additional InfoPower selectable
Min Compartment SizeLength: 9.85 in. Width: 9.85 in. Height: 10.95 in.
Rated For Enclosed FixtureYes
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-7YQW1Z
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923231438
Each Quantity1
Each Length (in.)11.61
Each Width (in.)5.51
Each Height (in.)5.51
Each Weight (lb.)3.52
Each Cube (CuFt.)0.2040
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923231435
Case Quantity4
Case Length (in.)12.01
Case Width (in.)11.61
Case Height (in.)11.81
Case Weight (lb.)15.27
Case Cube (CuFt.)0.9530
