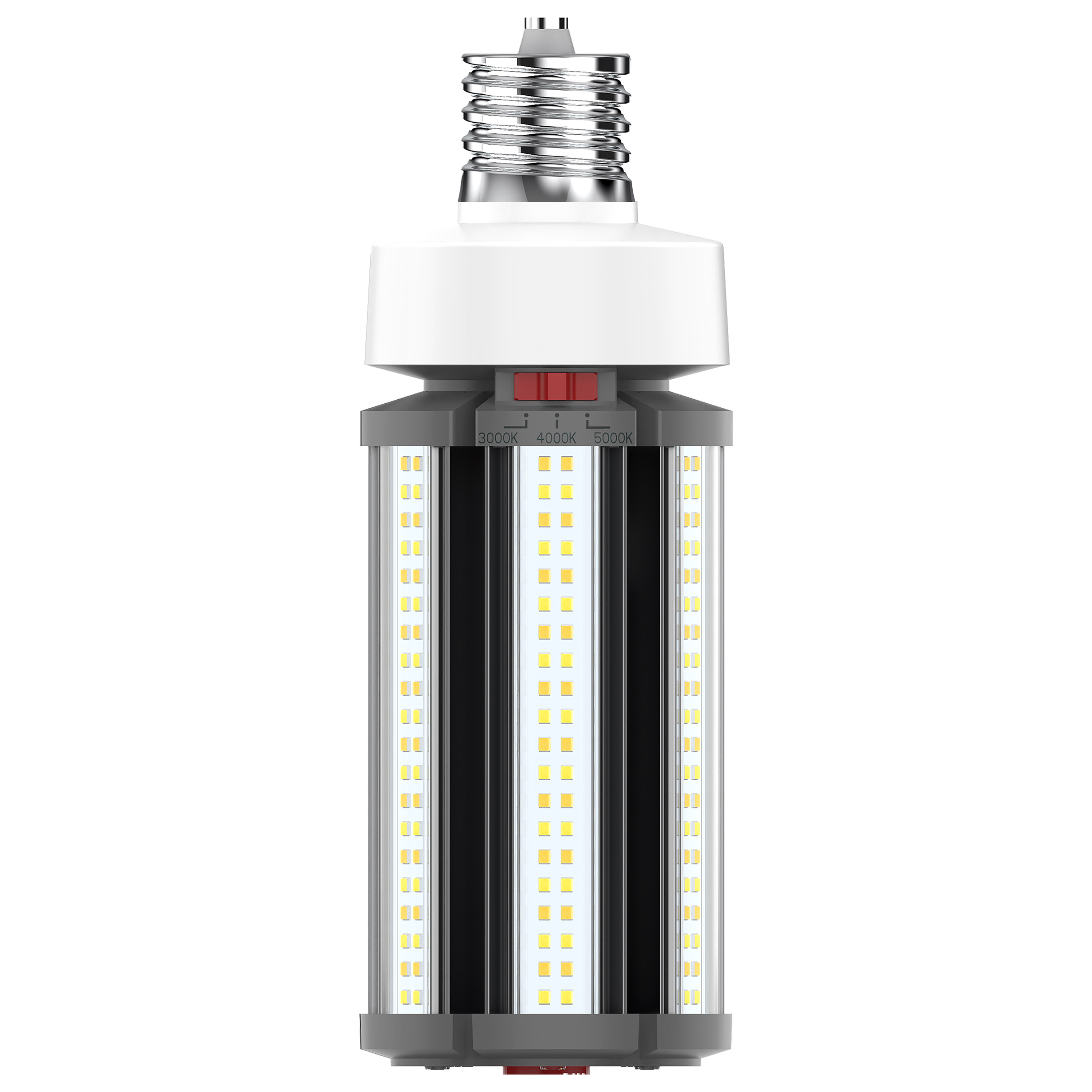

| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Plastic (PS) |
| Fixture Type | Corncob |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 14.10% |

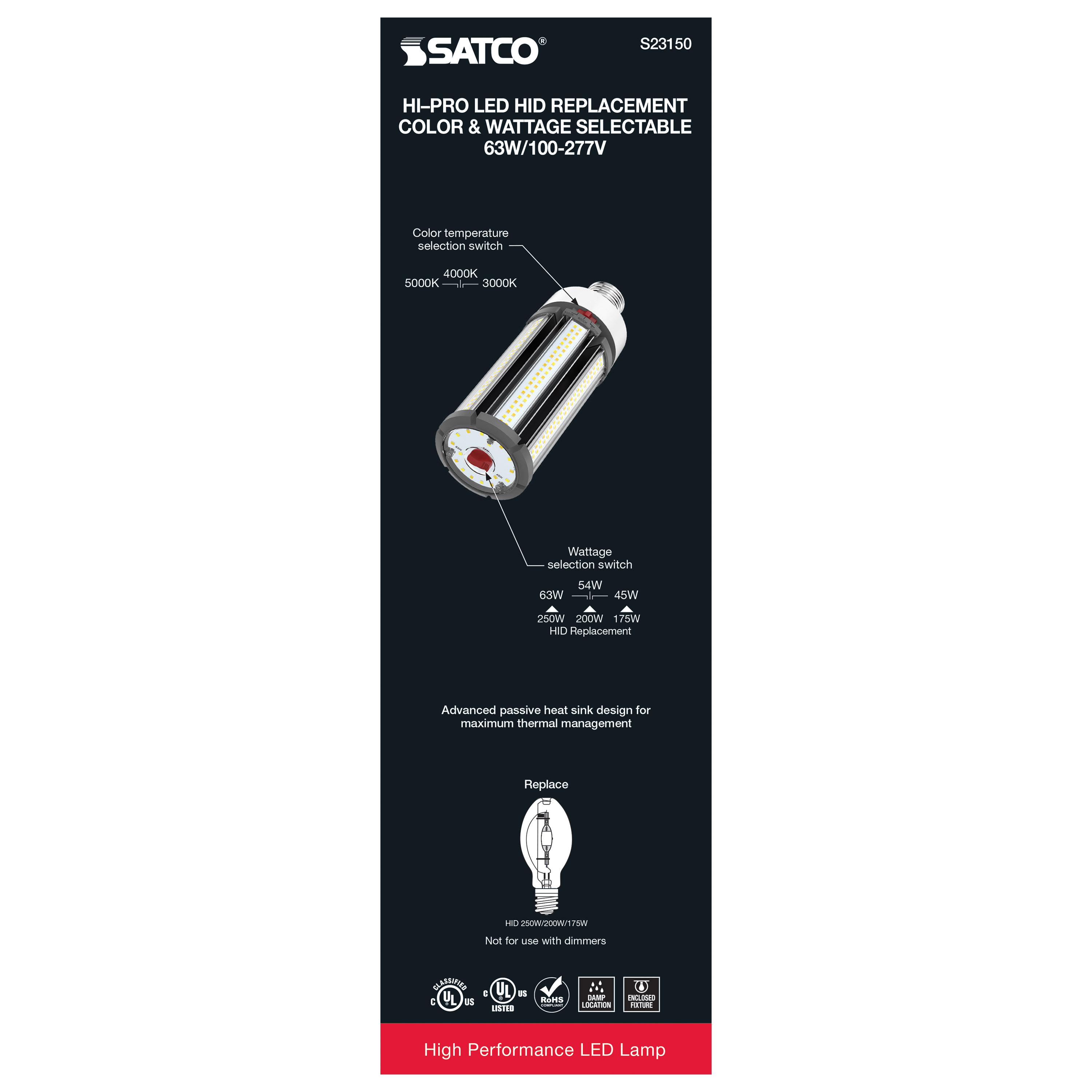

| CCT Selectable | Yes |

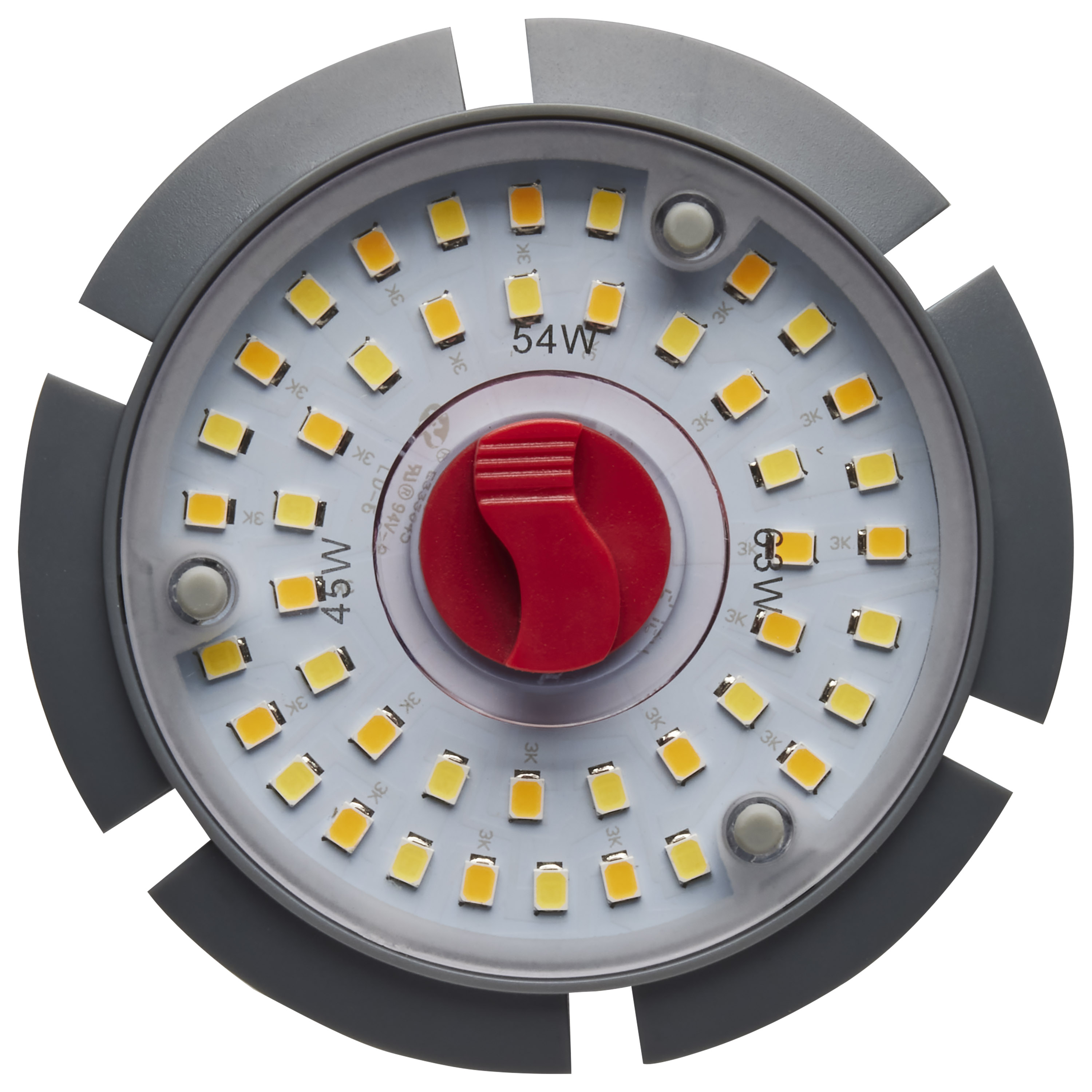

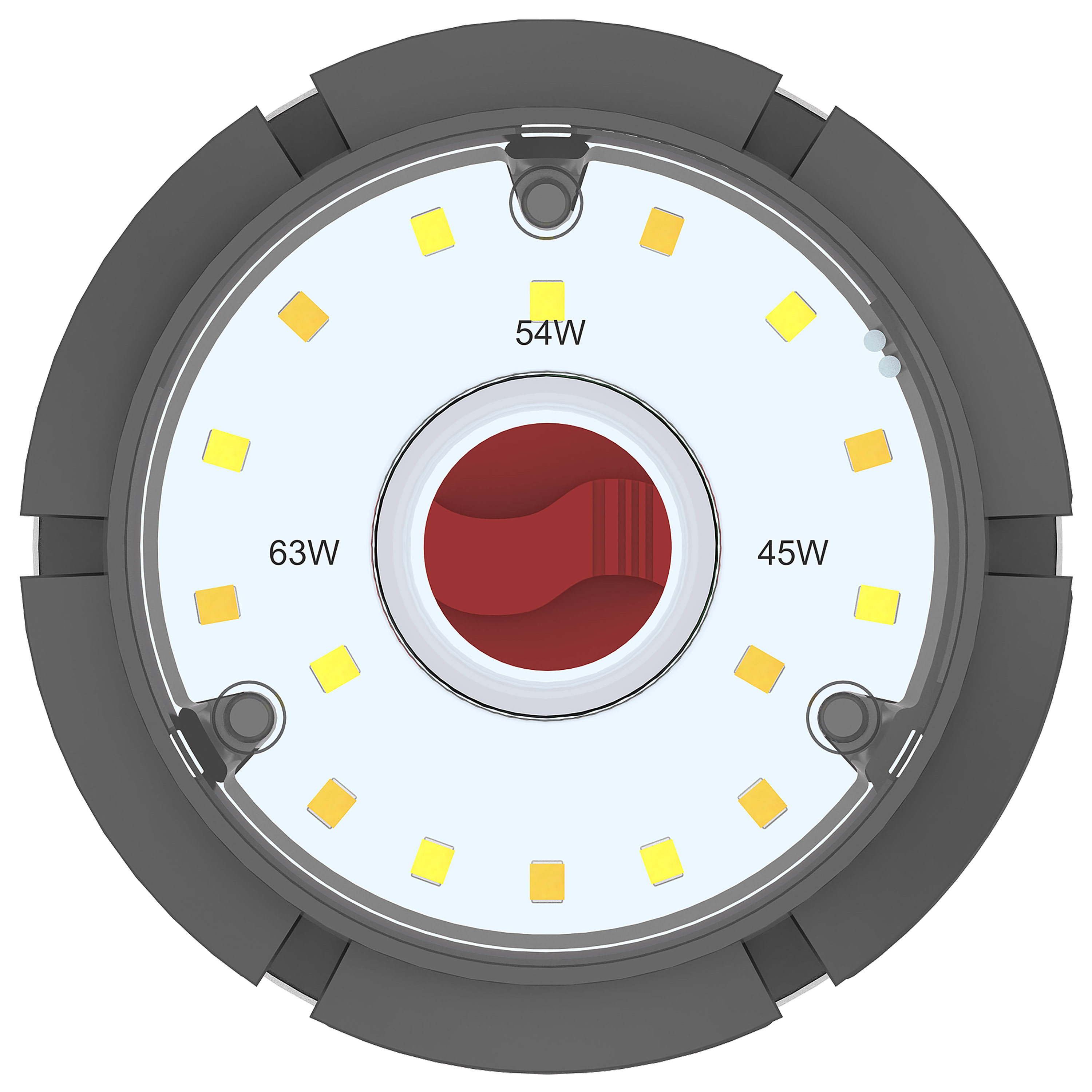

| Wattage Selectable | Yes |
| Finish Family | White |
| Additional Info | Safety cable provided with S23143, S23144, S23145 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions) |
| Amps | 0.630-0.227/0.540-0.195/0.450-0.162A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Material | Plastic |
| Minimum Compartment Size | Length: 7.88 in. Width: 7.88 in. |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 150W-250W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 300 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +60C (+140F) |
| HID Equivalent | 250W/200W/175W |
| Lumens | 8820L/7560L/6300L |
| Volts | 120V-277V |
| Watts | 63W/54W/45W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | Dark Gray |
| ANSI Base | EX39 |
| Lamp Type | Corncob |
| MOD Lamps | 3.35 |
| MOL | 10.28 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| Bug Rating | B2-U5-G3 |
|---|---|
| DLC ID | S-ZHMICR |
| FCC Compliant | Yes |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923231506 |
|---|---|
| Case Cube | 1.5634 |
| Case Height | 13.15 |
| Case Length | 16.73 |
| Case Quantity | 12 |
| Case UPC | 10045923231503 |
| Case Weight | 29.33 |
| Case Width | 12.28 |
| EA Cube | 0.0897 |
| EA Height | 3.66 |
| EA Length | 11.57 |
| EA Quantity | 1 |
| EA Weight | 2.18 |
| EA Width | 3.66 |
| Inner Cube | 0.6461 |
| Inner Height | 12.17 |
| Inner Length | 11.54 |
| Inner Quantity | 6 |
| Inner UPC | 20045923231500 |
| Inner Weight | 13.95 |
| Inner Width | 7.95 |
| Pack Type | Box |
| Web Length | 10.28 |
| Web Width | 3.35 |
