» S23151

S23151 27W/LED/CCT/100-277V/EX39

S23151

27W/LED/CCT/100-277V/EX39

27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology


The newest generation of SATCO|NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more versatility and custom-tailed light to many more venues. Designed to deliver clean, efficient LED lighting at 360 degrees from higher fixtures. This lamp is perfect for gymnasiums, factory floors, health clubs, warehouses and any venue where high ceilings require high-lumen, safe, superior light output.
  • CCT Selectable-3000K, 4000K, 5000K

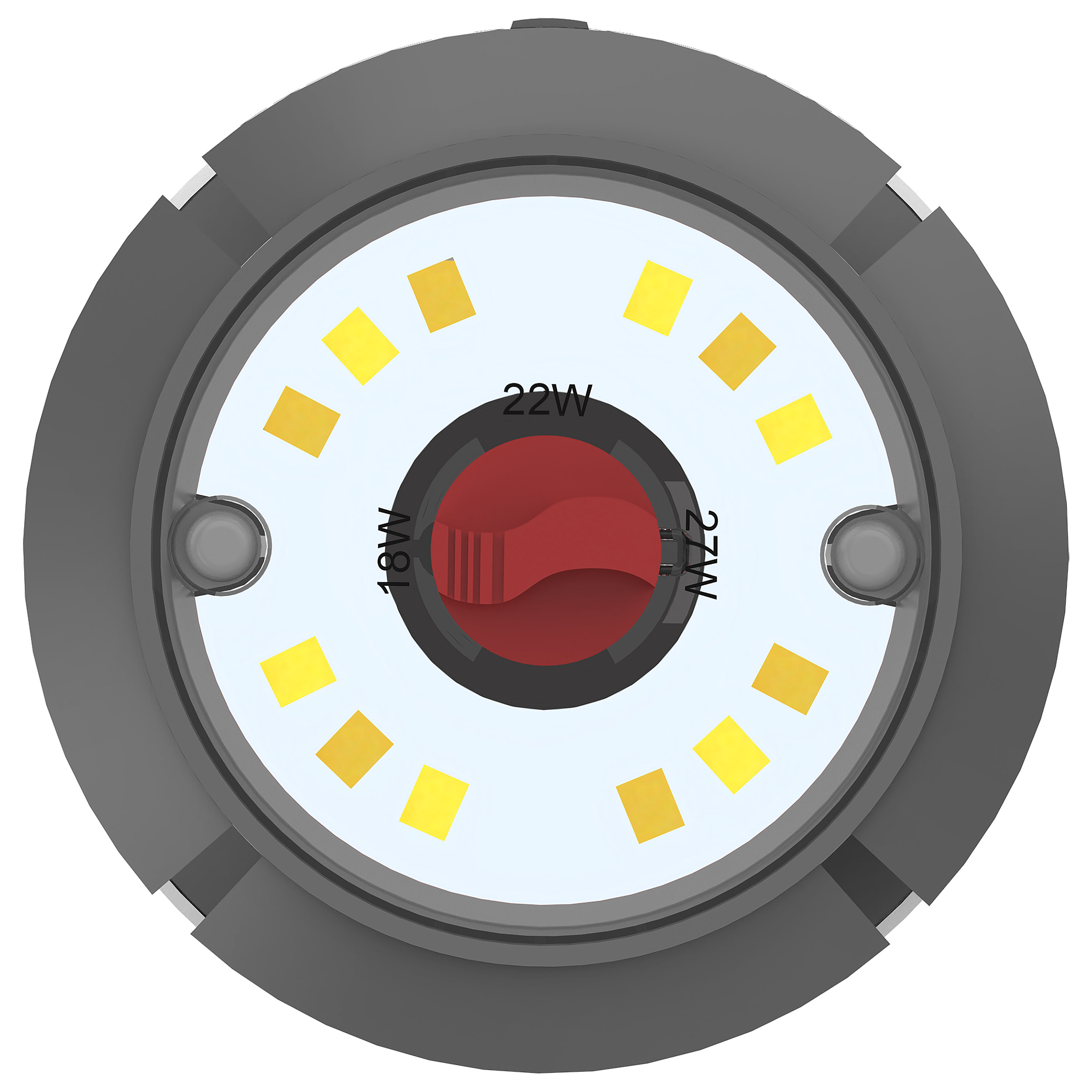

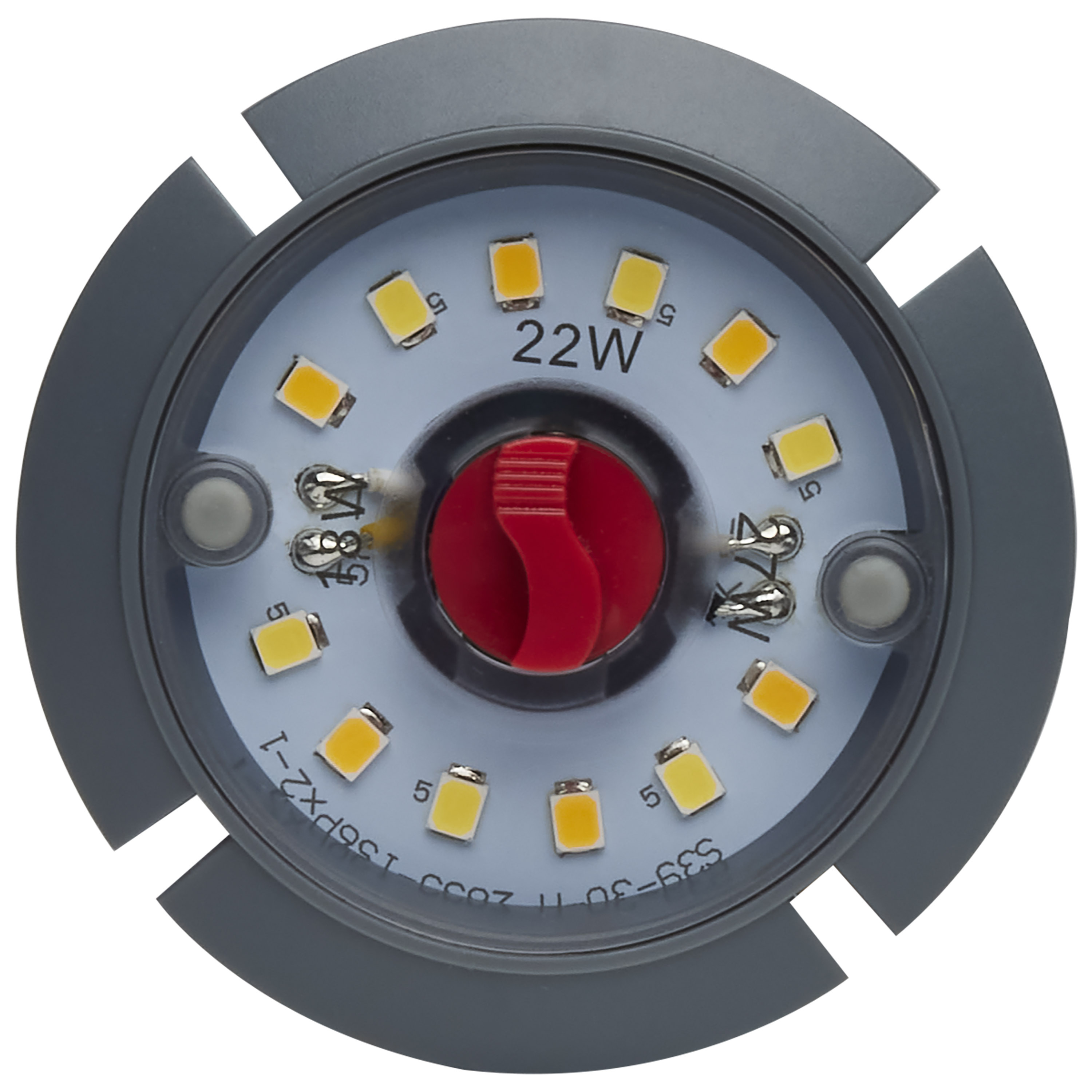

  • Wattage Selectable
  • Enclosed Fixture Rated
  • Advanced Thermal Management
  • Damp Location Rated
  • 4KV Built in Surge Protection
  • Rated for 50,000 hours of use
  • DLC Listed
Lights

S23151

27W/LED/CCT/100-277V/EX39

27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

The newest generation of SATCO|NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more versatility and custom-tailed light to many more venues. Designed to deliver clean, efficient LED lighting at 360 degrees from higher fixtures. This lamp is perfect for gymnasiums, factory floors, health clubs, warehouses and any venue where high ceilings require high-lumen, safe, superior light output.
  • CCT Selectable-3000K, 4000K, 5000K
  • Wattage Selectable
  • Enclosed Fixture Rated
  • Advanced Thermal Management
  • Damp Location Rated
  • 4KV Built in Surge Protection
  • Rated for 50,000 hours of use
  • DLC Listed

Specifications

General
StatusActive
Watts27W/22W/18W
Incandescent Equivalent100W
HID Equivalent125W/100W/75W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens3780L/3080L/2520L
Beam Spread360
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Ballasting RequirementsBallast Bypass
Electrical
Watts27W/22W/18W
Incandescent Equivalent100W
HID Equivalent125W/100W/75W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50-60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens3780L/3080L/2520L
Beam Spread360
Dimming TypeStep Dimming
Power Factor>0.9
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 4KV
THD15.50%
Operating Temperature-30C (-22F) to +45C (+113F)
Physical
MOL7.48
MOD2.32
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
Lens MaterialPlastic
Housing ColorDark Gray
Weight (lb.)0.75
Additional Information
Additional InfoPower selectable
Rated For Enclosed FixtureYes
IP RatingIP64
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-HJ4T6Y
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923231513
Each Quantity1
Each Length (in.)8.86
Each Width (in.)2.83
Each Height (in.)2.83
Each Weight (lb.)0.95
Each Cube (CuFt.)0.0411
Pack TypeBox
Inner UPC20045923231517
Inner Quantity12
Inner Length (in.)12.20
Inner Width (in.)9.25
Inner Height (in.)9.45
Inner Weight (lb.)12.30
Inner Cube (CuFt.)0.6171
Case UPC10045923231510
Case Quantity24
Case Length (in.)19.37
Case Width (in.)12.99
Case Height (in.)10.55
Case Weight (lb.)26.07
Case Cube (CuFt.)1.5362
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Eaton DUL06P-C2 Visit
Dimmer Eaton RF9640-ND Visit
Dimmer Eaton SAL06P Visit
Dimmer Eaton SUF7 Visit
Dimmer Eaton TAL06P-C2 Visit
Dimmer Eaton VSUL06D Visit
Dimmer Legrand RHCL450PTC Visit
Dimmer Leviton 6672 Visit
Dimmer Leviton 6674 Visit
Dimmer Leviton DDMX1 Visit
Dimmer Leviton DG6HD Visit
Dimmer Leviton DH6HD Visit
Dimmer Leviton DL6HD Visit
Dimmer Leviton DSE06-10Z Visit
Dimmer Leviton DSL06 Visit
Dimmer Leviton DSL06-1LZ Visit
Dimmer Leviton DSM10 Visit
Dimmer Leviton DW6HD Visit
Dimmer Leviton DZ6HD Visit
Dimmer Leviton IPL06 Visit
Dimmer Leviton RNL06-10Z Visit
Dimmer Leviton TSL06 Visit
Dimmer Leviton TSM10 Visit
Dimmer Lutron AYCL-153P Visit
Dimmer Lutron CTRP-253P Visit
Dimmer Lutron DVCL-153P Visit
Dimmer Lutron DVRP-253P Visit
Dimmer Lutron LECL-153PH Visit
Dimmer Lutron MA-PRO Visit
Dimmer Lutron MSCL-OP153M Visit
Dimmer Lutron NTRP-250 Visit
Dimmer Lutron PD-10WX Visit
Dimmer Lutron PD-6WCL Visit
Dimmer Lutron RCL-153PNL Visit
Dimmer Lutron RRD-6CL Visit
Dimmer Lutron RRD-PRO Visit
Dimmer Satco 86/103 Visit
Dimmer Satco S11268 Visit
×
×

Precautions

No precautions available at this time.

×
