| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Aluminum |
| Fixture Type | Corncob |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 14.20% |

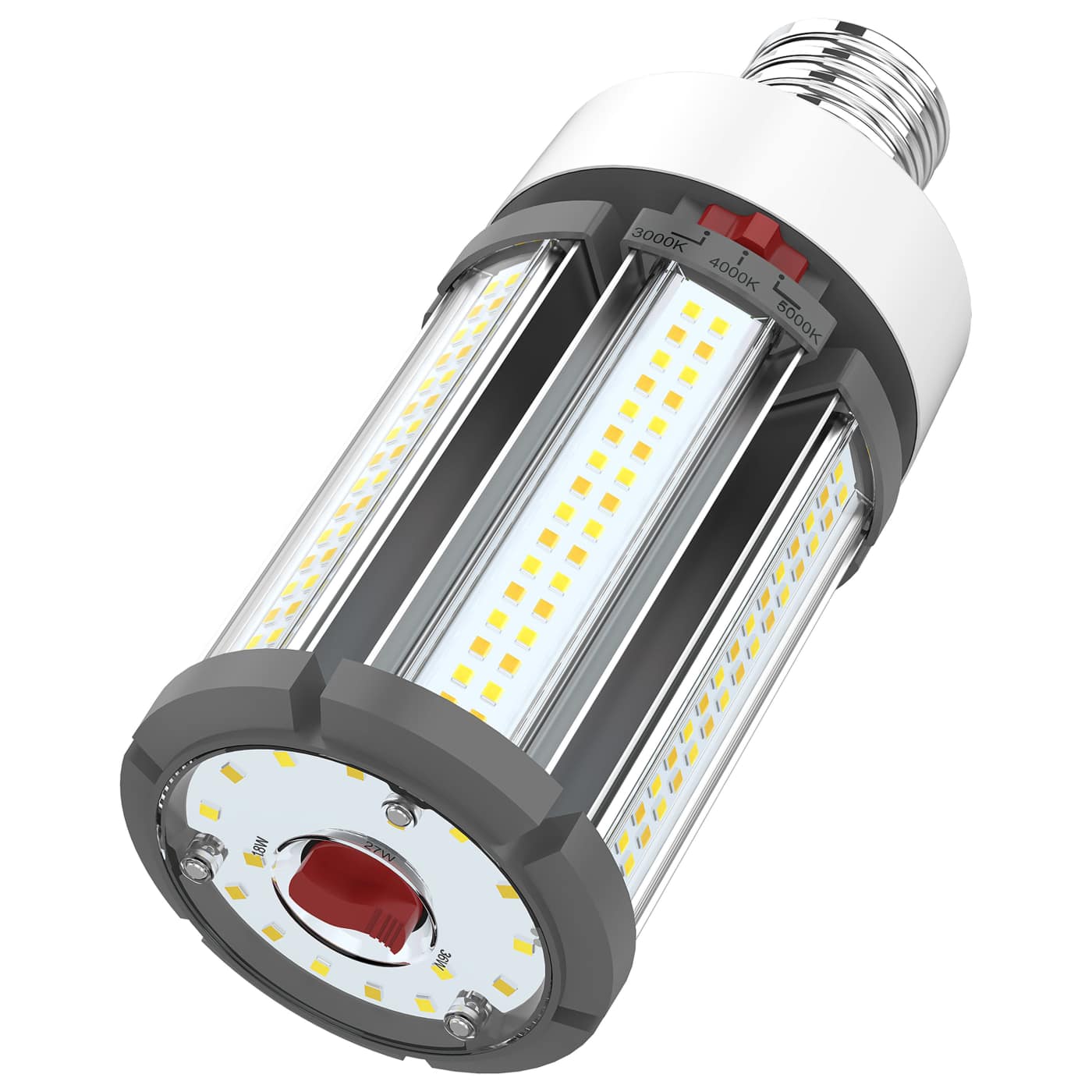

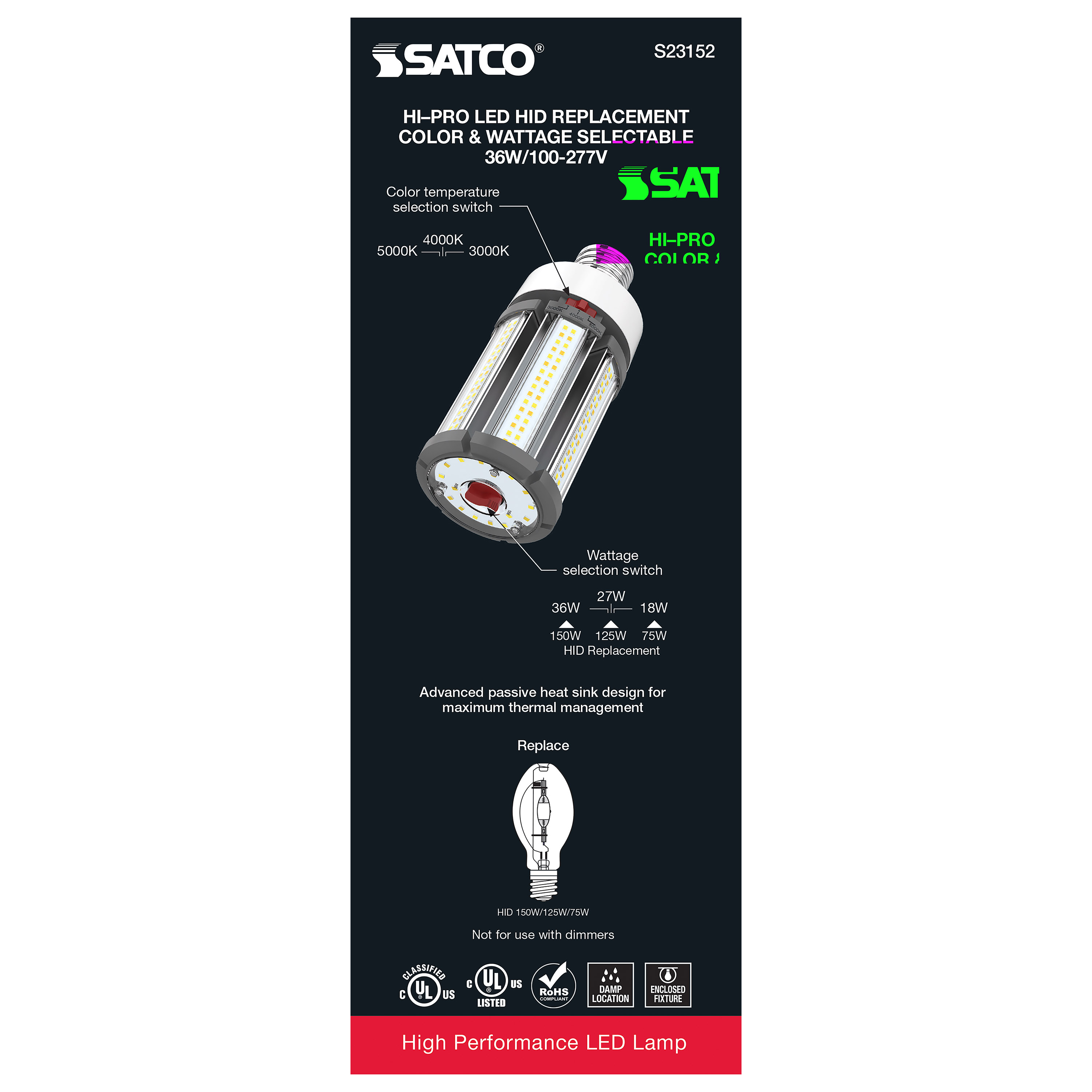

| CCT Selectable | True |

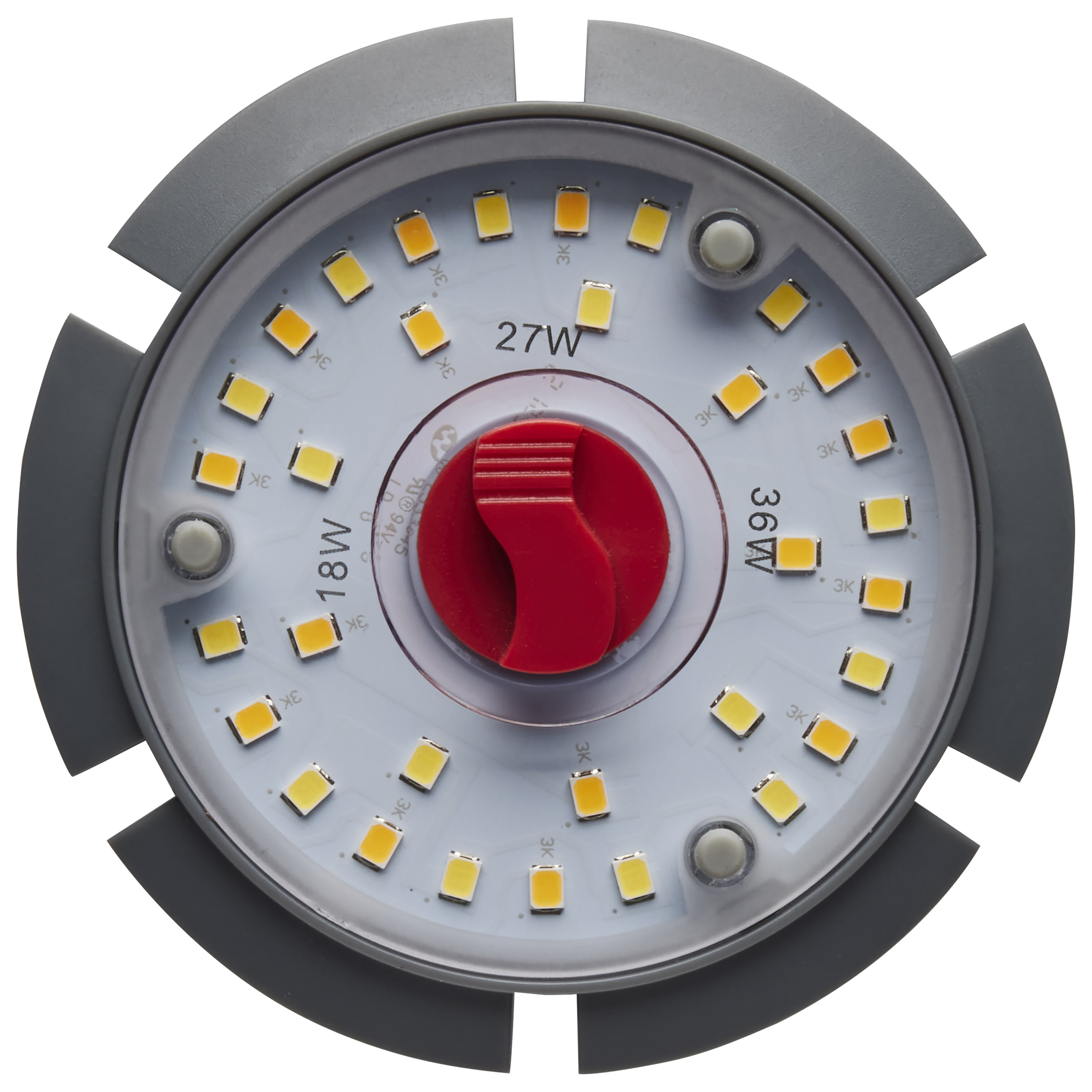

| Wattage Selectable | True |
| Finish Family | White |
| Additional Info | Safety cable provided with S23143, S23144, S23145 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions) |
| Amps | 0.360-0.130/0.270-0.097/0.180-0.065A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Plastic |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 125W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 150W/125W/75W |

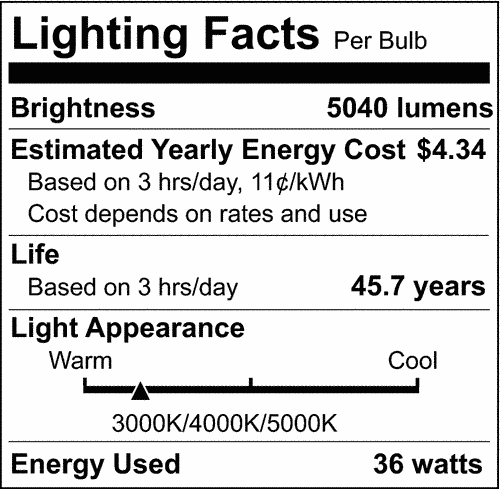

| Lumens | 5040L/3780L/2520L |
| Volts | 120V-277V |
| Watts | 36W/27W/18W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | Dark Gray |
| ANSI Base | EX39 |

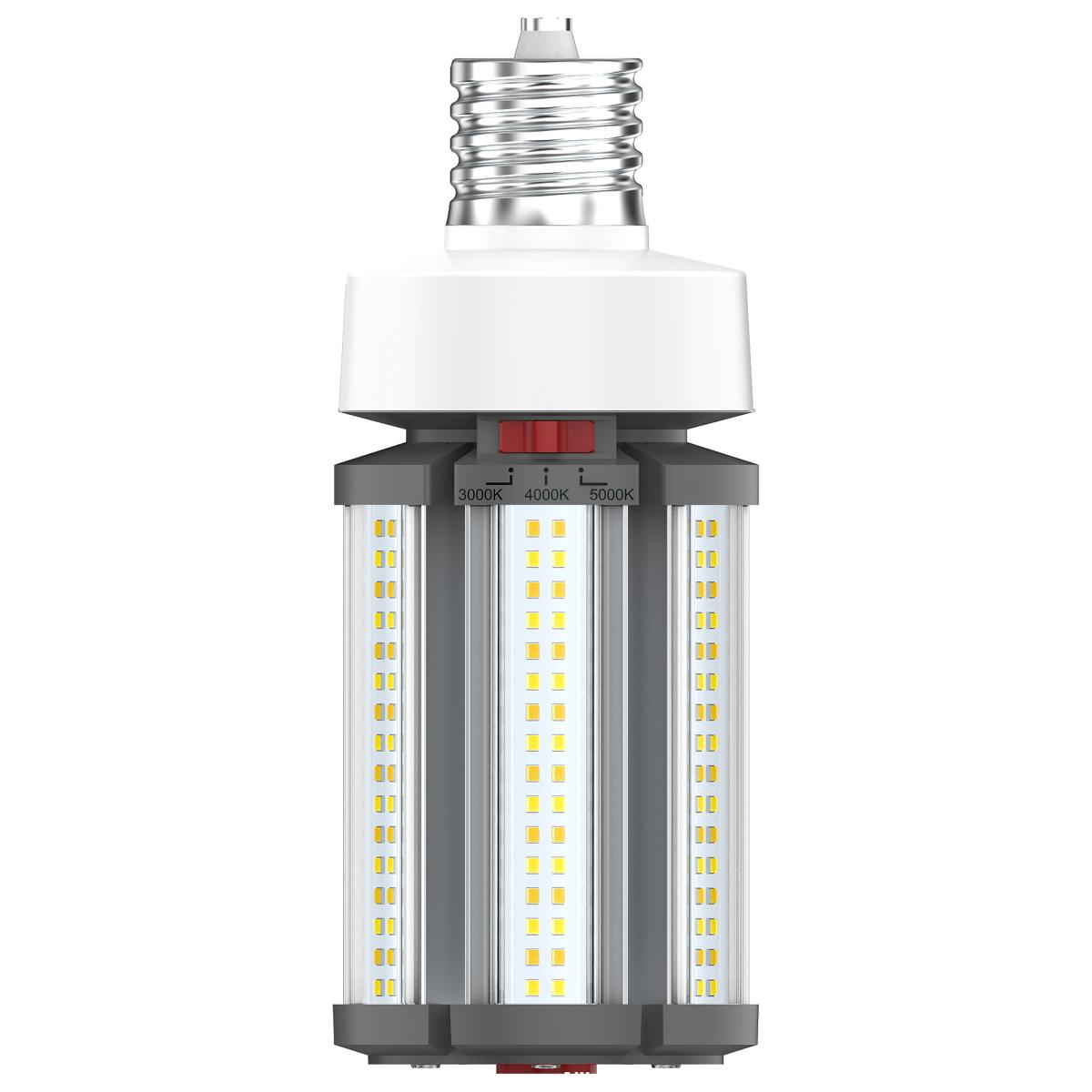

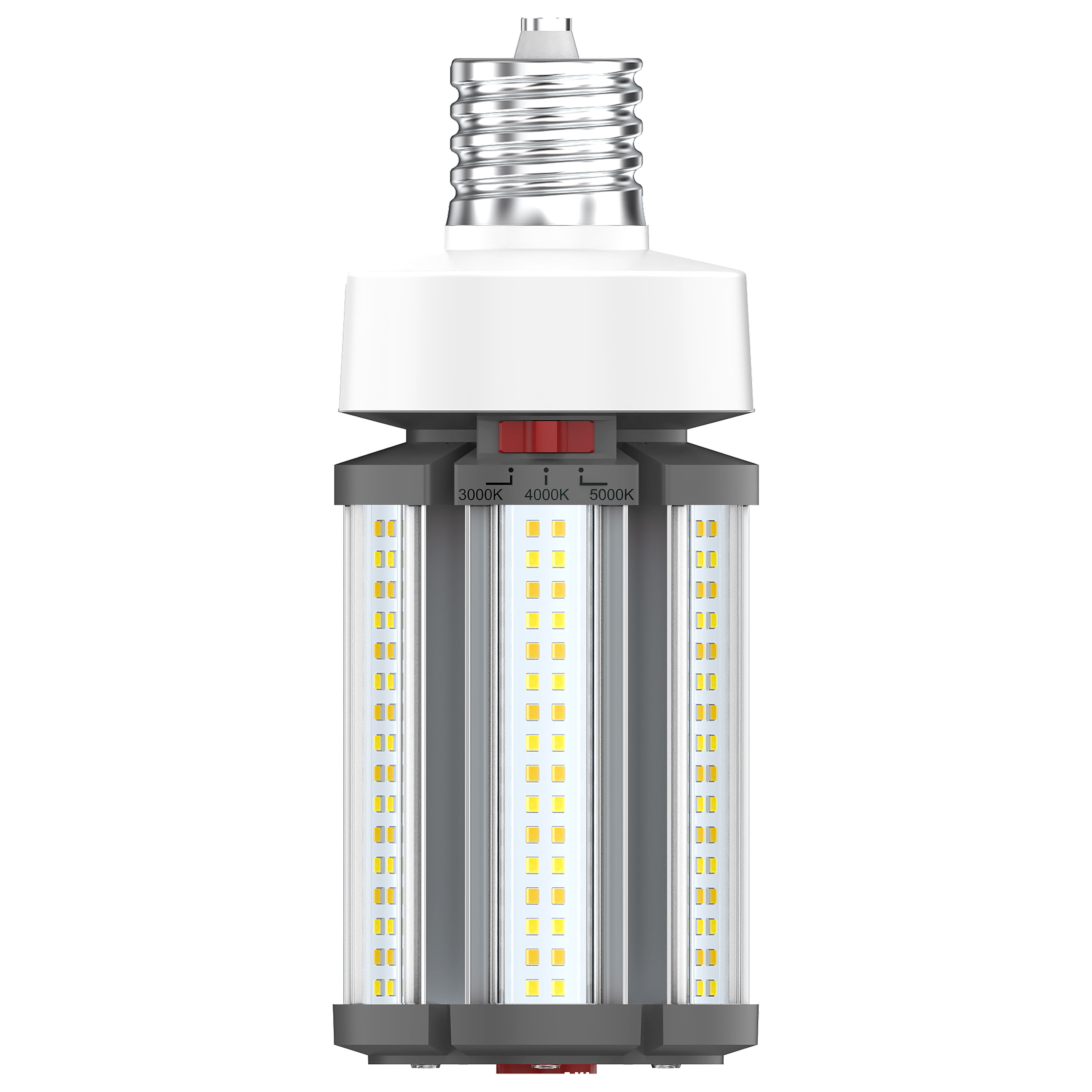

| Lamp Type | Corncob |
| MOD Lamps | 3.35 |
| MOL | 8.5 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| Bug Rating | B2-U5-G3 |
|---|---|
| CA Regulations | Exempt - Base Not Regulated |
| CA Status | Lawful for sale in California |
| DLC ID | S-6CIPQ4 |
| FCC Compliant | True |
| IP Rating | IP64 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923231520 |
|---|---|
| Case Cube | 2.5939 |
| Case Height | 11.42 |
| Case Length | 24.02 |
| Case Quantity | 24 |
| Case UPC | 10045923231527 |
| Case Weight | 48.07 |
| Case Width | 16.34 |
| EA Cube | 0.076 |
| EA Height | 3.66 |
| EA Length | 9.8 |
| EA Quantity | 1 |
| EA Weight | 1.8 |
| EA Width | 3.66 |
| Inner Cube | 1.0855 |
| Inner Height | 10.39 |
| Inner Length | 15.55 |
| Inner Quantity | 12 |
| Inner UPC | 20045923231524 |
| Inner Weight | 22.95 |
| Inner Width | 11.61 |
| Pack Type | Box |
| Web Length | 8.5 |
| Web Width | 3.35 |
