| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Dimmable Text | Only Dimmable Via Sensor Port |
| Lamp Filament | LED |
| Material | Aluminum / Polycarbonate (PC) |

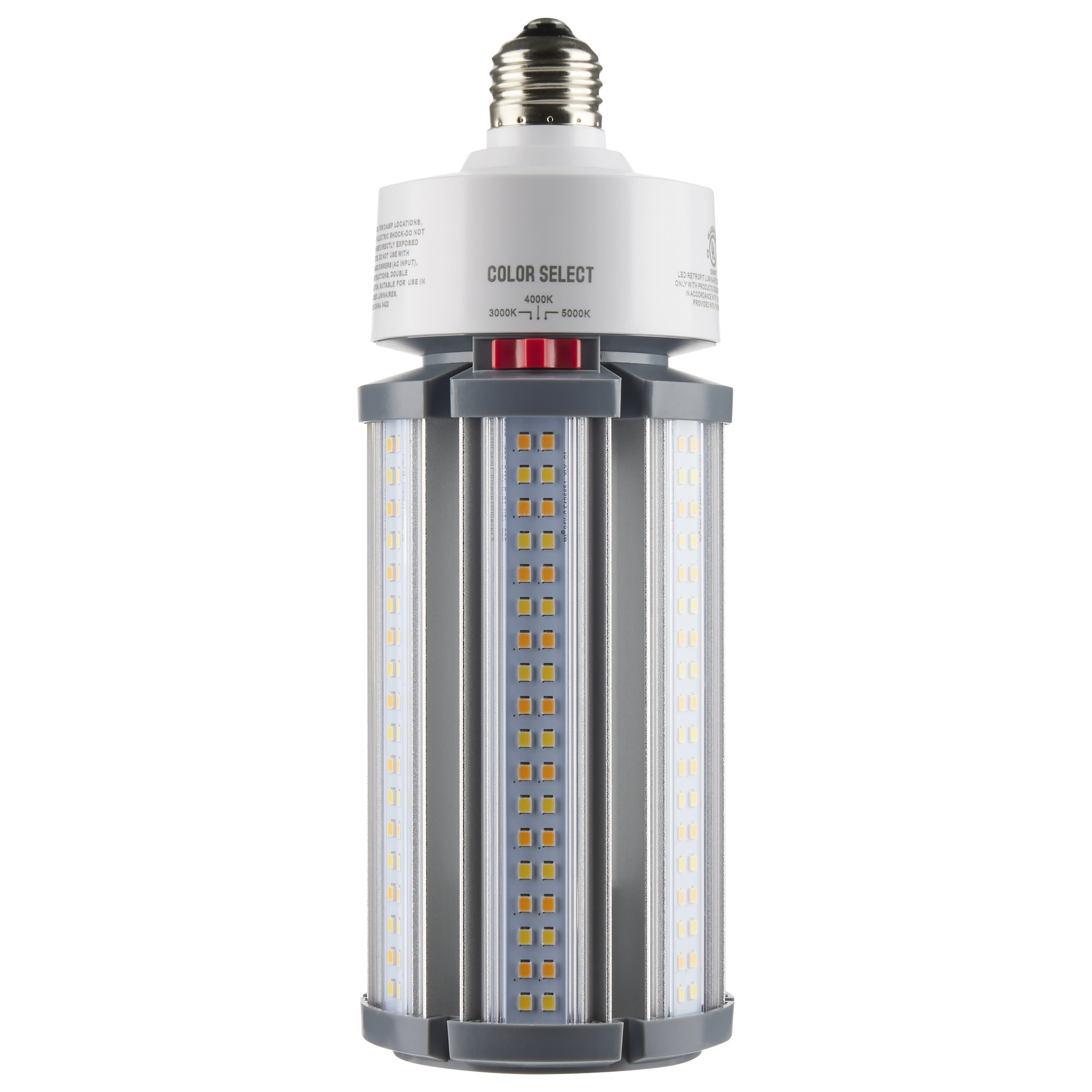

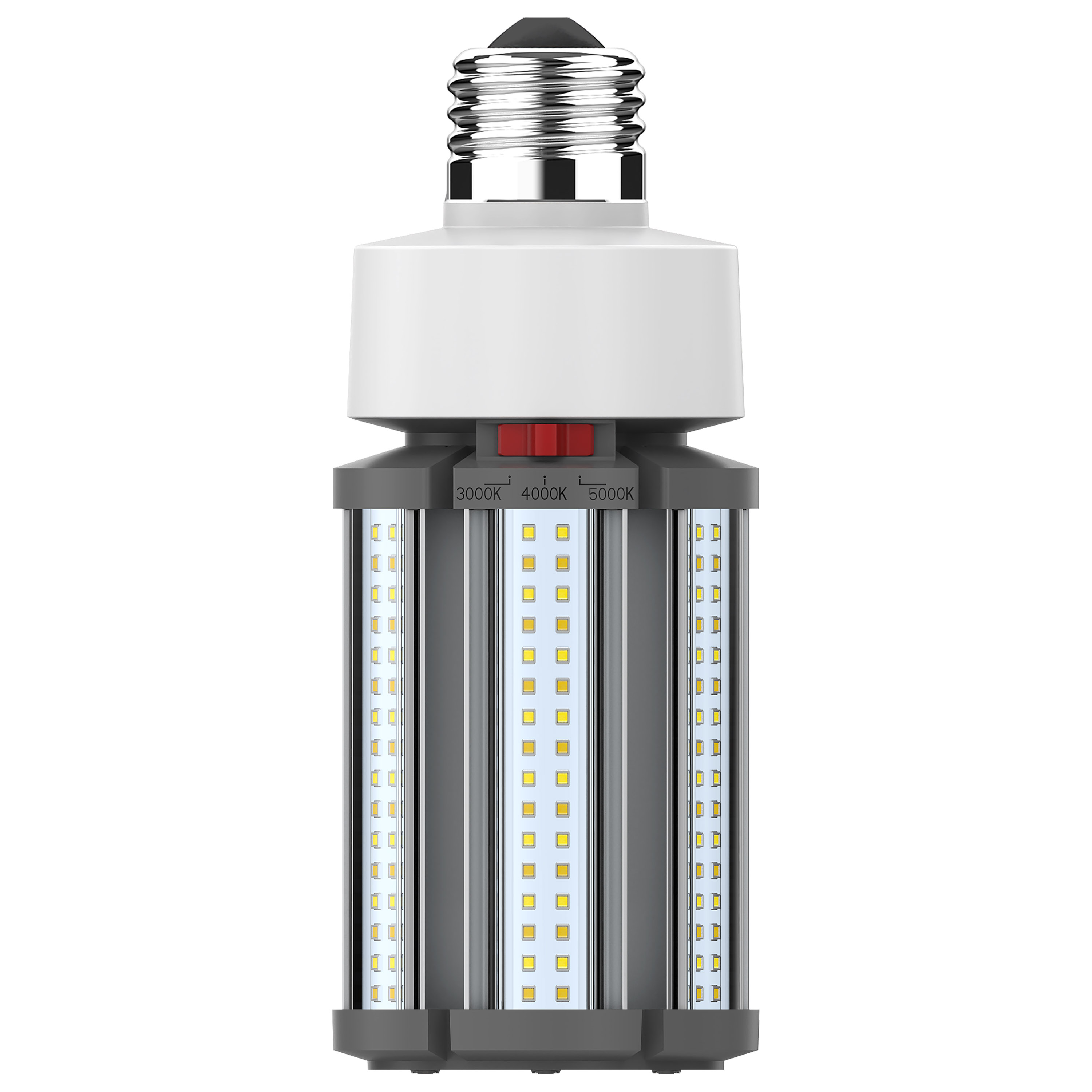

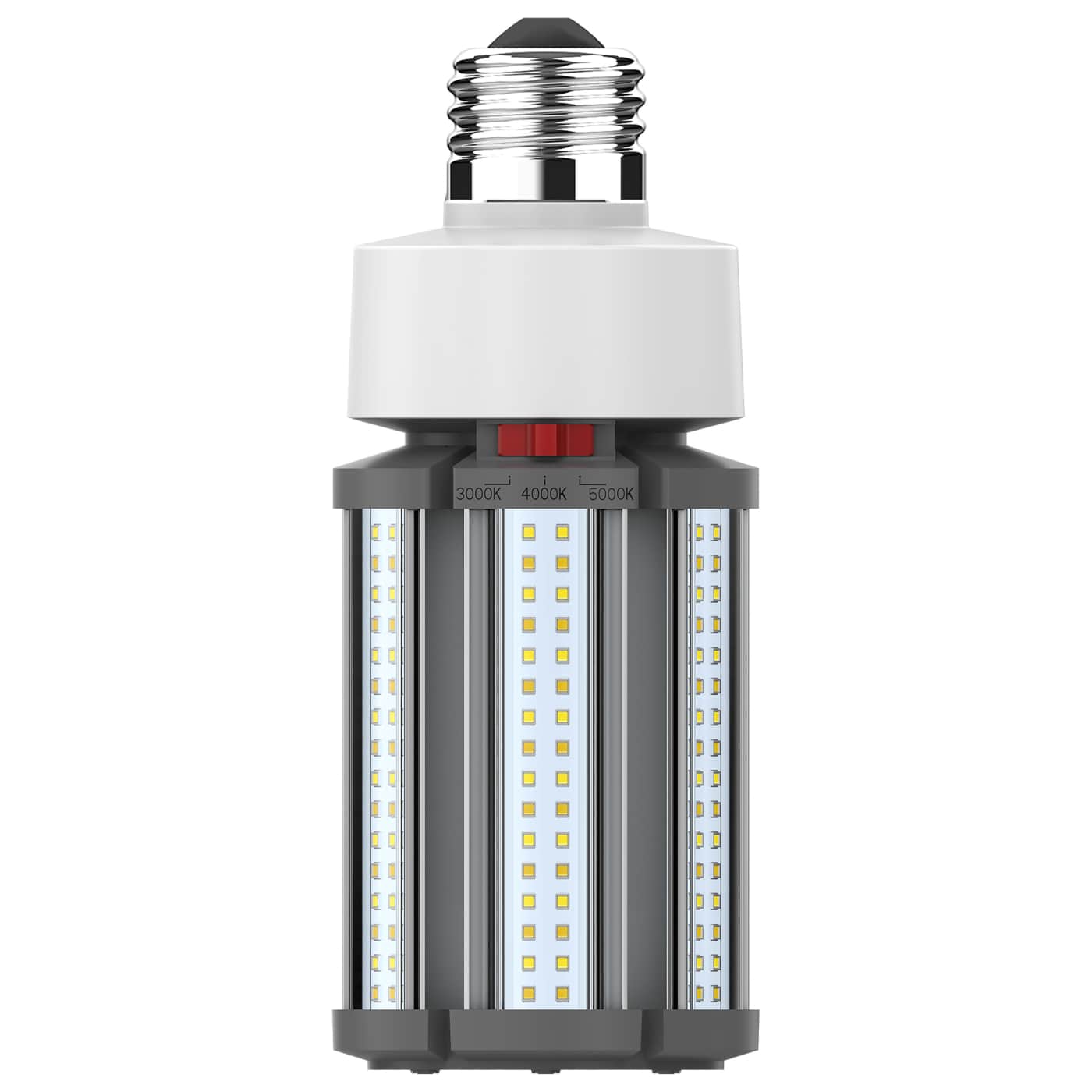

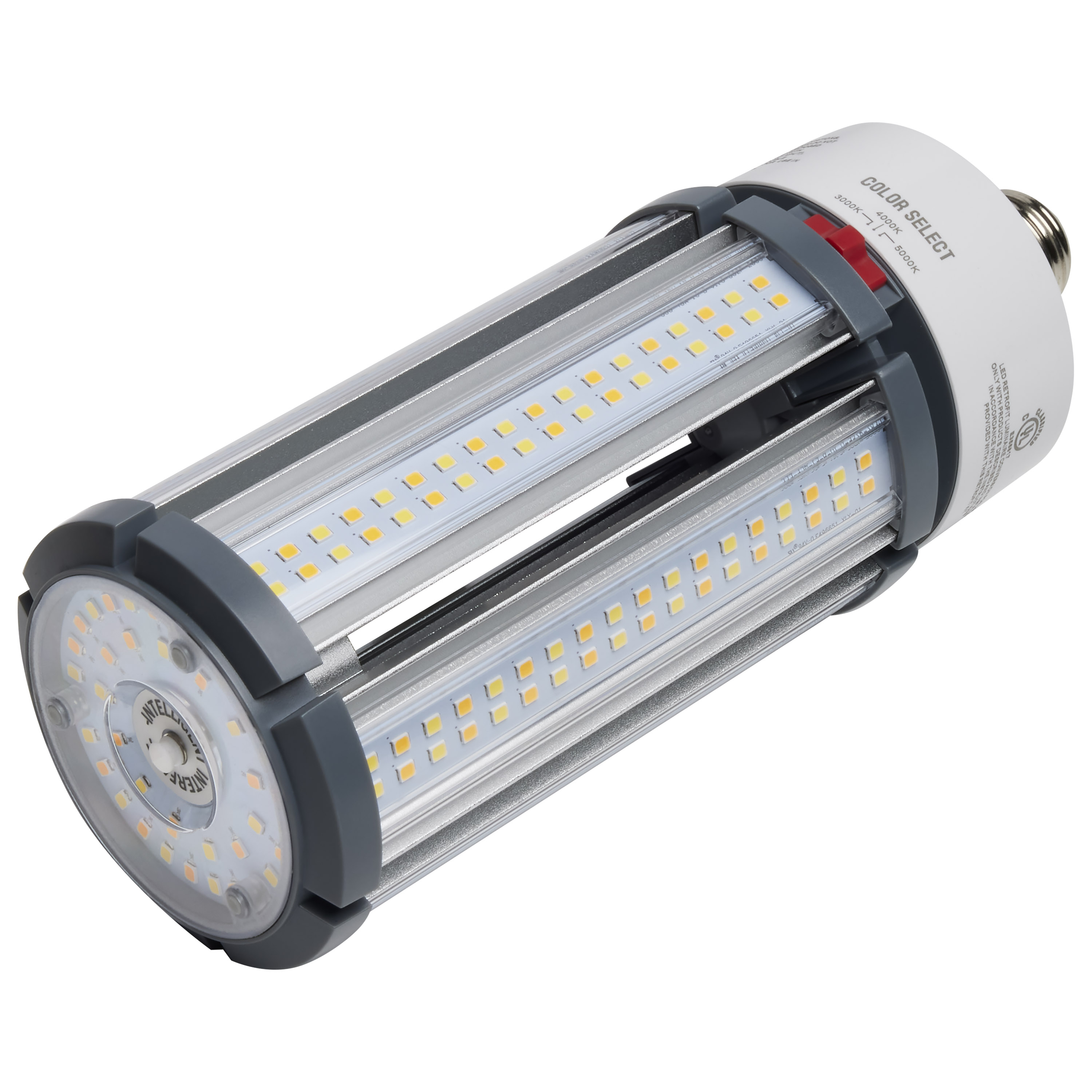

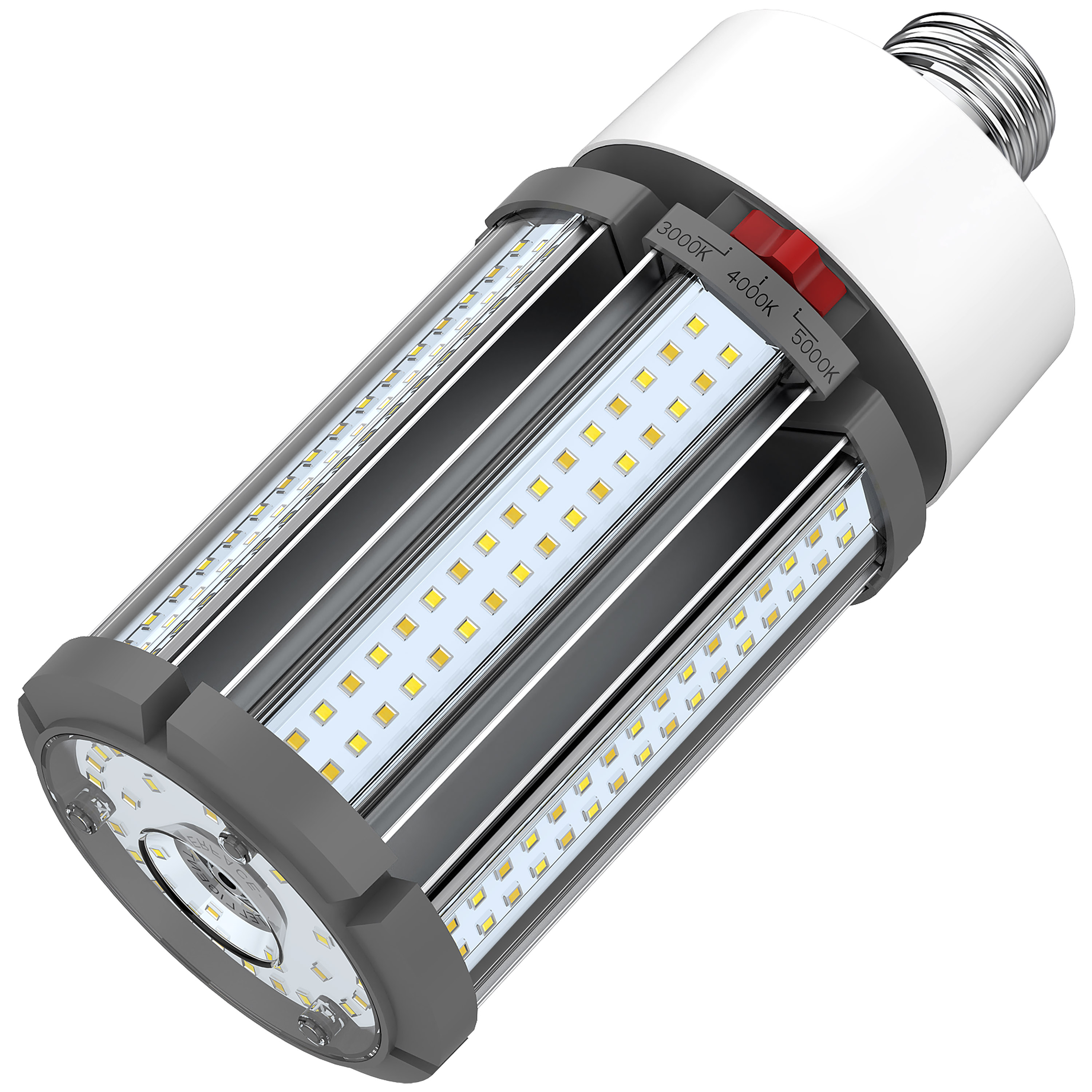

| Fixture Type | Corncob |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.130-0.075A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Plastic |
| Lensed | True |
| Operating Position | Universal |

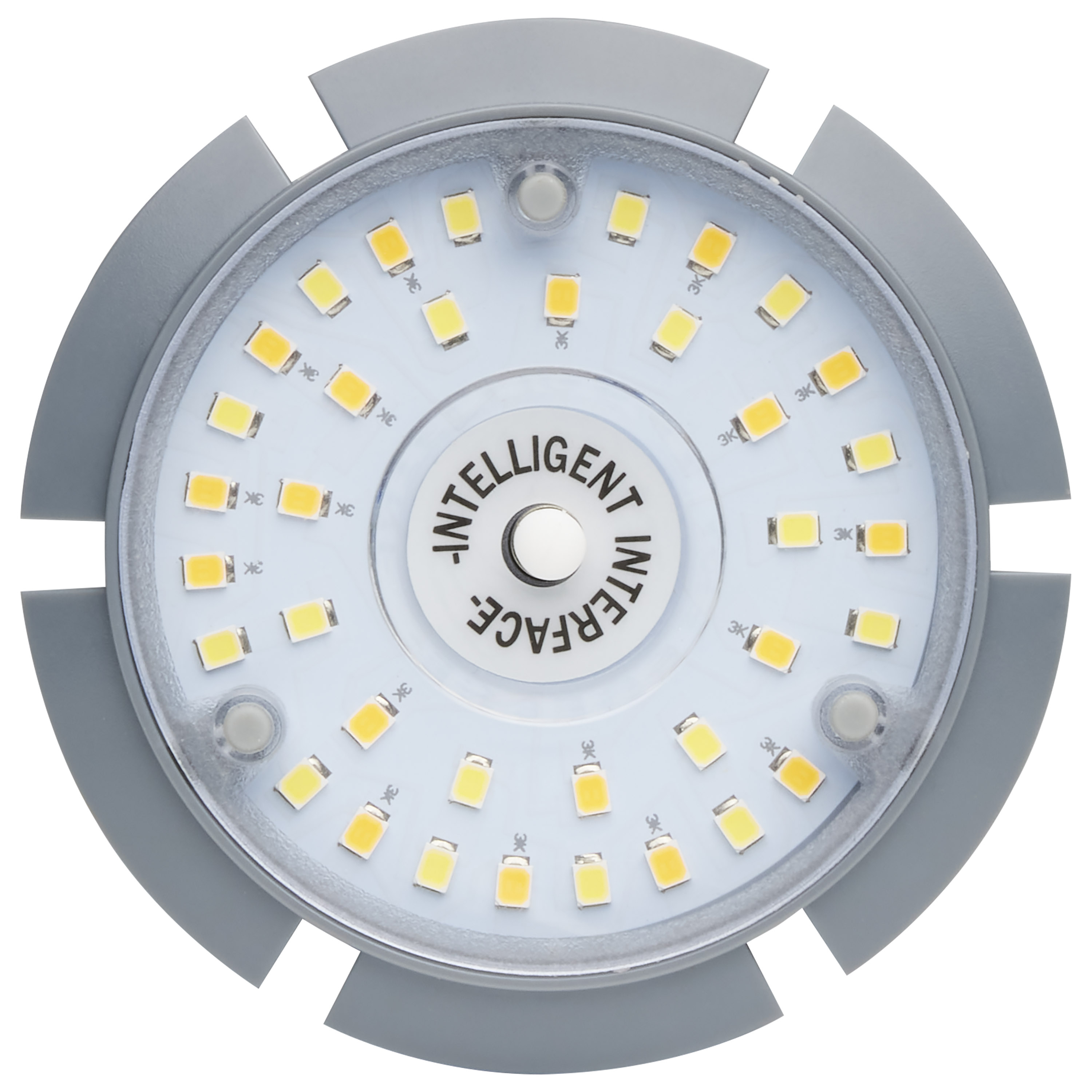

| Photo Cell | Optional |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 125W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 300 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Dimming Type | Smart-Starfish App only |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 175W |

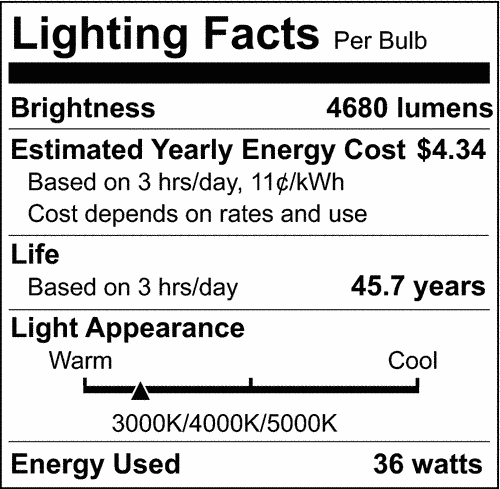

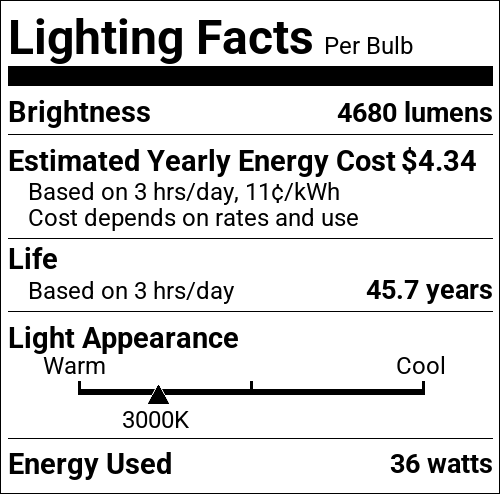

| Lumens | 4680L/5040L/4860L |
| Volts | 277V-480V |
| Watts | 36W |
| Lamp Base | Medium |
|---|---|
| Finish | WHITE |
| Housing Color | Dark Gray |
| ANSI Base | E26 |
| Lamp Type | Corncob |
| MOD Lamps | 3.35 |

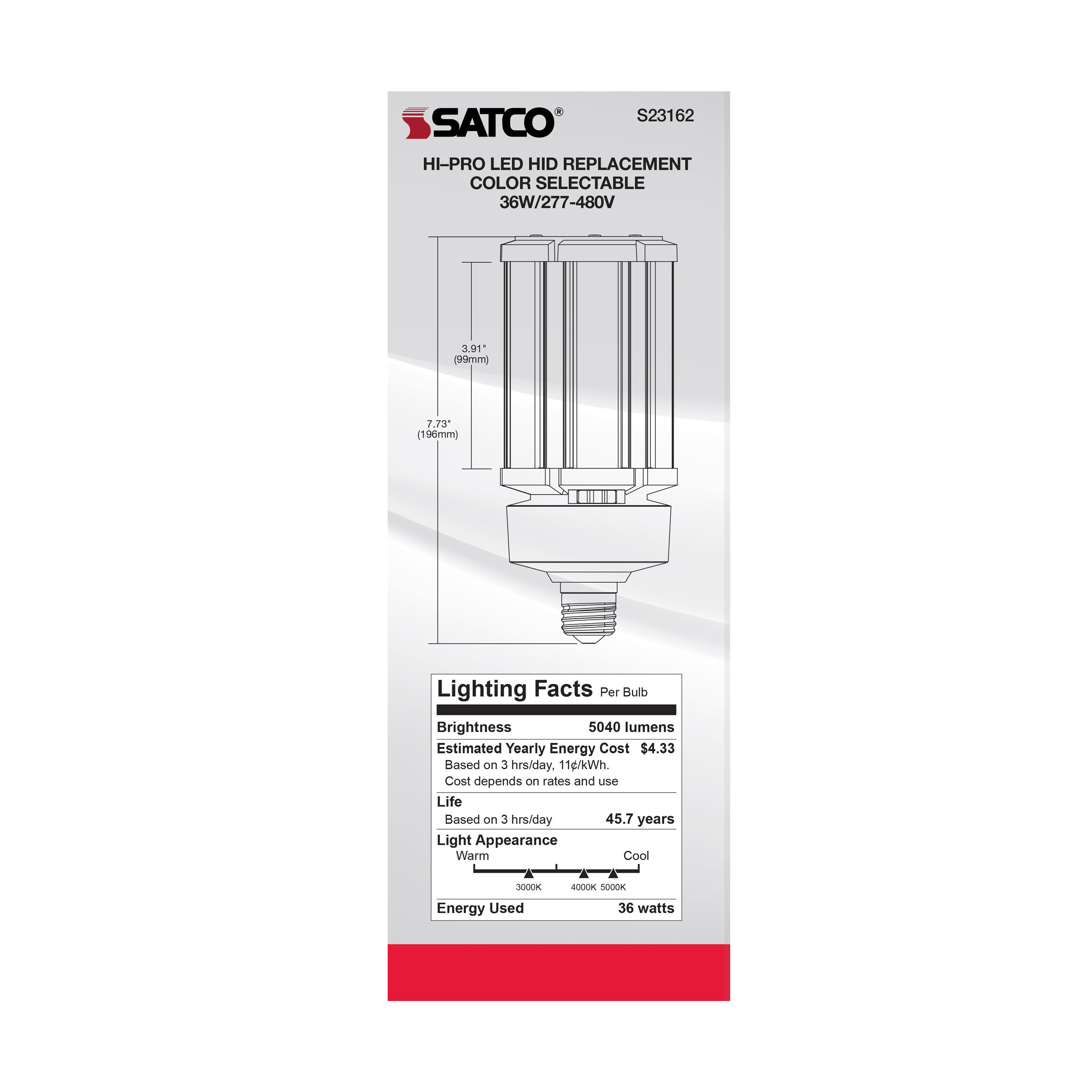

| MOL | 7.73 |
| Warranty | 5-Years |
|---|---|

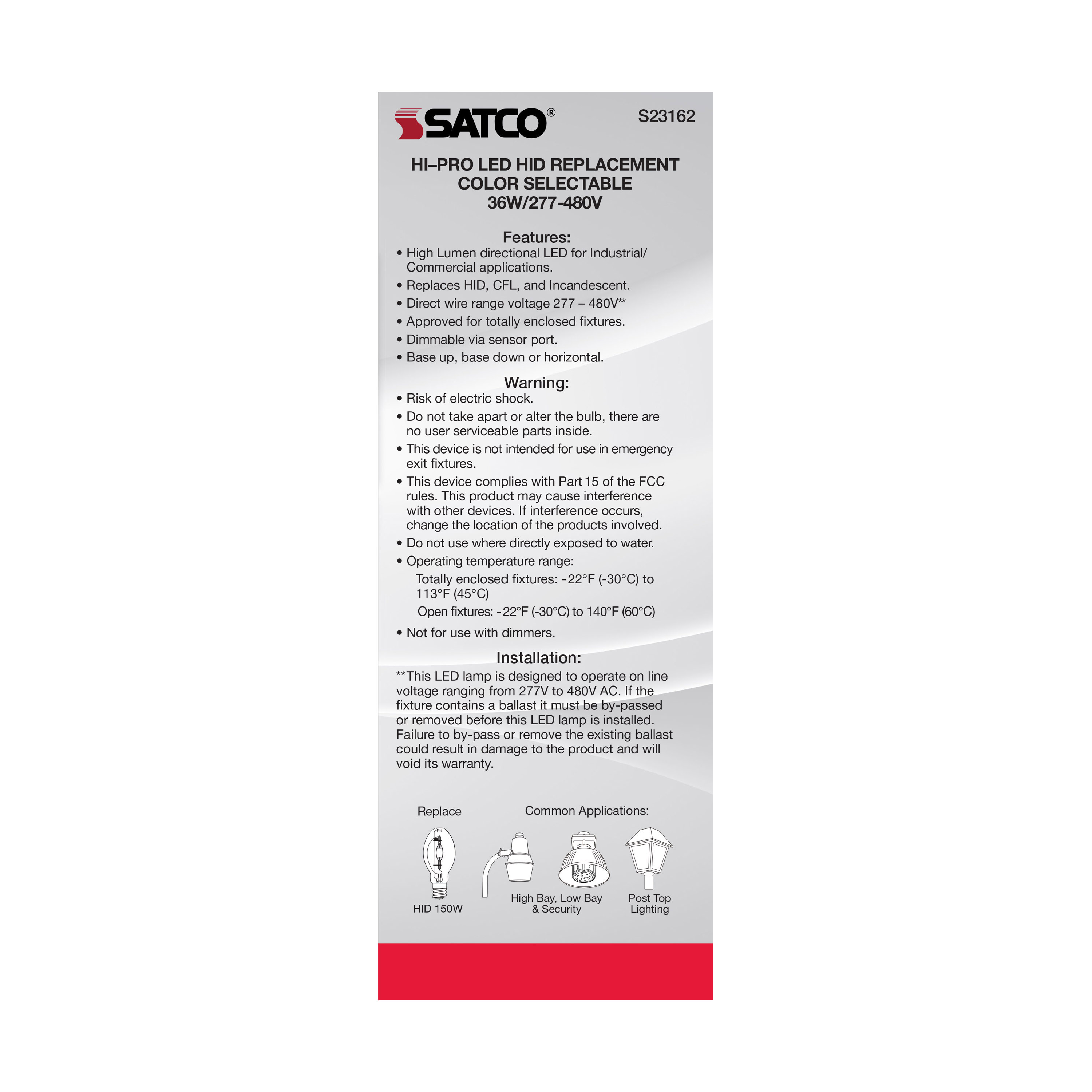

| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - >2600 Lumens |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IP Rating | IP64 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cUL - Certified, cUL - Classified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923231629 |
|---|---|
| Case Cube | 1.0689 |
| Case Height | 10.4 |
| Case Length | 15.35 |
| Case Quantity | 12 |
| Case UPC | 10045923231626 |
| Case Weight | 21.82 |
| Case Width | 11.57 |
| EA Cube | 0.076 |
| EA Height | 3.66 |
| EA Length | 9.8 |
| EA Quantity | 1 |
| EA Weight | 1.63 |
| EA Width | 3.66 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Length | 7.73 |
| Web Width | 3.35 |
