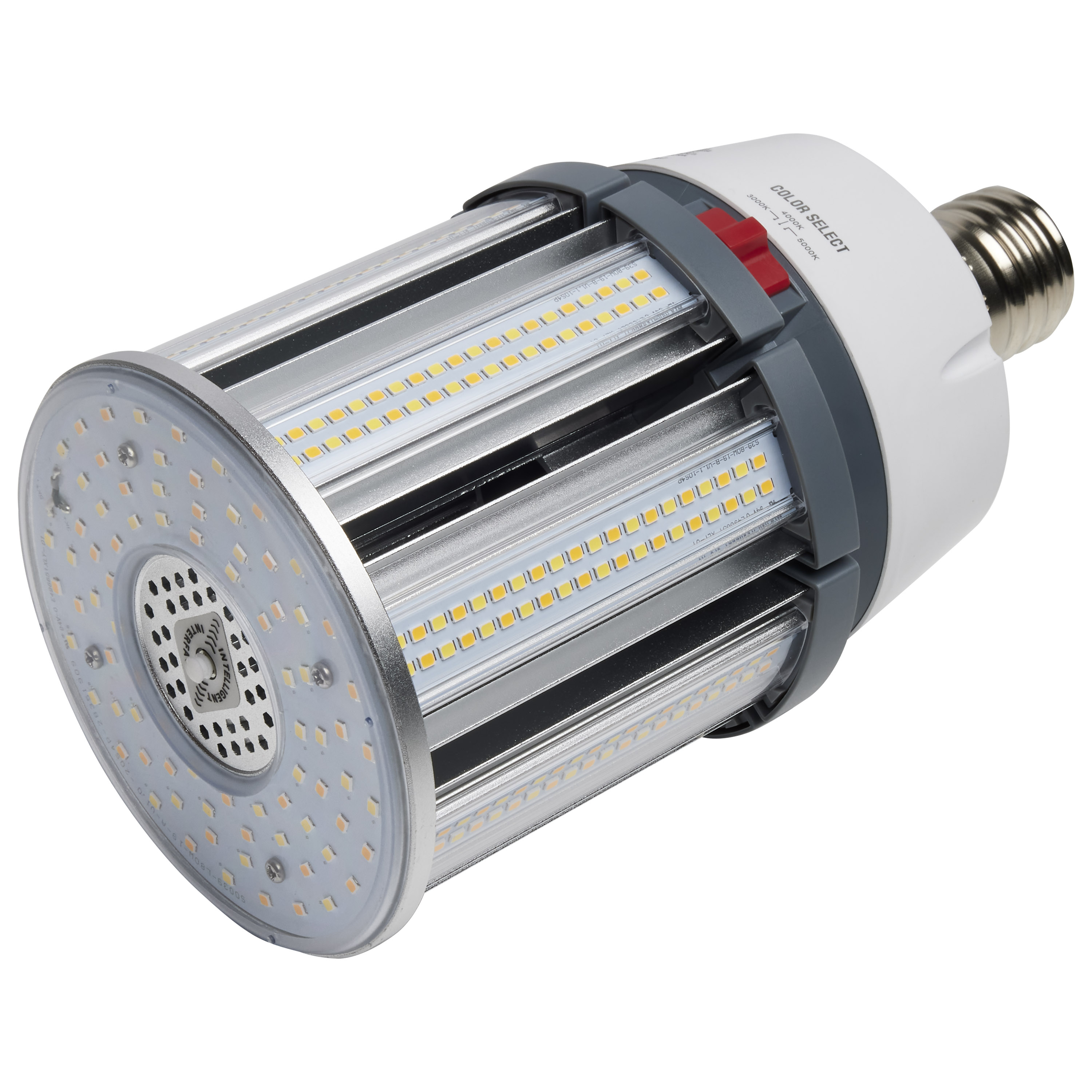

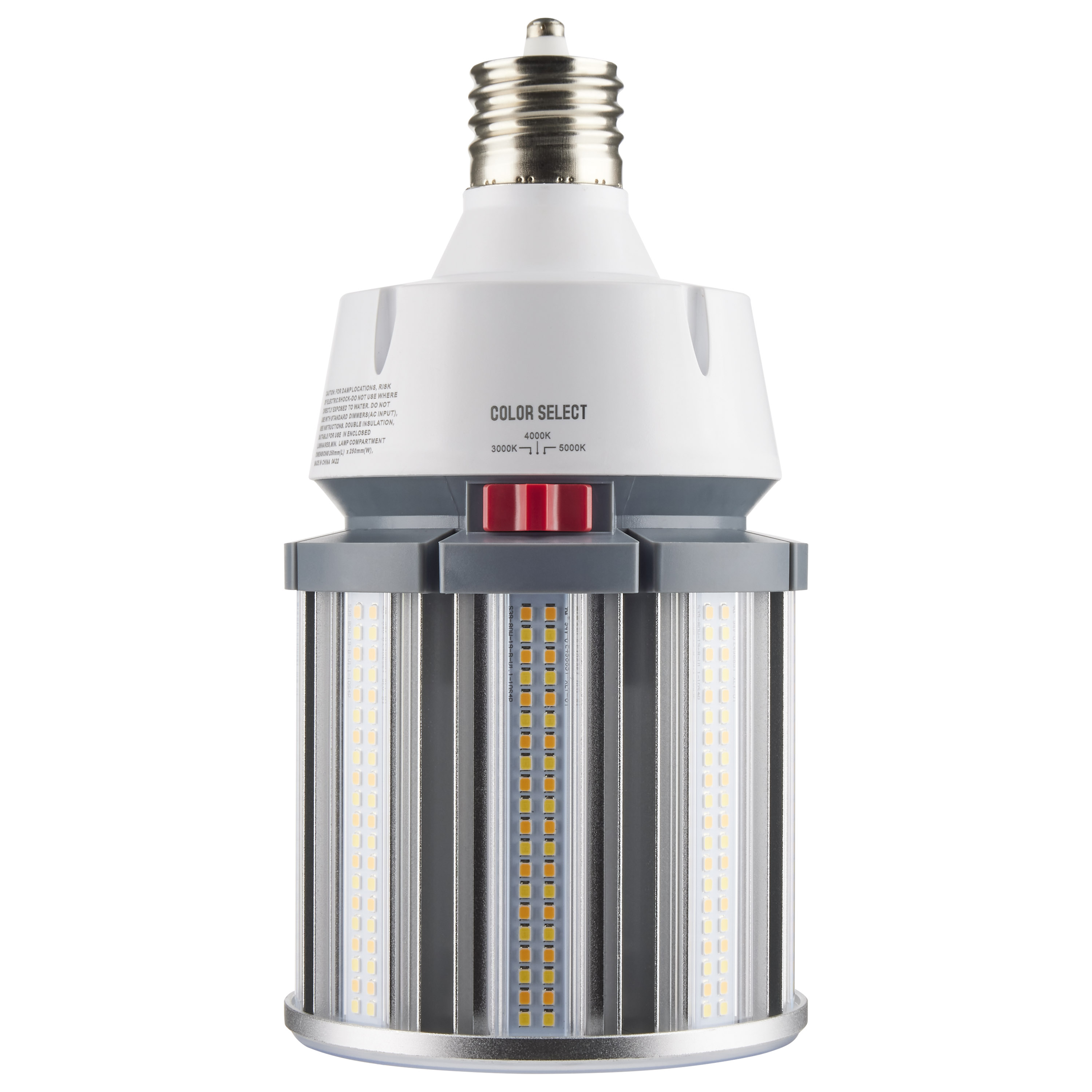

S23167 80W/LED/CCT/277-480V/EX39

S23167

80W/LED/CCT/277-480V/EX39

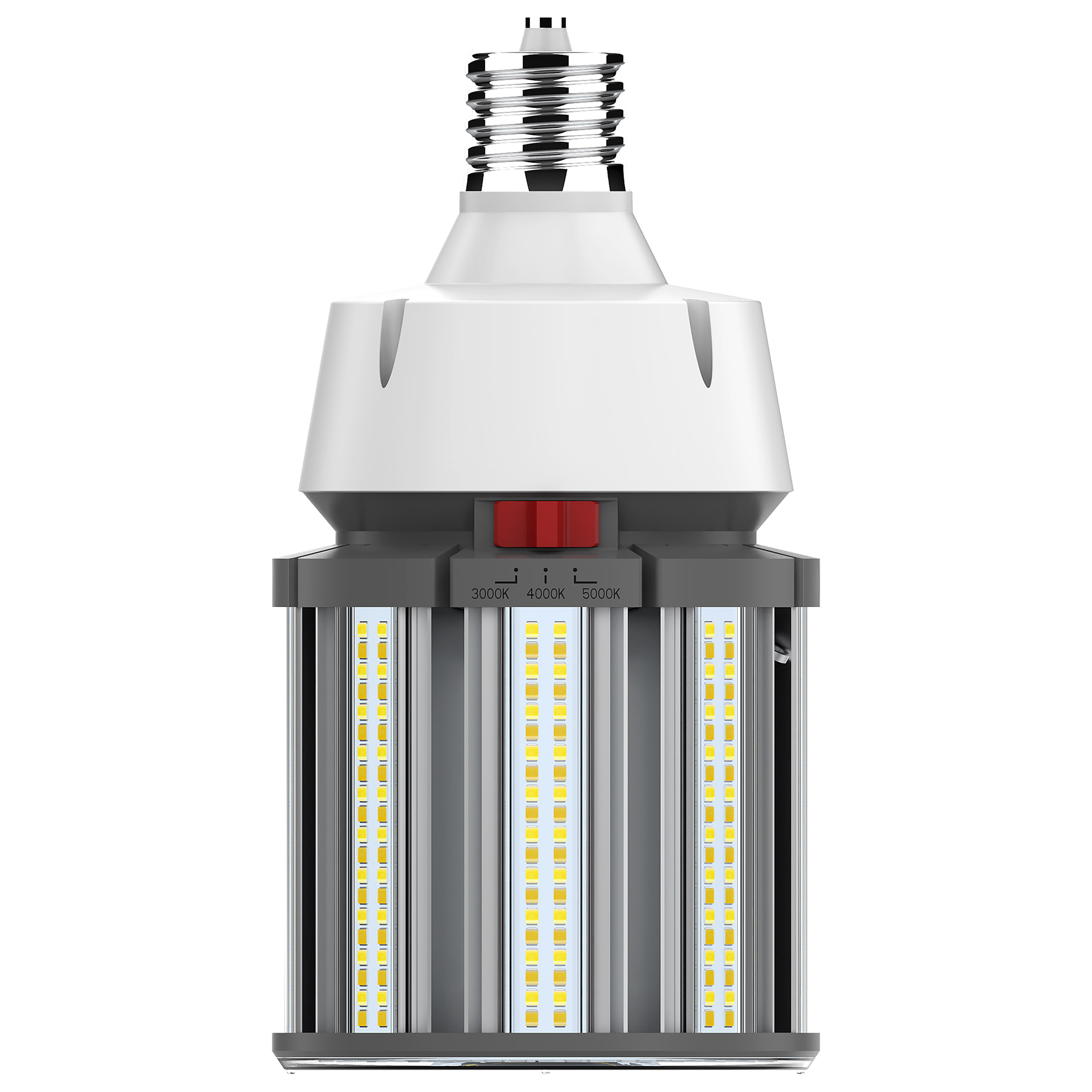

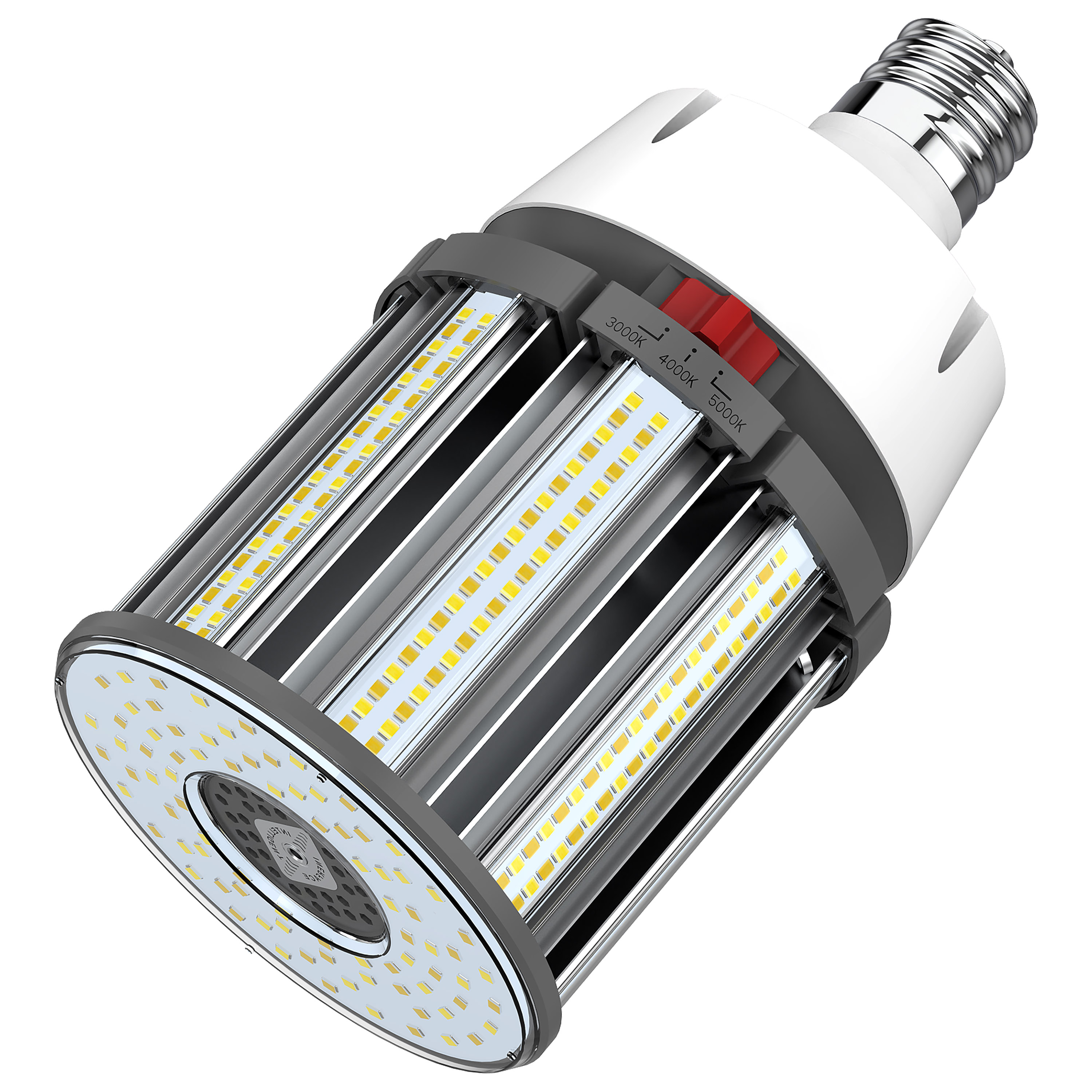

80 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Mogul Extended Base; 277-480 Volt; ColorQuick Technology


SATCO|NUVO's 80 watt LED lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venues with high ceilings requiring light output. This CCT selectable lamp delivers 50,000 hours of clean, energy saving light.
  • MOL: 9.88 inches, MOD: 5.12 inches
  • Corncob Shape
  • White Finish
  • Mogul Extended Base
  • 300 degree beam spread
  • Rated for 50,000 hours
  • CCT Selectable
  • 5 year limited warranty
  • Damp rated for indoor and outdoor use
Lights

S23167

80W/LED/CCT/277-480V/EX39

80 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Mogul Extended Base; 277-480 Volt; ColorQuick Technology

SATCO|NUVO's 80 watt LED lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venues with high ceilings requiring light output. This CCT selectable lamp delivers 50,000 hours of clean, energy saving light.
  • MOL: 9.88 inches, MOD: 5.12 inches
  • Corncob Shape
  • White Finish
  • Mogul Extended Base
  • 300 degree beam spread
  • Rated for 50,000 hours
  • CCT Selectable
  • 5 year limited warranty
  • Damp rated for indoor and outdoor use

Specifications

General
StatusActive
Watts80W
Incandescent Equivalent400W
HID Equivalent300W
Volts277V-480V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80

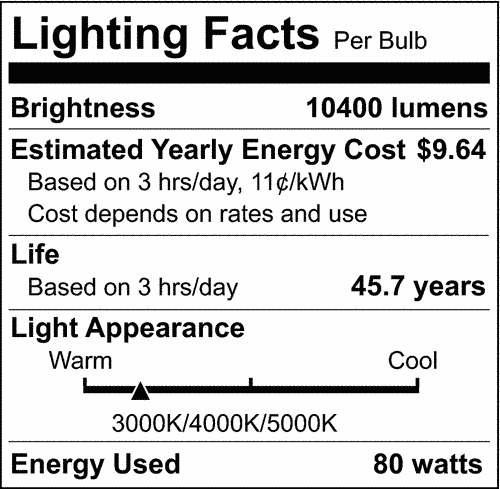

Lumens10400L/11200L/10800L
Beam Spread300
DimmableYes-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED

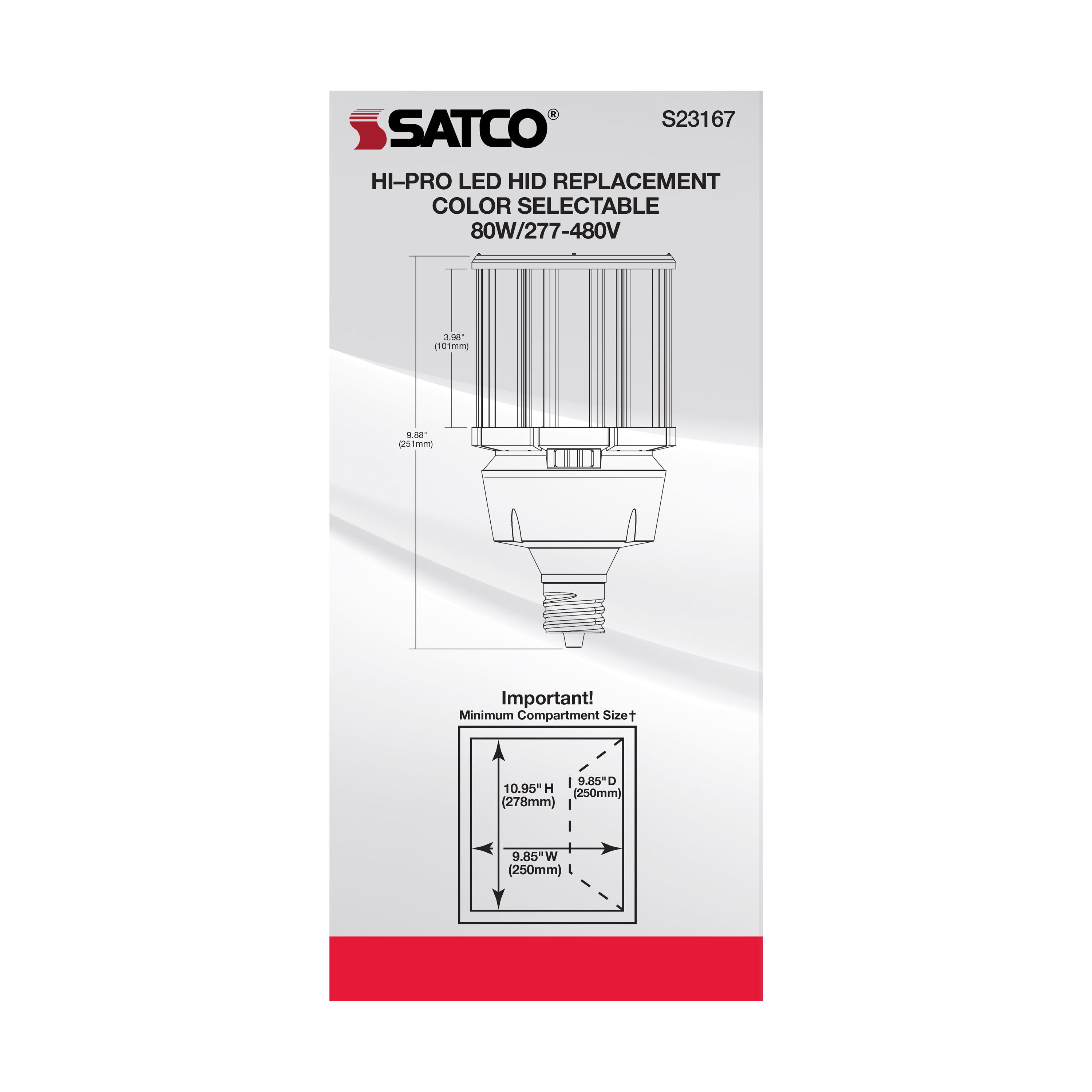

Min Compartment SizeLength: 9.84 in. Width: 9.84 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts80W
Incandescent Equivalent400W
HID Equivalent300W
Volts277V-480V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens10400L/11200L/10800L
Beam Spread300
DimmableYes-Dimmable
Dimming TypeSmart-Starfish App through Wifi Module only
Dimming NoteOnly dimmable via WiFi Module 80-954 (available for purchase) and via the Starfish App
Power Factor0.9
Hours Rated50000
Operating PositionBase Up or Down
Surge ProtectionBuilt-in surge protection - 4KV
THD10.40%
Operating Temperature-30C (-22F) to +45C (+113F)
Physical
MOL9.88
MOD5.12
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishWhite
Lens FinishClear
Lens MaterialPlastic
Housing ColorDark Gray
Photocell or SensorOptional
Weight (lb.)2.93
Additional Information
Min Compartment SizeLength: 9.84 in. Width: 9.84 in.
Rated For Enclosed FixtureYes
IP RatingIP64
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Classified; cRUus - Recognized Component
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-IQ65D8
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923231674
Each Quantity1
Each Length (in.)11.60
Each Width (in.)5.51
Each Height (in.)5.51
Each Weight (lb.)3.31
Each Cube (CuFt.)0.2038
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923231671
Case Quantity4
Case Length (in.)12.20
Case Width (in.)11.61
Case Height (in.)11.61
Case Weight (lb.)16.73
Case Cube (CuFt.)0.9517
