| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A |
| Ballasting Requirements | Ballast required (Type A) or Ballast Bypass (Type B) |
| CA Regulations | Exempt - Base Not Regulated |
| Dimmable Text | Only Dimmable with Compatible Dimming Ballasts |
| Lamp Filament | LED |
| Material | Glass |
| Product Notes | Not for use in vapor tight fixtures. |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 1KV |
| Total Harmonic Distortion | <25% |
| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.133-0.058A |
| Has Camera | False |
| IOT Enabled | False |
| Leg Spacing | 0.51 |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 40W |

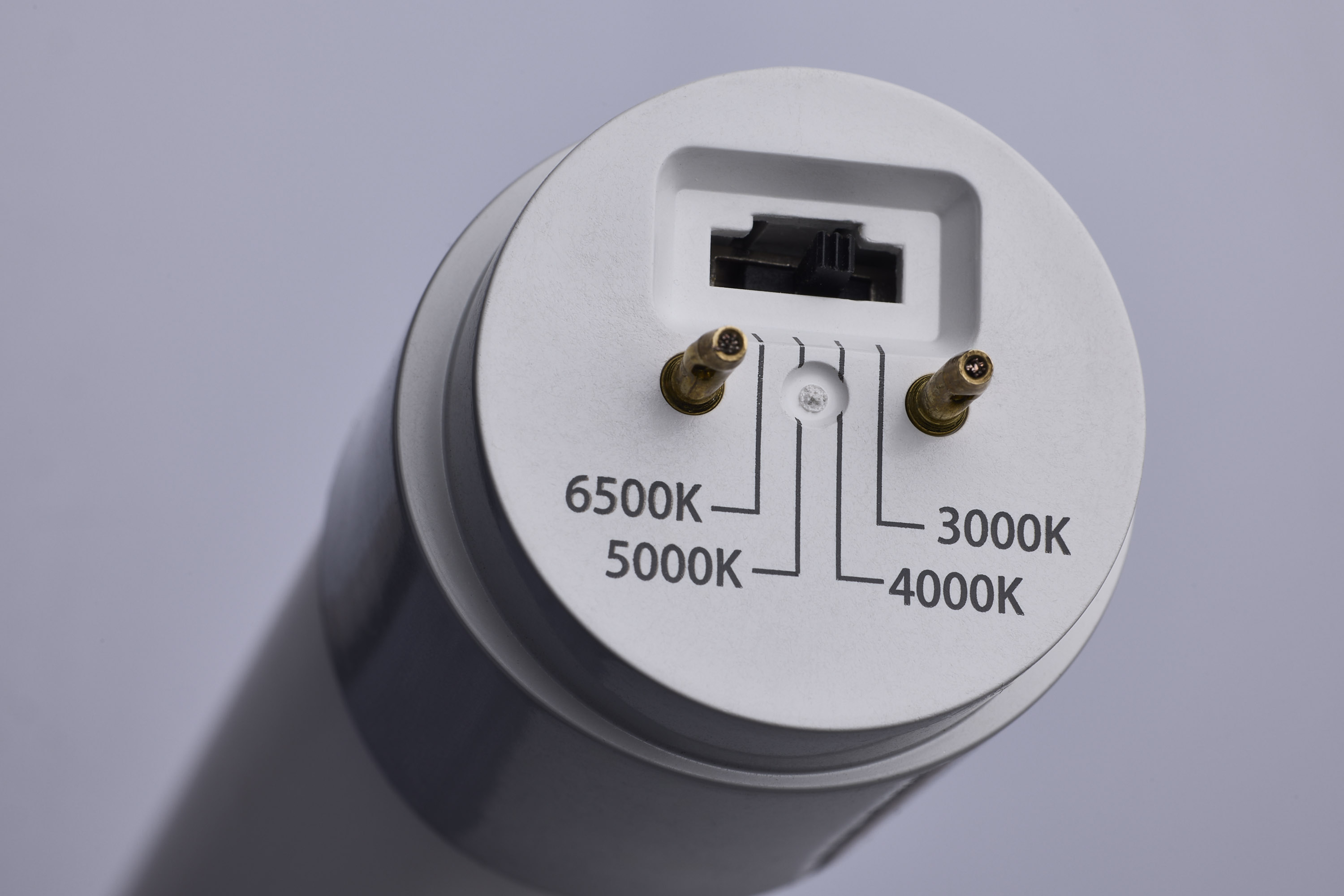

| CCT (Kelvin Temp) | 3000K/4000K/5000K/6500K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 36000 |
| Beam Angle (degree) | 240 |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 1700L/1700L/1800L/1800L |
| Volts | Ballast Dependent |
| Watts | 16W |
| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G13 |
| Lamp Type | T12 |
| MOD Lamps | 1.42 |

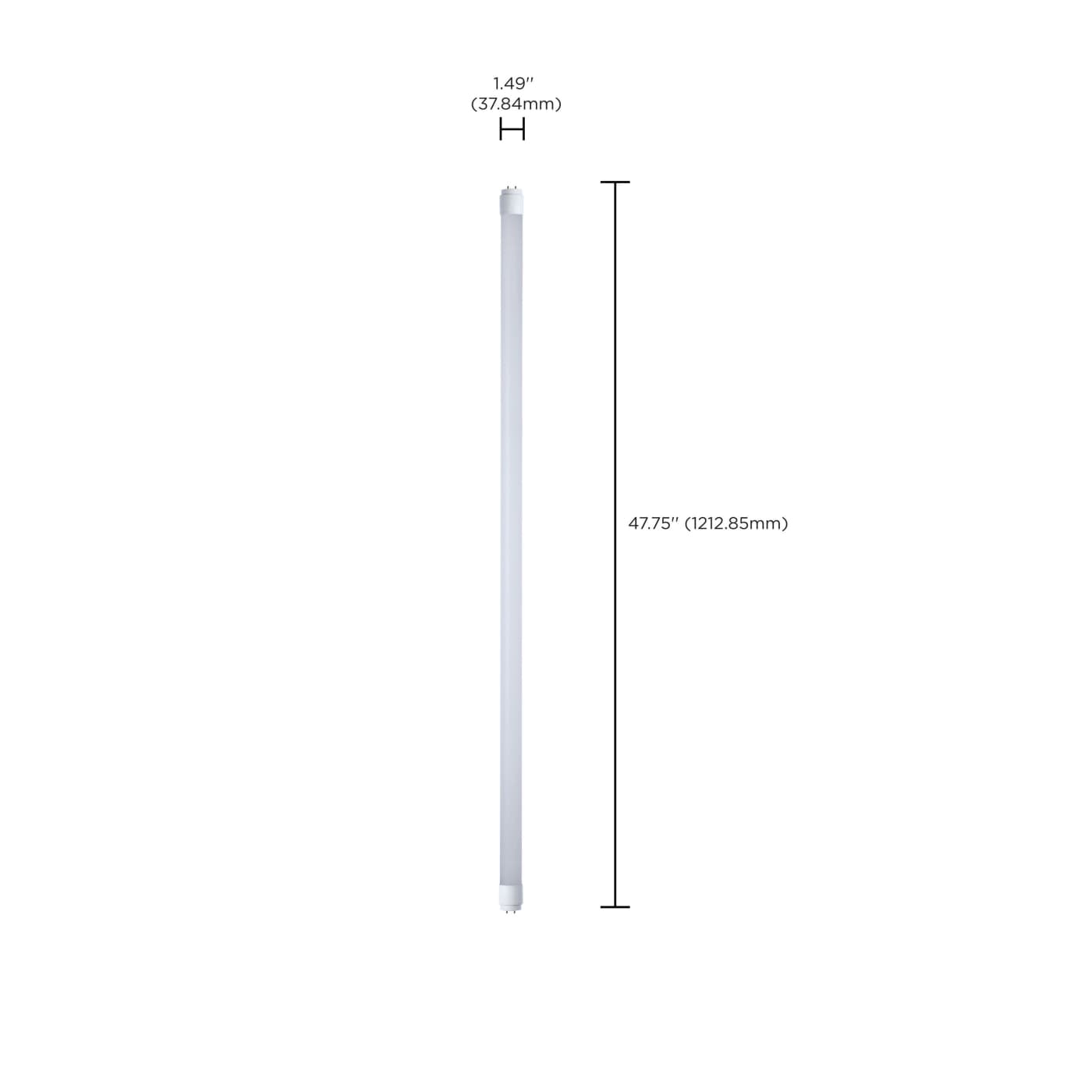

| MOL | 47.74 |
| Warranty | 3-Years |
|---|---|
| Rated For Enclosed Fixture | False |
| Flicker Free | False |
|---|
| CA Status | Lawful for sale in California |
|---|---|
| FCC Compliant | True |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cETLus |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923265006 |
|---|---|
| Case Cube | 0.9363 |
| Case Height | 5.35 |
| Case Length | 48.62 |
| Case Quantity | 6 |
| Case UPC | 10045923265003 |
| Case Weight | 10.95 |
| Case Width | 6.22 |
| EA Cube | 0.14 |
| EA Height | 1.69 |
| EA Length | 47.87 |
| EA Quantity | 1 |
| EA Weight | 1.7 |
| EA Width | 2.99 |
| Inner Cube | 0.0 |

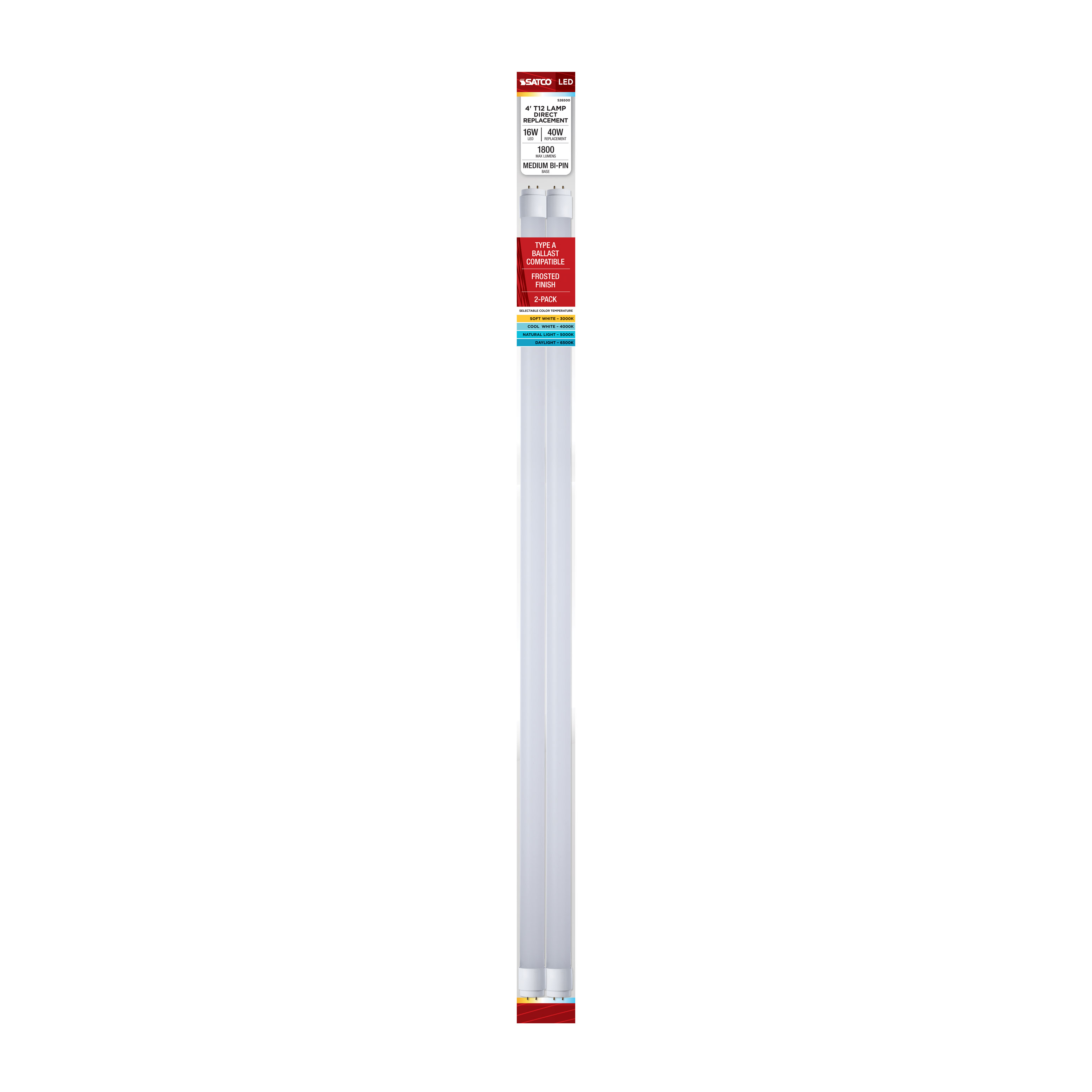

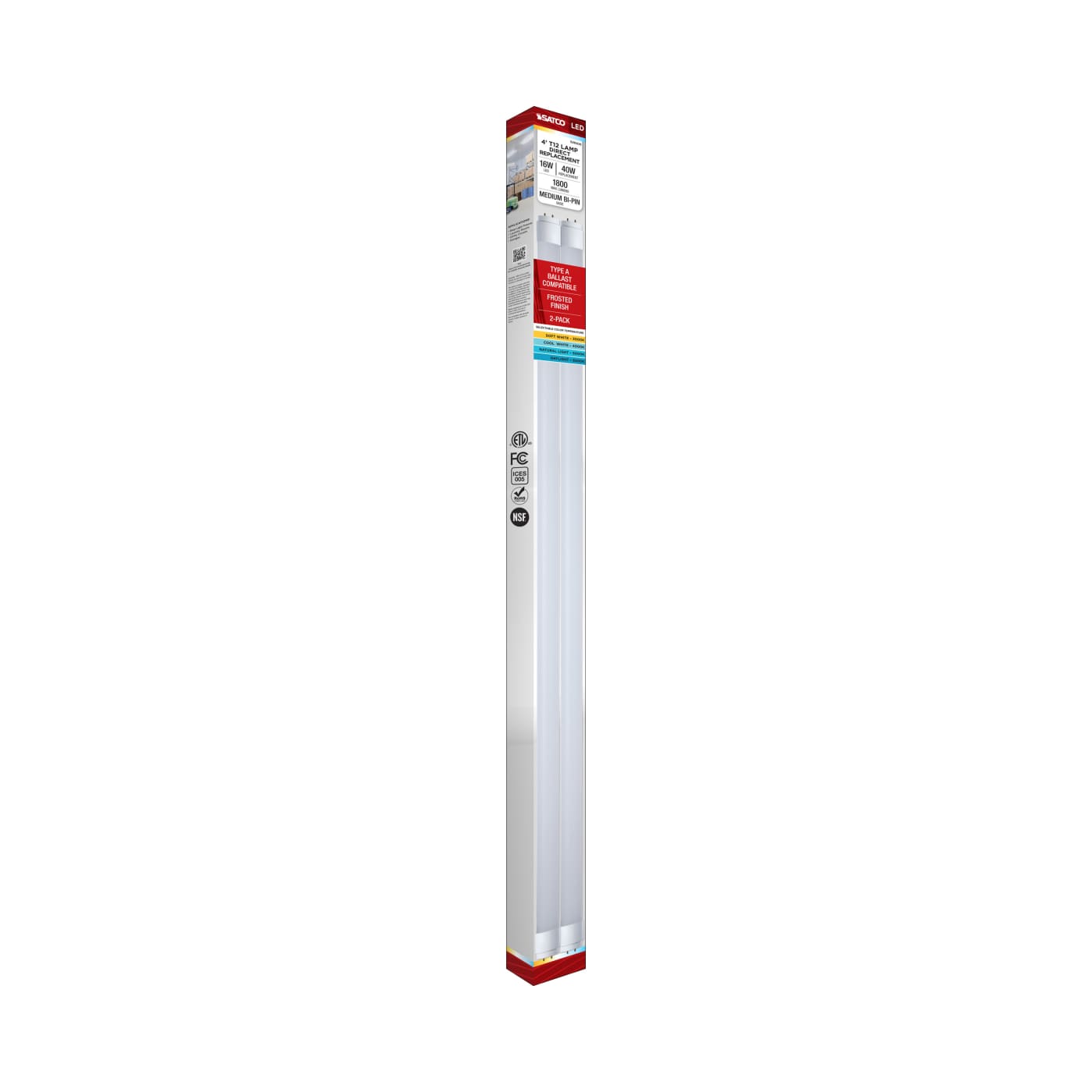

| Pack Type | Color Box |
| Web Length | 47.74 |
| Web Width | 1.42 |
