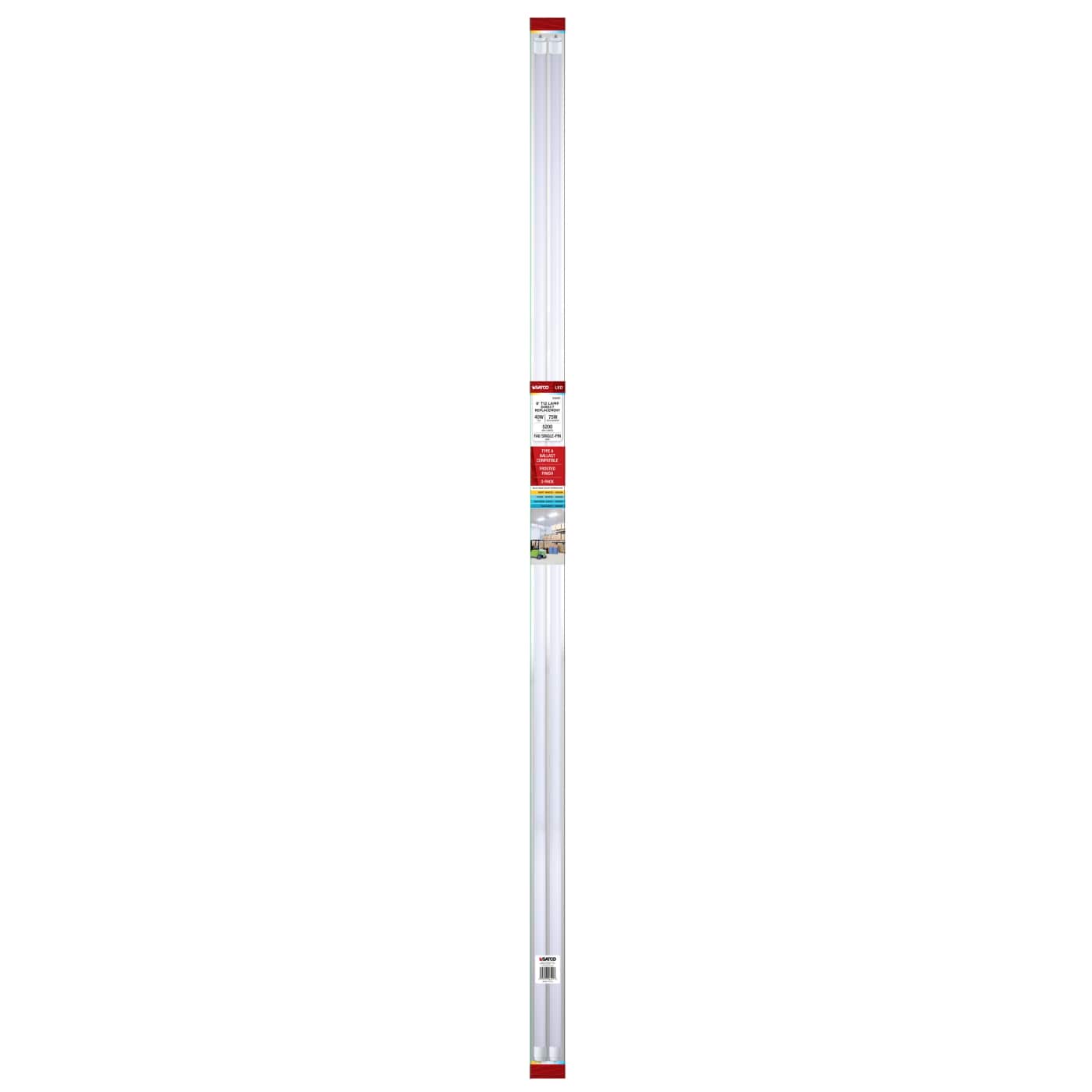

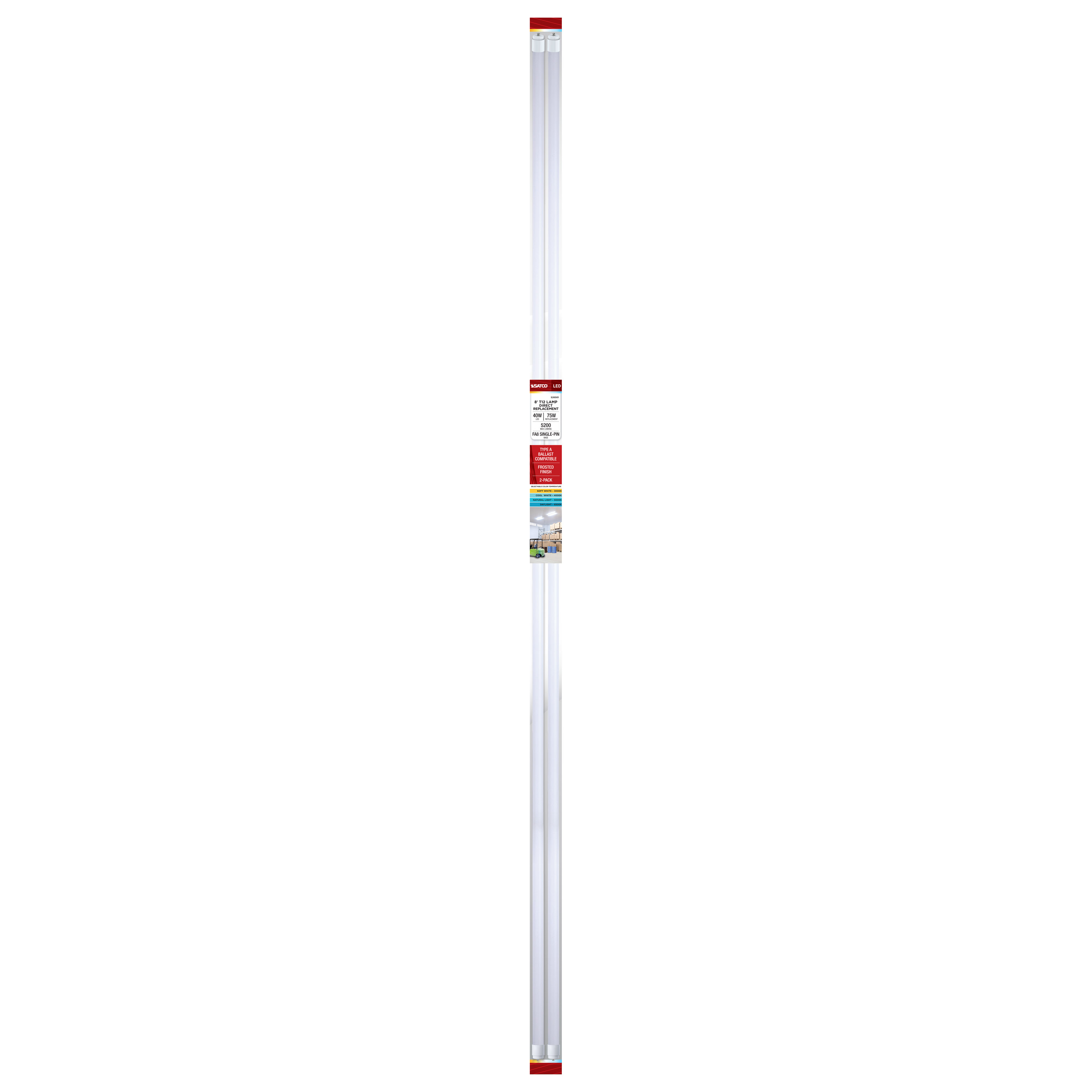

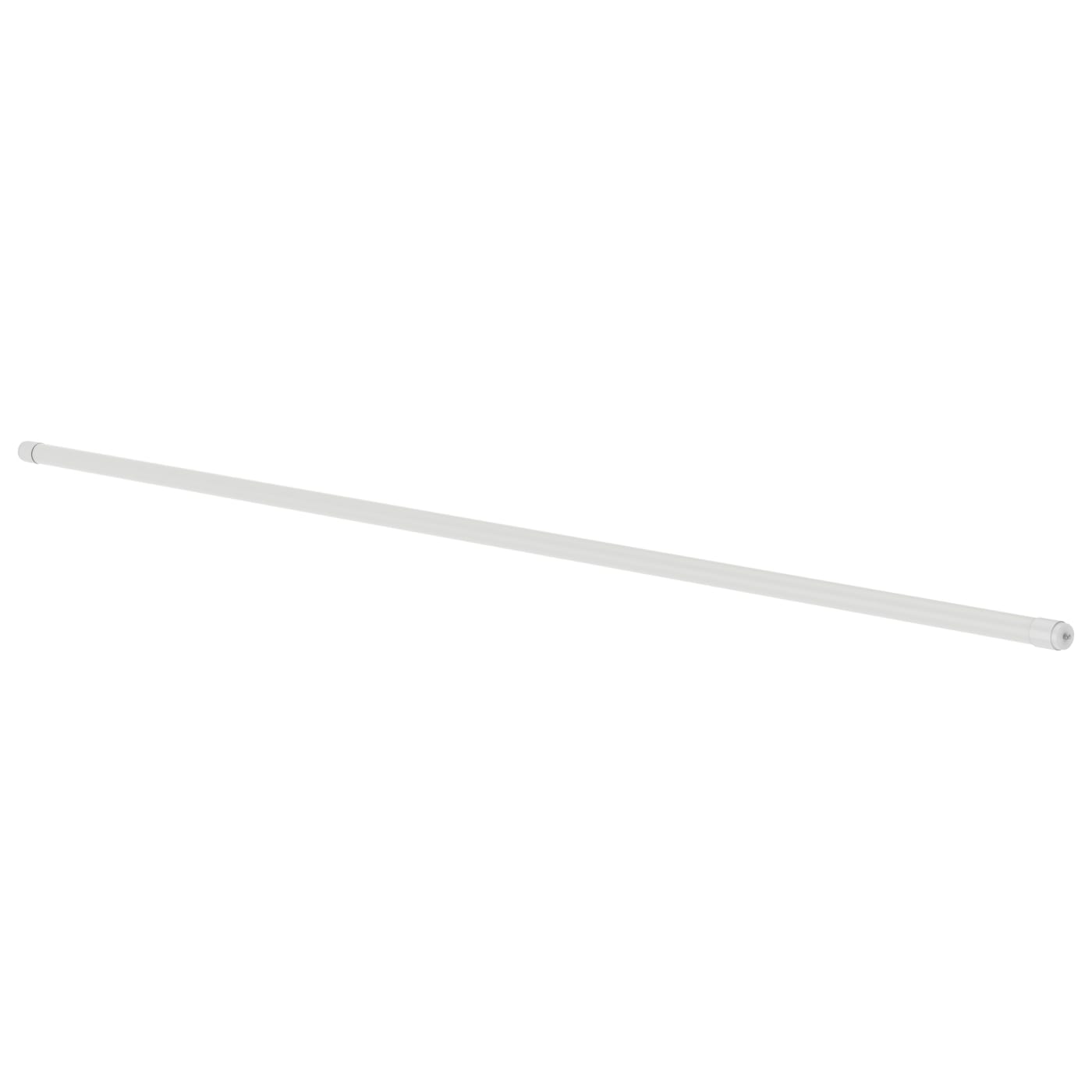

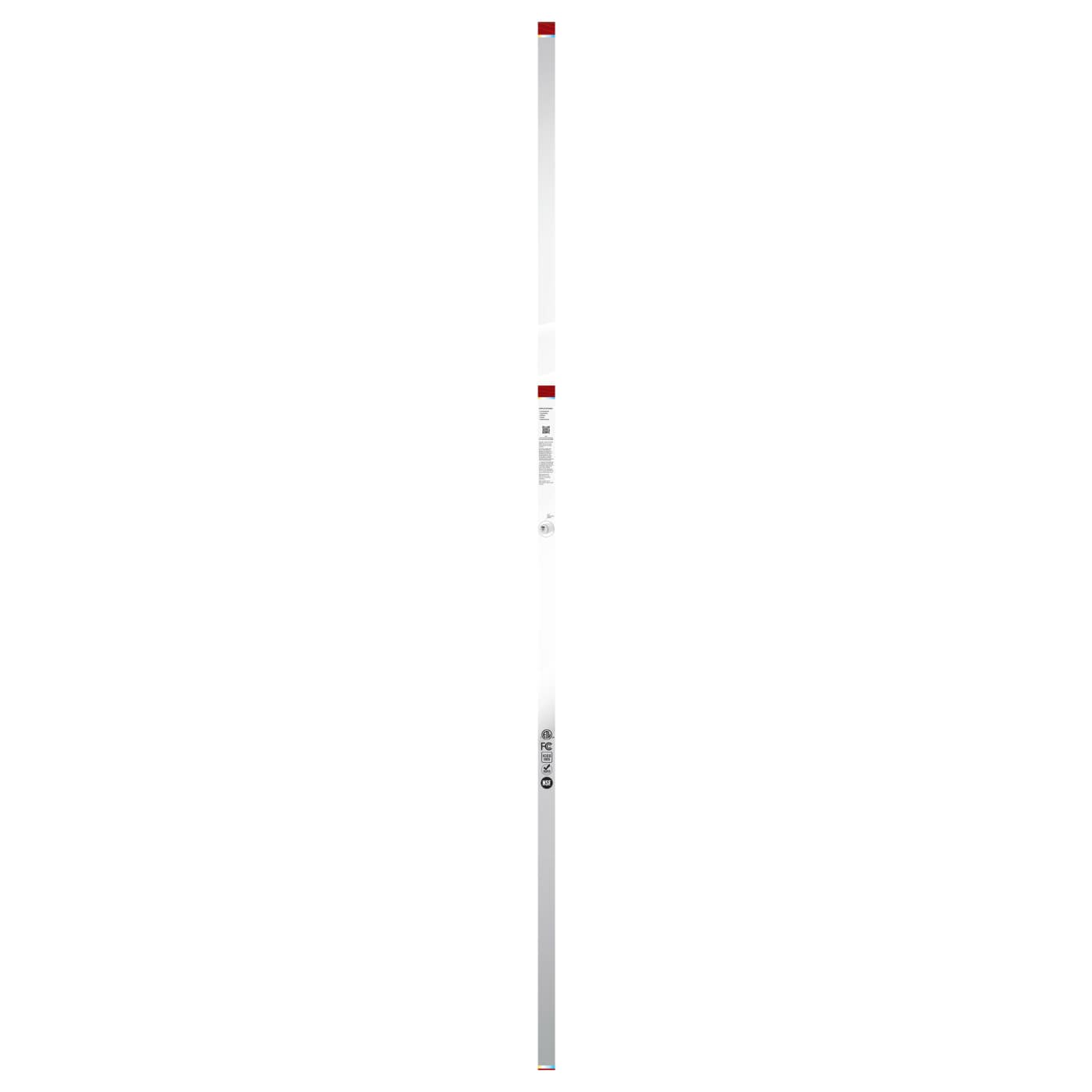

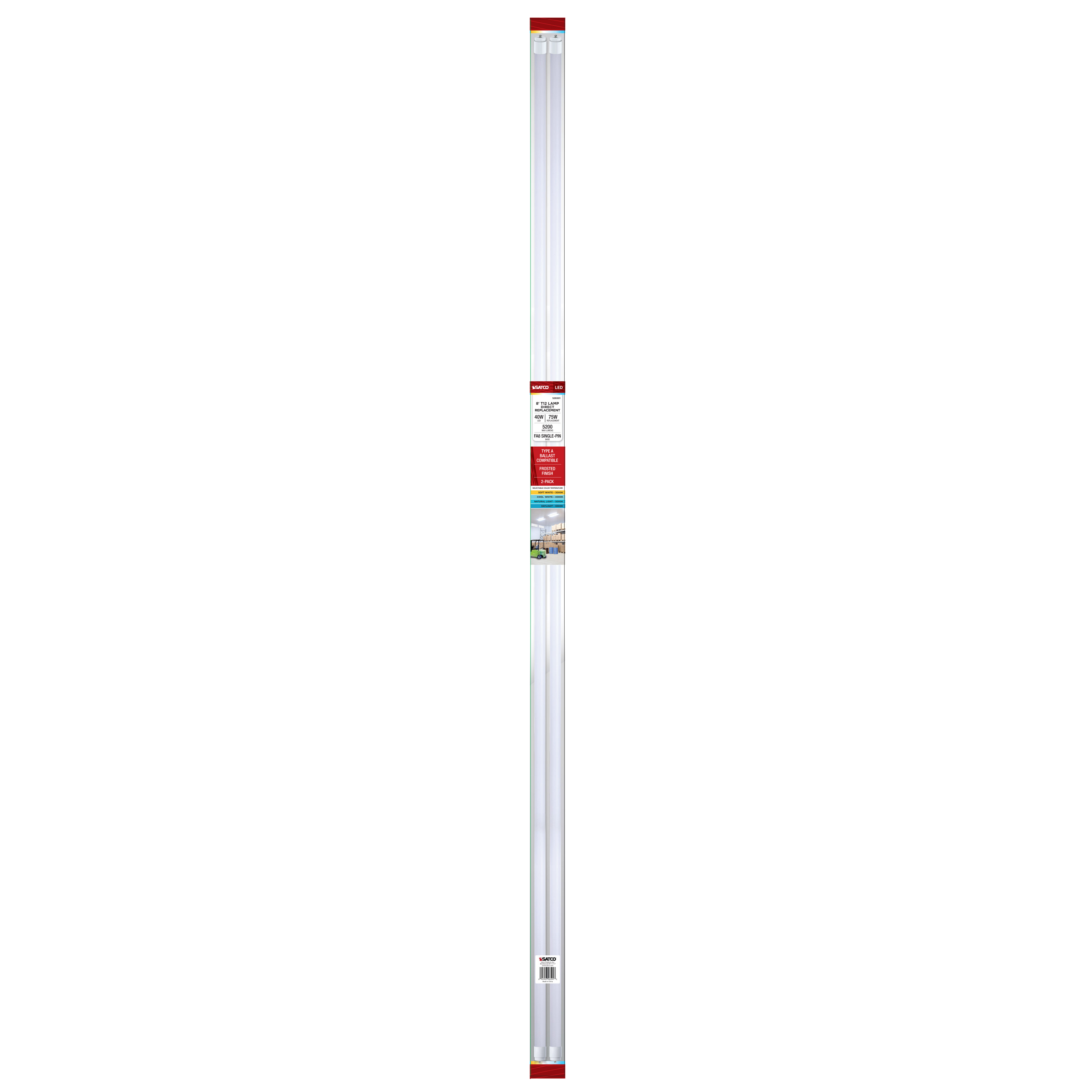

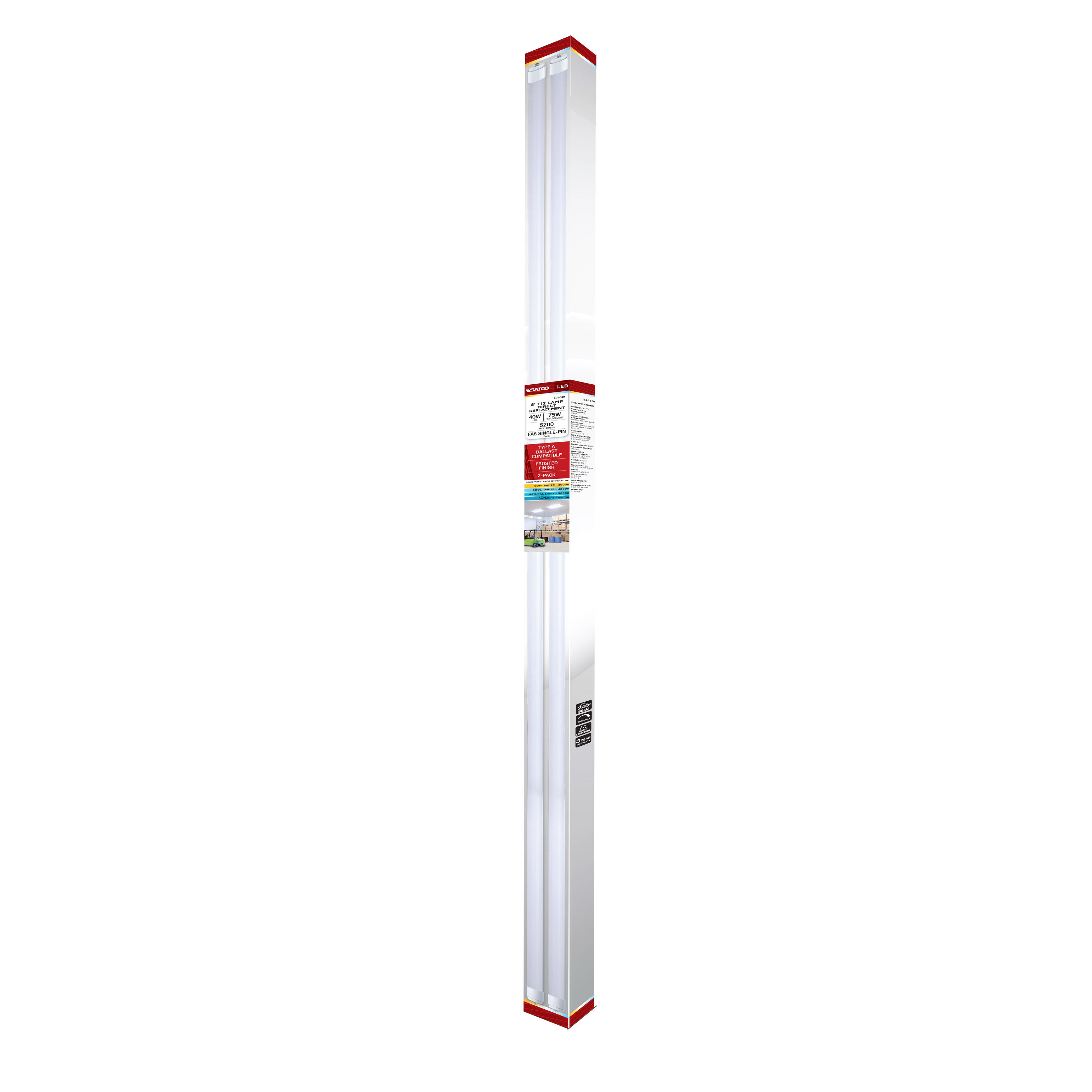

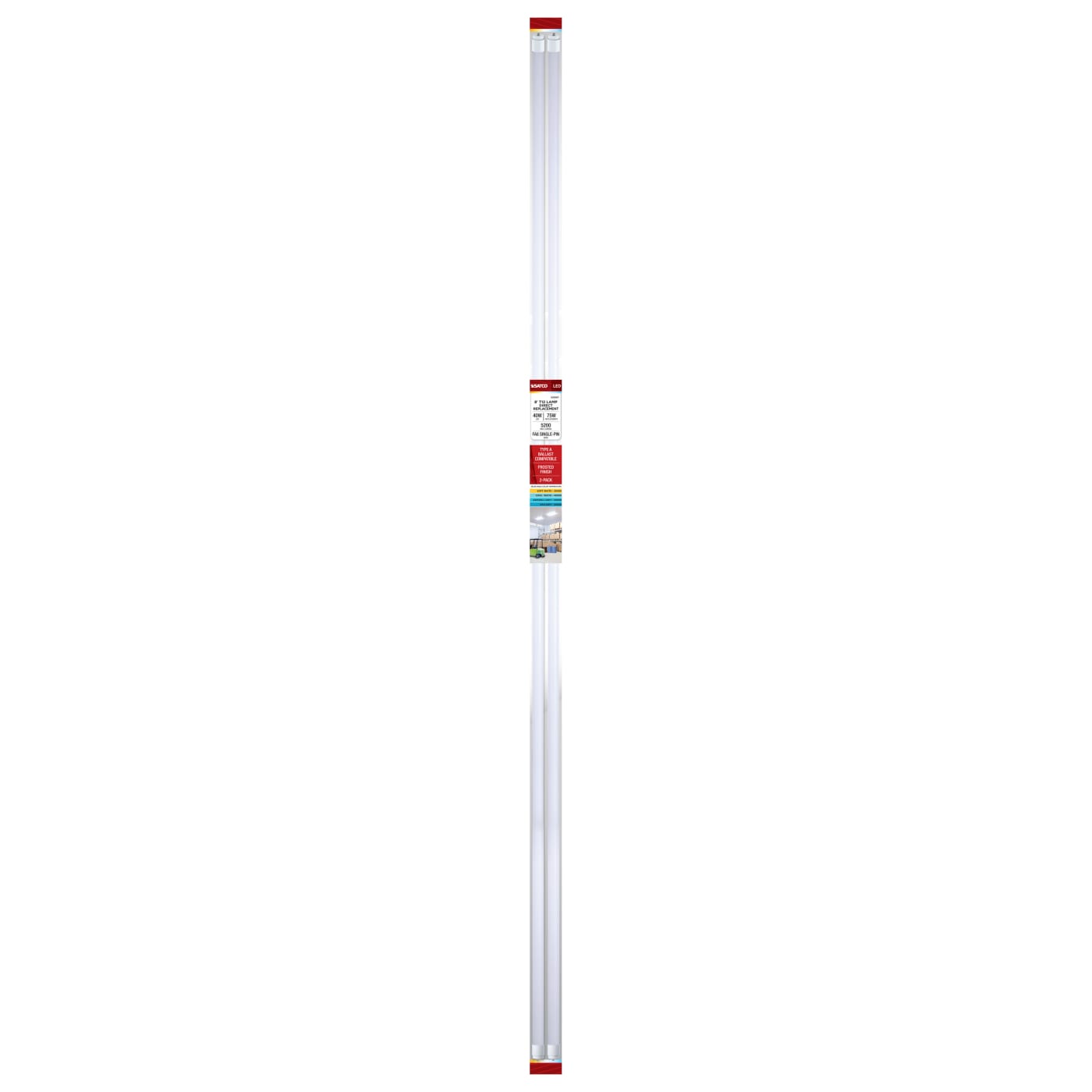

S26501

40T12/LED/96/4CCT/DR/2PK

  • 40 Watt T12 LED
  • 3K/4K/5K/65K CCT
  • Fa8 Base
  • 2-Pack
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S26501 SpecificationsS26501 Ballast Compatibility Chart.pdfS26501 Instructions.pdf
Description
Description
40 Watt T12 LED; 3K/4K/5K/65K CCT; Fa8 Base; 2-Pack
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A
Ballasting RequirementsBallast required, check compatibility
Dimmable TextOnly Dimmable with Compatible Dimming Ballasts
Lamp FilamentLED
MaterialGlass
Product NotesNot for use in vapor tight fixtures.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic DistortionBallast Dependent

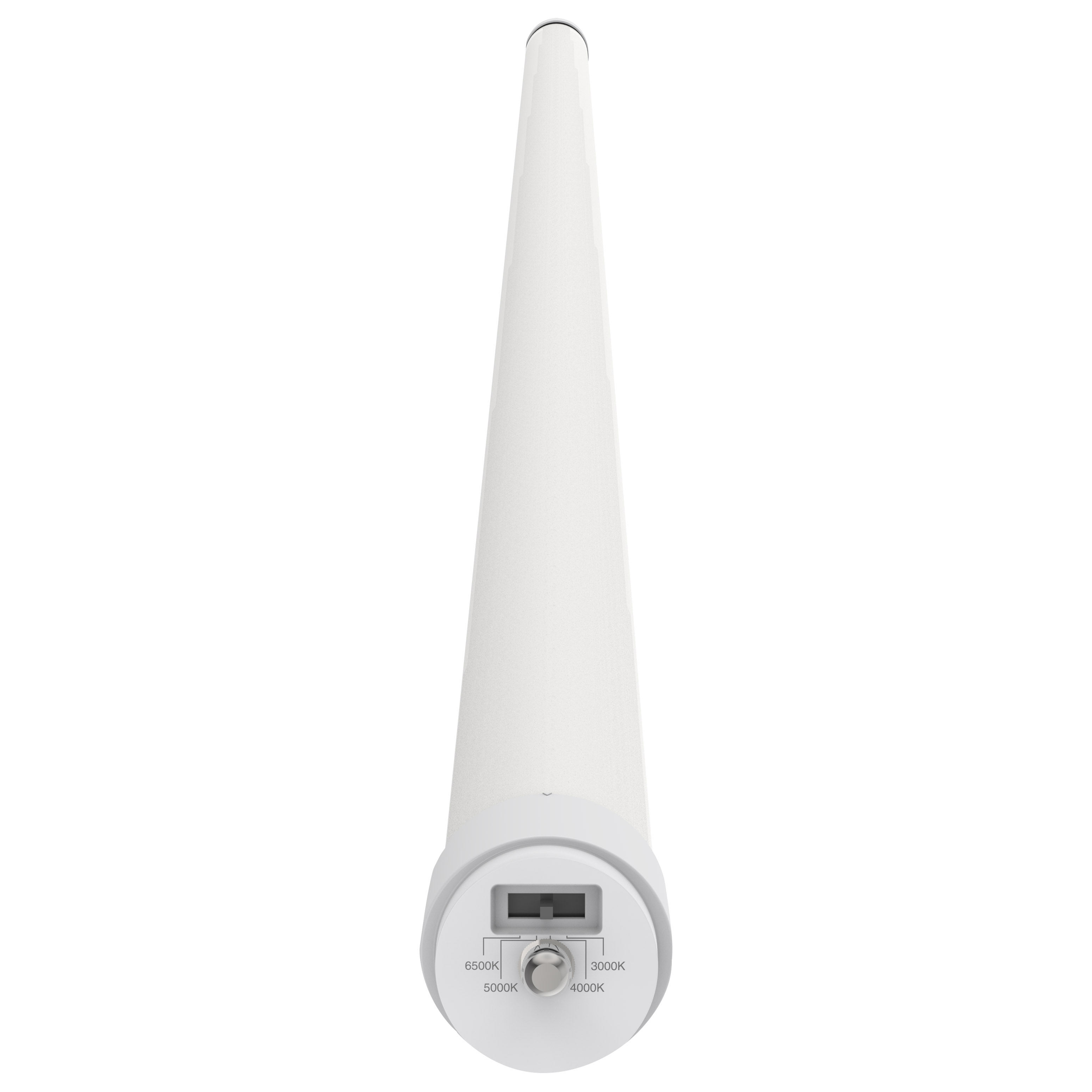

CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.133-0.144A
IOT EnabledNo
Leg Spacing0.51
Power FactorBallast Dependent
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv75W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated36000
Beam Angle (degree)240
Color TempSoft White to Daylight
CRI80+
Dimming TypeOnly Dimmable with Compatible Dimming Ballasts
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens4400L/5200L/5200L/4800L
VoltsBallast Dependent
Watts40W
Physical

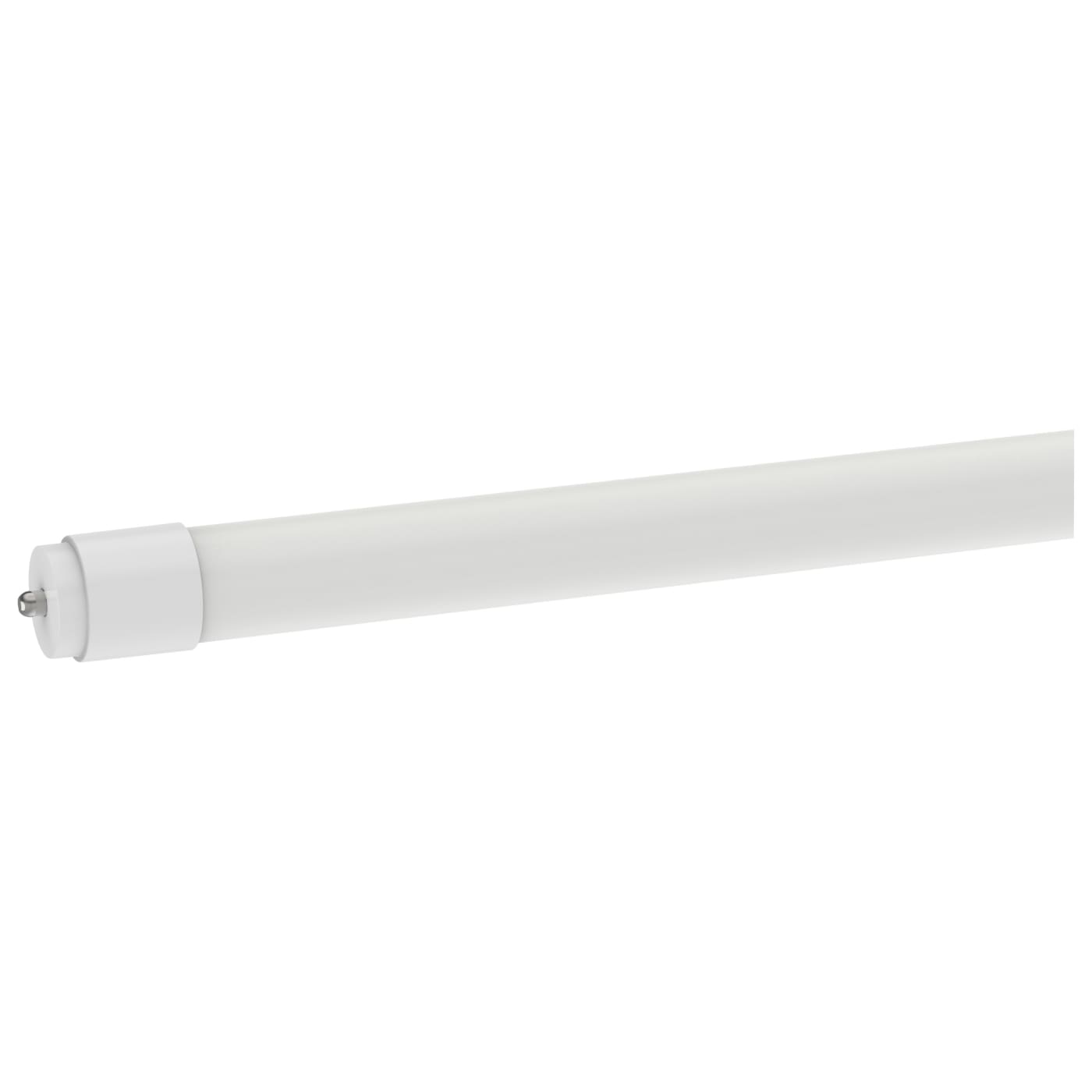

Lamp BaseSingle Pin
FinishFrost
Housing ColorWhite
ANSI BaseFa8
Lamp TypeT12
MOD Lamps1.42
MOL94.02
Additional Info
Warranty3-Years
Rated For Enclosed FixtureNo
Documents
Features
Flicker FreeNo
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923265013
Case Cube2.3325
Case Height4.33
Case Length96.46
Case Quantity6
Case UPC10045923265010
Case Weight24.8
Case Width9.65
EA Cube0.2751
EA Height1.69
EA Length94.09
EA Quantity1
EA Weight3.46
EA Width2.99
Inner Cube0.0

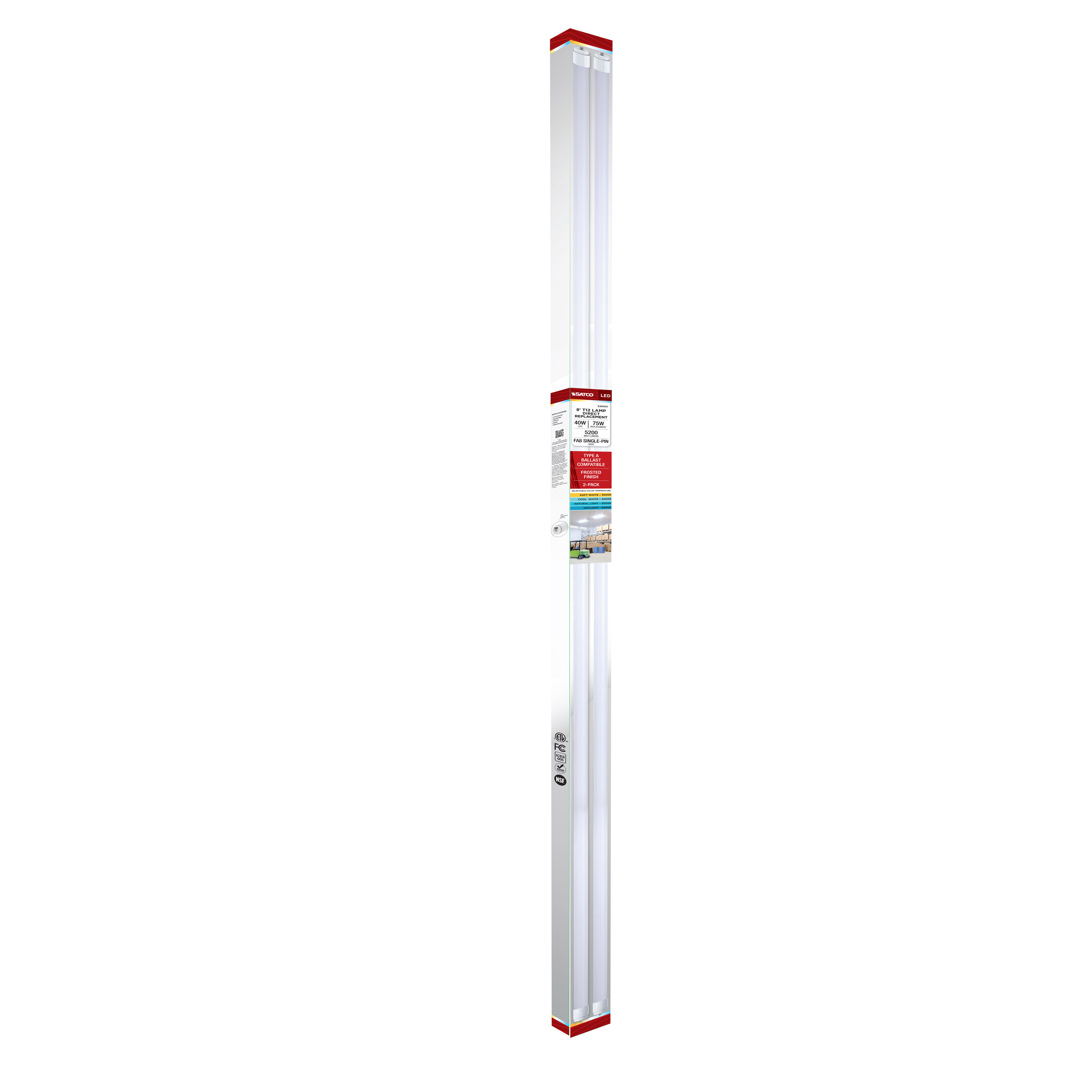

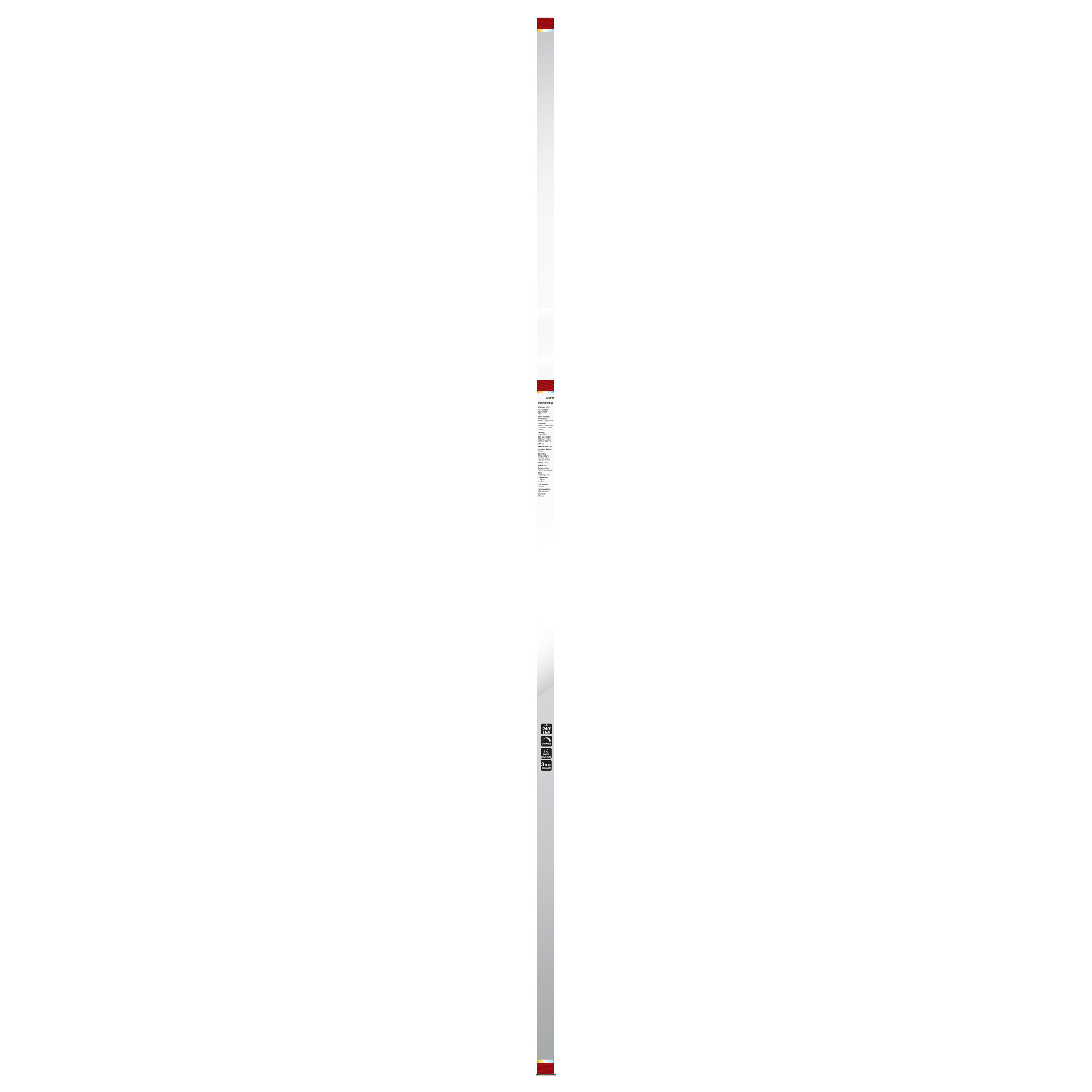

Pack TypeColor Box

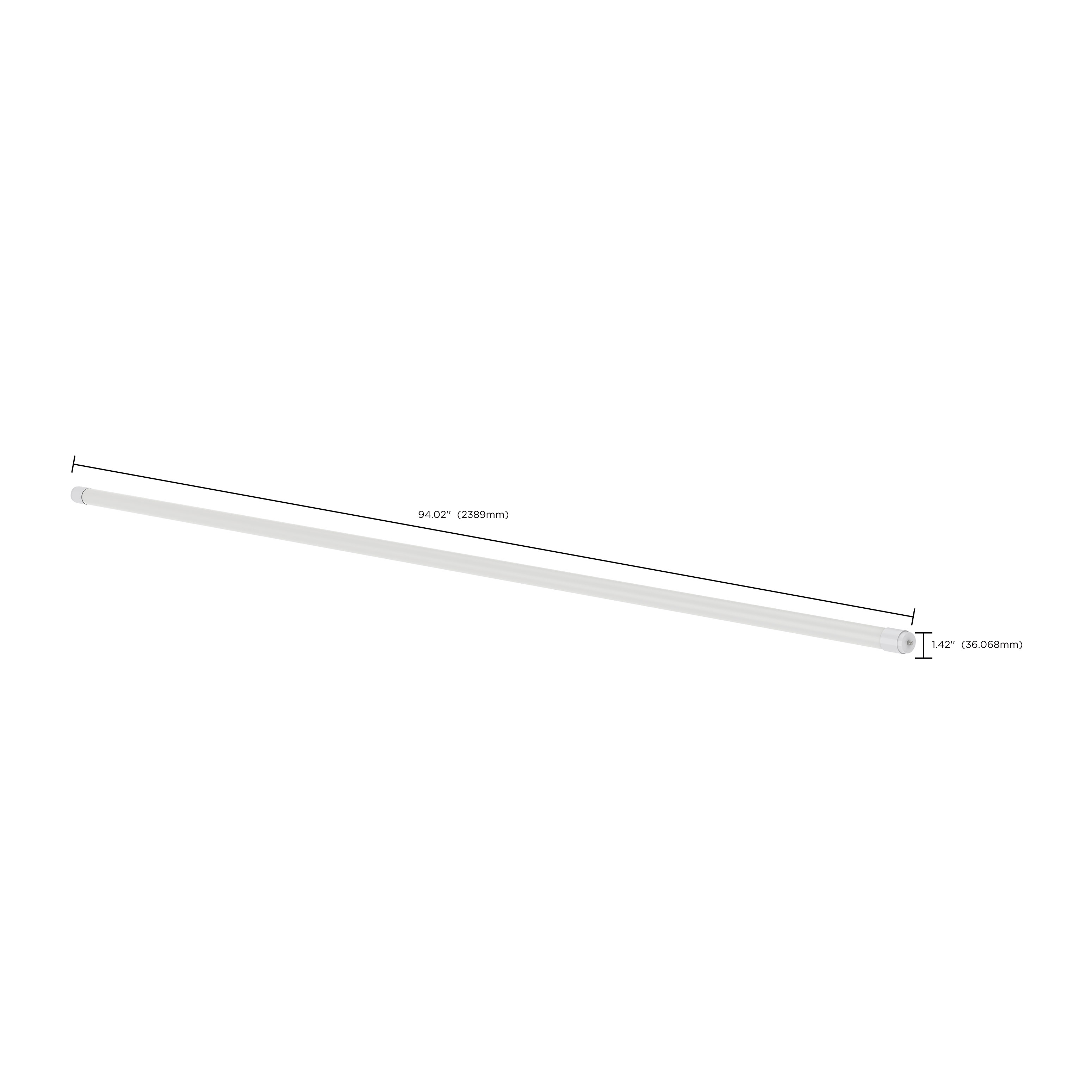

Web Length94.02
Web Width1.42
