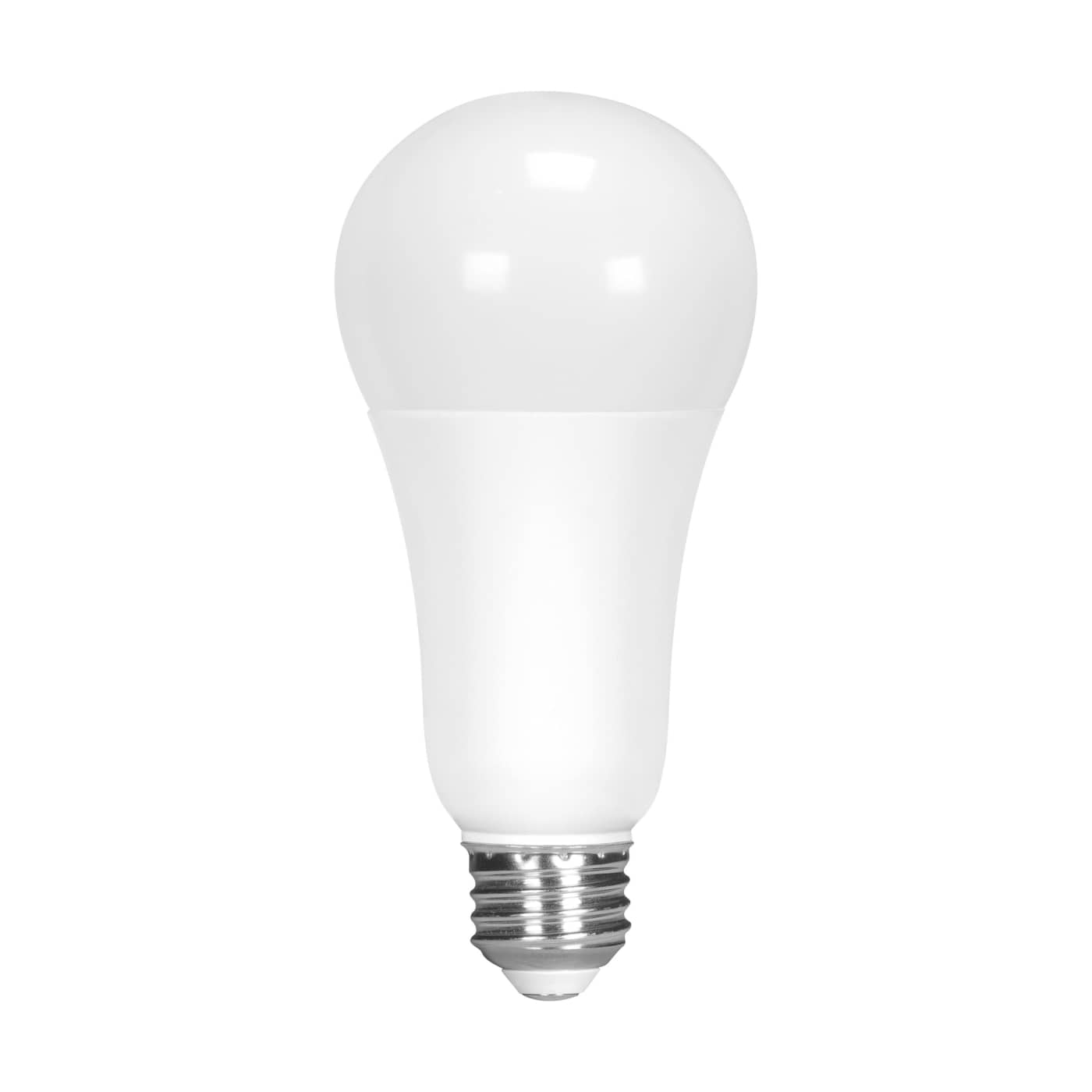

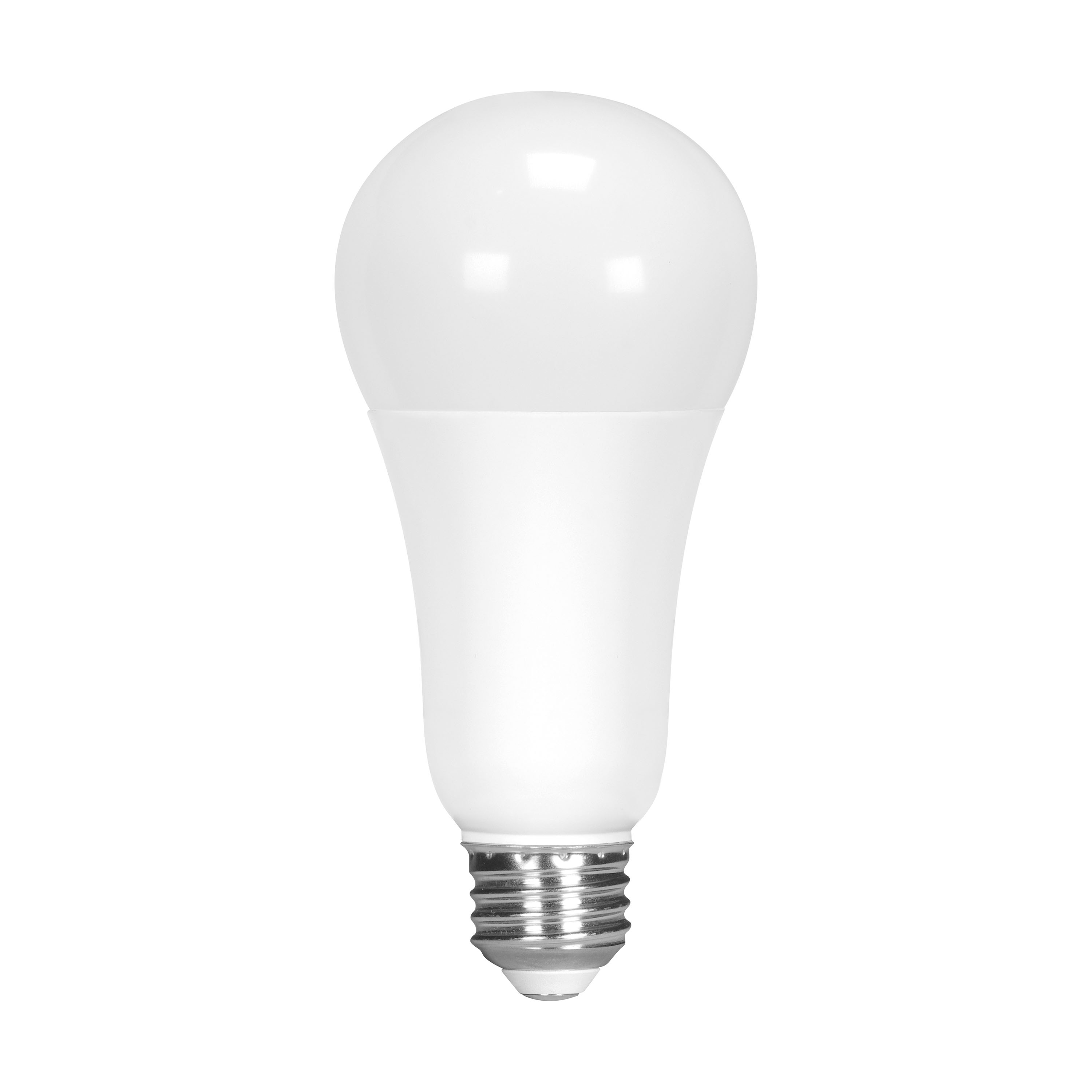

S28652

16.5A19LED/927/120V

  • 16.5 Watt
  • A19 LED
  • 90CRI
  • 2700K
  • Medium base
  • 220 deg. Beam Angle
  • 120 Volt
  • 1600 Lumens
  • CEC
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S28652 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S28652
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
16.5 Watt; A19 LED; 90CRI; 2700K; Medium base; 220 deg. Beam Angle; 120 Volt; 1600 Lumens; CEC
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTraditional
Most Current GenerationS15185
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.138A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Operating PositionUniversal
Power Factor0.95
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens1600L
Volts120v
Watts16.5W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19

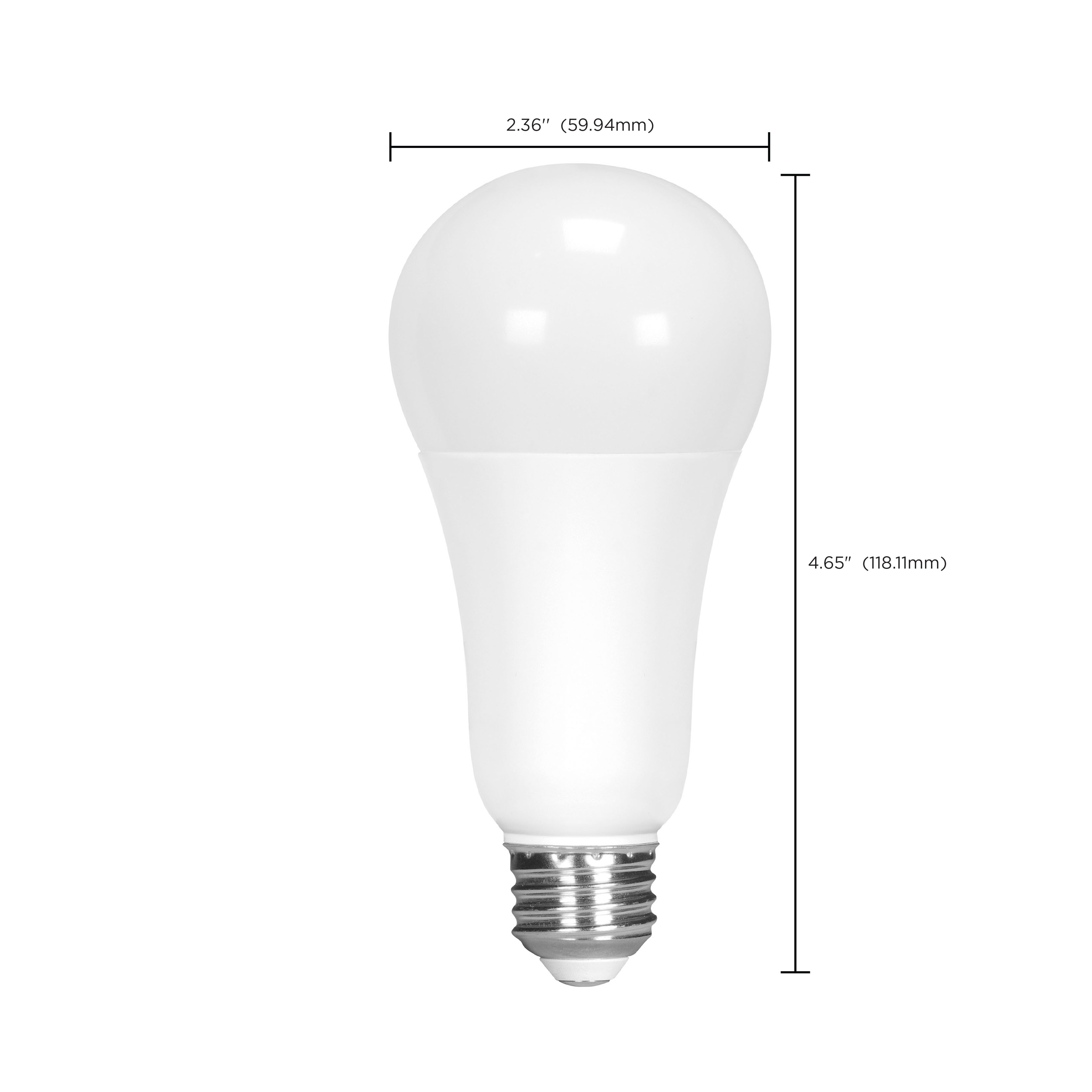

MOD Lamps2.36
MOL4.65
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923286520
Case Cube0.6553
Case Height11.93
Case Length11.22
Case Quantity24
Case UPC10045923286527
Case Weight6.28
Case Width8.46
EA Cube0.0176
EA Height5.12
EA Length2.44
EA Quantity1
EA Weight0.22
EA Width2.44
Inner Cube0.1275
Inner Height5.43
Inner Length7.8
Inner Quantity6
Inner UPC20045923286524
Inner Weight1.43
Inner Width5.2
Pack TypeBox
Web Length4.65
Web Width2.36
