| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| CA Regulations | Exempt - Base Not Regulated |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | Linear |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in-surge protection - 0.7KV |
| Total Harmonic Distortion | 20% |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.108-0.047A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lens Material | Glass |
| Lensed | True |
| Nominal Length | 48.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Product Technology | LED |
| Fluor Equiv | 28W |
| Incandescent Equivalent | 50W |
| CCT (Kelvin Temp) | 3500K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 240 |
| Color Temp | Neutral White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +45C (+113F) |

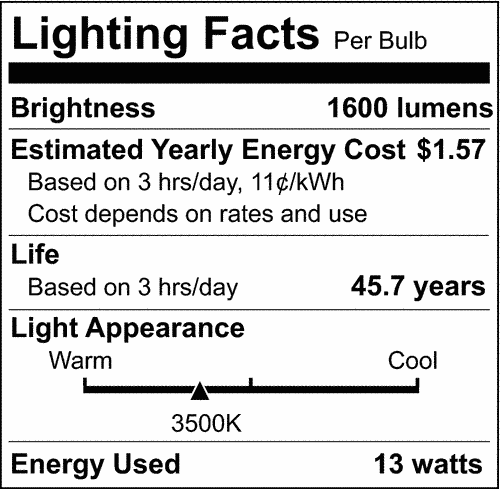

| Lumens | 1600L |
| Volts | 120V-277V |
| Watts | 13W |
| Lamp Base | Miniature Bi Pin |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G5 |
| Lamp Type | T5 |
| MOD Lamps | 0.83 |
| MOL | 46.0 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Status | Lawful for sale in California |
|---|---|
| CO Status | Lawful for sale |
| DLC ID | PLYHW51UWNHJ |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| IP Rating | IP20 |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| UPC | 045923286902 |
|---|---|
| Case Cube | 0.7527 |
| Case Height | 5.2 |
| Case Length | 48.1 |
| Case Quantity | 25 |
| Case UPC | 10045923286909 |
| Case Weight | 12.9 |
| Case Width | 5.2 |
| EA Cube | 0.0192 |
| EA Height | 0.85 |
| EA Length | 46.0 |
| EA Quantity | 1 |
| EA Weight | 0.55 |
| EA Width | 0.85 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Sleeve |
| Web Length | 46.0 |
| Web Width | 0.83 |
