» S28694

S28694 12T5/LED/24-840/BP/HO/SE-DE

S28694

12T5/LED/24-840/BP/HO/SE-DE

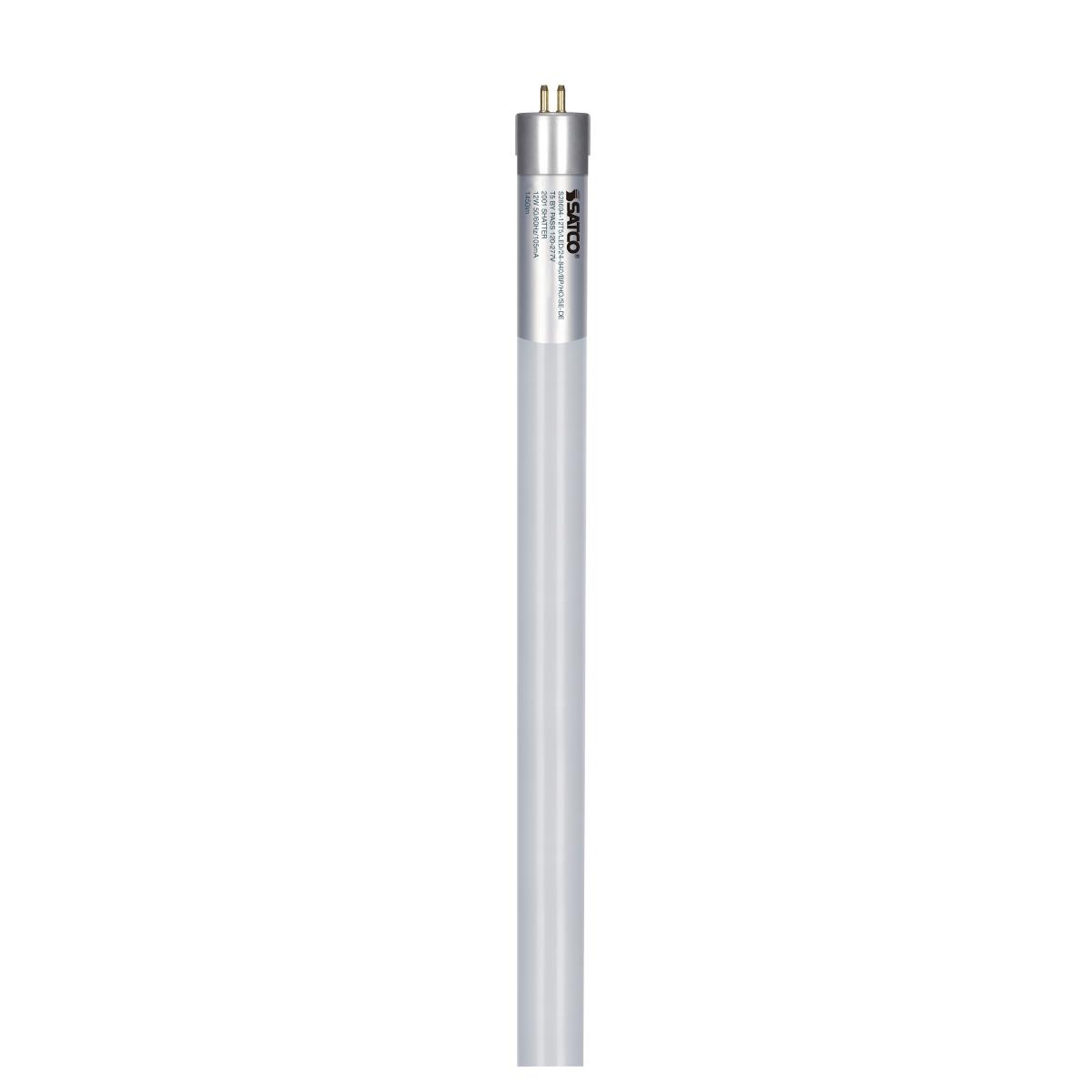

12 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1450 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring


Lights

S28694

12T5/LED/24-840/BP/HO/SE-DE

12 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1450 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Specifications

General
StatusActive
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent24W
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length24
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens1450L
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent50W
Fluorescent Equivalent24W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens1450L
Beam Spread240
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL22.5
MOD0.83
Nominal Length24
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.2
Additional Information
Shatter-Proof TypePET Coated
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923286940
Each Quantity1
Each Length (in.)0.83
Each Width (in.)5.20
Each Height (in.)5.20
Each Weight (lb.)0.20
Each Cube (CuFt.)0.0130
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923286947
Case Quantity25
Case Length (in.)24.50
Case Width (in.)5.20
Case Height (in.)5.20
Case Weight (lb.)8.50
Case Cube (CuFt.)0.3834
