» S28697

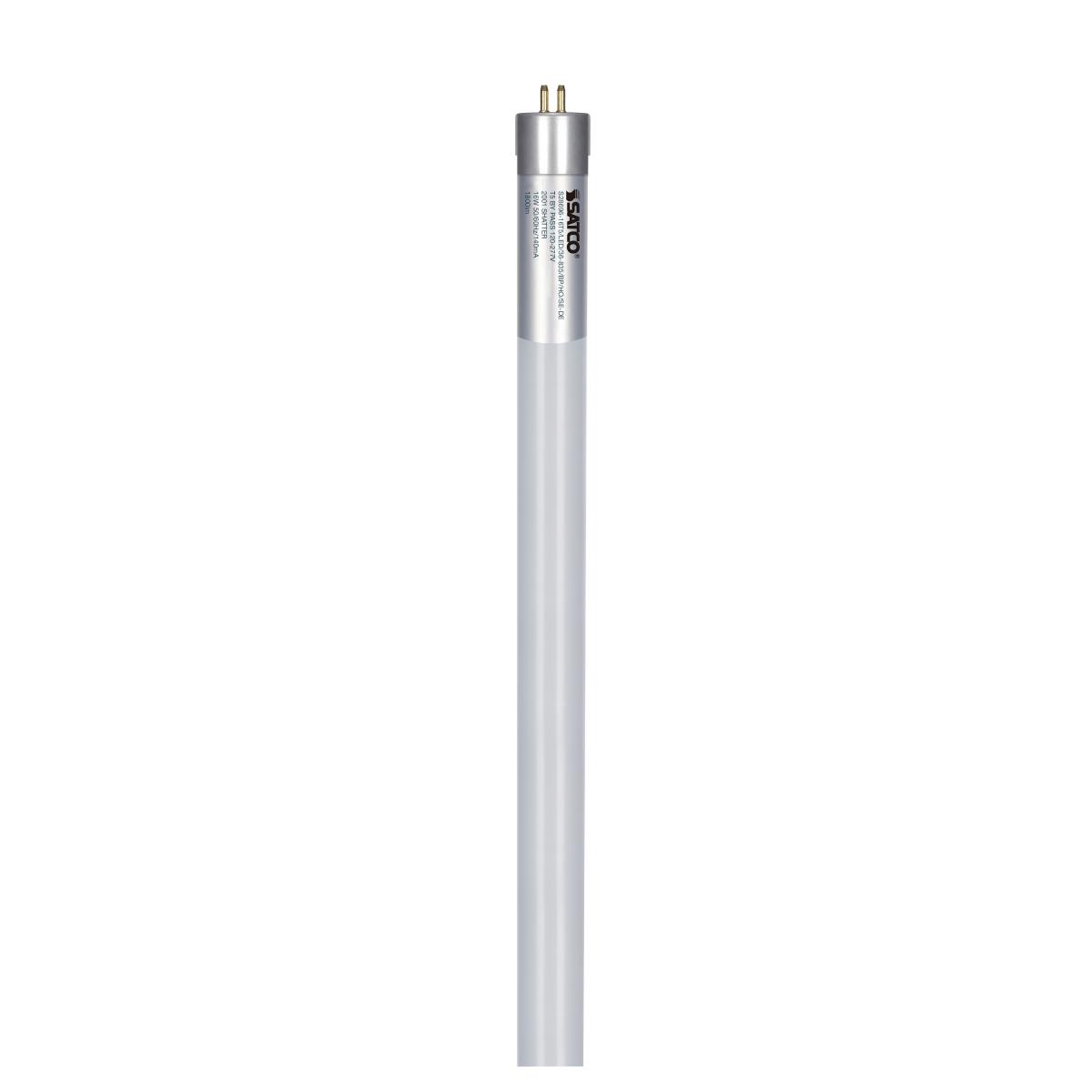

S28697 16T5/LED/36-840/BP/HO/SE-DE

S28697

16T5/LED/36-840/BP/HO/SE-DE

16 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1850 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

This lamp can be used as a double or single-ended ballast bypass replacement for linear fluorescent T5 HO and HE lamps in existing fixtures. There is no ballast or external driver required. Each lamp can run on 120 to 277V line voltage.
  • Single or double ended wiring
  • All glass tube
  • PET-shatterproof coated
  • NSF certified
  • Damp location rating
  • 50/60 hertz electric power frequency
  • 50/60 hertz electric power frequency
Lights

S28697

16T5/LED/36-840/BP/HO/SE-DE

16 Watt T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1850 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

This lamp can be used as a double or single-ended ballast bypass replacement for linear fluorescent T5 HO and HE lamps in existing fixtures. There is no ballast or external driver required. Each lamp can run on 120 to 277V line voltage.
  • Single or double ended wiring
  • All glass tube
  • PET-shatterproof coated
  • NSF certified
  • Damp location rating
  • 50/60 hertz electric power frequency
  • 50/60 hertz electric power frequency

Specifications

General
StatusActive
Watts16W
Fluorescent Equivalent39W
Volts120V-277V
Ballast TypeType B
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length36
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens1850L
Beam Spread240
DimmableNon-Dimmable
Hours Rated50000
Lamp TypeLinear
TechnologyLED
Electrical
Watts16W
Fluorescent Equivalent39W
Volts120V-277V
Ballast TypeType B
Operating Frequency50/60 Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI83
Lumens1850L
Beam Spread240
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-25C (-13F) to a maximum of +45C (+113F)
Physical
MOL34
MOD0.83
Nominal Length36
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishFrost
MaterialGlass
Lens FinishFrost
Lens MaterialGlass
Housing ColorWhite
Weight (lb.)0.3
Additional Information
Shatter-Proof TypePET Coated
Warranty5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety ListingcULus - Classified; cULus - Certified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
CA T20 / T24 RationaleExempt - Base Not Regulated
California StatusLawful for sale in California
Title 20 / 24 StatusLawful for sale
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923286971
Each Quantity1
Each Length (in.)0.83
Each Width (in.)5.20
Each Height (in.)5.20
Each Weight (lb.)0.30
Each Cube (CuFt.)0.0130
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923286978
Case Quantity25
Case Length (in.)36.30
Case Width (in.)5.20
Case Height (in.)5.20
Case Weight (lb.)10.70
Case Cube (CuFt.)0.5680
×
×

Ballast Compatibility

Name Type View
LED Linear S28697 Ballasts View
×

Precautions

No precautions available at this time.

×
