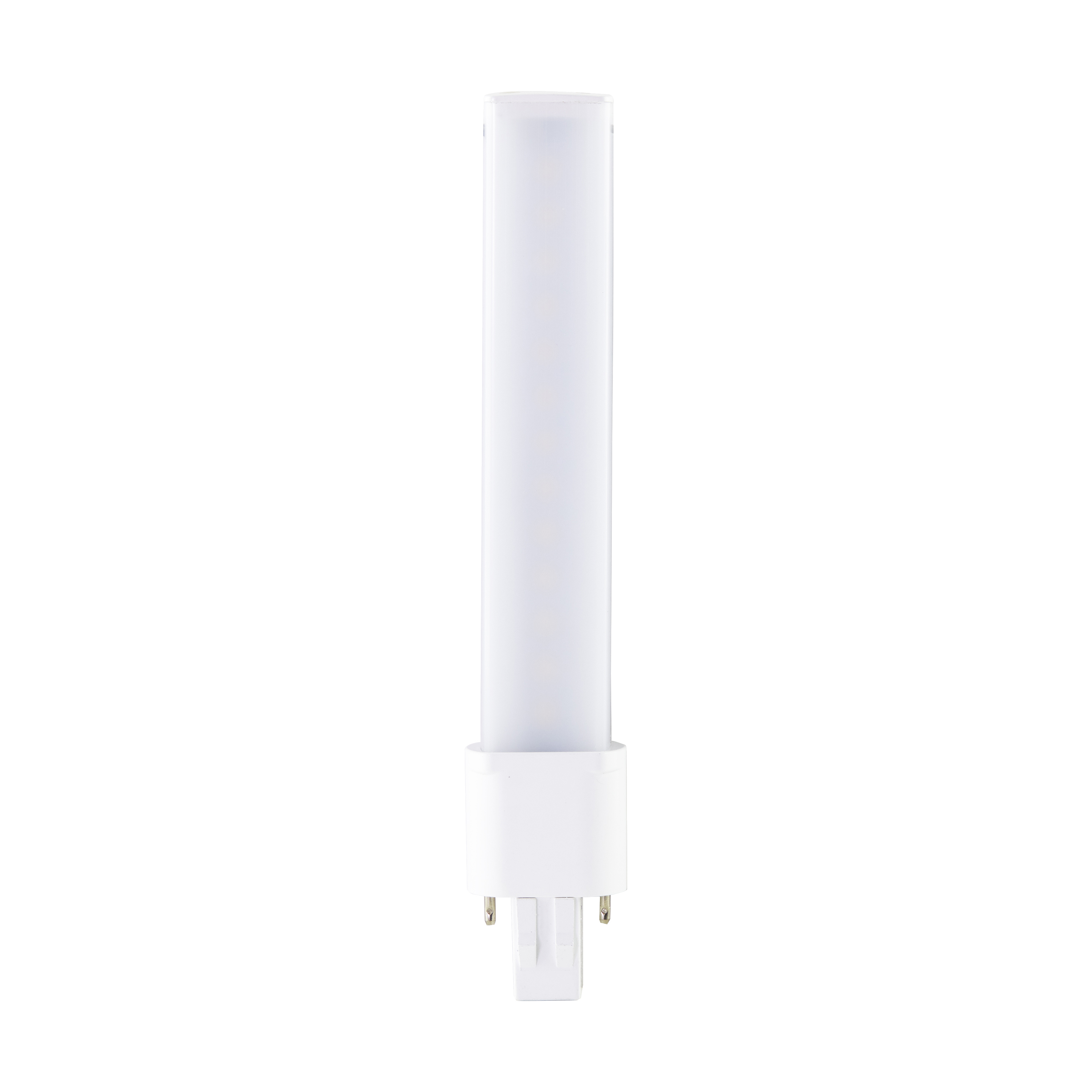

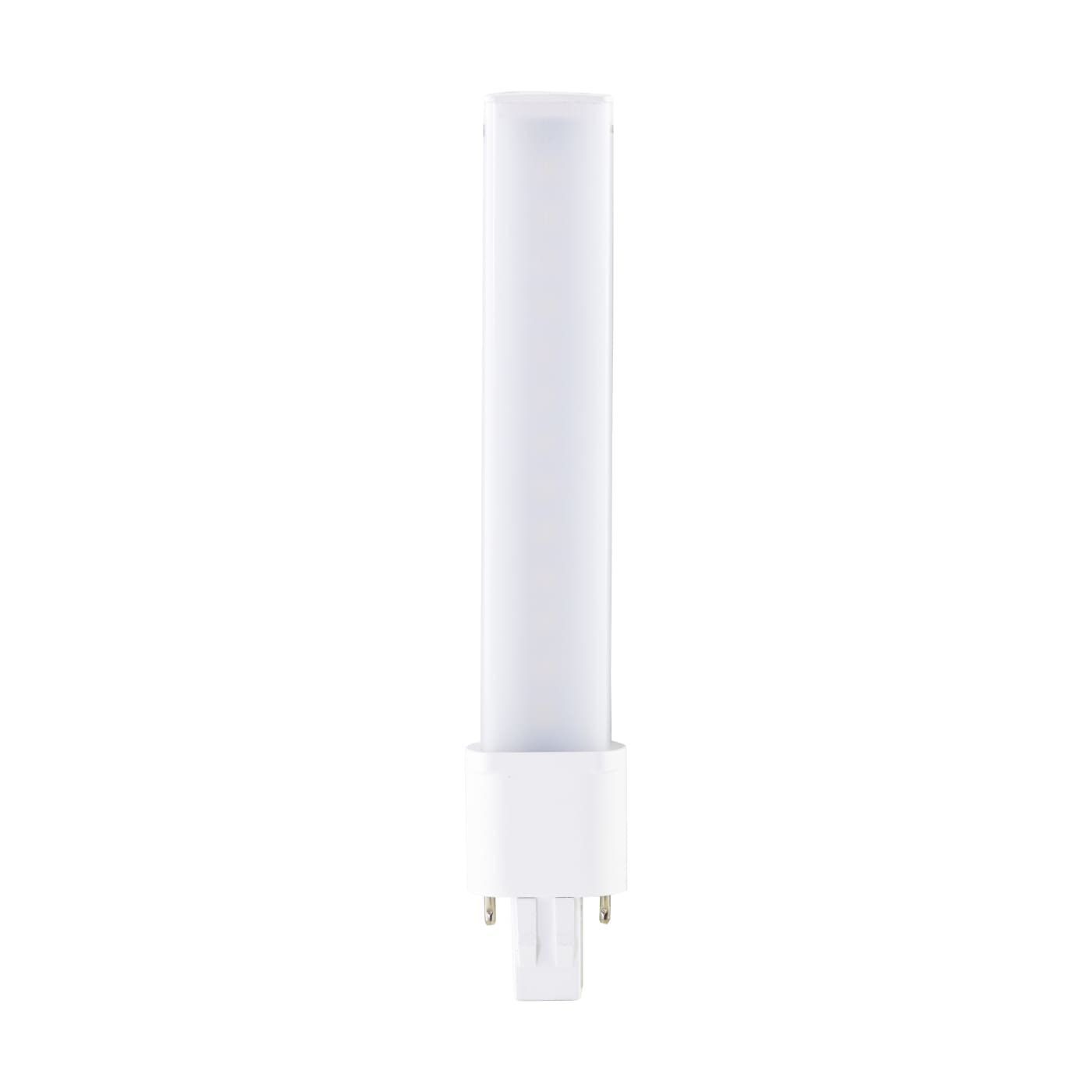

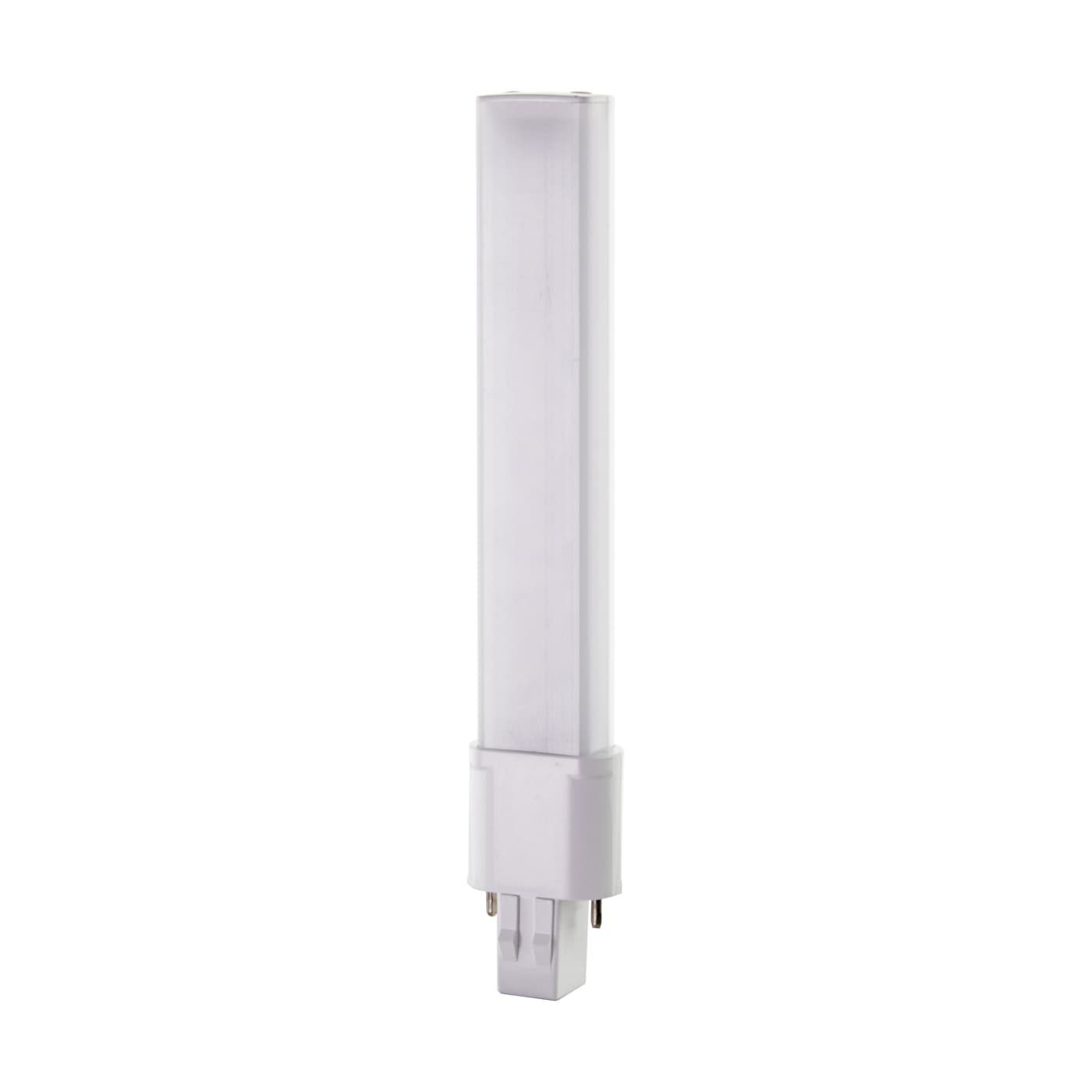

S28726

6W/LED/CFL/830/GX23/BP/G2

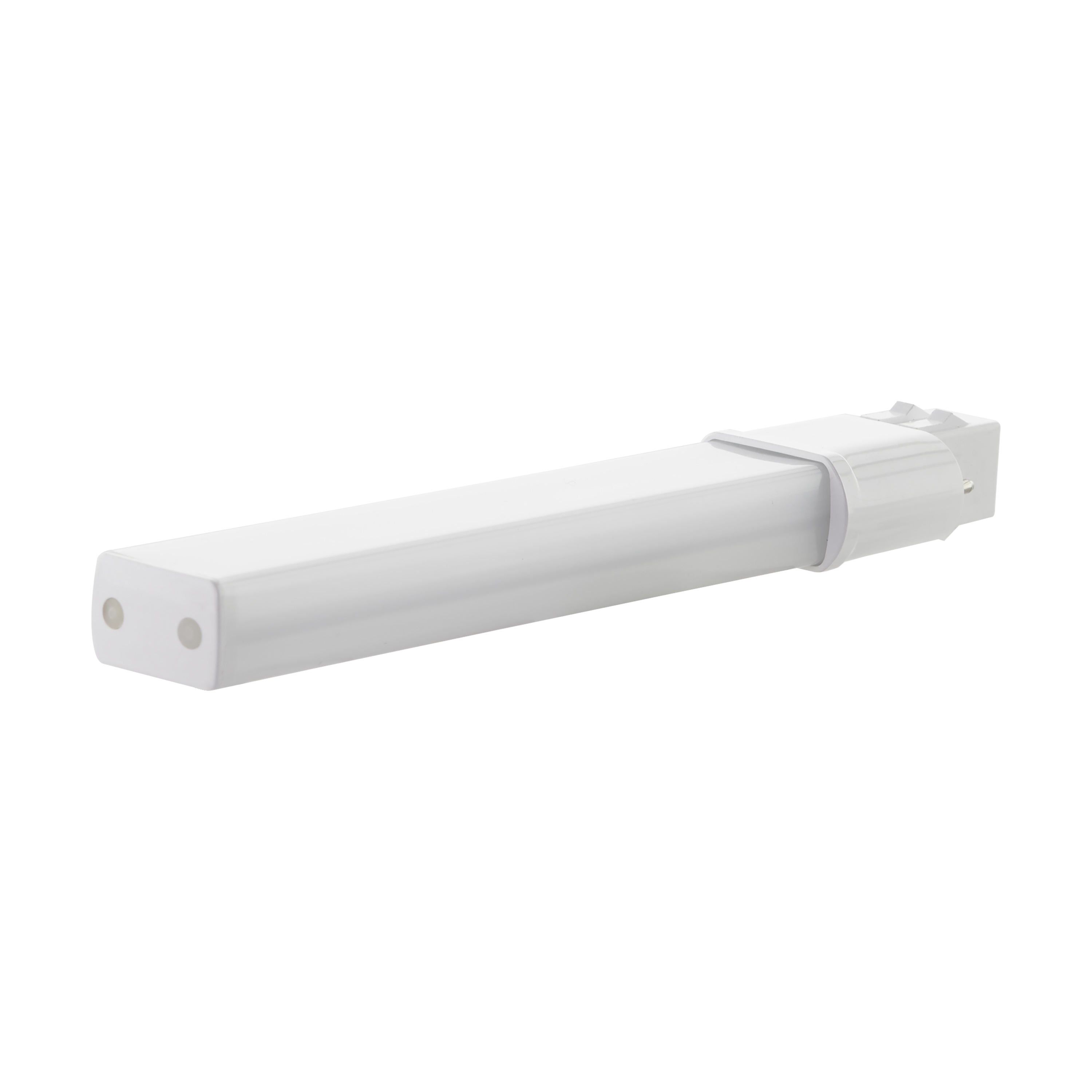

  • 6 Watt LED PL 2-PIN
  • 3000K
  • 600 Lumens
  • GX23 base
  • 50000 Average rated hours
  • 360 deg. Beam Angle
  • 120-277 Volt
  • Type B
  • Ballast Bypass
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S28726 SpecificationsS28726 Photometrics.iesS28726 Instructions.pdf
Tools
Lighting Layout Analysis For S28726
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
6 Watt LED PL 2-PIN; 3000K; 600 Lumens; GX23 base; 50000 Average rated hours; 360 deg. Beam Angle; 120-277 Volt; Type B; Ballast Bypass
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialPlastic
Fixture TypePL 2-Pin
StatusActive
StyleTransitional
Most Current GenerationS29881
Surge ProtectionBuilt-in-surge protection - 0.5KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.050-0.022A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv13W
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens600L
Volts120V-277V
Watts6W
Physical

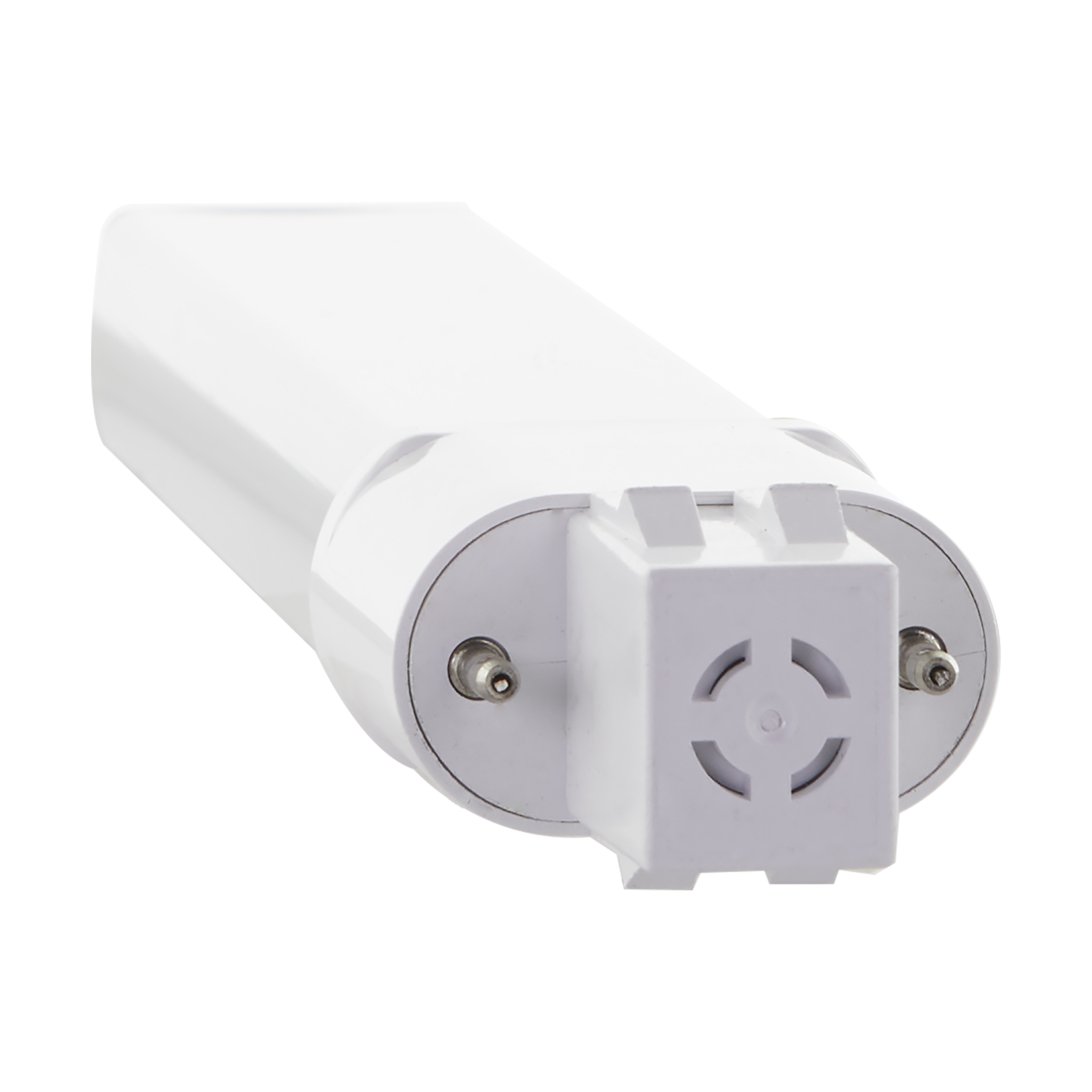

Lamp BaseGX23
FinishFrost
Housing ColorWhite
ANSI BaseGX23
Lamp TypePL

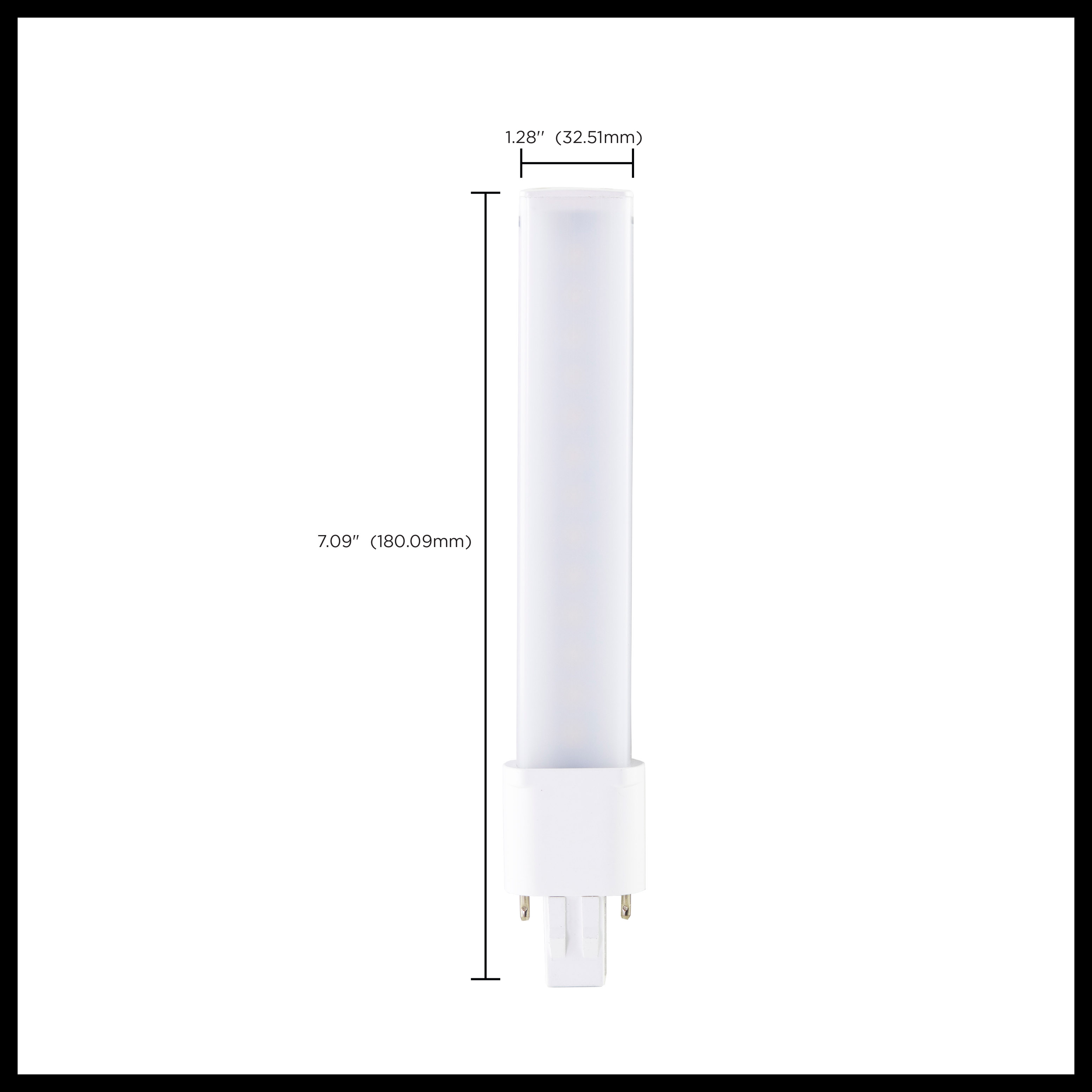

MOD Lamps1.28
MOL7.09
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923287268
Case Cube0.5623
Case Height17.7
Case Length6.1
Case Quantity50
Case UPC10045923287265
Case Weight41.0
Case Width9.0
EA Cube0.0064
EA Height7.38
EA Length1.0
EA Quantity1
EA Weight0.15
EA Width1.5
Inner Cube0.0809
Inner Height7.99
Inner Length3.3
Inner Quantity10
Inner UPC20045923287262
Inner Weight8.2
Inner Width5.3
Pack TypeBox
Web Length7.09
Web Width1.28
