| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Lamp Filament | LED |
| Material | Die-Cast Aluminum / PC |
| Fixture Type | Type A |
| Status | Active |
| Style | Utility |

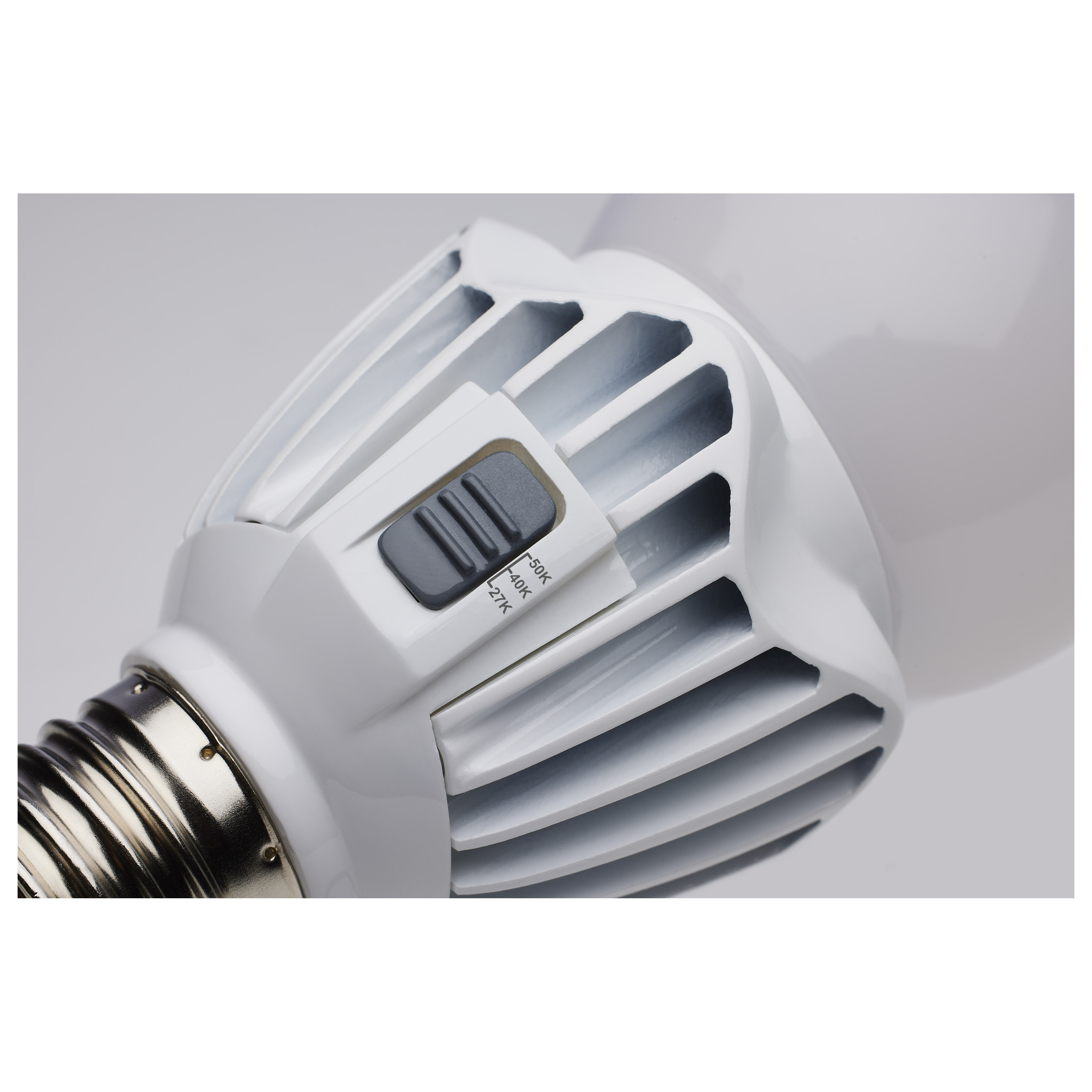

| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.150A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frosted |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length: 6 in. Width: 6 in. Height: 8.5 in. |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 125W |
| CCT (Kelvin Temp) | 2700K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 280 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Frequency | 50/60Hz |
| Operating Temp | -13F to +113F (-25C to +45C) |

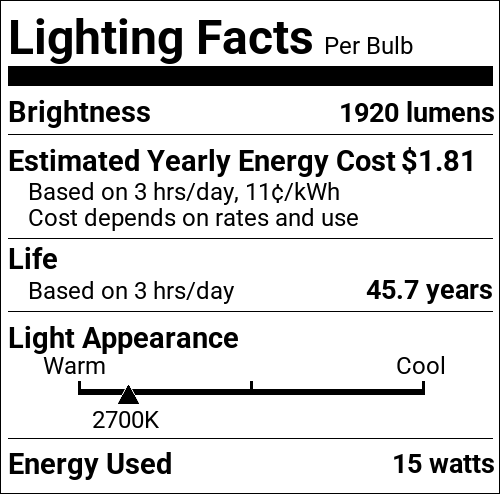

| Lumens | 1920L/2025L/1950L |
| Volts | 120V-277V |
| Watts | 15W |
| Lamp Base | Medium |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | E26 |
| Lamp Type | A21 |

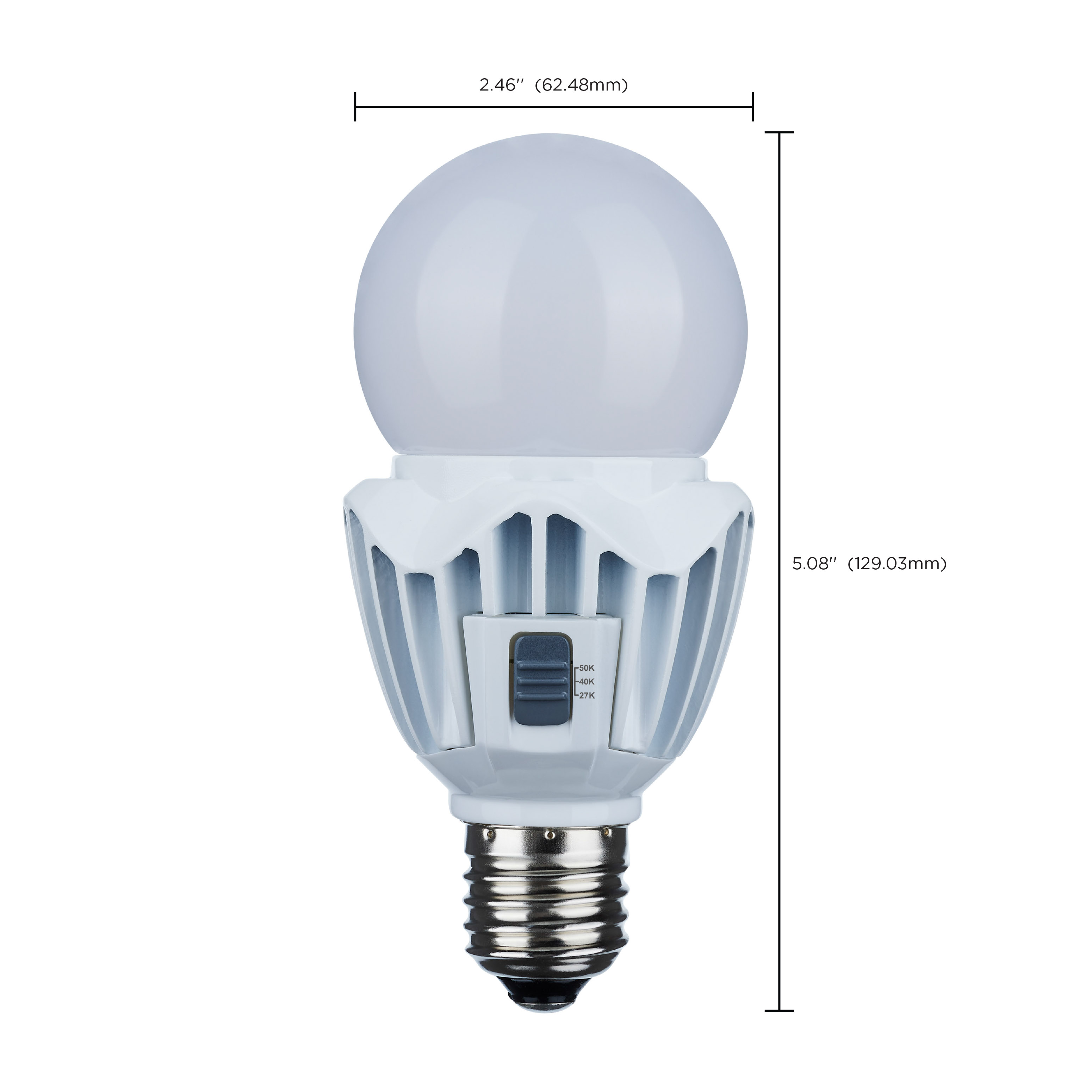

| MOD Lamps | 2.46 |
| MOL | 5.08 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Yes |
| T24/JA8 Compliant | No |
| UPC | 045923287350 |
|---|---|
| Case Cube | 0.9971 |
| Case Height | 14.17 |
| Case Length | 12.6 |
| Case Quantity | 24 |
| Case UPC | 10045923287357 |
| Case Weight | 15.4 |
| Case Width | 9.65 |
| EA Cube | 0.0246 |
| EA Height | 5.59 |
| EA Length | 2.76 |
| EA Quantity | 1 |
| EA Weight | 0.64 |
| EA Width | 2.76 |
| Inner Cube | 0.3815 |
| Inner Height | 6.3 |
| Inner Length | 11.81 |
| Inner Quantity | 12 |
| Inner UPC | 20045923287354 |
| Inner Weight | 7.69 |
| Inner Width | 8.86 |
| Pack Type | Box |
| Web Length | 5.08 |
| Web Width | 2.46 |
