| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Dimmable Text | 120V only |
| Lamp Filament | LED |
| Material | Die-Cast Aluminum / PC |
| Fixture Type | Type A |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2KV |

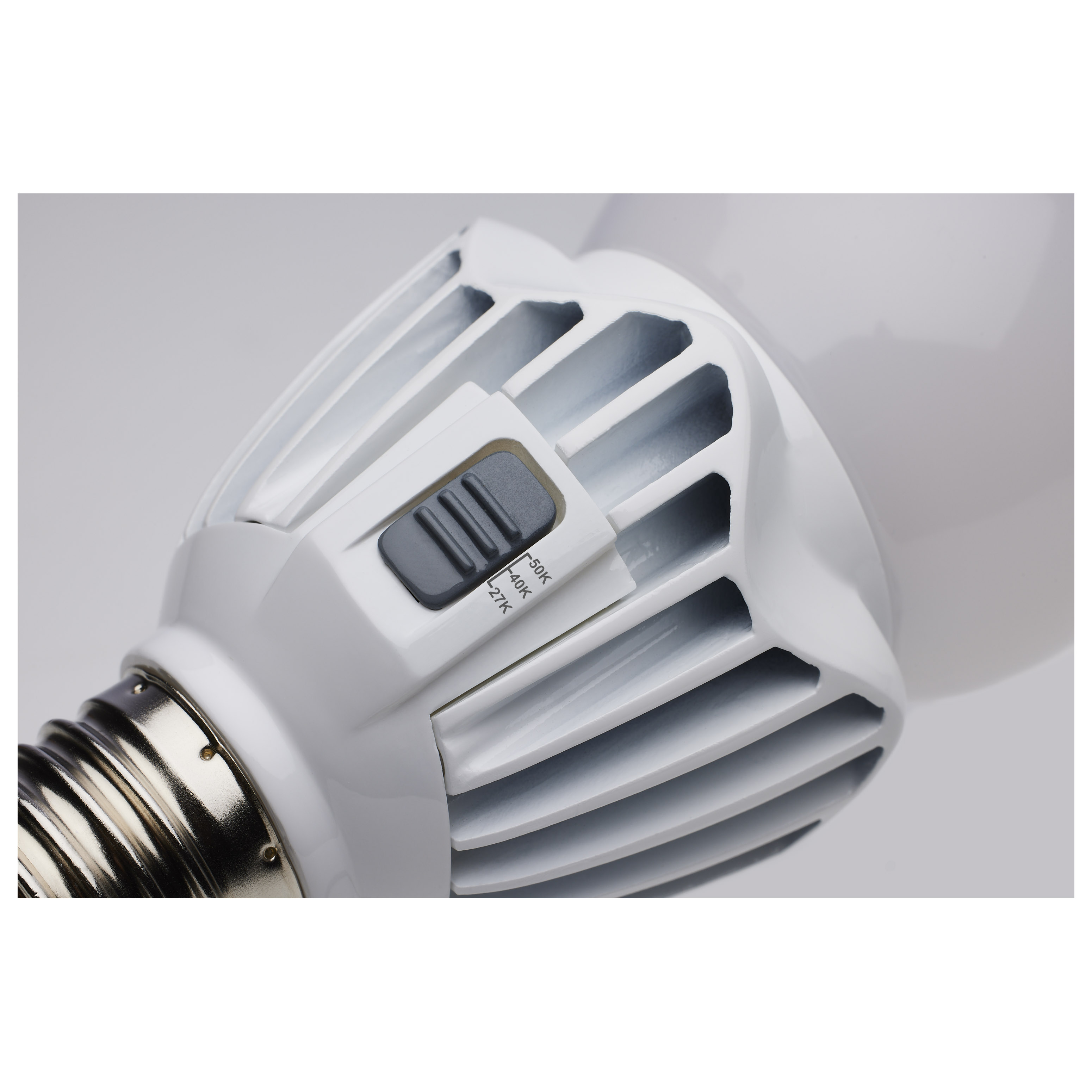

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.200A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frosted |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length: 6 in. Width: 6 in. Height: 8.5 in. |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 150W |
| CCT (Kelvin Temp) | 2700K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 280 |
| Color Temp | Warm White to Natural Light |
| CRI | 80+ |
| Dimming Type | Forward Phase or Reverse Phase or Phase Selectable |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +45C (+113F) |

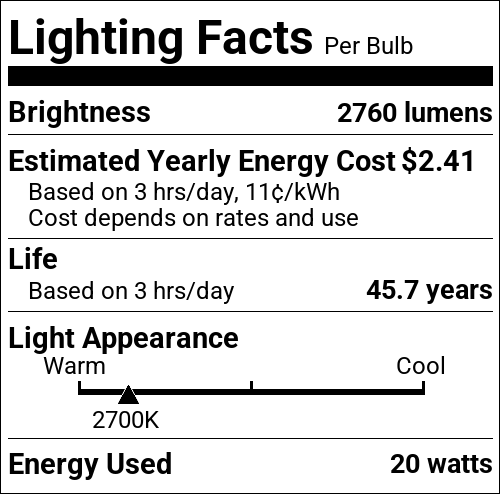

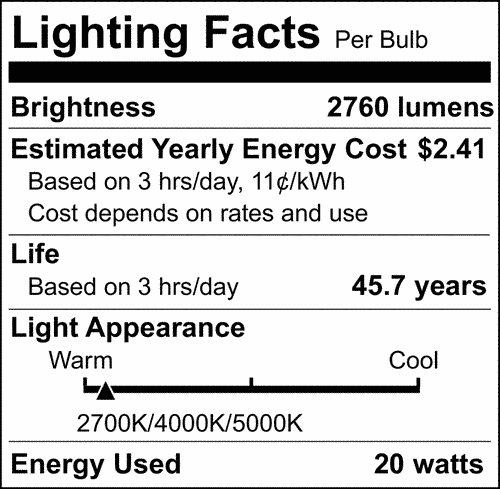

| Lumens | 2760L/3020L/2860L |
| Volts | 120V-277V |
| Watts | 20W |
| Lamp Base | Medium |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | E26 |
| Lamp Type | A21 |

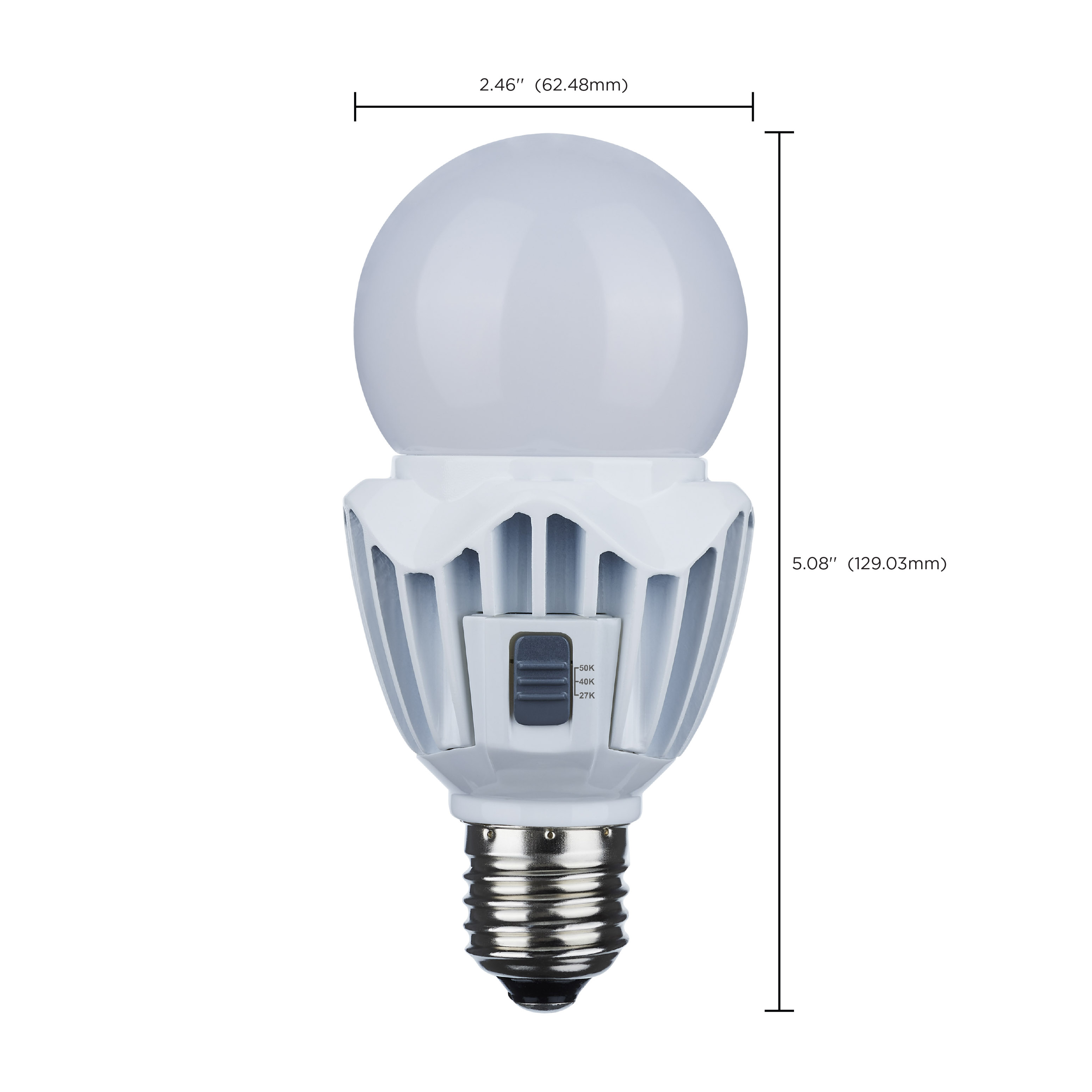

| MOD Lamps | 2.46 |
| MOL | 5.08 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - >2600 Lumens |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923287374 |
|---|---|
| Case Cube | 0.9971 |
| Case Height | 14.17 |
| Case Length | 12.6 |
| Case Quantity | 24 |
| Case UPC | 10045923287371 |
| Case Weight | 15.4 |
| Case Width | 9.65 |
| EA Cube | 0.0246 |
| EA Height | 5.59 |
| EA Length | 2.76 |
| EA Quantity | 1 |
| EA Weight | 0.64 |
| EA Width | 2.76 |
| Inner Cube | 0.3815 |
| Inner Height | 6.3 |
| Inner Length | 11.81 |
| Inner Quantity | 12 |
| Inner UPC | 20045923287378 |
| Inner Weight | 7.69 |
| Inner Width | 8.86 |
| Pack Type | Box |
| Web Length | 5.08 |
| Web Width | 2.46 |
