| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |

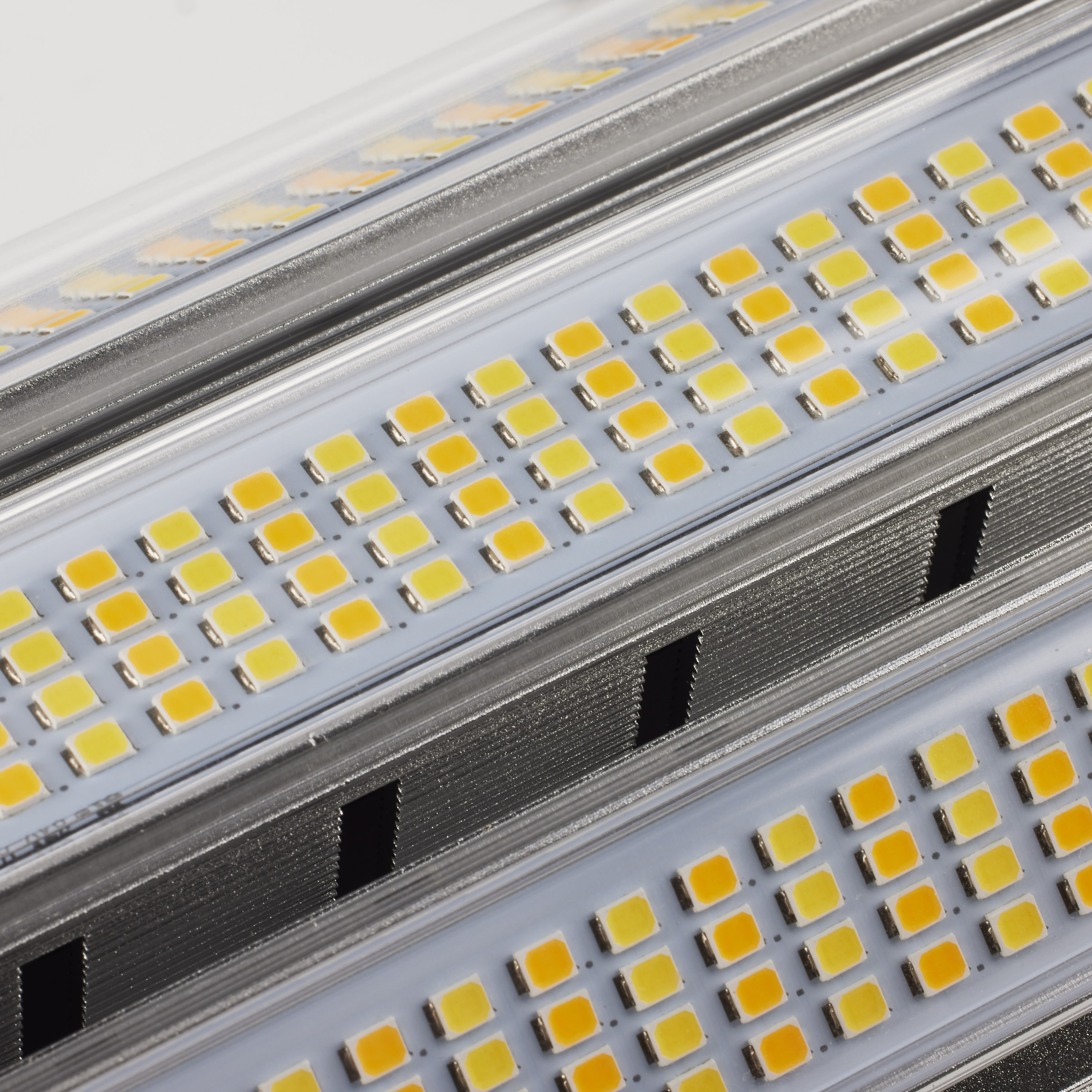

| Lamp Filament | LED |
| Material | Aluminum / Plastic |

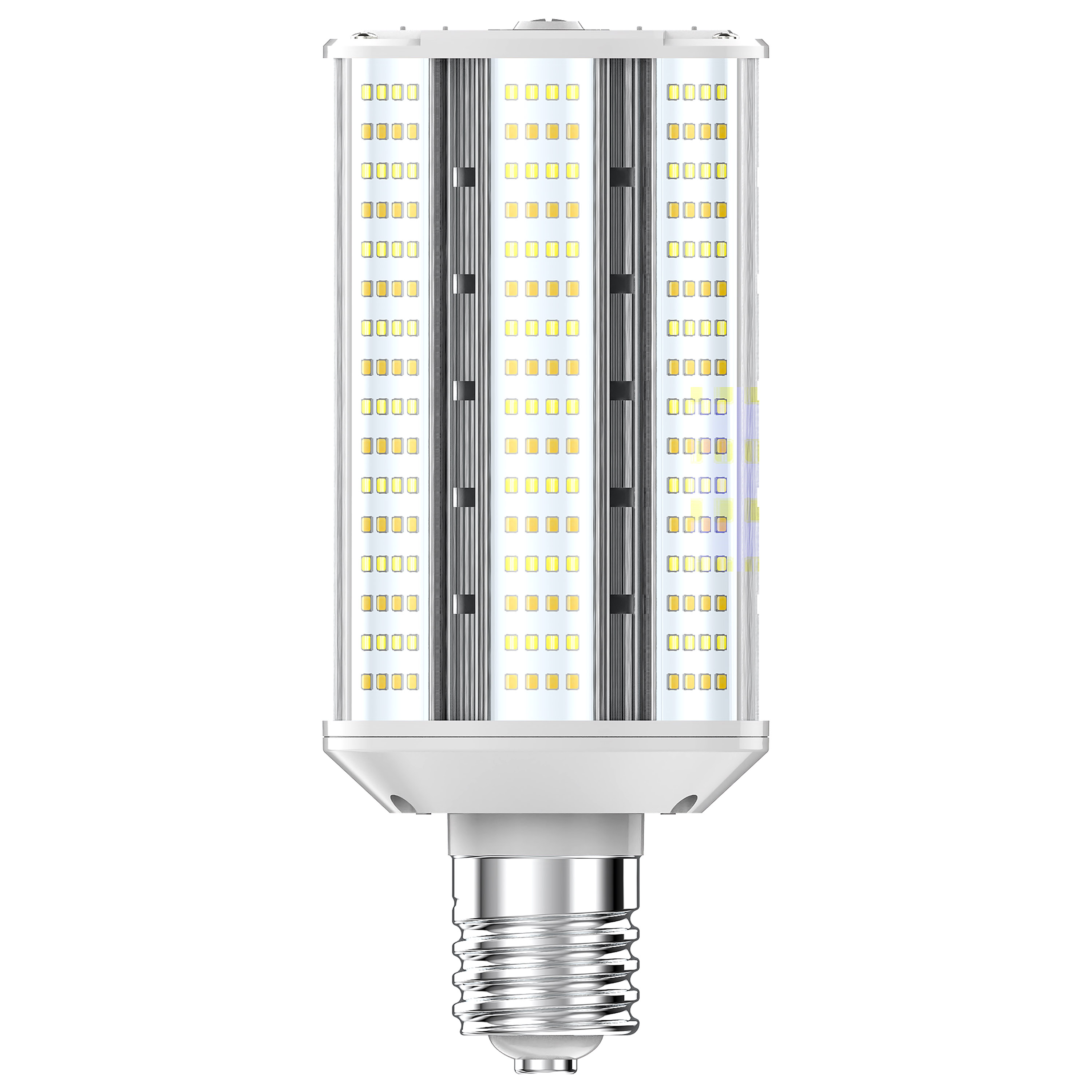

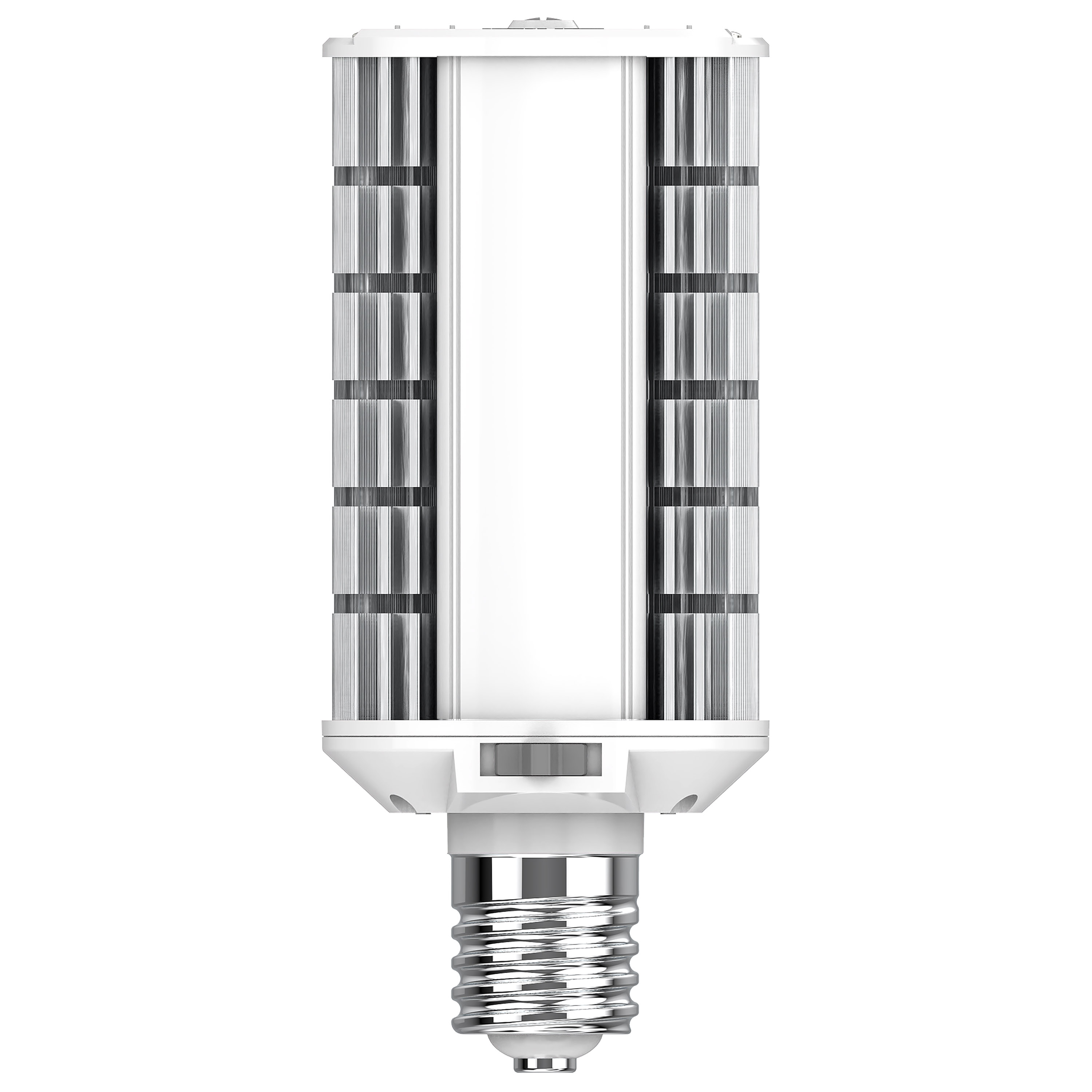

| Fixture Type | Corncob |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 4KV |

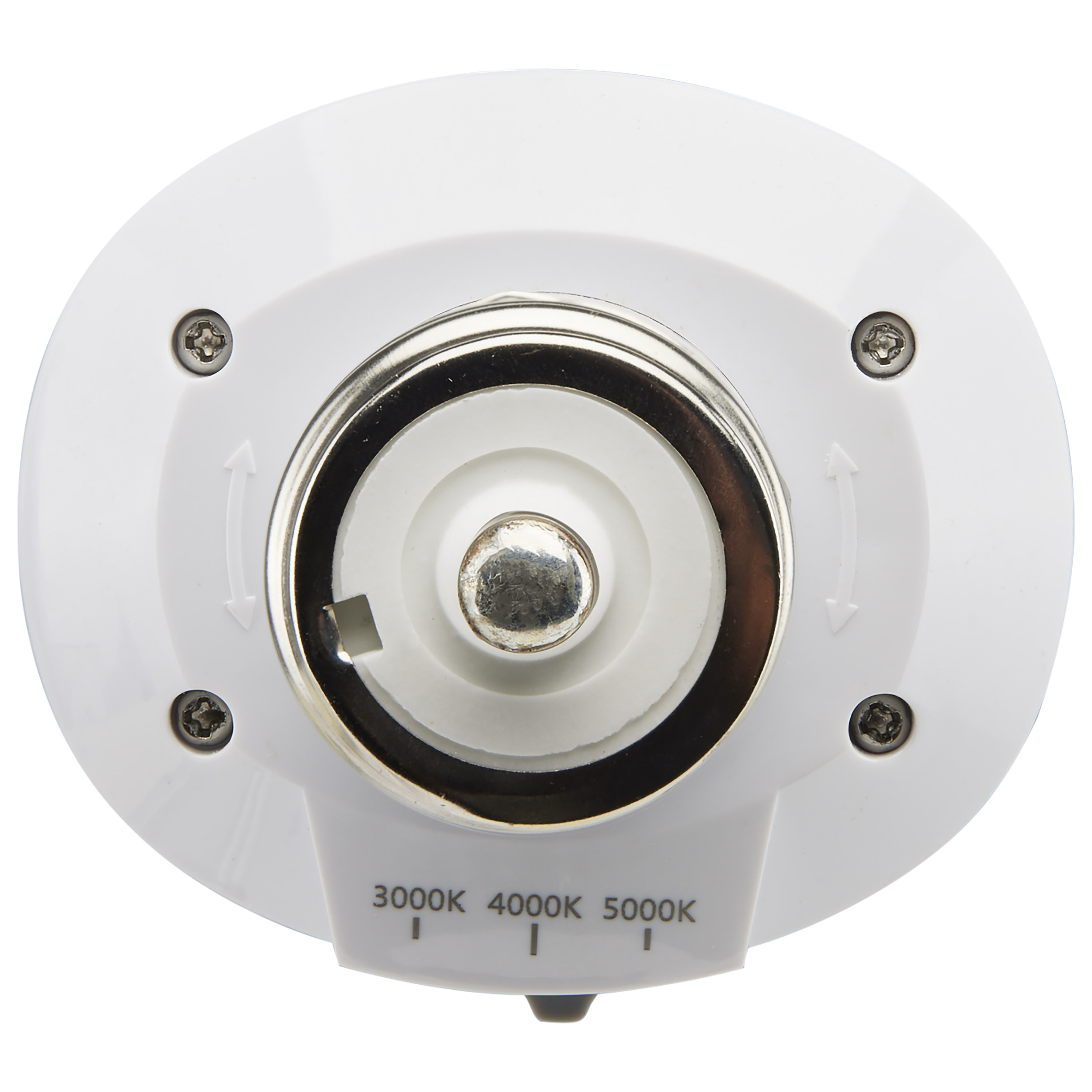

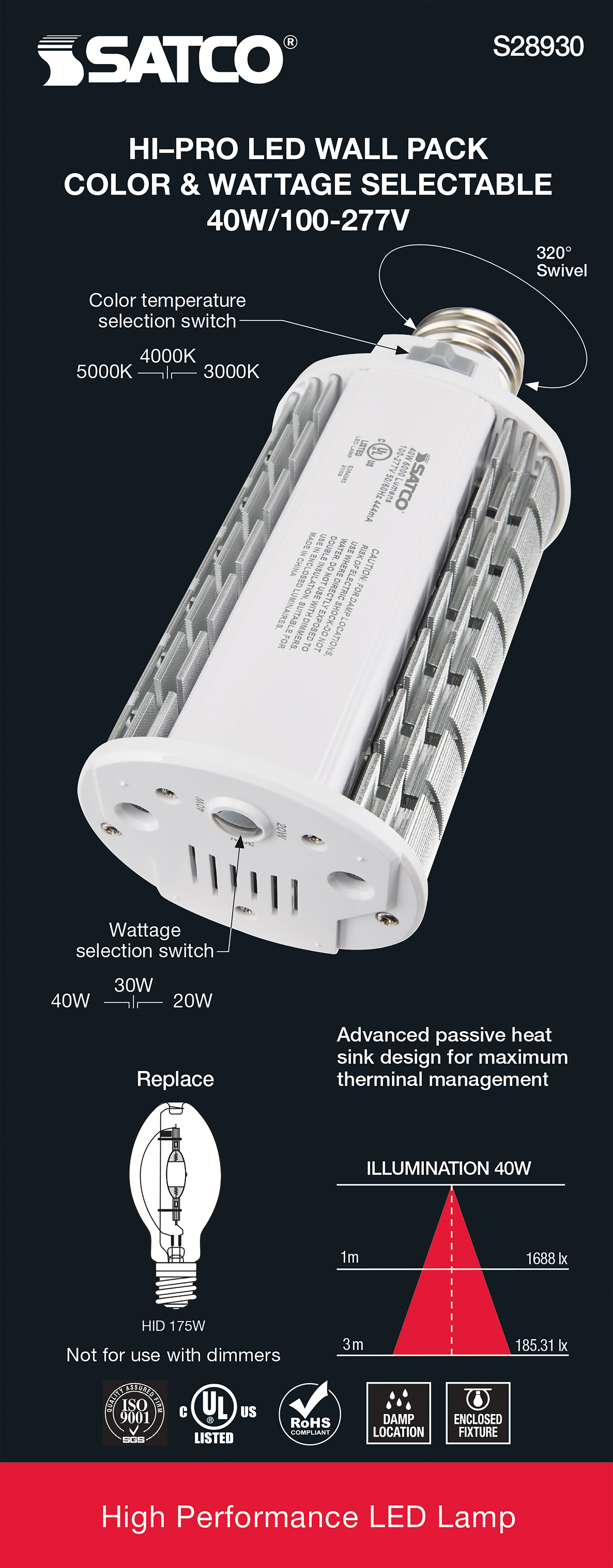

| CCT Selectable | True |

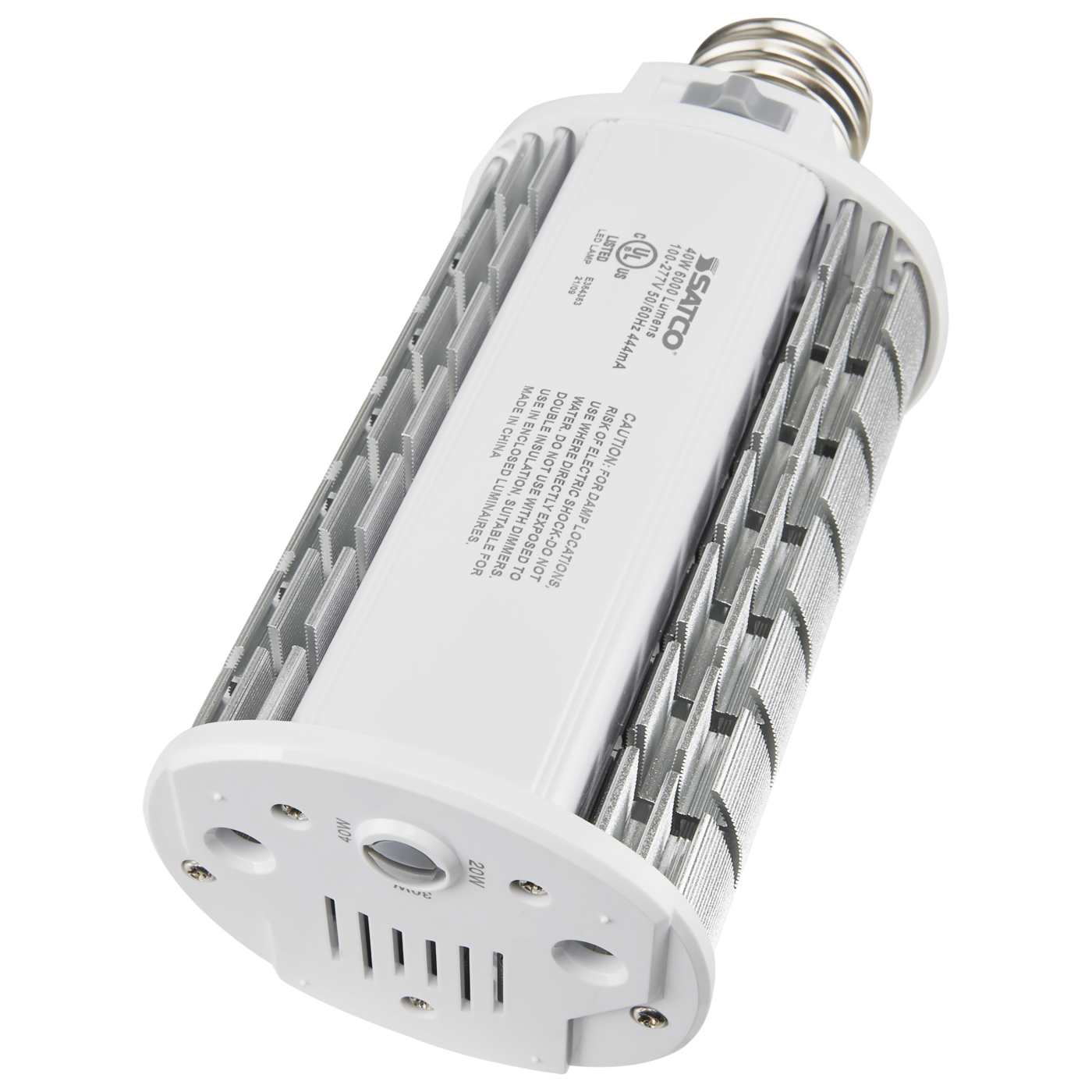

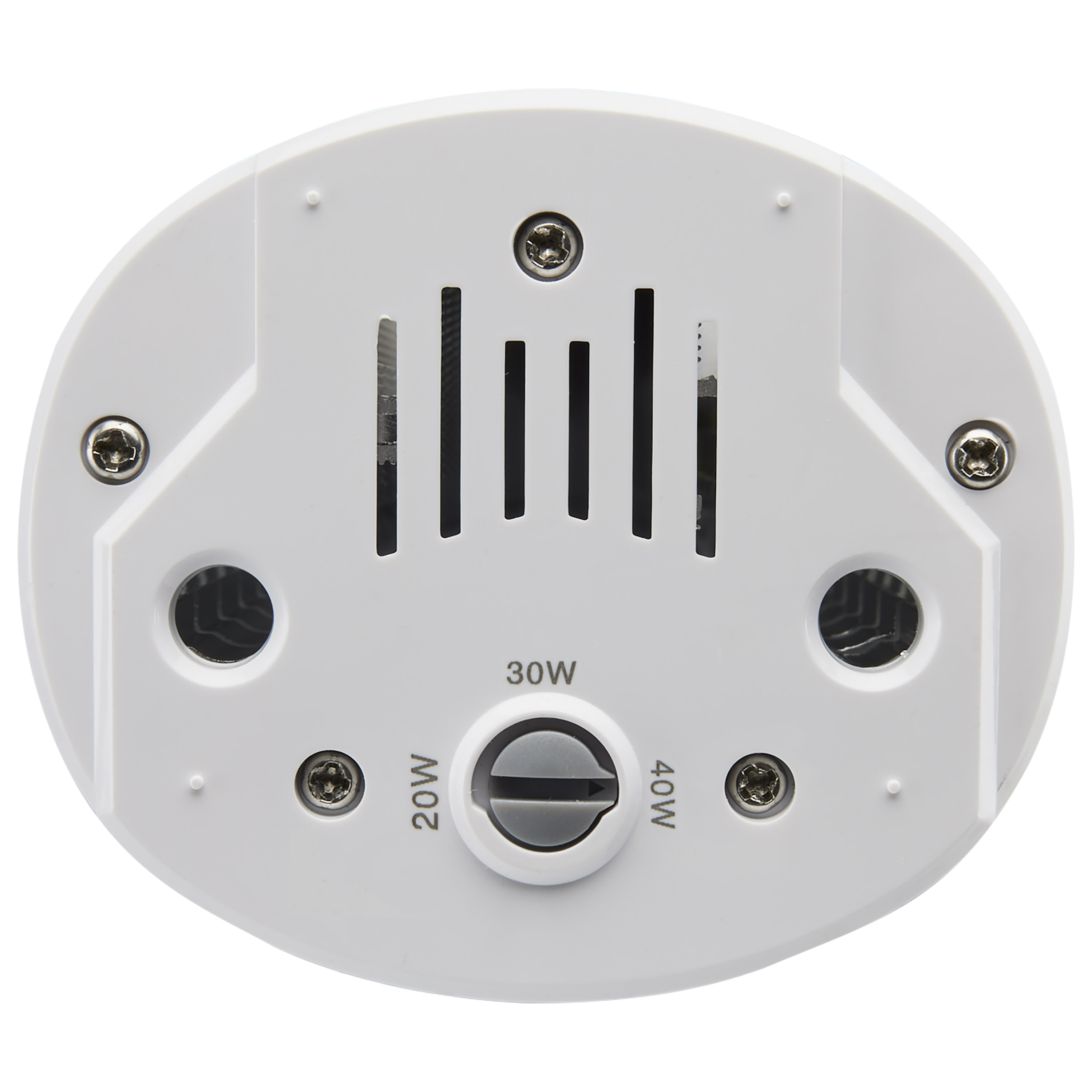

| Wattage Selectable | True |
| Finish Family | White |
| Amps | 0.200-0.072/0.300-0.108/0.400-0.144A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Plastic |

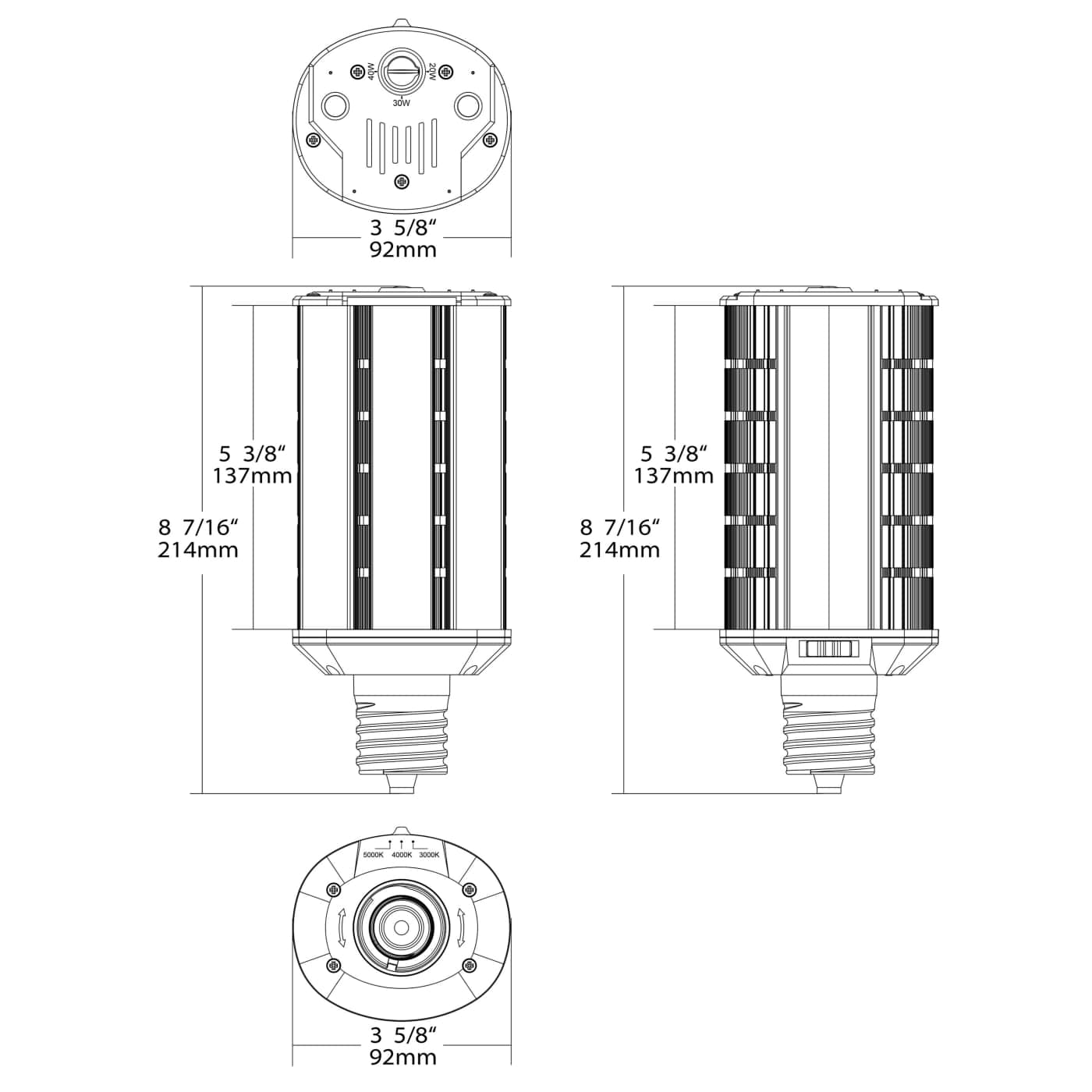

| Minimum Compartment Size | Length: 8 in. Width: 8 in. Height: 11 in. |
| Operating Position | Horizontal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 180 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 175W |

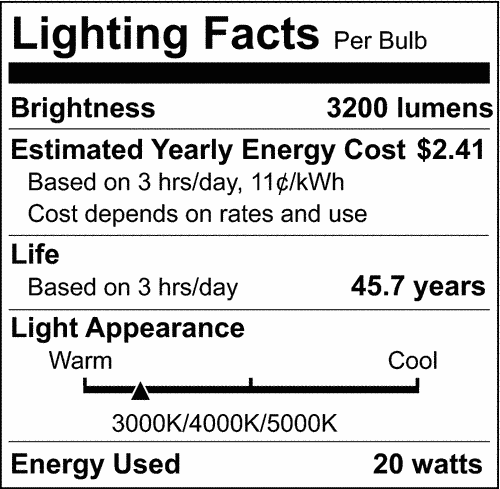

| Lumens | 3200L/4700L/6000L |
| Volts | 120V-277V |
| Watts | 20W/30W/40W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | EX39 |
| Lamp Type | Corncob |
| MOD Lamps | 3.62 |
| MOL | 8.43 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| Bug Rating | B2-U3-G2 |
|---|---|
| CA Regulations | Exempt - Base Not Regulated |
| CA Status | Lawful for sale in California |
| DLC ID | PRDYRJJ3 |
| FCC Compliant | True |
| IP Rating | IP64 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923289309 |
|---|---|
| Case Cube | 1.568 |
| Case Height | 11.54 |
| Case Length | 17.64 |
| Case Quantity | 12 |
| Case UPC | 10045923289306 |
| Case Weight | 26.87 |
| Case Width | 13.31 |
| EA Cube | 0.0949 |
| EA Height | 10.15 |
| EA Length | 4.02 |
| EA Quantity | 1 |
| EA Weight | 2.11 |
| EA Width | 4.02 |
| Inner Cube | 0.6631 |
| Inner Height | 10.74 |
| Inner Length | 12.67 |
| Inner Quantity | 6 |
| Inner UPC | 20045923289303 |
| Inner Weight | 12.92 |
| Inner Width | 8.42 |
| Pack Type | Box |
| Web Length | 8.43 |
| Web Width | 3.62 |
