S28932R1

80W/LED/HID/SB/3CCT/EX39

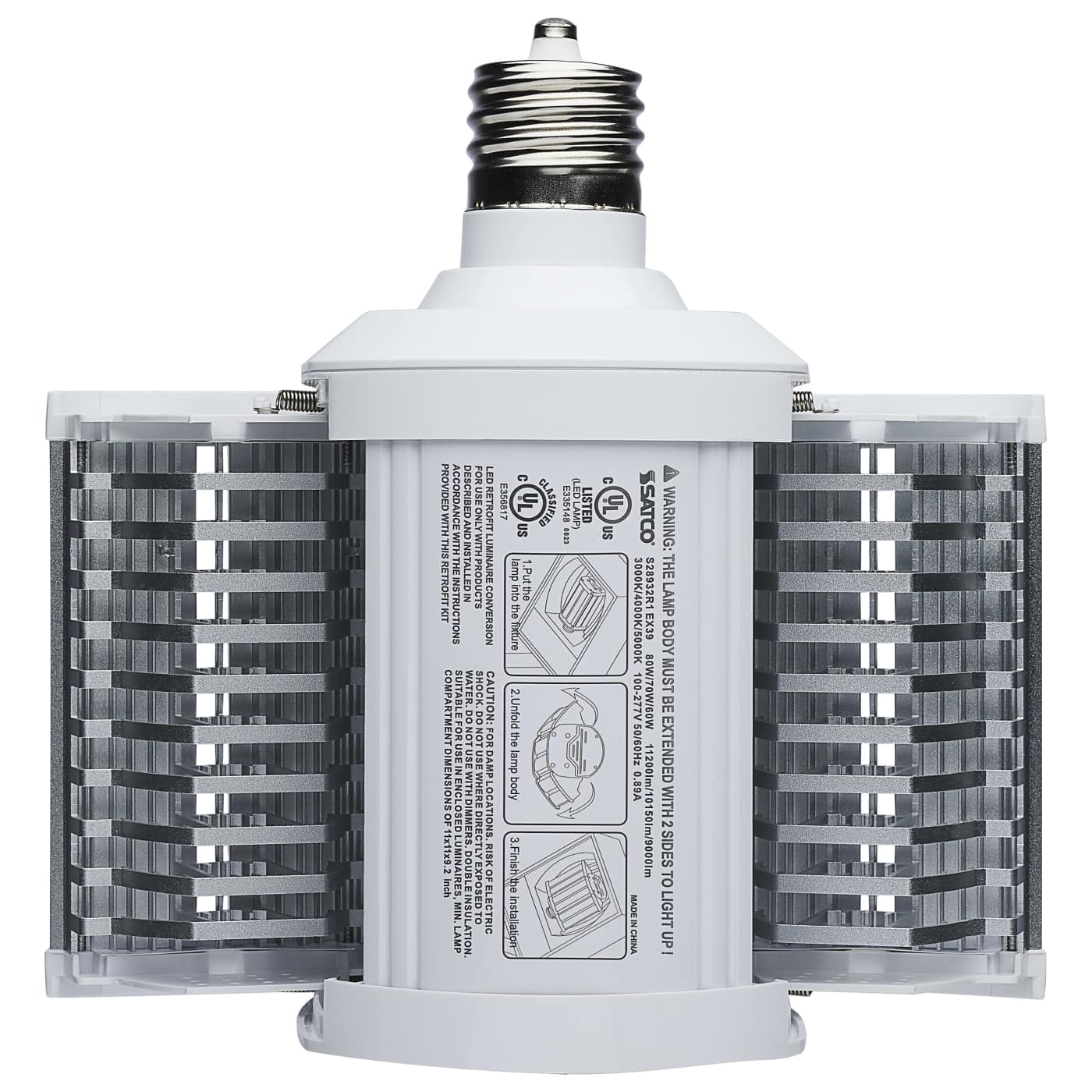

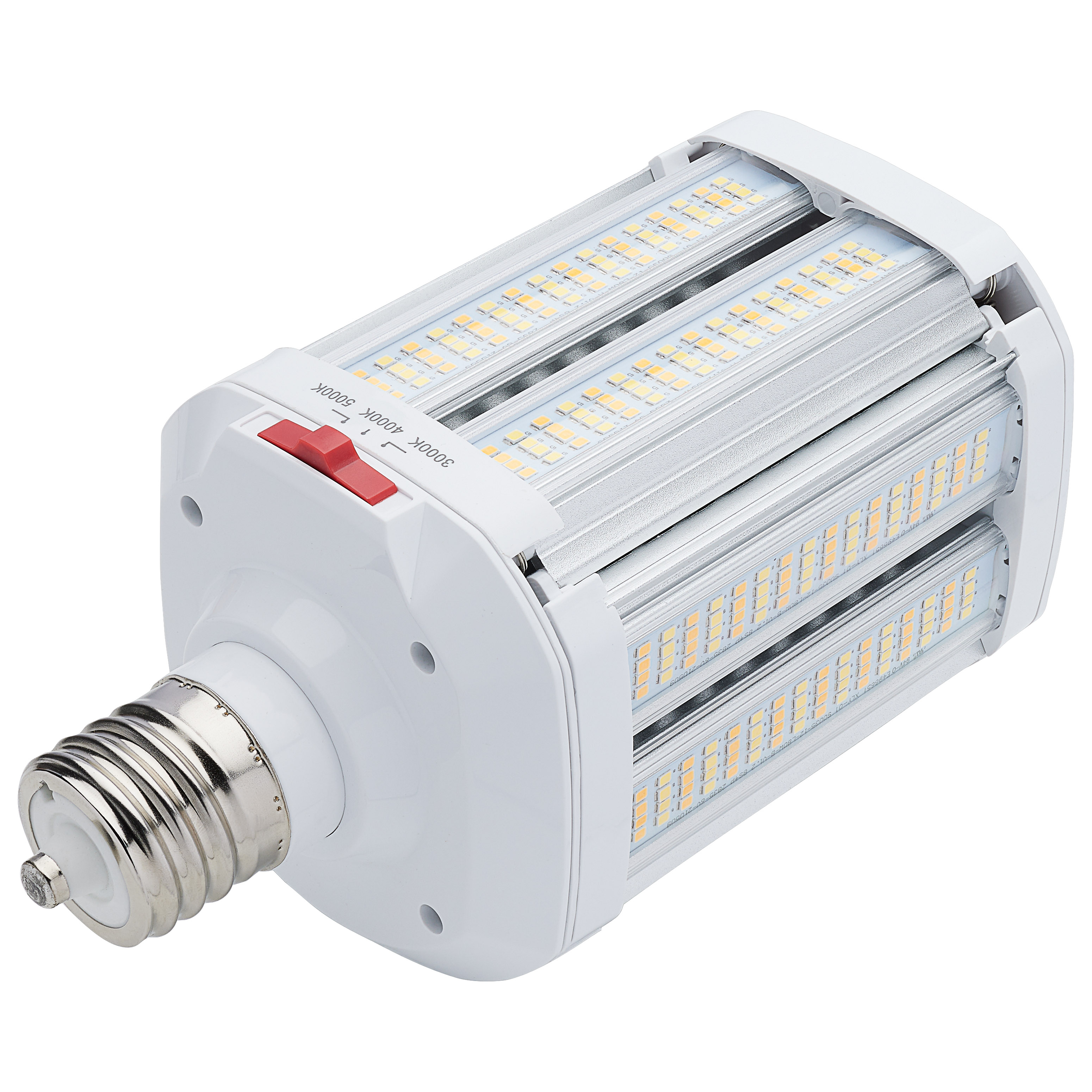

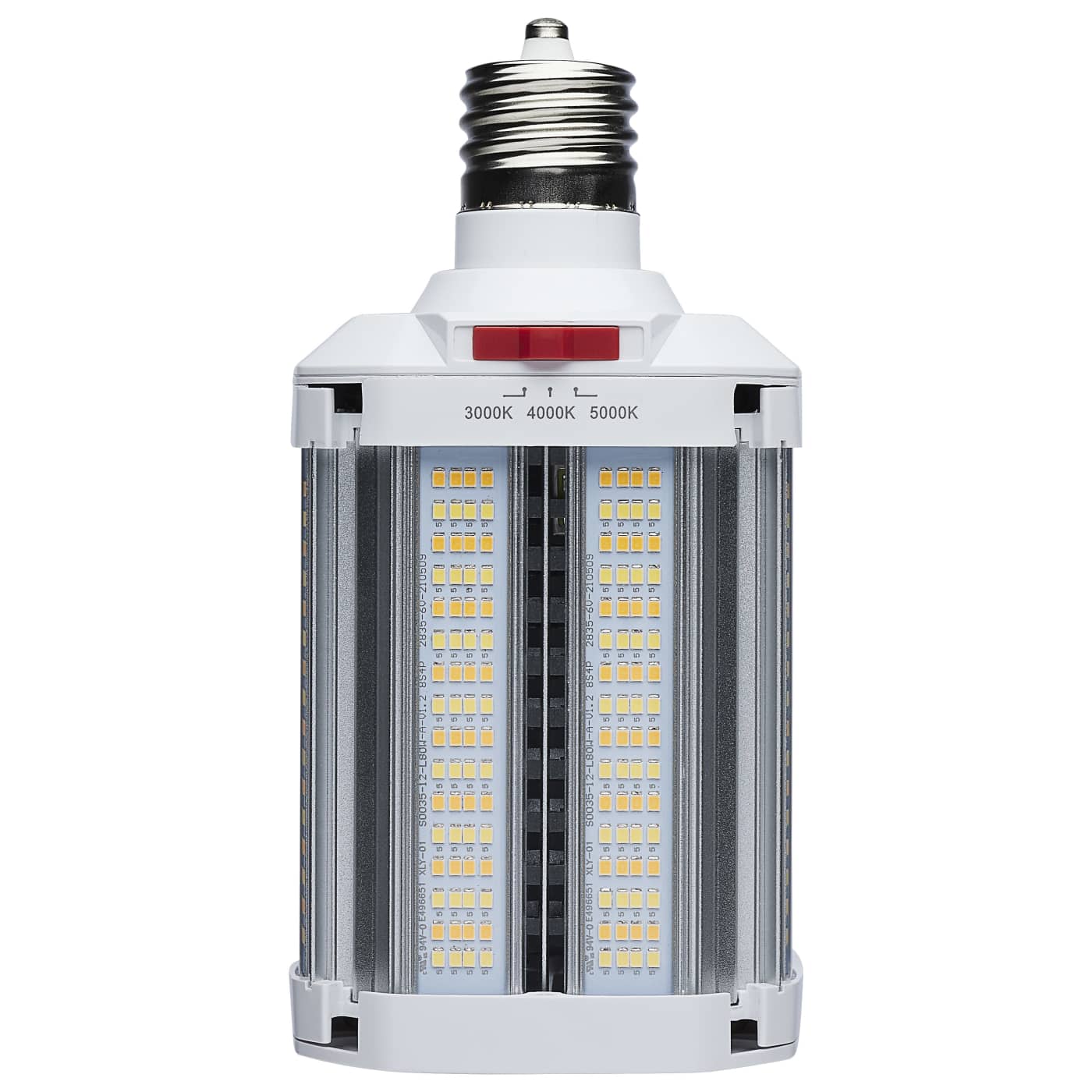

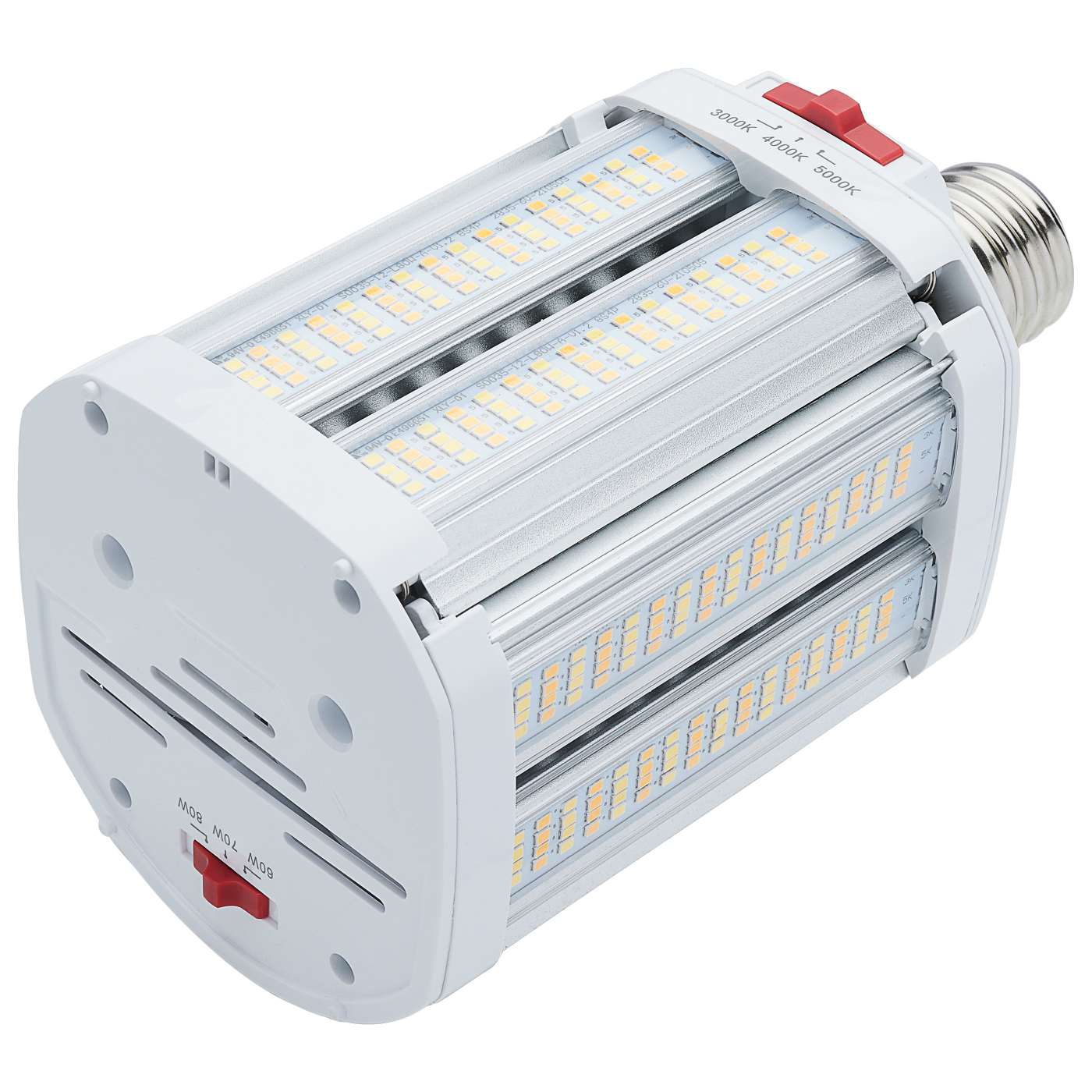

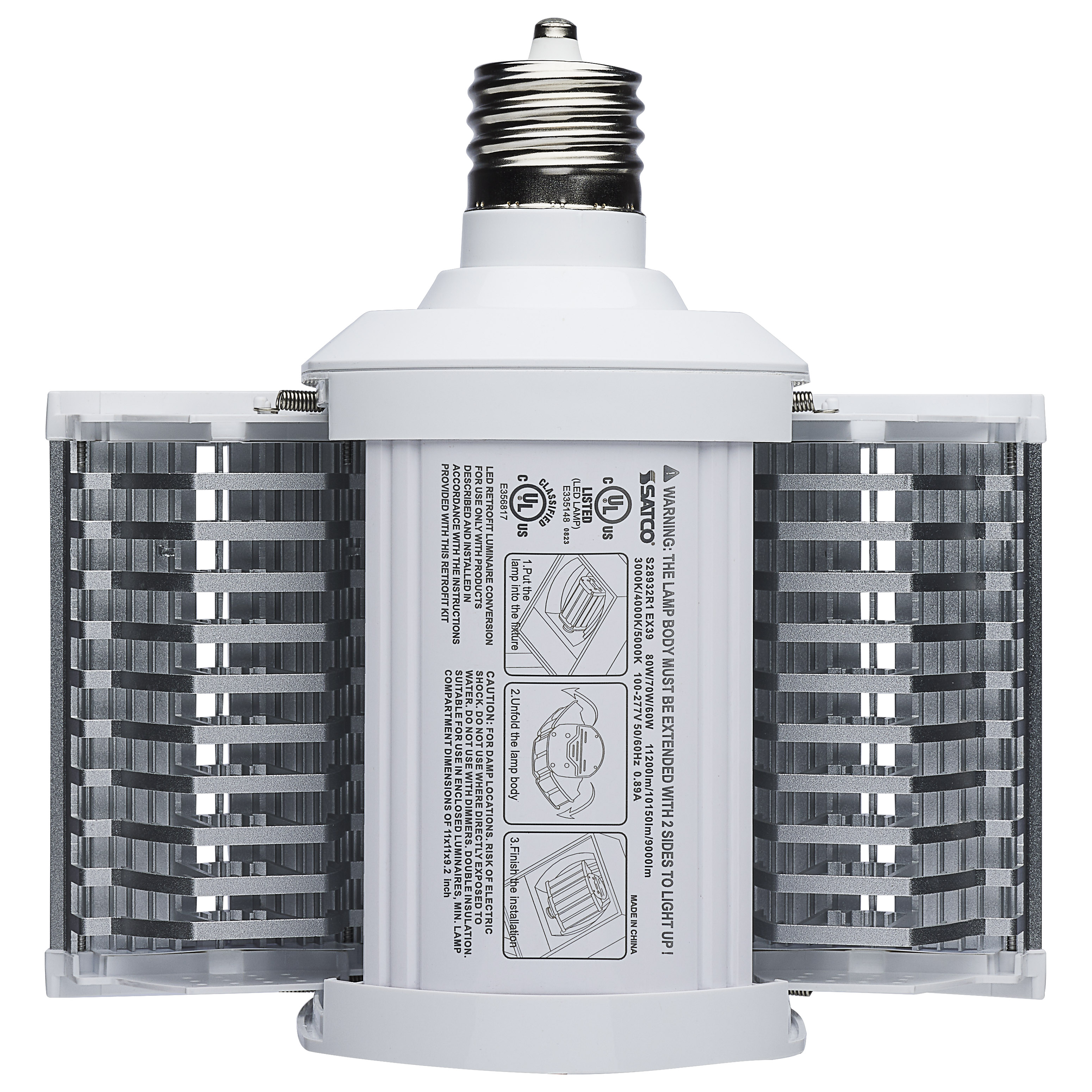

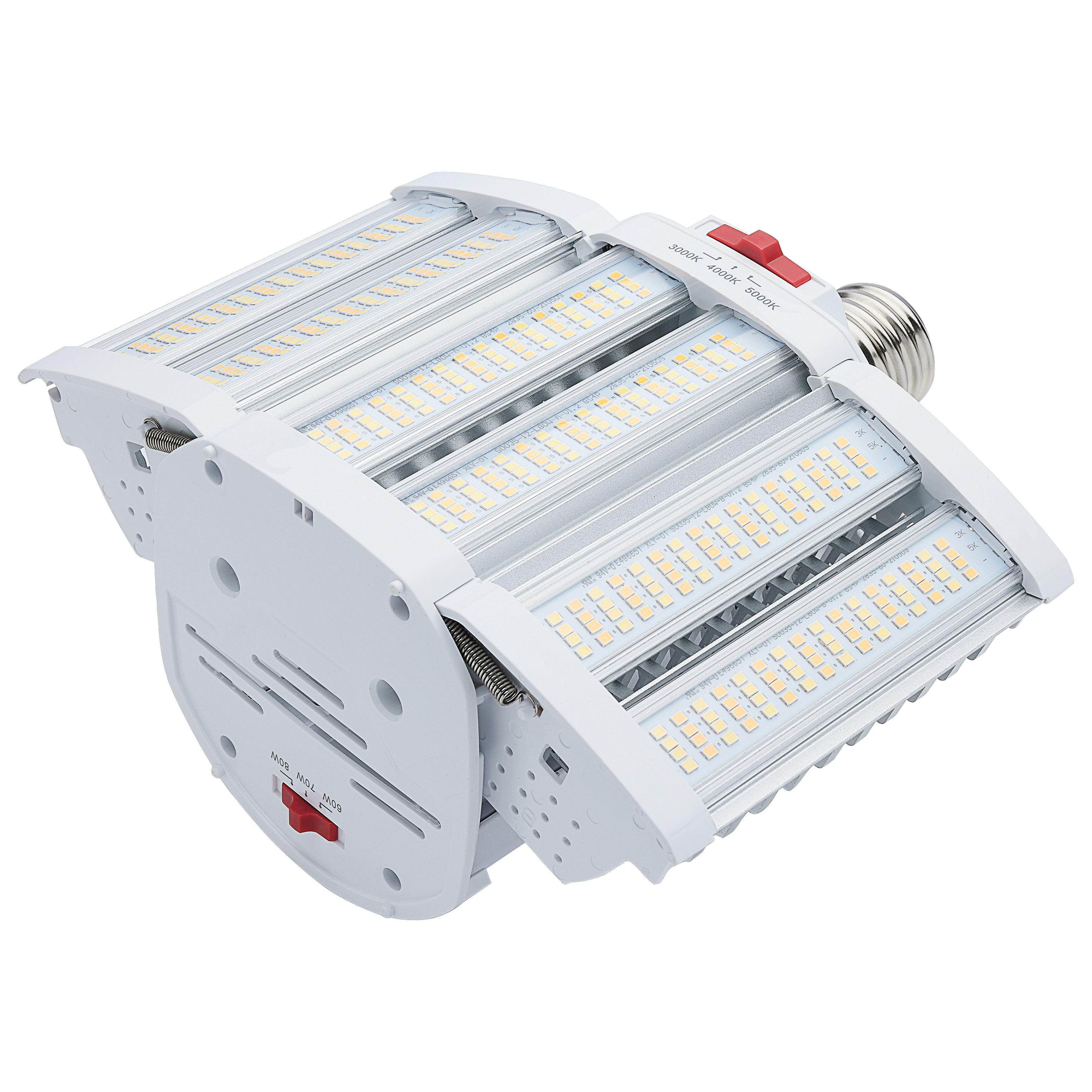

  • LED Shoe Box Lamp
  • 60/70/80 Wattage Selectable
  • 3K/4K/5K CCT Selectable
  • 120-277 Volt
  • White Finish
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S28932R1 SpecificationsS28932R1 Photometrics.iesS28932R1 Instructions.pdf
Tools
Lighting Layout Analysis For S28932R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Shoe Box Lamp; 60/70/80 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White Finish
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

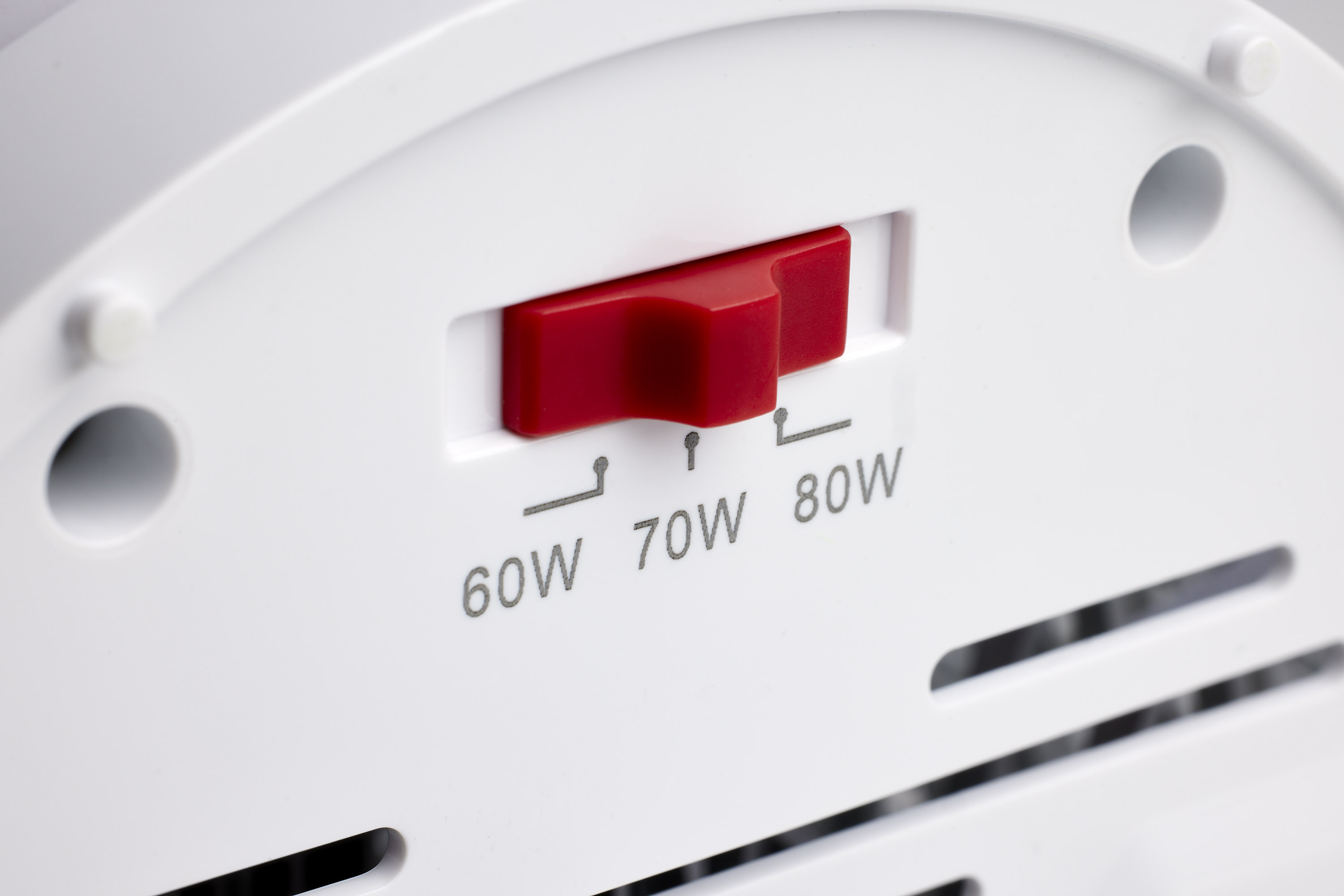

Dimmable TextStep Dimming; Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Lamp FilamentLED
MaterialAluminum

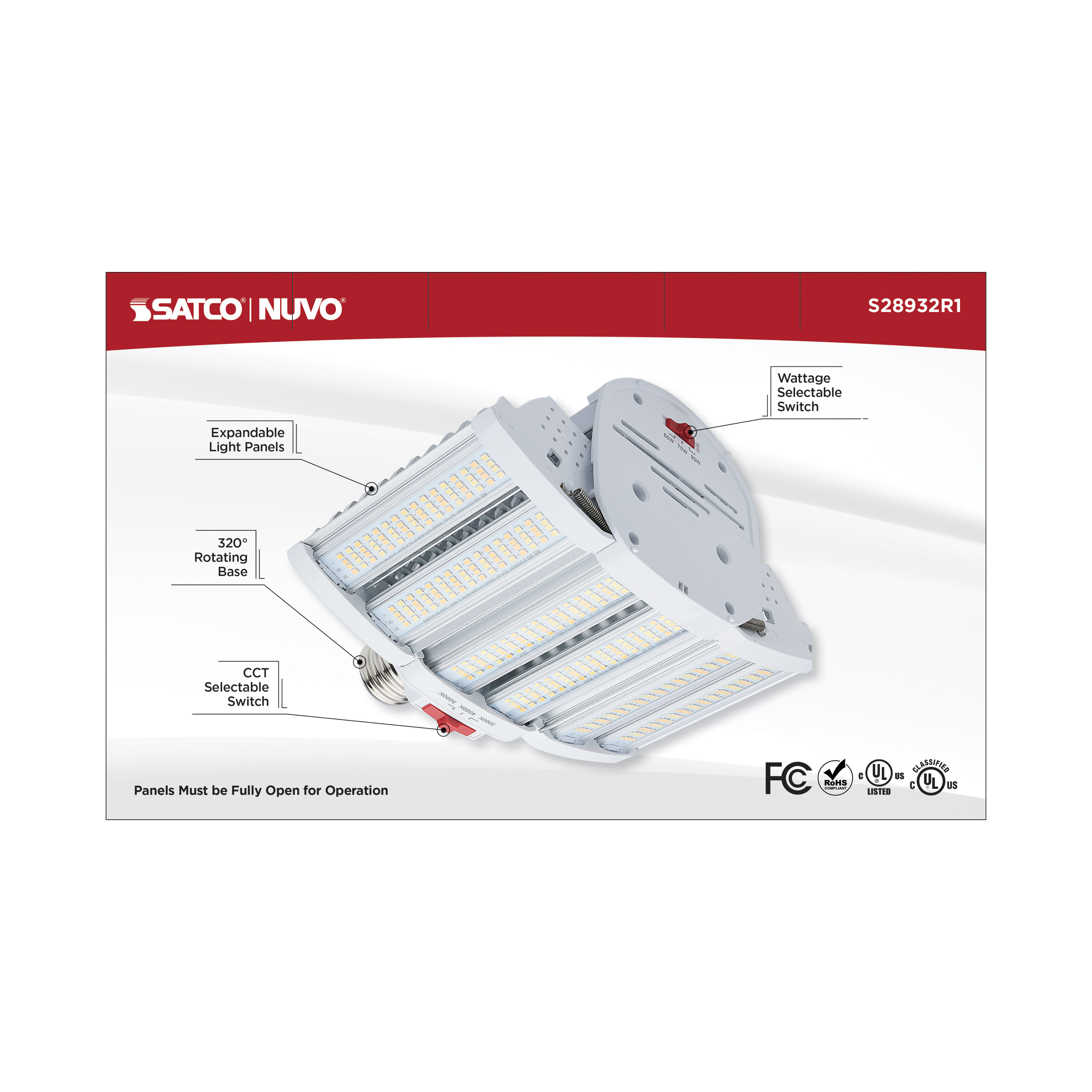

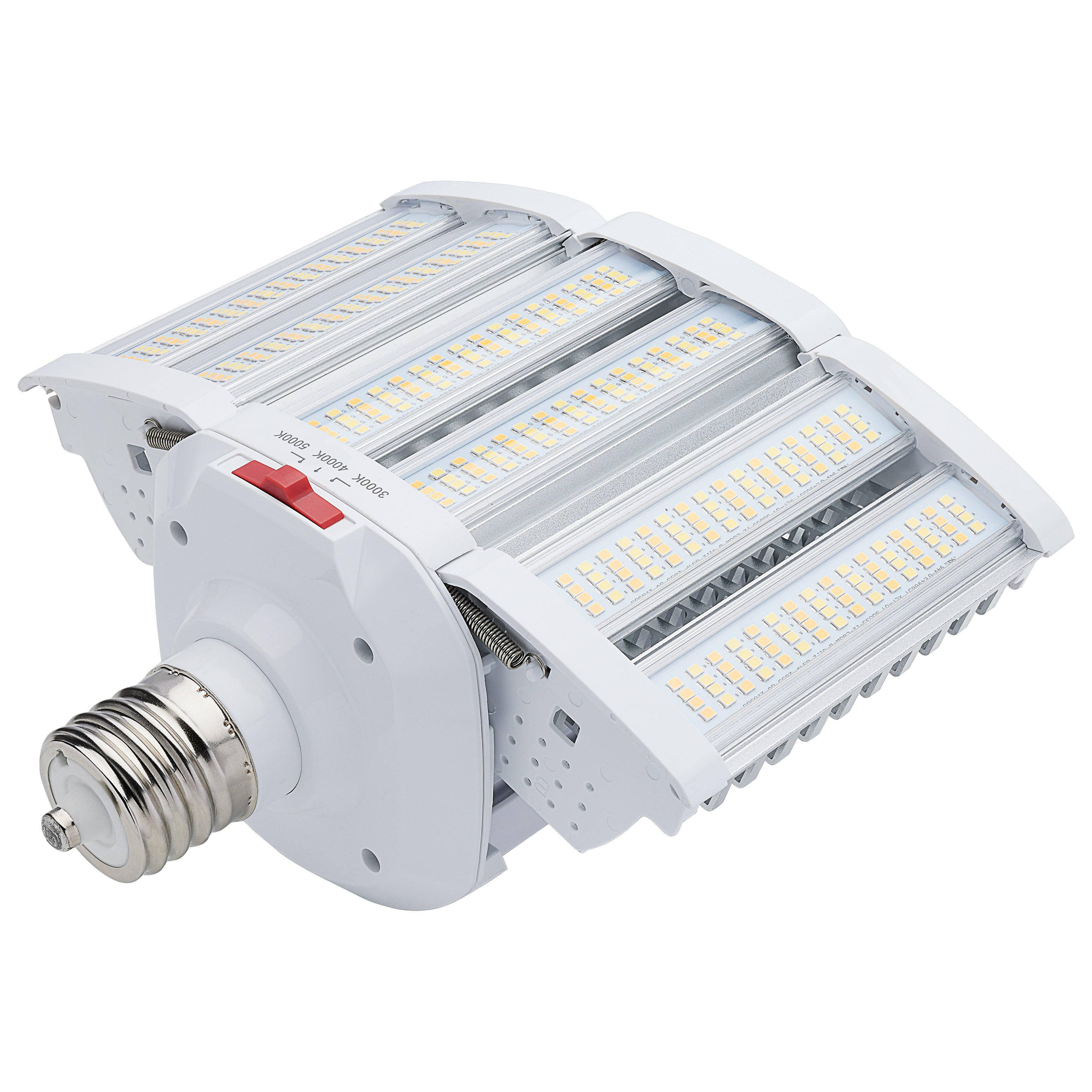

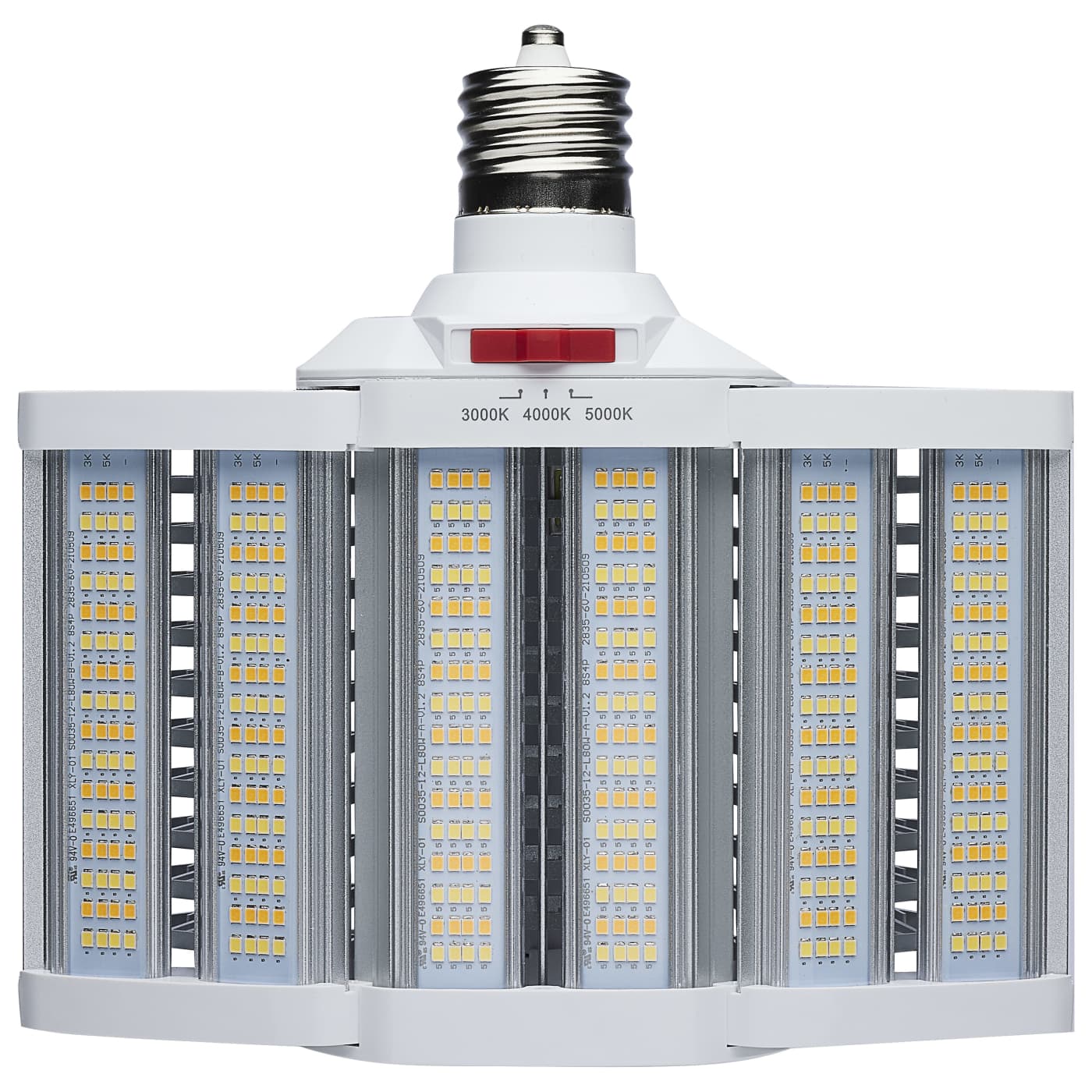

Fixture TypeExpandable Hi-Pro
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%

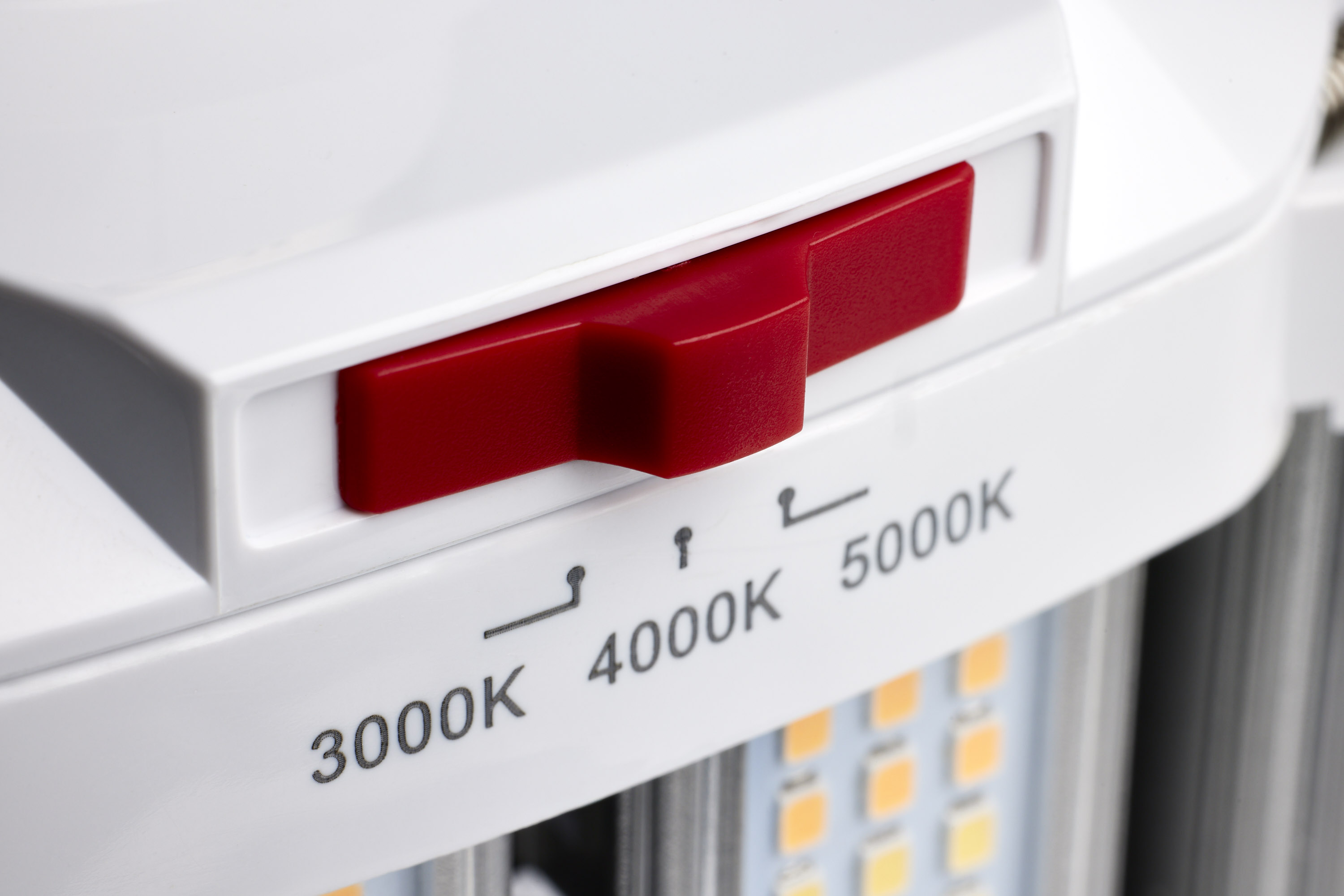

CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps0.500-0.217/0.583-0.253/0.667-0.289A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength: 11 in. Width: 11 in. Height: 9.2 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent400W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)180
Color TempSoft White to Natural Light
CRI80+
Dimming TypeStep Dimming
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent200W/250W/320W
Lumens9000L/10150L/11200L
Volts120V-277V
Watts60W/70W/80W
Physical

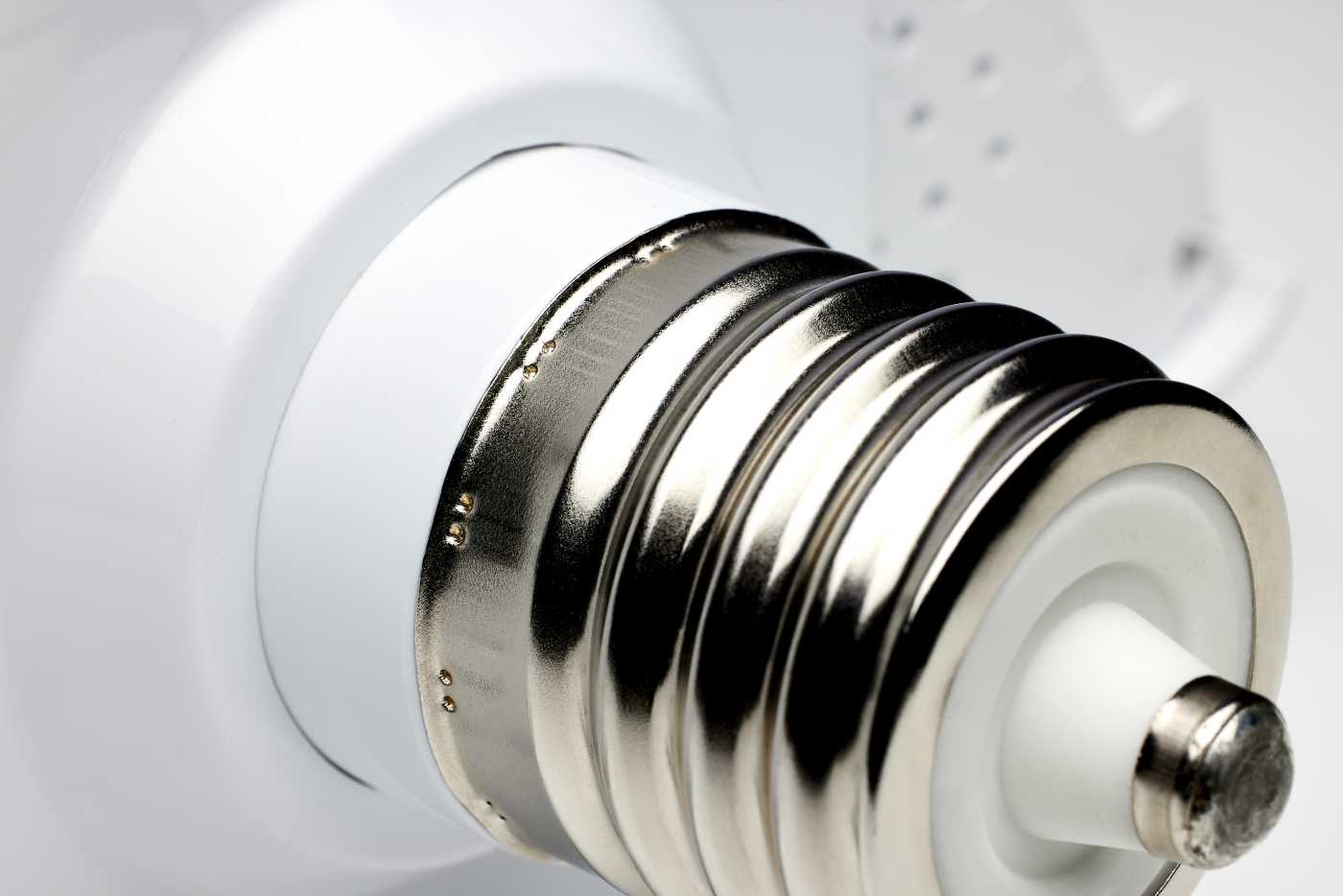

Lamp BaseMogul Extended
FinishWHITE
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps8.9
MOL8.86
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-ARHCWO
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923298837
Case Cube1.0297
Case Height13.58
Case Length10.91
Case Quantity4
Case UPC10045923298834
Case Weight14.29
Case Width12.01
EA Cube0.2201
EA Height6.46
EA Length10.31
EA Quantity1
EA Weight3.57
EA Width5.71
Inner Cube0.0
Pack TypeBox
Web Length8.86
Web Width8.9
