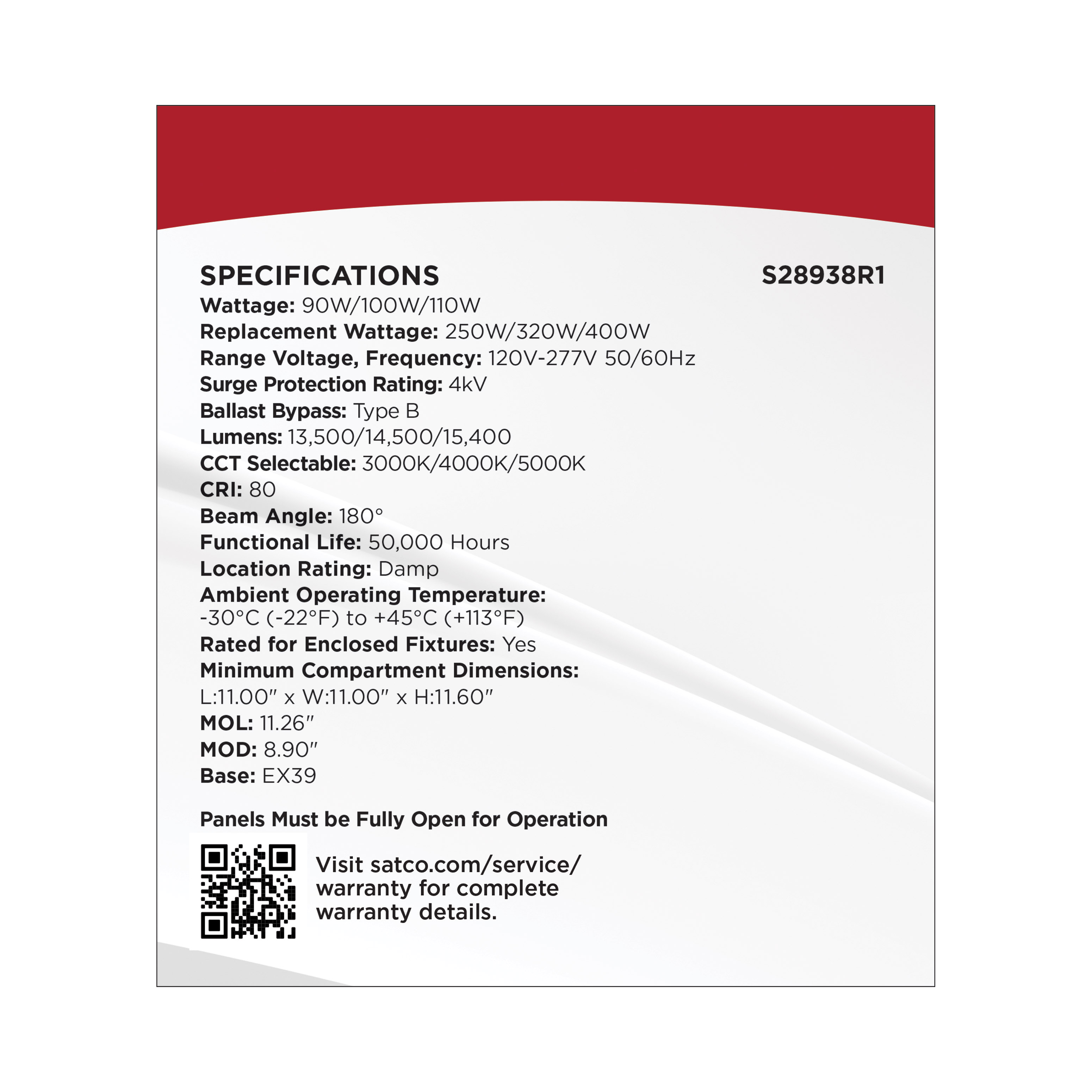

| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Dimmable Text | Only dimmable through wattage selection switch on lamp |

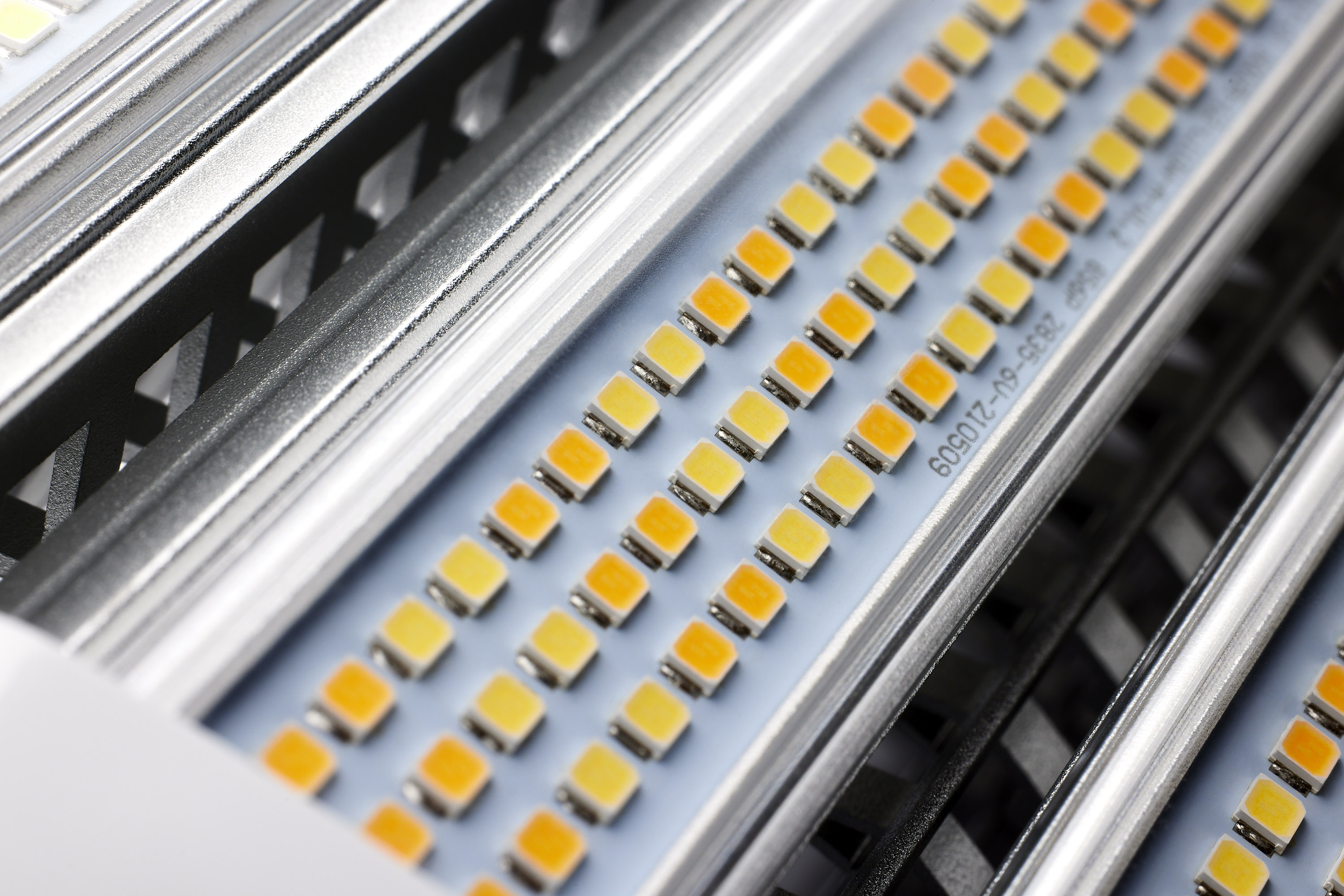

| Lamp Filament | LED |

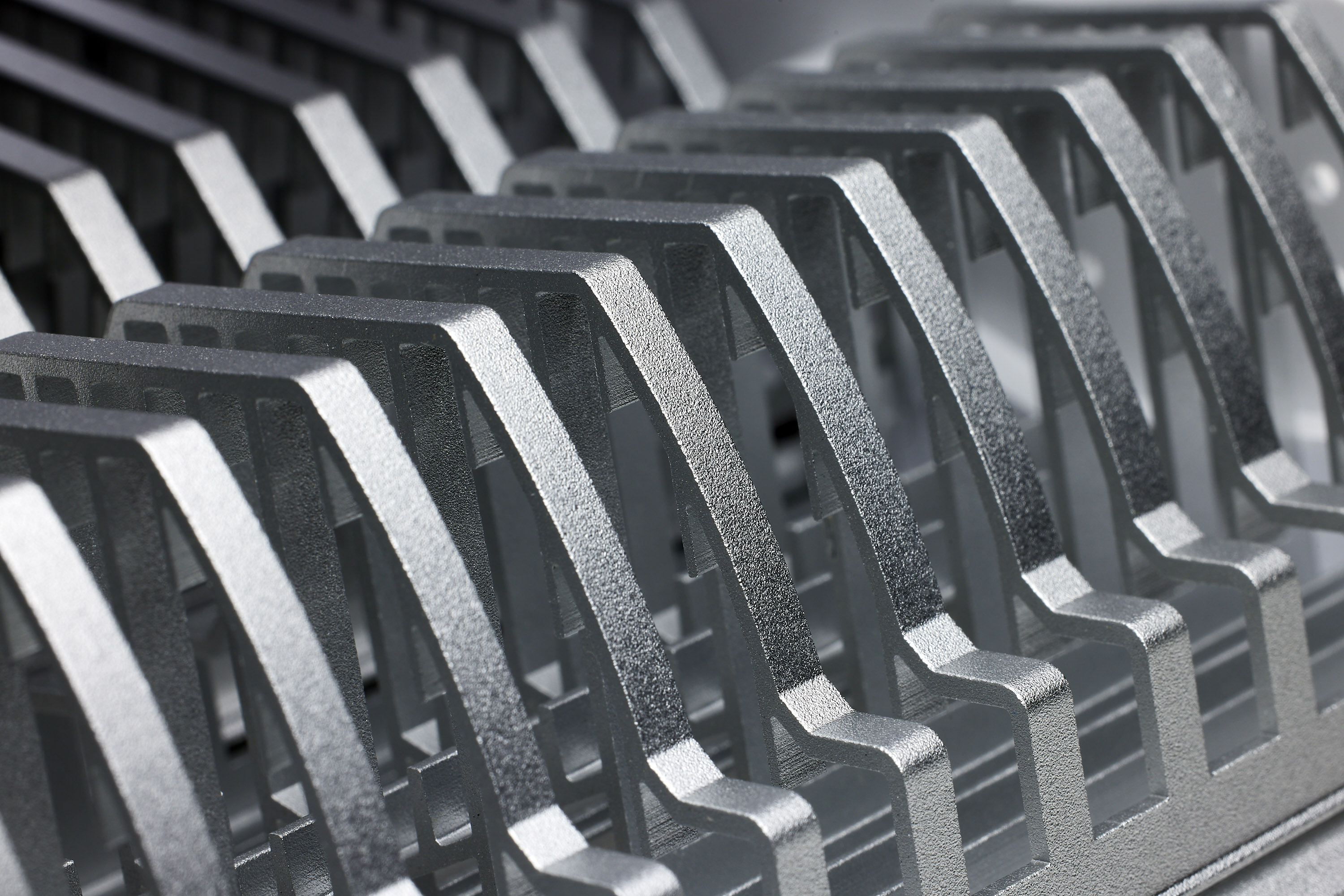

| Material | Aluminum |

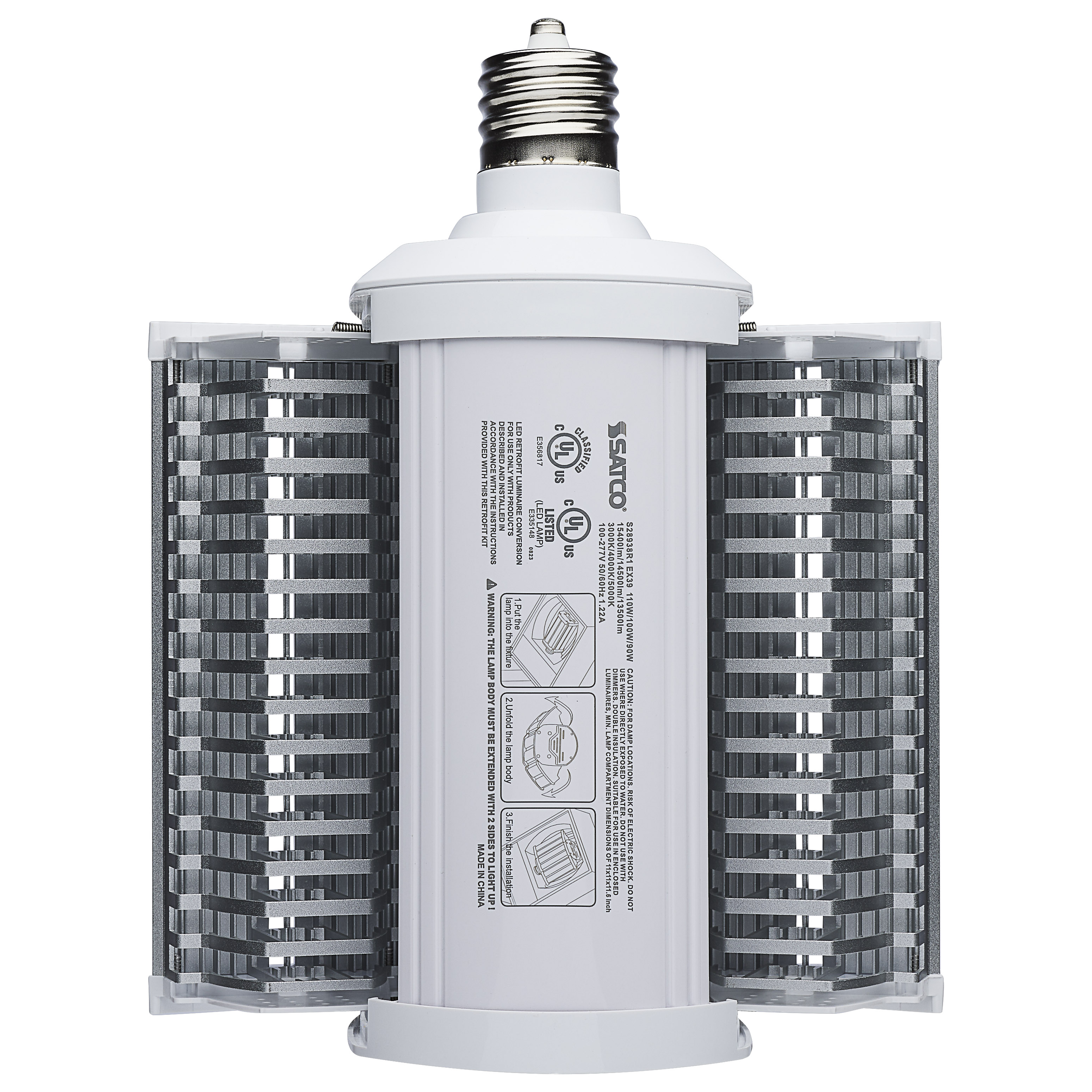

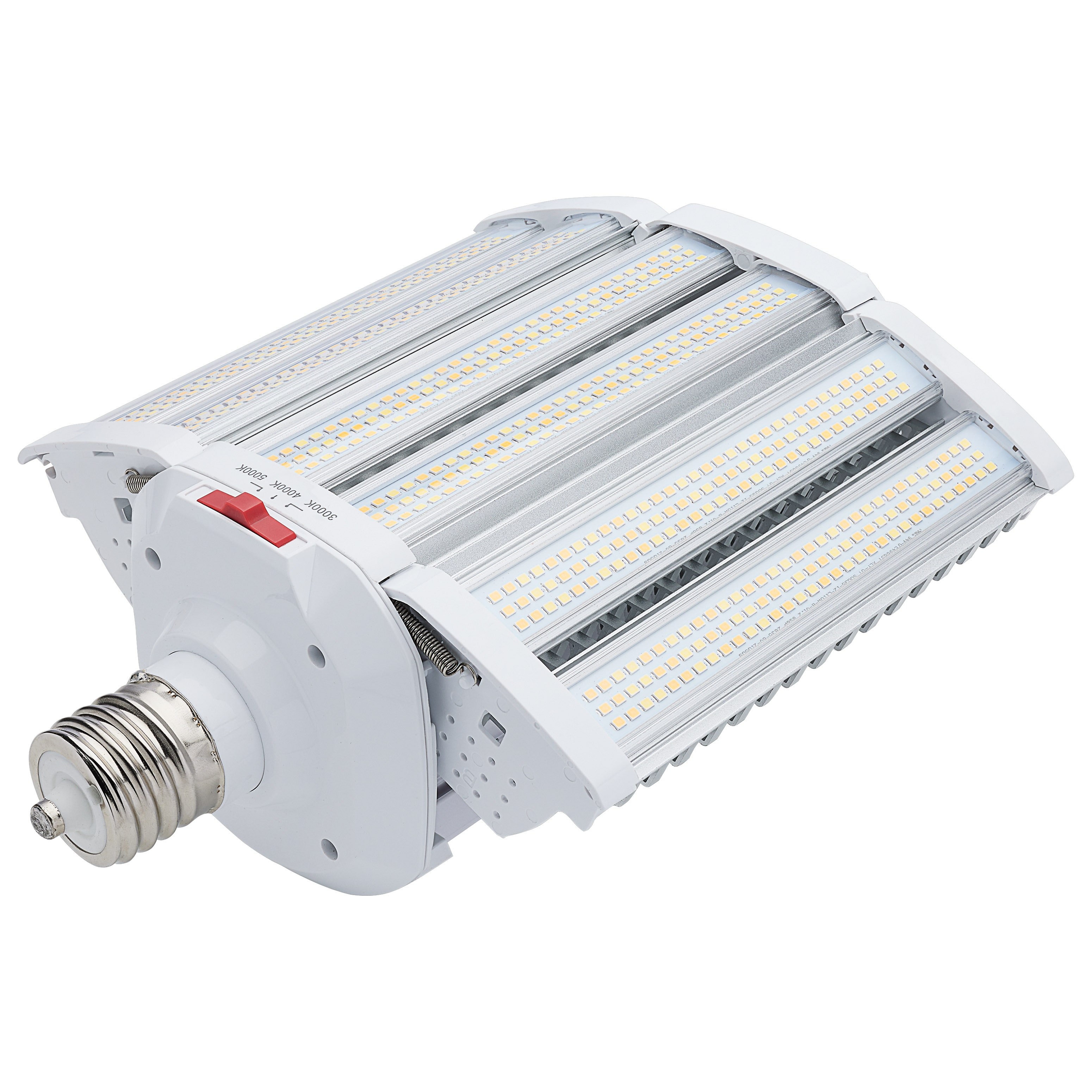

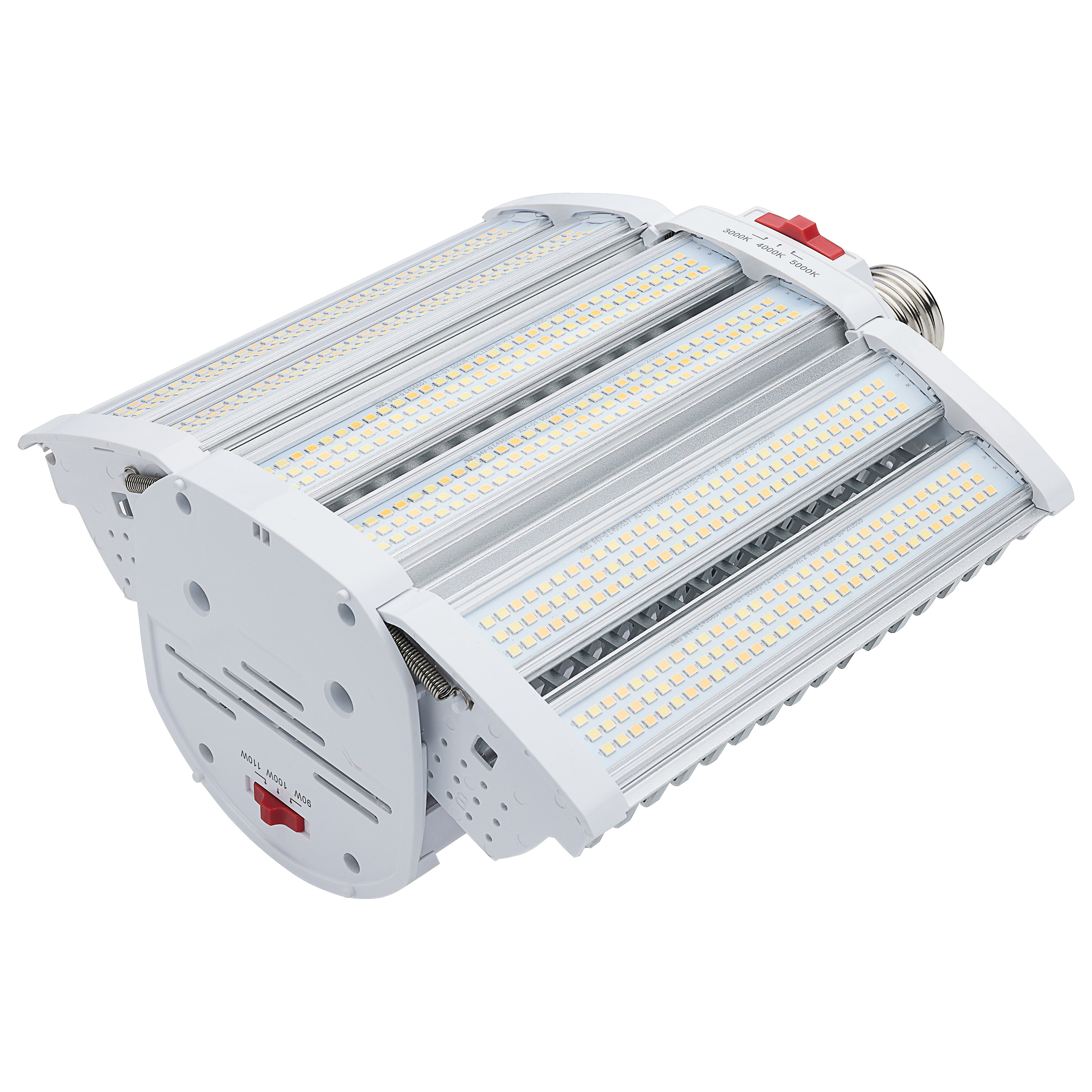

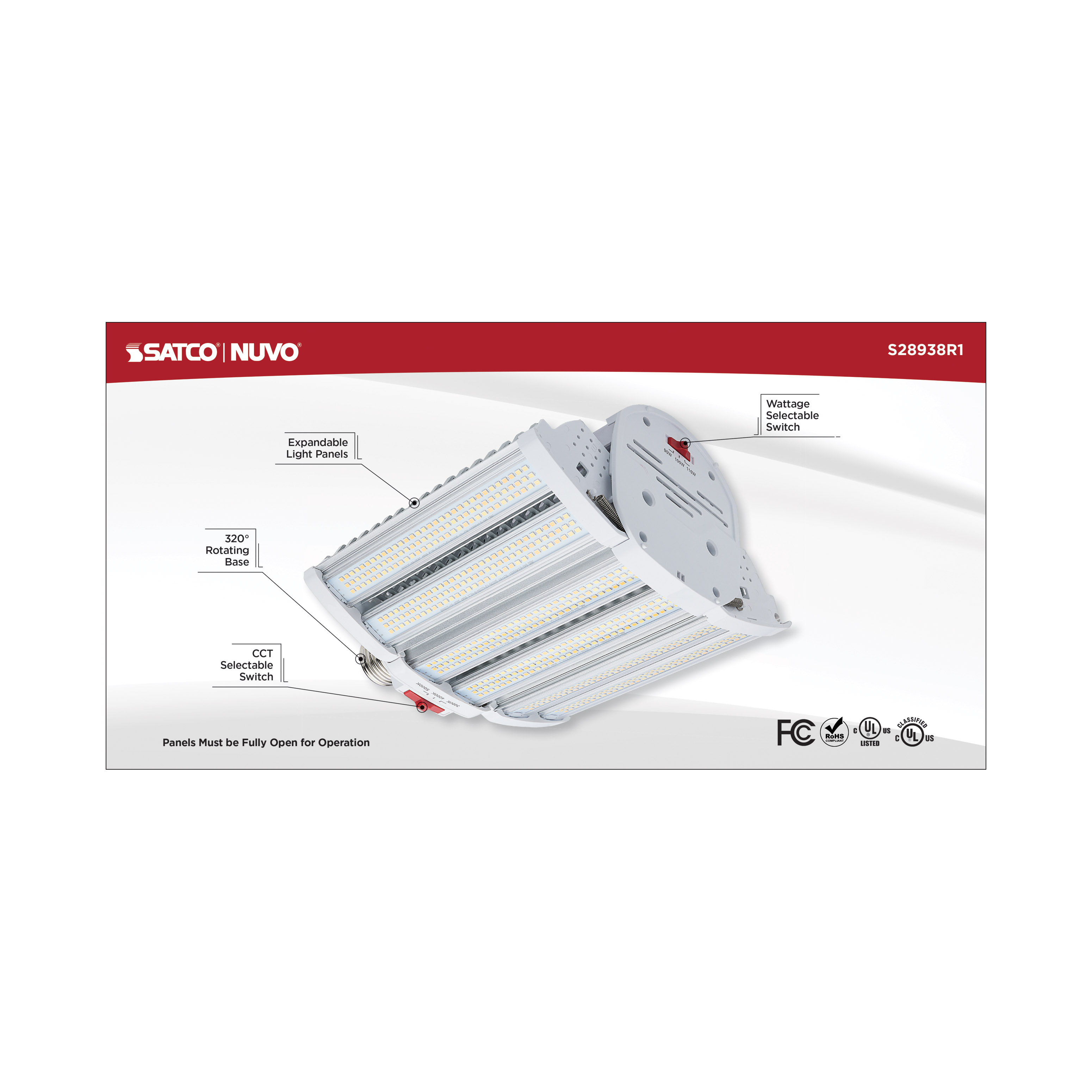

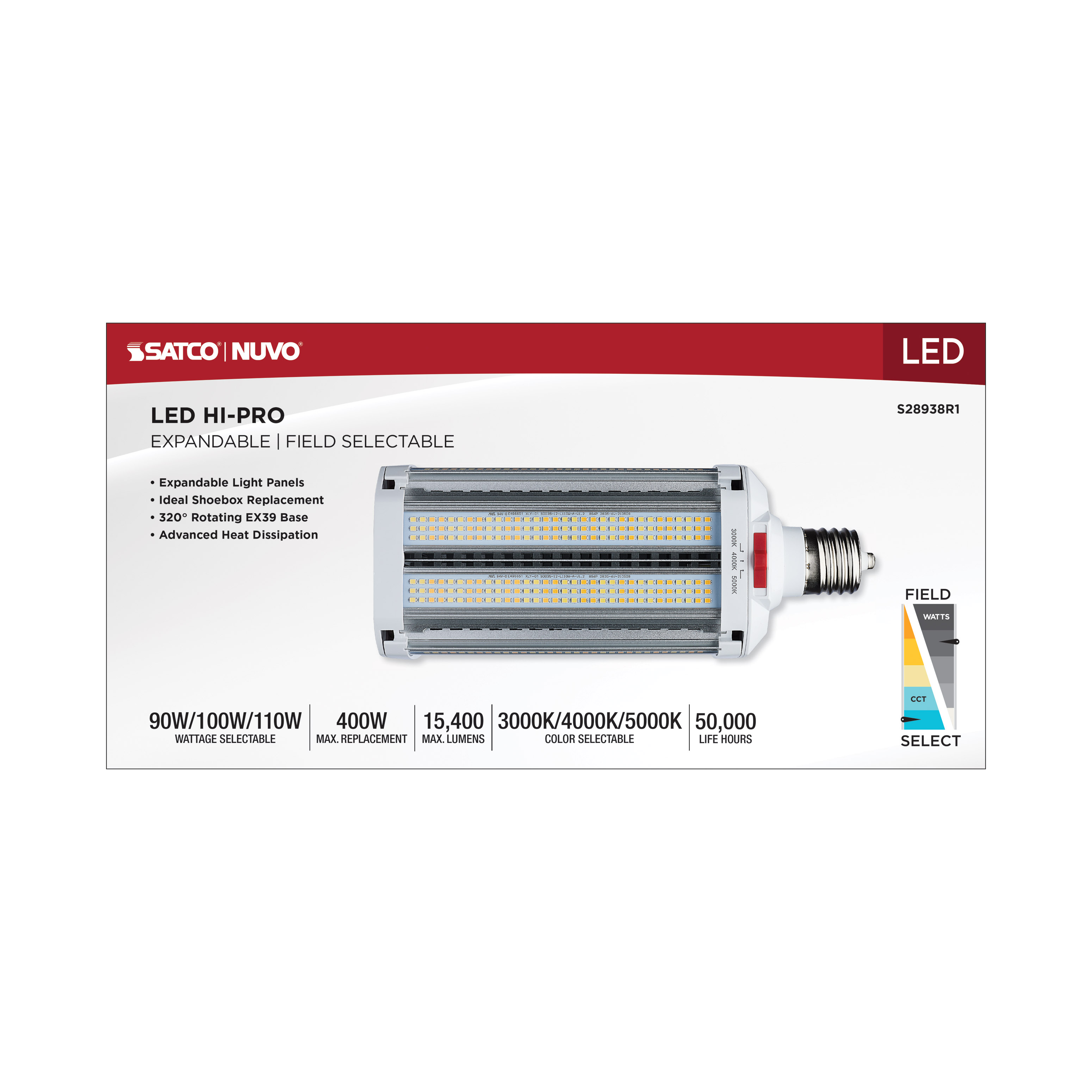

| Fixture Type | Expandable Hi-Pro |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | <20% |

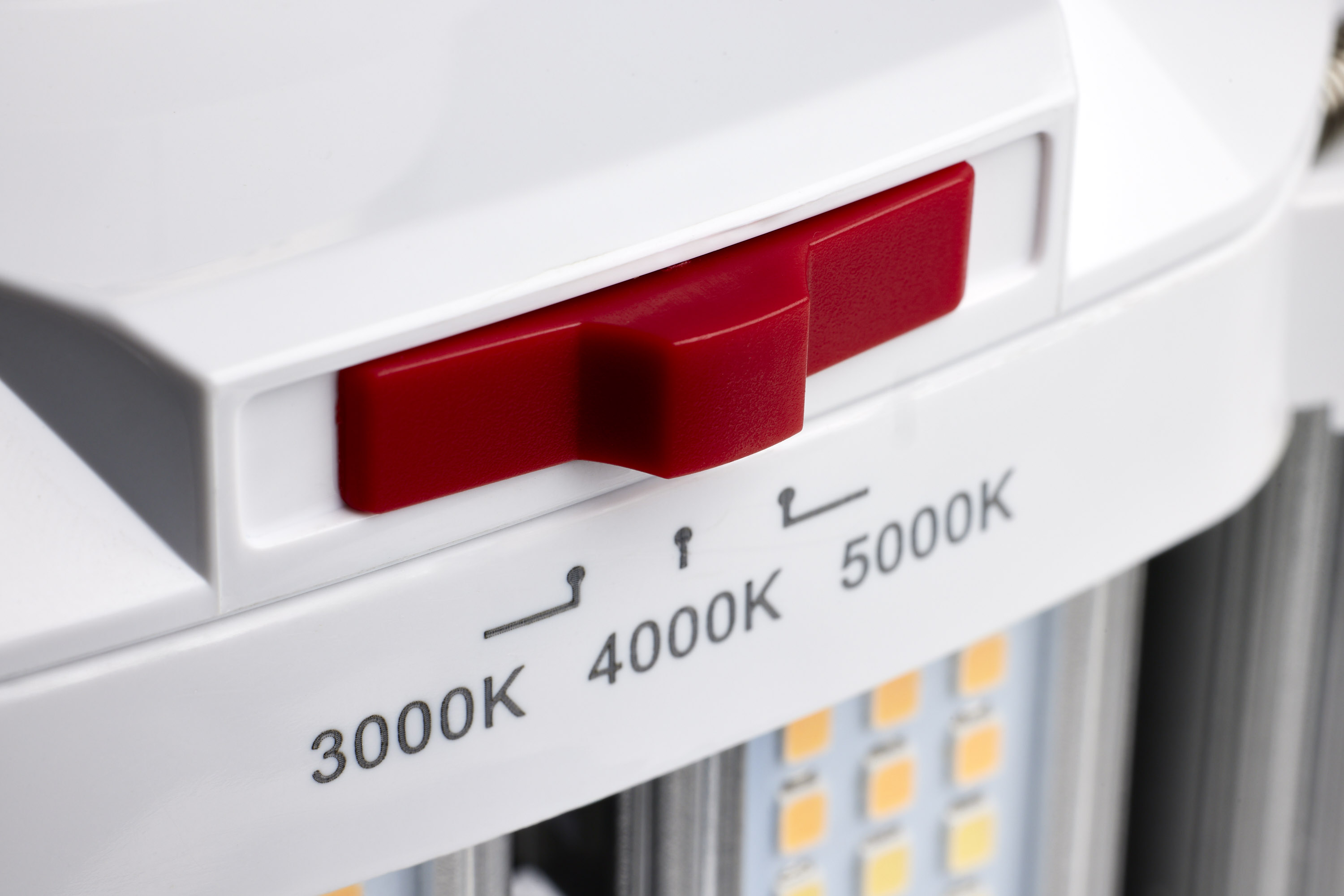

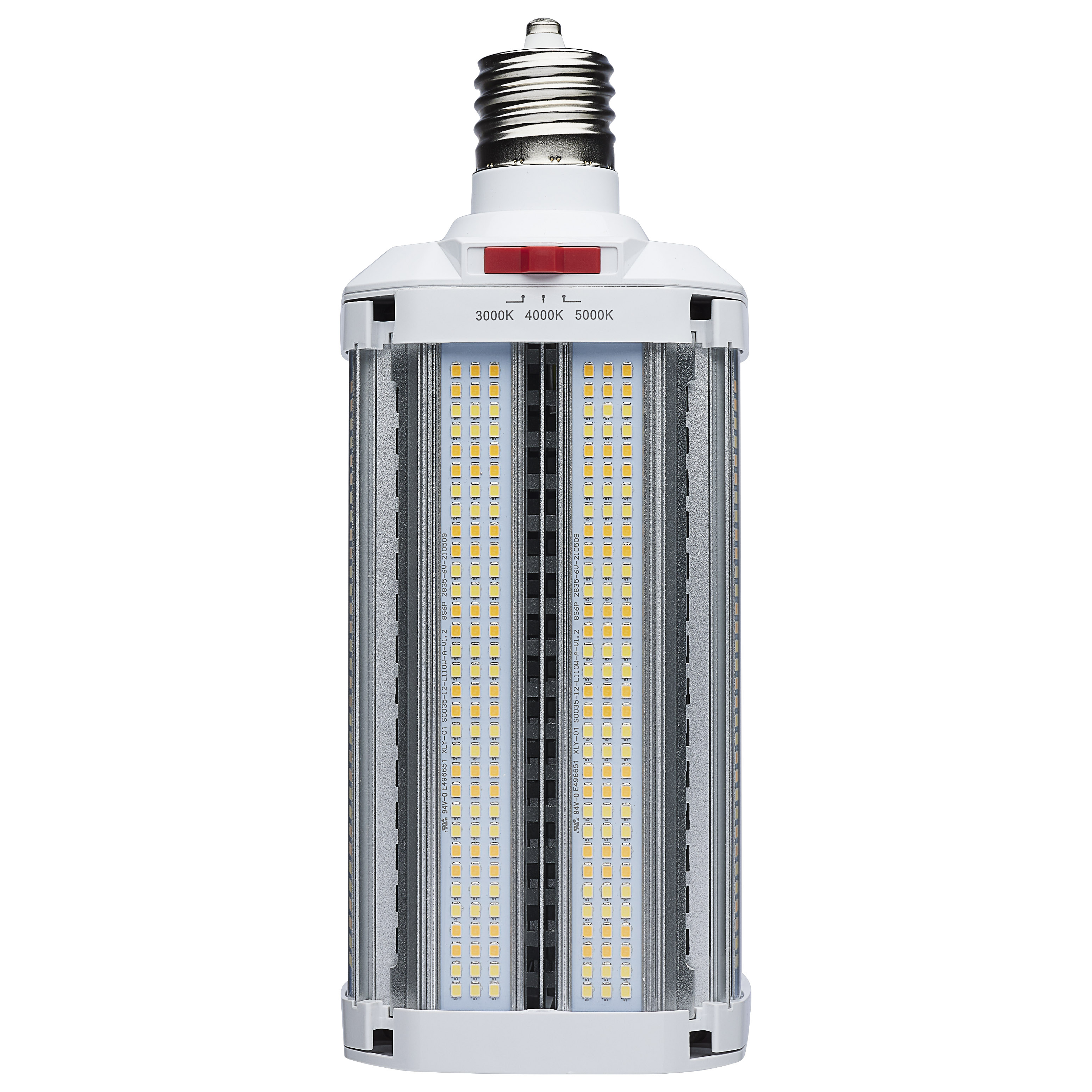

| CCT Selectable | True |

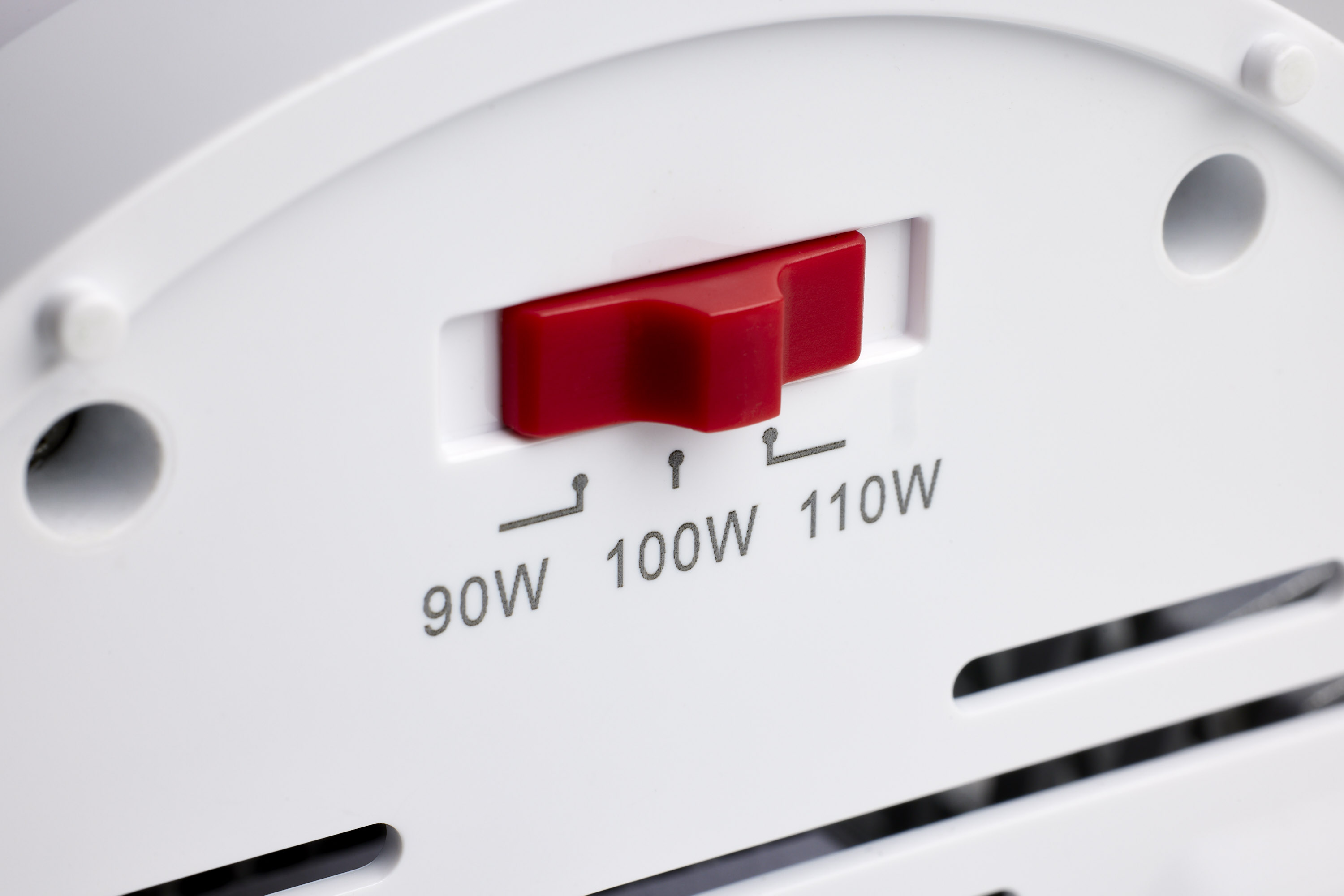

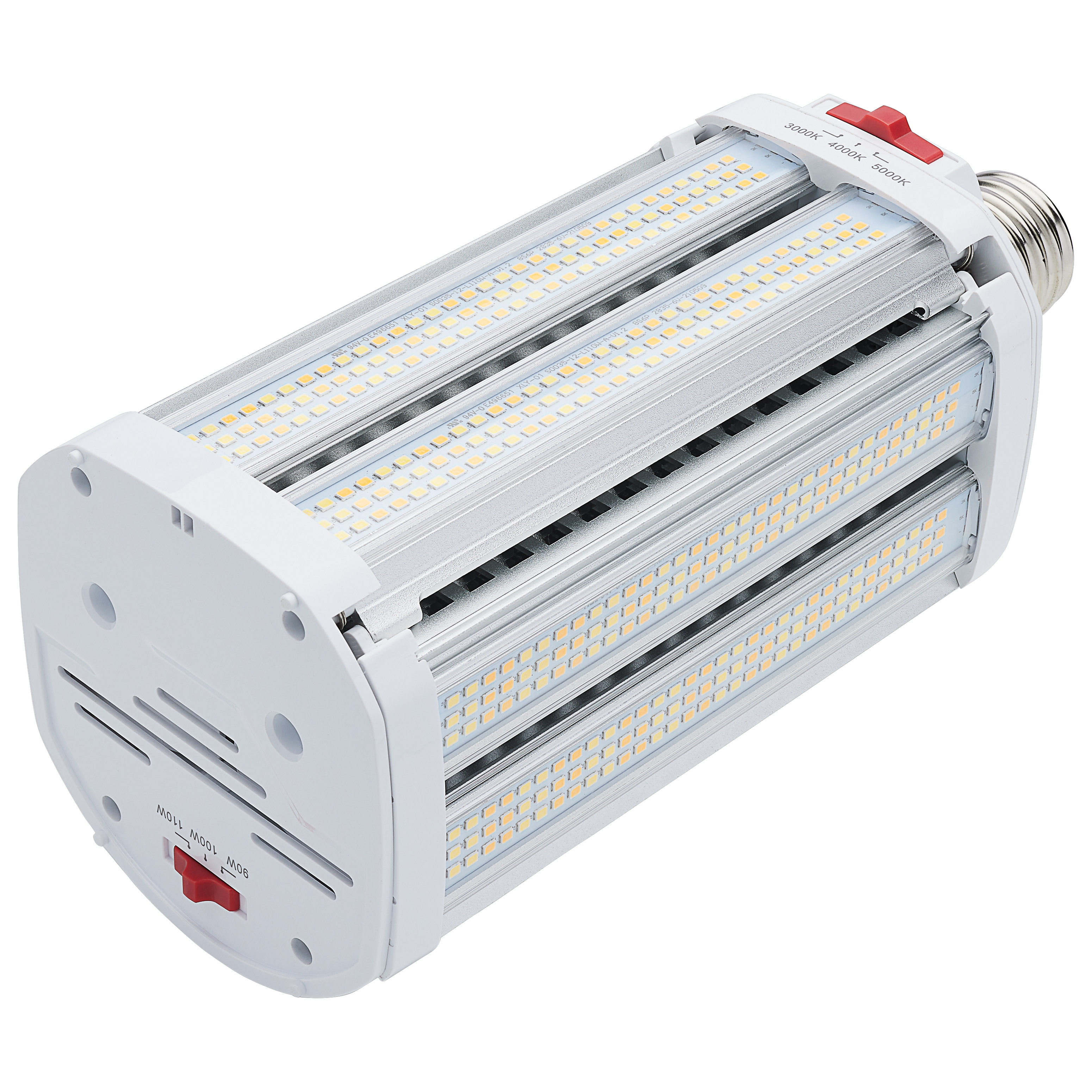

| Wattage Selectable | True |
| Finish Family | White |
| Amps | 0.750-0.325/0.833-0.361/0.917-0.397A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length: 11 in. Width: 11 in. Height: 11.6 in. |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |

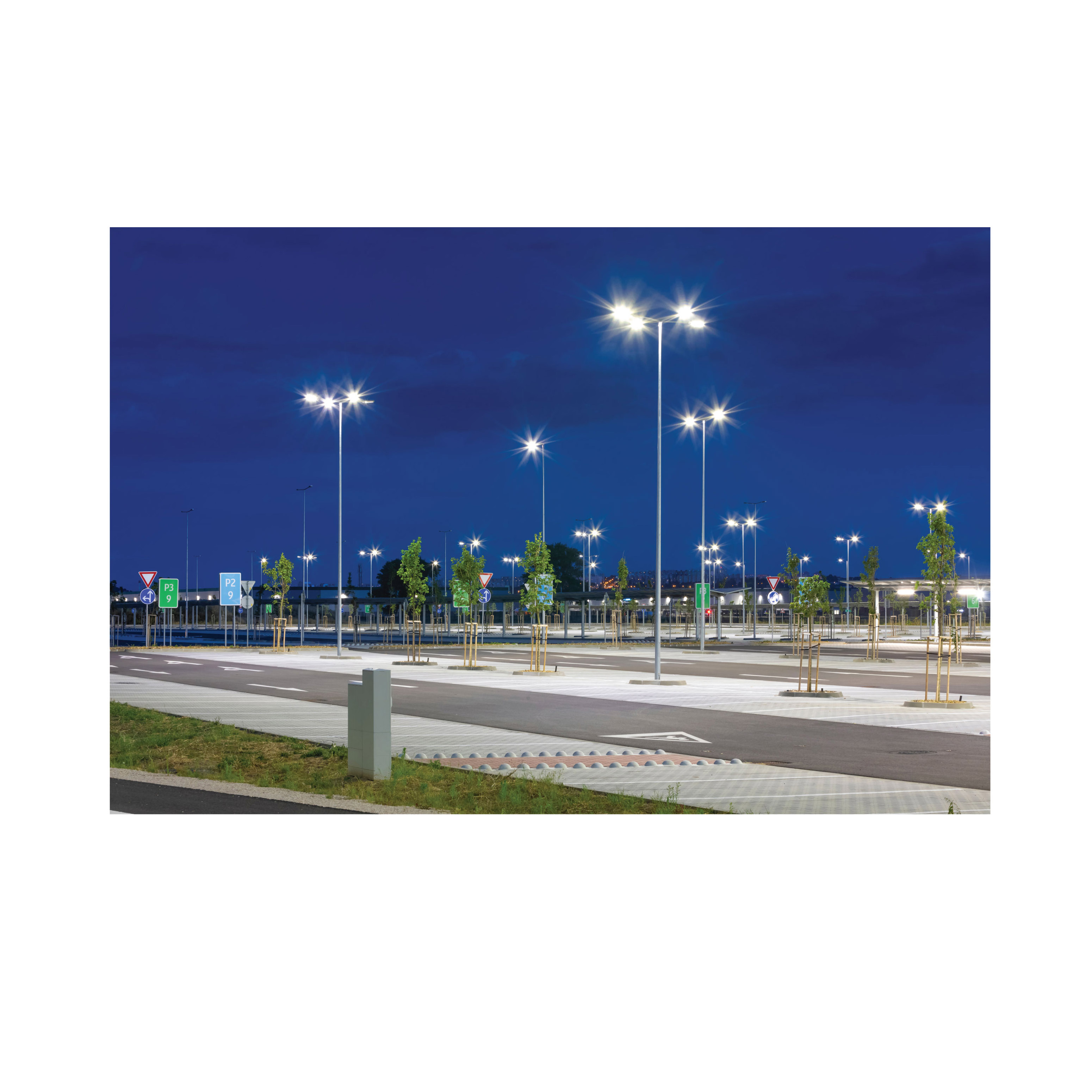

| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 750W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 180 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimming Type | Step Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 250W/320W/400W |
| Lumens | 13500L/14500L/15400L |
| Volts | 120V-277V |
| Watts | 90W/100W/110W |

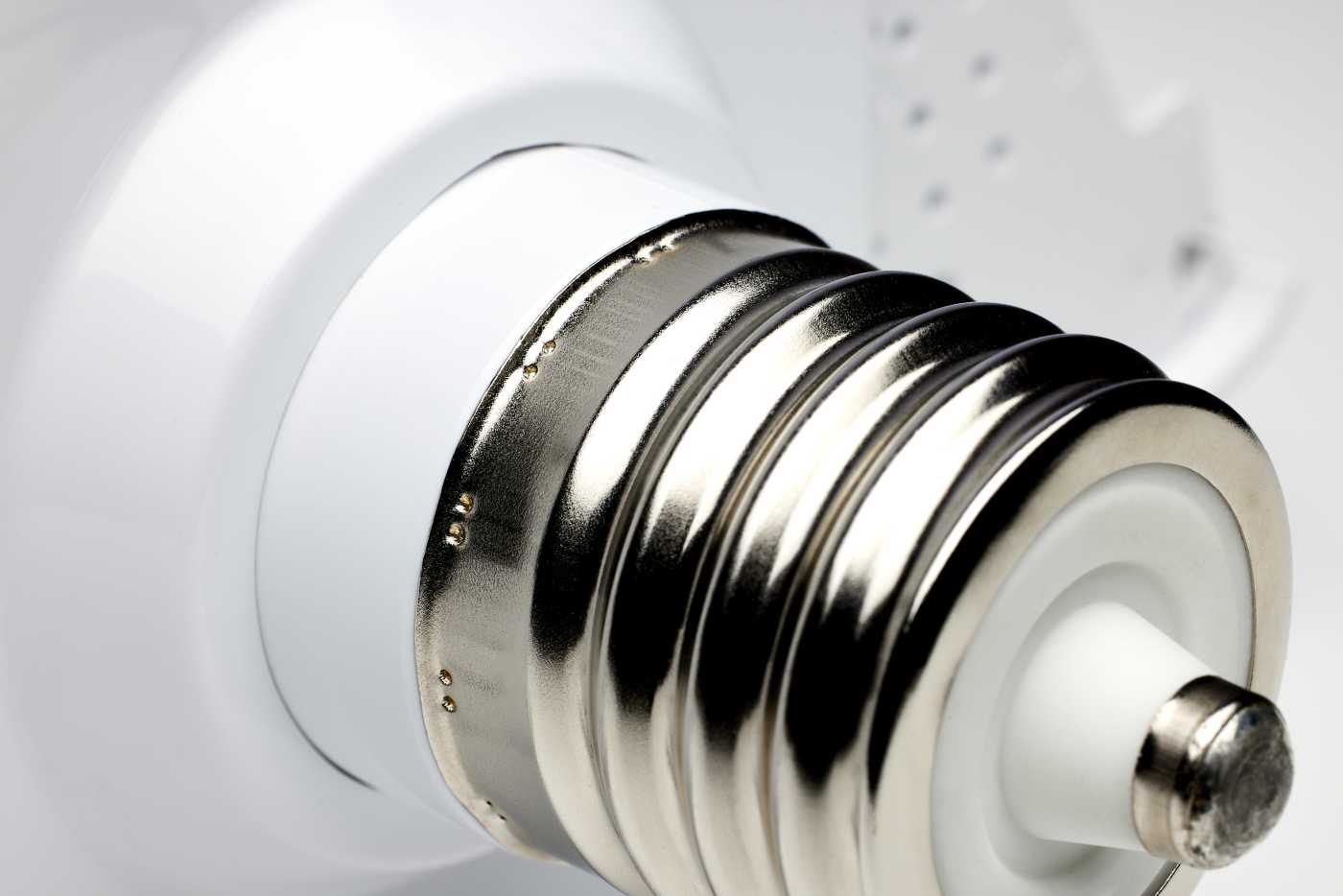

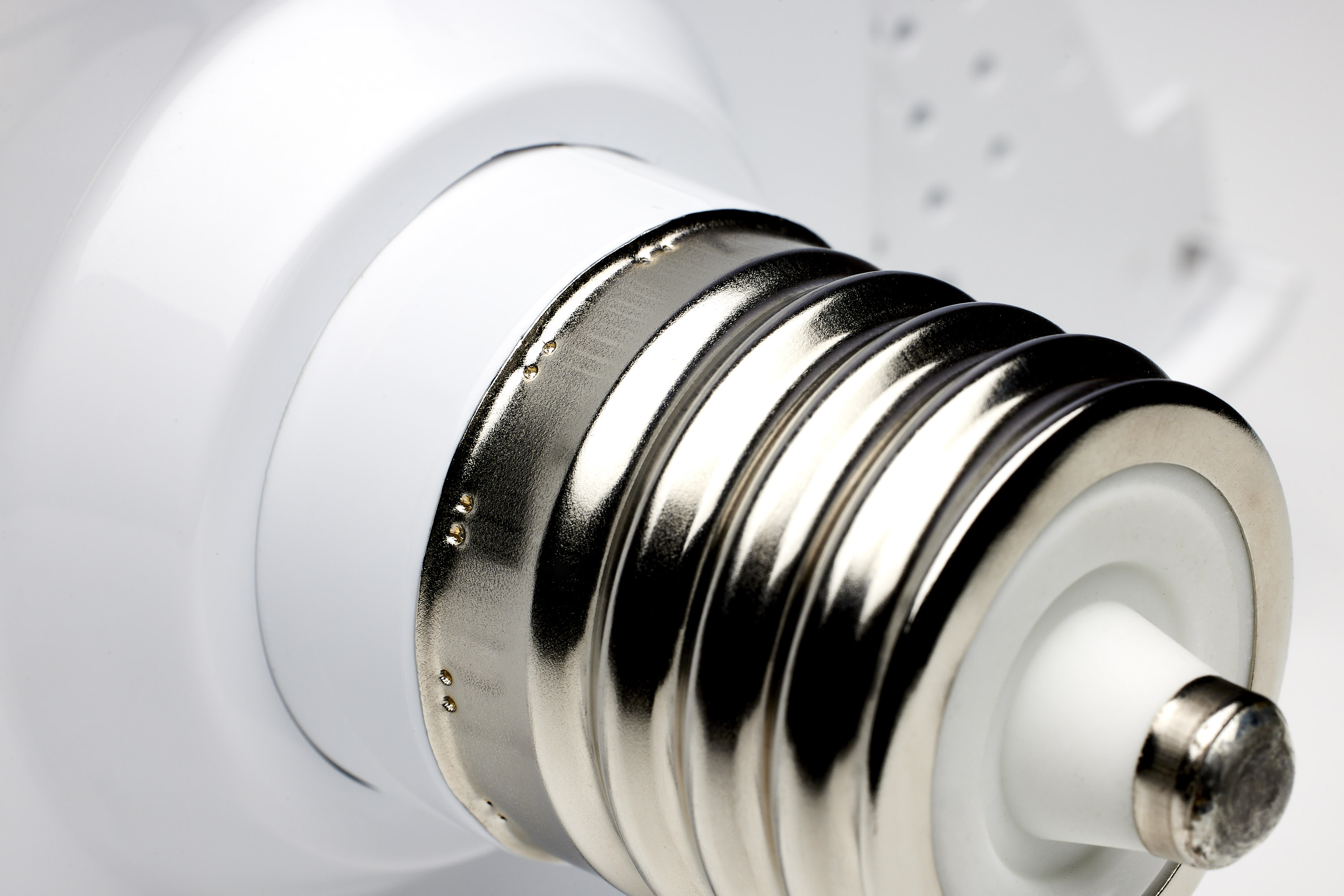

| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | EX39 |

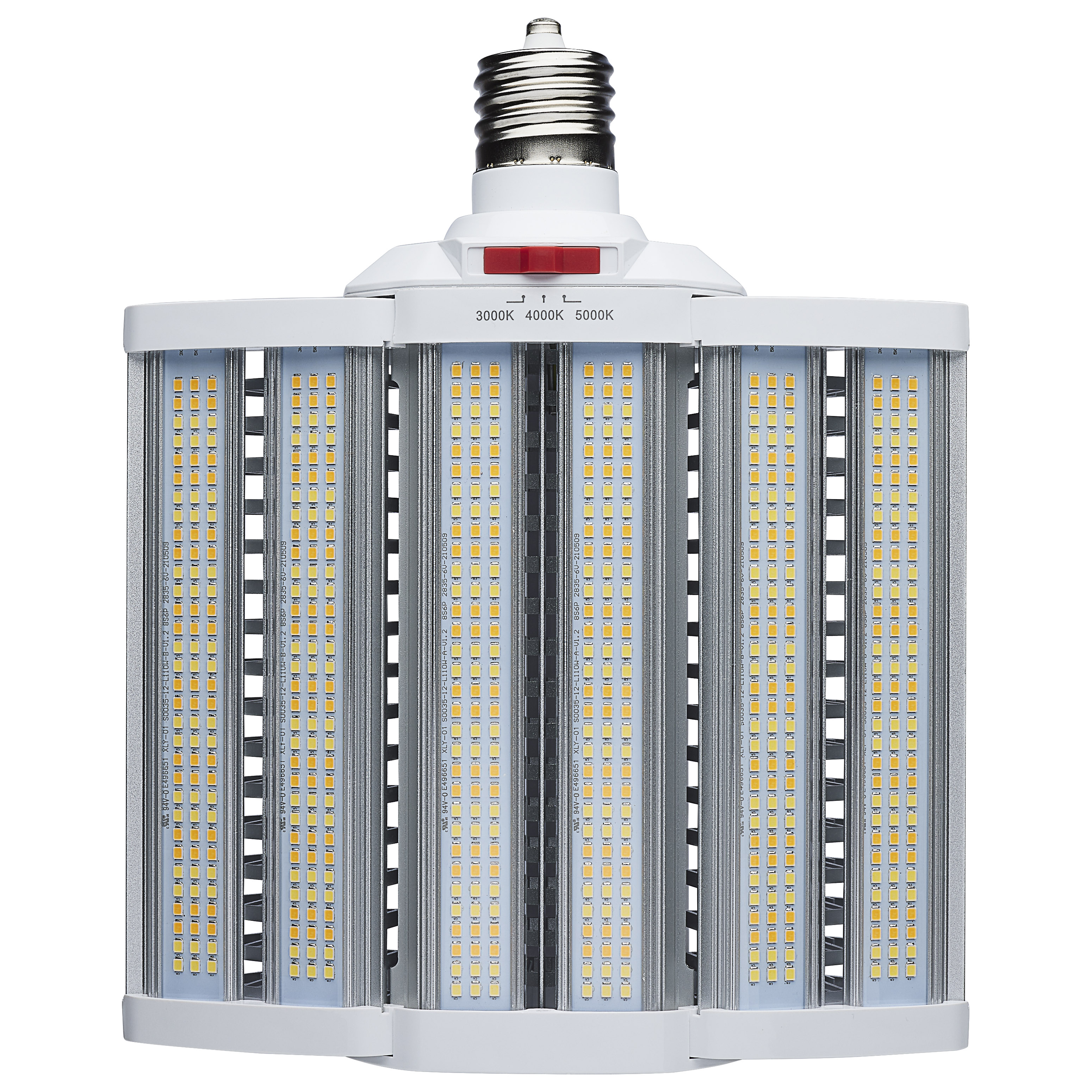

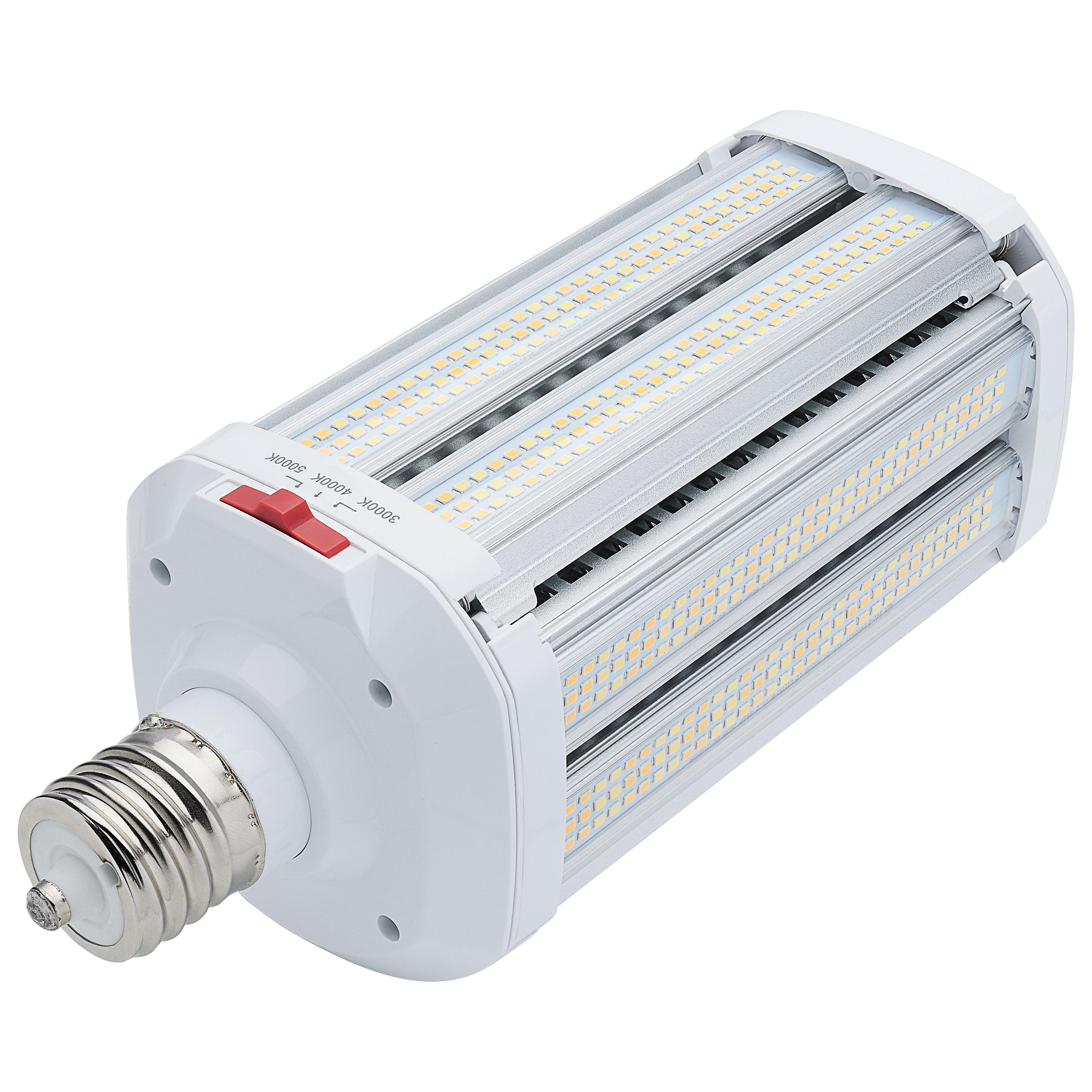

| Lamp Type | Corncob |
| MOD Lamps | 8.9 |
| MOL | 11.26 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-7KJXW6 |
| FCC Compliant | True |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923298882 |
|---|---|
| Case Cube | 1.2525 |
| Case Height | 13.58 |
| Case Length | 13.27 |
| Case Quantity | 4 |
| Case UPC | 10045923298889 |
| Case Weight | 18.7 |
| Case Width | 12.01 |
| EA Cube | 0.2707 |
| EA Height | 6.46 |
| EA Length | 12.68 |
| EA Quantity | 1 |
| EA Weight | 4.67 |
| EA Width | 5.71 |
| Inner Cube | 0.0 |
| Pack Type | Box |
| Web Length | 11.26 |
| Web Width | 8.9 |
