S29409

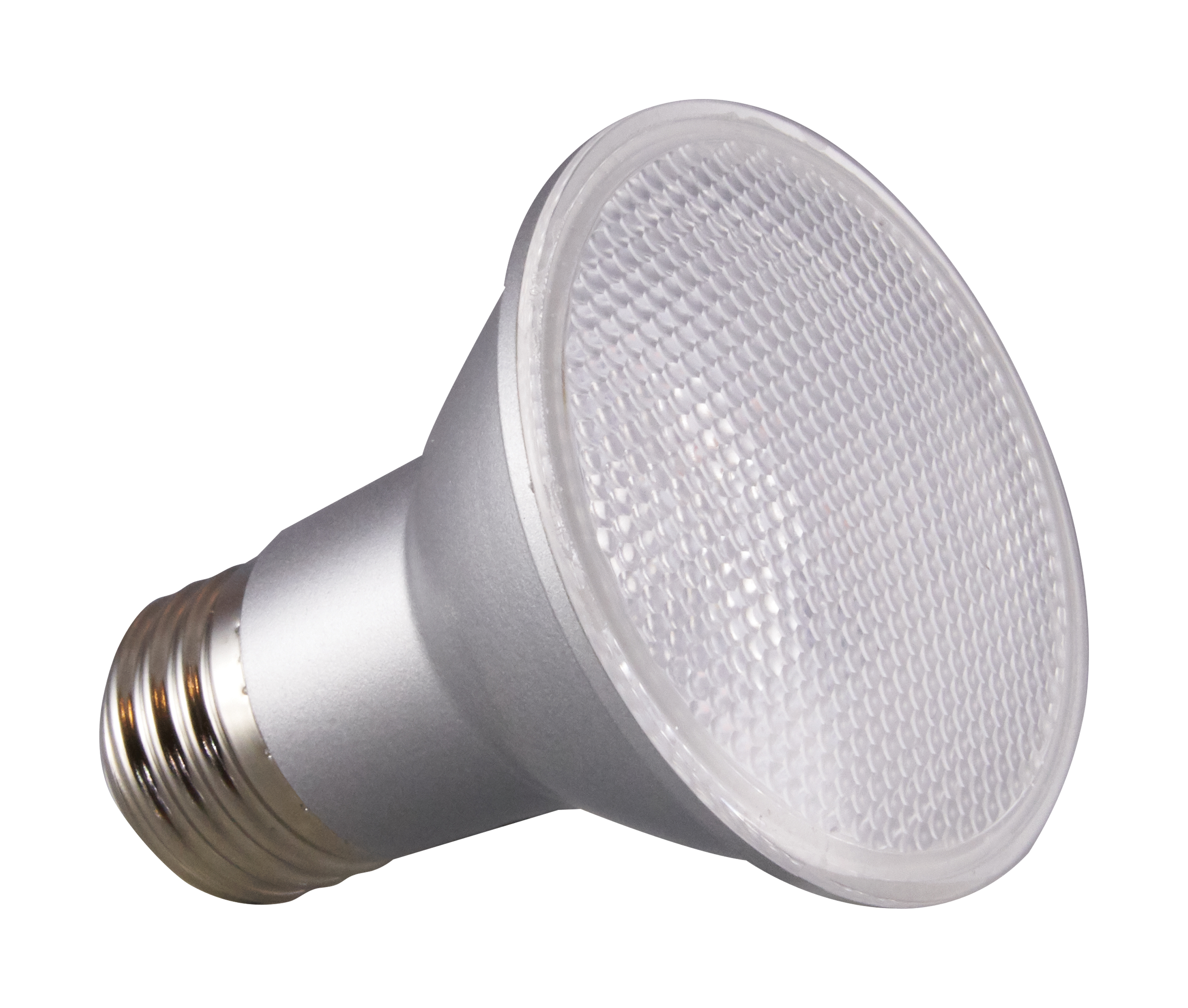

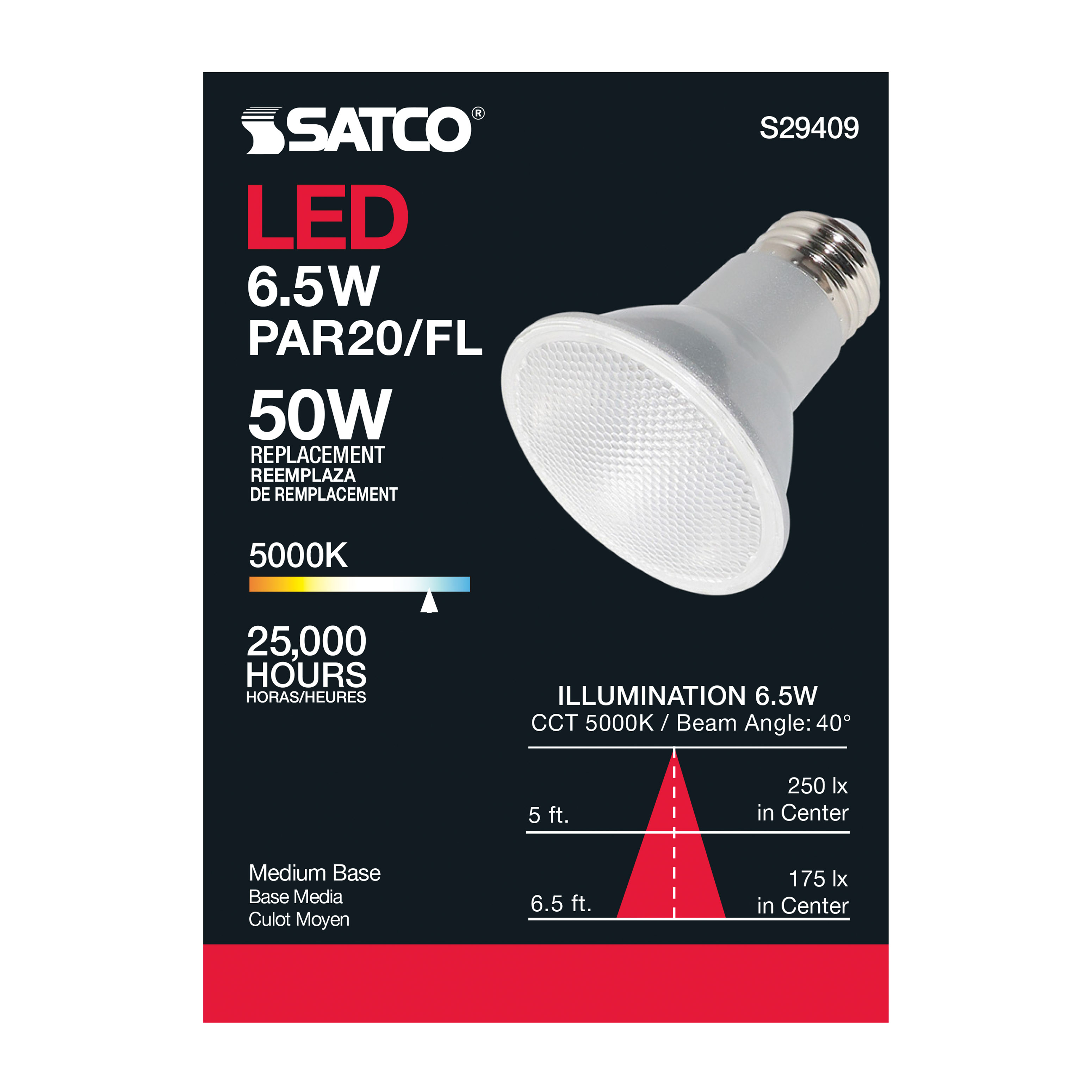

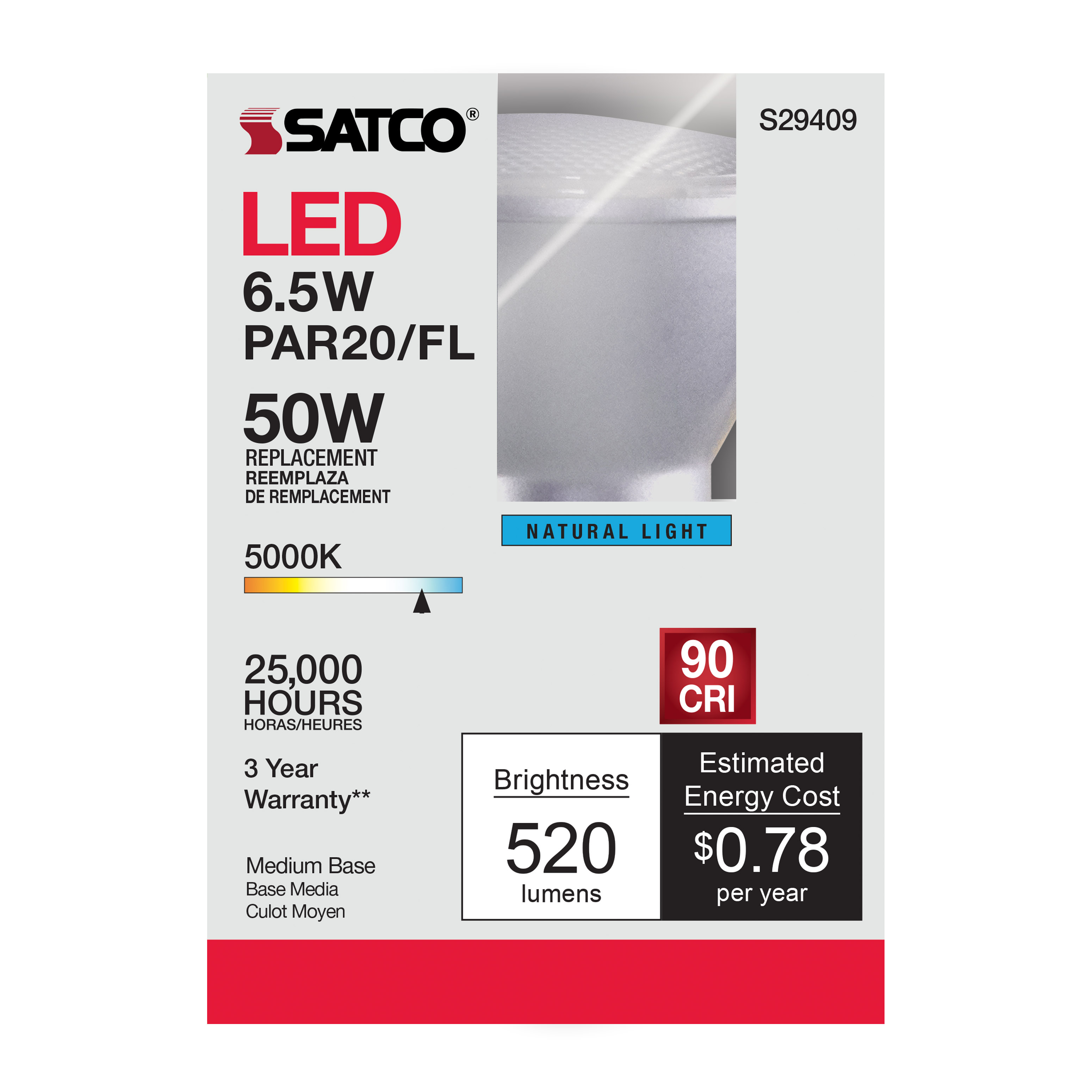

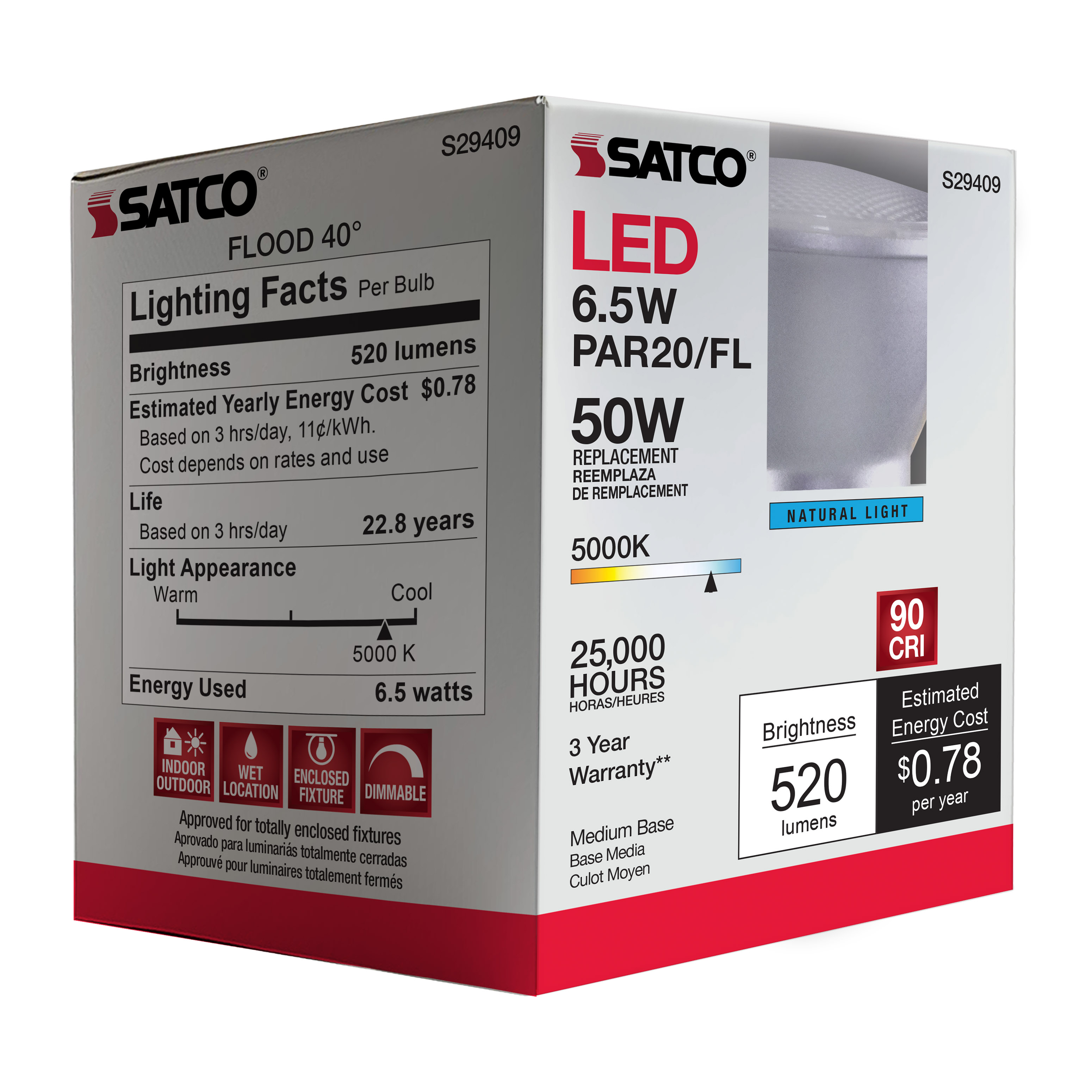

6.5PAR20/LED/40'/950/120V

  • 6.5 Watt
  • PAR20 LED
  • 5000K
  • 40 deg. Beam Angle
  • Medium base
  • 120 Volt
title_20^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29409 SpecificationsS29409 Photometrics.iesSATCO|NUVO LED LIGHTING FALL/WINTER PROMO 2023|2024
Tools
Lighting Layout Analysis For S29409
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
6.5 Watt; PAR20 LED; 5000K; 40 deg. Beam Angle; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Center Beam Candle Power593
Lamp FilamentLED
MaterialPlastic
Fixture TypePAR
StatusActive
StyleUtility
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.054A
Has CameraFalse
IOT EnabledFalse

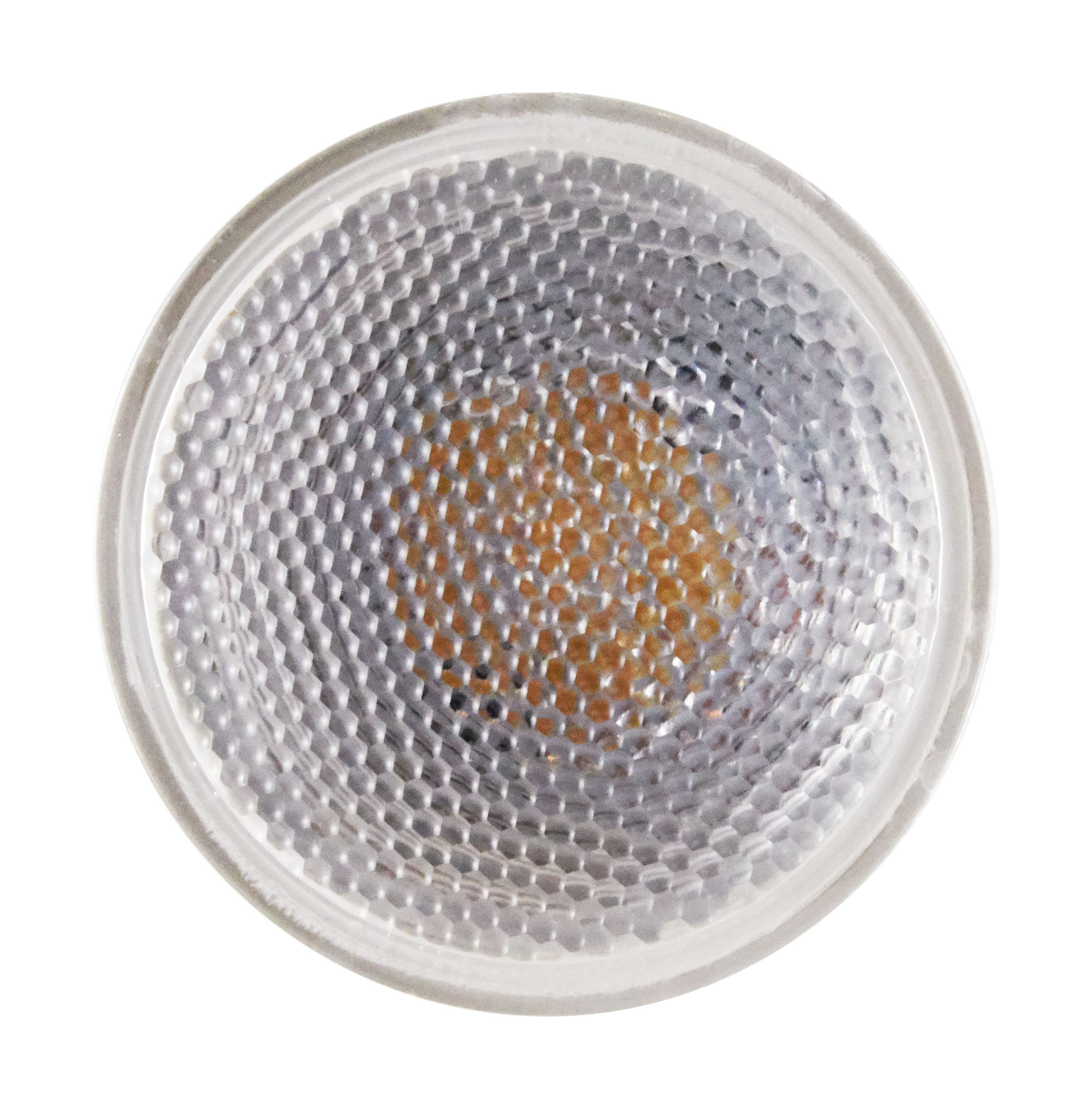

Lens FinishClear
Lens MaterialThermo Plastic (PBT)
LensedTrue
Operating PositionUniversal
Photo CellNo
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv11W
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempNatural Light
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

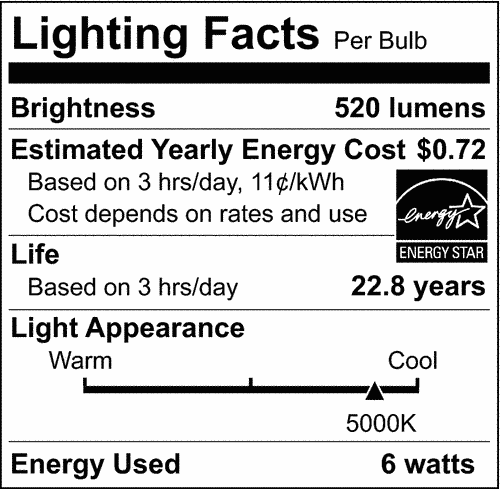

Lumens520L
Volts120v
Watts6.5W
Physical

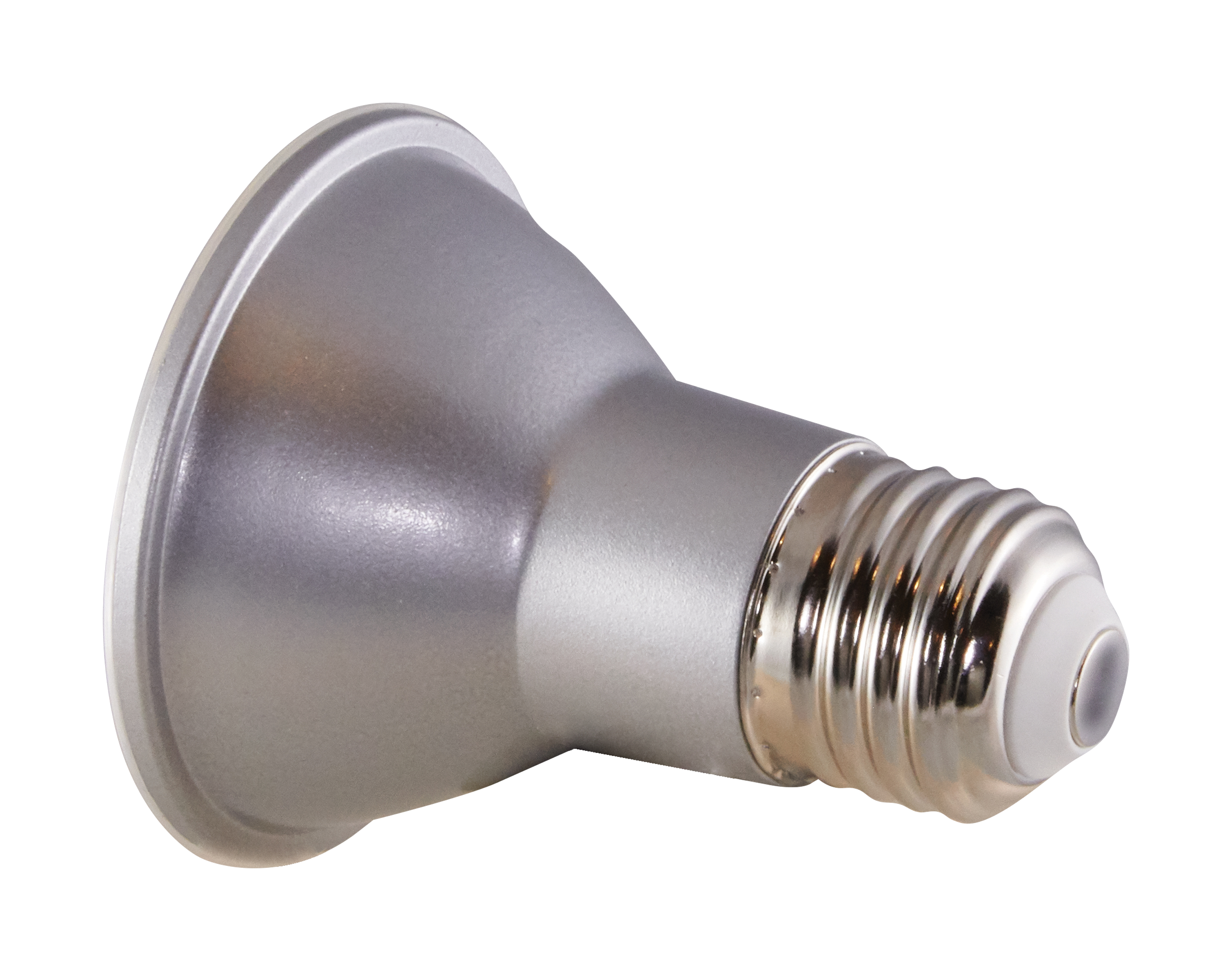

Lamp BaseMedium
FinishClear
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR20

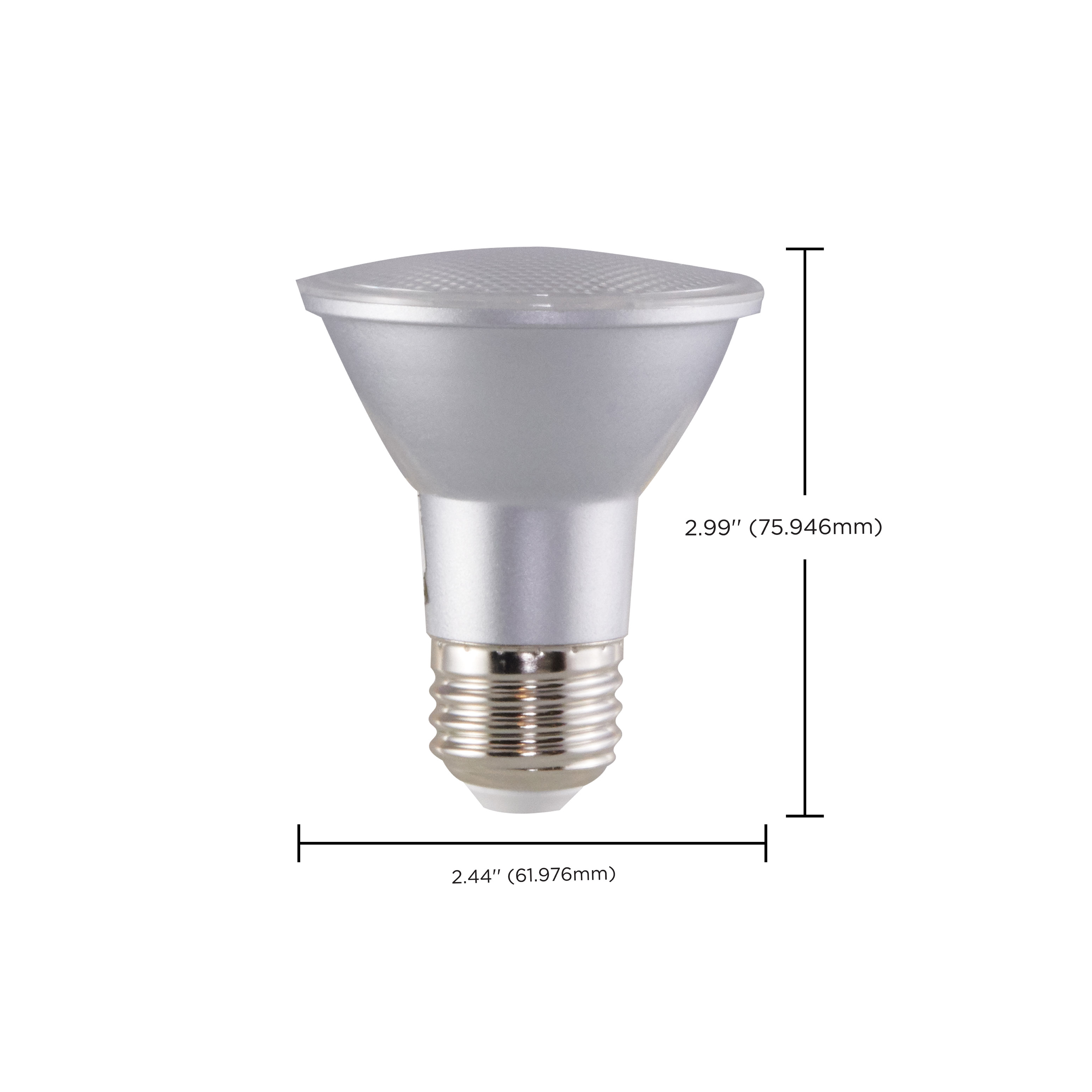

MOD Lamps2.44
MOL2.99
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsT20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923294099
Case Cube0.5705
Case Height9.06
Case Length12.01
Case Quantity24
Case UPC10045923294096
Case Weight5.88
Case Width9.06
EA Cube0.0134
EA Height3.54
EA Length2.56
EA Quantity1
EA Weight0.15
EA Width2.56
Inner Cube0.111
Inner Height4.06
Inner Length8.39
Inner Quantity6
Inner UPC20045923294093
Inner Weight1.02
Inner Width5.63
Pack TypeBox
Web Length2.99
Web Width2.44
