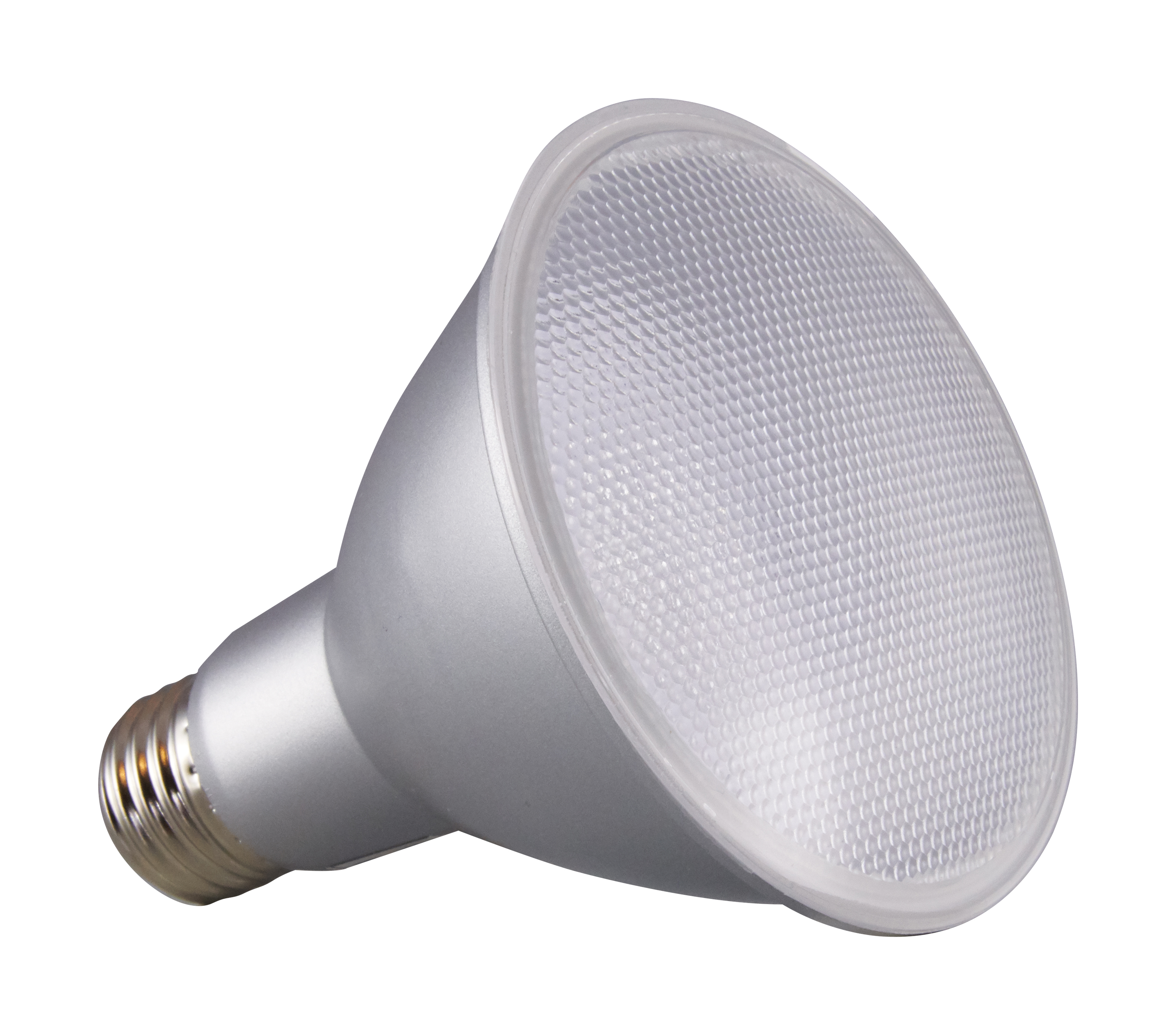

S29433

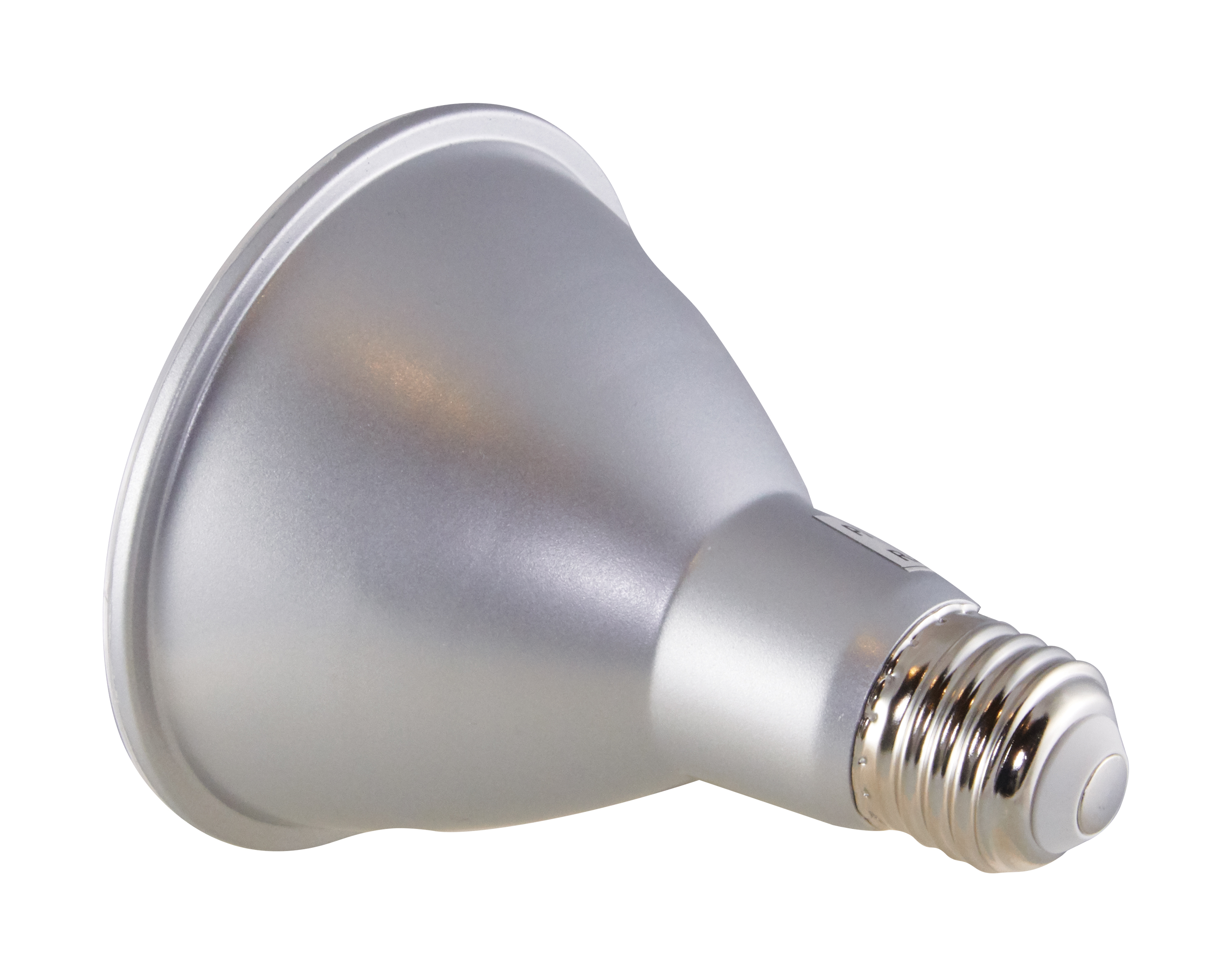

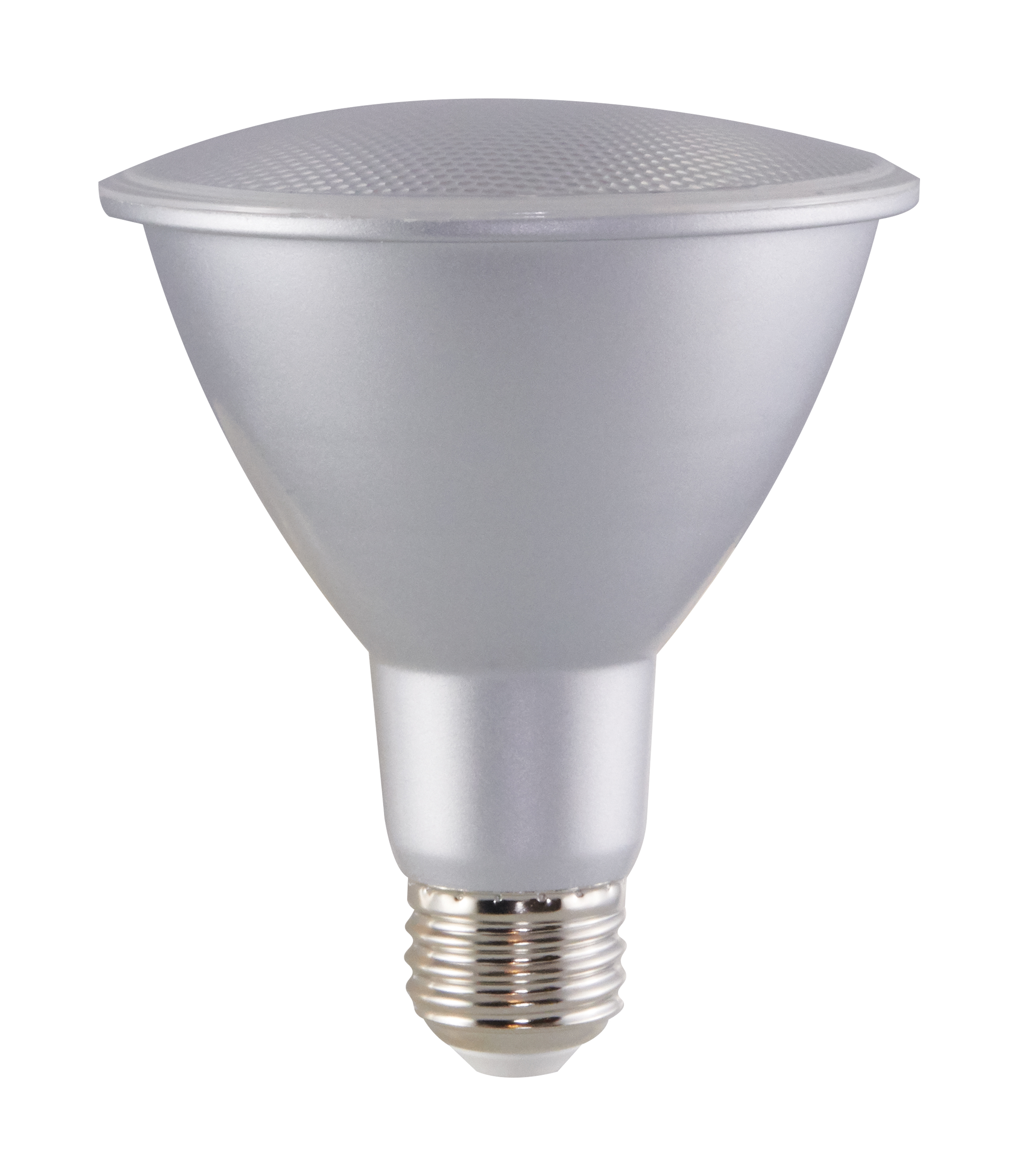

12.5PAR30/LN/LED/40'/940/120V

  • 12.5 Watt
  • PAR30LN LED
  • 4000K
  • 40 deg. Beam Angle
  • Medium base
  • 120 Volt
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29433 SpecificationsS29433 Photometrics.iesNEW! SATCO GEN2 LED PAR LAMPS
Tools
Lighting Layout Analysis For S29433
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
12.5 Watt; PAR30LN LED; 4000K; 40 deg. Beam Angle; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Center Beam Candle Power1315
Lamp FilamentLED
MaterialPlastic
Fixture TypePAR
StatusActive
StyleUtility
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.104A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear

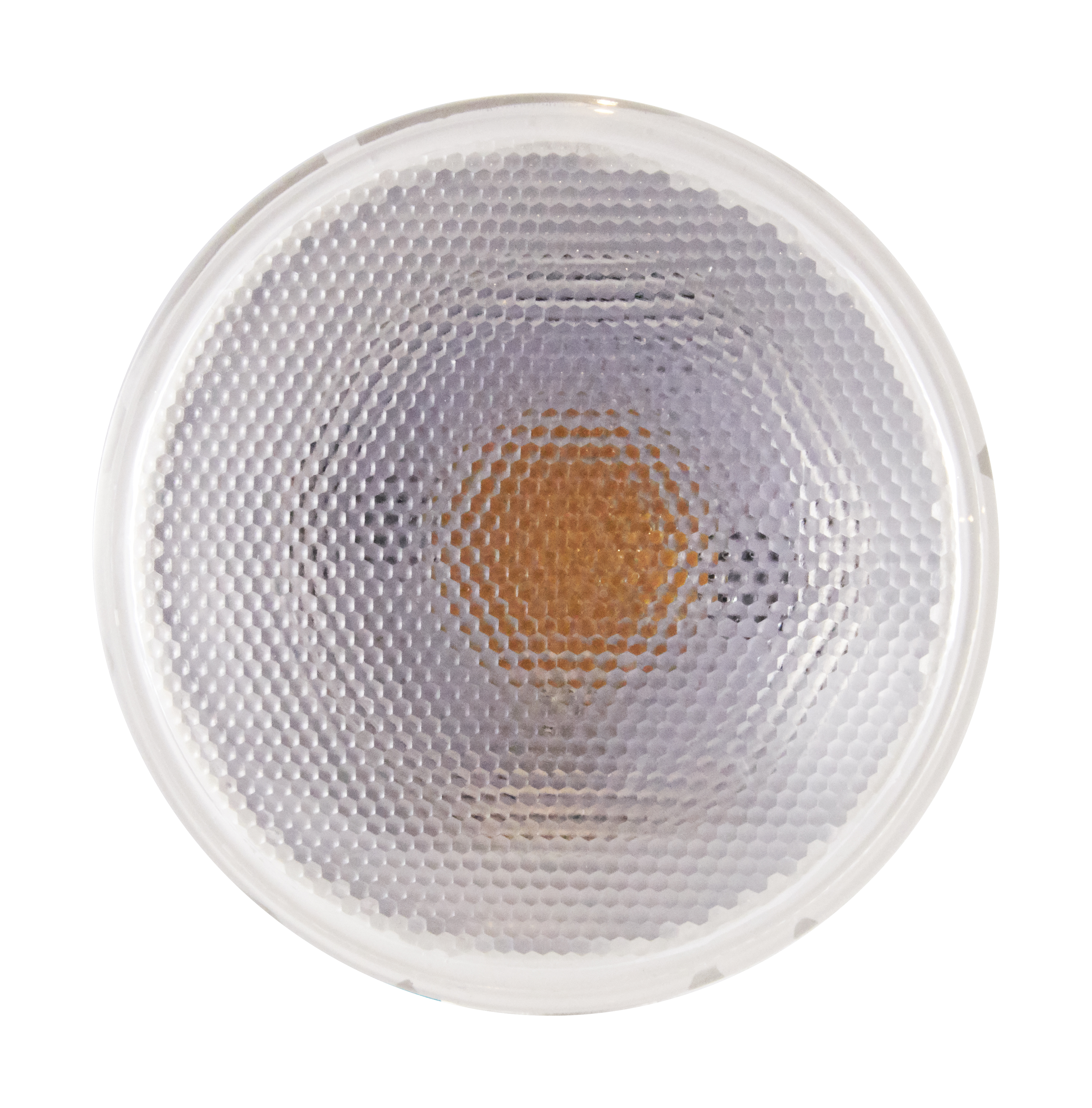

Lens MaterialThermo Plastic (PBT)
LensedTrue
Operating PositionUniversal
Photo CellNo
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv15W
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)40
Color TempCool White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

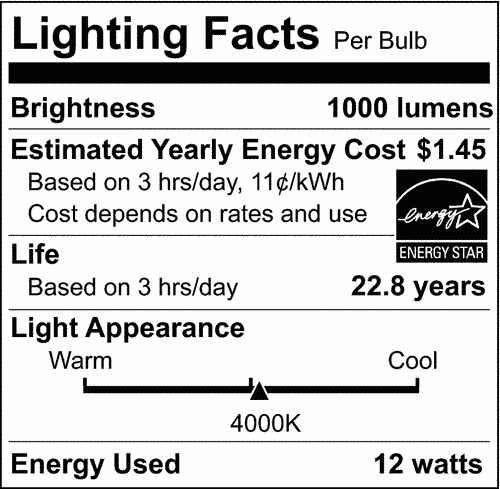

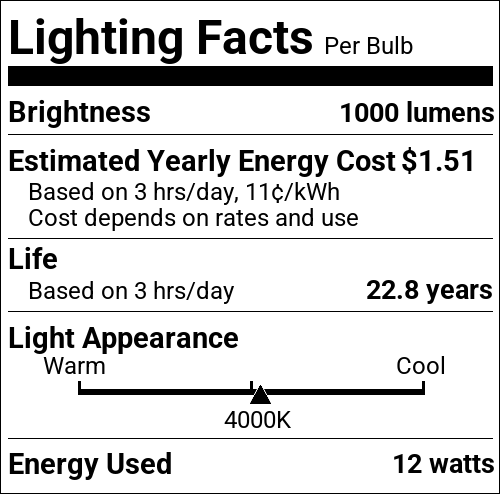

Lumens1000L
Volts120v
Watts12.5W
Physical
Lamp BaseMedium
FinishClear
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR30LN

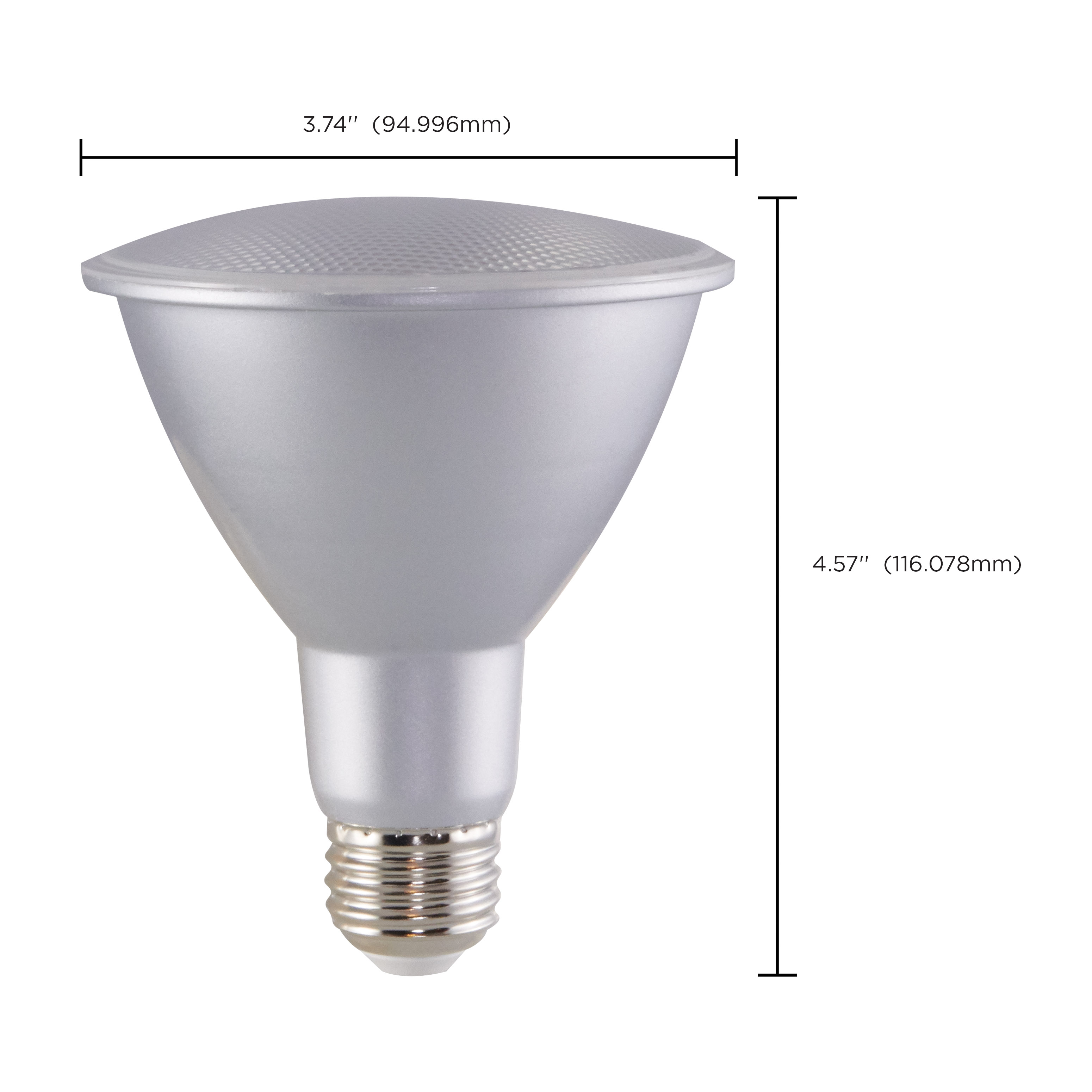

MOD Lamps3.74
MOL4.57
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
FCC CompliantTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Listed
California BanCalifornia T24 Listed
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923294334
Case Cube0.8425
Case Height17.52
Case Length6.3
Case Quantity12
Case UPC10045923294331
Case Weight6.22
Case Width13.19
EA Cube0.0442
EA Height4.92
EA Length3.94
EA Quantity1
EA Weight0.35
EA Width3.94
Inner Cube0.3228
Inner Height12.52
Inner Length5.31
Inner Quantity6
Inner UPC20045923294338
Inner Weight2.56
Inner Width8.39
Pack TypeBox
Web Length4.57
Web Width3.74
