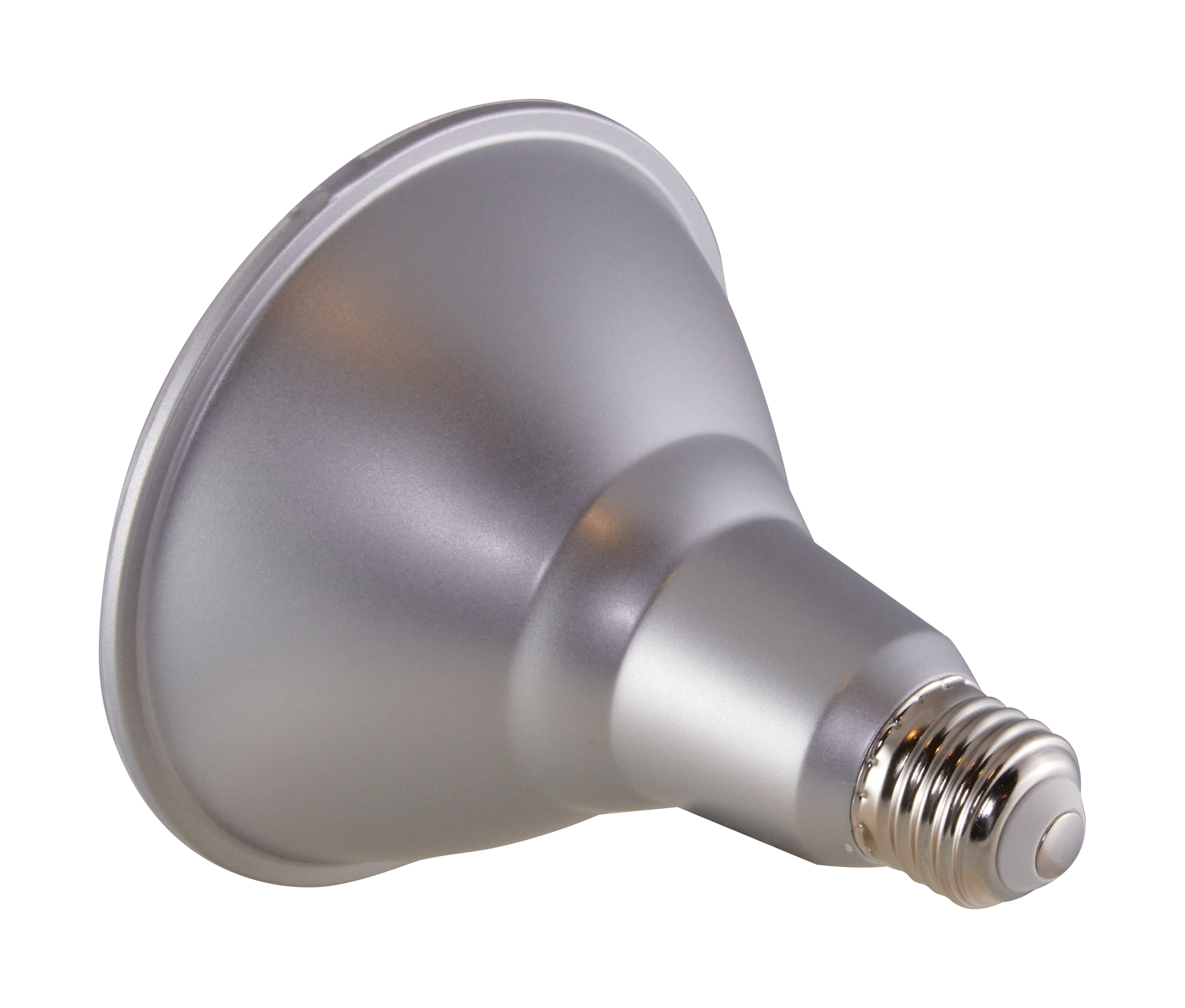

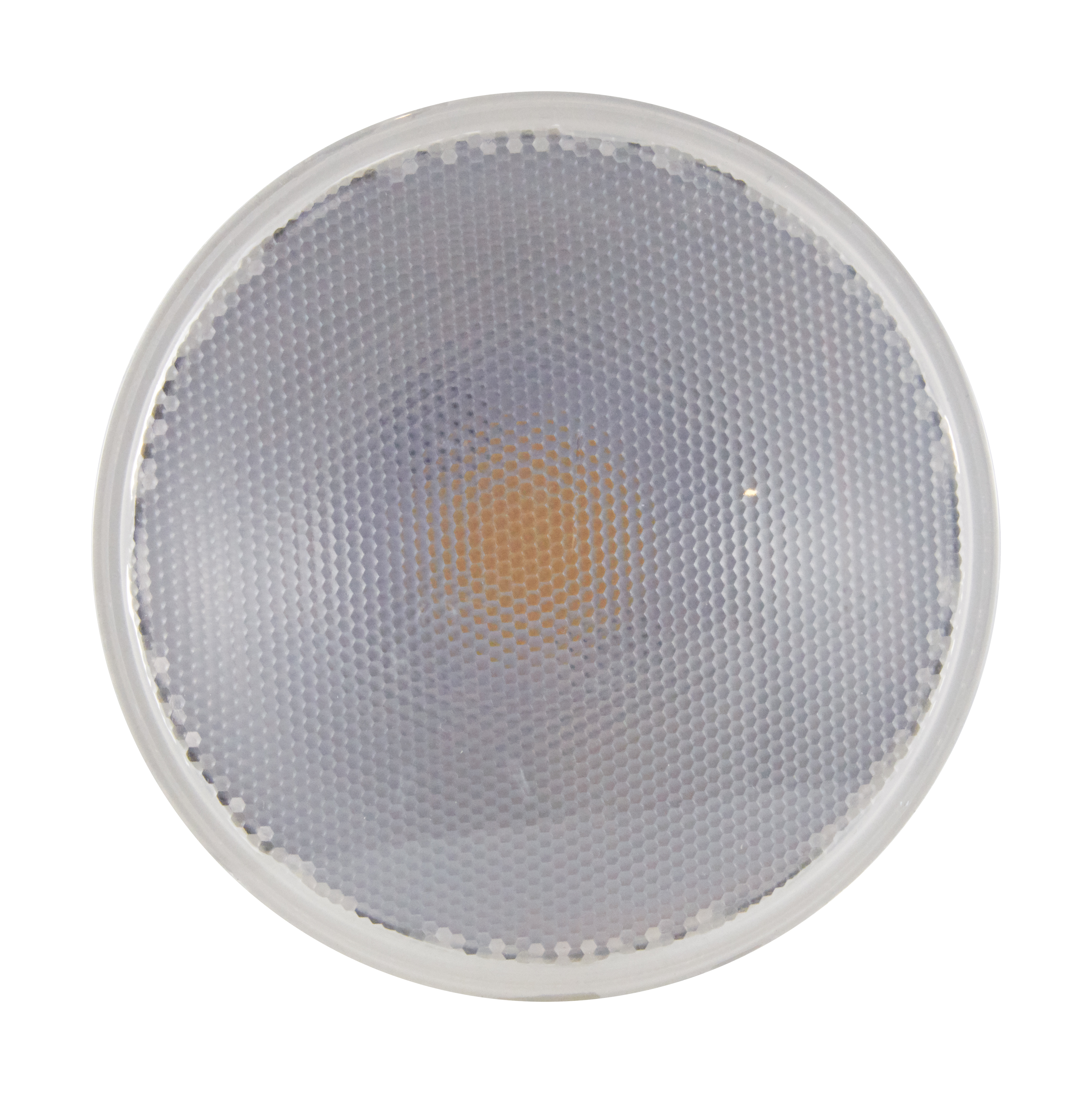

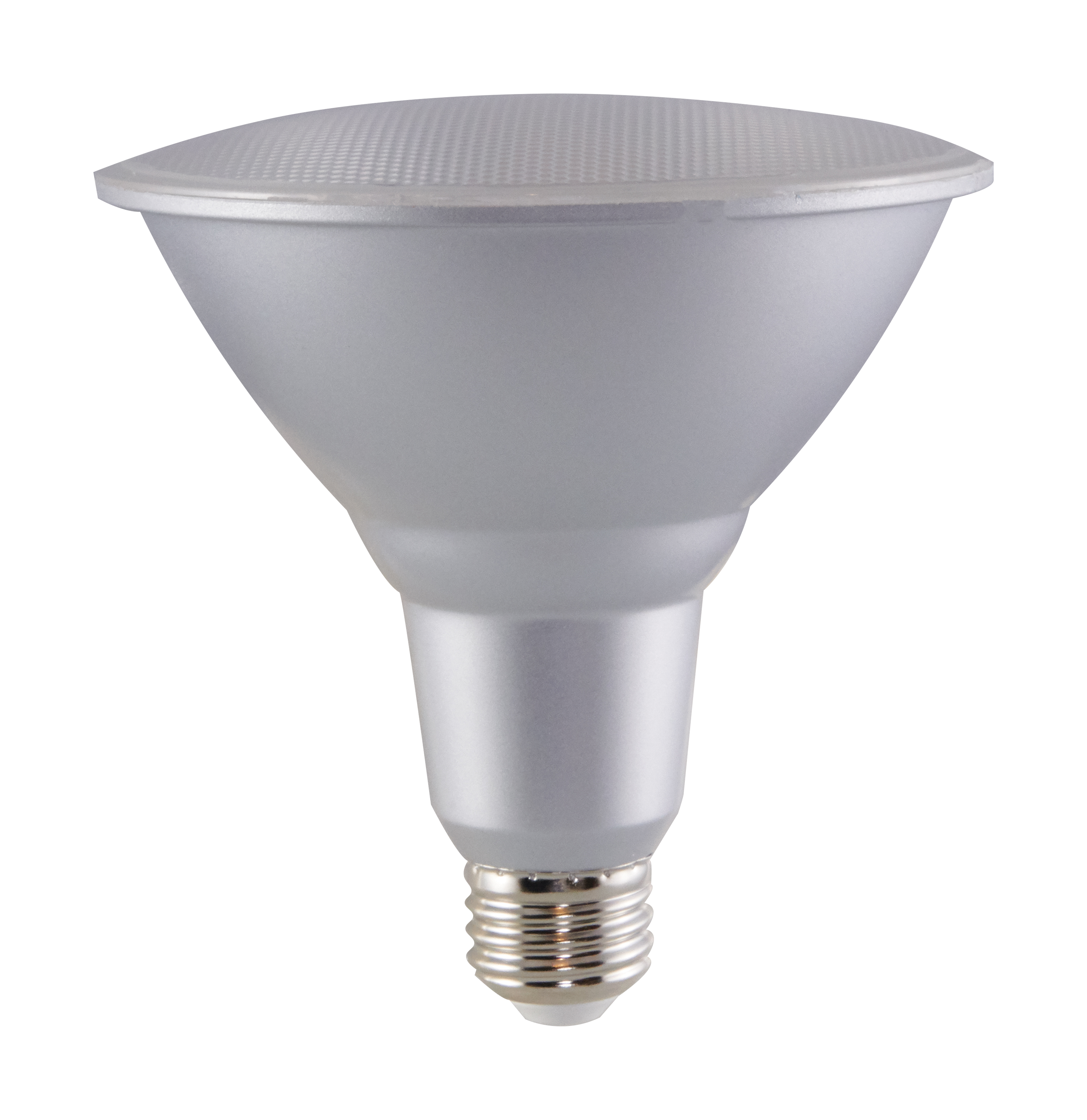

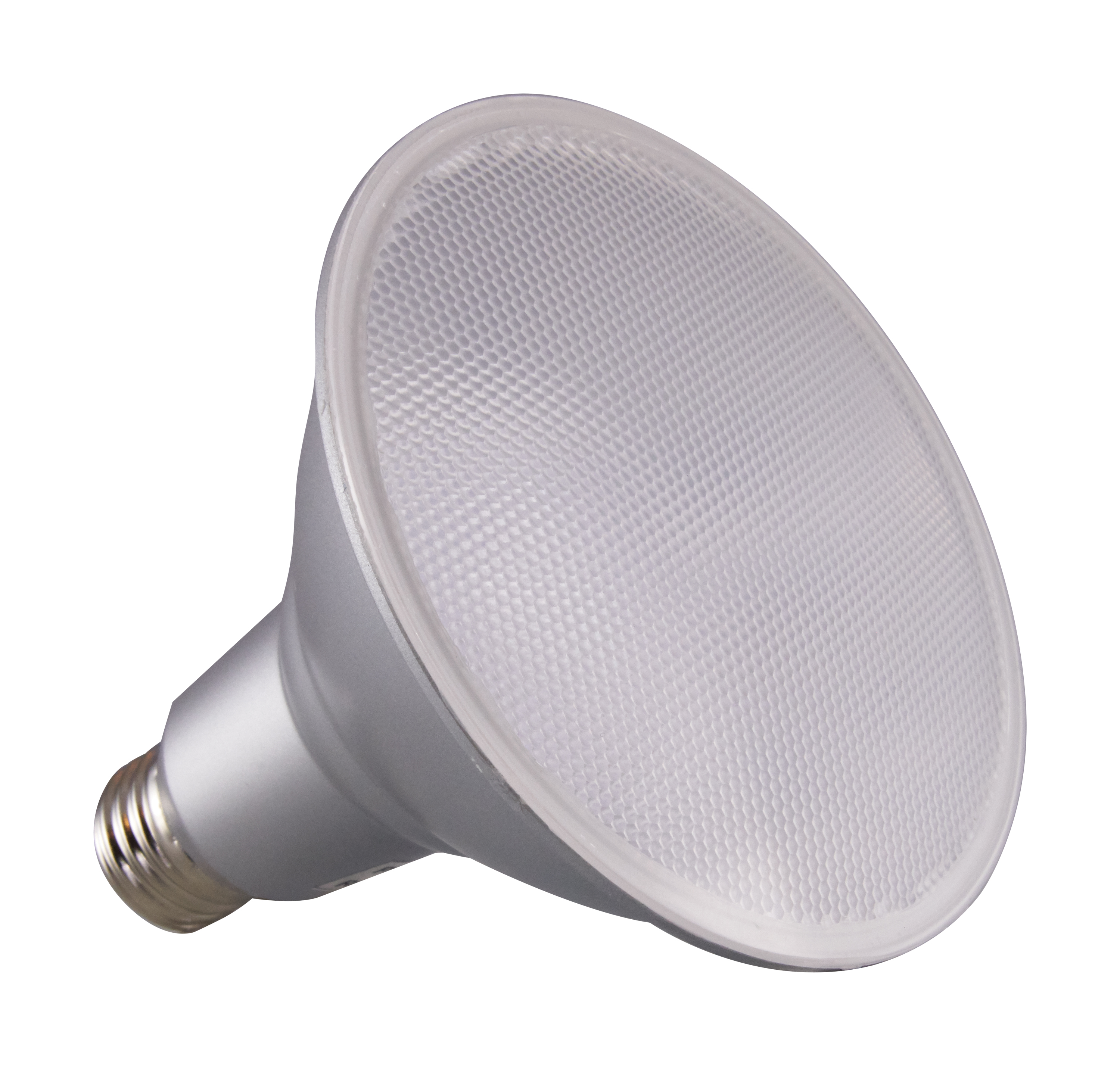

S29440

15PAR38/LED/25'/927/120V

  • 15 Watt
  • PAR38 LED
  • 2700K
  • 25 deg. Beam Angle
  • Medium base
  • 120 Volt
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^25^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29440 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S29440
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
15 Watt; PAR38 LED; 2700K; 25 deg. Beam Angle; Medium base; 120 Volt
Products Specs
General
CompanySATCO
Center Beam Candle Power3698
Lamp FilamentLED
MaterialPlastic
Fixture TypePAR
StatusActive
StyleUtility
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Amps0.125A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
Lens MaterialThermo Plastic (PBT)
LensedTrue
Operating PositionUniversal
Photo CellNo
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv23W
Incandescent Equivalent90W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)25
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

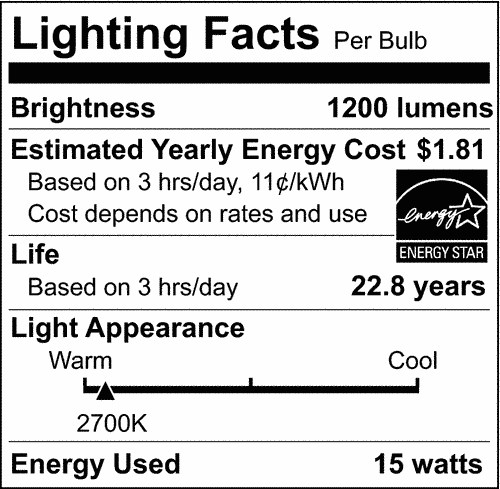

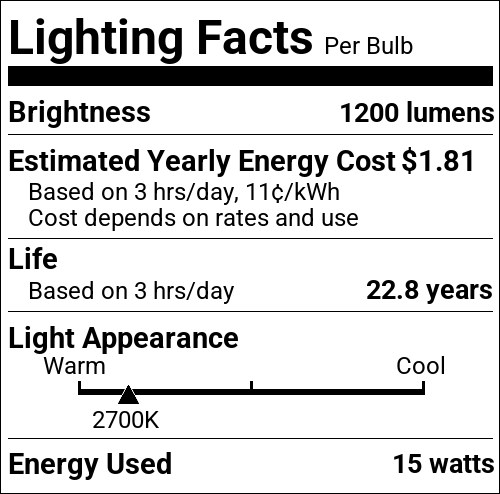

Lumens1200L
Volts120v
Watts15W
Physical
Lamp BaseMedium
FinishClear
Housing ColorSilver
ANSI BaseE26
Lamp TypePAR38

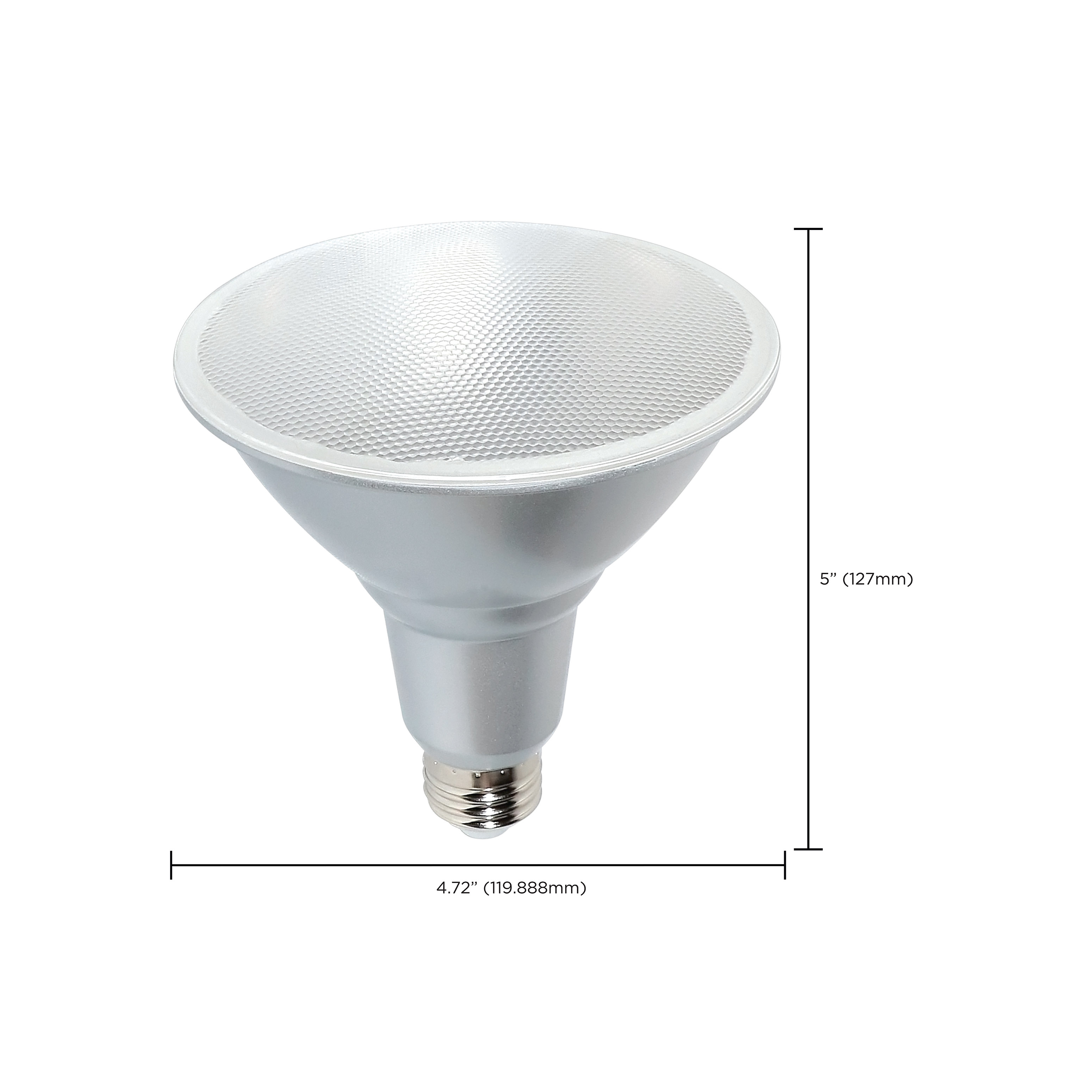

MOD Lamps4.72
MOL5.0
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Listed
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923294402
Case Cube1.3982
Case Height6.89
Case Length21.46
Case Quantity12
Case UPC10045923294409
Case Weight8.44
Case Width16.34
EA Cube0.0772
EA Height5.51
EA Length4.92
EA Quantity1
EA Weight0.49
EA Width4.92
Inner Cube0.5578
Inner Height6.02
Inner Length15.47
Inner Quantity6
Inner UPC20045923294406
Inner Weight3.46
Inner Width10.35
Pack TypeBox
Web Length5.0
Web Width4.72
