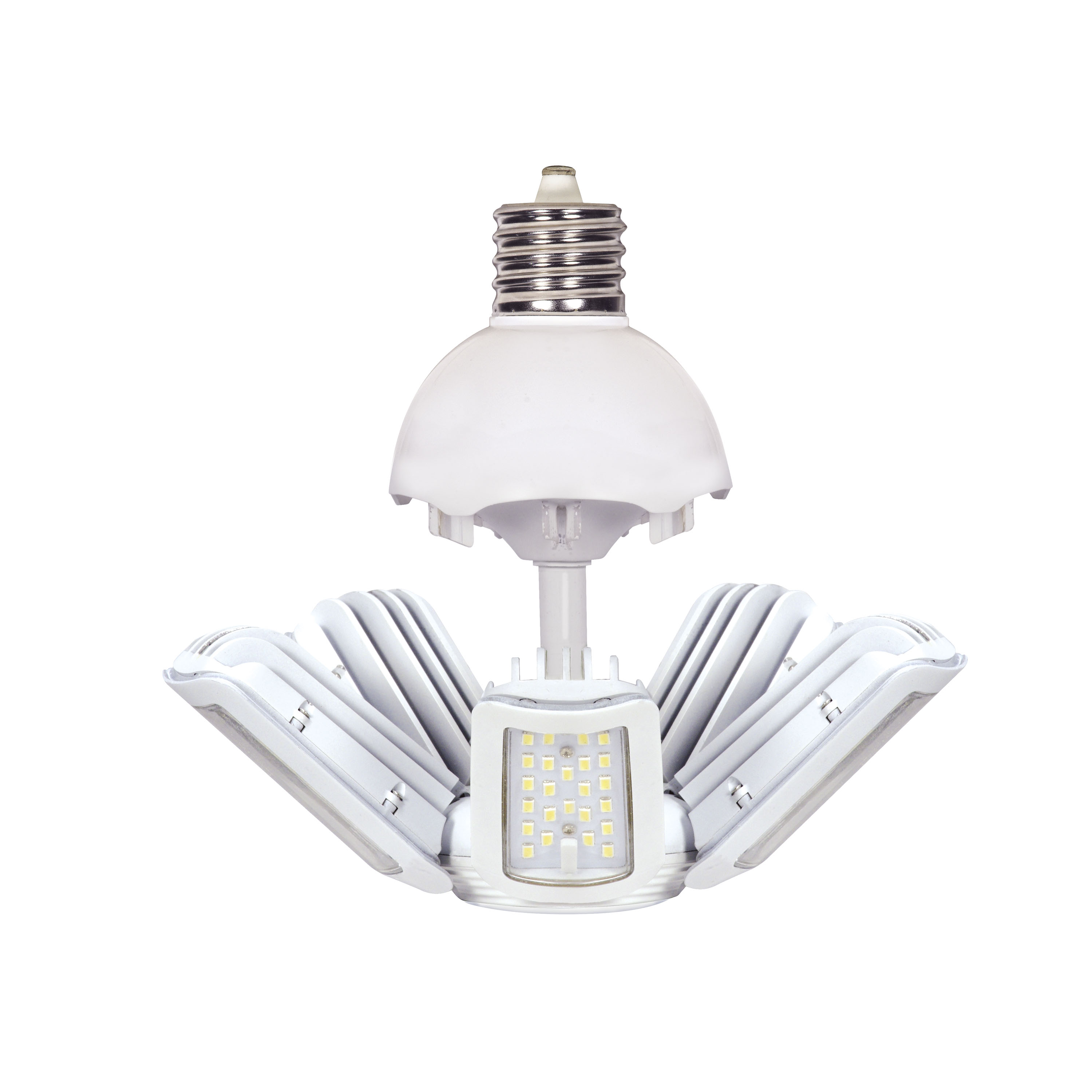

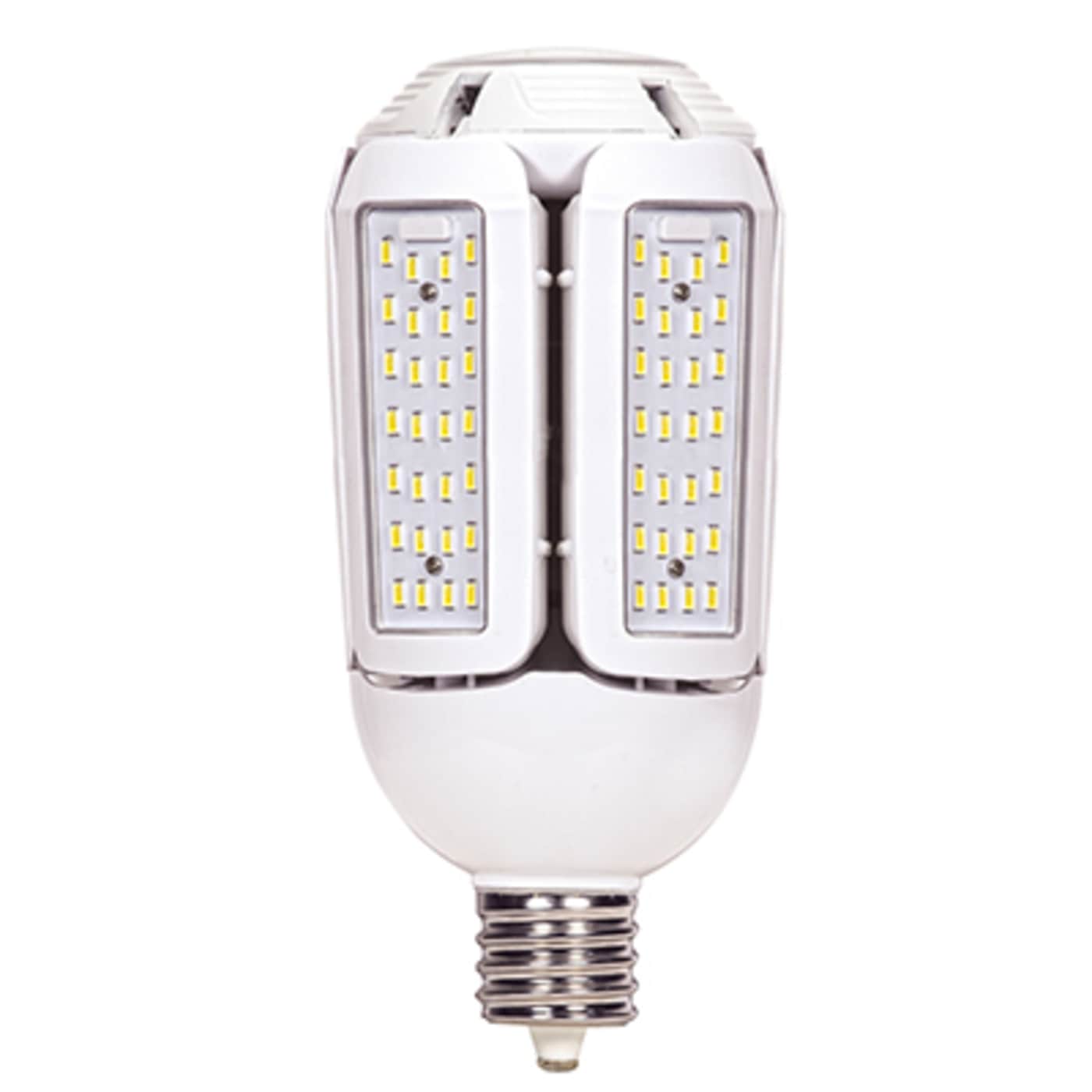

90W/LED/HID/MB/5000K/100-277V - S29679
90W/LED/HID/MB/5000K/100-277V - S29679
S29679

90W/LED/HID/MB/5000K/100-277V

Discontinued - Suggested Replacement: S39679
  • 90 Watt LED HID Replacement
  • 5000K
  • Mogul Extended base
  • Adjustable beam angle
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29679 SpecificationsS29679 Photometrics.iesS29679 Instructions.pdf
Tools
Lighting Layout Analysis For S29679
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
90 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
Fixture TypeCorncob
StatusDiscontinued
Most Current GenerationS39679
Surge ProtectionBuilt-in surge protection - 4KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoWidth 360 deg 4.91 in.; Width 270 deg 10.87 in.; Width 180 deg 12.60 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Amps0.900-0.325A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 22 in. Width: 17 in. Depth: 17 in.
Operating PositionBase Up or Down
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv200W
Incandescent Equivalent750W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent600W
Lumens11700L
Volts120V-277V
Watts90W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps4.94
MOL10.03
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923296796
Case Cube1.9444
Case Height12.2
Case Length20.28
Case Quantity6
Case UPC10045923296793
Case Weight29.1
Case Width13.58
EA Cube0.2792
EA Height11.42
EA Length6.5
EA Quantity1
EA Weight4.47
EA Width6.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.03
Web Width4.94
