S29713

8.5WLED/RDL/4/27K/120V

Discontinued - Suggested Replacement: S11800R1
  • 8.5 watt LED Downlight Retrofit
  • 4"
  • 2700K
  • 120 volts
  • Dimmable
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S29713 SpecificationsS29713 Photometrics.iesSA2331 LED 4inch Downlight Retrofits V2 3 18.pdf
Tools
Lighting Layout Analysis For S29713
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

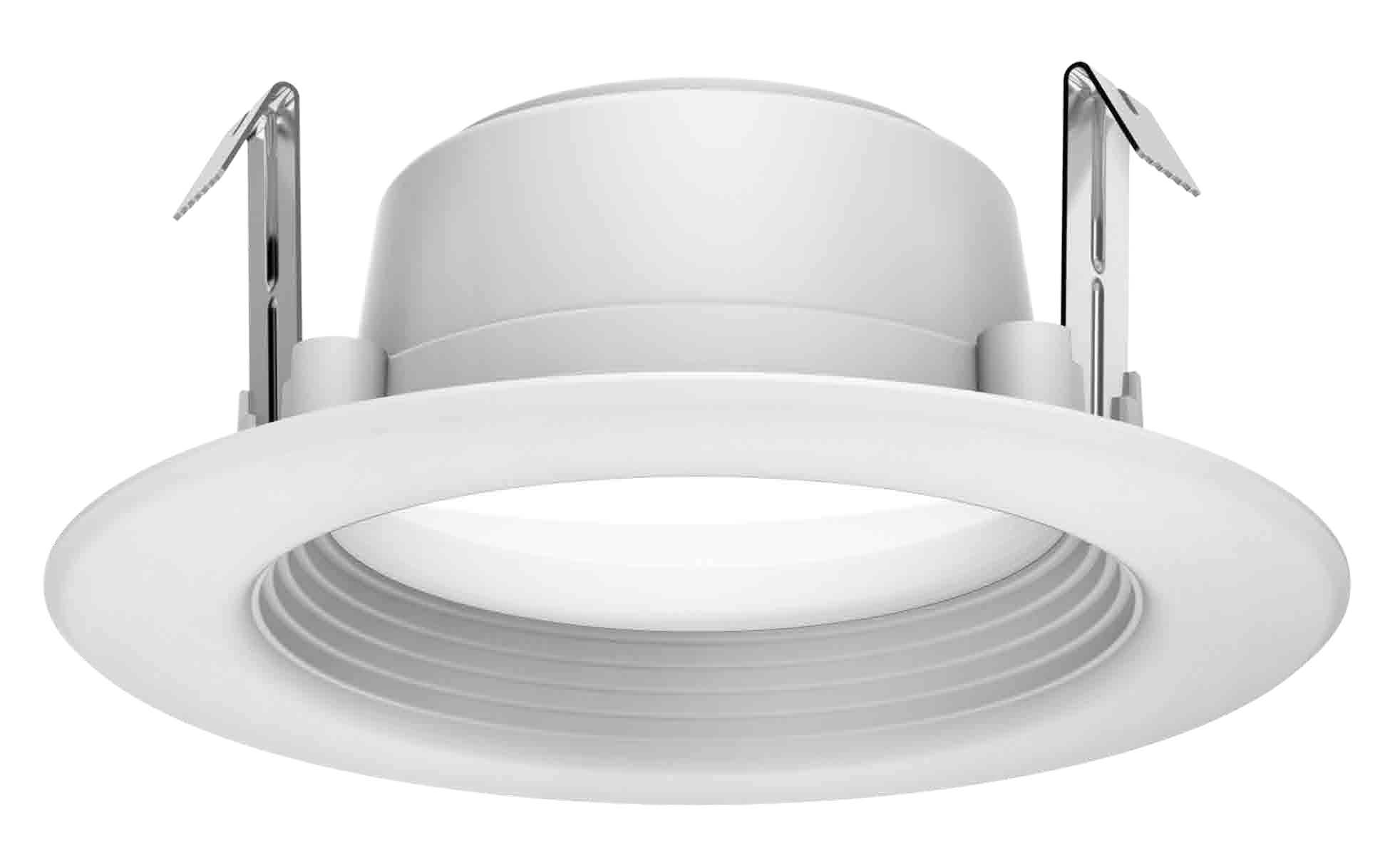

8.5 watt LED Downlight Retrofit; 4"; 2700K; 120 volts; Dimmable
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter5.31
MaterialThermo Plastic (PBT)
Fixture TypeDownlight Retrofit
StatusDiscontinued
StyleContemporary
Most Current GenerationS11800R1
CCT SelectableFalse
Wattage SelectableFalse
Can Size4 in.
Finish FamilyWhite
Additional InfoTrim material is Thermo Plastic; Trim color is white
Amps0.071A
Has CameraFalse
IOT EnabledFalse
Power Factor0.74
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable or Triac
Operating Temp-20C (-4F) to +40C (+104F)
Lumens600L
Volts120v
Watts8.5W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA RegulationsT20 Non-Compliant - LPW <80
CA Prop 65Lead
CA StatusNon-Compliant
FCC CompliantTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextNon-Compliant
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923297137
Case Cube1.1836
Case Height7.09
Case Length24.02
Case Quantity16
Case UPC10045923297134
Case Weight5.29
Case Width12.01
EA Cube0.0505
EA Height5.91
EA Length5.51
EA Quantity1
EA Weight0.55
EA Width2.68
Inner Cube0.2411
Inner Height6.3
Inner Length11.42
Inner Quantity4
Inner UPC20045923297131
Inner Weight1.32
Inner Width5.79
Pack TypeBox
Web Height2.88
Web Width5.31
