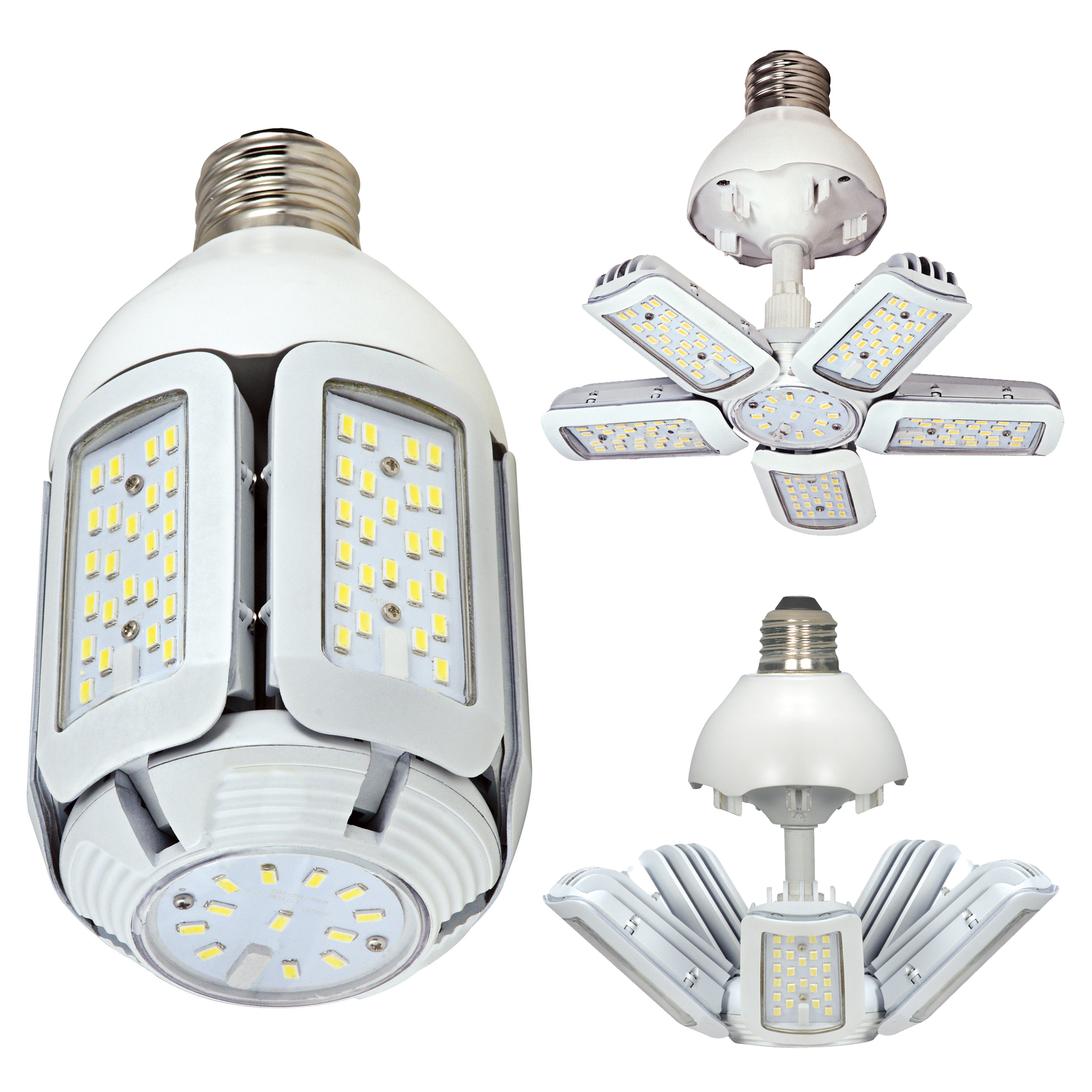

30W/LED/HID/MB/5000K/100-277V - S29750
S29750

30W/LED/HID/MB/5000K/100-277V

Discontinued - Suggested Replacement: S39750
  • 30 Watt LED HID Replacement
  • 5000K
  • Medium base
  • Adjustable beam angle
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

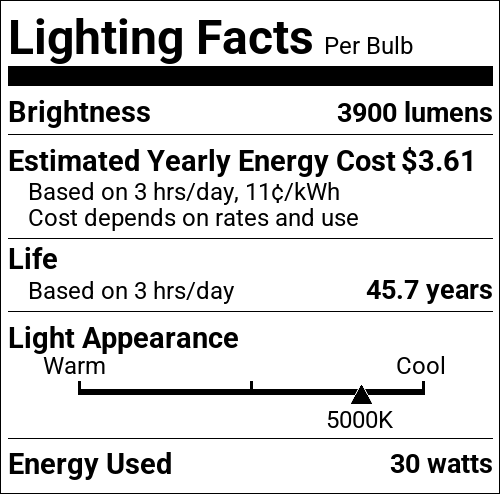

S29750 SpecificationsS29750 Photometrics.iesS29750 Instructions.pdfS29750 Lighting Facts Label
Tools
Lighting Layout Analysis For S29750
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
30 Watt LED HID Replacement; 5000K; Medium base; Adjustable beam angle; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Most Current GenerationS39750
Surge ProtectionBuilt-in surge protection - 2KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoWidth 360 deg 3.2 in.; Width 270 deg 6.8 in.; Width 180 deg 7.7 in.
Amps0.300-0.108A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 11 in. Width: 8 in. Depth: 8 in.
Operating PositionBase Up or Down
Power Factor>0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv55W
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
HID Equivalent150W
Lumens3900L
Volts120V-277V
Watts30W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhite
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps3.19
MOL6.38
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Arms fully open diameter is 7.69 inches
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923297502
Case Cube2.6045
Case Height18.11
Case Length18.3
Case Quantity24
Case UPC10045923297509
Case Weight40.79
Case Width13.58
EA Cube0.0765
EA Height7.6
EA Length4.17
EA Quantity1
EA Weight1.45
EA Width4.17
Inner Cube0.5562
Inner Height8.3
Inner Length13.07
Inner Quantity6
Inner UPC20045923297506
Inner Weight9.92
Inner Width8.86
Pack TypeBox
Web Length6.38
Web Width3.19
