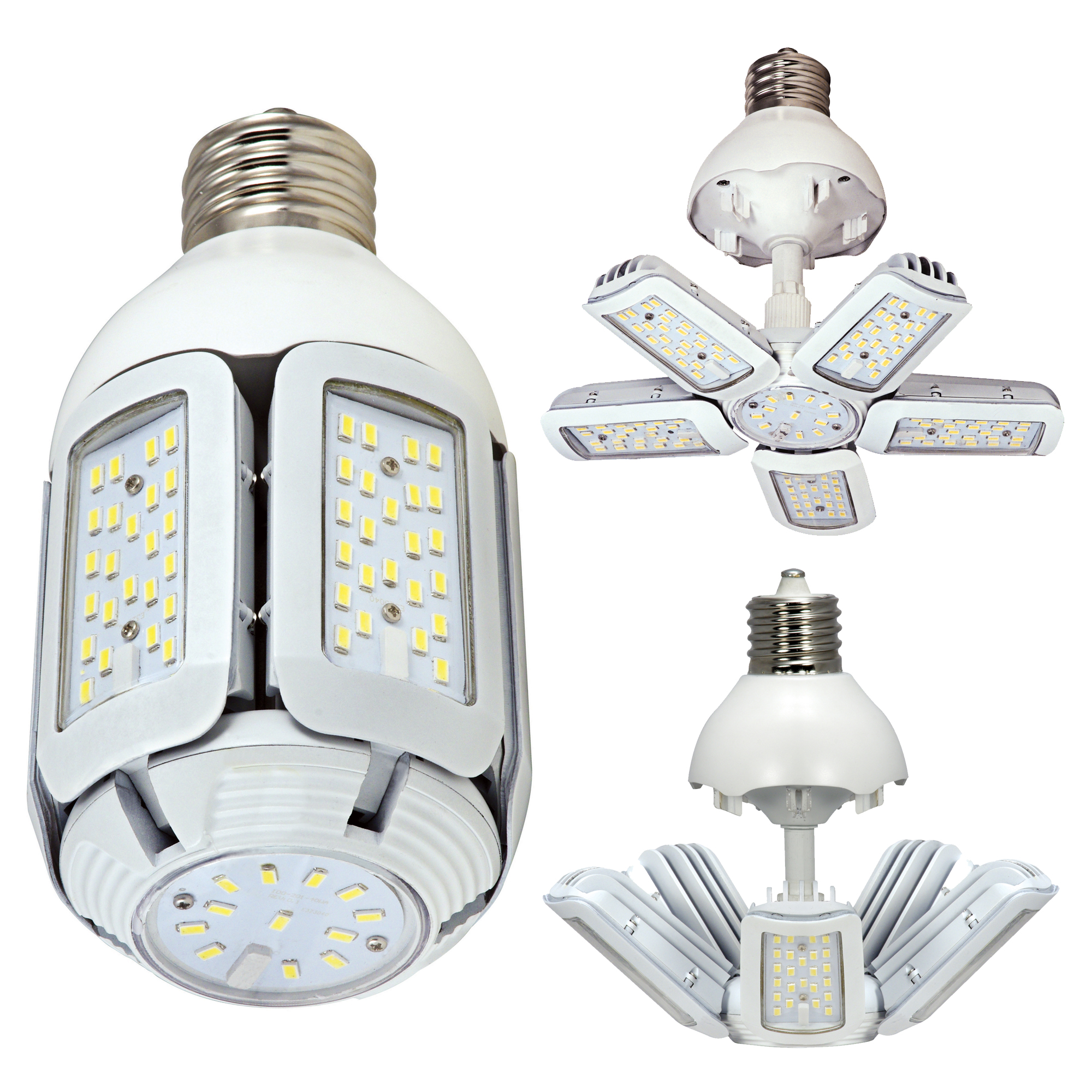

60W/LED/HID/MB/5000K/100-277V - S29752
S29752

60W/LED/HID/MB/5000K/100-277V

Discontinued - Suggested Replacement: S39752
  • 60 Watt LED HID Replacement
  • 5000K
  • Mogul extended base
  • Adjustable beam angle
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29752 SpecificationsS29752 Photometrics.iesS29752 Instructions.pdf
Tools
Lighting Layout Analysis For S29752
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
60 Watt LED HID Replacement; 5000K; Mogul extended base; Adjustable beam angle; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Most Current GenerationS39752
Surge ProtectionBuilt-in surge protection - 2.5KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoWidth 360 deg 3.8 in.; Width 270 deg 8.2 in.; Width 180 deg 9.3 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Amps0.600-0.217A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionBase Up or Down
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv85W
Incandescent Equivalent500W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
HID Equivalent250W
Lumens7800L
Volts120V-277V
Watts60W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps3.81
MOL8.56
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Arms fully open diameter is 9.31 inches
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923297526
Case Cube2.0906
Case Height10.43
Case Length21.46
Case Quantity12
Case UPC10045923297523
Case Weight34.52
Case Width16.14
EA Cube0.1278
EA Height8.98
EA Length4.96
EA Quantity1
EA Weight2.45
EA Width4.96
Inner Cube0.8801
Inner Height9.45
Inner Length15.43
Inner Quantity6
Inner UPC20045923297520
Inner Weight15.87
Inner Width10.43
Pack TypeBox
Web Length8.56
Web Width3.81
