» S29761

Discontinued – Suggested Replacement: S39760

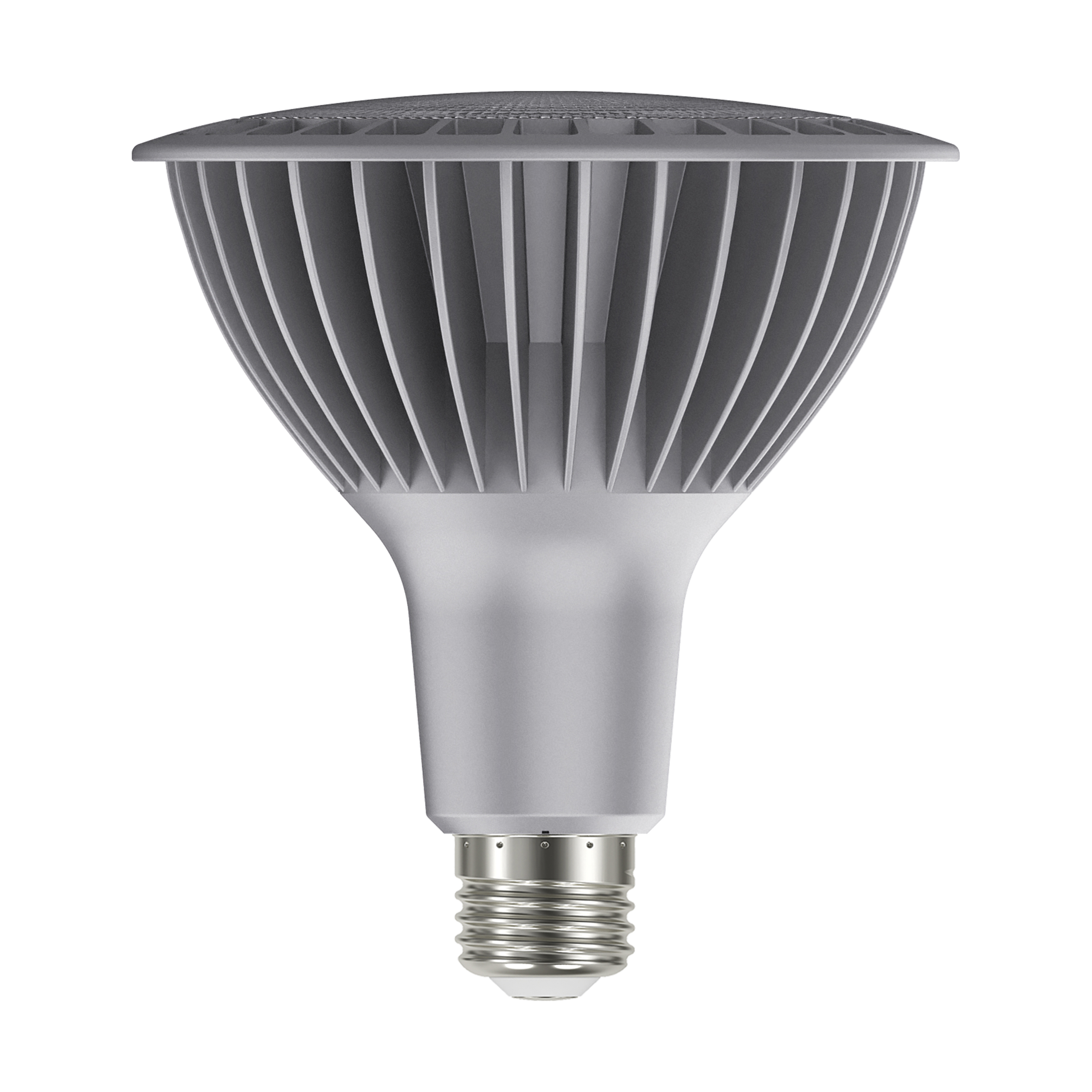

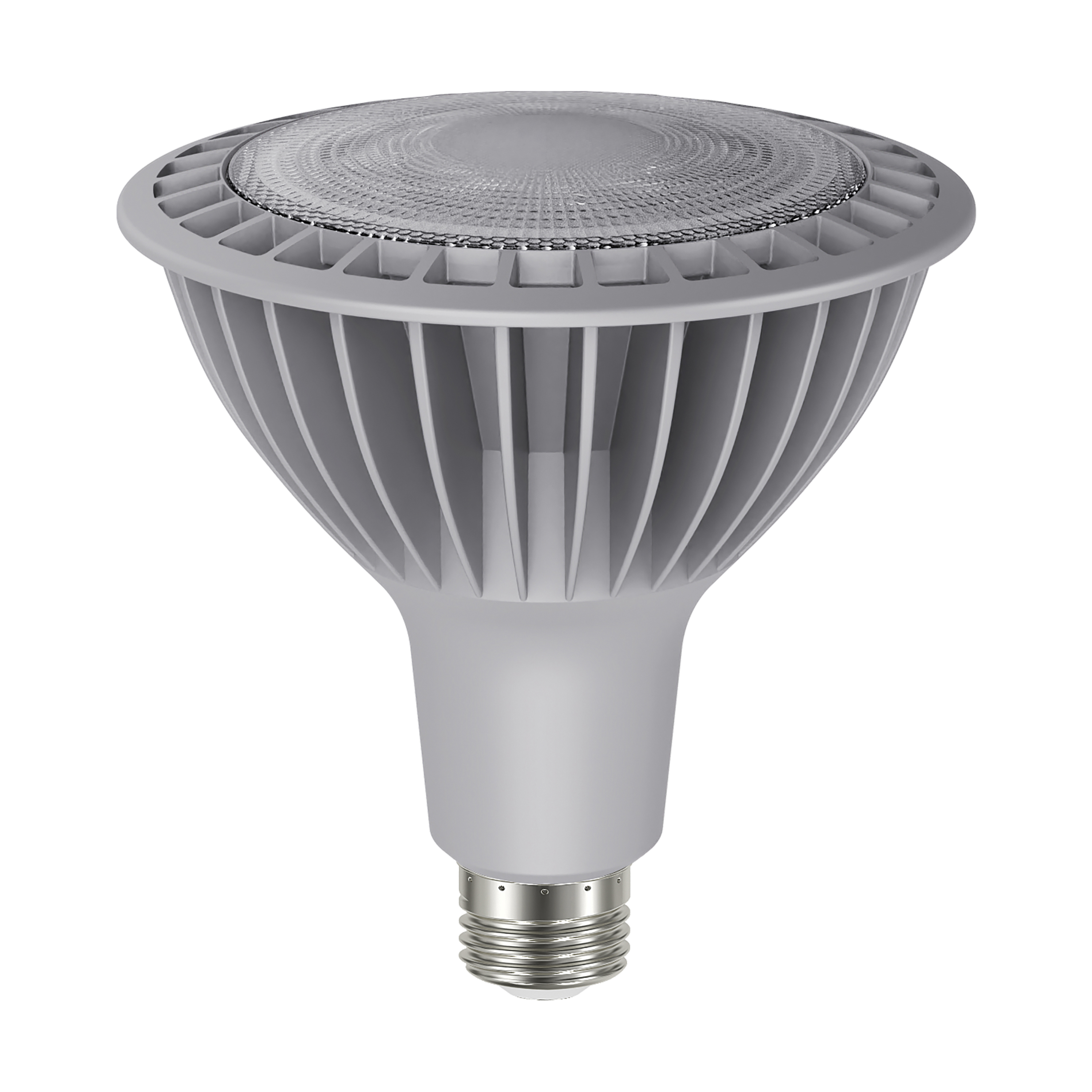

S29761 27PAR38/LED/940/HL/120-277V

S29761

27PAR38/LED/940/HL/120-277V

27 Watt; LED PAR38; 4000K; 40 deg. Beam Angle; Medium base; 100-277 Volt


Lights

S29761

27PAR38/LED/940/HL/120-277V

27 Watt; LED PAR38; 4000K; 40 deg. Beam Angle; Medium base; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS39760
Watts27W
Incandescent Equivalent250W
Volts120V-277V
ShapePAR38
BaseMedium
ANSI BaseE26
FinishSilver
CCT (Kelvin)4000K
TemperatureCool White
CRI90+

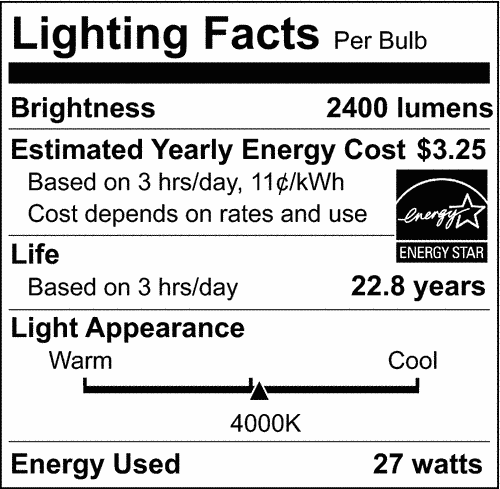

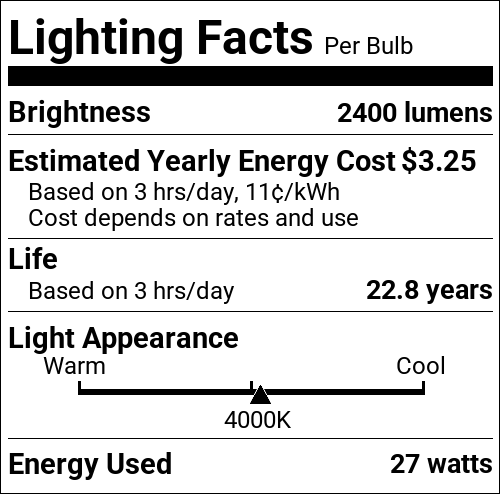

Lumens2400L
Beam Spread40
DimmableNon-Dimmable
Hours Rated25000
Product CategoryPAR
Lamp TypePAR
TechnologyLED
Electrical
Watts27W
Incandescent Equivalent250W
Volts120V-277V
Operating Frequency60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI90+
Lumens2400L

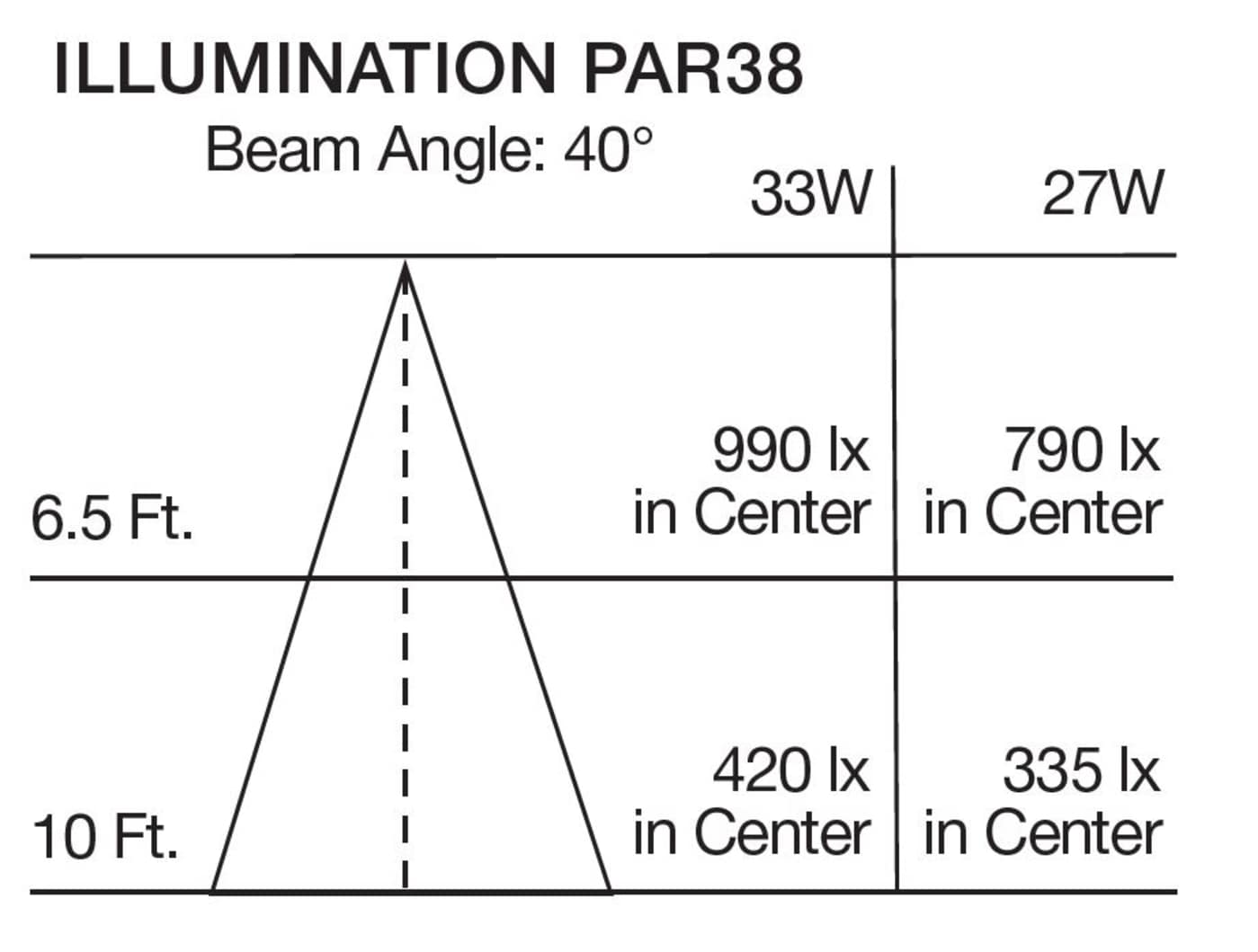

CBCP3272
Beam Spread40
Spot TypeFL - Flood
DimmableNon-Dimmable
Power Factor0.9
Hours Rated25000
Operating Temperature-20C (-4F) to +45C (+113F)

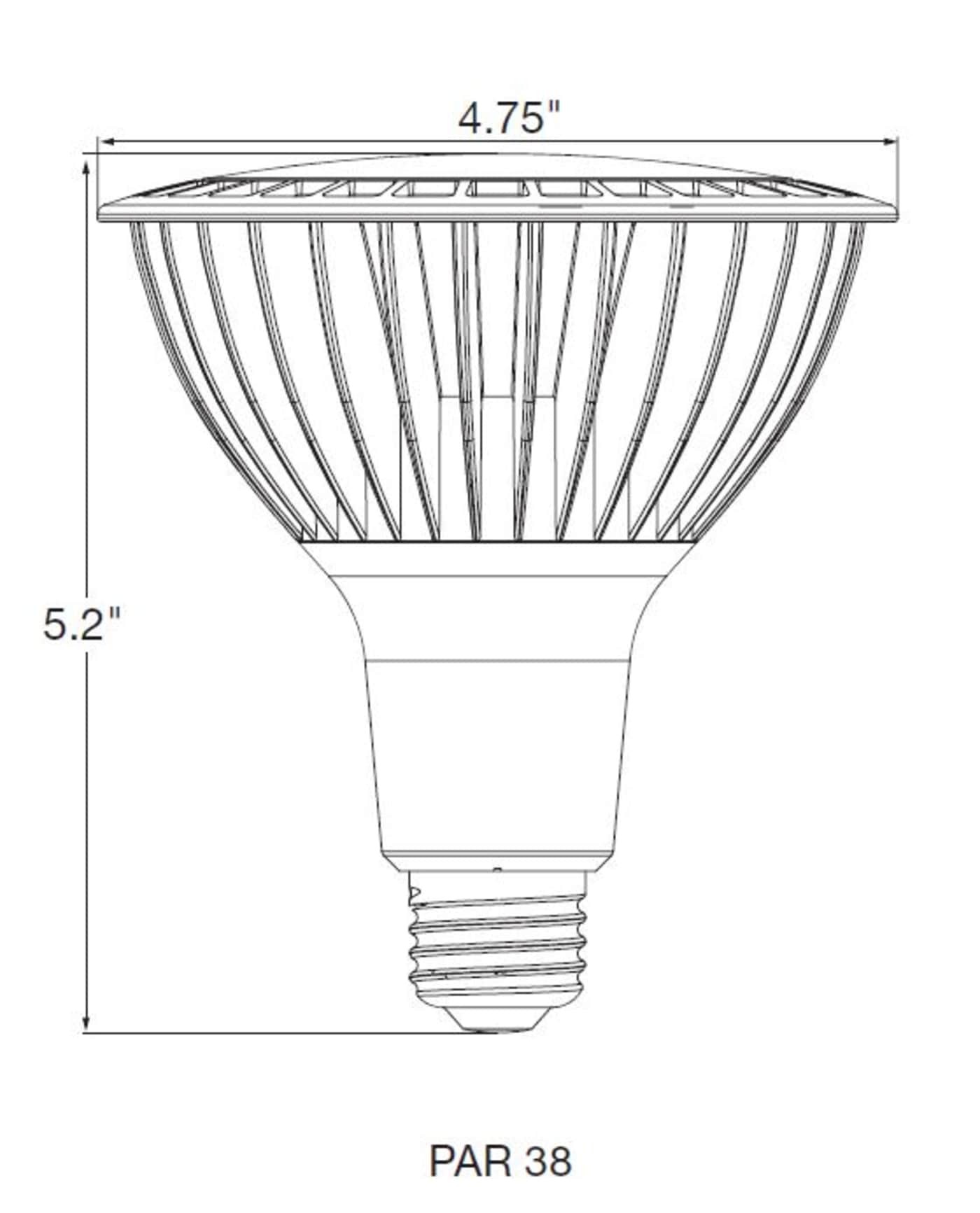

Physical

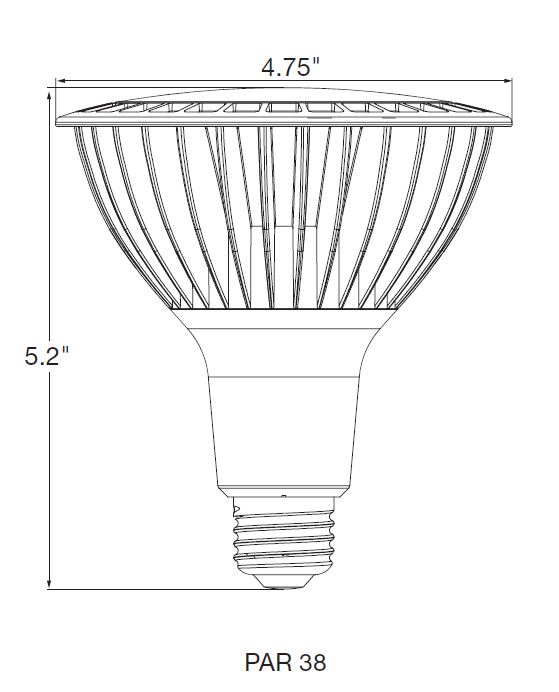

MOL5.12
MOD4.76
ShapePAR38
BaseMedium
ANSI BaseE26
FinishSilver
LensedLensed Lamp
Lens FinishGray
Lens MaterialThermo Plastic (PBT)
Weight (lb.)0.91
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Years
Compliance
Safety ListingcULus - Certified; cULus - Listed
Location RatingWet
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923297618
Each Quantity1
Each Length (in.)4.88
Each Width (in.)4.88
Each Height (in.)5.71
Each Weight (lb.)1.12
Each Cube (CuFt.)0.0787
Pack TypeBox
Inner UPC20045923297612
Inner Quantity6
Inner Length (in.)15.16
Inner Width (in.)10.23
Inner Height (in.)6.10
Inner Weight (lb.)7.13
Inner Cube (CuFt.)0.5475
Case UPC10045923297615
Case Quantity12
Case Length (in.)21.06
Case Width (in.)15.75
Case Height (in.)6.89
Case Weight (lb.)15.65
Case Cube (CuFt.)1.3226
