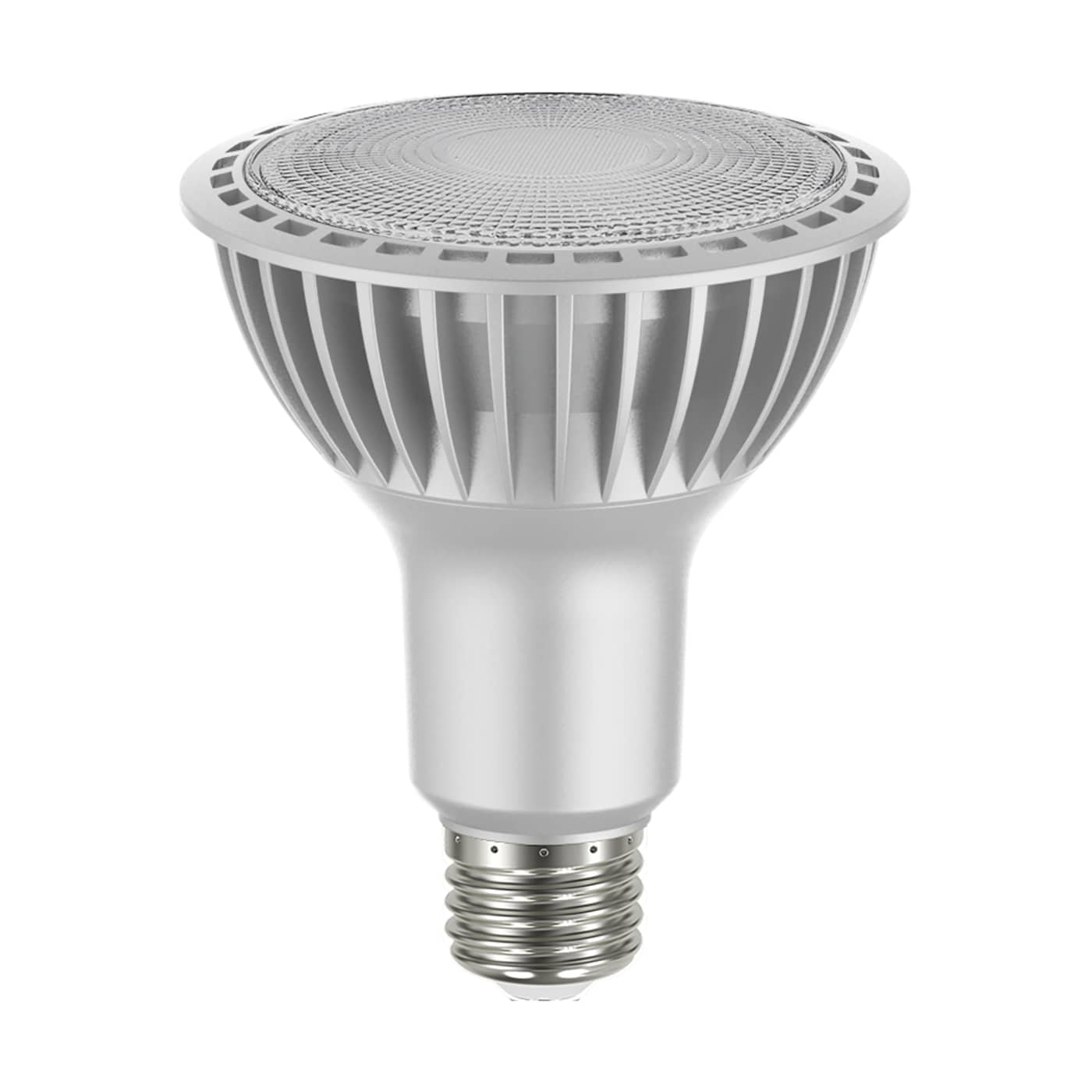

S29764

21.5PAR30LN/LED/930/HL/120-277

Discontinued - Suggested Replacement: S39764
  • 21.5 Watt
  • LED PAR30 Long Neck
  • 3000K
  • 40 deg. Beam Angle
  • Medium base
  • 120-277 Volt
title_20^y^1
location_rating^wet^2
cri^90+^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
beam_angle^40^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29764 SpecificationsNEW! HIGH LUMEN LED PAR LAMPS
Description
Description

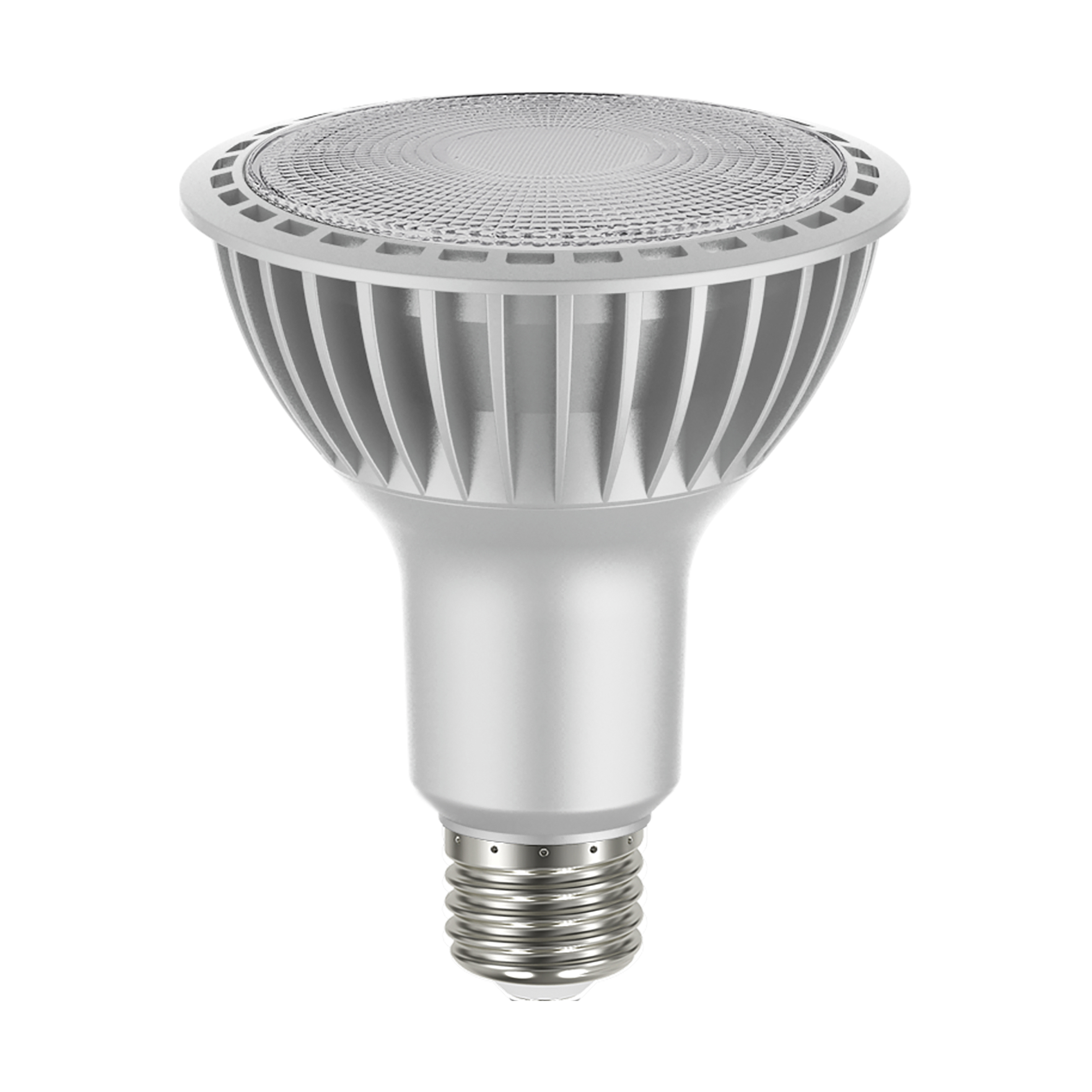

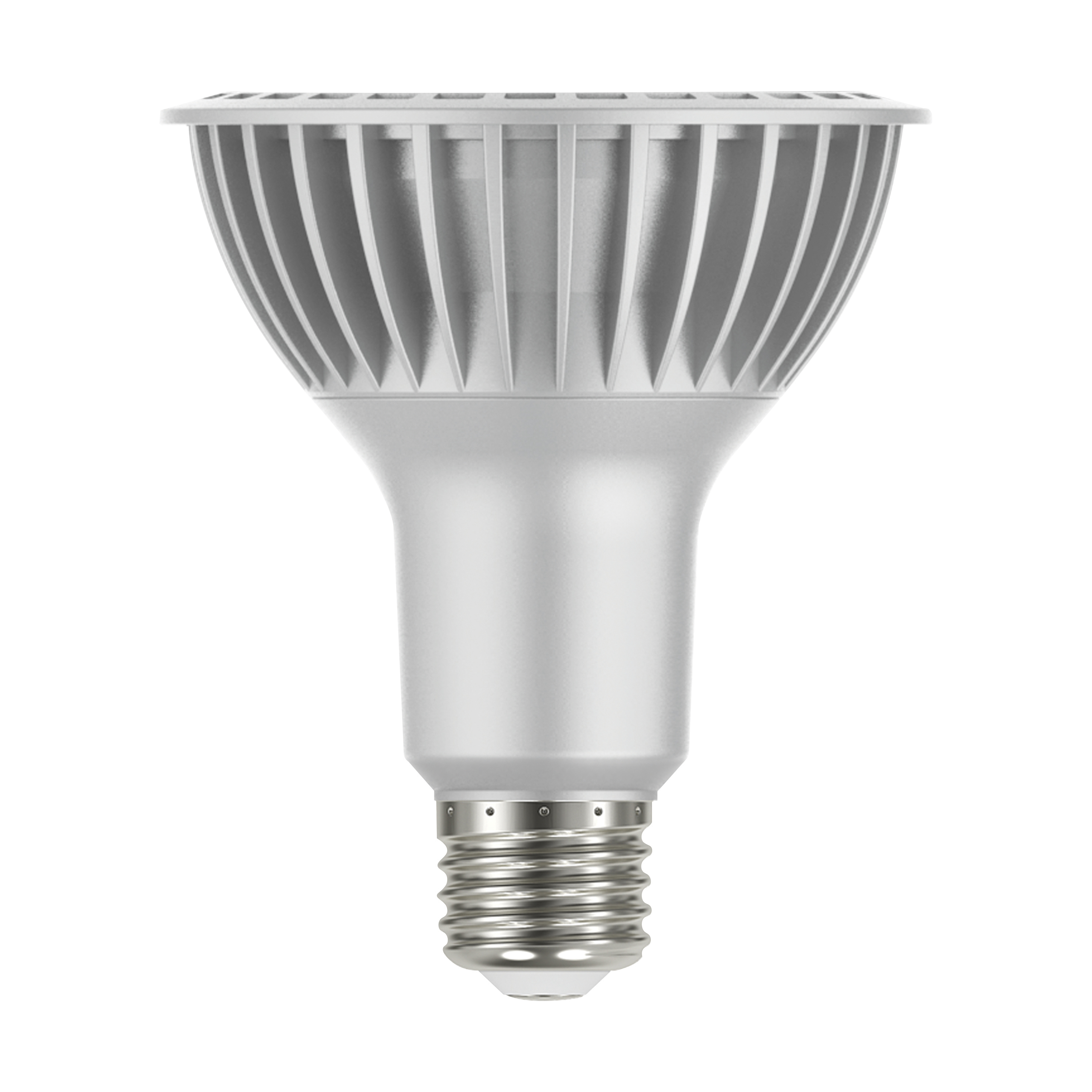

21.5 Watt; LED PAR30 Long Neck; 3000K; 40 deg. Beam Angle; Medium base; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialAluminum / Thermo Plastic (PBT)
Fixture TypePAR
Spot TypeFL - Flood
StatusDiscontinued
StyleUtility
Most Current GenerationS39764
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilySilver
Amps0.179-0.078A
Has CameraFalse
IOT EnabledFalse
Lens FinishGray
Lens MaterialThermo Plastic (PBT)
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated25000

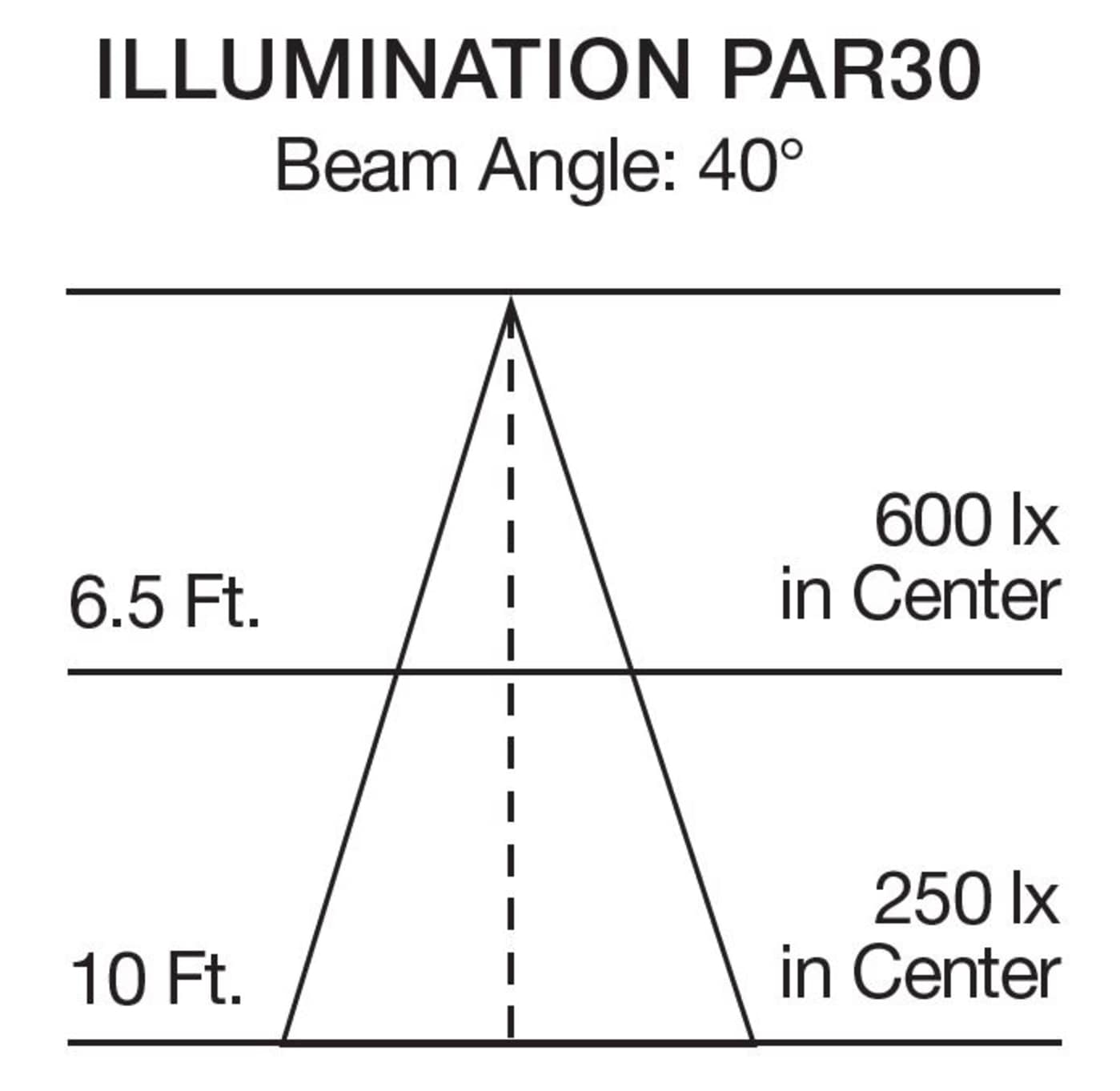

Beam Angle (degree)40
Color TempWarm White
CRI90+
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

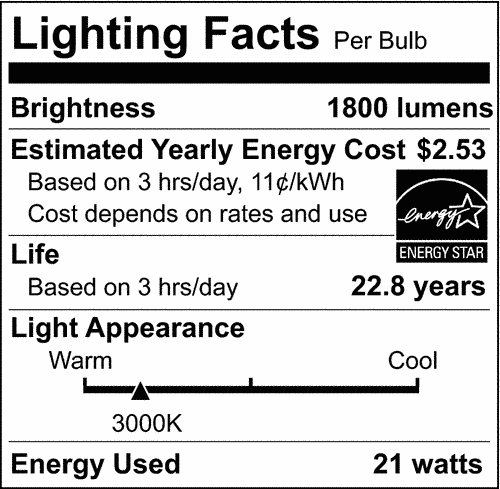

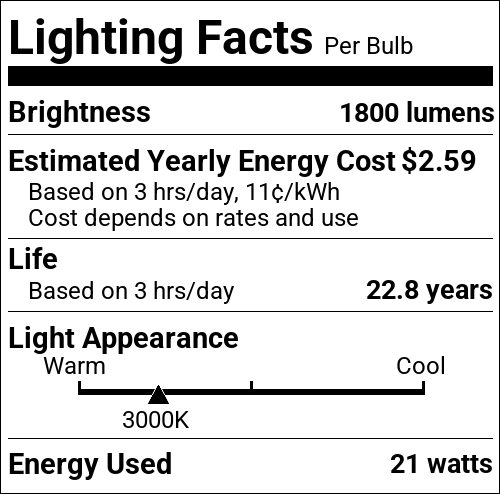

Lumens1800L
Volts120V-277V
Watts21.5W
Physical
Lamp BaseMedium
FinishSILVER
ANSI BaseE26
Lamp TypePAR30LN

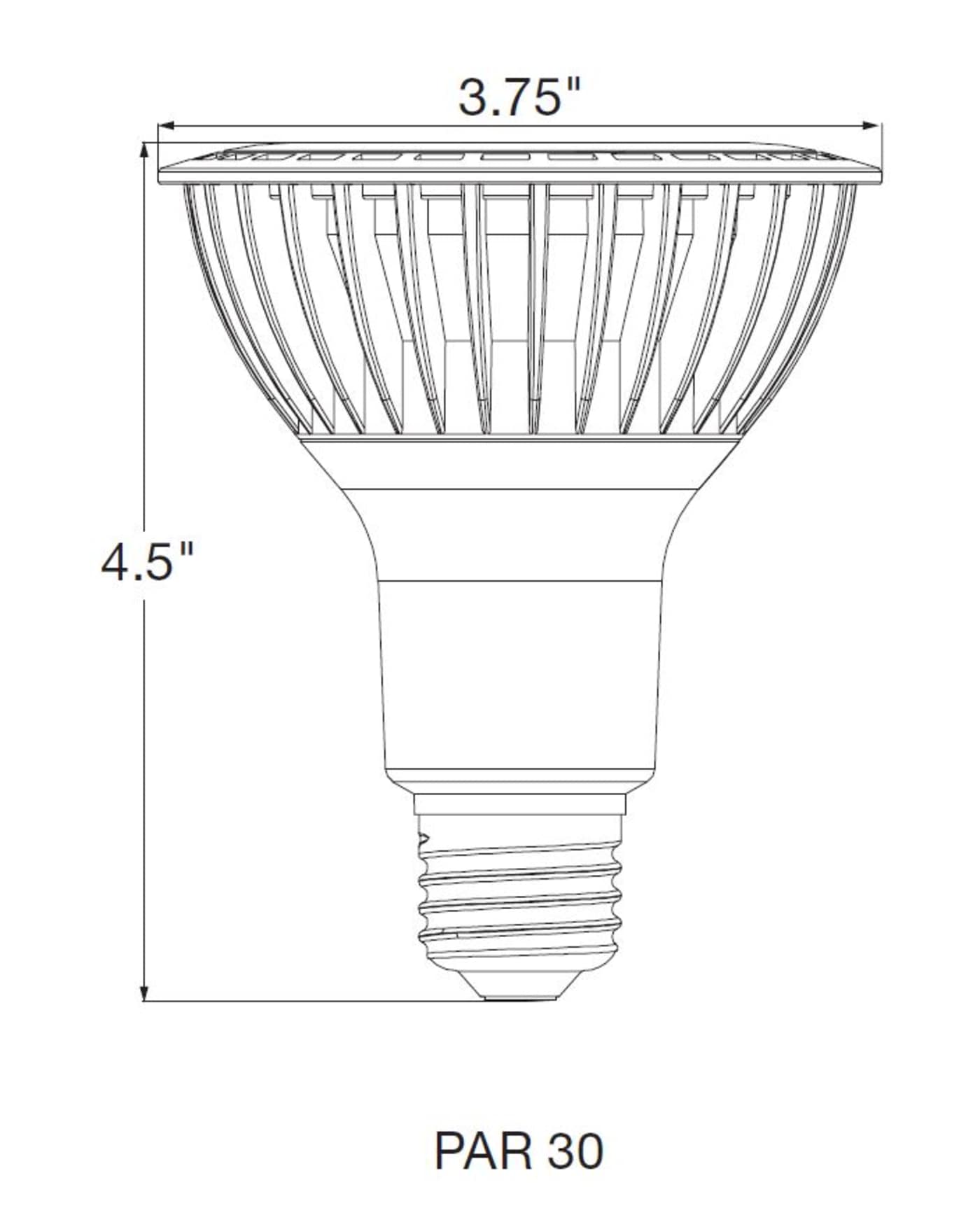

MOD Lamps3.74
MOL4.45
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsT20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingWet
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923297649
Case Cube0.721
Case Height5.91
Case Length16.73
Case Quantity12
Case UPC10045923297646
Case Weight9.37
Case Width12.6
EA Cube0.0399
EA Height4.72
EA Length3.82
EA Quantity1
EA Weight0.66
EA Width3.82
Inner Cube0.2869
Inner Height5.12
Inner Length12.0
Inner Quantity6
Inner UPC20045923297643
Inner Weight4.23
Inner Width8.07
Pack TypeBox
Web Length4.45
Web Width3.74
