| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| CA Regulations | Exempt - Base Not Regulated |
| Lamp Filament | LED |
| Material | Aluminum / Plastic |

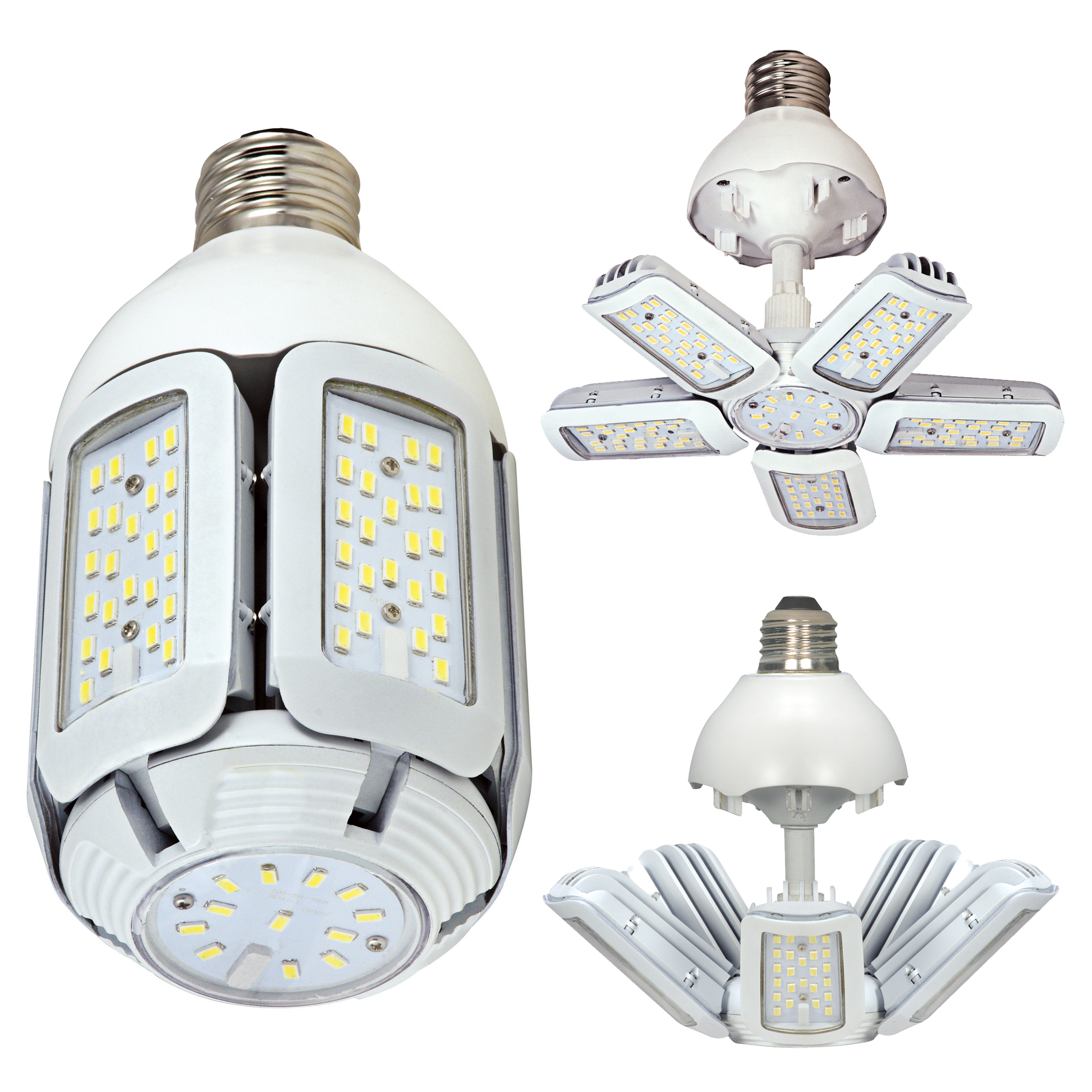

| Fixture Type | Corncob |
| Status | Discontinued |
| Style | Contemporary |
| Most Current Generation | S39798 |
| Surge Protection | Built-in surge protection - 1KV |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | No Finish |
| Additional Info | Width 360 deg 3.5 in.; Width 270 deg 7.7 in.; Width 180 deg 8.9 in. |
| Amps | 0.400-0.144A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lensed | True |
| Minimum Compartment Size | Length: 8.27 in. Width: 9.25 in. Depth: 9.25 in. |
| Operating Position | Base Up or Down |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 65W |
| Incandescent Equivalent | 300W |
| CCT (Kelvin Temp) | 2700K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Warm White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +65C (+149F) |
| HID Equivalent | 175W |
| Lumens | 4880L |
| Volts | 120V-277V |
| Watts | 40W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | Clear |
| Housing Color | White |
| ANSI Base | EX39 |
| Lamp Type | Corncob |
| MOD Lamps | 3.5 |
| MOL | 7.88 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. Arms fully open diameter is 8.88 inches |
| Rated For Enclosed Fixture | True |
| CA Status | Lawful for sale in California |
|---|---|
| CO Status | Lawful for sale |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| IP Rating | IP65 |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923297984 |
|---|---|
| Case Cube | 1.7711 |
| Case Height | 10.43 |
| Case Length | 19.88 |
| Case Quantity | 12 |
| Case UPC | 10045923297981 |
| Case Weight | 29.96 |
| Case Width | 14.76 |
| EA Cube | 0.1085 |
| EA Height | 8.98 |
| EA Length | 4.57 |
| EA Quantity | 1 |
| EA Weight | 2.17 |
| EA Width | 4.57 |
| Inner Cube | 0.752 |
| Inner Height | 9.45 |
| Inner Length | 14.25 |
| Inner Quantity | 6 |
| Inner UPC | 20045923297988 |
| Inner Weight | 13.82 |
| Inner Width | 9.65 |
| Pack Type | Box |
| Web Length | 7.88 |
| Web Width | 3.5 |
