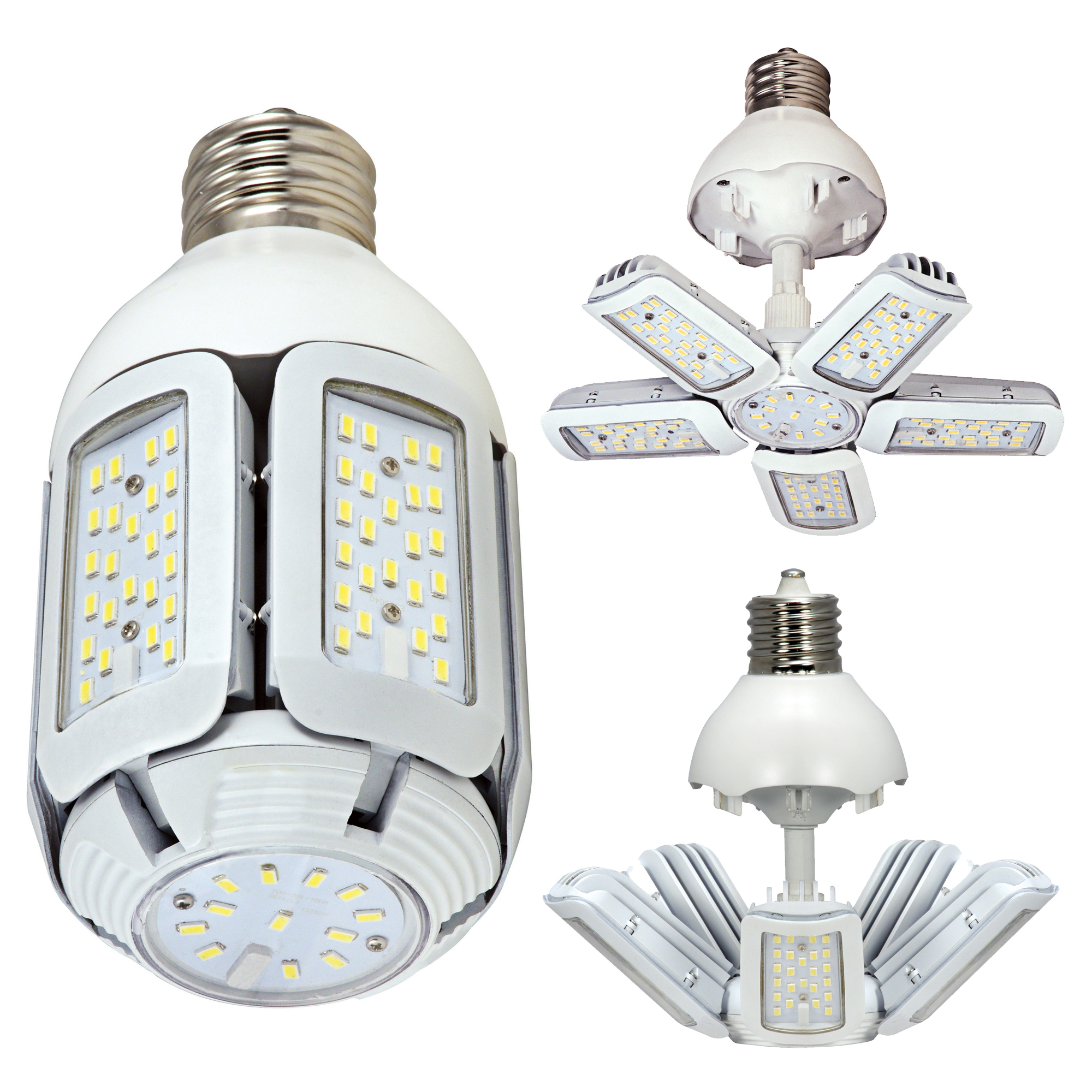

S29799

60W/LED/HID/MB/2700K/100-277V

  • 60 Watt LED HID Replacement
  • 2700K
  • Mogul extended base
  • Adjustable beam angle
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29799 SpecificationsS29799 InstructionsSA2309 - Hi-Pro LED Multi-Beam Lamps V2 PI Sheets 5-20
Tools
Lighting Layout Analysis For S29799
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
60 Watt LED HID Replacement; 2700K; Mogul extended base; Adjustable beam angle; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
CA RegulationsExempt - Base Not Regulated
Lamp FilamentLED
Fixture TypeCorncob
StatusObsolete
Most Current GenerationS39799
Surge ProtectionBuilt-in surge protection - 1KV
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyNo Finish
Additional InfoWidth 360 deg 3.8 in.; Width 270 deg 8.2 in.; Width 180 deg 9.3 in.
Amps0.600-0.217A
Has CameraFalse
IOT EnabledFalse
Lens FinishClear
LensedTrue
Minimum Compartment SizeLength: 8.27 in. Width: 9.25 in. Depth: 9.25 in.
Operating PositionBase Up or Down
Power Factor>0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv85W
Incandescent Equivalent500W
Electrical
CCT (Kelvin Temp)2700K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent250W
Lumens7320L
Volts120V-277V
Watts60W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps3.81
MOL8.56
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. Arms fully open diameter is 10.88 inches
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP65
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923297991
Case Cube2.0906
Case Height10.43
Case Length21.46
Case Quantity12
Case UPC10045923297998
Case Weight34.52
Case Width16.14
EA Cube0.1278
EA Height8.98
EA Length4.96
EA Quantity1
EA Weight2.45
EA Width4.96
Inner Cube0.8801
Inner Height9.45
Inner Length15.43
Inner Quantity6
Inner UPC20045923297995
Inner Weight15.87
Inner Width10.43
Pack TypeBox
Web Length8.56
Web Width3.81
