S29836

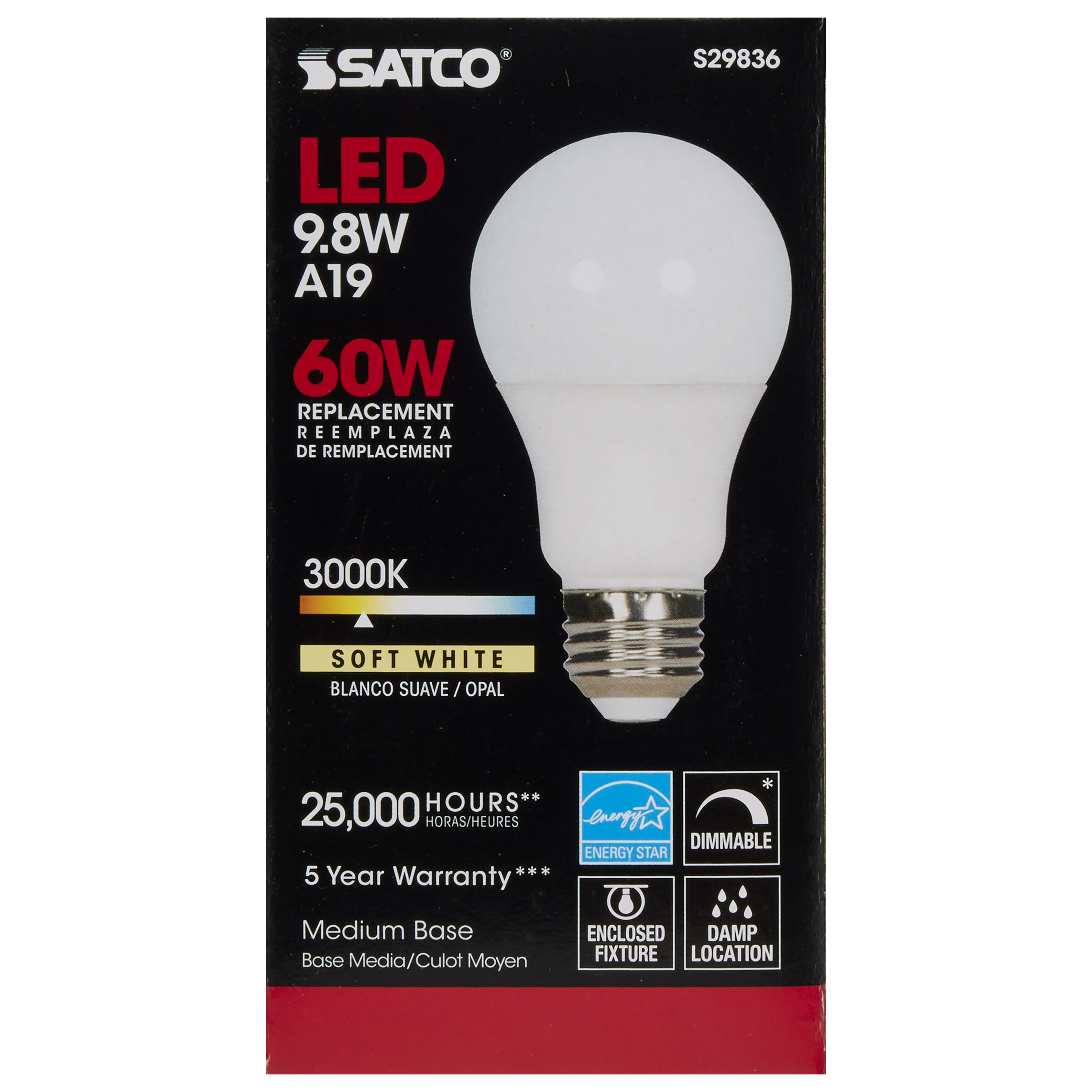

9.8A19/OMNI/220/LED/30K

Discontinued - Suggested Replacement: S39836
  • 9.8 Watt
  • A19 LED
  • 3000K
  • Medium base
  • 220 deg. Beam Angle
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29836 SpecificationsS29836 Photometrics.iesS29836 LFL.pdf
Tools
Lighting Layout Analysis For S29836
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

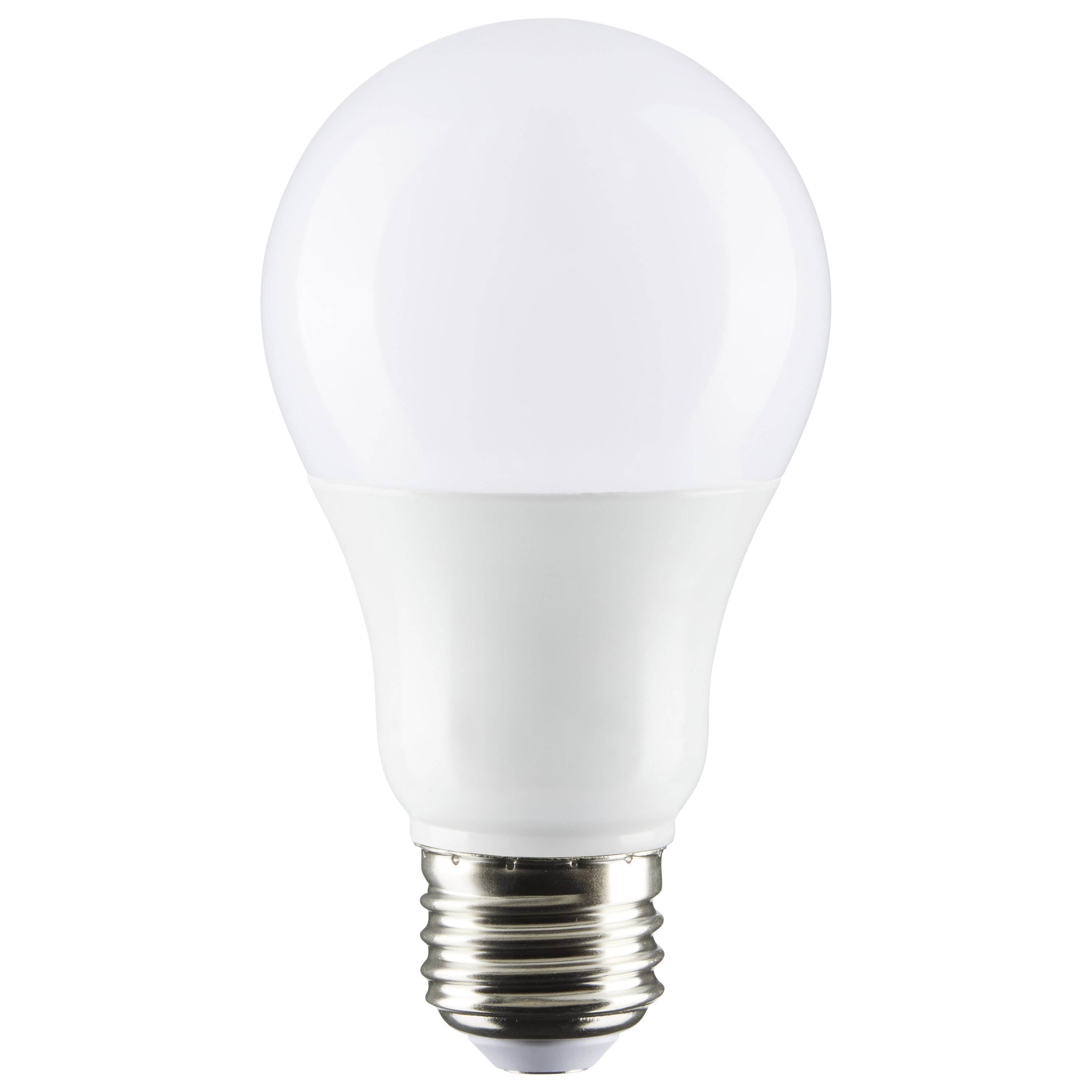

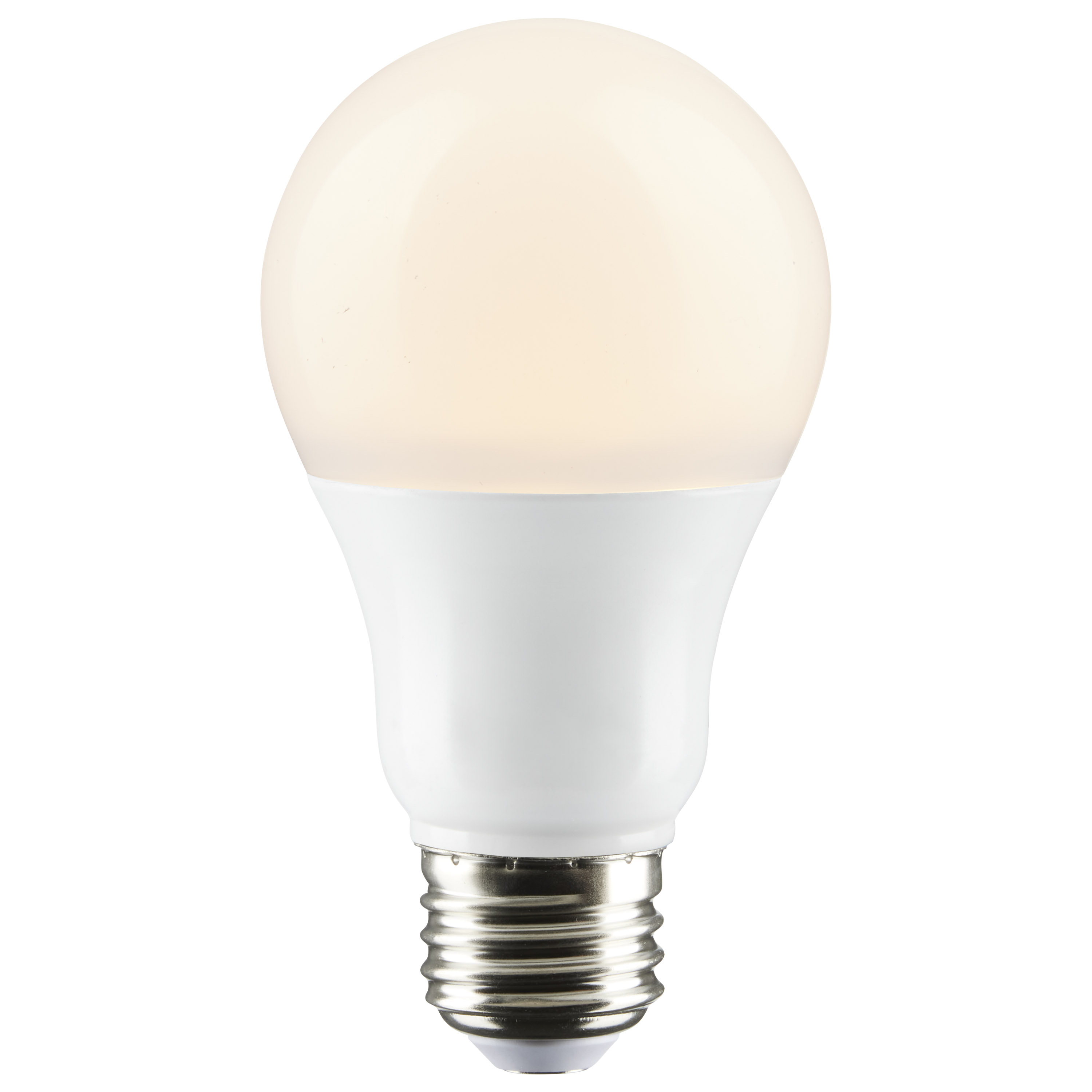

9.8 Watt; A19 LED; 3000K; Medium base; 220 deg. Beam Angle; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusDiscontinued
StyleTraditional
Most Current GenerationS39836
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.082A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
Power Factor0.98
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempSoft White
CRI80+
Dimming TypeReverse Phase or Phase Selectable
Operating Temp-25C (-13F) to +45C (+113F)
Lumens800L
Volts120v
Watts9.8W
Physical
Lamp BaseMedium
FinishFrost
ANSI BaseE26
Lamp TypeA19

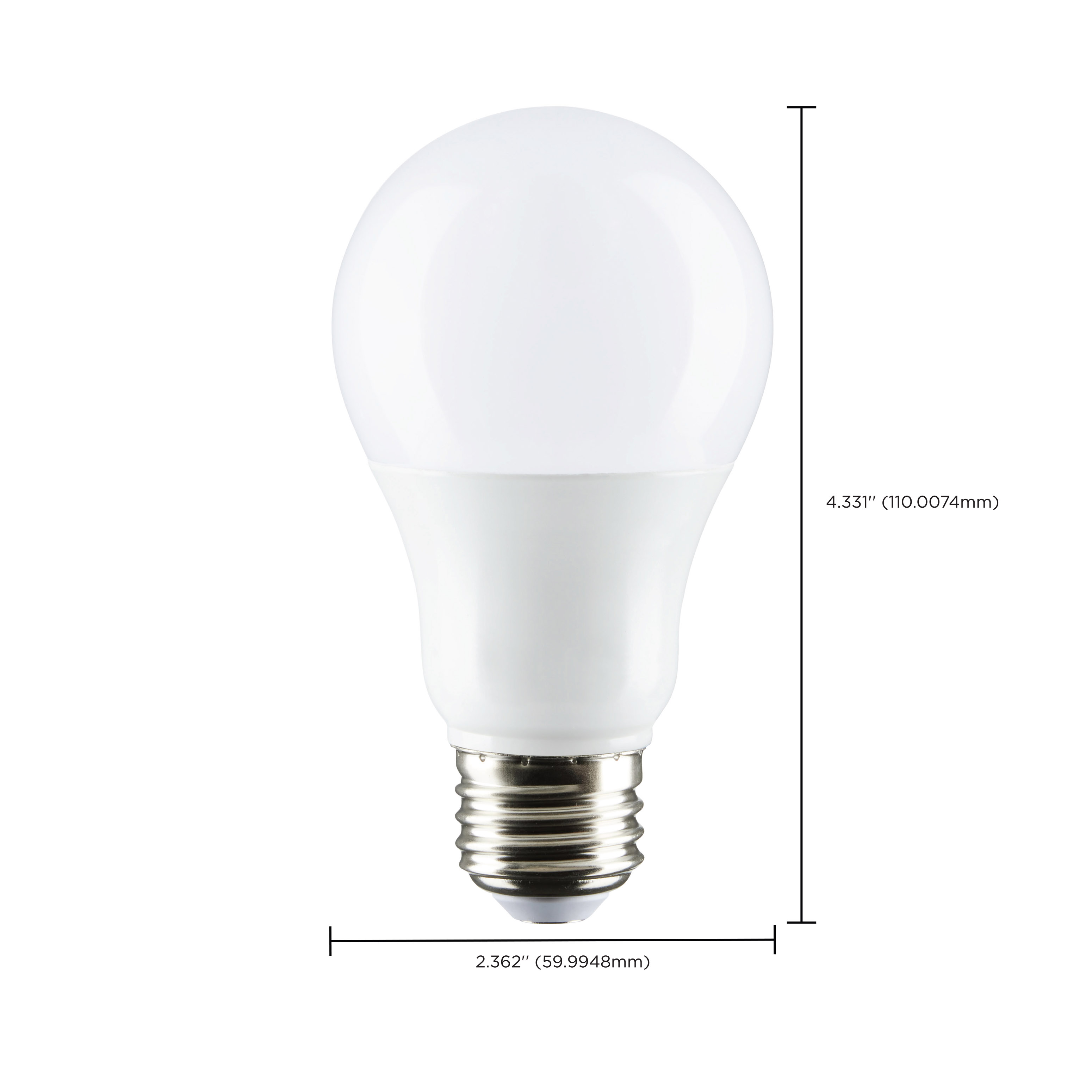

MOD Lamps2.362
MOL4.331
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA T20 Compliant SubstituteS9704
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923298363
Case Cube0.6207
Case Height11.3
Case Length11.22
Case Quantity24
Case UPC10045923298360
Case Weight4.43
Case Width8.46
EA Cube0.0165
EA Height4.8
EA Length2.44
EA Quantity1
EA Weight0.14
EA Width2.44
Inner Cube0.1202
Inner Height5.12
Inner Length7.8
Inner Quantity6
Inner UPC20045923298367
Inner Weight0.99
Inner Width5.2
Pack TypeBox
Web Length4.331
Web Width2.362
