S29838

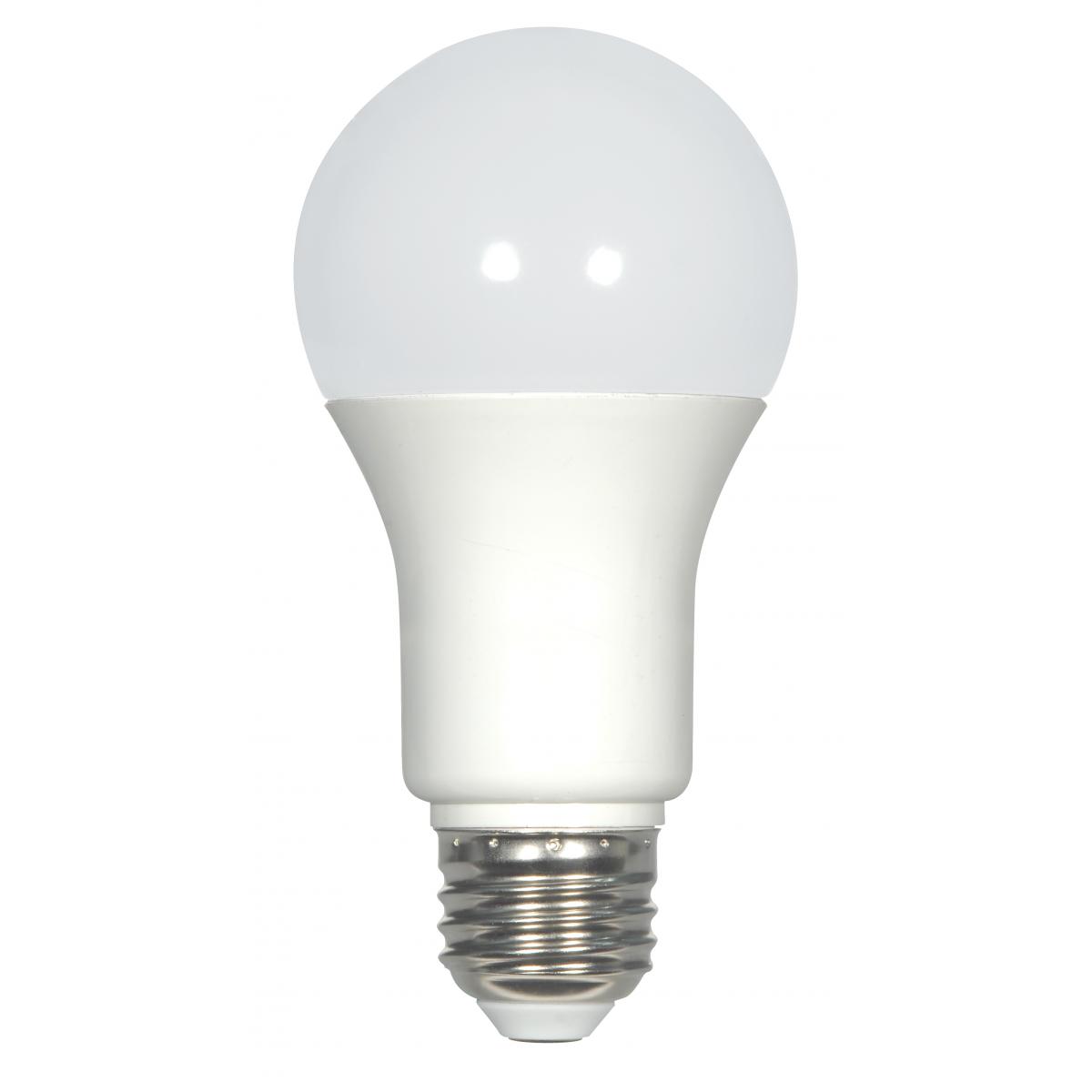

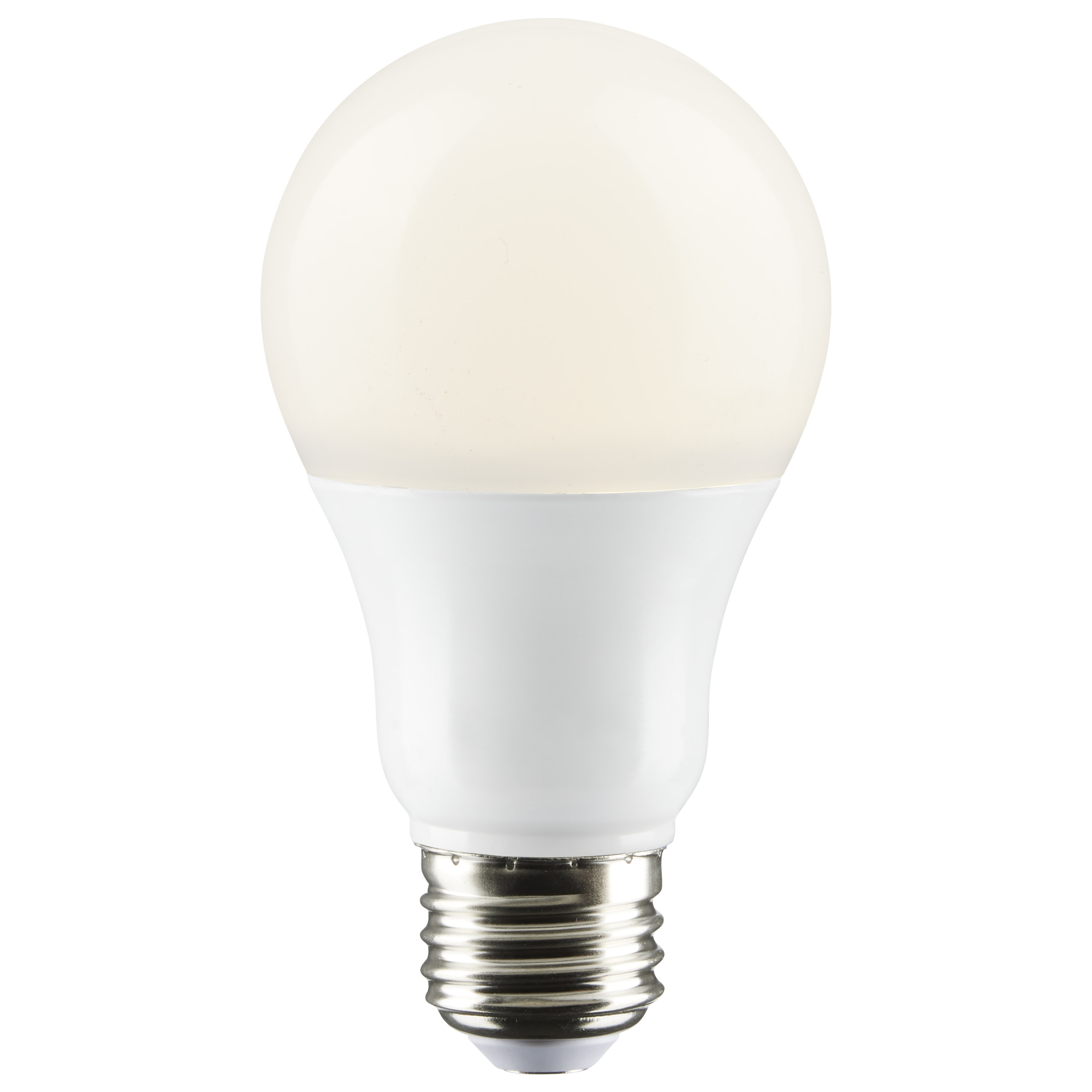

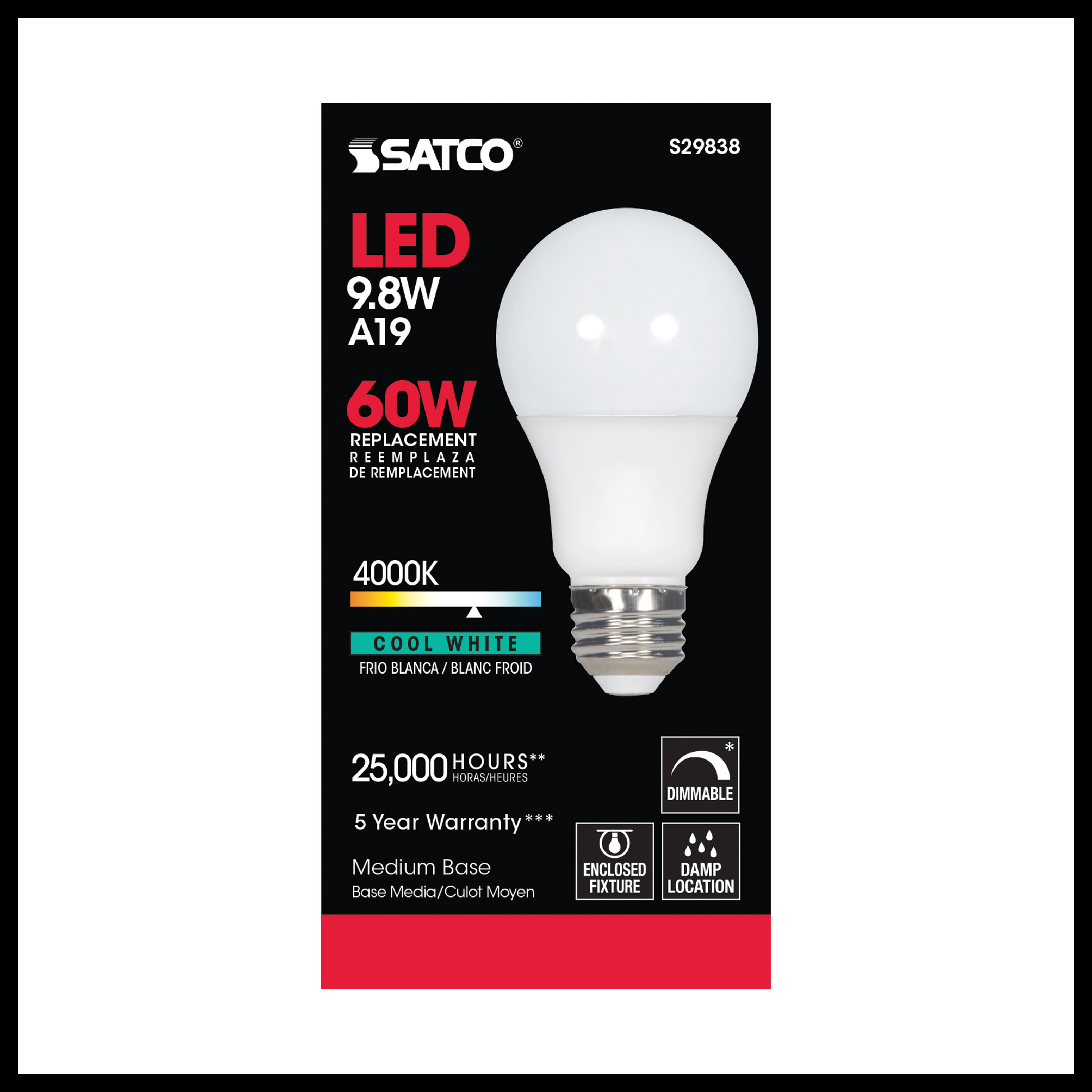

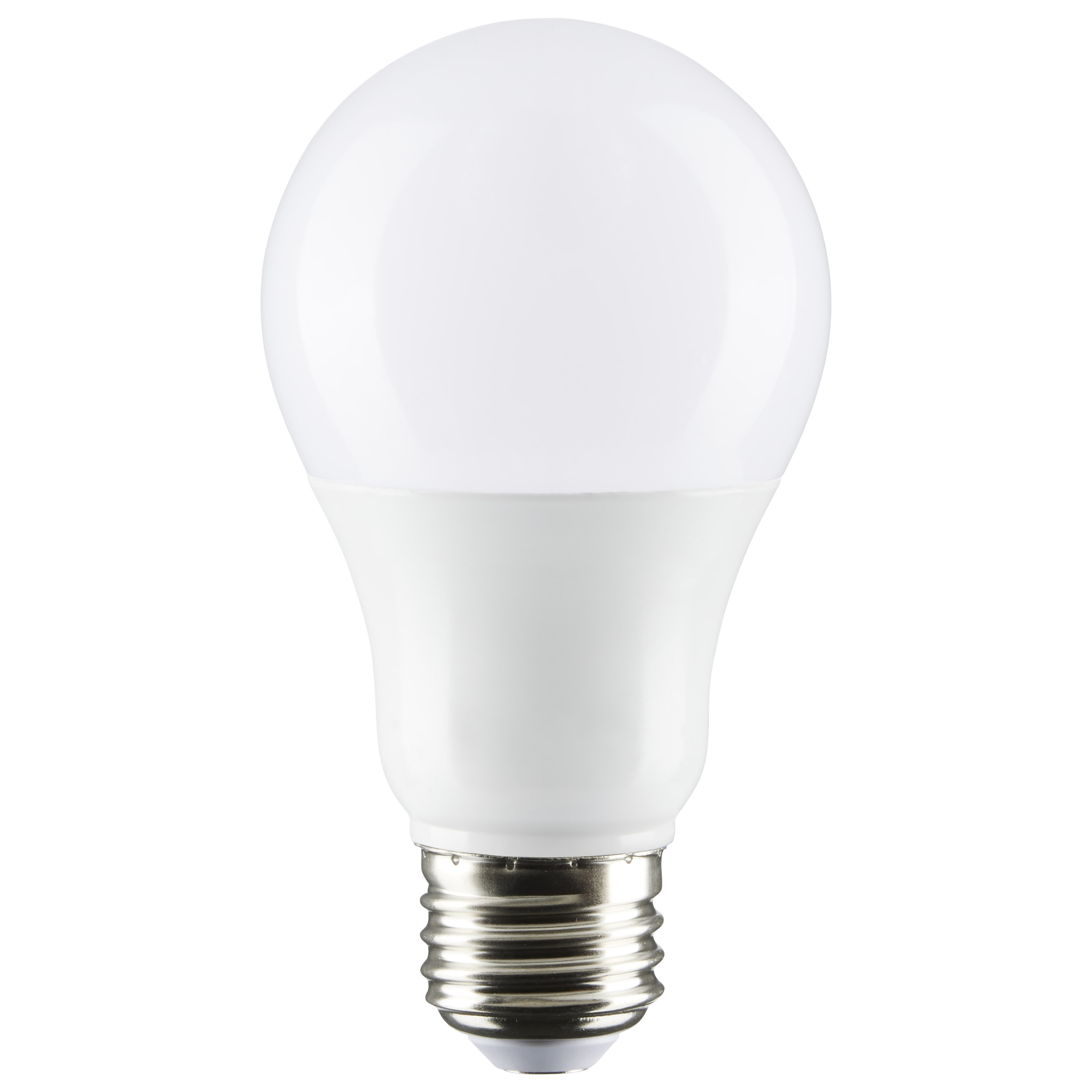

9.8A19/OMNI/220/LED/40K

  • 9.8 Watt
  • A19 LED
  • 4000K
  • Medium base
  • 220 deg. Beam Angle
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29838 SpecificationsS29838 Photometrics.iesS29838 LFL.pdf
Tools
Lighting Layout Analysis For S29838
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.8 Watt; A19 LED; 4000K; Medium base; 220 deg. Beam Angle; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTraditional
Most Current GenerationS15142
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.082A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.98
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempCool White
CRI80+
Dimming TypeReverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)

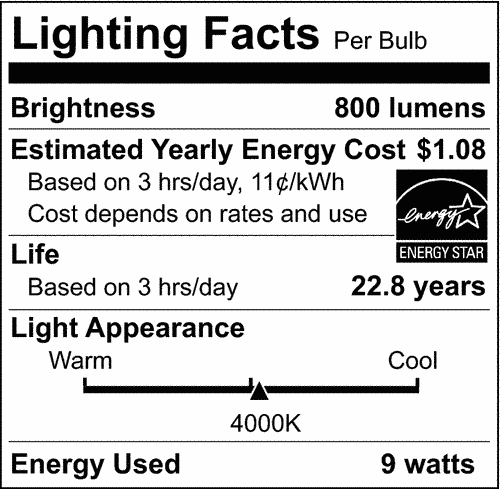

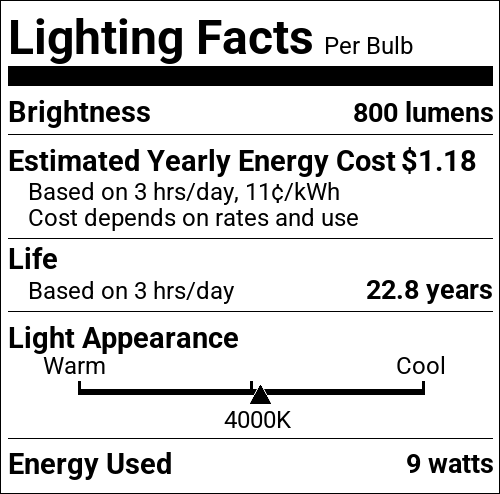

Lumens800L
Volts120v
Watts9.8W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorWhite
ANSI BaseE26
Lamp TypeA19

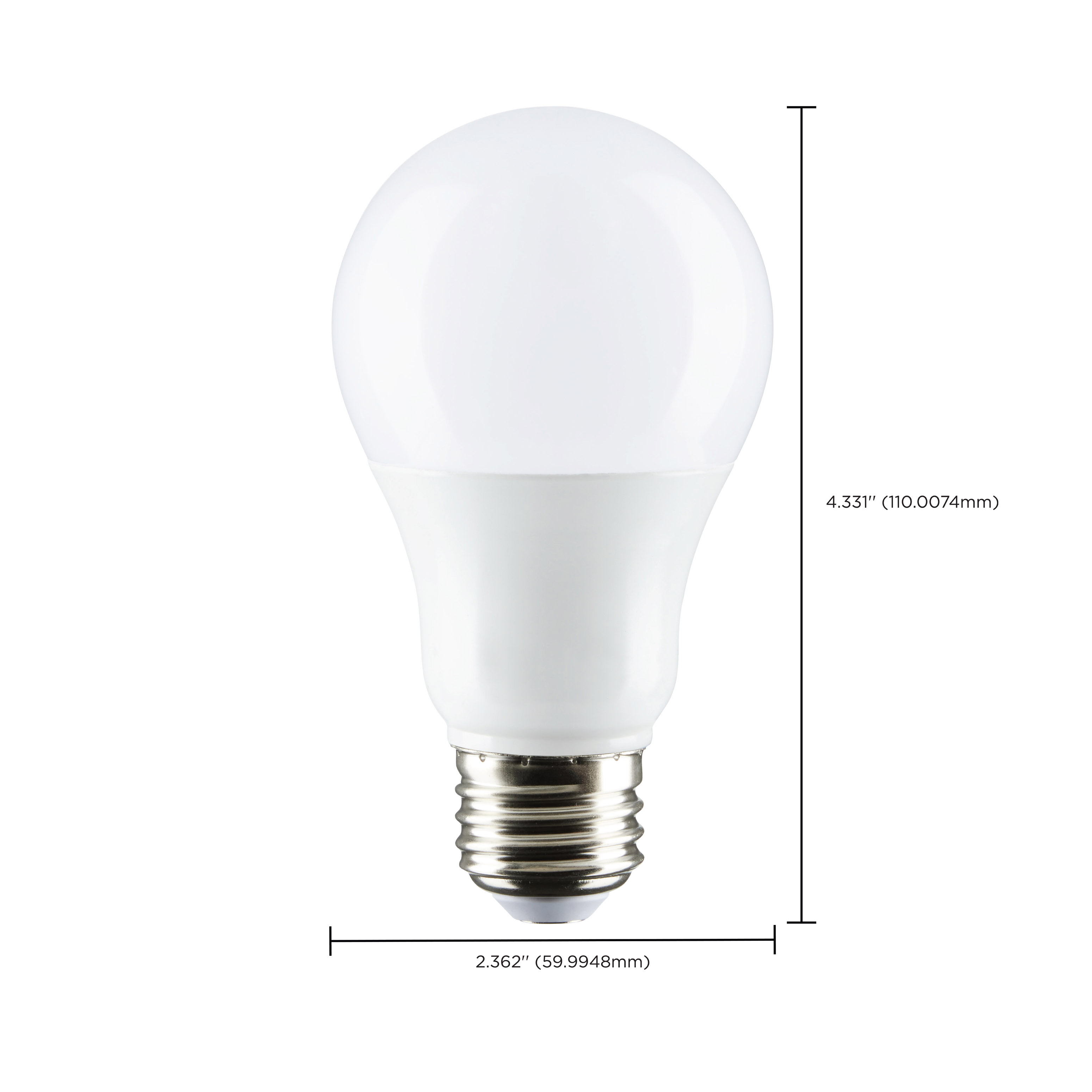

MOD Lamps2.362
MOL4.331
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA T20 Compliant SubstituteS8480

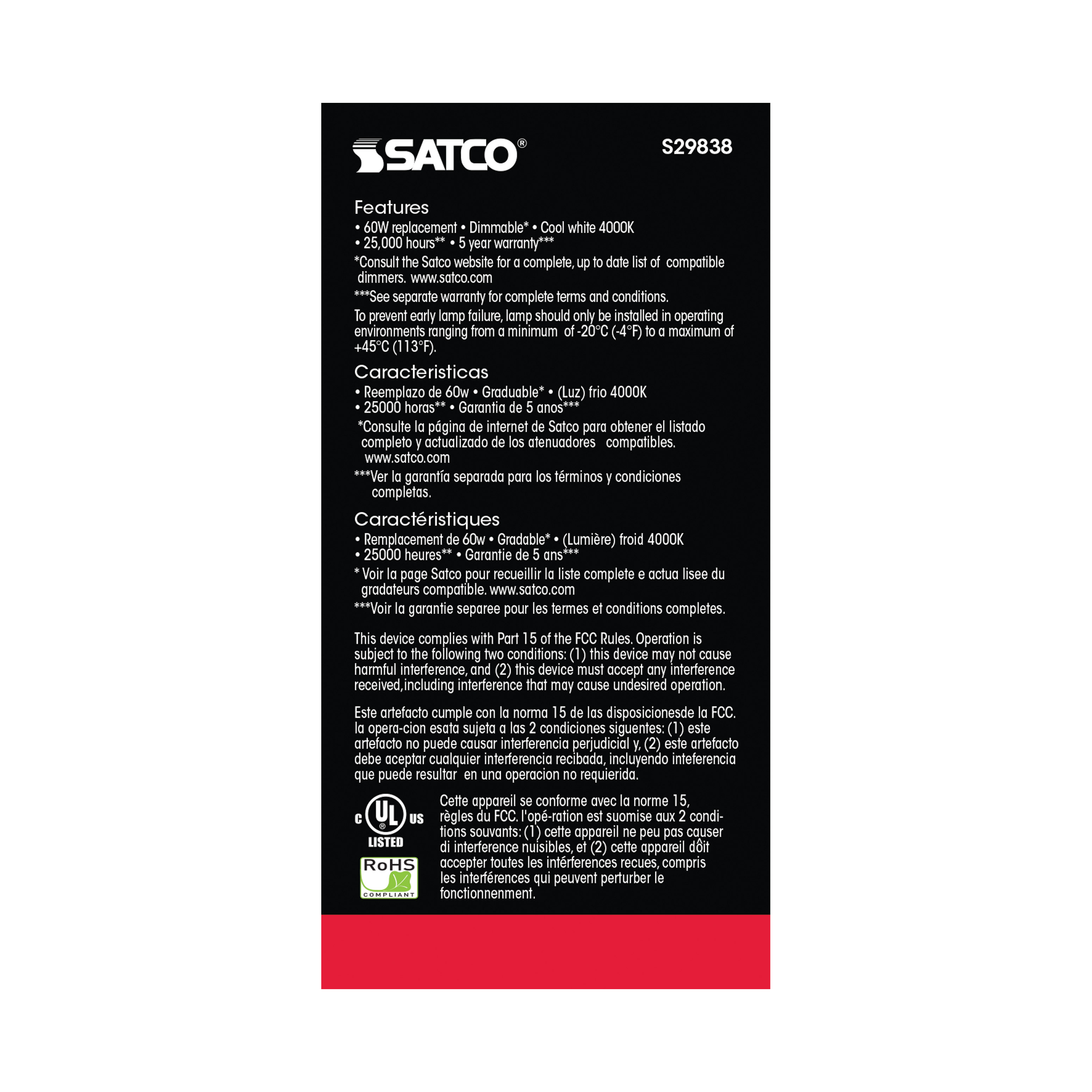

FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
US State BanCA
Packaging
UPC045923298387
Case Cube0.6207
Case Height11.3
Case Length11.22
Case Quantity24
Case UPC10045923298384
Case Weight4.43
Case Width8.46
EA Cube0.0165
EA Height4.8
EA Length2.44
EA Quantity1
EA Weight0.14
EA Width2.44
Inner Cube0.1202
Inner Height5.12
Inner Length7.8
Inner Quantity6
Inner UPC20045923298381
Inner Weight0.99
Inner Width5.2
Pack TypeBox
Web Length4.331
Web Width2.362
