| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A |
| Ballasting Requirements | Ballast required, check compatibility |
| Dimmable Text | Only Dimmable with Compatible Dimming Ballasts |
| Lamp Filament | LED |
| Material | Aluminum / Plastic |
| Fixture Type | PL |
| Status | Active |
| Style | Transitional |
| Total Harmonic Distortion | 20% |
| Working Voltage | Ballast dependent |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.075-0.032A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Plastic (PS) |
| Lensed | Yes |
| Operating Position | Horizontal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Product Technology | LED |
| Fluor Equiv | 26W/32W/42W |
| Incandescent Equivalent | 40W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

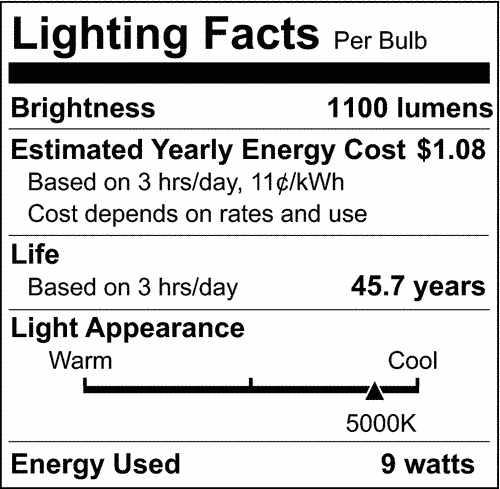

| Lumens | 1100L |
| Volts | Ballast Dependent |
| Watts | 9W |
| Lamp Base | G24q (4-Pin) |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G24q |
| Lamp Type | PL |
| MOD Lamps | 1.09 |
| MOL | 6.63 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| DLC ID | PLBC89FFRSH7 |
|---|---|
| FCC Compliant | Yes |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923298530 |
|---|---|
| Case Cube | 0.7419 |
| Case Height | 8.27 |
| Case Length | 17.9 |
| Case Quantity | 50 |
| Case UPC | 10045923298537 |
| Case Weight | 12.0 |
| Case Width | 8.66 |
| EA Cube | 0.0088 |
| EA Height | 6.77 |
| EA Length | 1.5 |
| EA Quantity | 1 |
| EA Weight | 0.22 |
| EA Width | 1.5 |
| Inner Cube | 0.1083 |
| Inner Height | 7.09 |
| Inner Length | 8.0 |
| Inner Quantity | 10 |
| Inner UPC | 20045923298534 |
| Inner Weight | 2.06 |
| Inner Width | 3.3 |
| Pack Type | Box |
| Web Length | 6.63 |
| Web Width | 1.09 |
