| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A/B |
| Ballasting Requirements | Ballast required (Type A) or Ballast Bypass (Type B) |
| Dimmable Text | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
| Lamp Filament | LED |
| Material | Aluminum / Plastic |
| Status | Active |
| Style | Transitional |
| Total Harmonic Distortion | <20% |
| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.079-0.034A |
| Has Camera | False |
| IOT Enabled | False |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 18W/26W/32W |

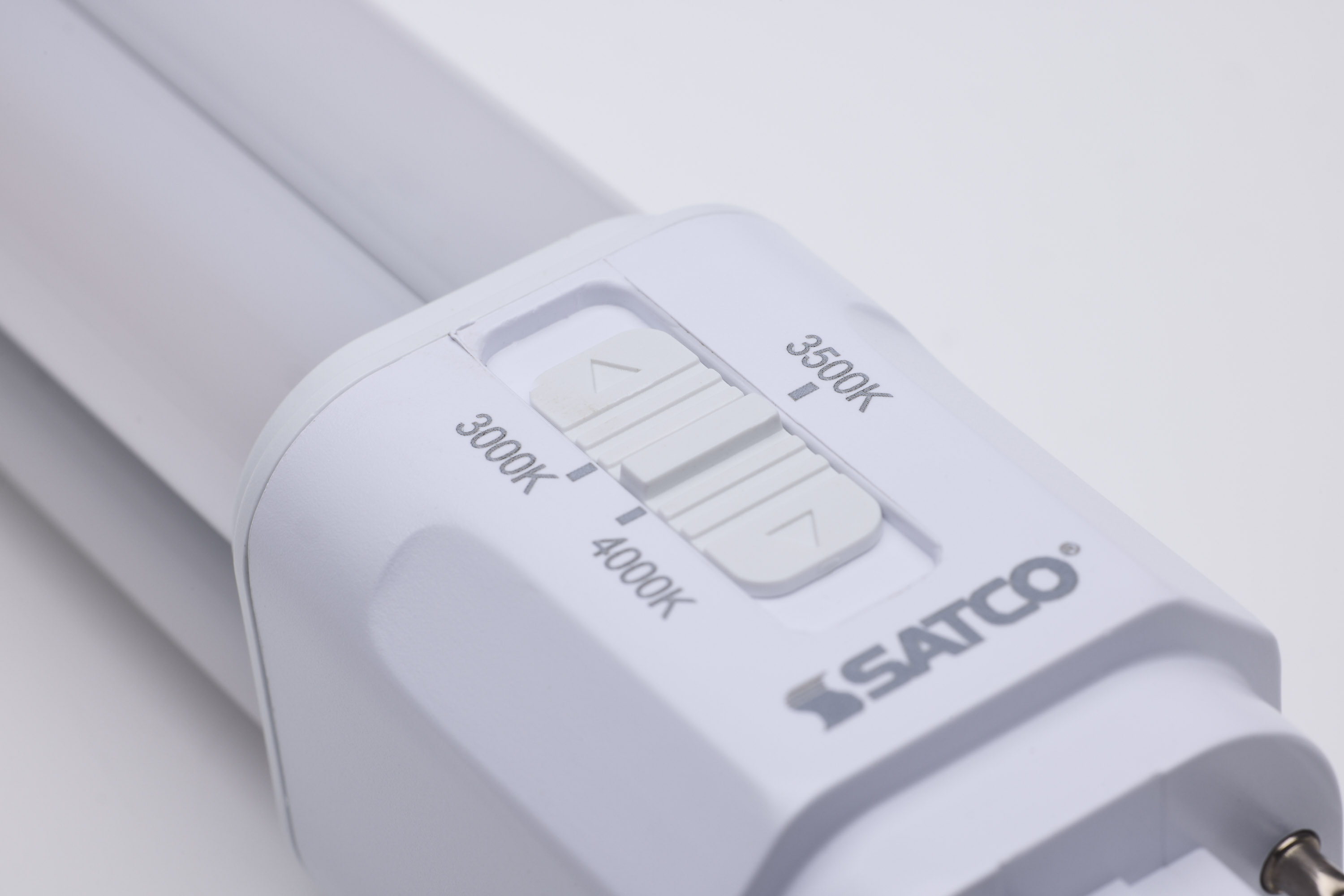

| CCT (Kelvin Temp) | 3000K/3500K/4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Dimming Type | Triac |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 1100L/1150L/1200L |
| Volts | 120V-277V |
| Watts | 9.5W |

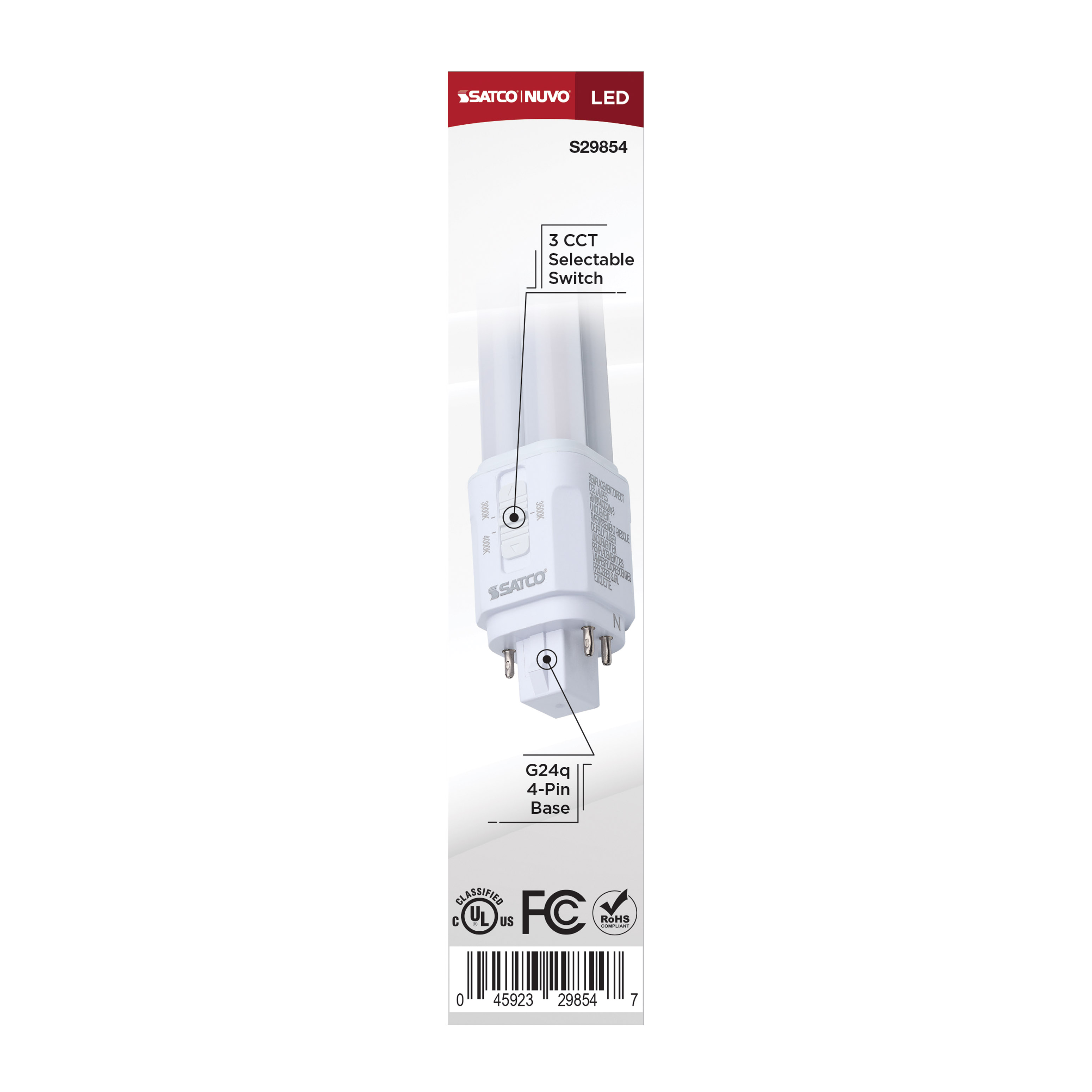

| Lamp Base | G24q (4-Pin) |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G24q |
| Lamp Type | PL |

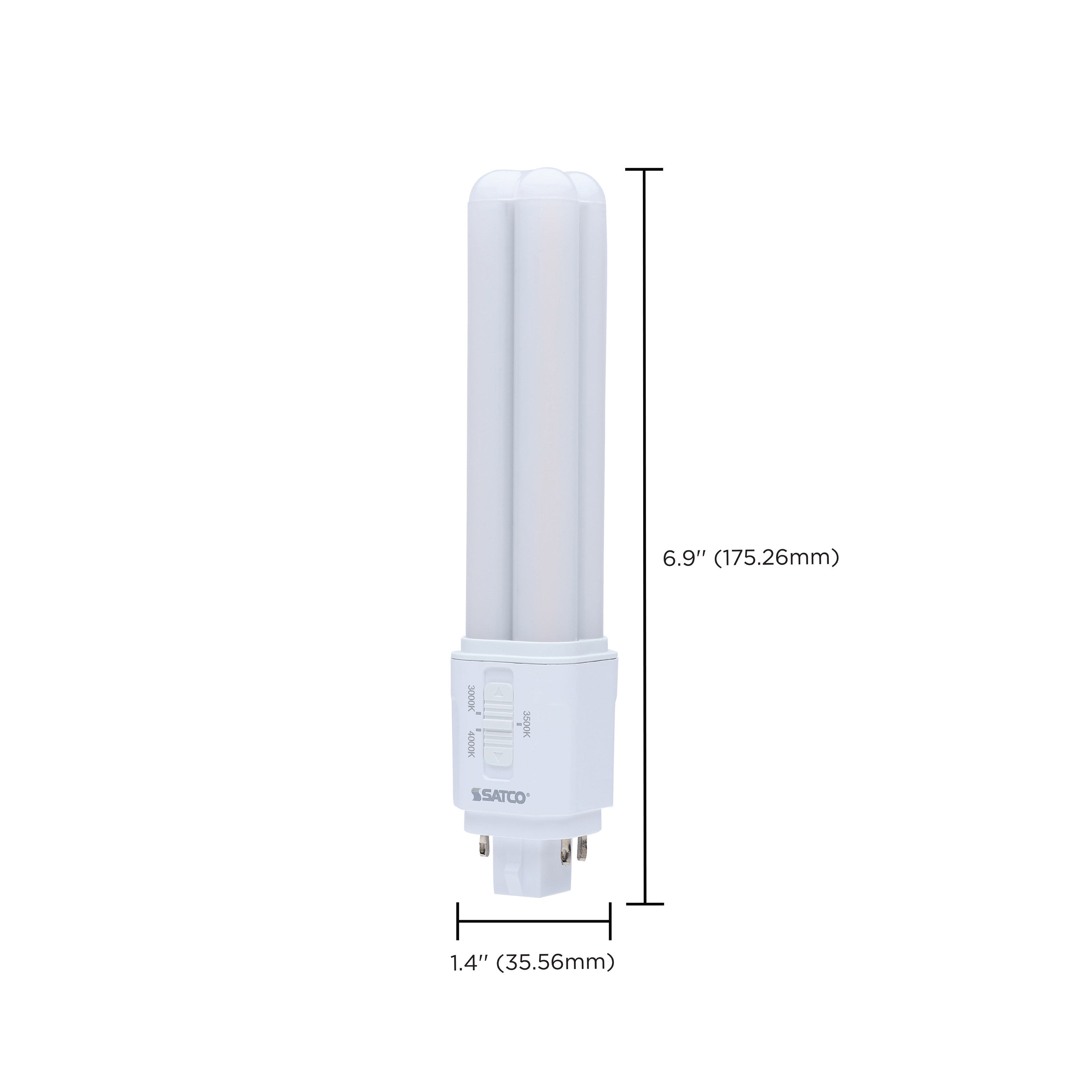

| MOD Lamps | 1.4 |
| MOL | 6.9 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923298547 |
|---|---|
| Case Cube | 0.2756 |
| Case Height | 7.95 |
| Case Length | 9.33 |
| Case Quantity | 24 |
| Case UPC | 10045923298544 |
| Case Weight | 6.5 |
| Case Width | 6.42 |
| EA Cube | 0.0086 |
| EA Height | 7.01 |
| EA Length | 1.46 |
| EA Quantity | 1 |
| EA Weight | 0.26 |
| EA Width | 1.46 |
| Inner Cube | 0.0 |
| Pack Type | Box |

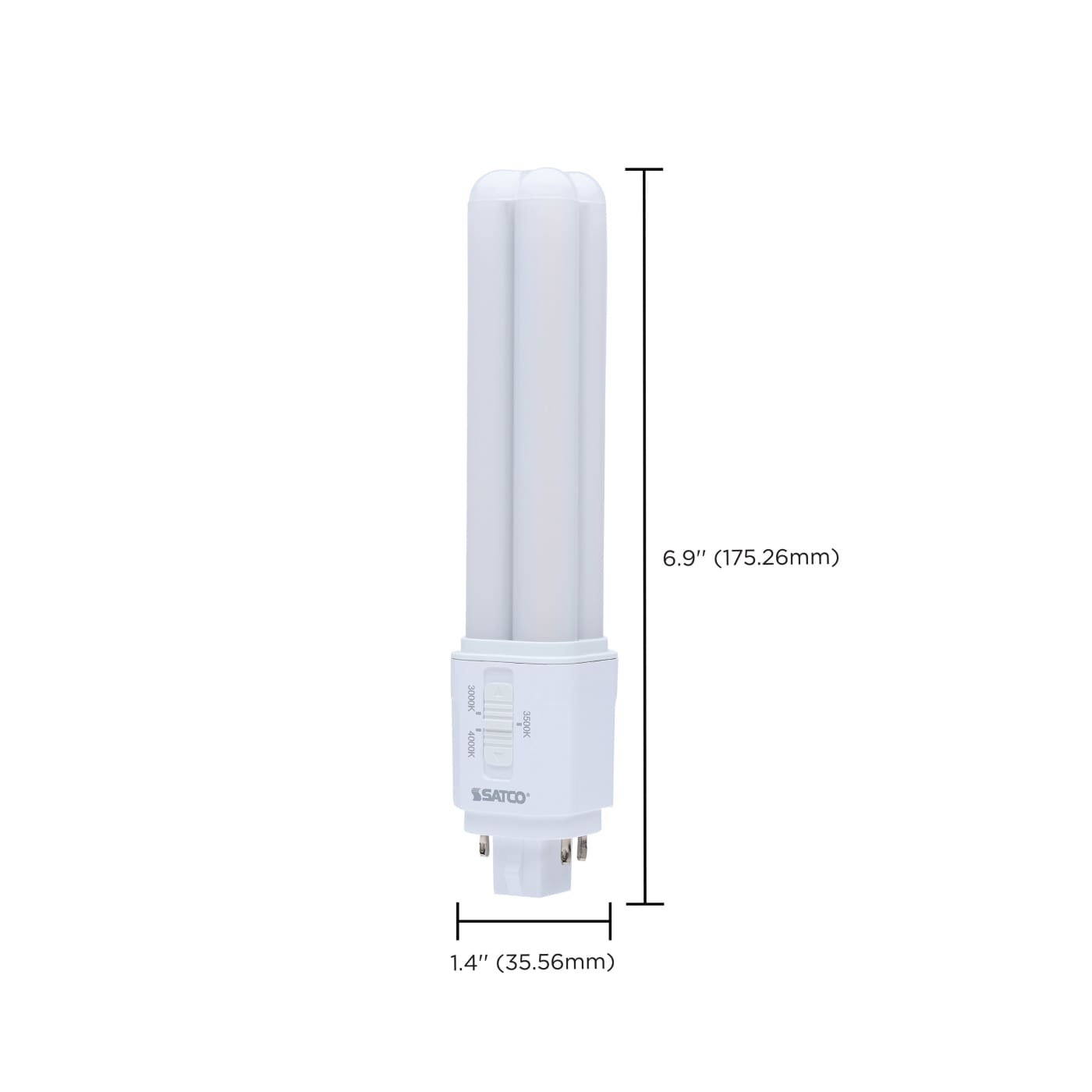

| Web Length | 6.9 |
| Web Width | 1.4 |
