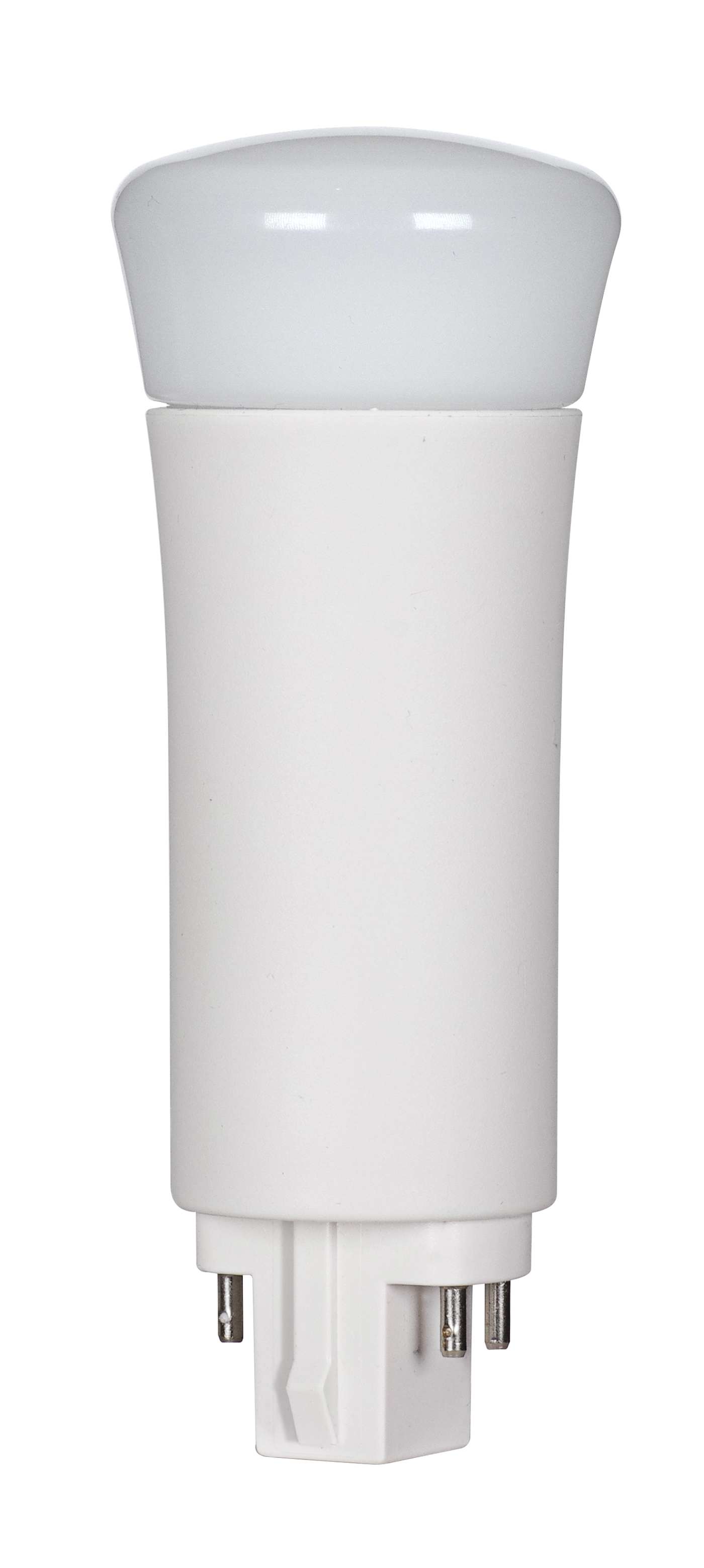

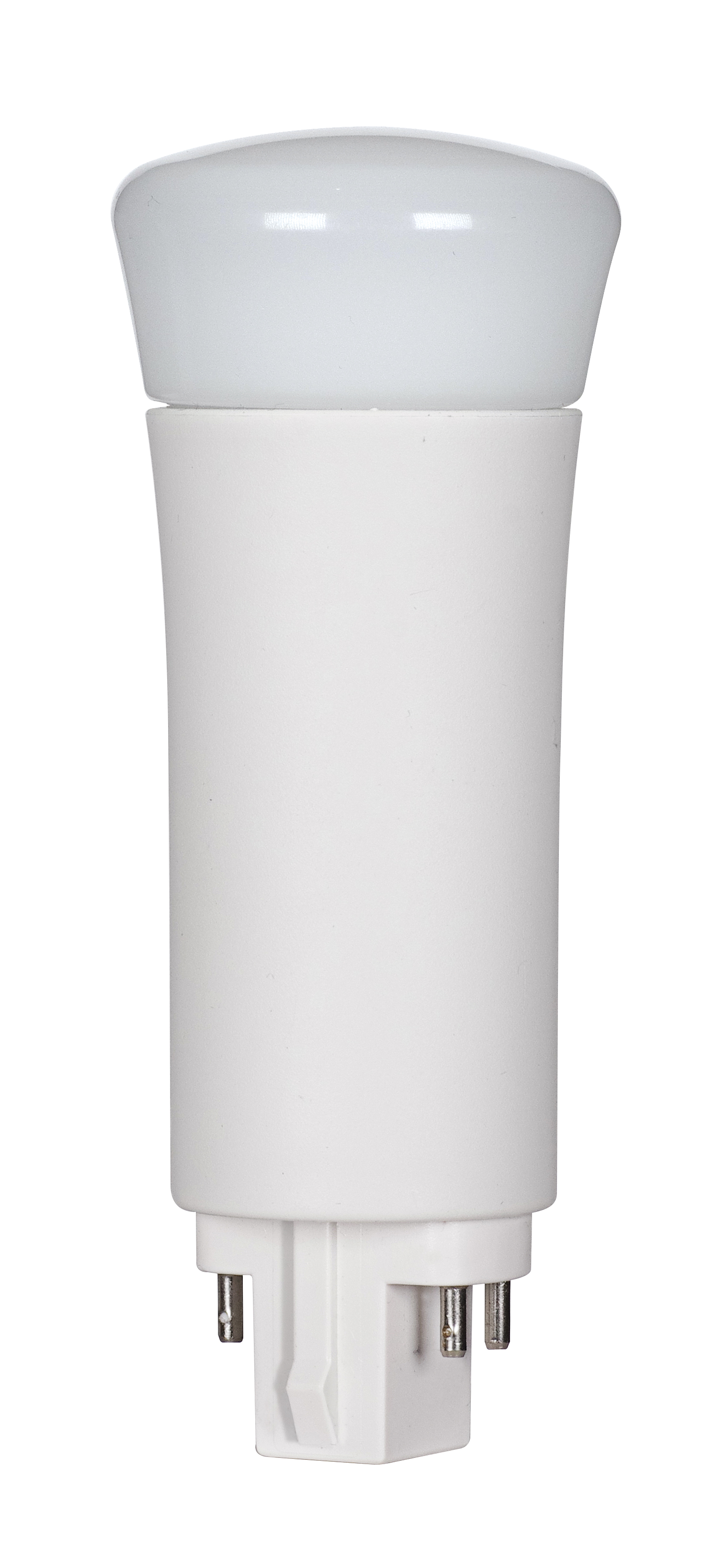

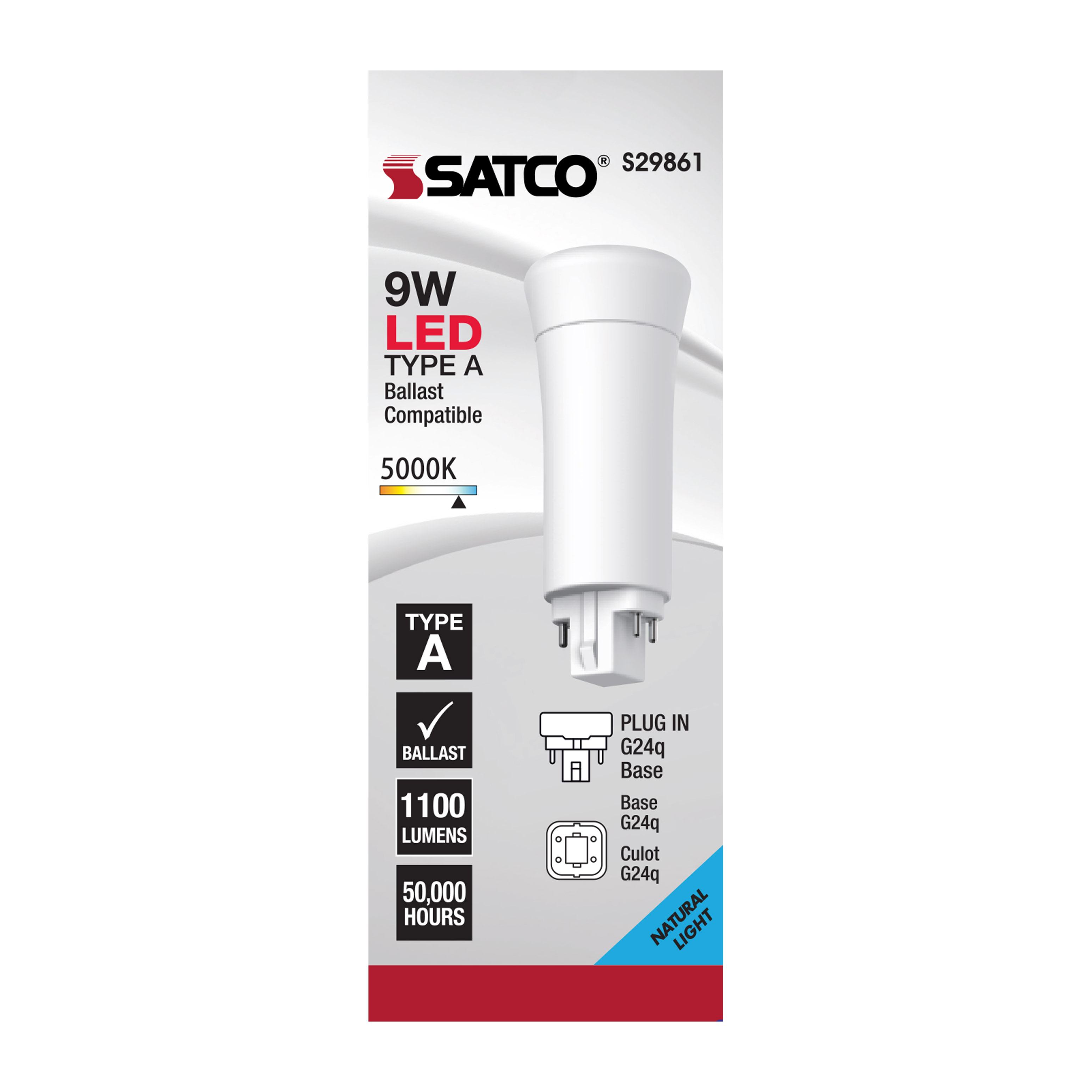

S29861 9WPLV/LED/850/DR/4P

S29861

9WPLV/LED/850/DR/4P

9 Watt LED PL 4-Pin; 5000K; 1100 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent


Lights

S29861

9WPLV/LED/850/DR/4P

9 Watt LED PL 4-Pin; 5000K; 1100 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; Type A; Ballast dependent

Specifications

General
StatusActive
Watts9W
Fluorescent Equivalent18W/26W/32W/42W
Volts120V-277V
Ballast TypeType A
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1100L
Beam Spread120
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionBase Up or Down
TechnologyLED
Electrical
Watts9W
Fluorescent Equivalent18W/26W/32W/42W
Volts120V-277V
Ballasting RequirementsBallast required
Ballast TypeType A
Working VoltageBallast dependent
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens1100L
Beam Spread120
Power Factor0.9
Hours Rated50000
THD20%
Operating PositionBase Up or Down
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL4.69
MOD1.91
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q
FinishFrost
Housing ColorWhite
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLOEEYBT3BN0
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923298615
Each Quantity1
Each Length (in.)2.00
Each Width (in.)2.00
Each Height (in.)4.80
Each Weight (lb.)0.29
Each Cube (CuFt.)0.0111
Pack TypeBox
Inner UPC20045923298619
Inner Quantity10
Inner Length (in.)10.00
Inner Width (in.)4.17
Inner Height (in.)5.12
Inner Weight (lb.)2.70
Inner Cube (CuFt.)0.1236
Case UPC10045923298612
Case Quantity50
Case Length (in.)11.00
Case Width (in.)10.60
Case Height (in.)10.60
Case Weight (lb.)15.30
Case Cube (CuFt.)0.7153
×
×

Ballast Compatibility

Name Type View
PL 4 Pin Electronic LED CFL Replacements Pin Based View
Dimming Ballast LED CFL Replacements Pin Based View
×

Precautions

No precautions available at this time.

×
