| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Lamp Filament | LED |
| Material | Plastic / Aluminum |
| Fixture Type | Miniature |
| Status | Active |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Total Harmonic Distortion | <25% |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.135/0.058A |
| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Lensed | Yes |
| Minimum Compartment Size | Length 11.81 in. Width 6.31 in. Height: 2.75 in. |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 32W |
| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 2200L |
| Volts | 120V-277V |
| Watts | 15W |
| Lamp Base | 2-Pin |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | GX24d |
| Lamp Type | PLT |
| MOD Lamps | 2.0 |
| MOL | 6.3 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| Flicker Free | No |
|---|
| Air Tight | No |
|---|---|
| CA Prop 65 | Lead |
| Dark Sky Rated | No |
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923298875 |
|---|---|
| Case Cube | 0.5358 |
| Case Height | 7.4 |
| Case Length | 13.6 |
| Case Quantity | 24 |
| Case UPC | 10045923298872 |
| Case Weight | 11.43 |
| Case Width | 9.2 |
| EA Cube | 0.0157 |
| EA Height | 6.46 |
| EA Length | 2.05 |
| EA Quantity | 1 |
| EA Weight | 0.43 |
| EA Width | 2.05 |

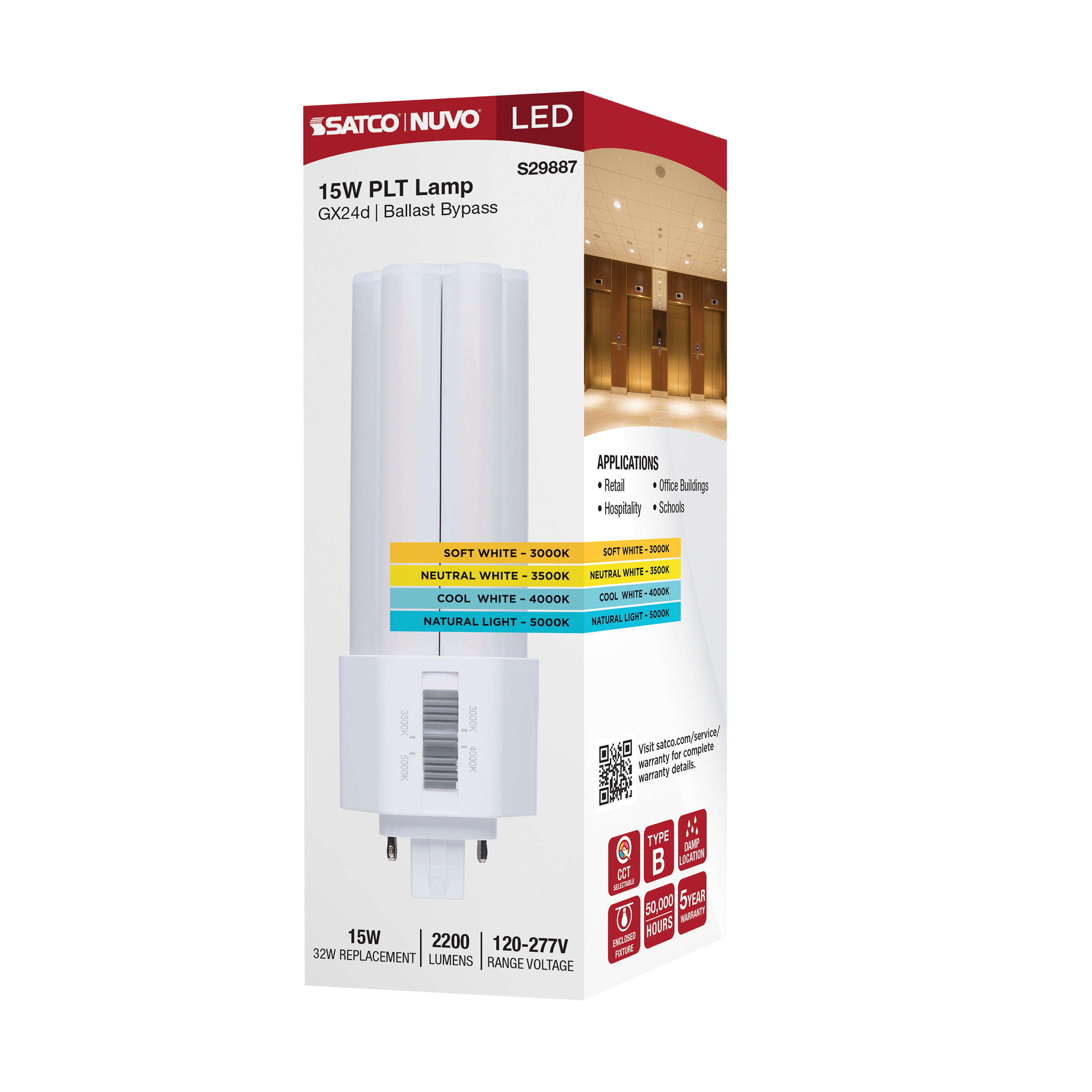

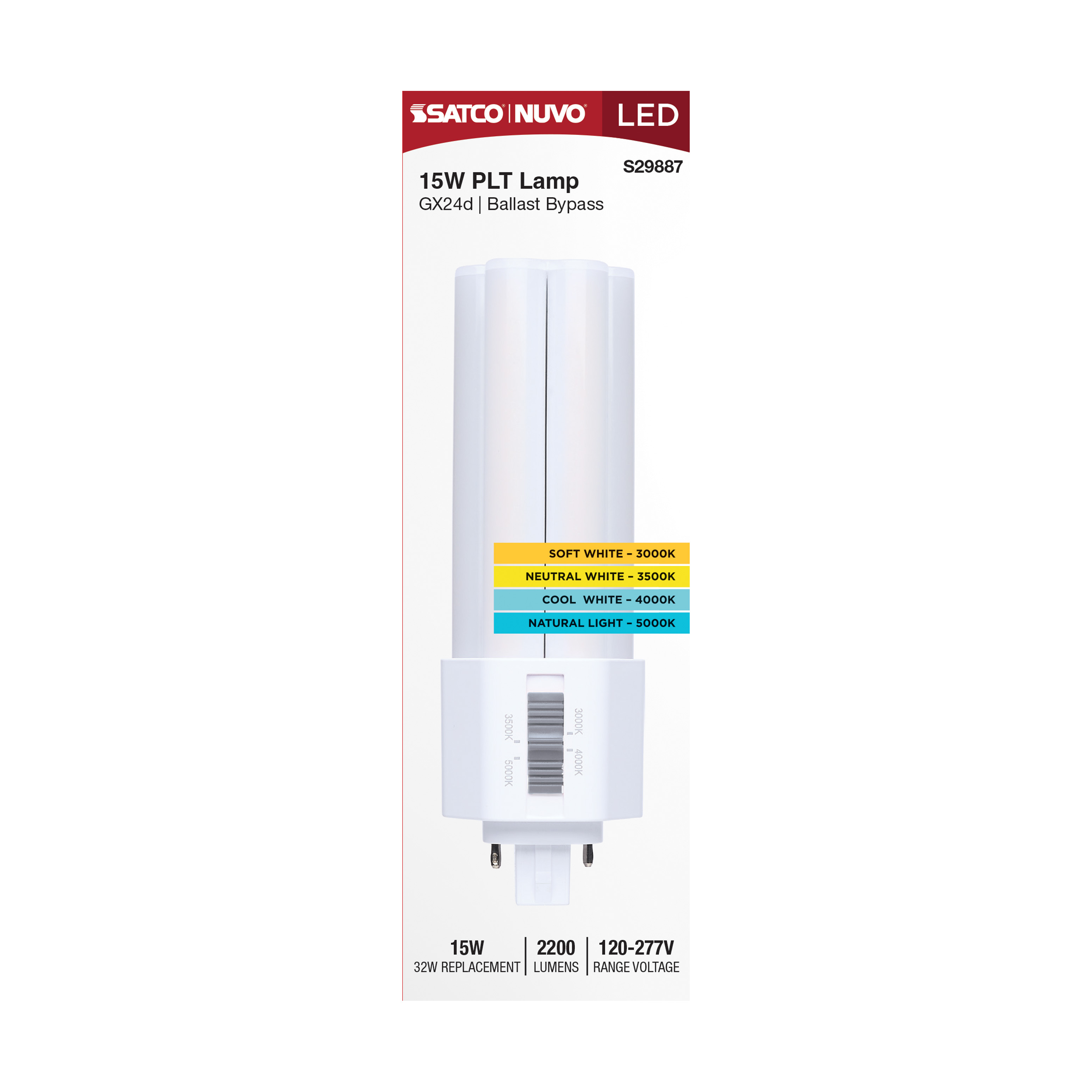

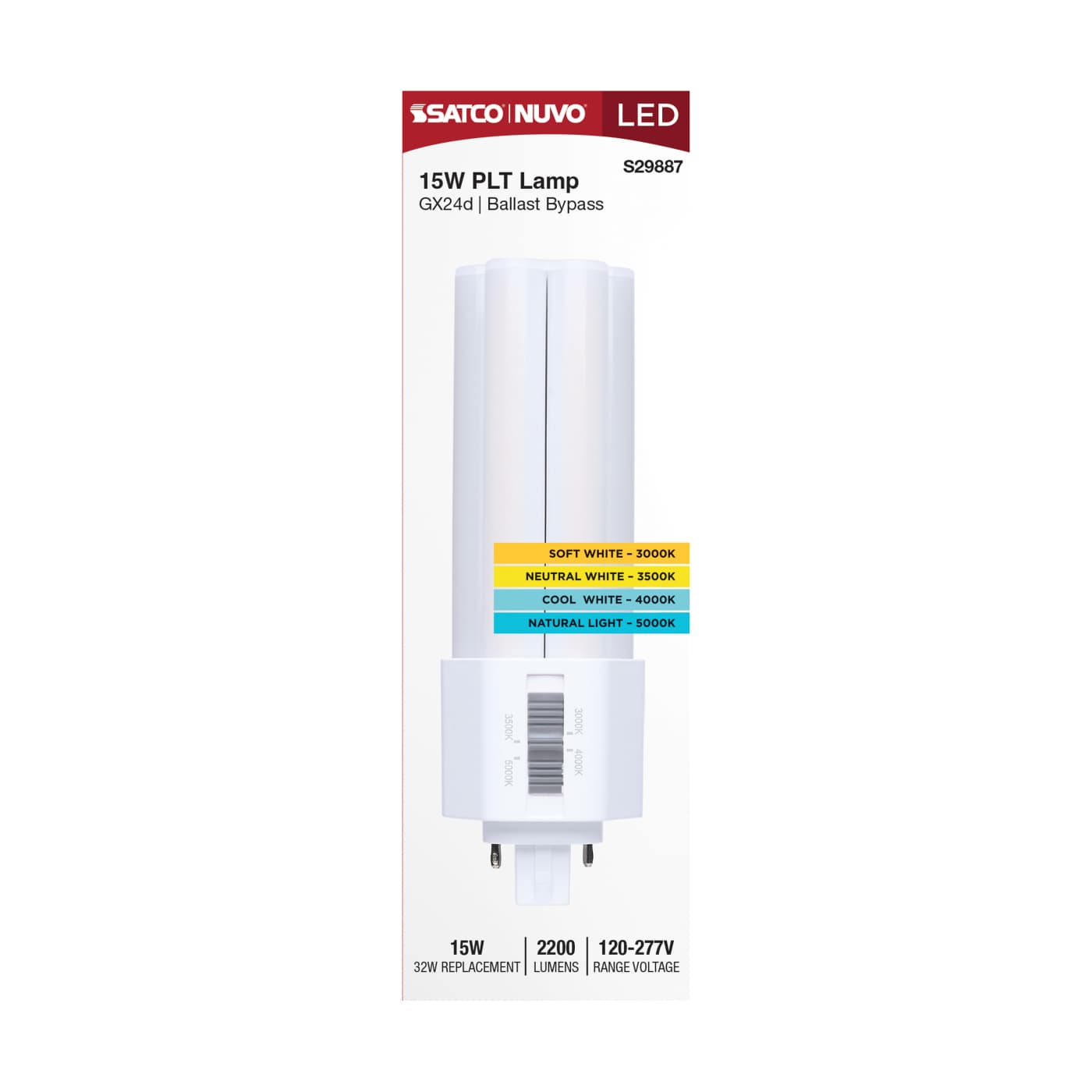

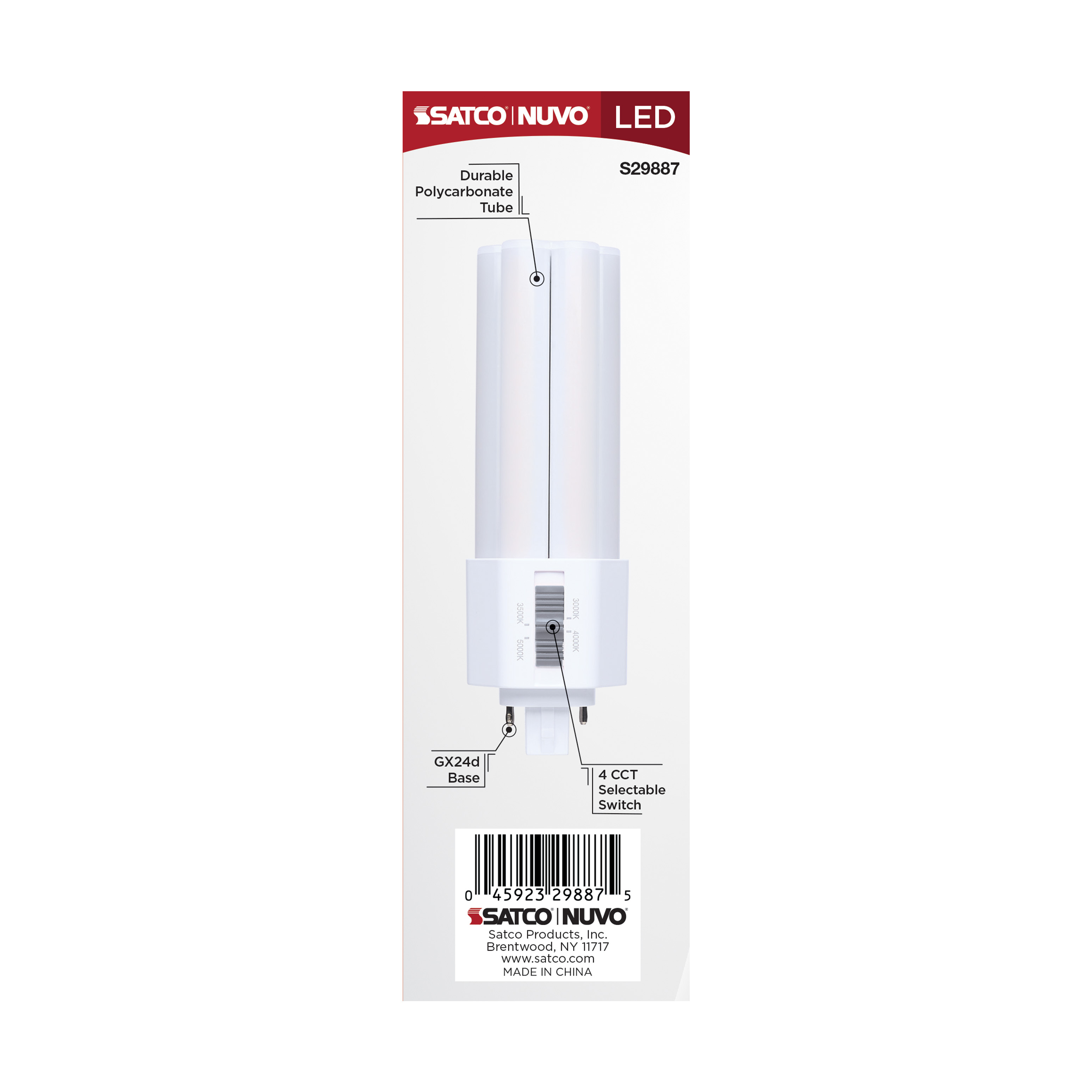

| Pack Type | Color Box |

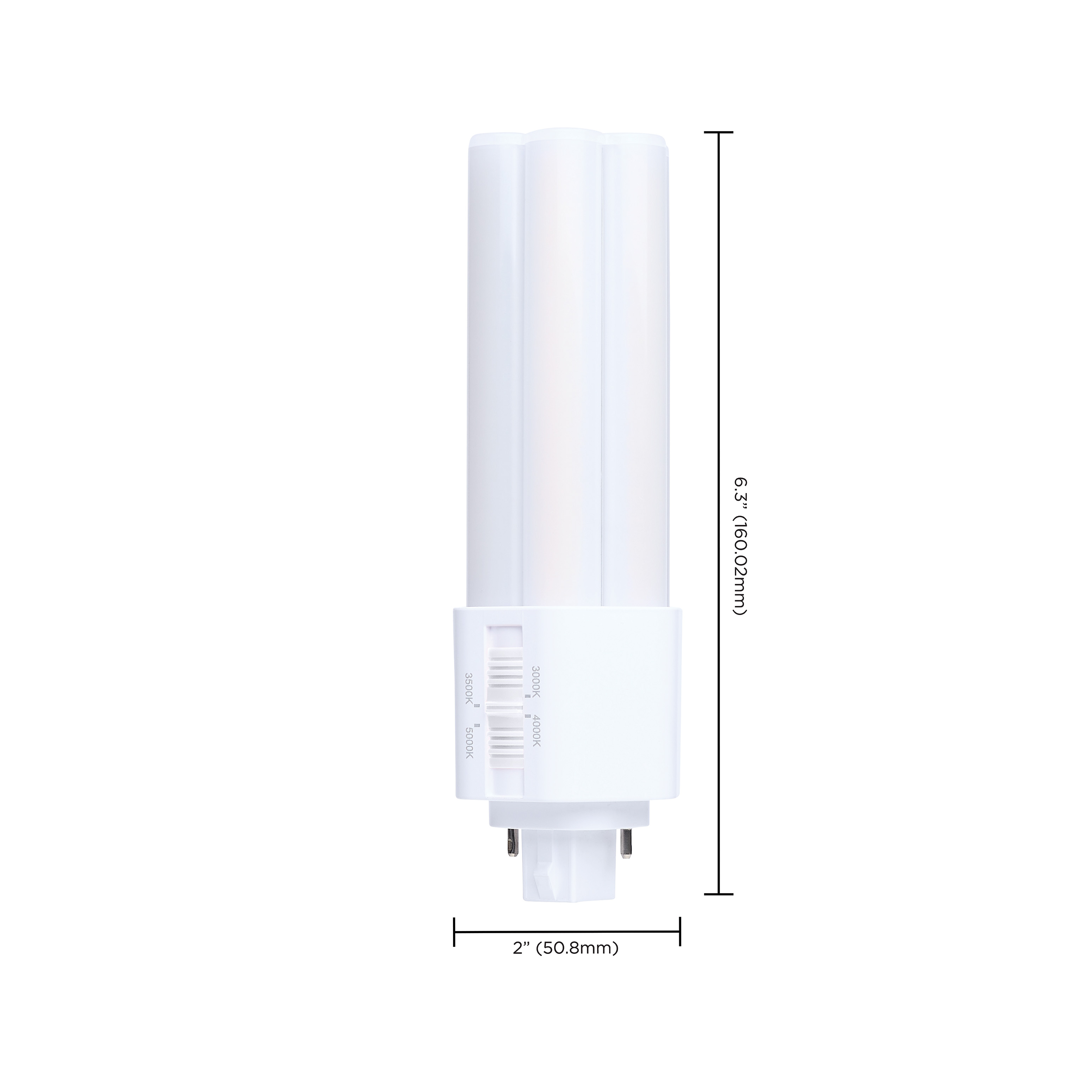

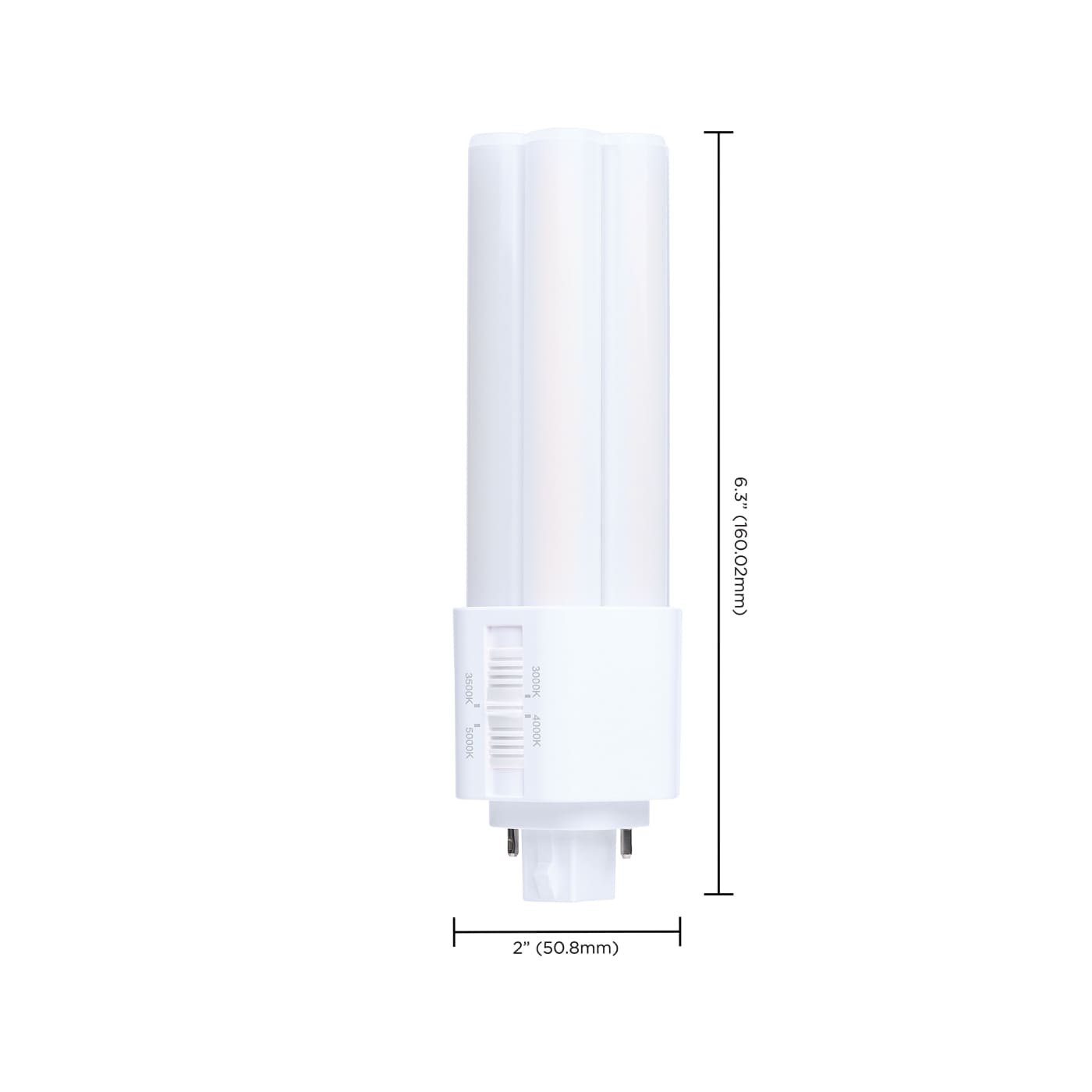

| Web Length | 6.3 |
| Web Width | 2.0 |
