» S29911

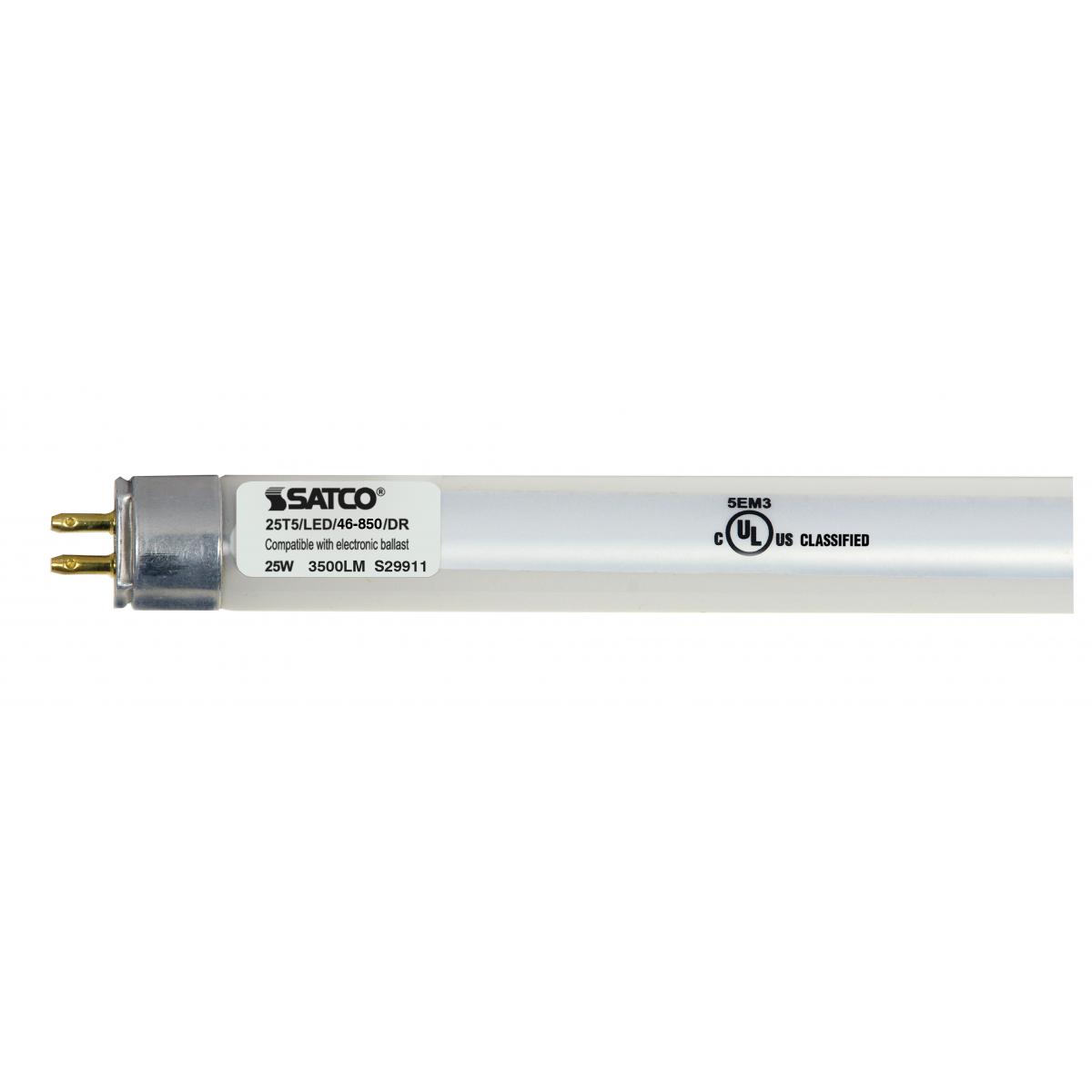

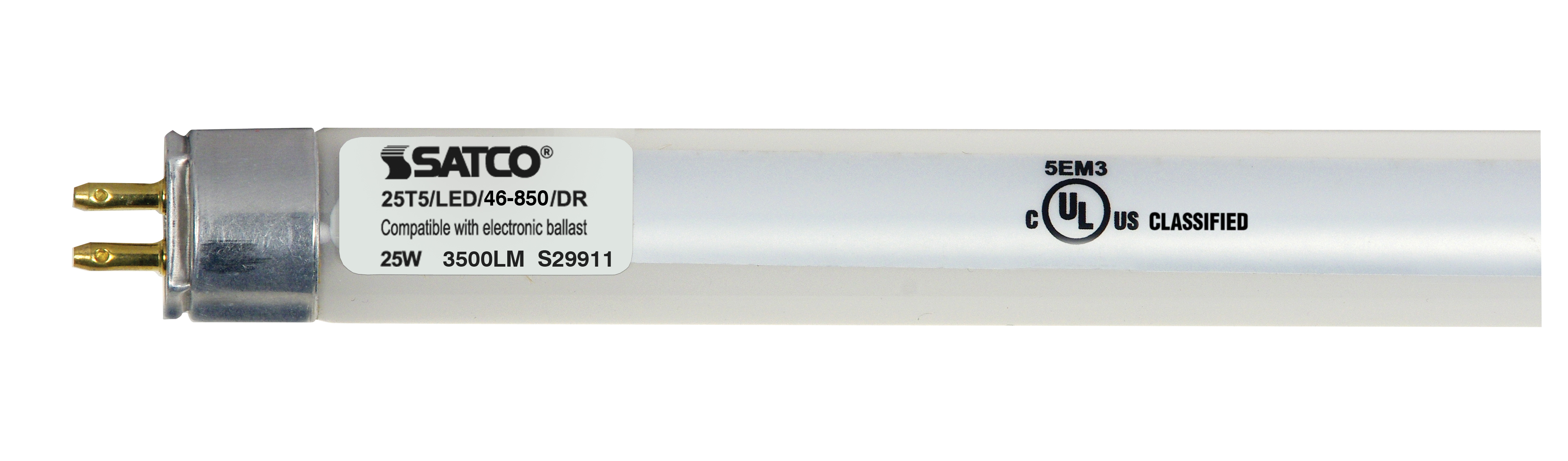

S29911 25T5/LED/46-850/DR

S29911

25T5/LED/46-850/DR

25 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 3500 Lumens; Type A; Ballast dependent


SATCO| NUVO's LED Linear T5 Ballast Compatible Lamps come in 2-foot and 4-foot sizes, have over 50 percent energy savings compared to standard T5 systems, and provide enhanced safety thanks to the integrated thermal fuse. Our all-glass tube design not only delivers exceptional clarity, but also adds a touch of elegance to any space. Select models are DLC approved, ensuring top-notch quality and efficiency. Upgrade your lighting today and take a step towards a greener, more efficient future.
  • Over 50 percent Energy Savings Vs. Standard T5 Systems
  • Compatible with T5 HO Ballasts
  • Integrated Thermal Fuse at Pins
  • All Glass Tube Construction
  • Damp Location Rated
  • Enclosed Fixture Rated
  • DLC Listed
Lights

S29911

25T5/LED/46-850/DR

25 Watt T5 LED; Miniature bi-pin base; 5000K; 50000 Average rated hours; 3500 Lumens; Type A; Ballast dependent

SATCO| NUVO's LED Linear T5 Ballast Compatible Lamps come in 2-foot and 4-foot sizes, have over 50 percent energy savings compared to standard T5 systems, and provide enhanced safety thanks to the integrated thermal fuse. Our all-glass tube design not only delivers exceptional clarity, but also adds a touch of elegance to any space. Select models are DLC approved, ensuring top-notch quality and efficiency. Upgrade your lighting today and take a step towards a greener, more efficient future.
  • Over 50 percent Energy Savings Vs. Standard T5 Systems
  • Compatible with T5 HO Ballasts
  • Integrated Thermal Fuse at Pins
  • All Glass Tube Construction
  • Damp Location Rated
  • Enclosed Fixture Rated
  • DLC Listed

Specifications

General
StatusActive
Watts25W
Incandescent Equivalent100W
Fluorescent Equivalent54W
Volts120V-277V
Ballast TypeType A
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
Nominal Length48
FinishGloss
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens3500L
Beam Spread185
DimmableYes-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts25W
Incandescent Equivalent100W
Fluorescent Equivalent54W
Volts120V-277V
Ballasting RequirementsBallast required
Ballast TypeType A
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI82
Lumens3500L
Beam Spread185
DimmableYes-Dimmable
Dimming NoteOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL46
MOD0.63
Nominal Length48
ShapeT5
BaseMiniature Bi Pin
ANSI BaseG5
FinishGloss
MaterialAluminum / Glass
Lens FinishGloss
Weight (lb.)0.3
Additional Information
Additional InfoLight Emitting Area of 325 degrees; System Wattage (Type A) - 28W
IncludesIntegrated thermal fuse at pins
Integrated FeaturesIntegrated thermal fuse at pins
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T5 LED Bulbs
Compliance
Safety ListingcULus - Listed
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPL2M6895FL33
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923299117
Each Quantity1
Each Length (in.)47.60
Each Width (in.)0.59
Each Height (in.)0.59
Each Weight (lb.)0.51
Each Cube (CuFt.)0.0096
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923299114
Case Quantity10
Case Length (in.)48.40
Case Width (in.)6.30
Case Height (in.)3.54
Case Weight (lb.)5.13
Case Cube (CuFt.)0.6247
×
×

Ballast Compatibility

Name Type View
T5 LED Chart P LED T5 View
×
