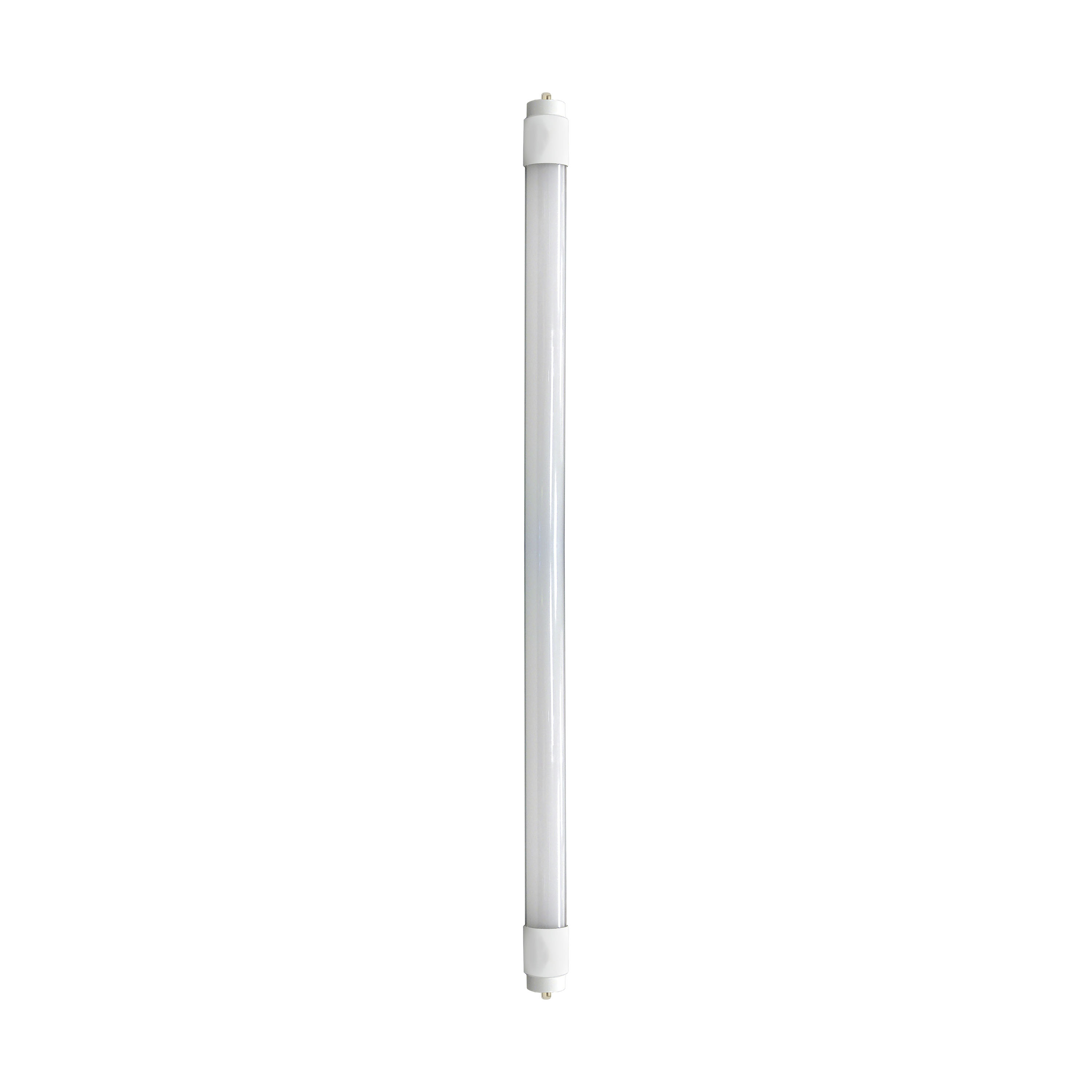

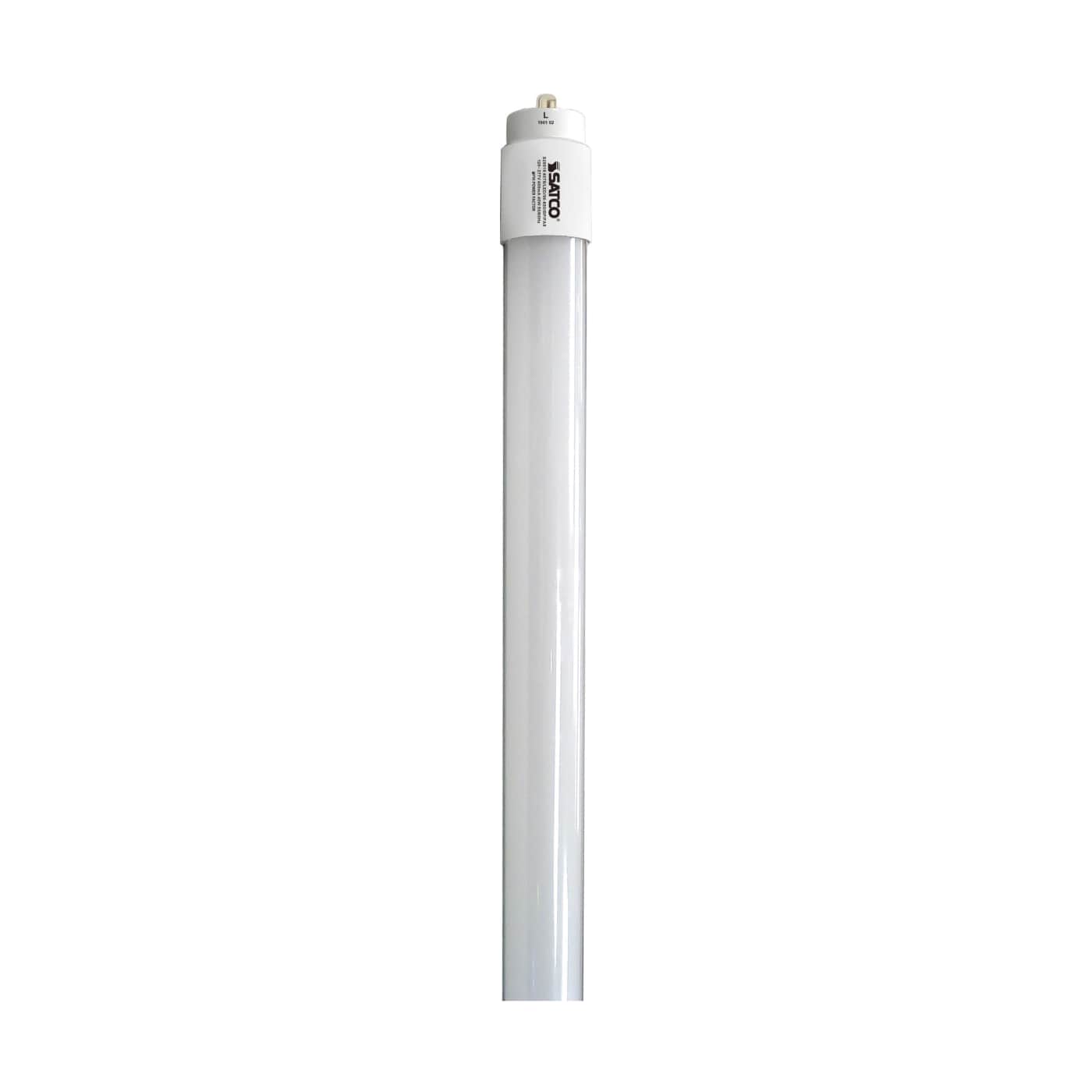

40T8/LED/96-850/BP/FA8 - S29919
40T8/LED/96-850/BP/FA8 - S29919
40T8/LED/96-850/BP/FA8 - S29919
40T8/LED/96-850/BP/FA8 - S29919
40T8/LED/96-850/BP/FA8 - S29919
40T8/LED/96-850/BP/FA8 - S29919
40T8/LED/96-850/BP/FA8 - S29919
S29919

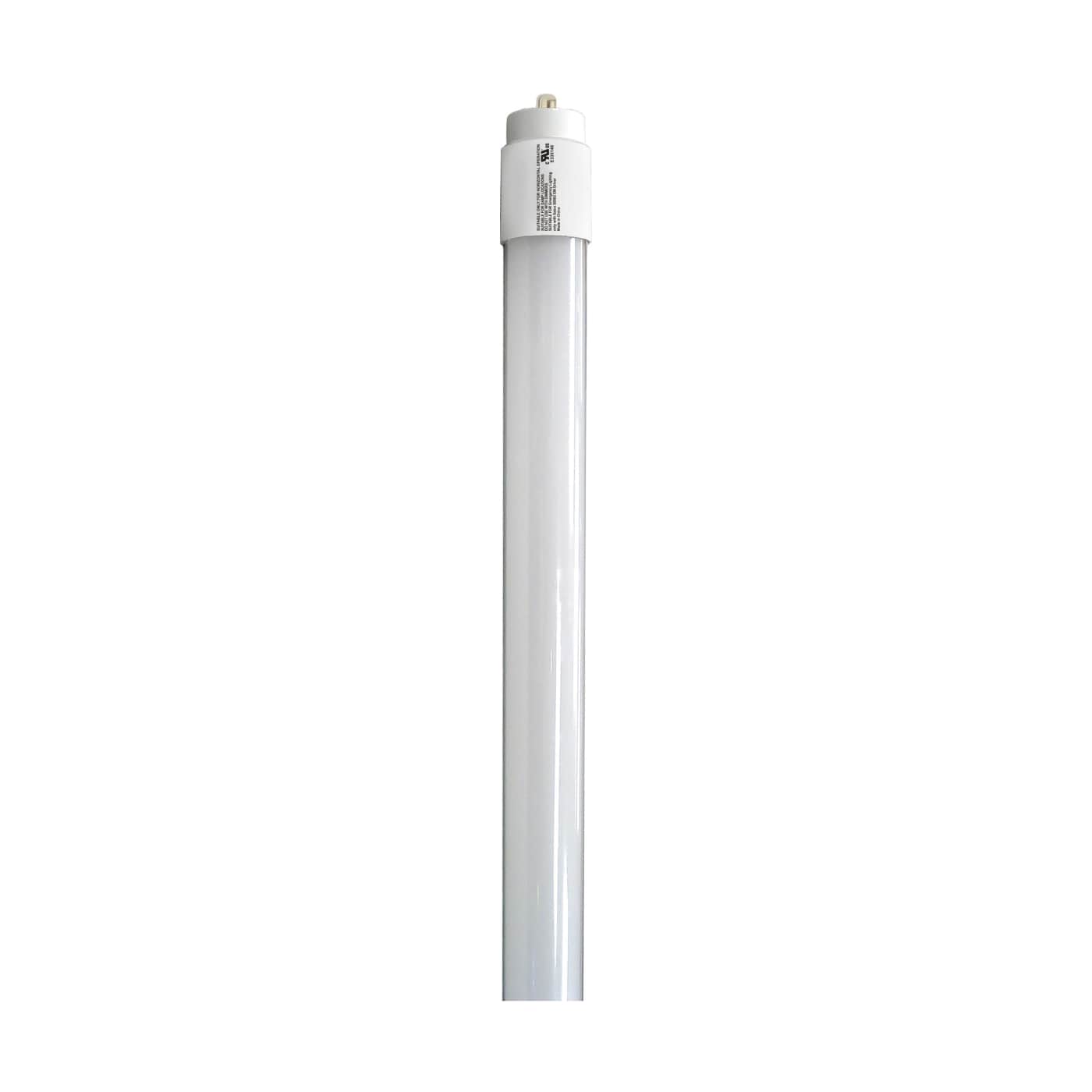

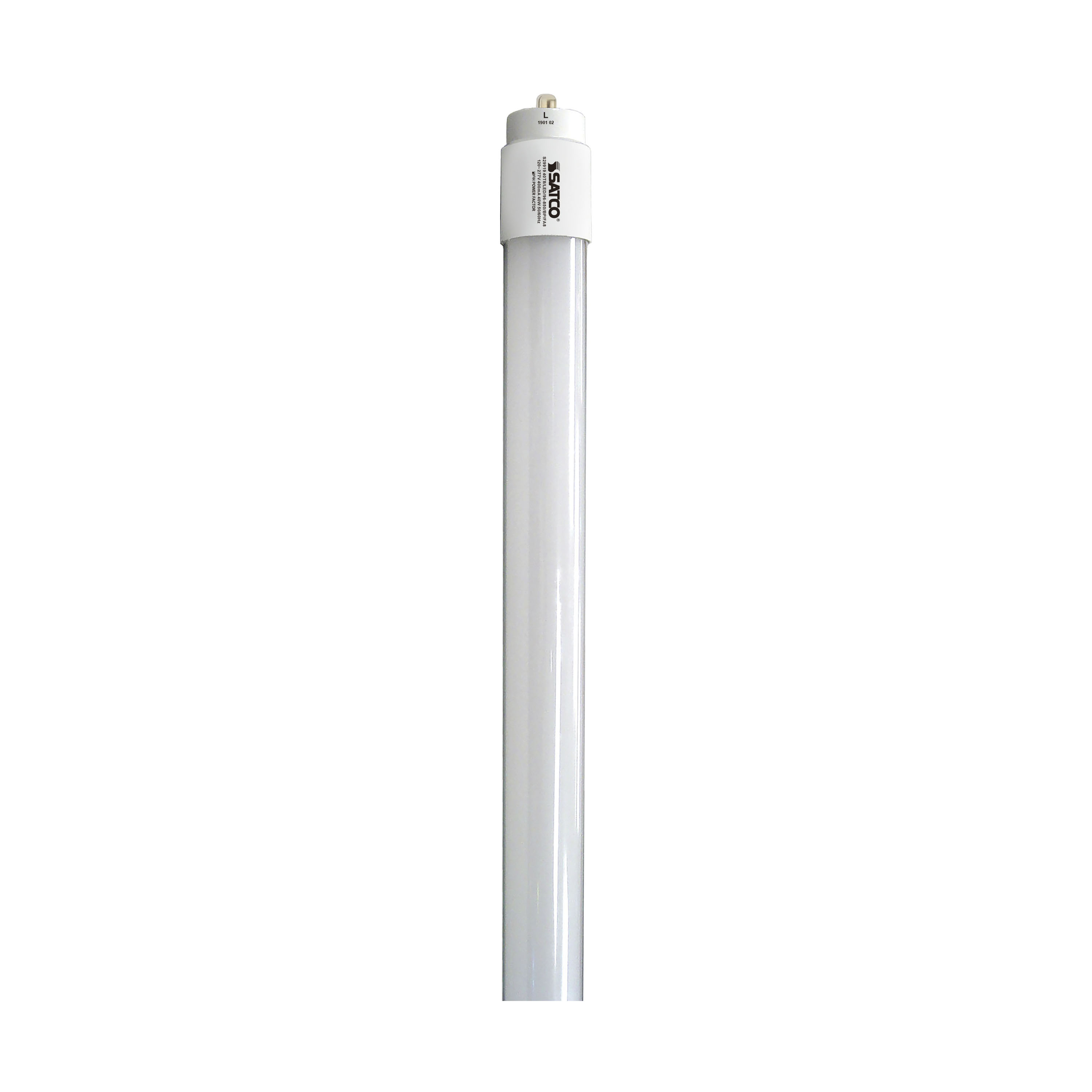

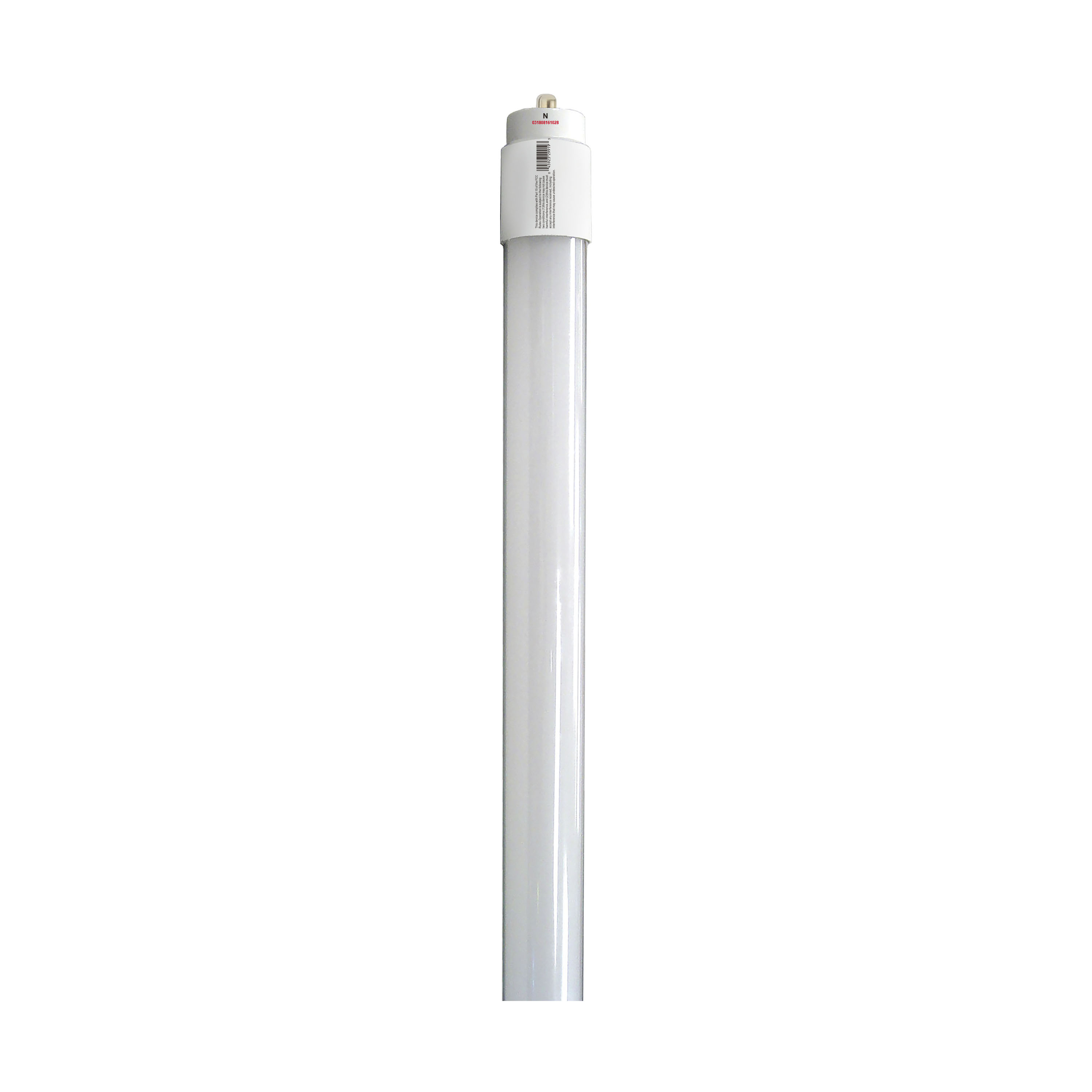

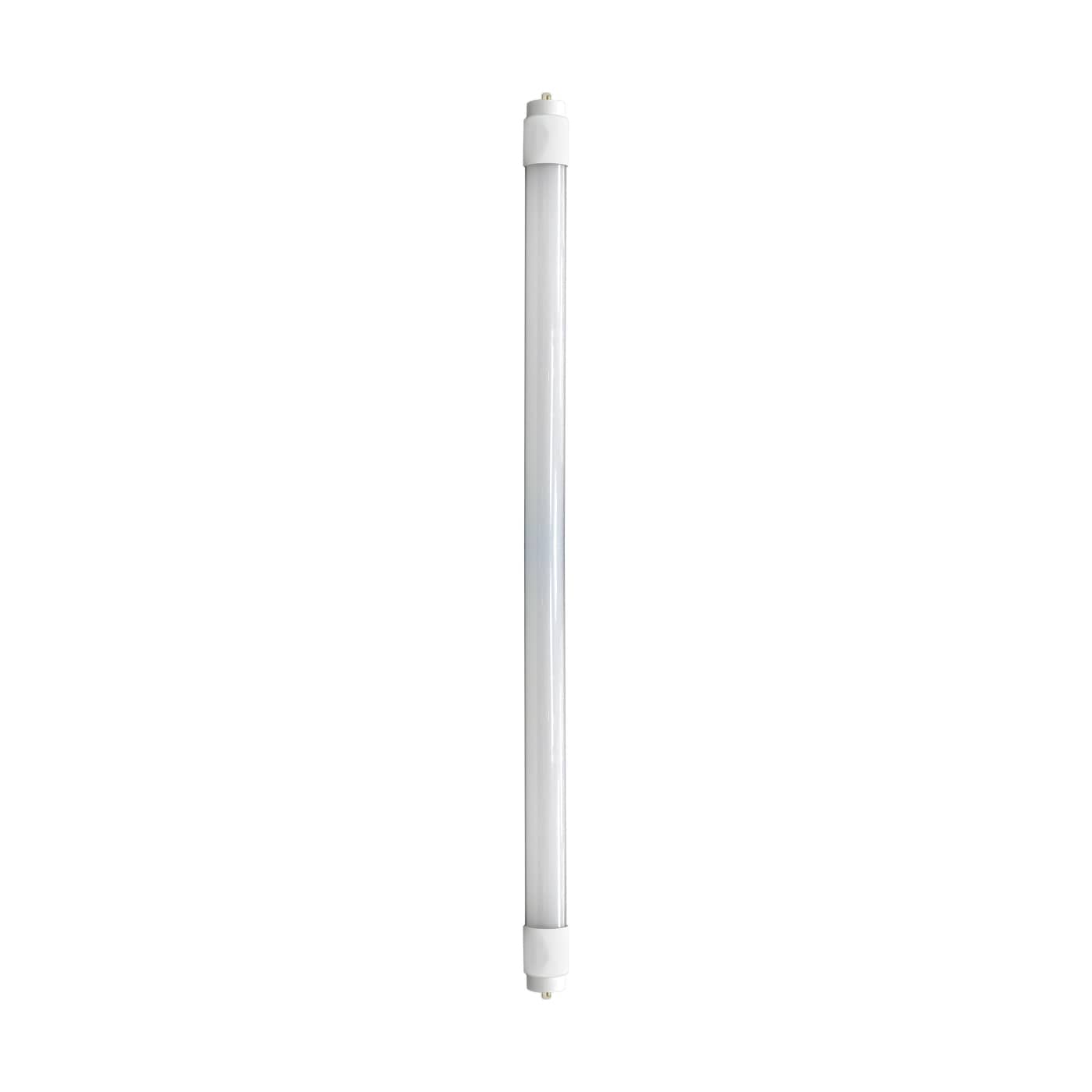

40T8/LED/96-850/BP/FA8

  • 40 Watt
  • 8 Foot
  • T8 LED
  • Single pin base
  • 5000K
  • 50000 Average rated hours

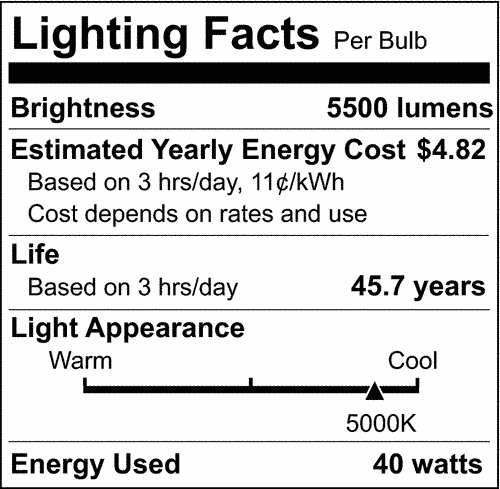

  • 5500 Lumens
  • Type B
  • Ballast Bypass
  • Double Ended Wiring
  • DLC 5.1
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S29919 SpecificationsS29919 Photometrics.iesS29919 Instructions.pdf
Tools
Lighting Layout Analysis For S29919
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40 Watt; 8 Foot; T8 LED; Single pin base; 5000K; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypeLinear
StatusActive
StyleUtility
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoSuitable for Emergency Lighting only with Satco EM Driver #S8002
Amps0.333-0.144A
Has CameraNo
IOT EnabledNo
Lens FinishWhite

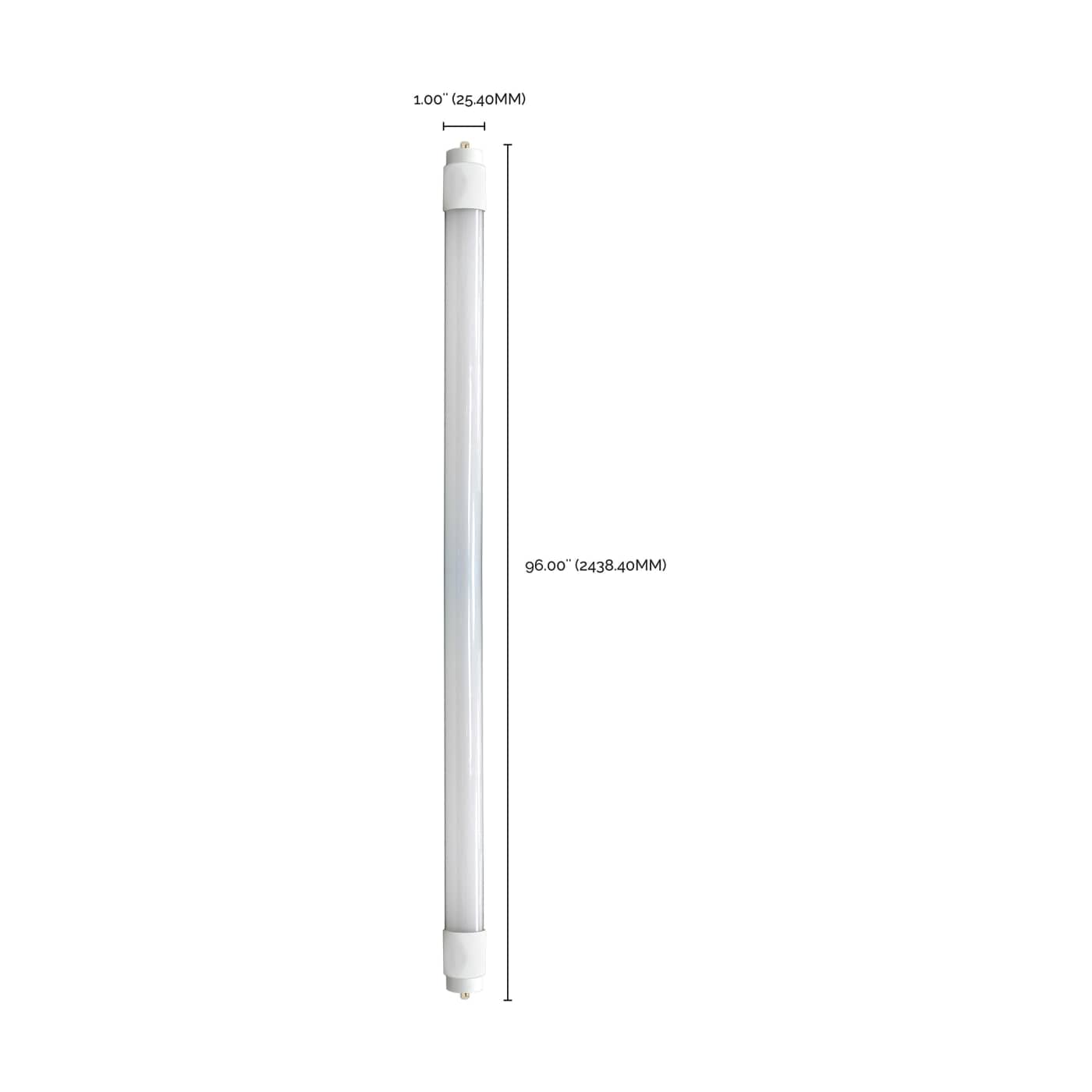

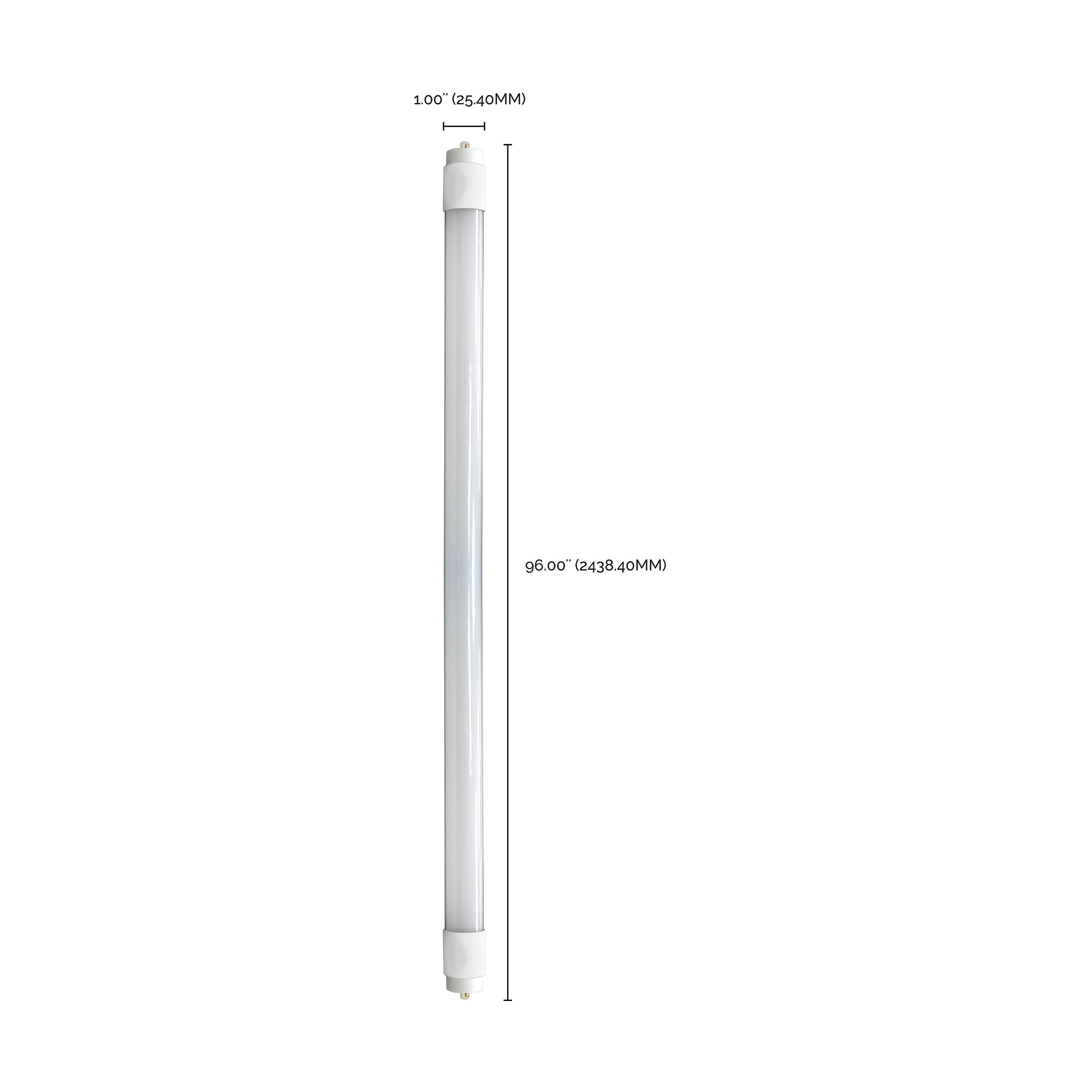

Minimum Compartment SizeLength: 96.063 in. Width: 10.630 in. Heigth: 2.756 in.
Nominal Length96.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv59W
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)5000K
Hours Rated50000
Beam Angle (degree)210
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens5500L
Volts120V-277V
Watts40W
Physical
Lamp BaseSingle Pin
FinishWHITE
Housing ColorWhite
ANSI BaseFa8
Lamp TypeT8
MOD Lamps1.0
MOL93.88
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDPLZR8CUD8VL7
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923299193
Case Cube1.619
Case Height3.86
Case Length95.87
Case Quantity10
Case UPC10045923299190
Case Weight11.87
Case Width7.56
EA Cube0.0556
EA Height96.13
EA Length1.0
EA Quantity1
EA Weight0.9
EA Width1.0
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeSleeve
Web Length93.88
Web Width1.0
