S30106

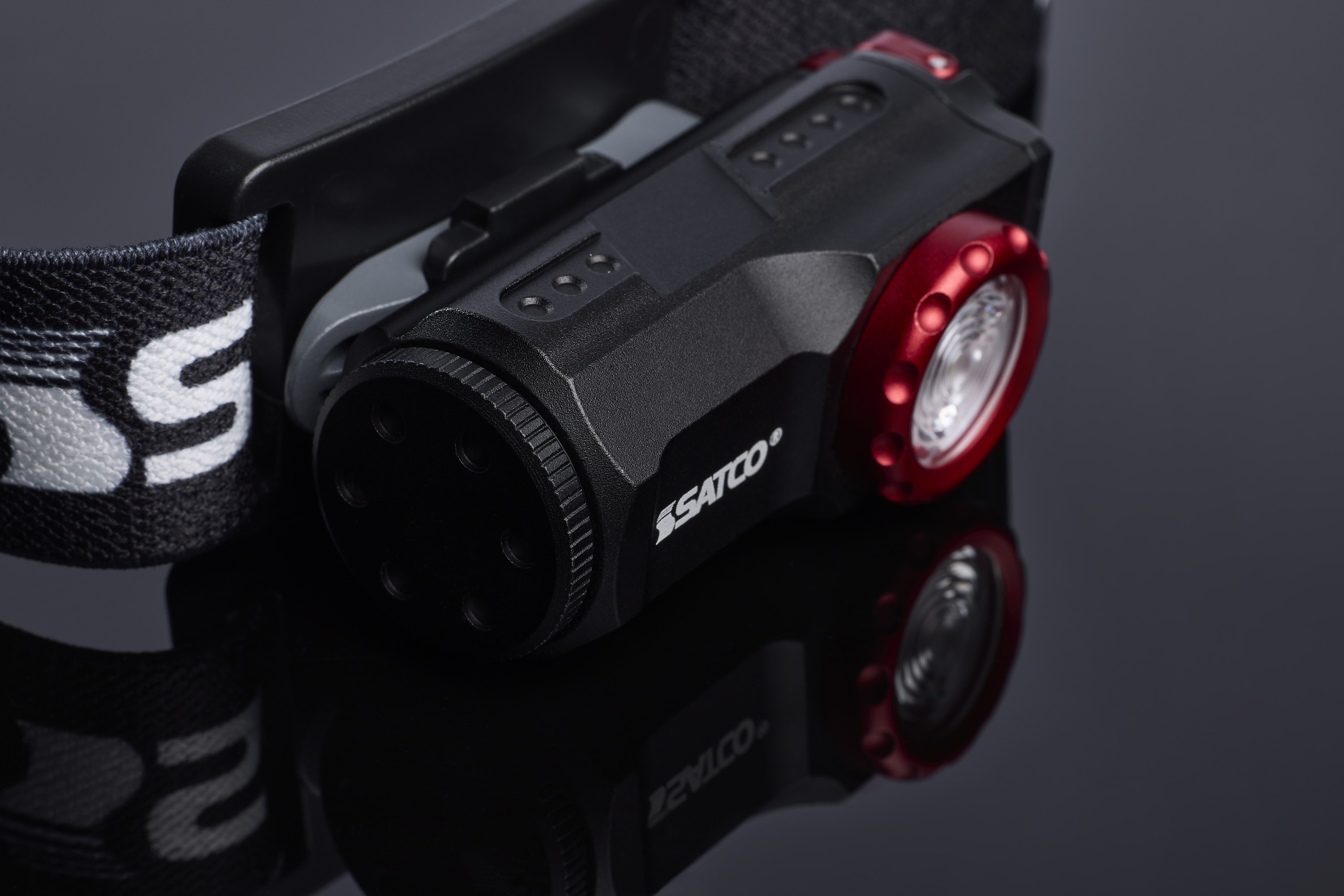

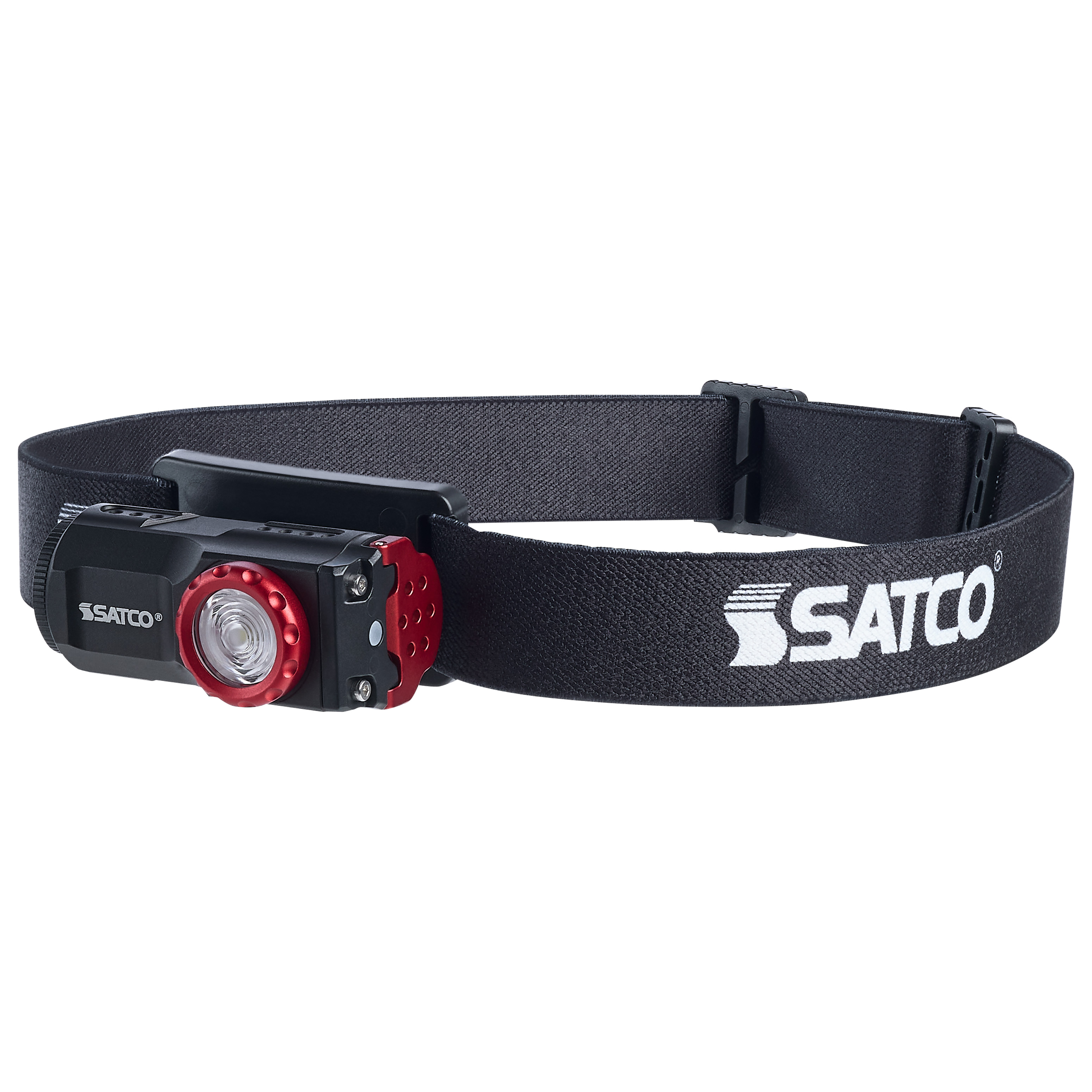

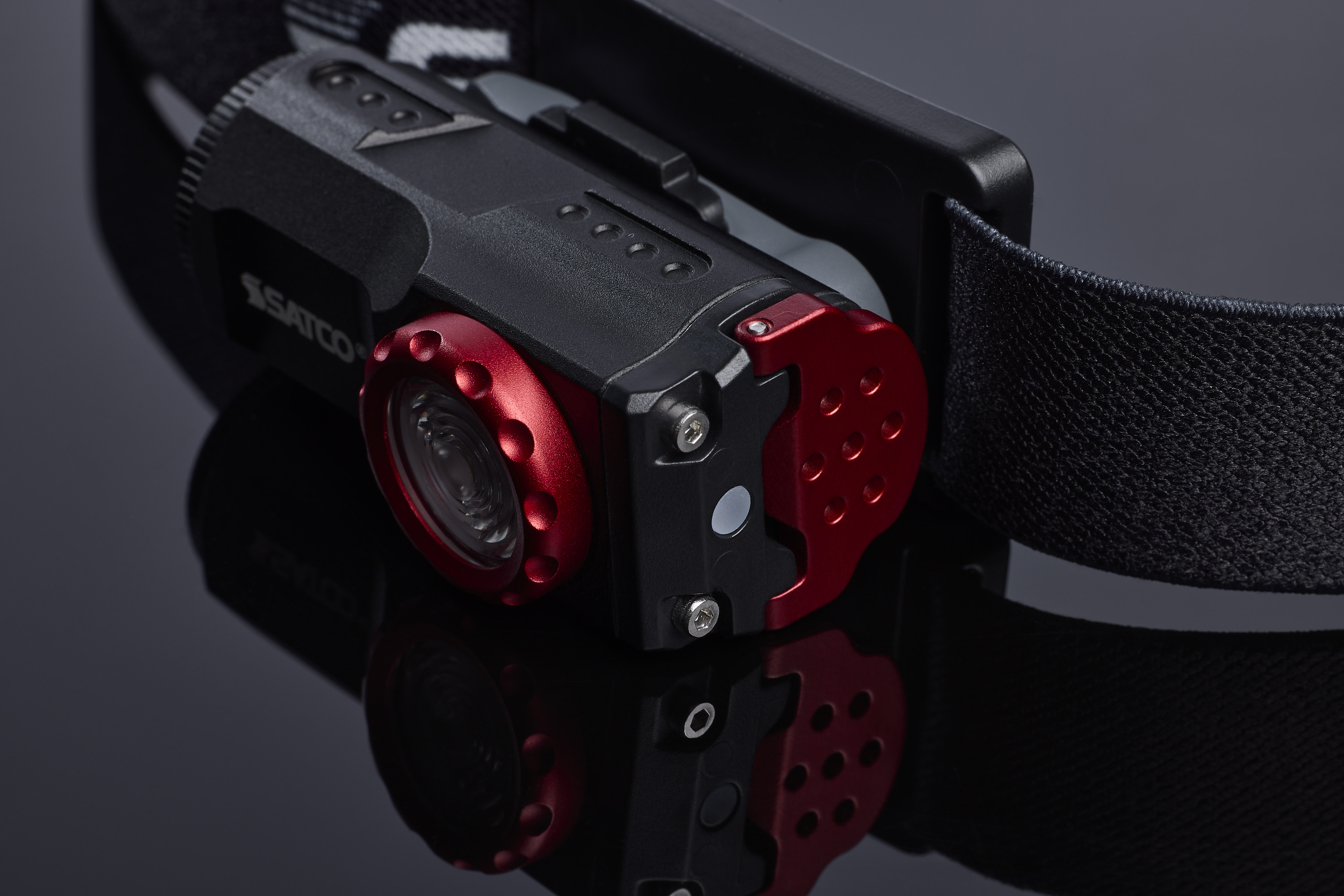

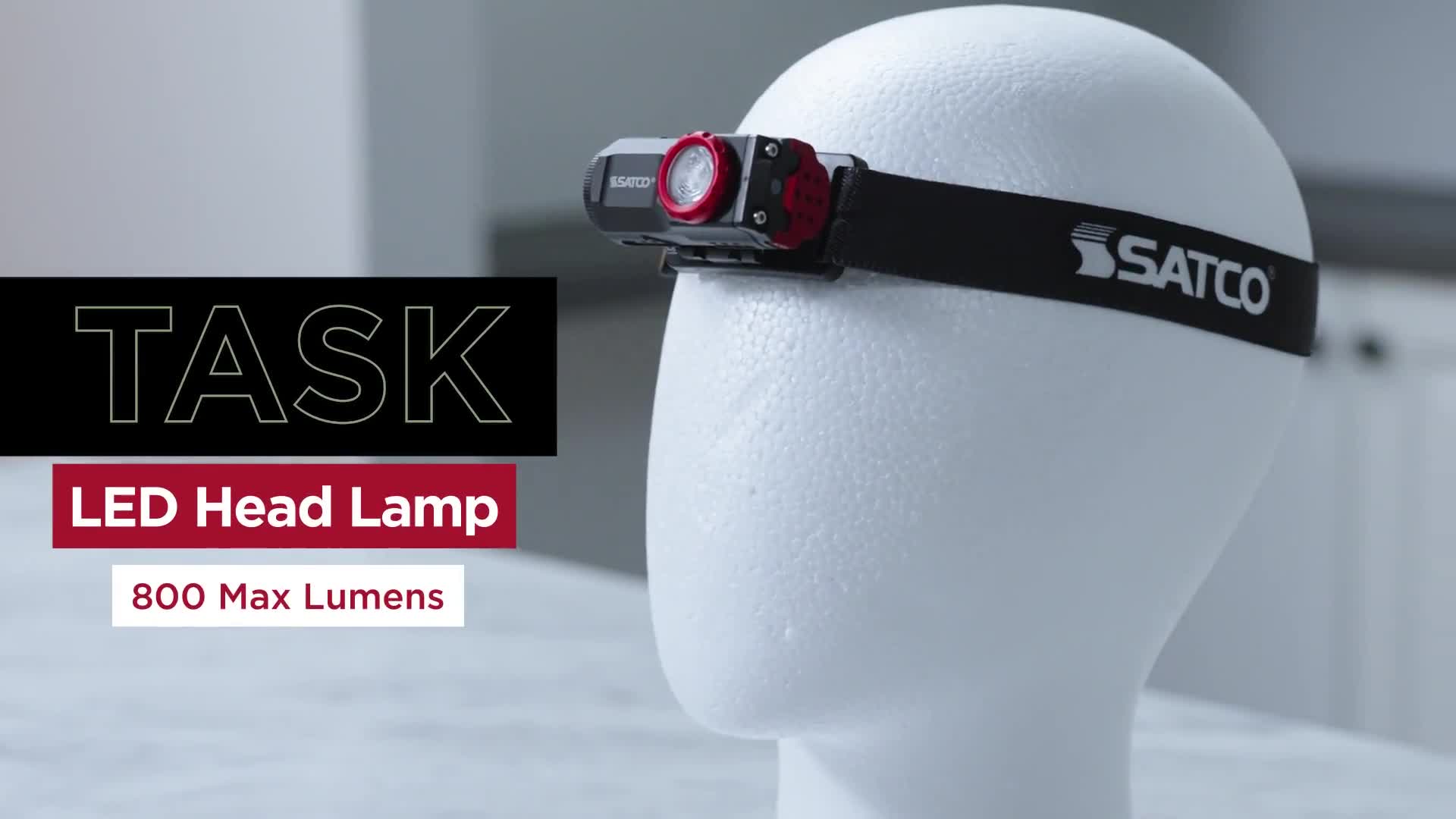

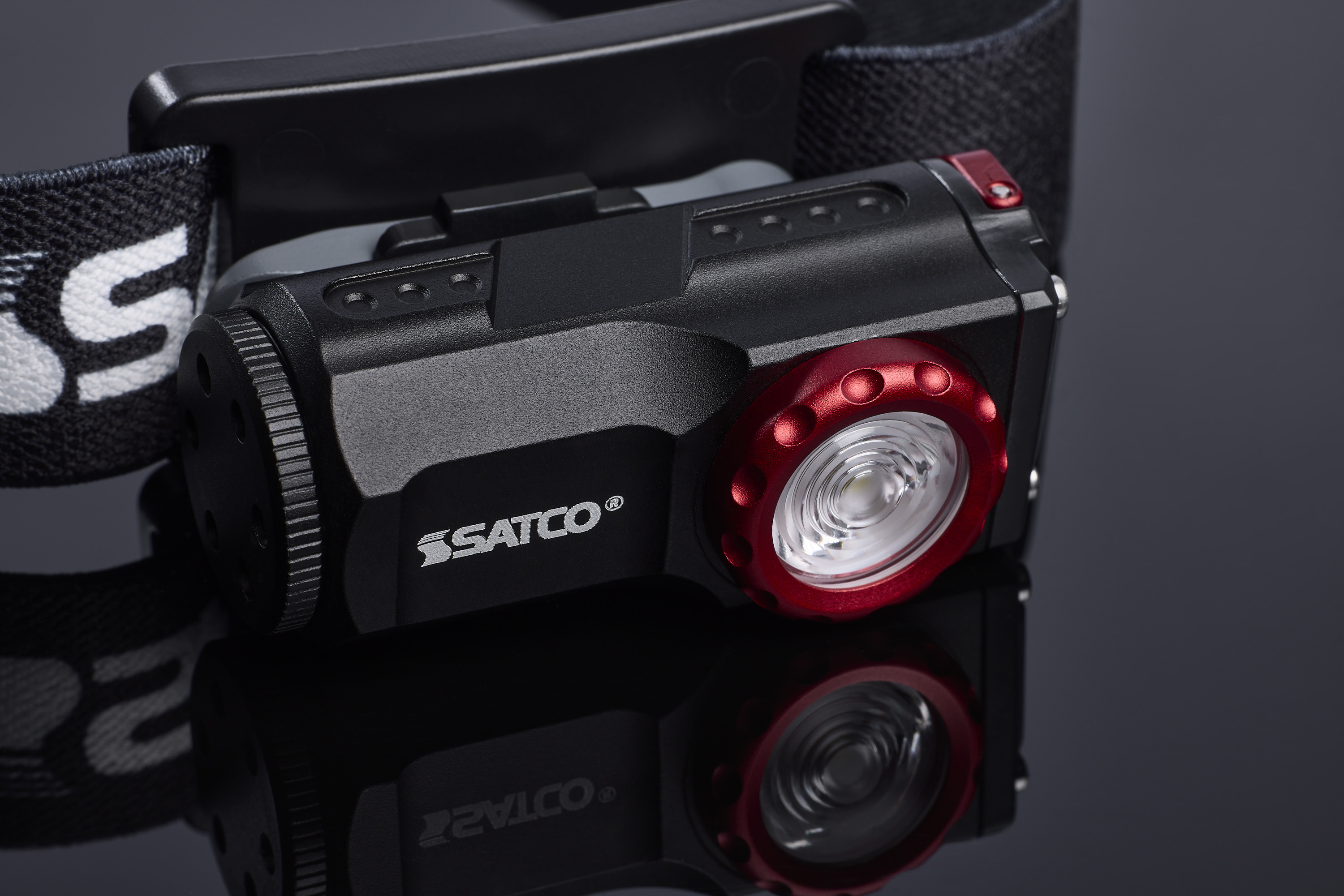

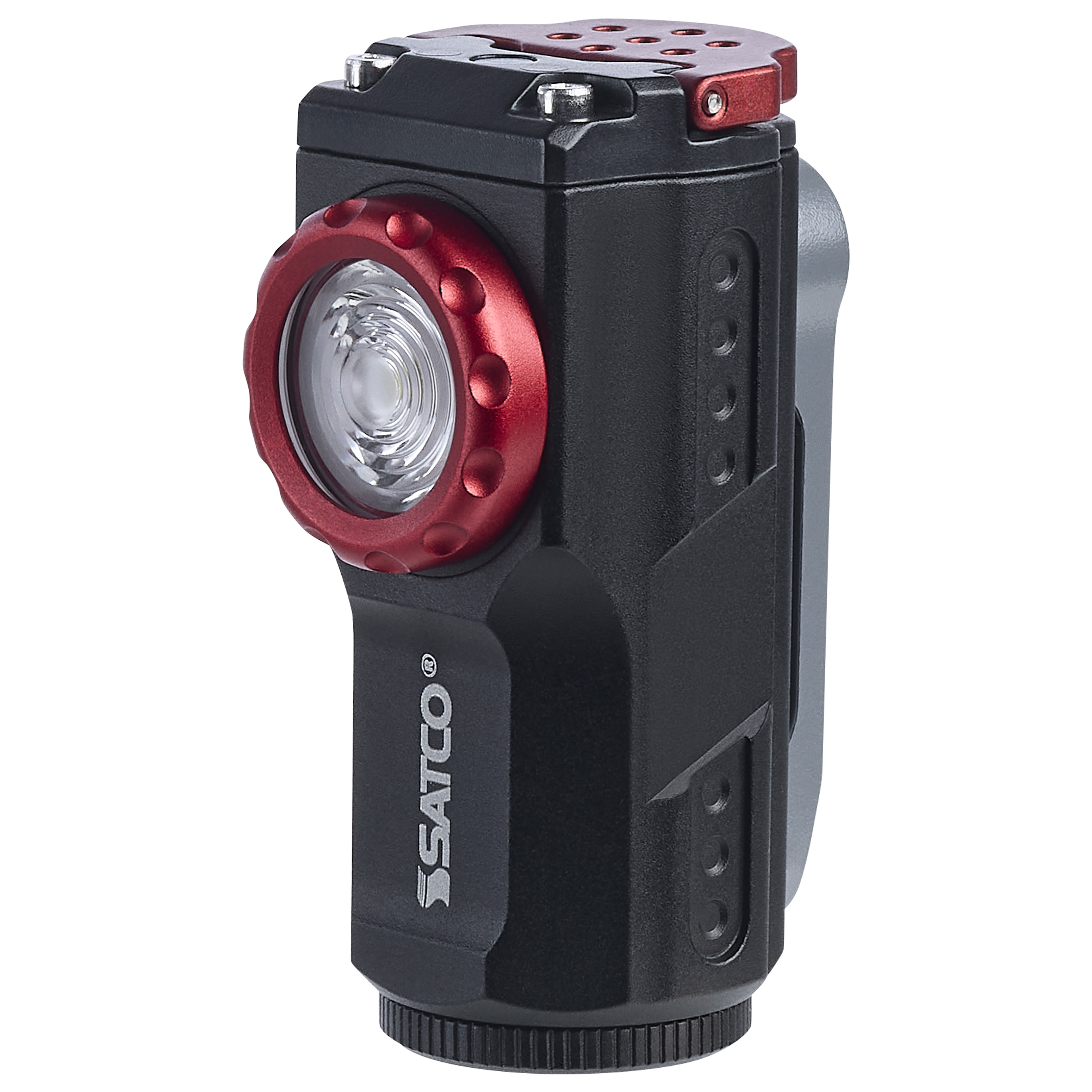

LED HEAD LAMP

  • LED Head Lamp with Clip
  • 800 Max Lumens
  • USB-C Rechargeable
  • 3.7 Volt
  • 12pc Tray Pack
dimmable^dimmable^2
fcc_compliant^true^3
rohs_compliant^y^3
S30106 SpecificationsS30106 Instructions.pdfLED HEAD LAMP
Description
Description
LED Head Lamp with Clip; 800 Max Lumens; USB-C Rechargeable; 3.7 Volt; 12pc Tray Pack
Products Specs
General
CompanySATCO
MaterialAluminum
Fixture TypeRechargeable Task
IncludesUSB-A to USB-C Charging Cable
Product NotesReplaceable Rechargeable 3.7V ion 18350 Battery; Charge Time: 2.5HRS
StatusActive
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBlack
Additional InfoShips in retail-ready display trays and packaging

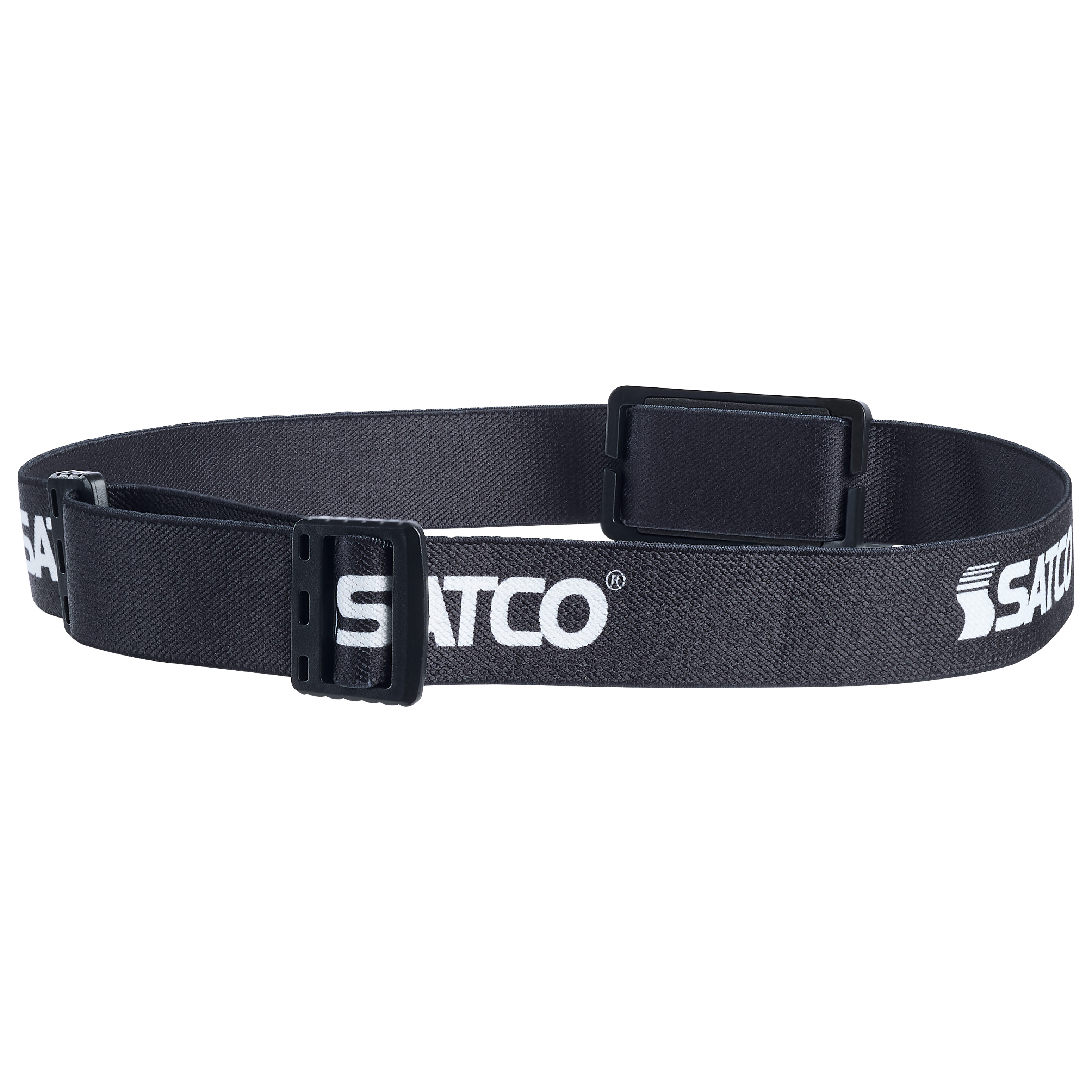

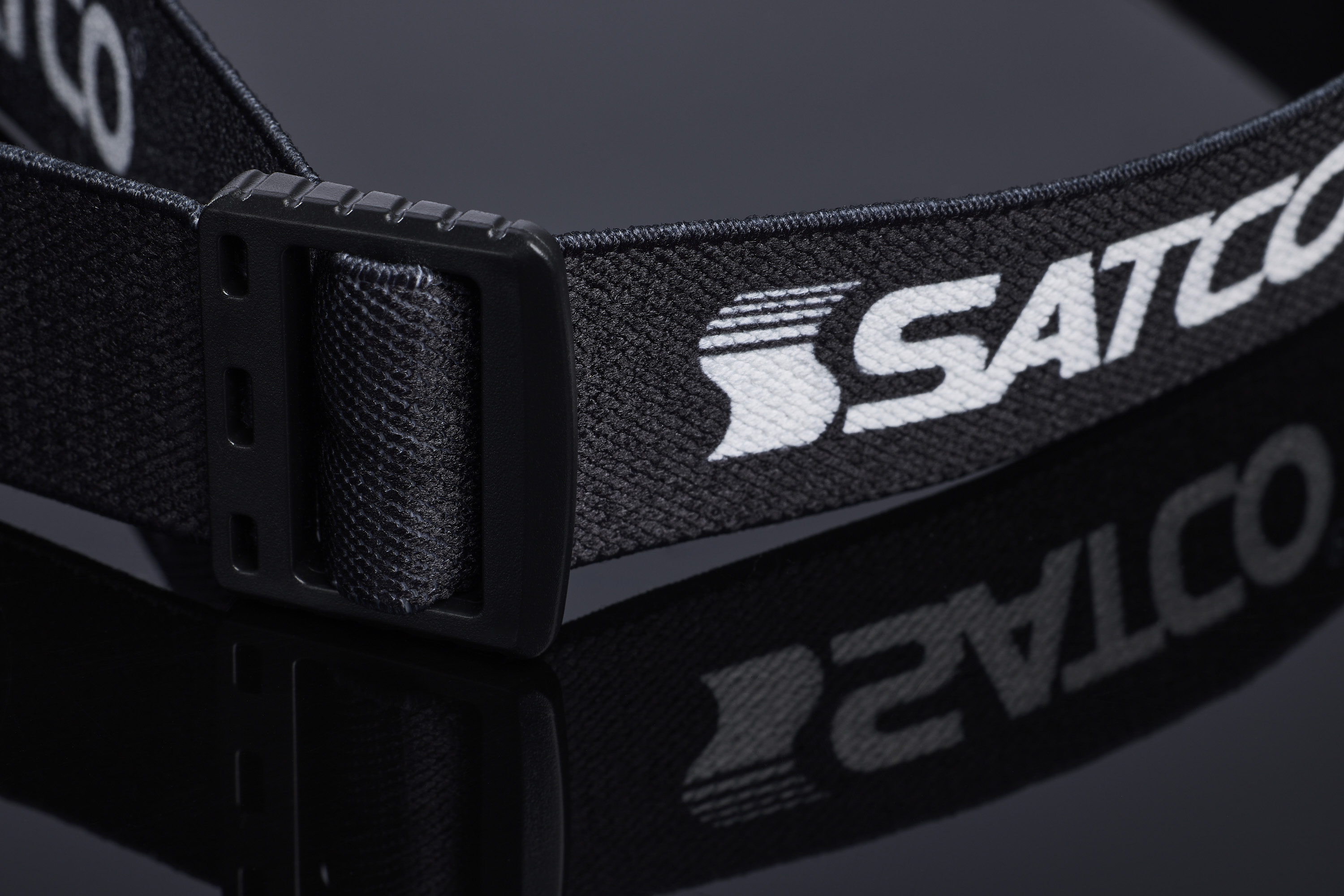

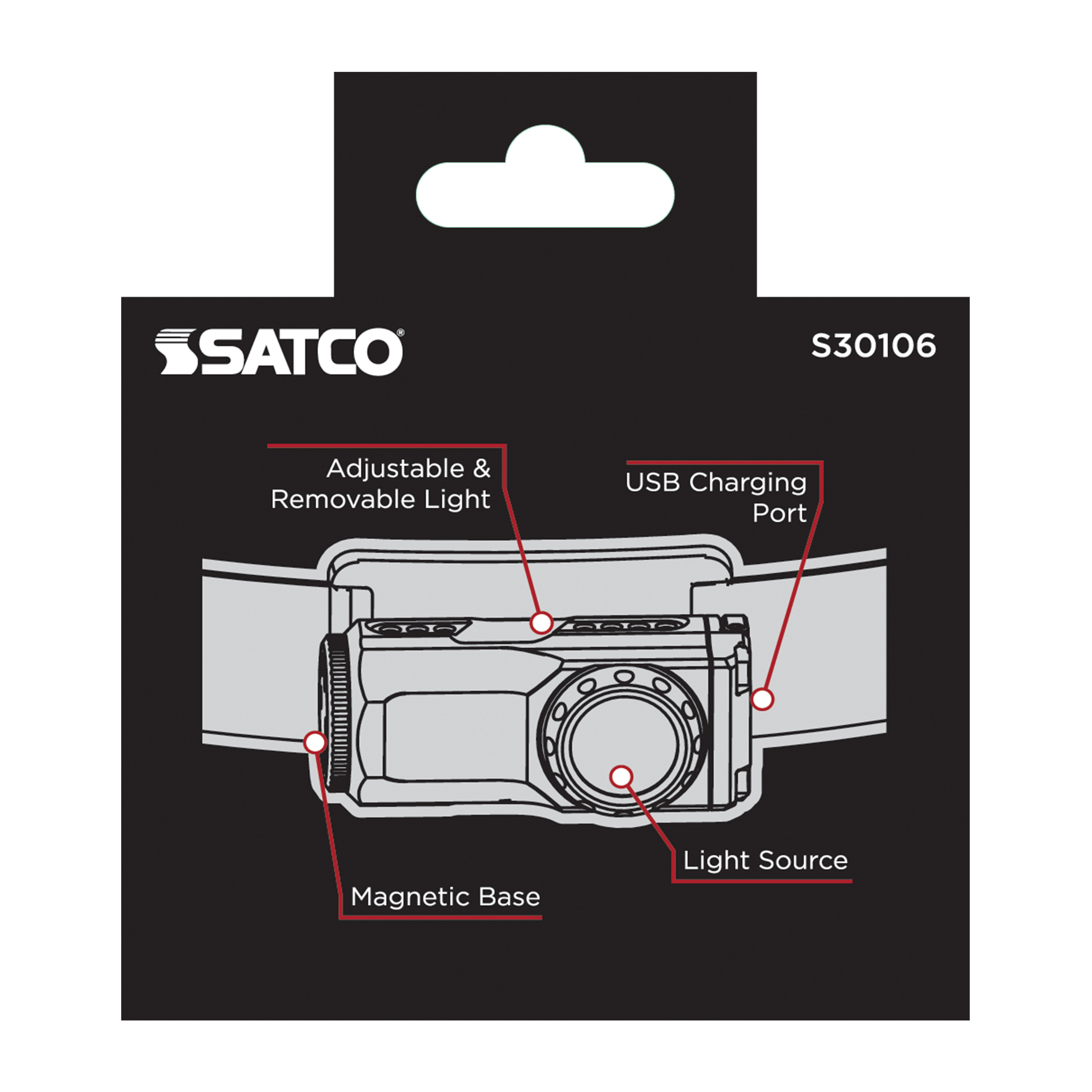

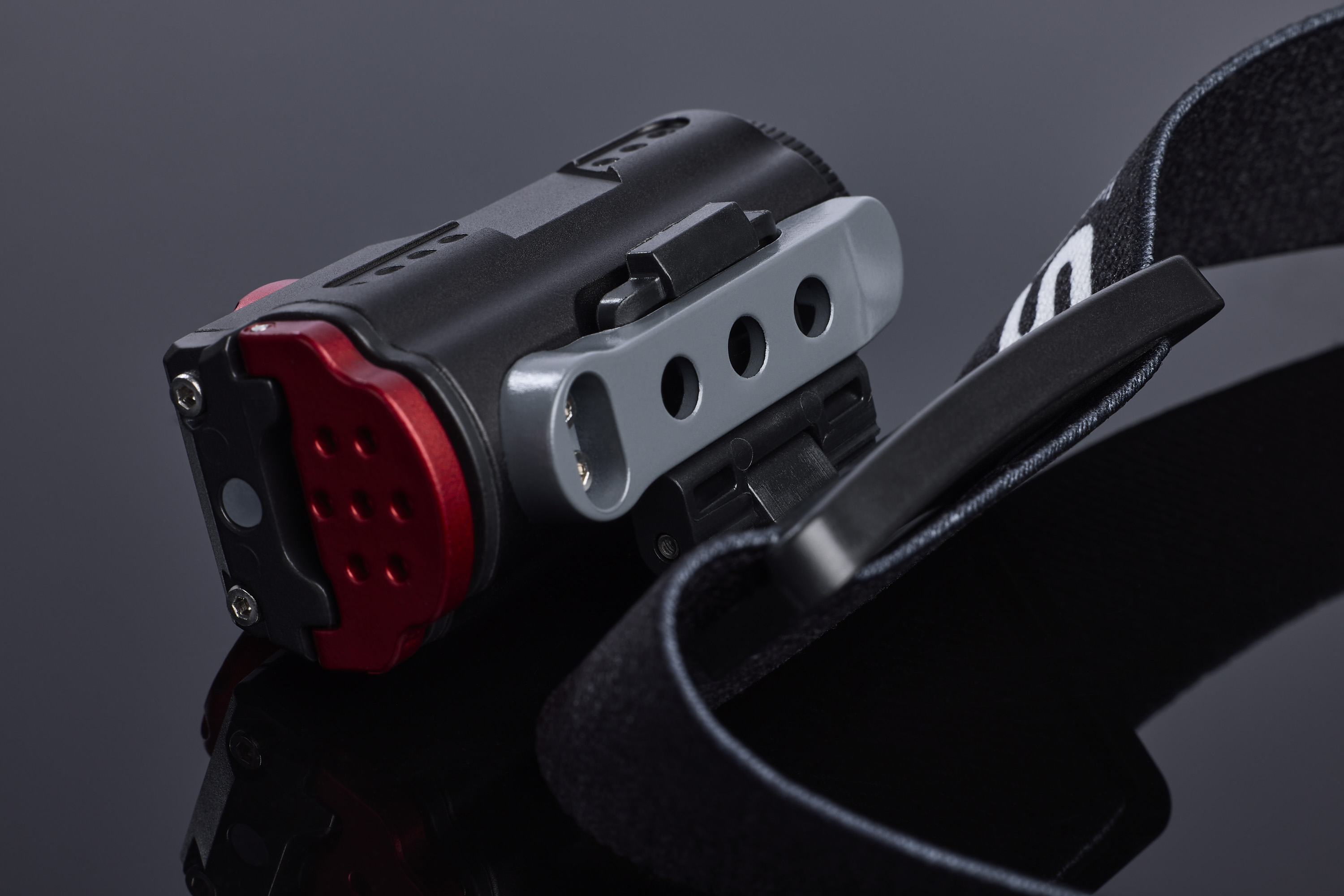

Integrated FeaturesReplaceable Battery; Magnetic Base; Adjustable Head Band; Pocket Clip; Turbo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Portable Light ModesHigh, Low, Medium, Turbo
Product TechnologyLED
Serviceable BatteryYes
Beam Distance (Ft)292
Battery IndicatorNo
Digital DisplayNo
Drop Impact Rating3.28 Ft (1M)
Battery Operating Temp+32F to +104F (0C to +40C)
Light Source QuantitySingle
Power Bank Storage900mAh
Electrical
CCT (Kelvin Temp)6500K
DimmableYes-Dimmable
Color TempDaylight
CRI50+
Dimming TypeOnly dimmable via setting selection, Step Dimming
Operating Temp+32F to +104F (0C to +40C)

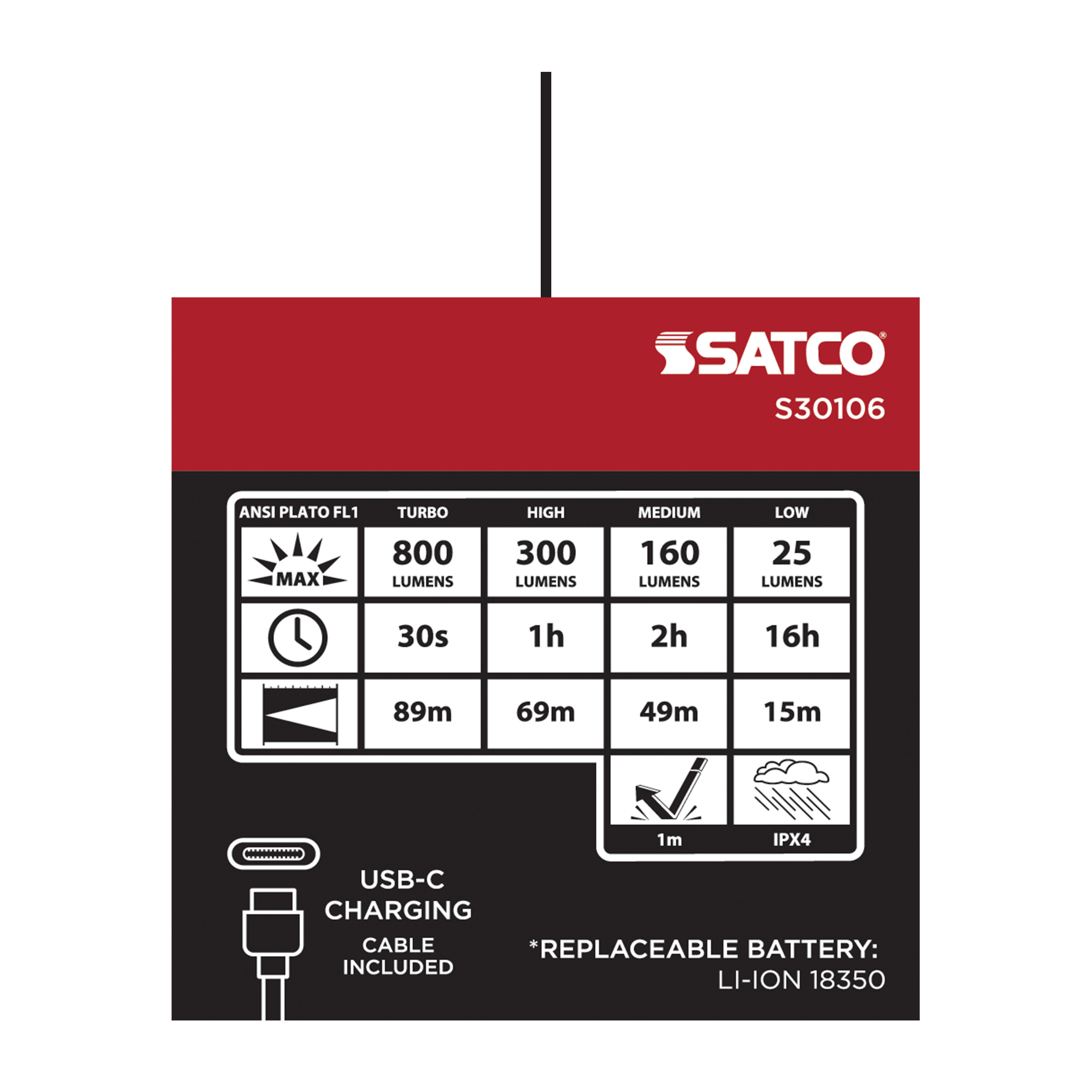

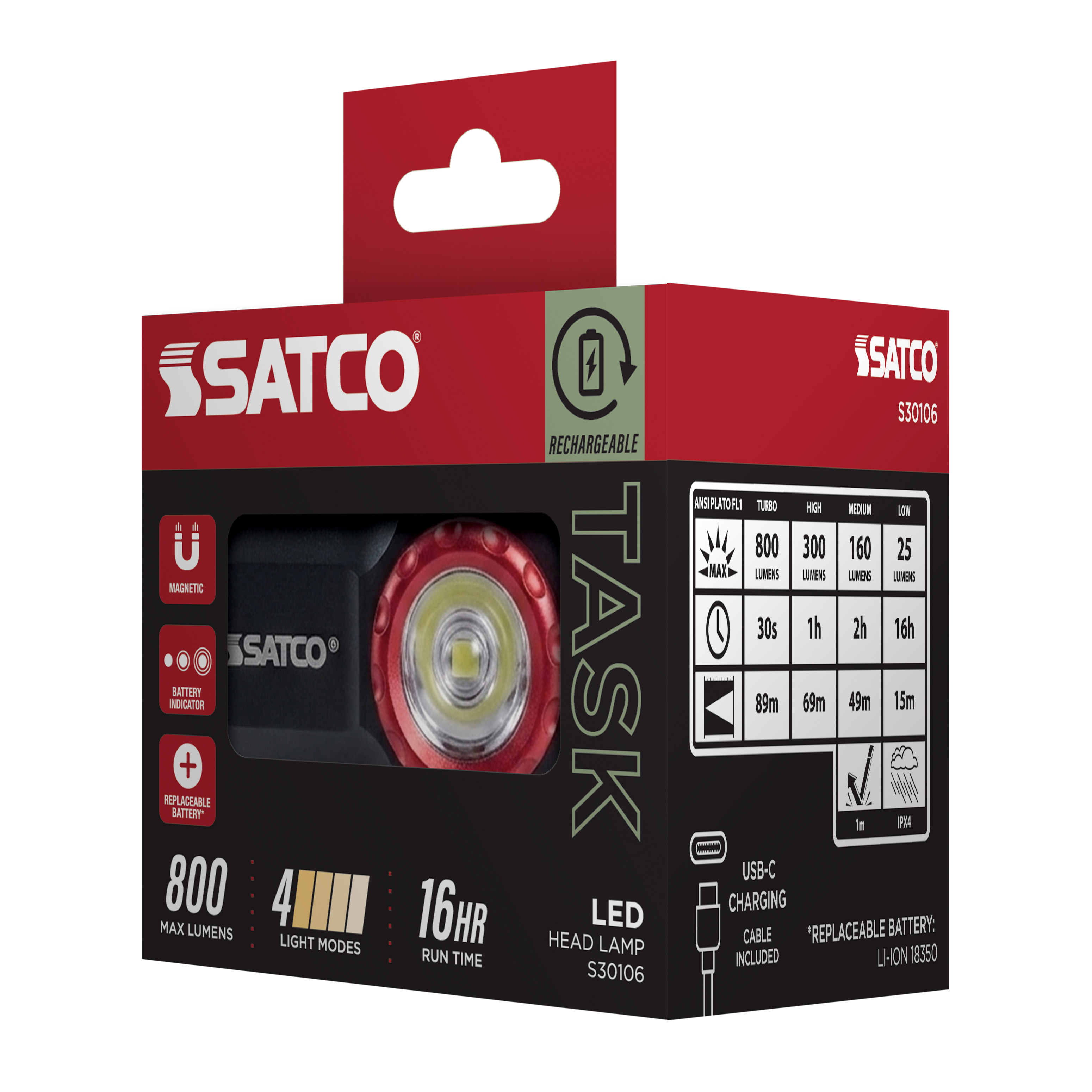

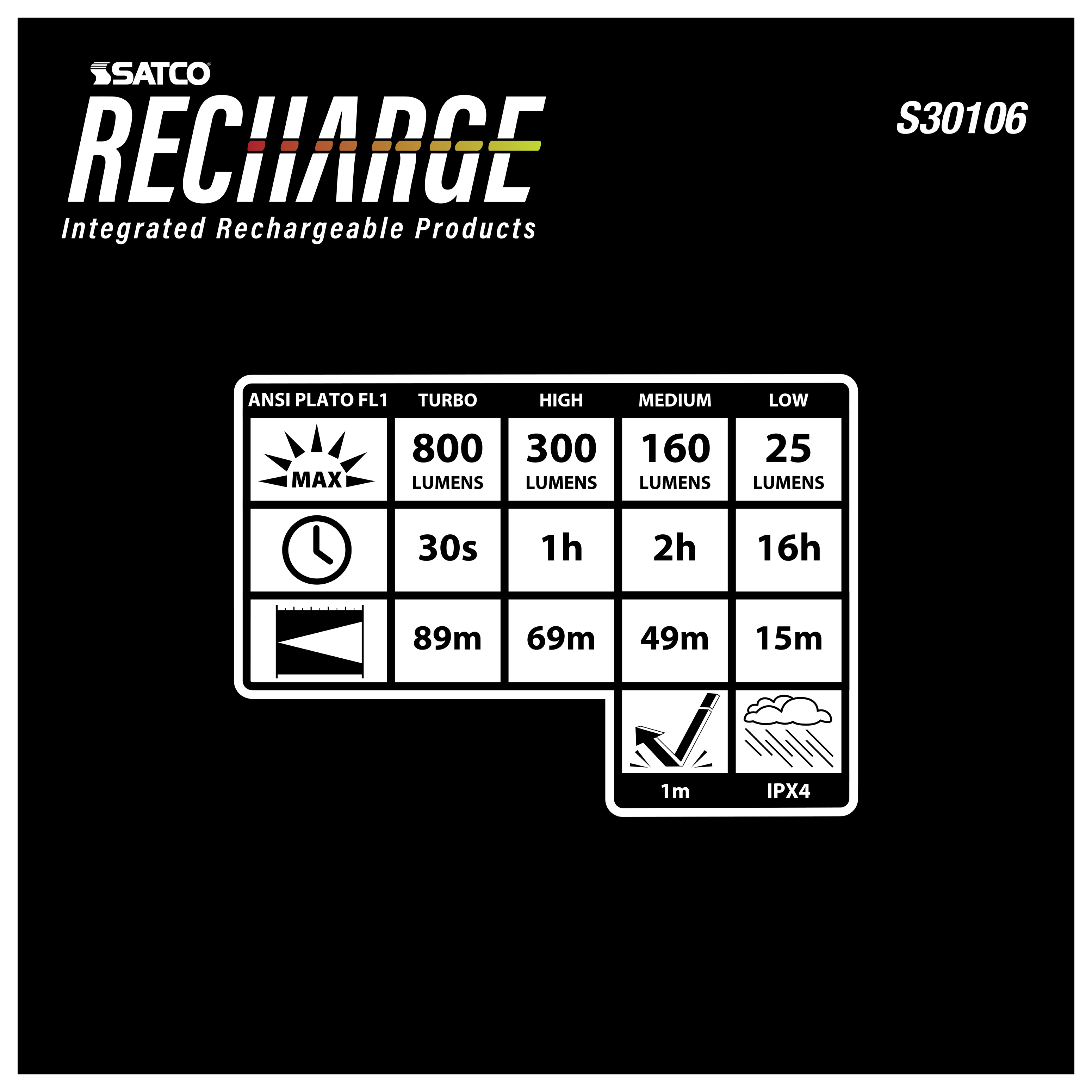

Lumens800L/300L/160L/25L
Volts3.7V
Max Lumens800L
ConnectionUSB-C Rechargeable
Charge Time2.5hr
Battery ChemistryLithium-ion (Li-ion)
Replaceable Battery Type18350

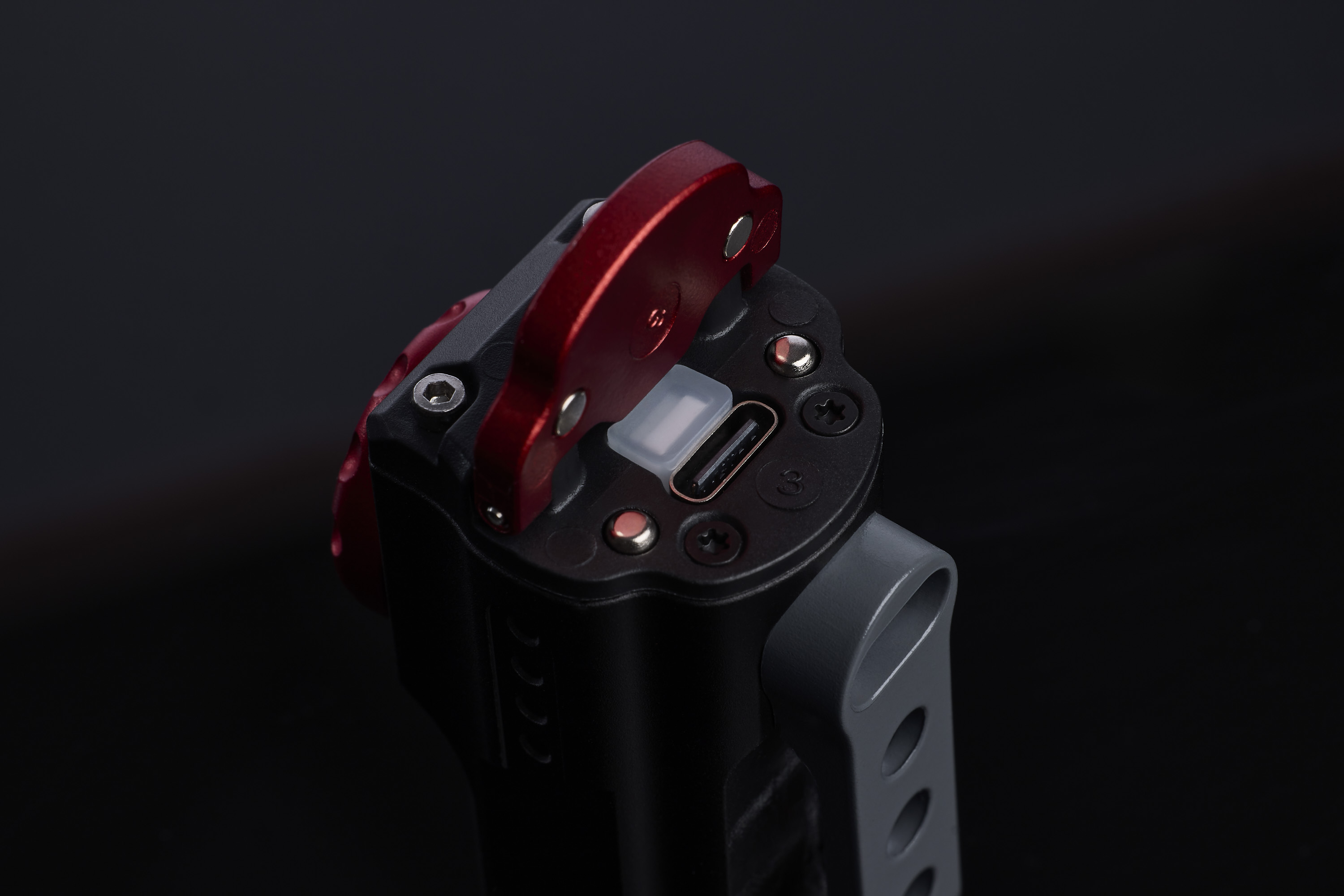

USB Type In1 USB-C
Physical
FinishBlack / Gray / Red
Housing ColorBlackGrayRed

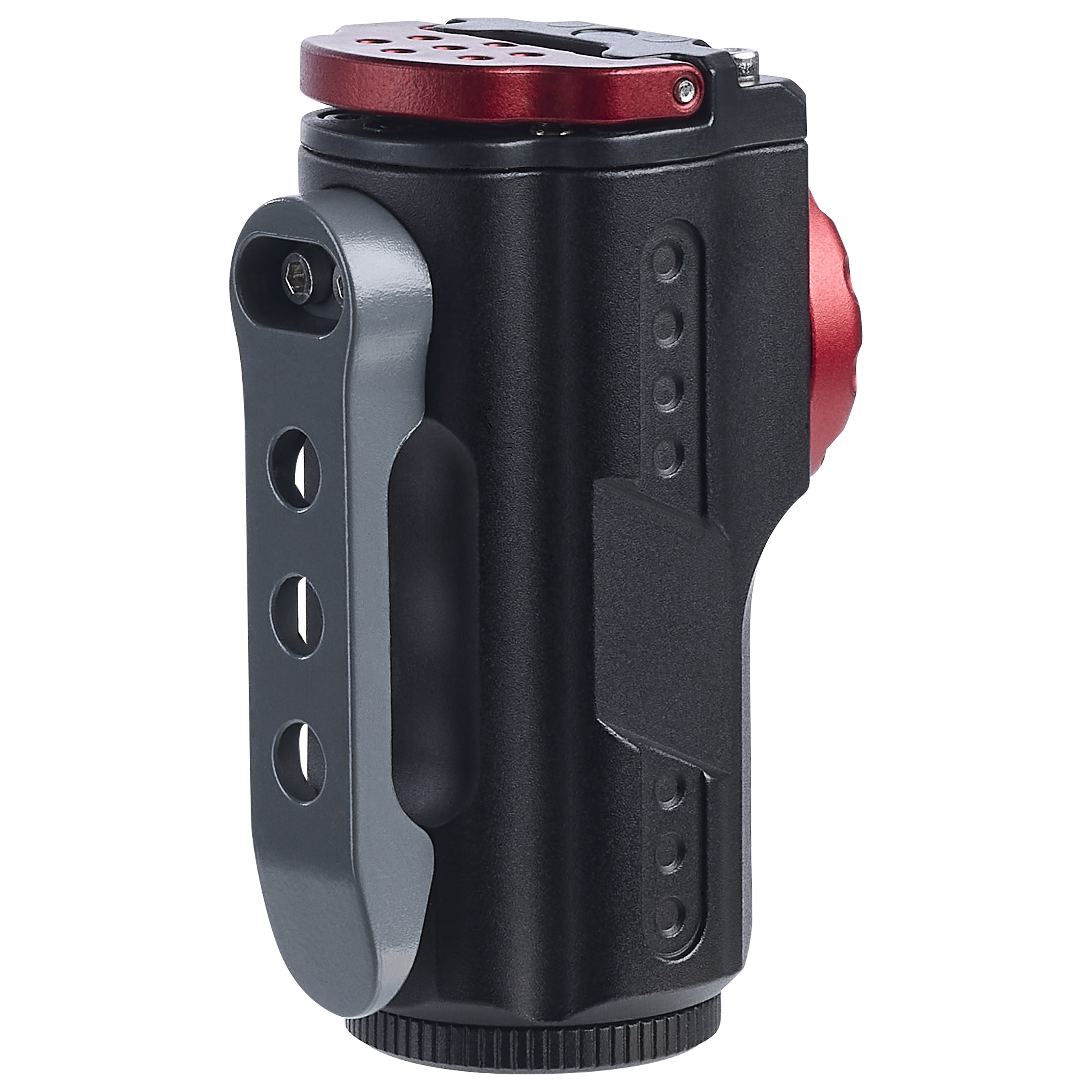

Mounting ProcedureBelt Clip, Magnetic Base
Additional Info
Warranty1-Year
Installation NotesDo Not Charge The Product Below 40F Or above 104F; Do Not Exceed 5V DC, 1A Charging
Portable Light FunctionsWhite Light Function
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIPX4
ROHS CompliantYes
Energy Star CertifiedNo
T24/JA8 CompliantNo
Performance StandardsANSI PLATO FL1
Packaging
UPC045923300073
Case Cube1.424
Case Height11.41
Case Length10.24
Case Quantity48
Case UPC10045923300070
Case Weight22.26
Case Width21.06
EA Cube0.0155
EA Height3.0
EA Length2.75
EA Quantity1
EA Weight0.3
EA Width3.25
Inner Cube0.224
Inner Height3.94
Inner Length9.53
Inner Quantity12
Inner UPC20045923300077
Inner Weight9.92
Inner Width10.31
Pack TypeColor Box

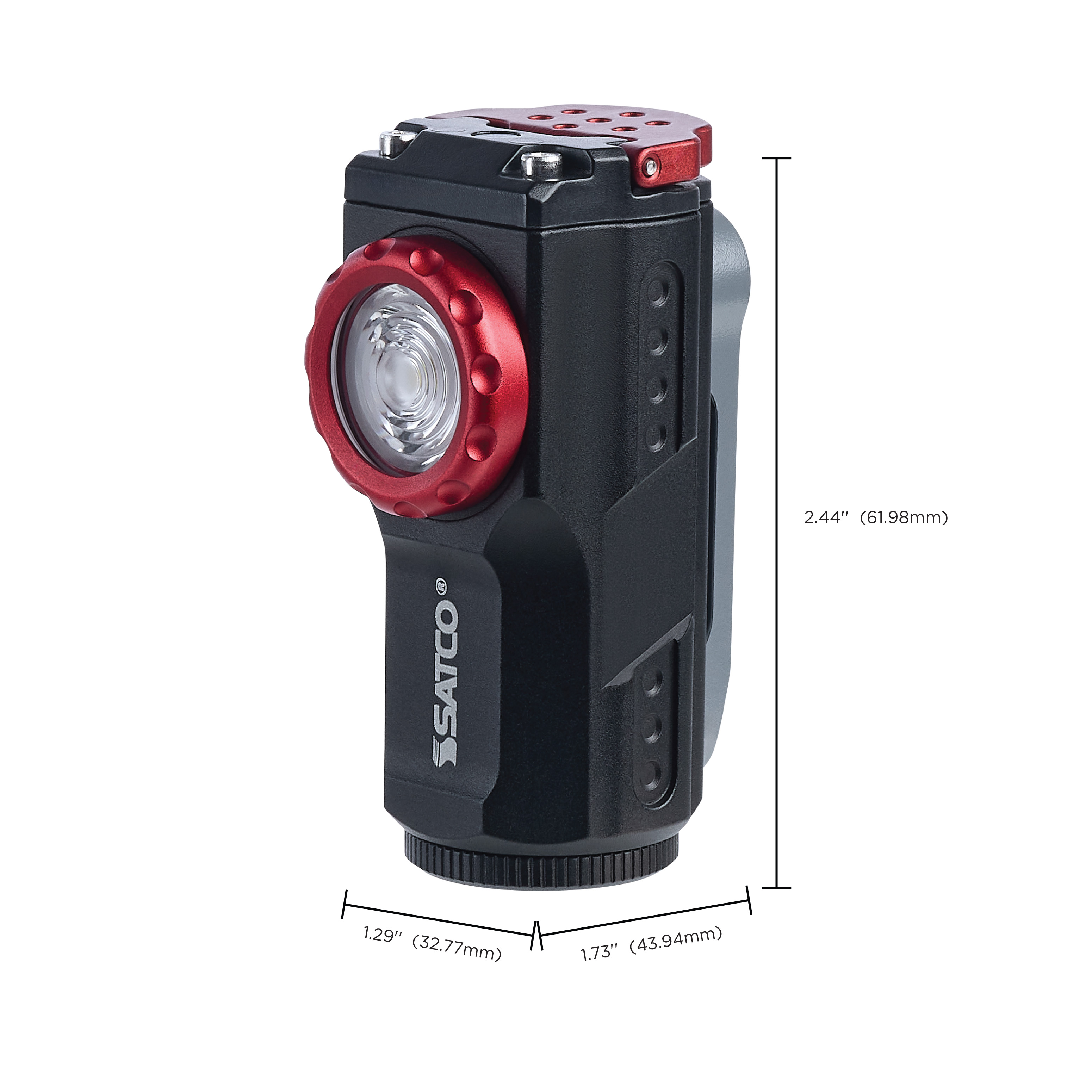

Web Height1.29
Web Length1.73
Web Width2.44
