S30109

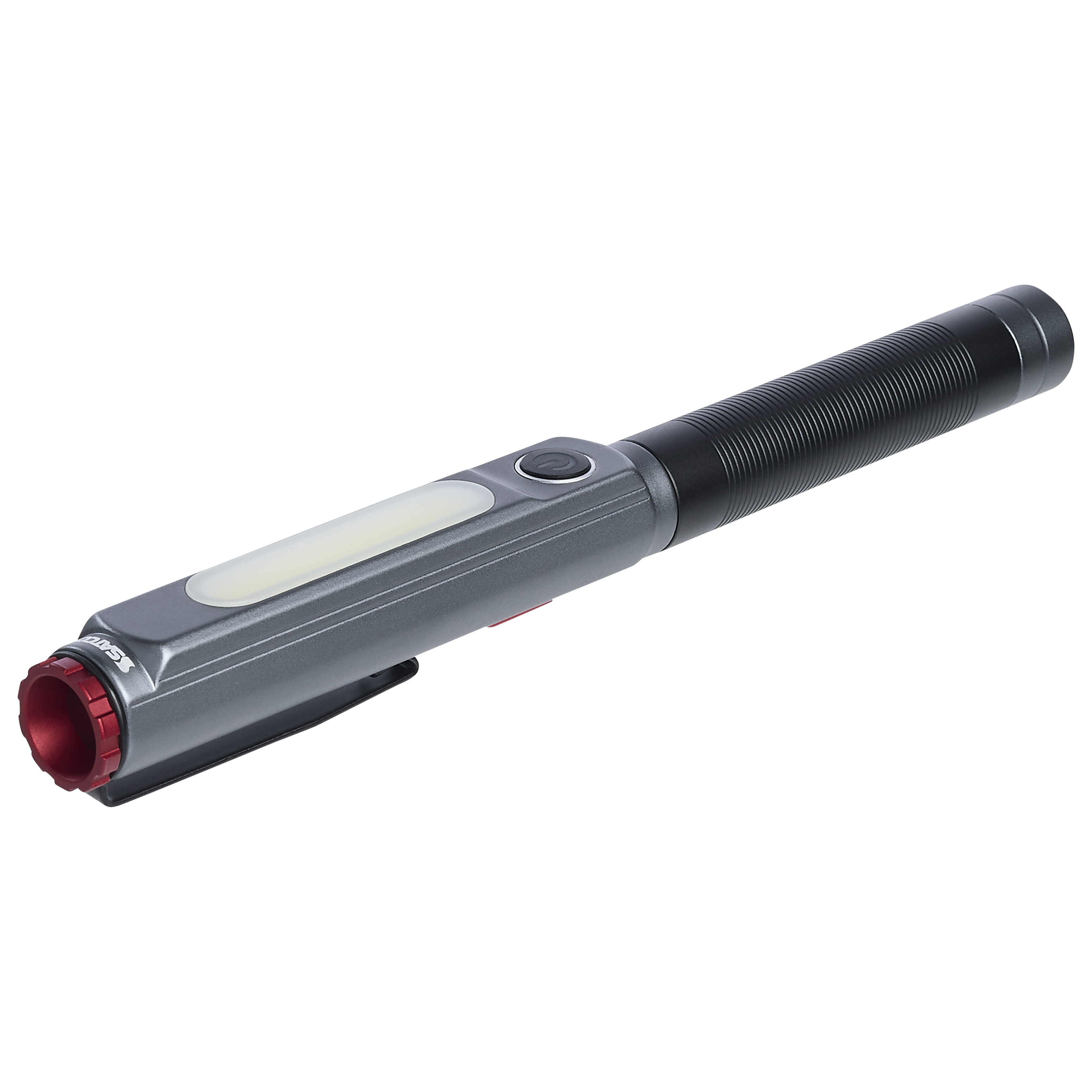

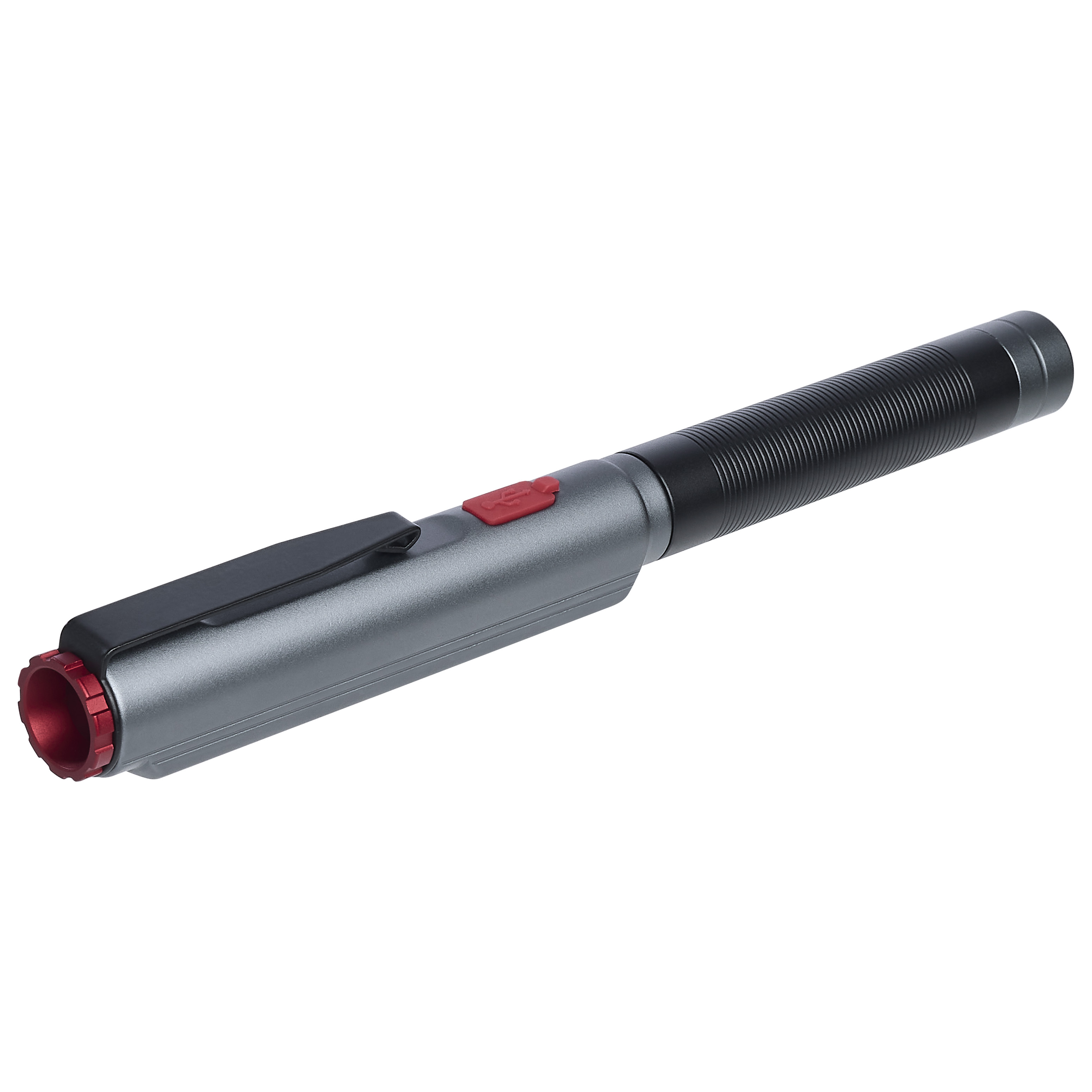

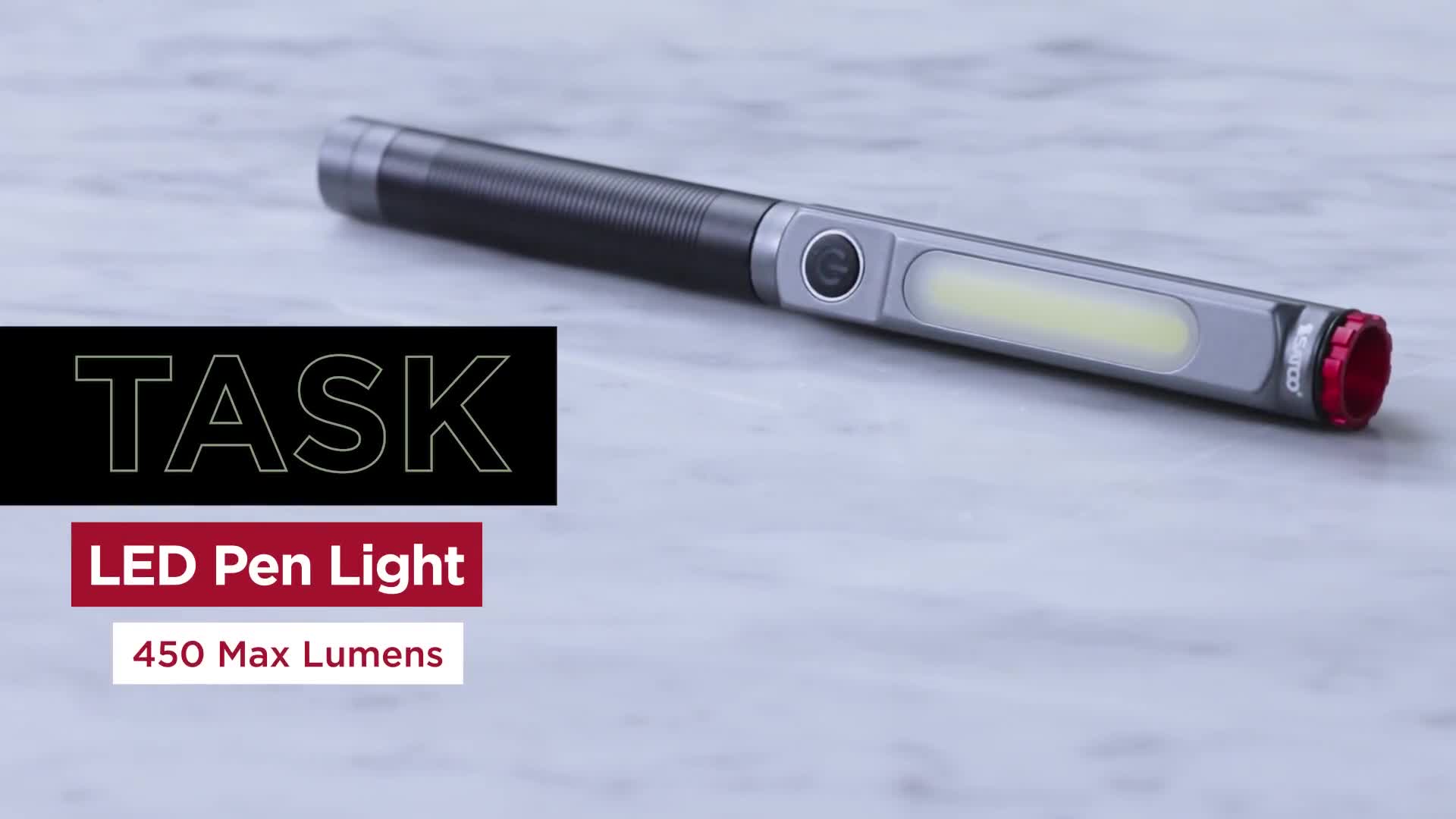

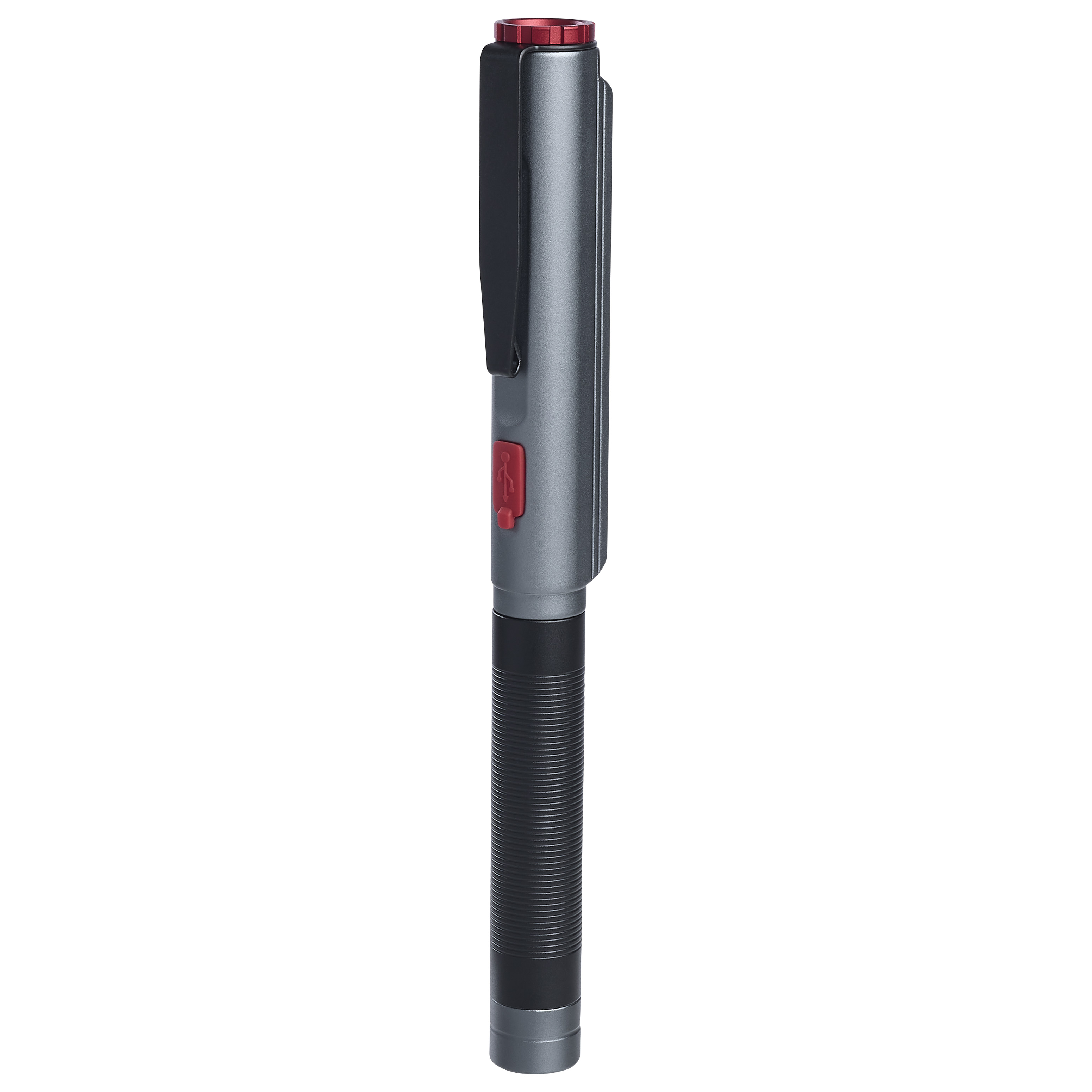

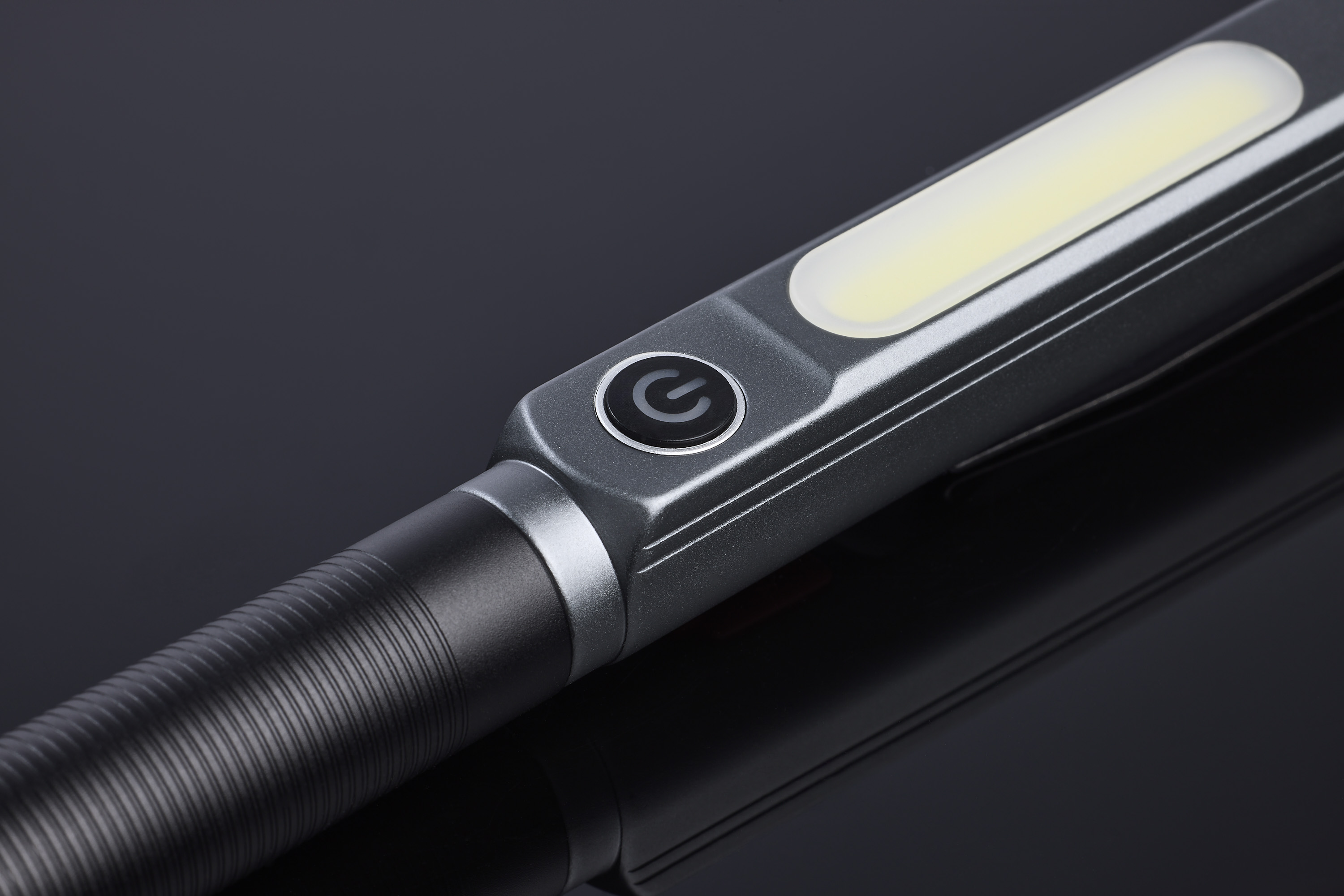

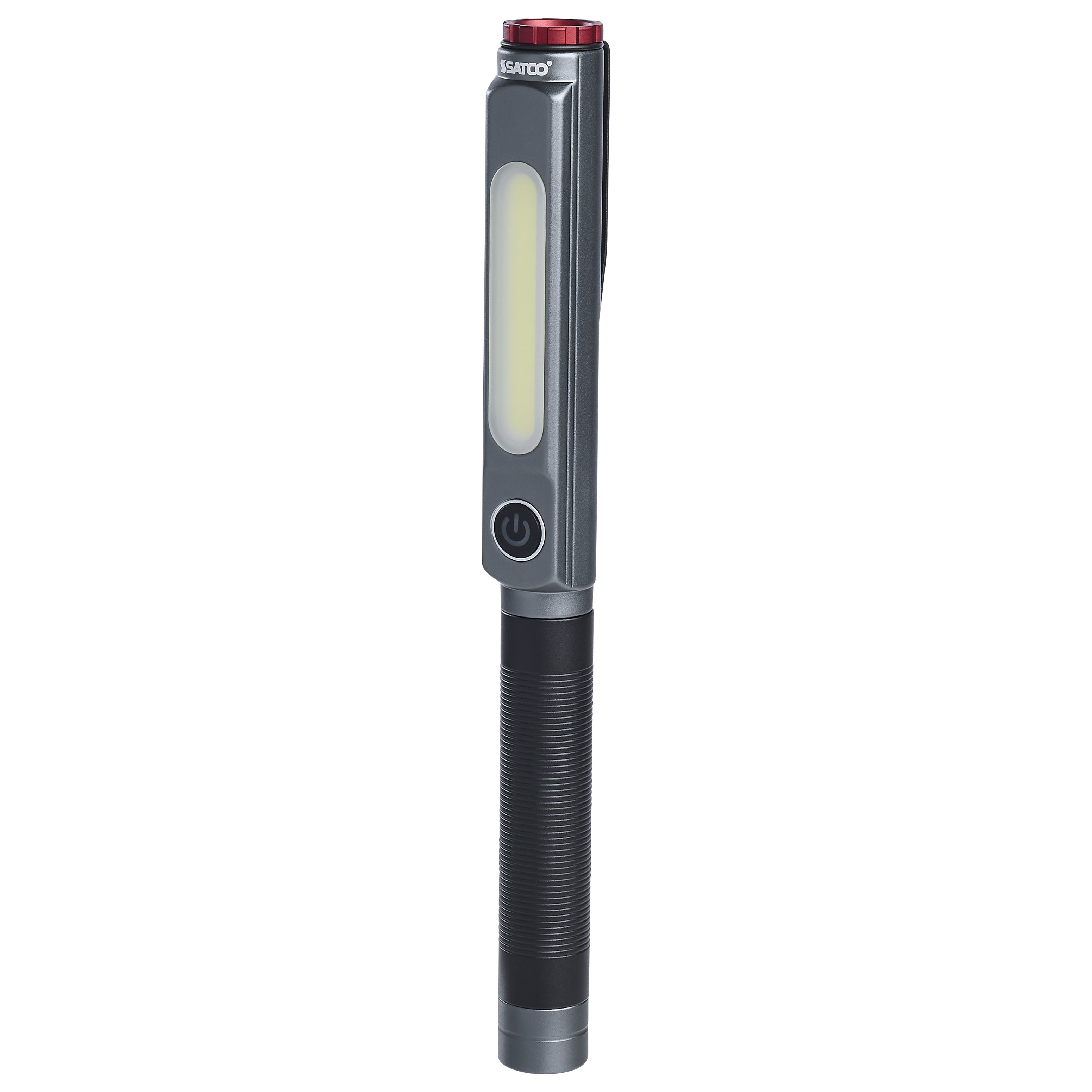

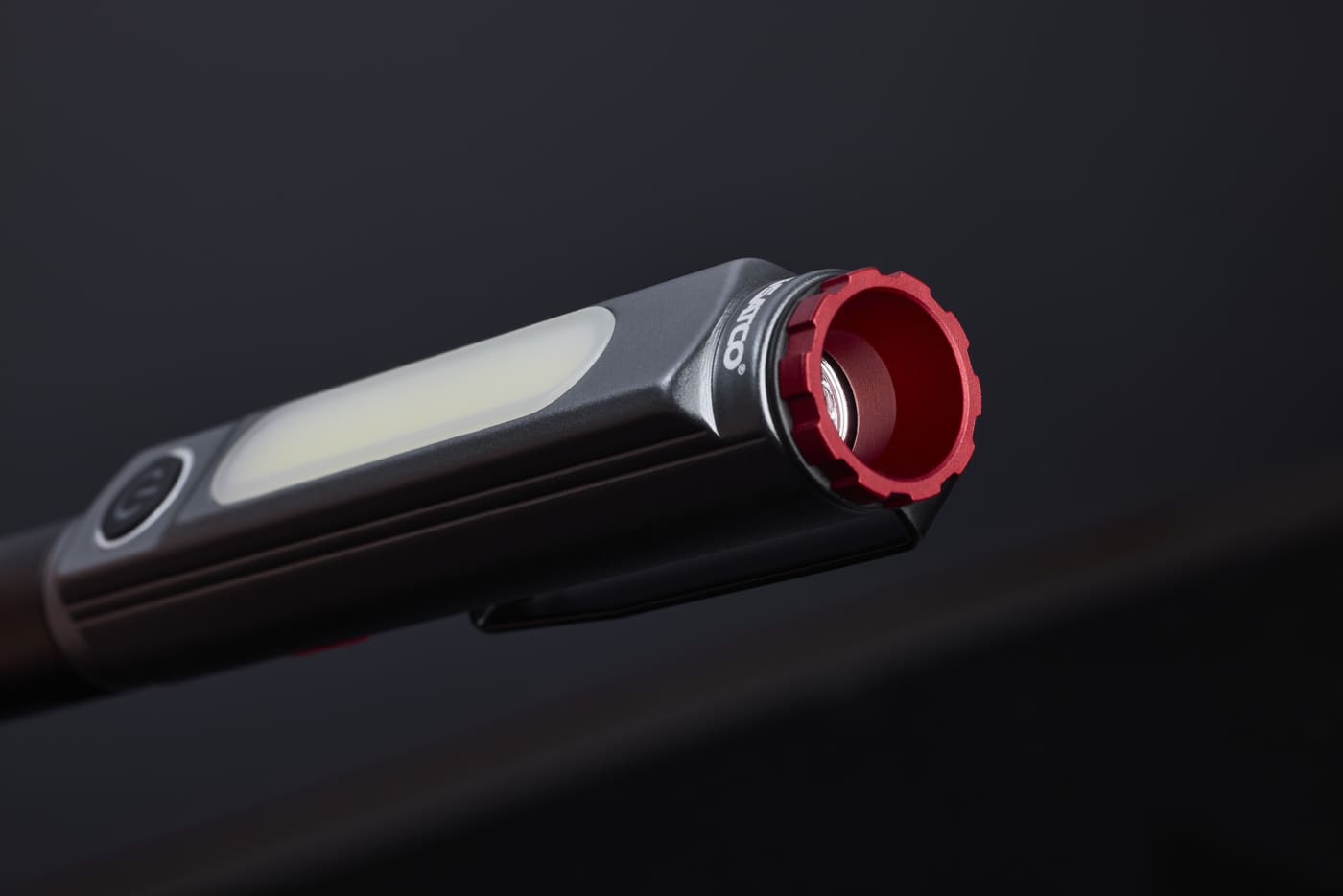

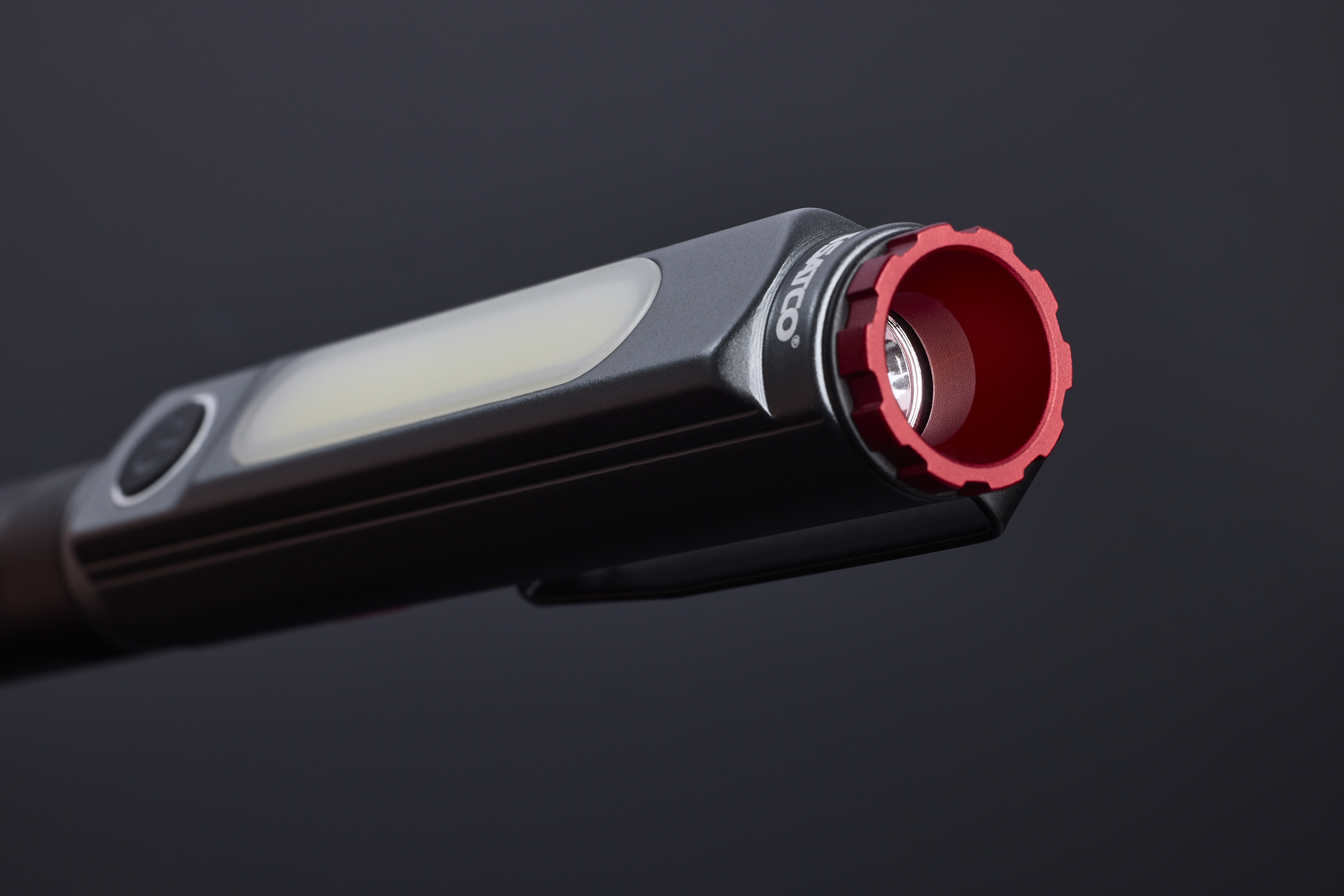

LED PEN LIGHT

  • LED Pen Light
  • 450 Max Lumens
  • USB-C Rechargeable
  • 3.7 Volt
  • 10pc Tray Pack
dimmable^dimmable^2
fcc_compliant^true^3
rohs_compliant^y^3
S30109 SpecificationsS30109 Instructions.pdfLED PEN LIGHT
Description
Description
LED Pen Light; 450 Max Lumens; USB-C Rechargeable; 3.7 Volt; 10pc Tray Pack
Products Specs
General
CompanySATCO
MaterialAluminum
Fixture TypeRechargeable Task
IncludesUSB-A to USB-C Charging Cable
Product NotesReplaceable Rechargeable 3.7V Li-ion 10850 Battery; Charge Time: 3.5HRS
StatusActive
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBlack
Additional InfoShips in retail-ready display trays and packaging

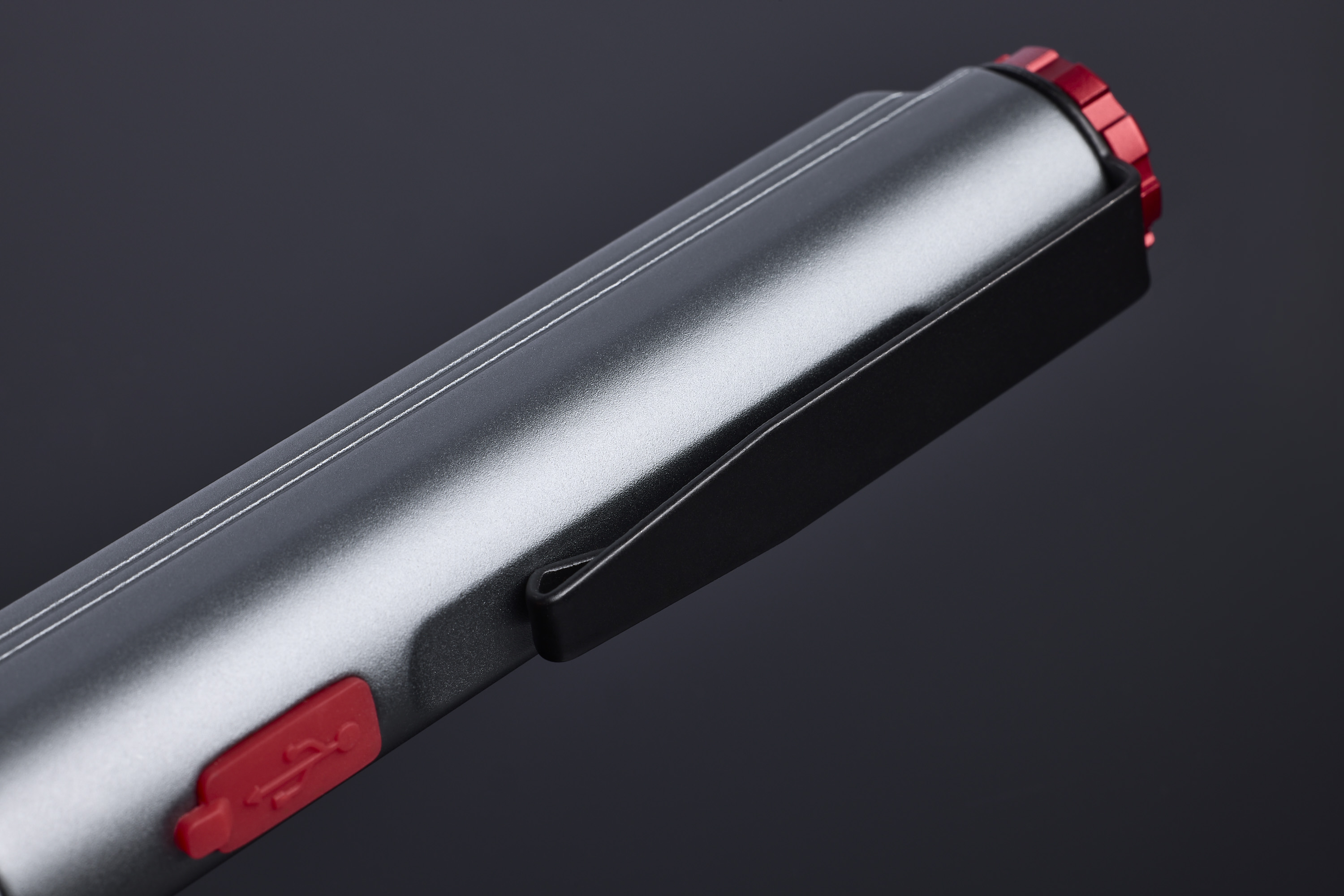

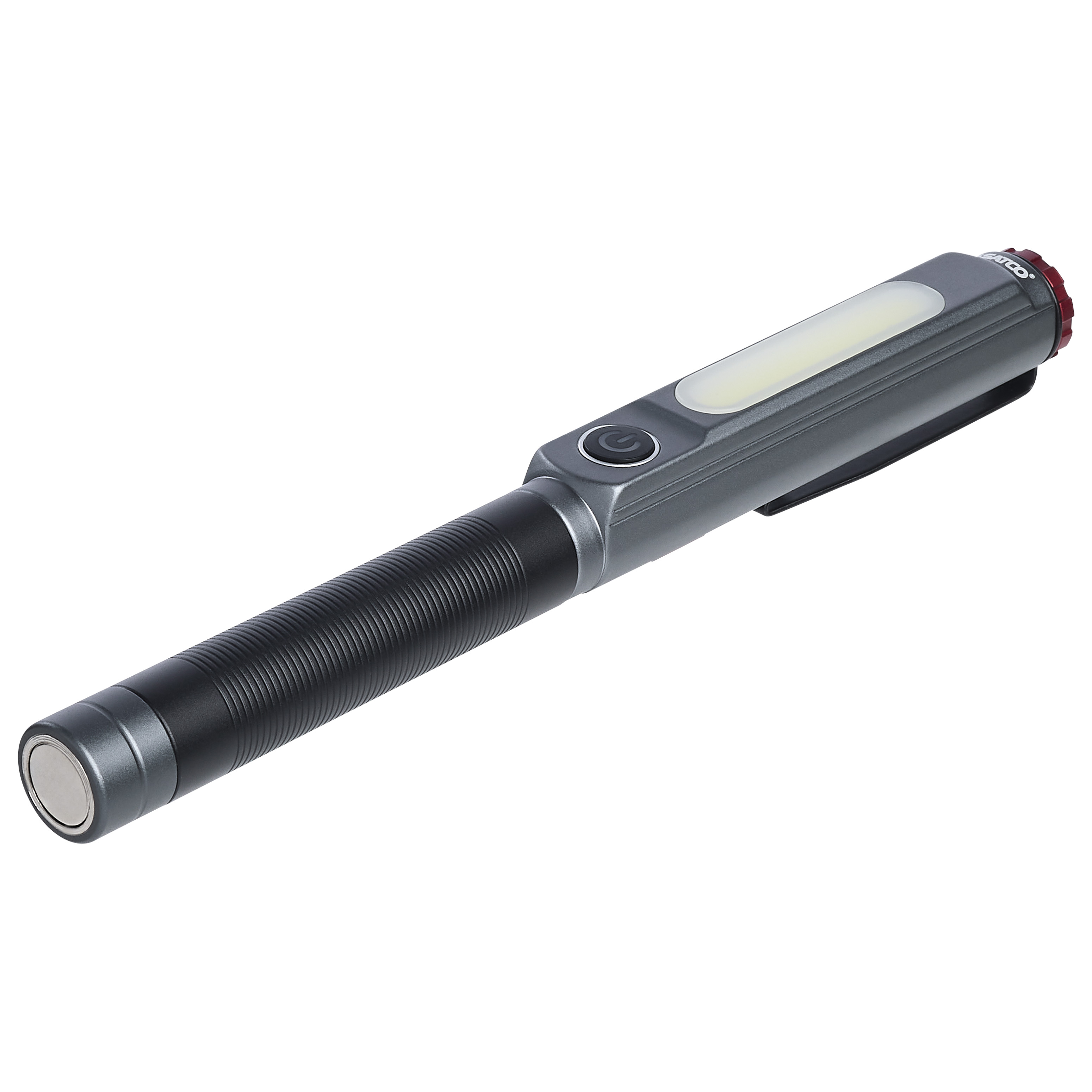

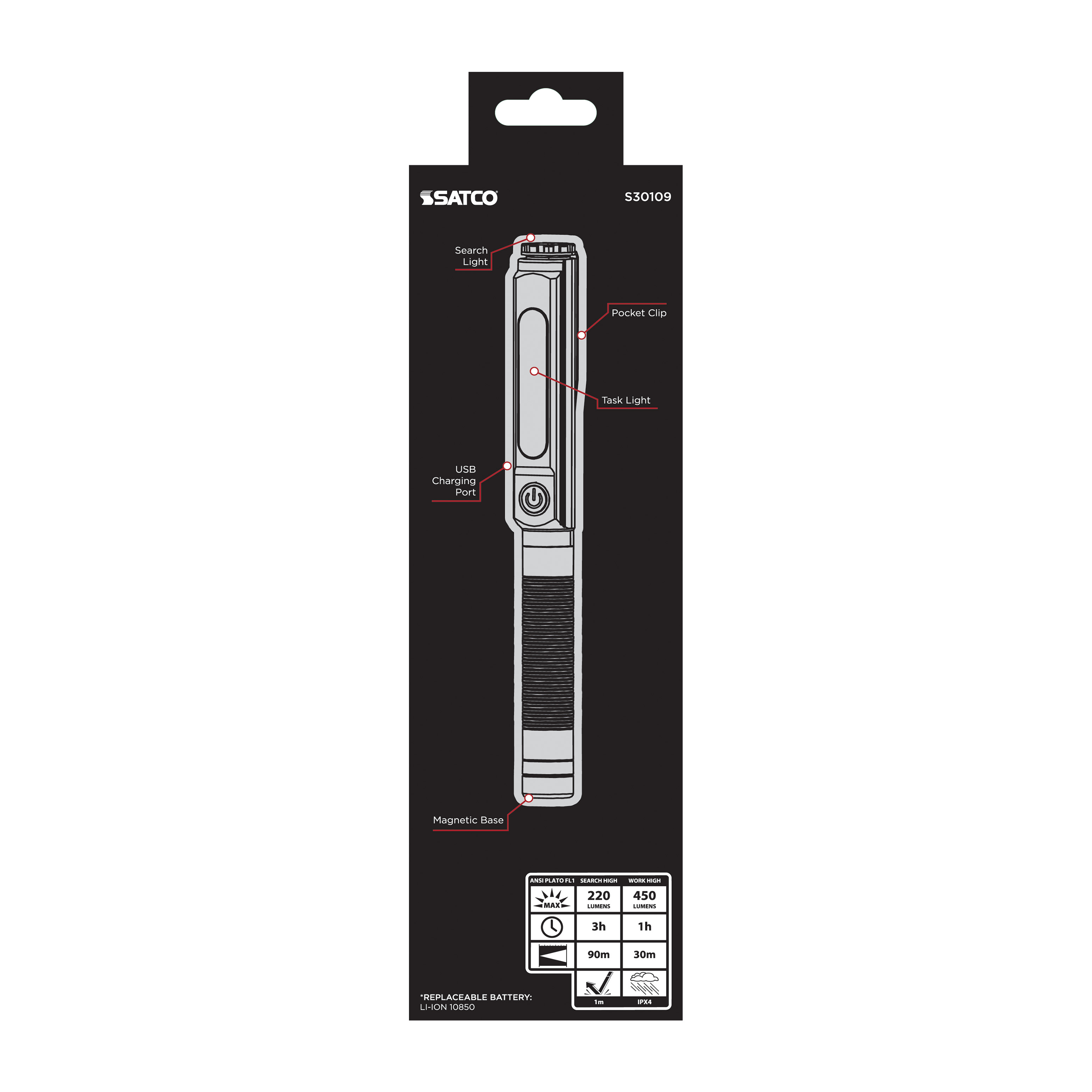

Integrated FeaturesReplaceable Battery; Magnetic Base, Pocket Clip; Strobe
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
LensedYes
Portable Light ModesHigh, Strobe
Product TechnologyLED
Serviceable BatteryYes
Beam Distance (Ft)148
Battery IndicatorNo
Digital DisplayNo
Drop Impact Rating3.28 Ft (1M)
Battery Operating Temp+32F to +104F (0C to +40C)
Light Source QuantityDouble
Power Bank Storage750mAh
Electrical
CCT (Kelvin Temp)6500K
DimmableYes-Dimmable
Color TempDaylight
CRI50+
Dimming TypeOnly dimmable via setting selection, Step Dimming
Operating Temp+32F to +104F (0C to +40C)
Lumens220L/450L
Volts3.7V
Max Lumens450L

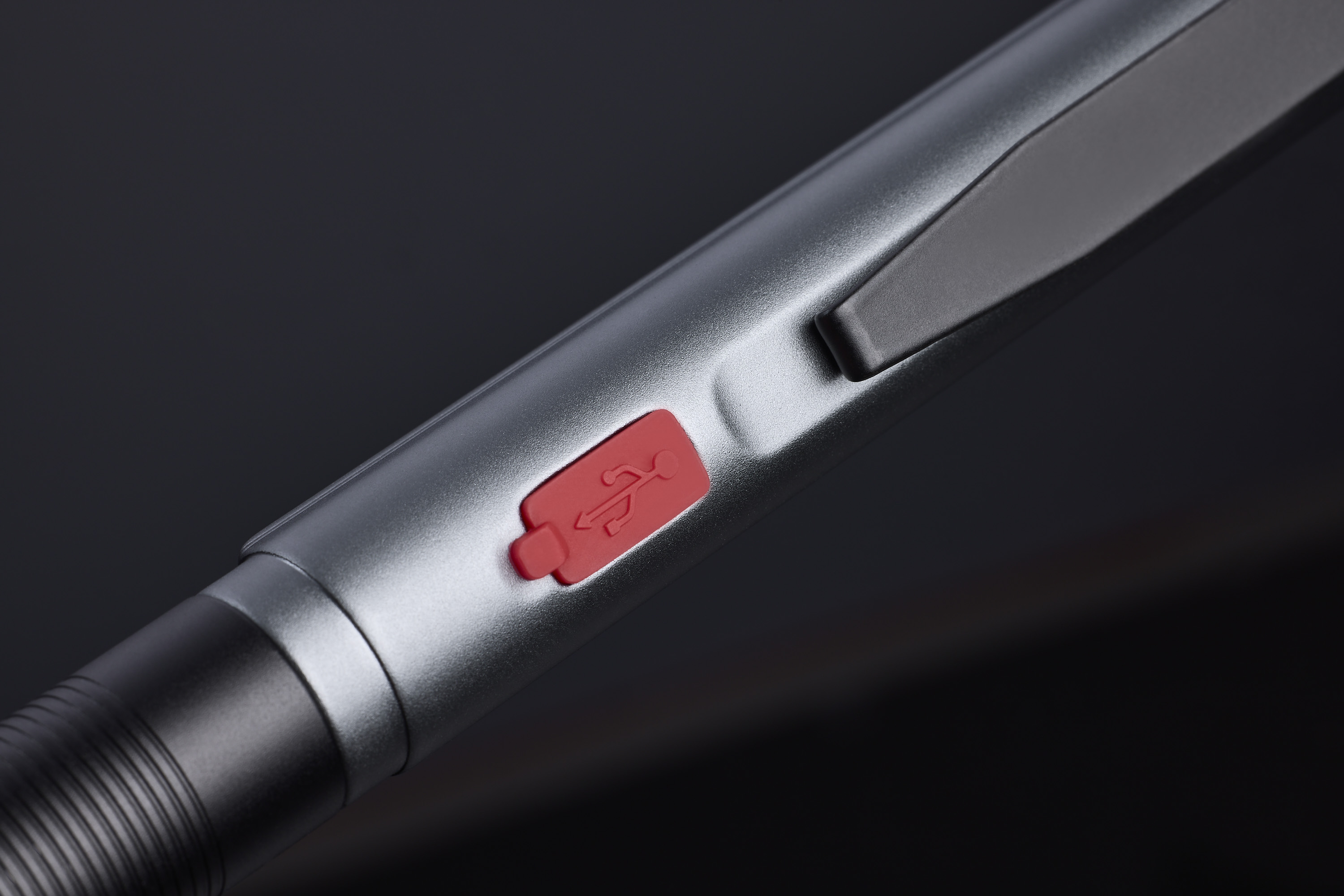

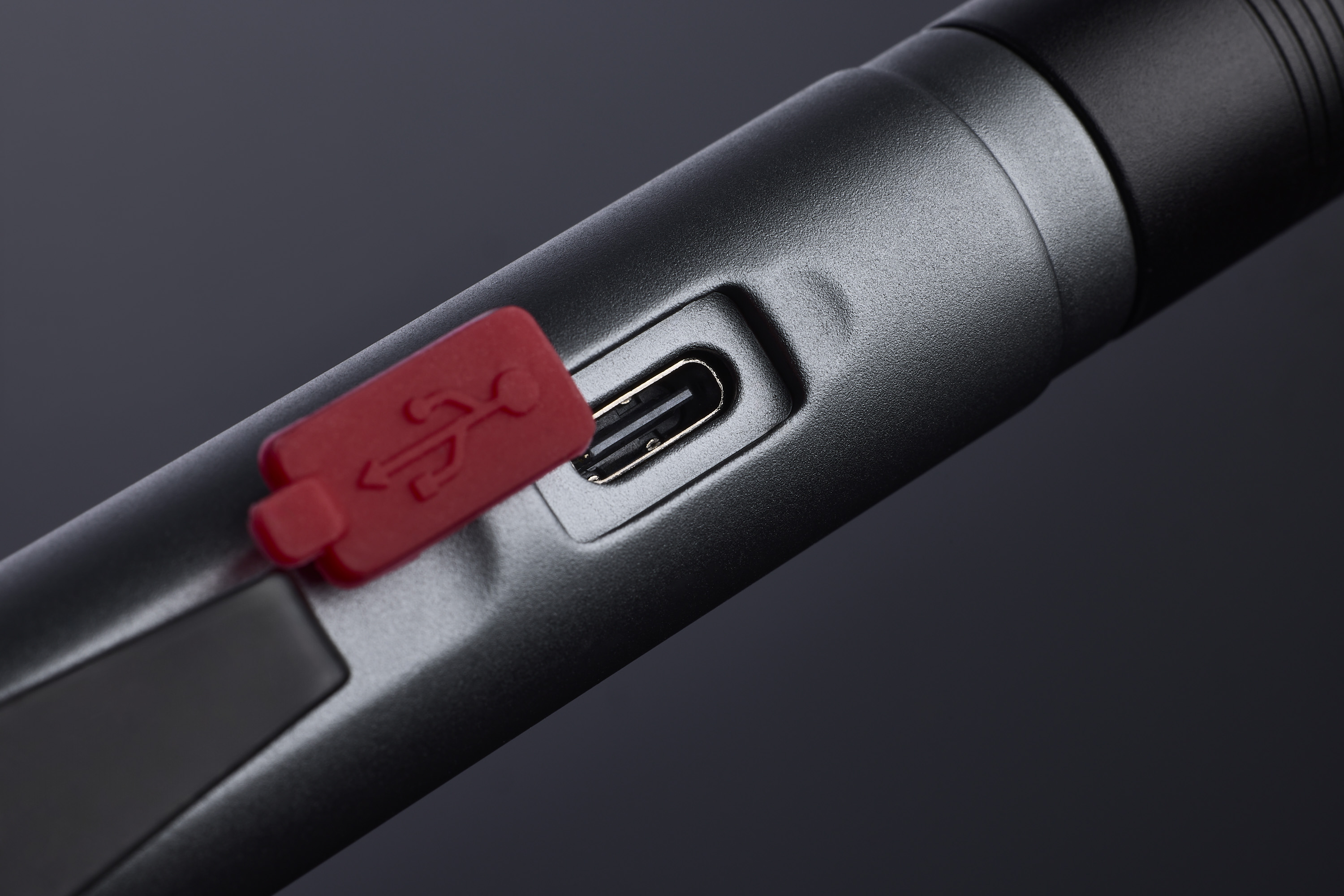

ConnectionUSB-C Rechargeable
Charge Time3.5hr
Battery ChemistryLithium-ion (Li-ion)
Replaceable Battery Type10850

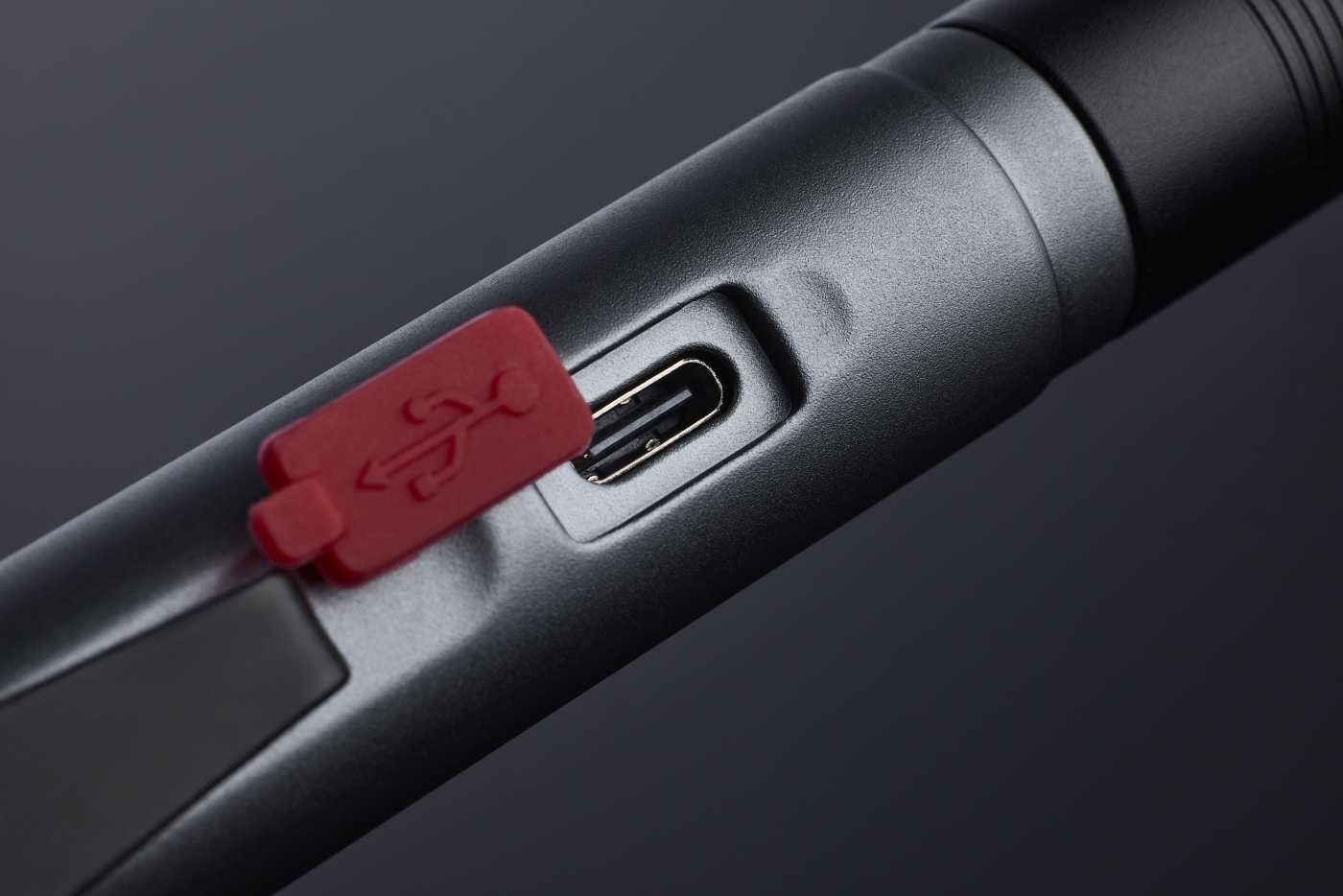

USB Type In1 USB-C
Physical
FinishBlack / Gray / Red
Housing ColorBlackGrayRed

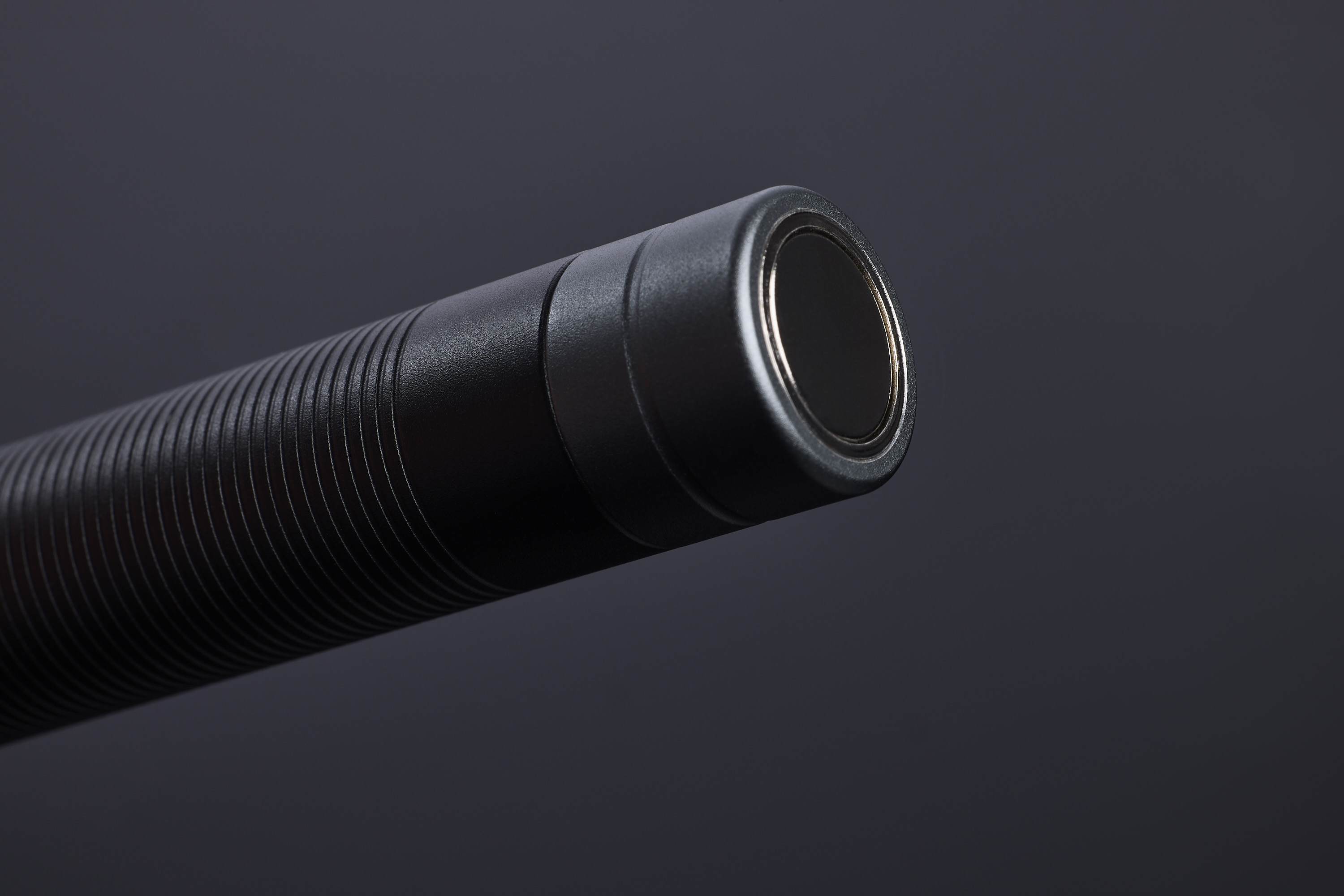

Mounting ProcedureBelt Clip, Magnetic Base
Additional Info
Warranty1-Year
Installation NotesDo Not Charge The Product Below 40F Or above 104F; Do Not Exceed 5V DC, 1A Charging
Portable Light FunctionsDimming Function, Red Light Function, White Light Function
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIPX4
ROHS CompliantYes
Energy Star CertifiedNo
T24/JA8 CompliantNo

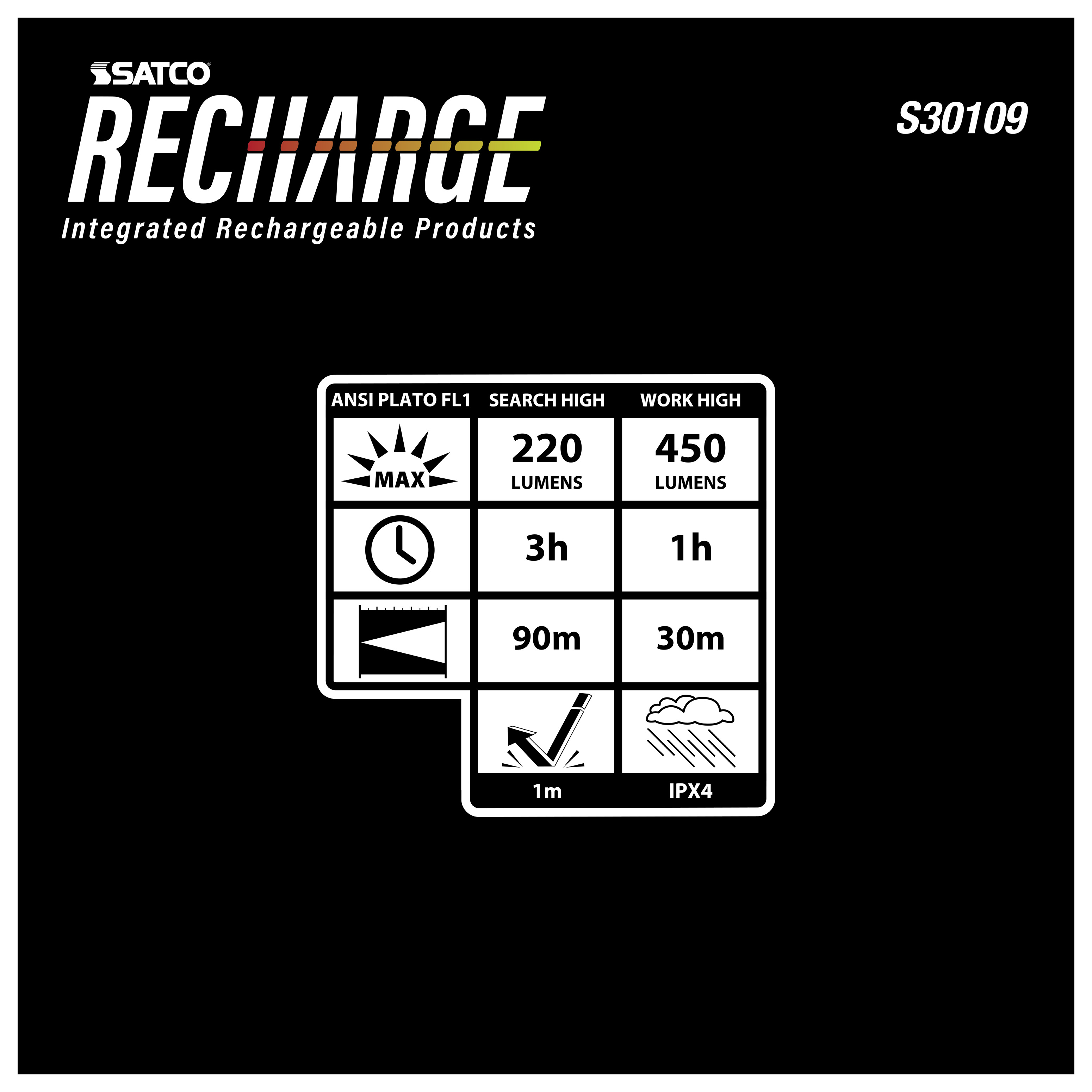

Performance StandardsANSI PLATO FL1
Packaging
UPC045923300103
Case Cube1.6666
Case Height11.34
Case Length13.78
Case Quantity40
Case UPC10045923300100
Case Weight17.64
Case Width18.43
EA Cube0.0273
EA Height9.0
EA Length1.75
EA Quantity1
EA Weight0.32
EA Width3.0
Inner Cube0.2959
Inner Height10.04
Inner Length8.35
Inner Quantity10
Inner UPC20045923300107
Inner Weight4.08
Inner Width6.1
Pack TypeColor Box

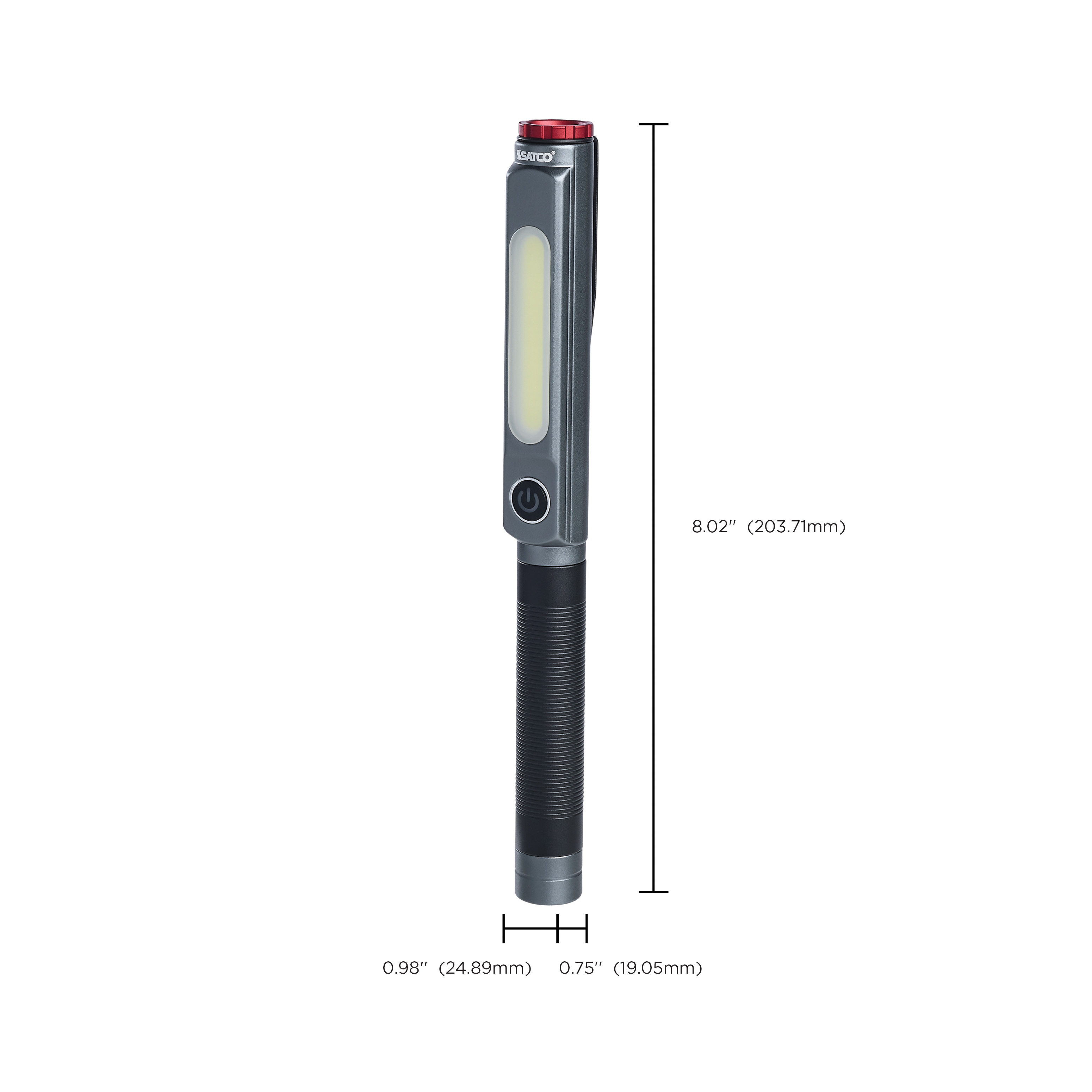

Web Height8.03
Web Length0.98
Web Width0.75
