S30116

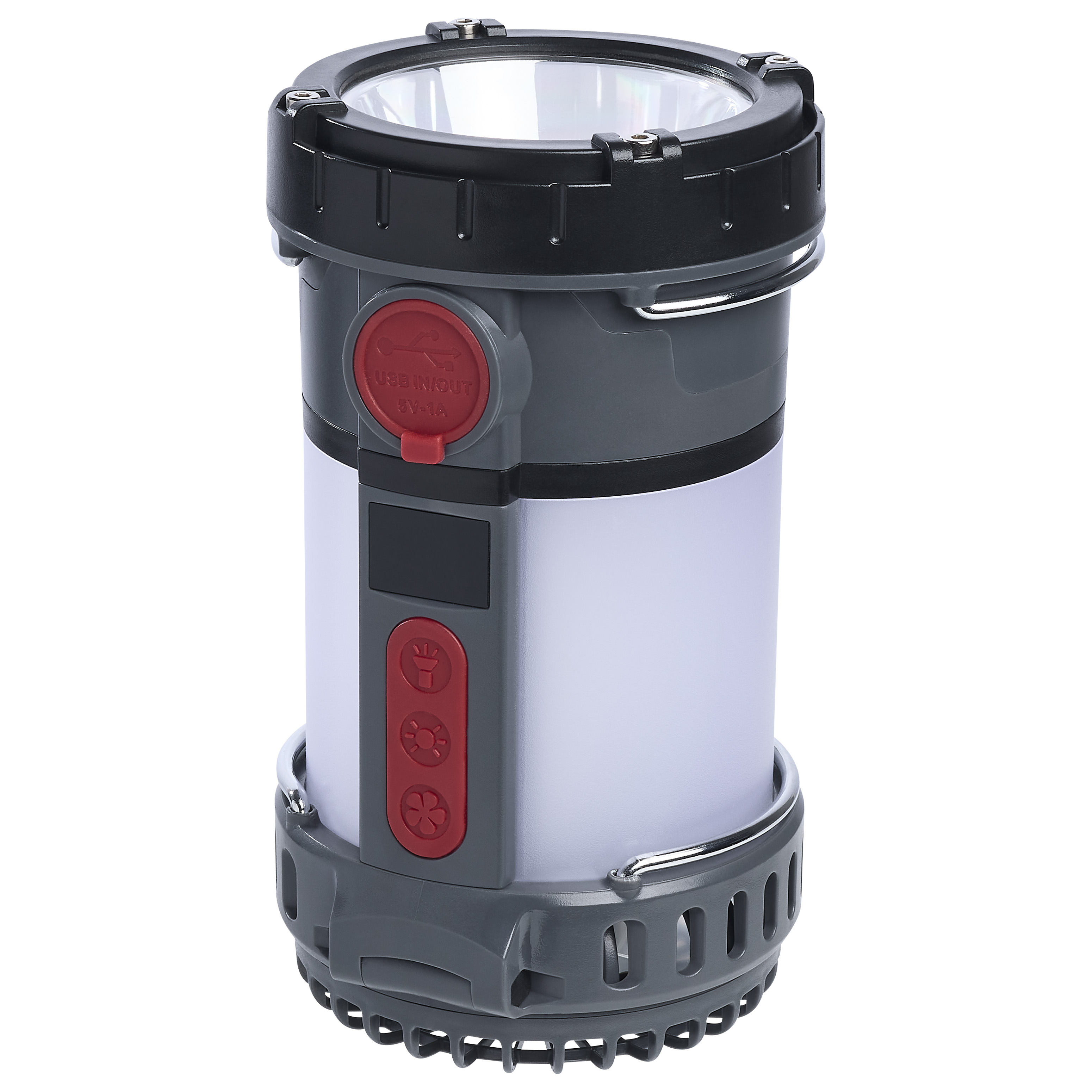

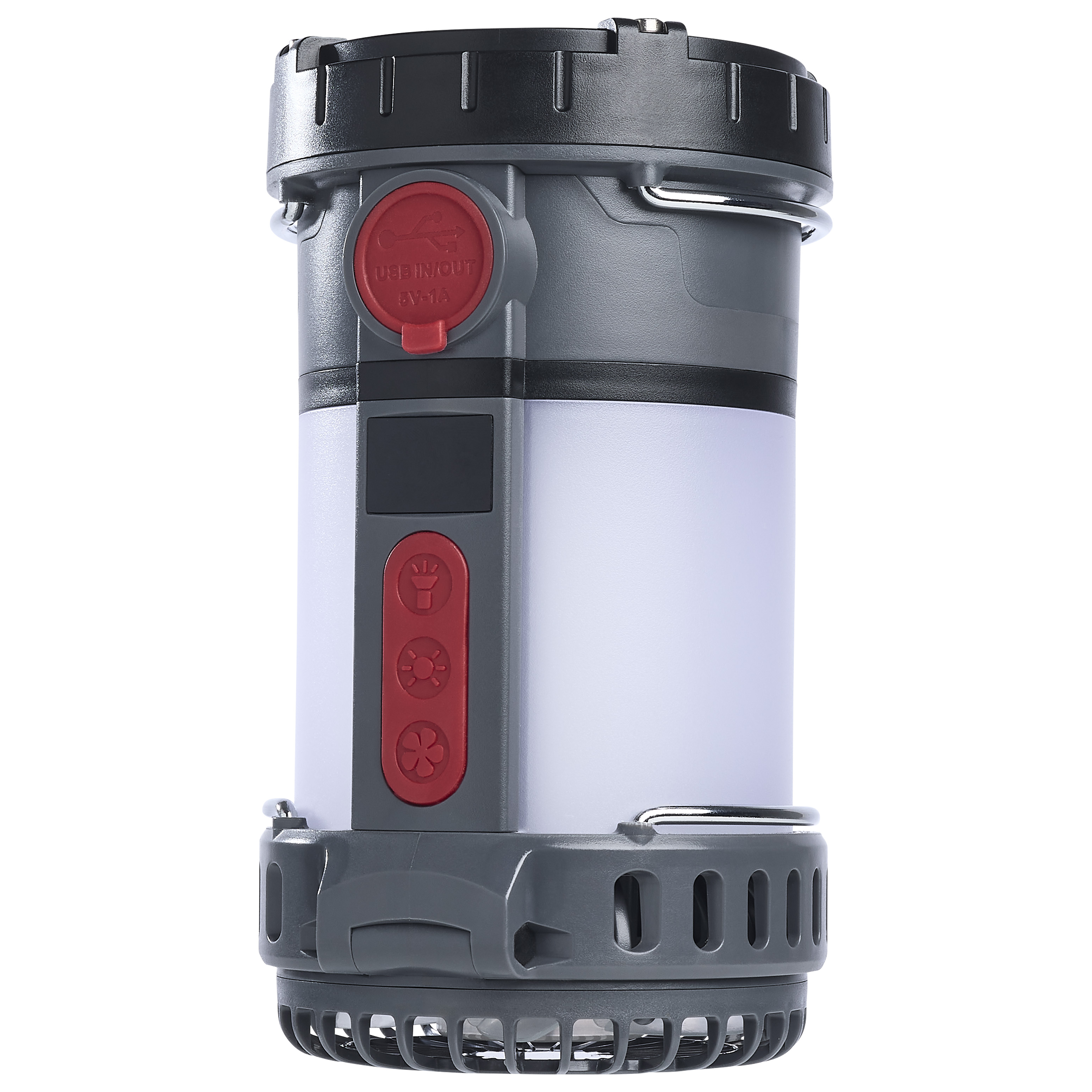

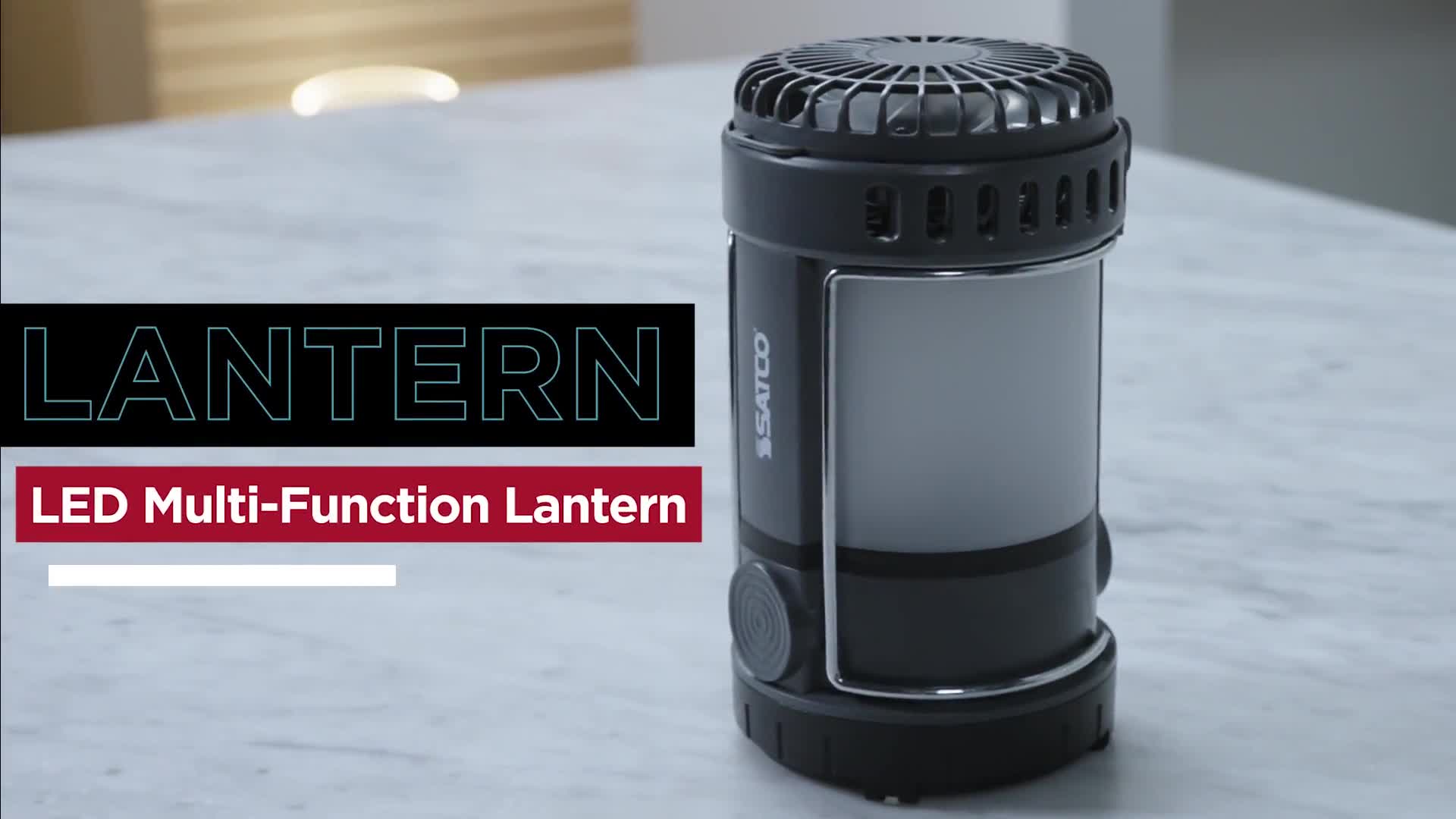

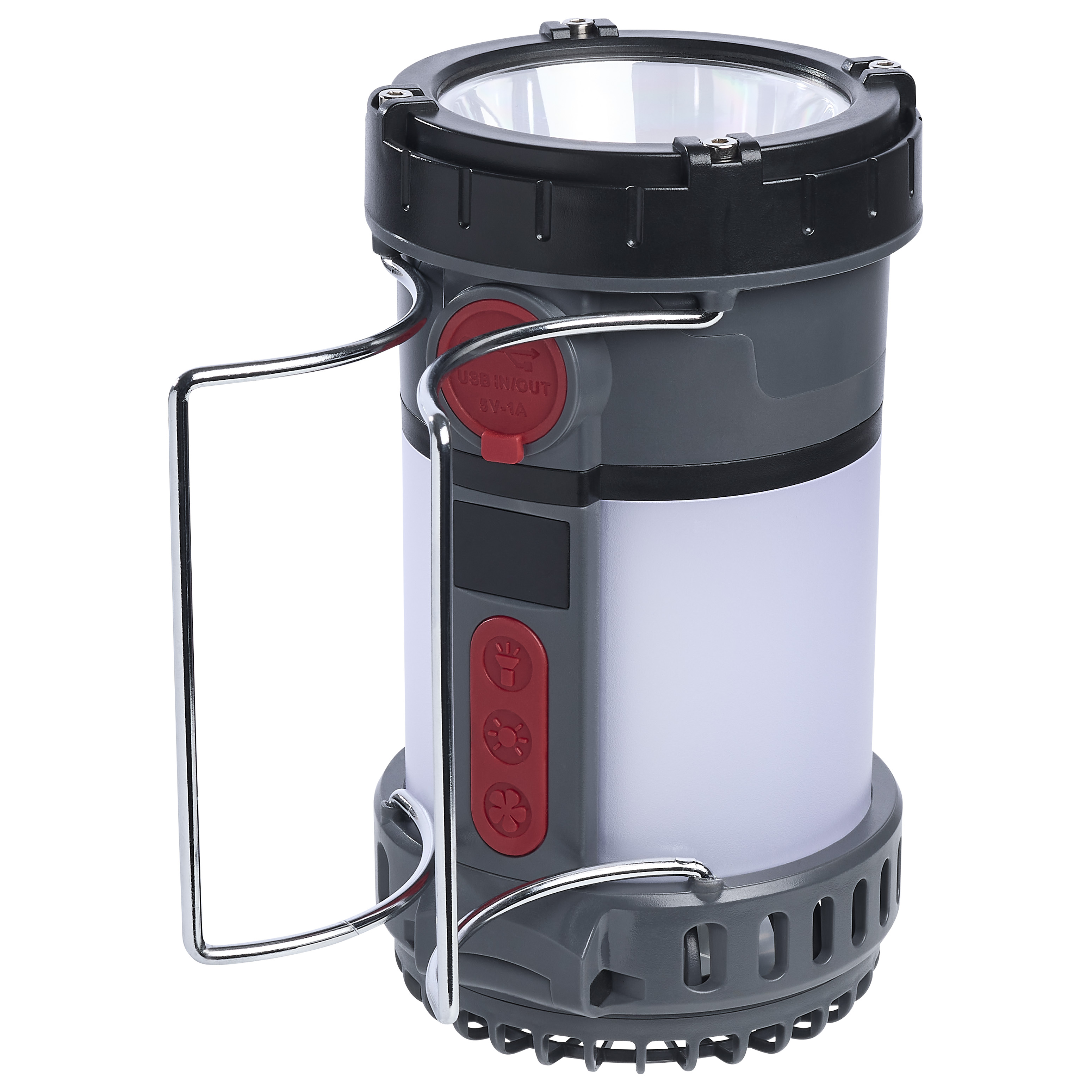

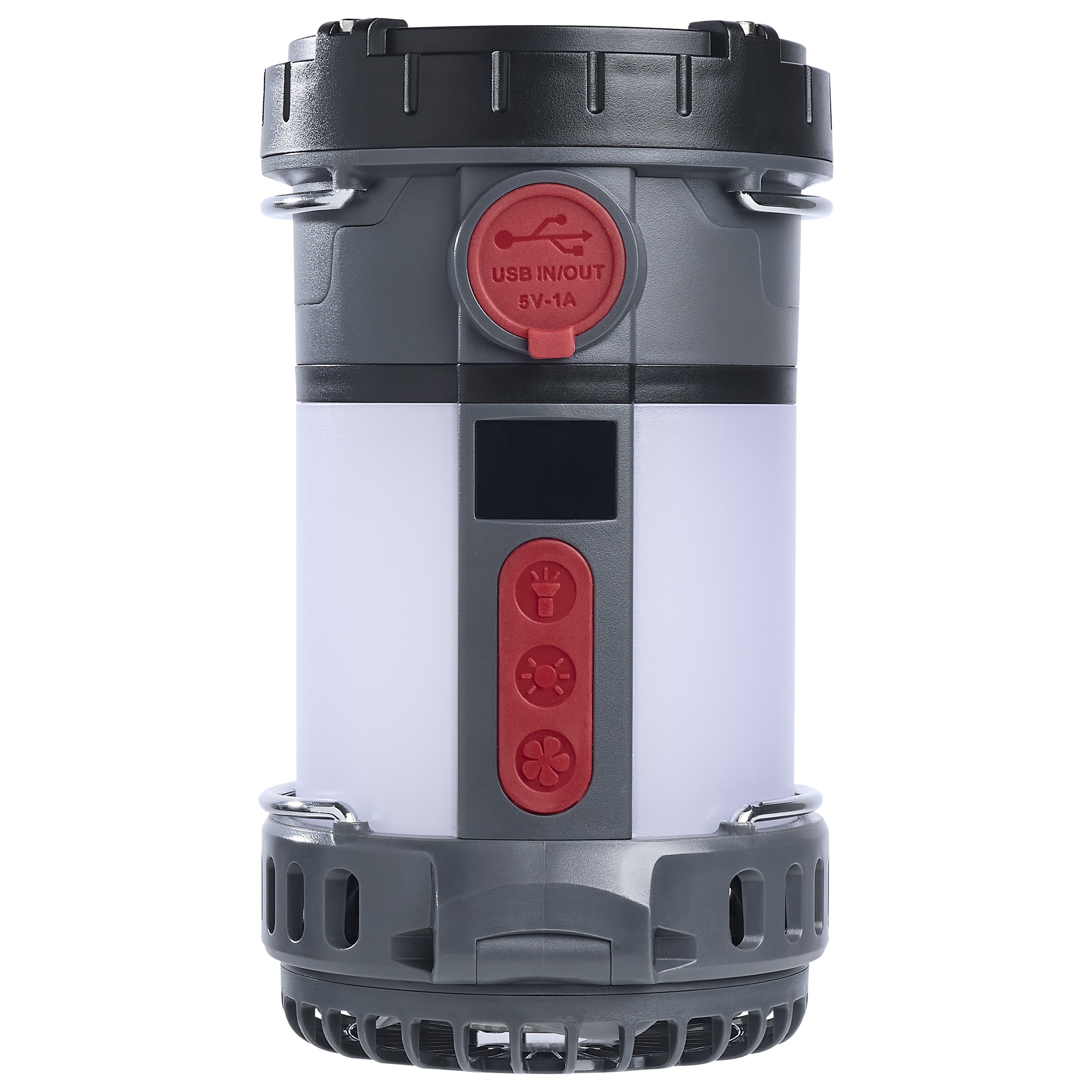

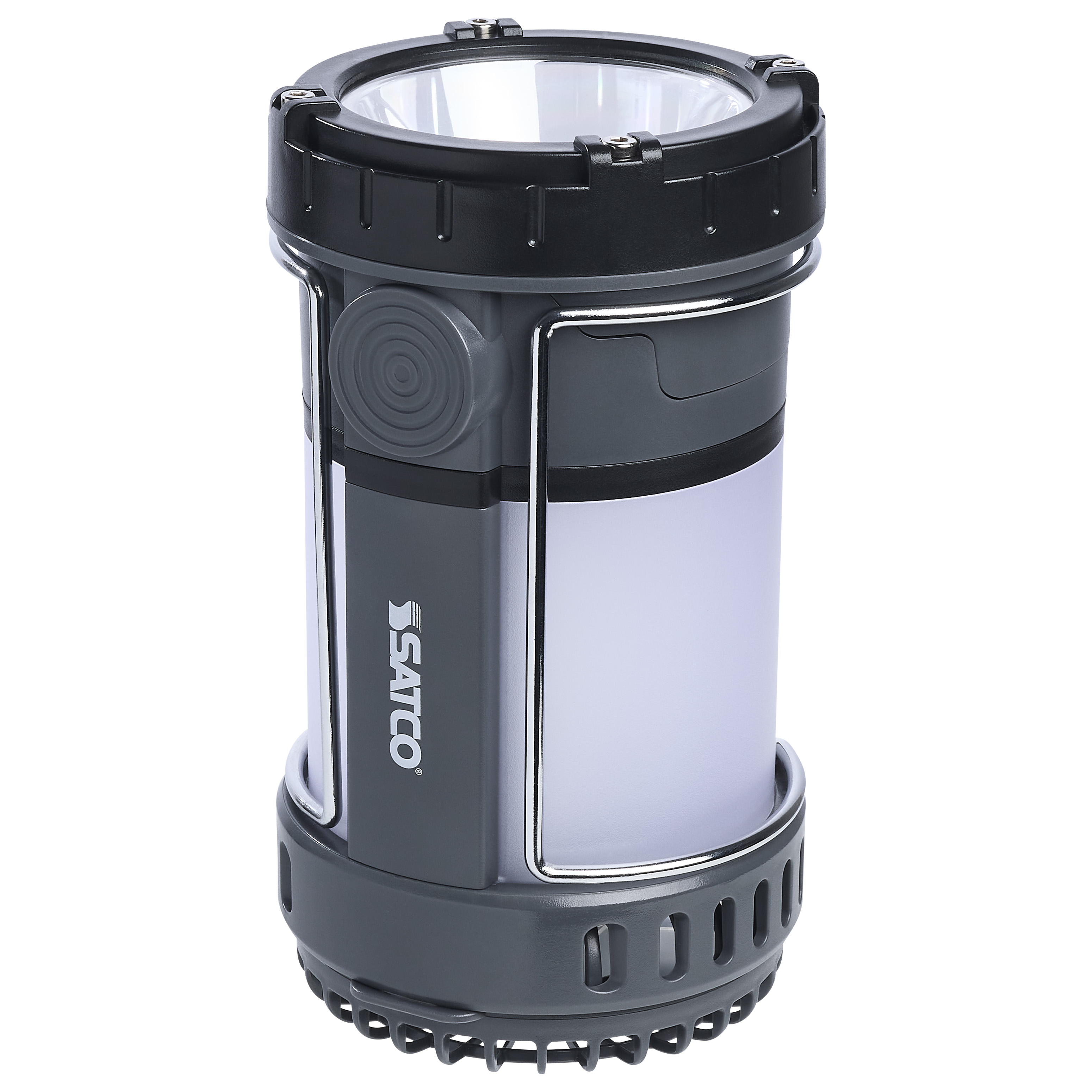

LED MULTI-FUNCTION LANTERN

  • LED Multi-Function Lantern
  • 230 Max Lumens
  • USB-C Rechargeable
  • 3.7 Volt
  • 6pc Tray Pack
cc_selectable^y^1
dimmable^dimmable^2
fcc_compliant^true^3
rohs_compliant^y^3
S30116 SpecificationsS30116 Instructions.pdfRecharge Brochure SN2032
Description
Description
LED Multi-Function Lantern; 230 Max Lumens; USB-C Rechargeable; 3.7 Volt; 6pc Tray Pack
Products Specs
General
CompanySATCO
MaterialABS Plastic / Polystyrene (PS)
Fixture TypeRechargeable Lantern
IncludesUSB-A to USB-C Charging Cable
Product NotesIntegrated Rechargeable 3.7V Li-ion Battery; Power Bank: 4000mAh; Charge Time: 8RS
StatusActive
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBlack
Additional InfoShips in retail-ready display trays and packaging

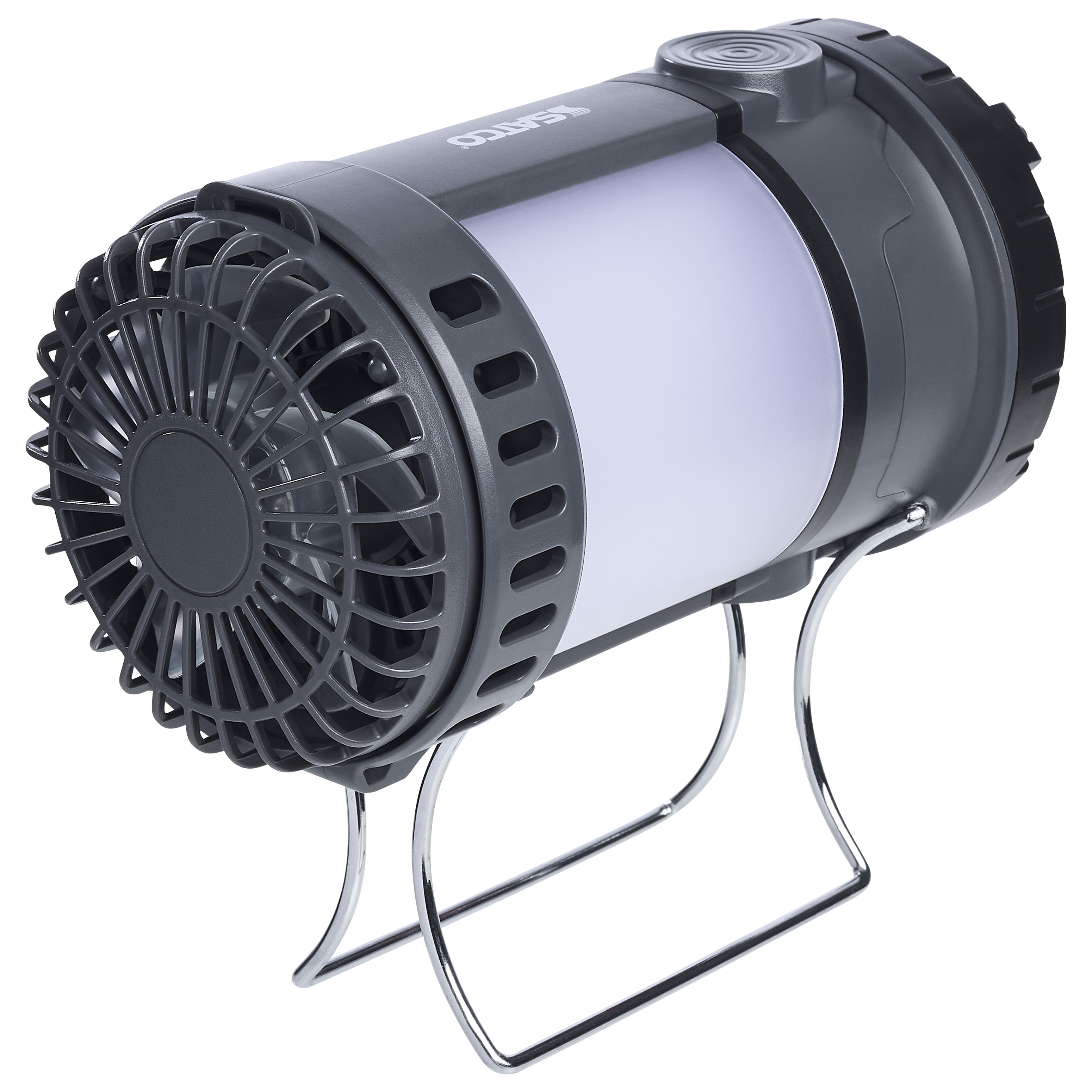

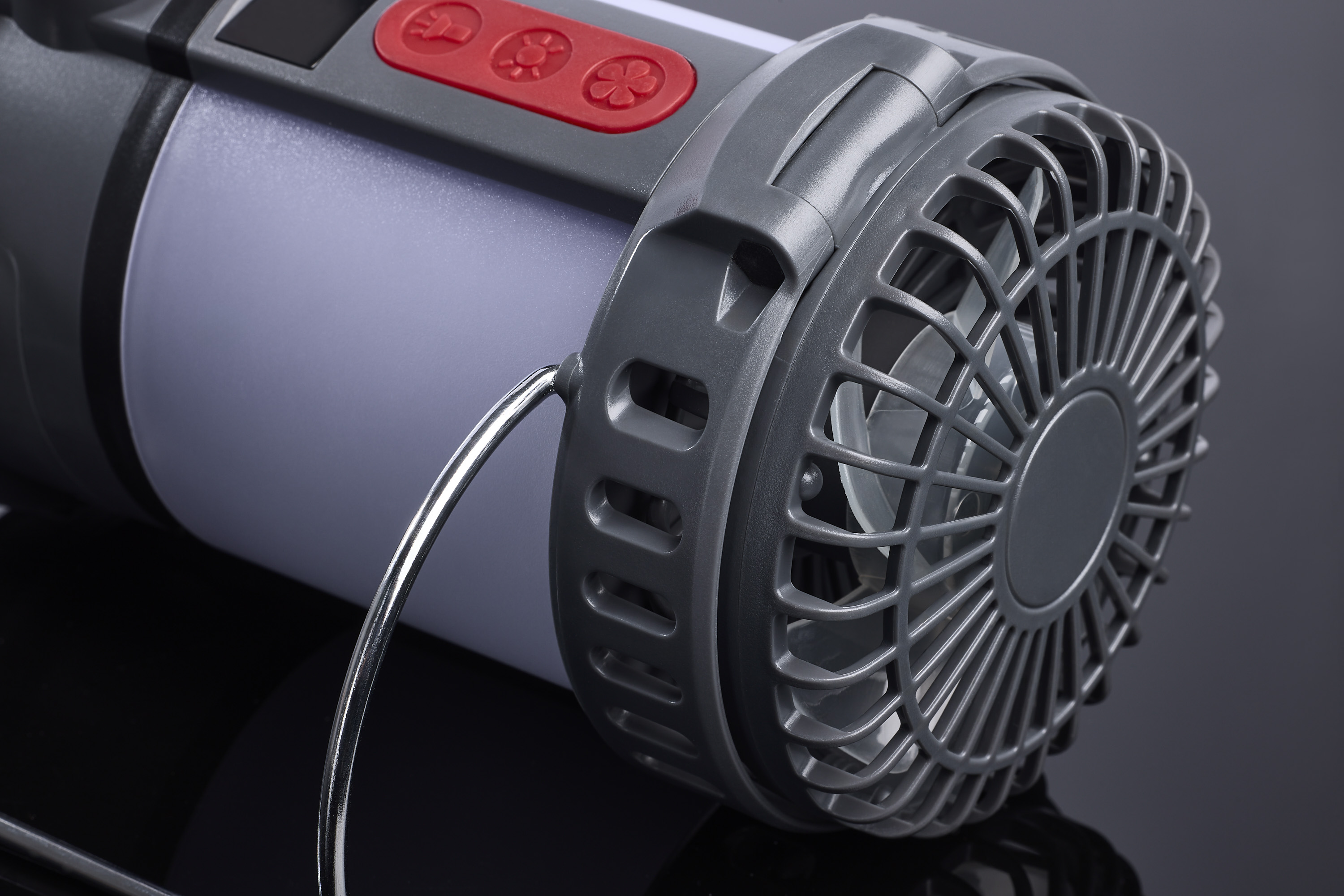

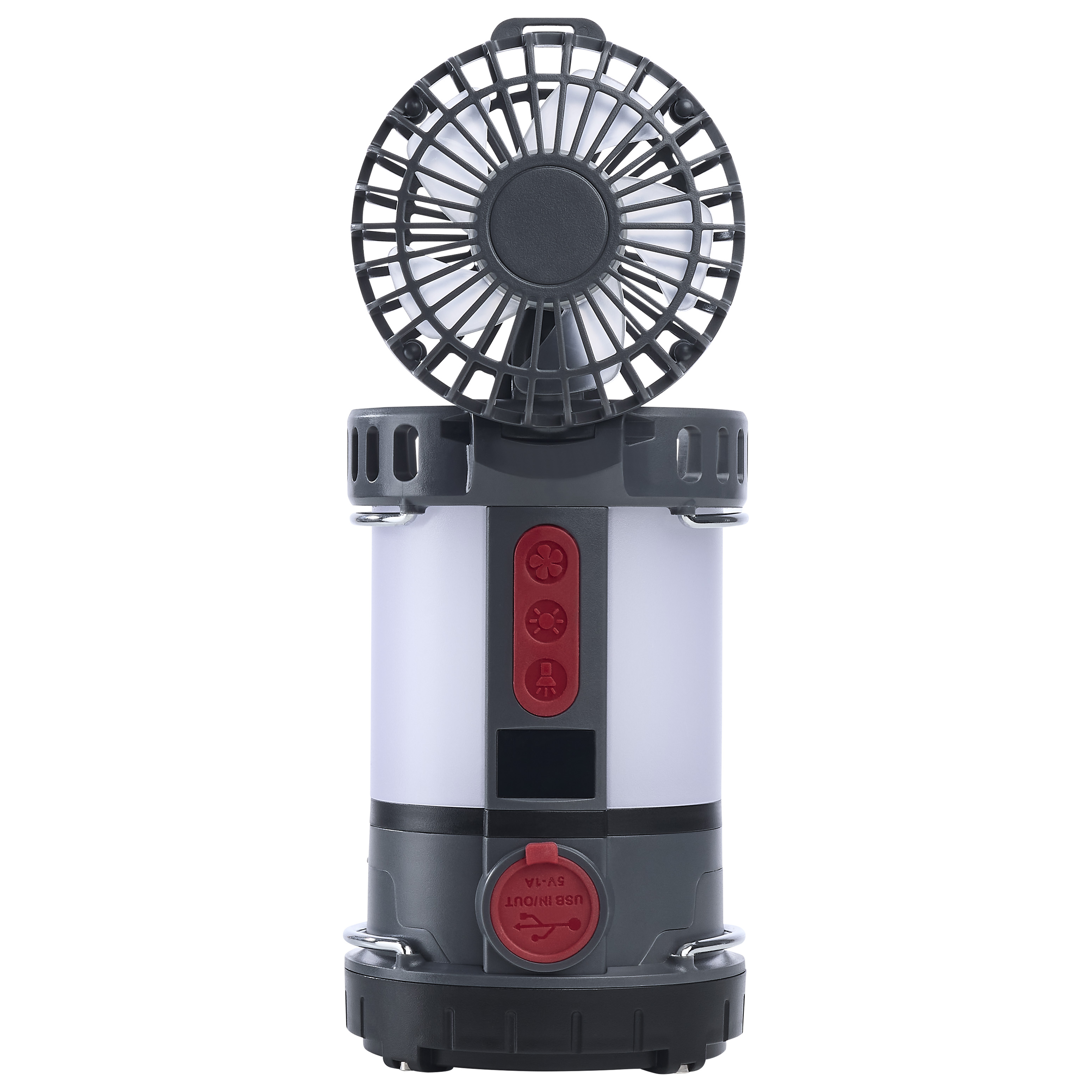

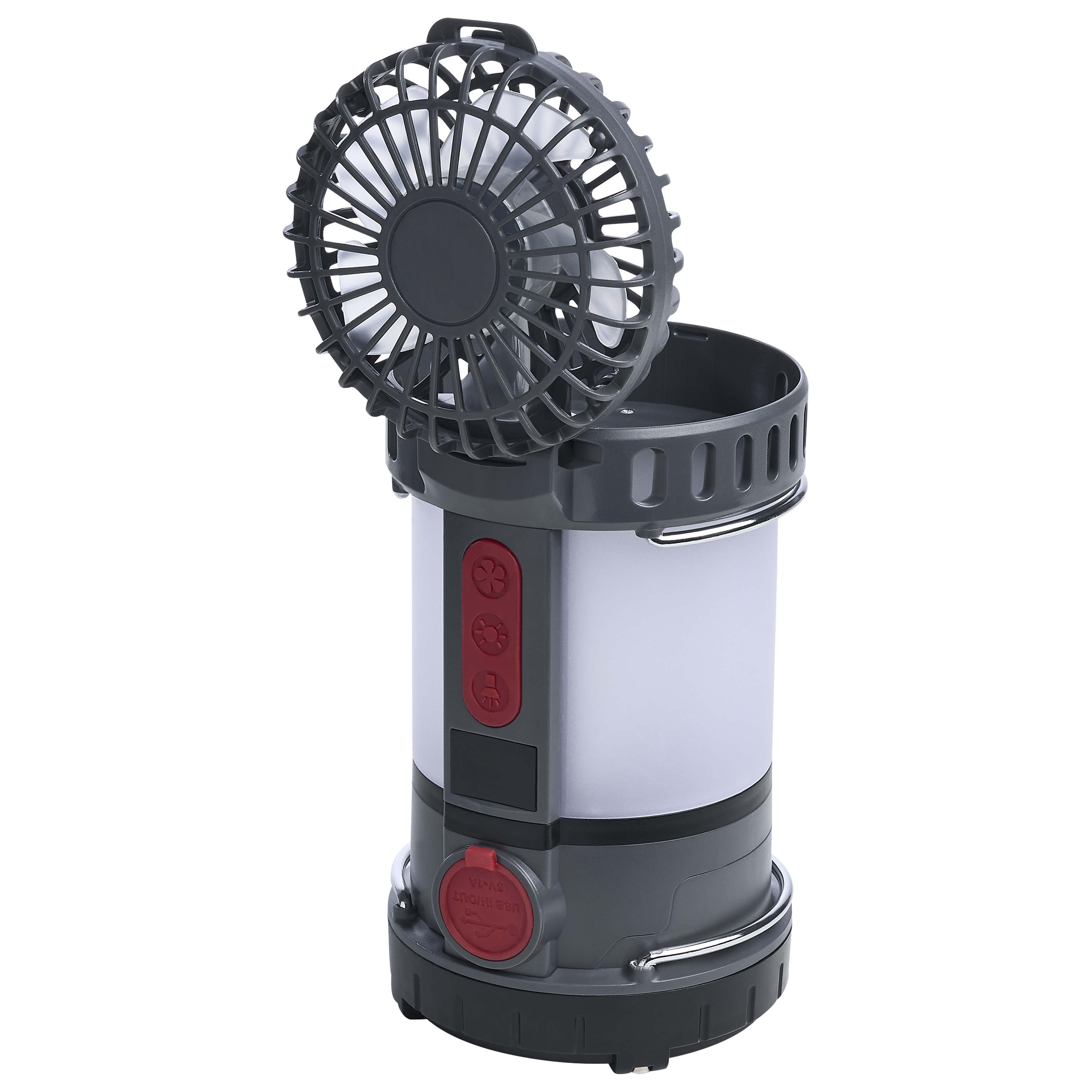

Integrated FeaturesPower Bank; Carry Handle; Base Stand; CCT Selectable; Flame Mode; Personal Fan; Strobe
Lens FinishFrost
Lens MaterialPolystyrene (PS)
LensedYes
Portable Light Modes2700K, 4500K, 5400K, Flame, High, Low, Medium, Strobe
Product TechnologyLED
Serviceable BatteryNo
Beam Distance (Ft)591
Battery IndicatorYes
Digital DisplayYes
Battery Operating Temp+32F to +104F (0C to +40C)
Light Source QuantityDouble
Power Bank Storage4000mAh
Electrical
CCT (Kelvin Temp)6300K/3000K/1800K/10000K
DimmableYes-Dimmable
Color TempWarm White to Daylight
CRI50+
Dimming TypeOnly dimmable via setting selection, Step Dimming
Operating Temp+32F to +104F (0C to +40C)

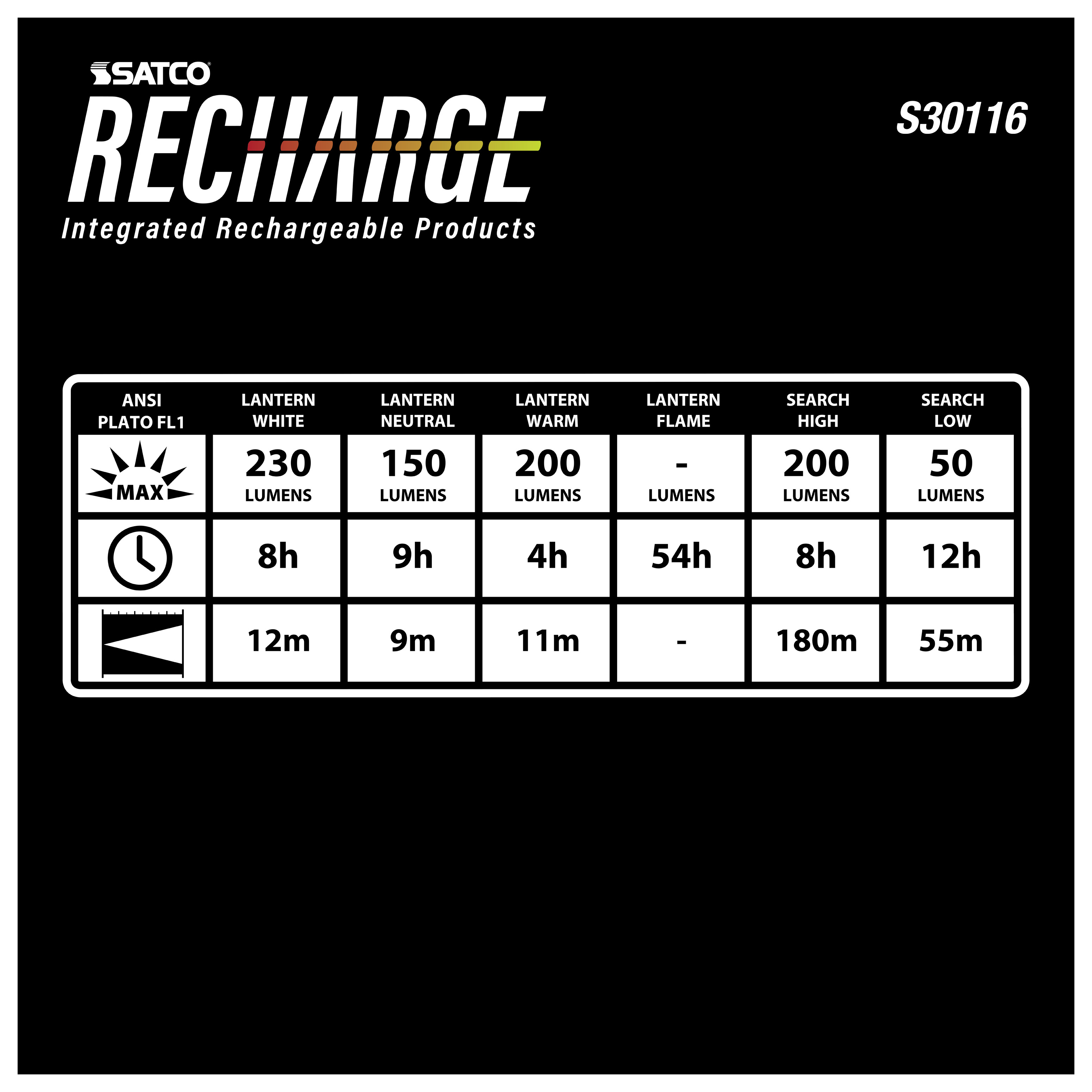

Lumens230L/150L/200L/200L/50L
Volts3.7V
Max Lumens230L
ConnectionUSB-C Rechargeable
Charge Time8hr
Battery ChemistryLithium-ion (Li-ion)
Replaceable Battery Type18650

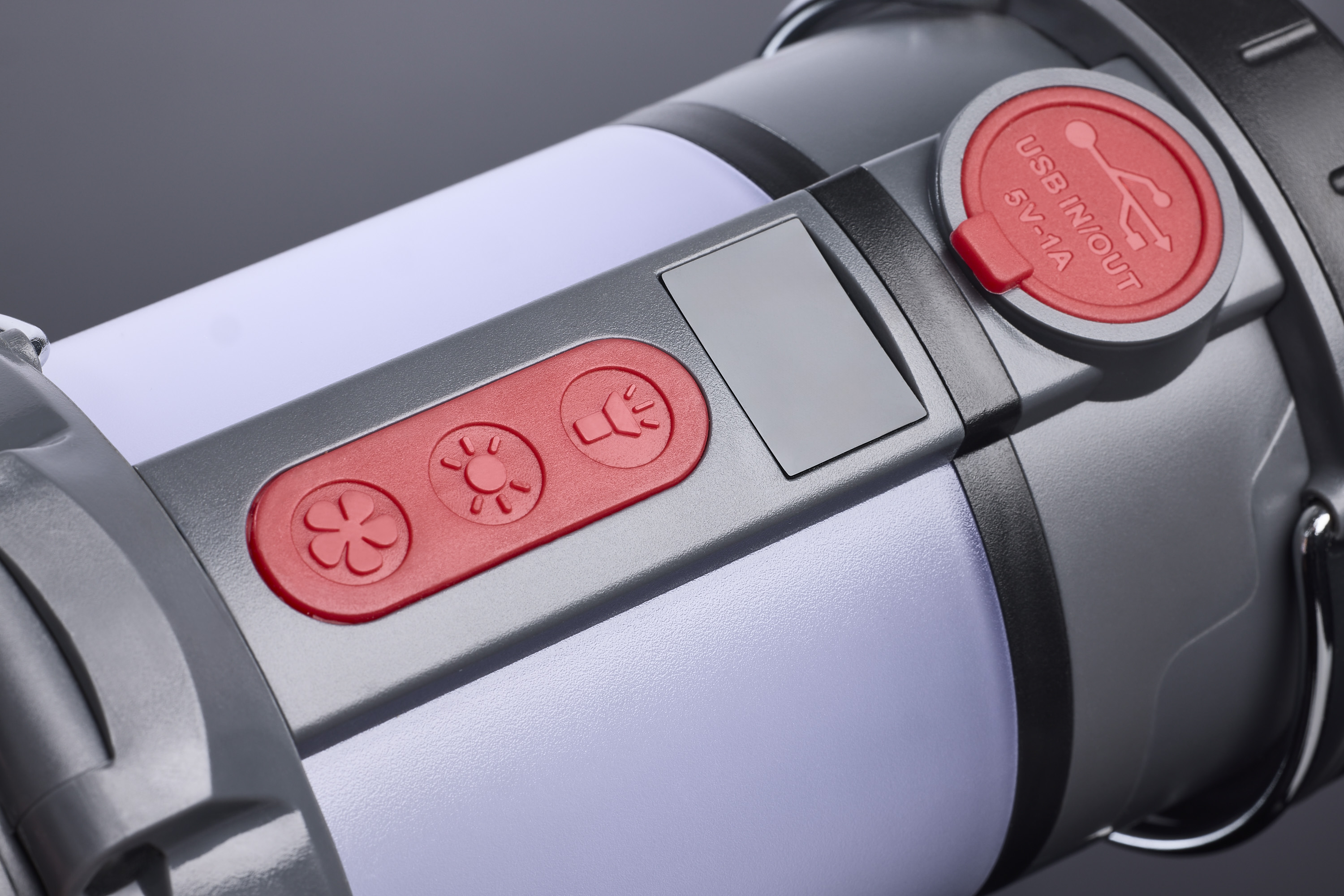

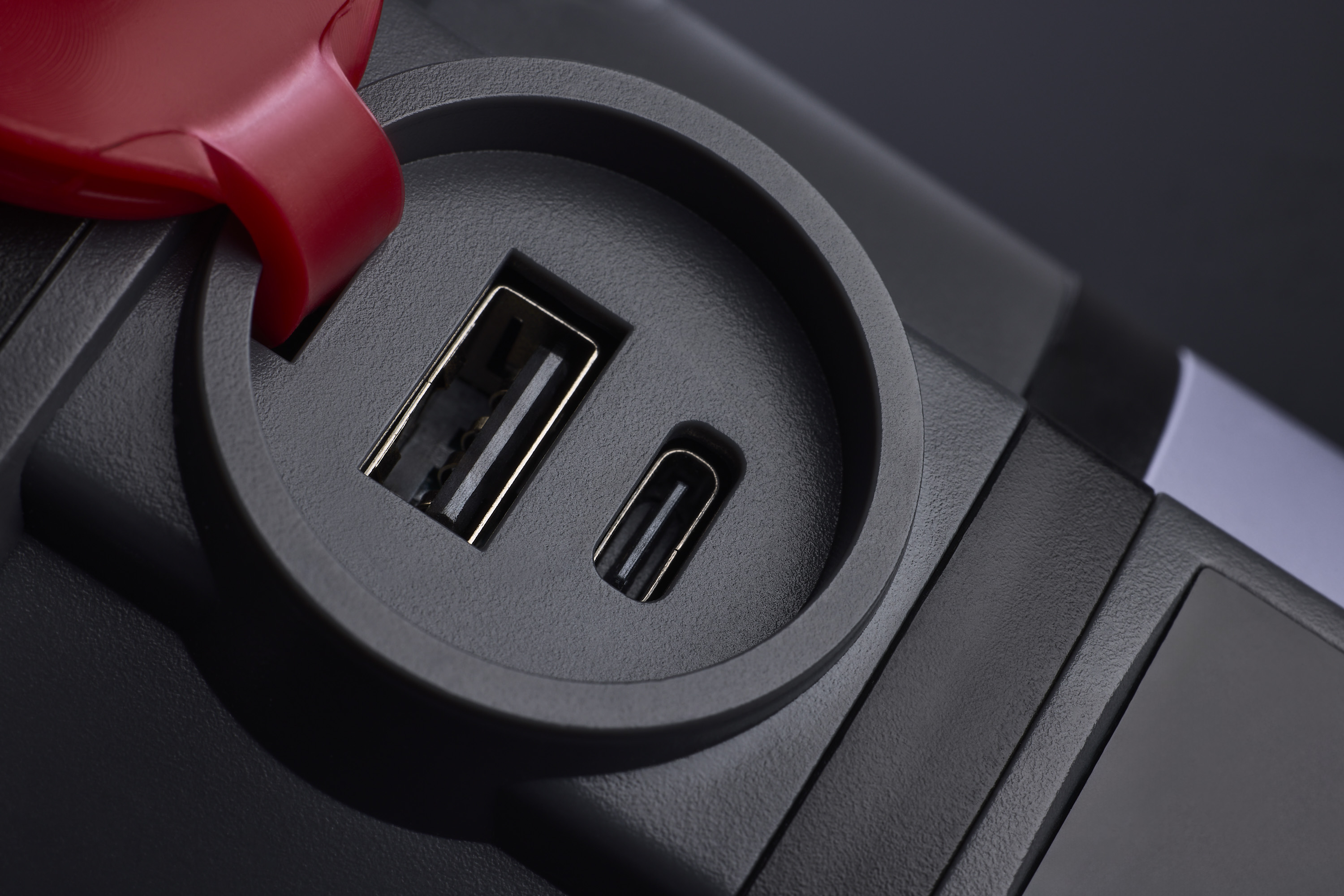

USB Type In1 USB-C
USB Output Charging Power(1) 1A 5V
USB Type Out1 USB-A 1A
Physical
FinishBlack / Gray / Red
Housing ColorBlackGrayRed

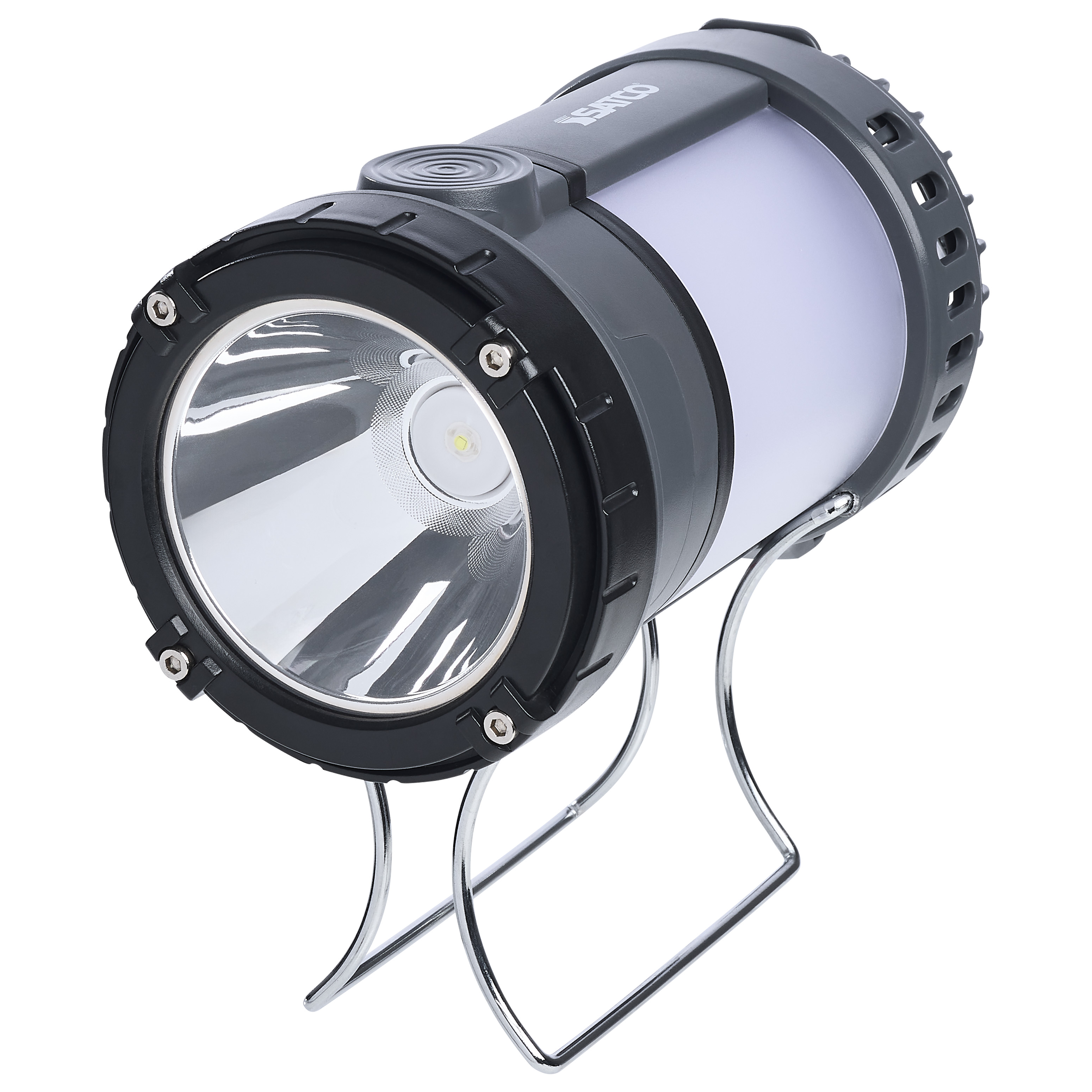

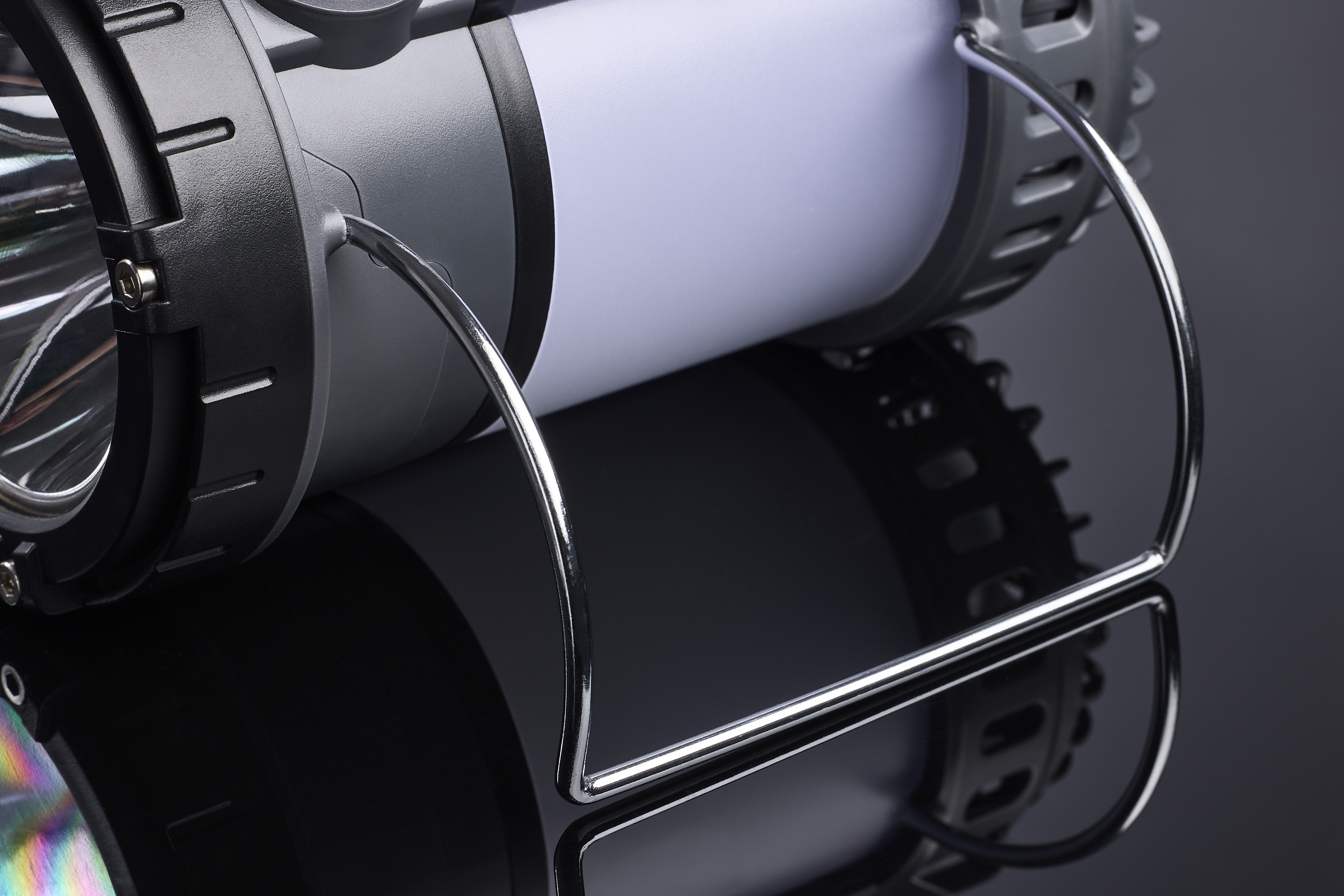

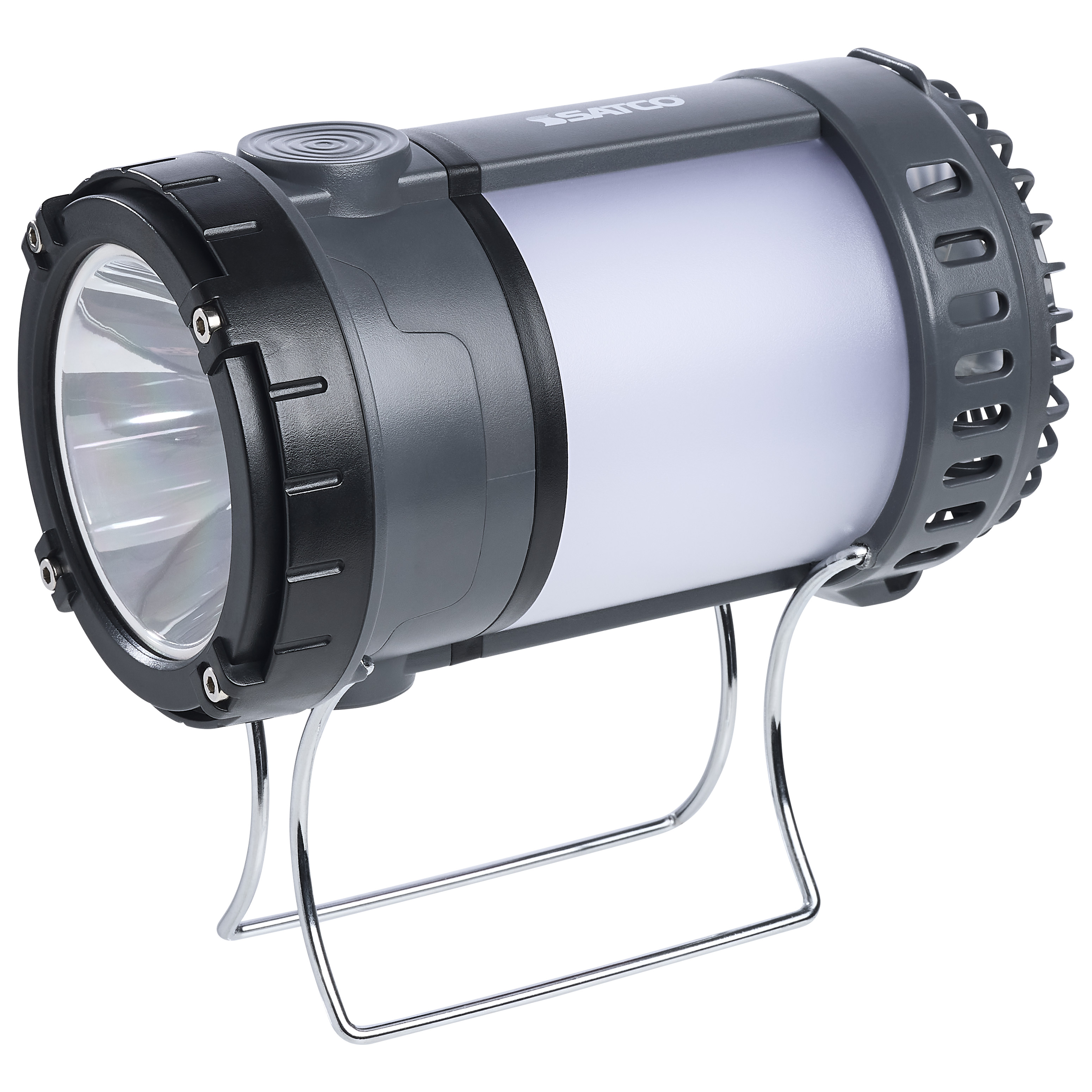

Mounting ProcedureHang Hook, Stand Base
Additional Info
Warranty1-Year
Installation NotesDo Not Charge The Product Below 40F Or above 104F; Do Not Exceed 5V DC, 1A Charging
Portable Light FunctionsFan Function, LED Lantern Function, White Light Function
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
ROHS CompliantYes
Energy Star CertifiedNo
T24/JA8 CompliantNo
Performance StandardsANSI PLATO FL1
Packaging
UPC045923300172
Case Cube1.3139
Case Height10.43
Case Length10.43
Case Quantity12
Case UPC10045923300179
Case Weight19.84
Case Width20.87
EA Cube0.0938
EA Height8.0
EA Length4.5
EA Quantity1
EA Weight1.48
EA Width4.5
Inner Cube0.7639
Inner Height9.53
Inner Length14.25
Inner Quantity6
Inner UPC20045923300176
Inner Weight8.81
Inner Width9.72
Pack TypeColor Box

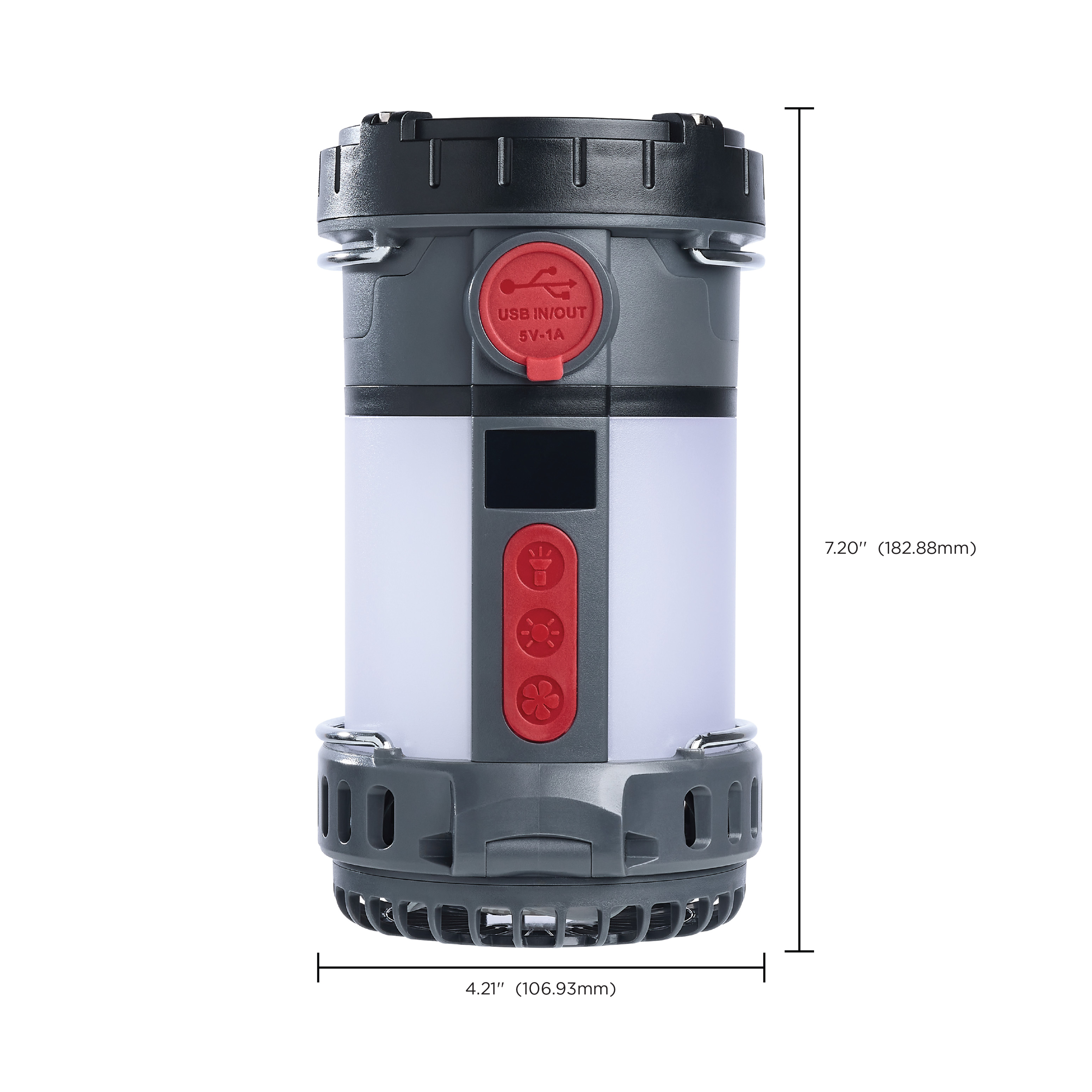

Web Height7.2
Web Length4.21
Web Width4.21
